XCAMLITE4K

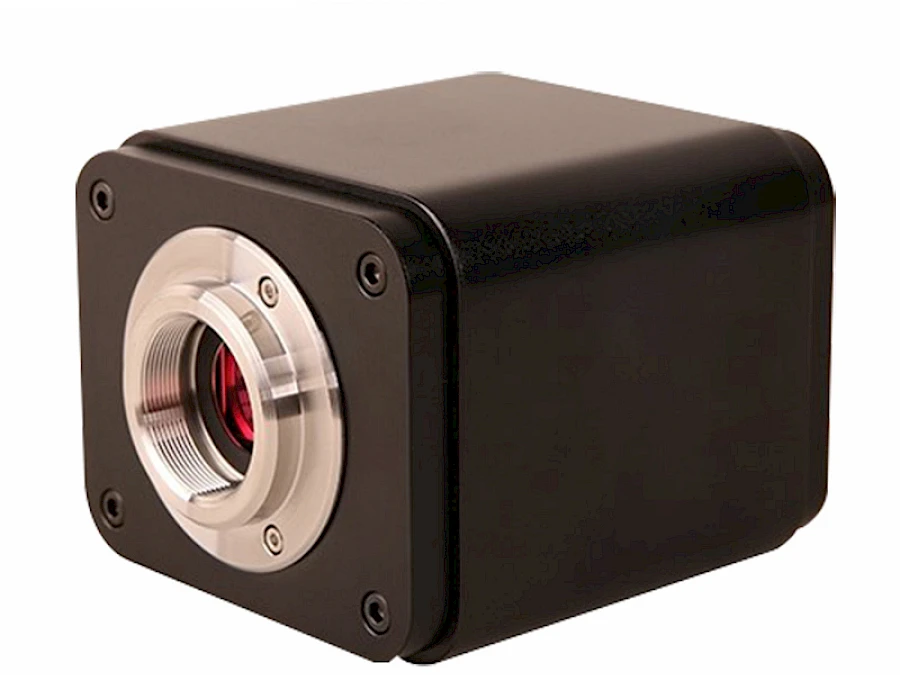

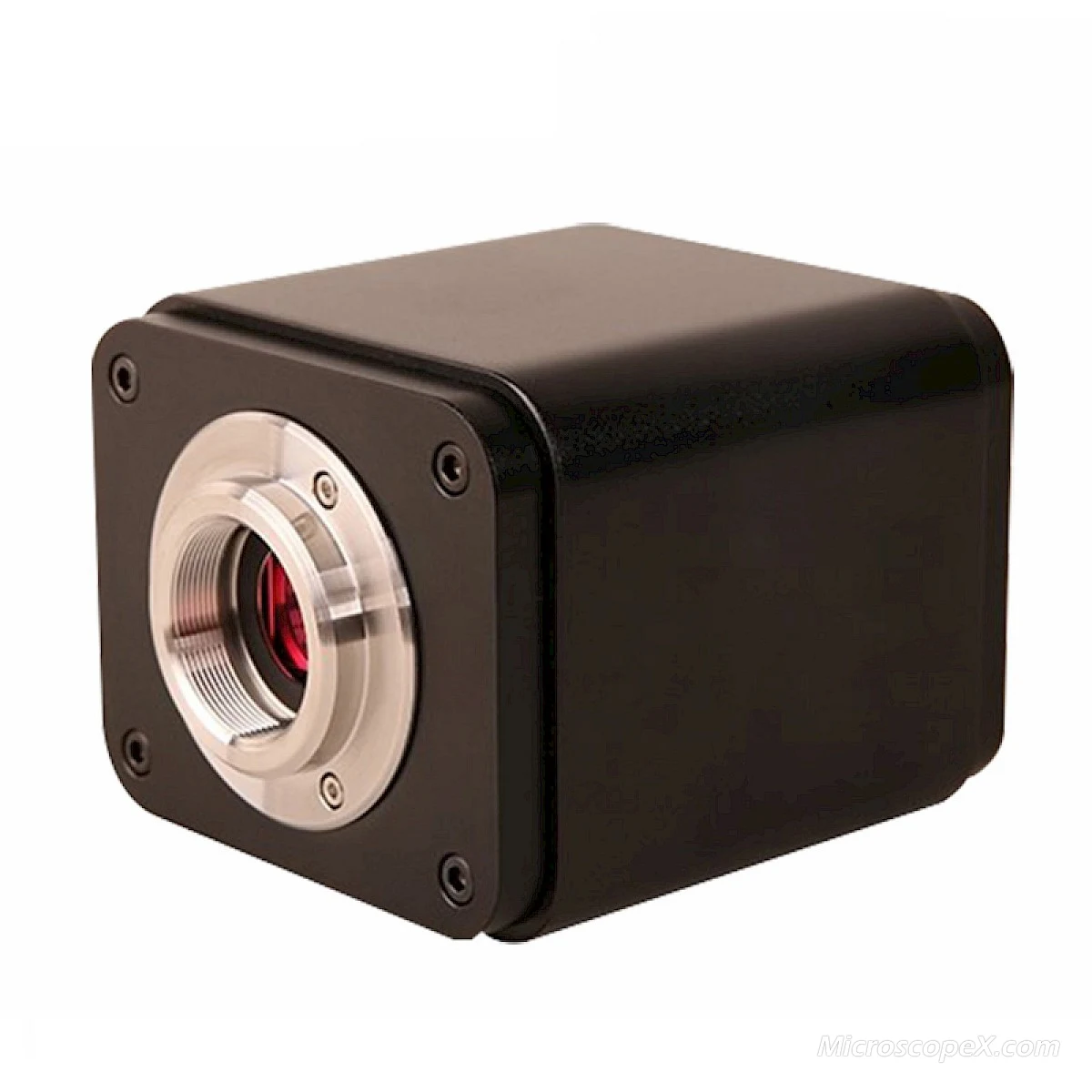

XCAMLITE4K Serie 4K 8MP C-mount HDMI+USB Digital Microscope Camera with Video & Measurement Functions

Sony IMX334(C), 1/1.8"(7.68x4.32) Sensor, 30@3840*2160, Digital Teaching (Teaching, Demonstration& Academic Discussing)

Core Features

Sony Exmor back illuminated CMOS sensor
4K HDMI/USB multiple video outputs
4K/1080P auto switching according to the display resolution
SD card for the captured image and video storage

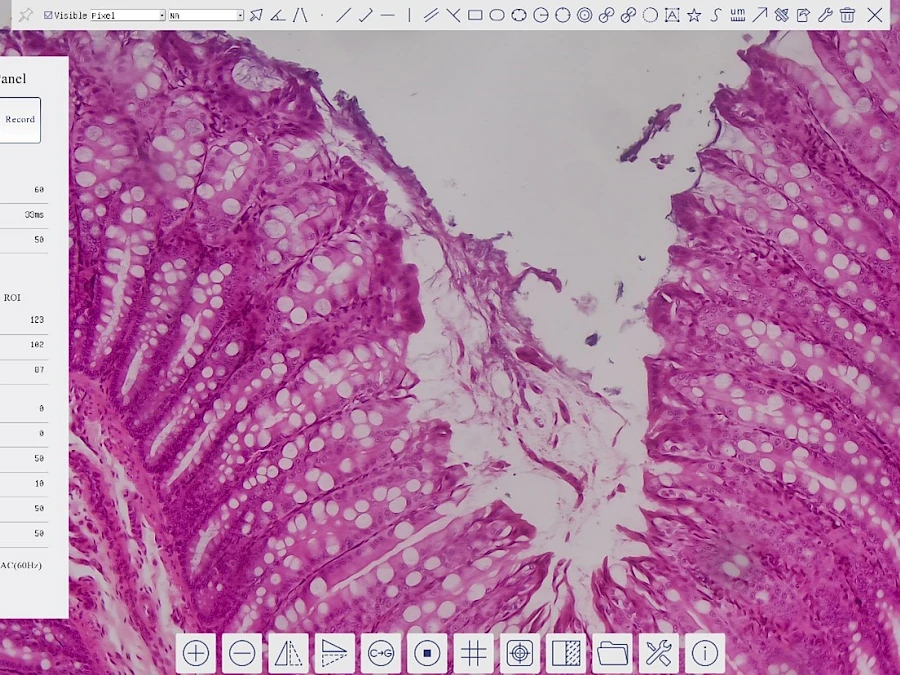

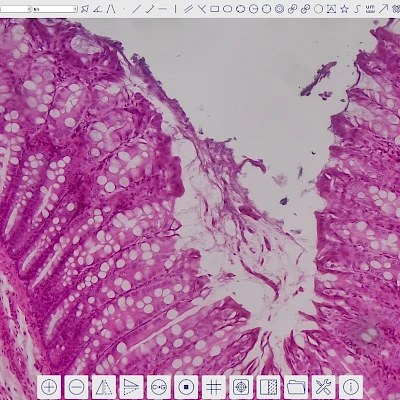

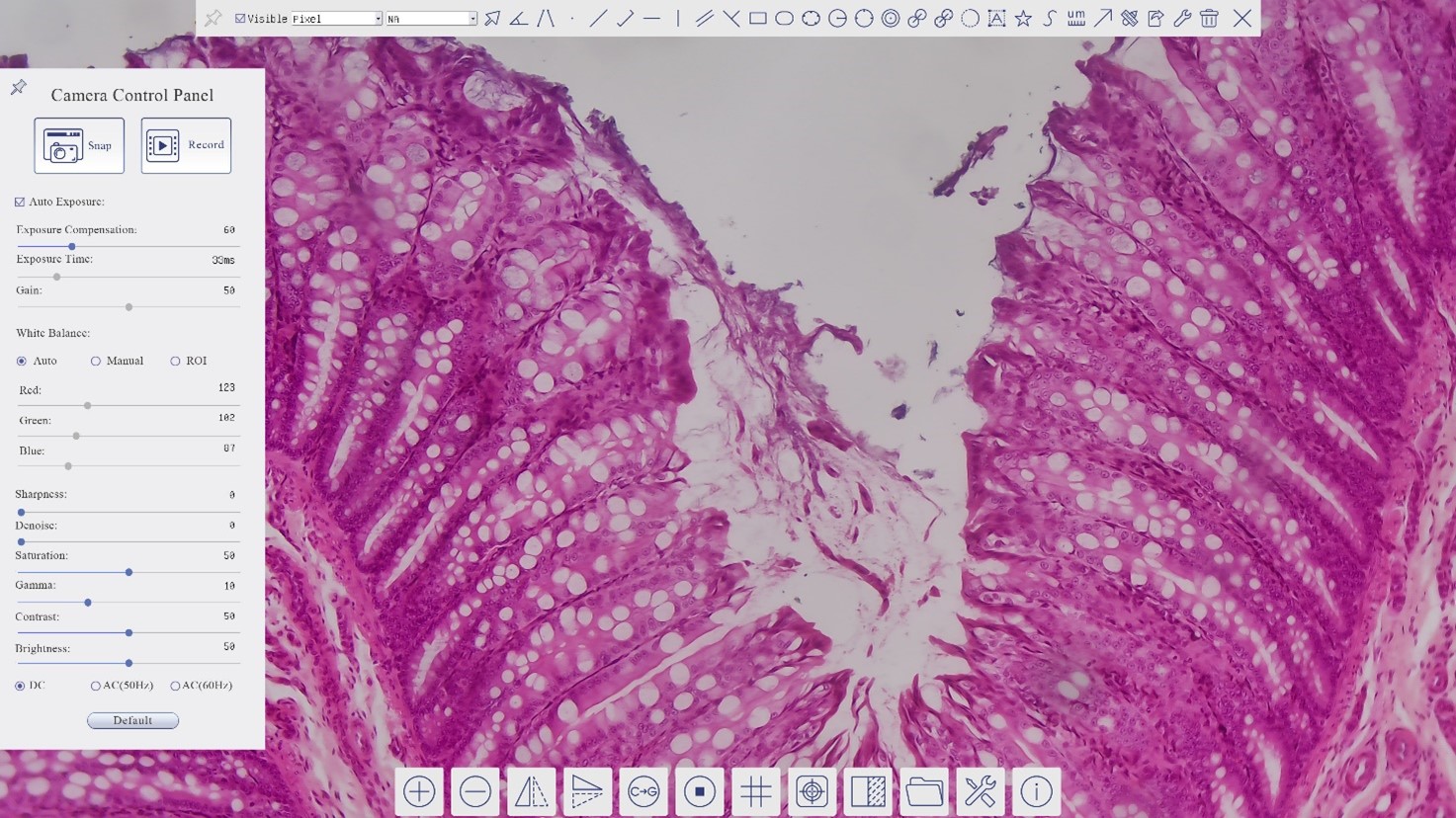

Embedded XCamView for the control of the camera
With strong ISP and other related processing functions

Configurations

Sony IMX334(C)

1/1.8"(7.68x4.32)

Pixel(μm)

2.0x2.0

30@3840*2160(HDMI)

20@3840*2160(USB)

Exposure(ms)

0.04~1000

Request Quotation Email Phone Back to Products

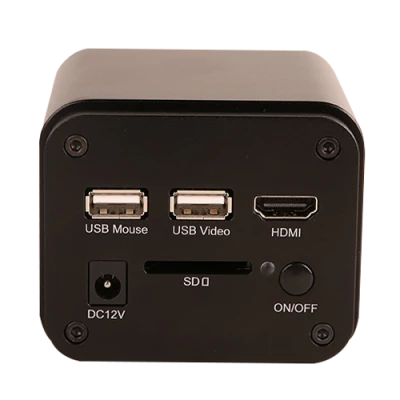

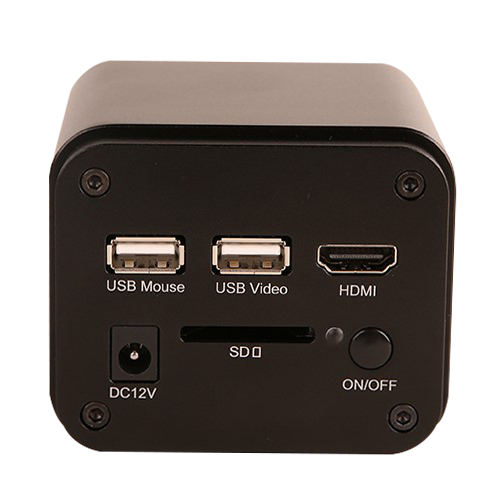

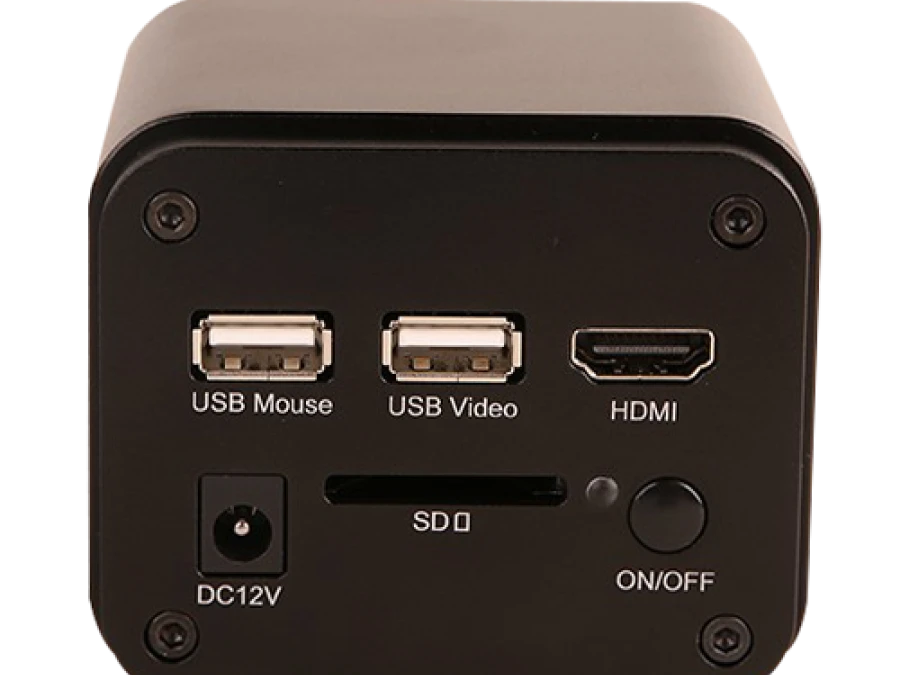

Structure of XCAMLITE4K Microscope Camera

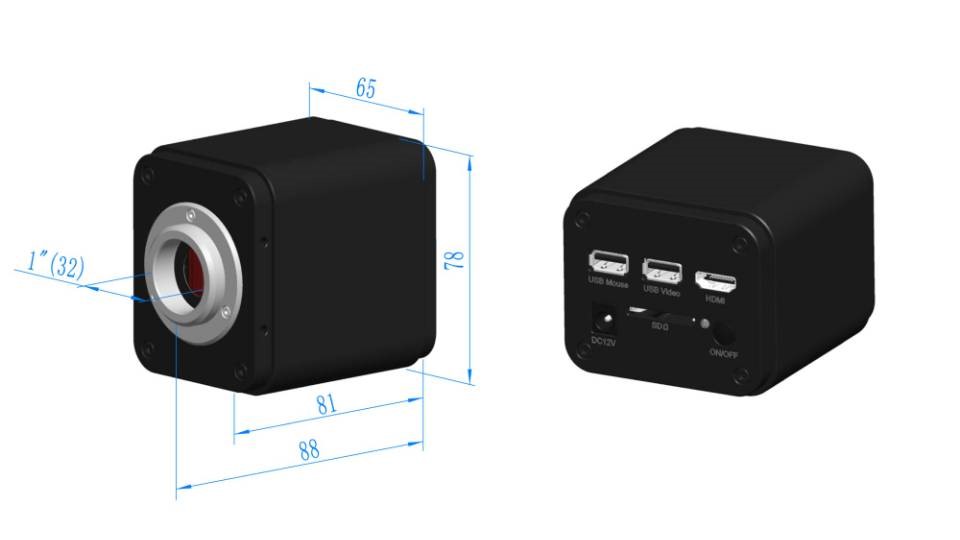

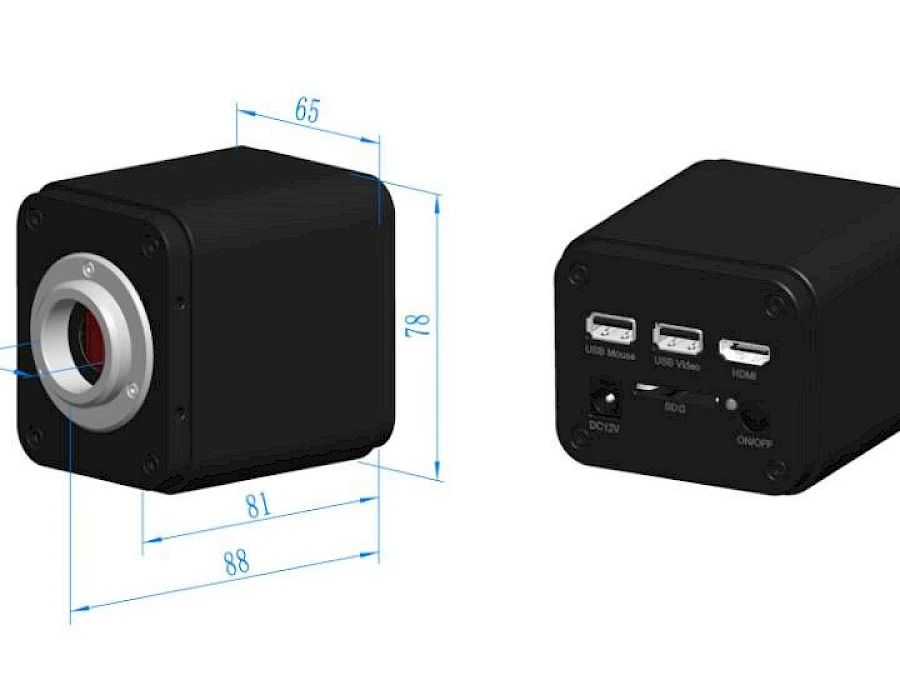

Dimension of XCAMLITE4K Microscope Camera

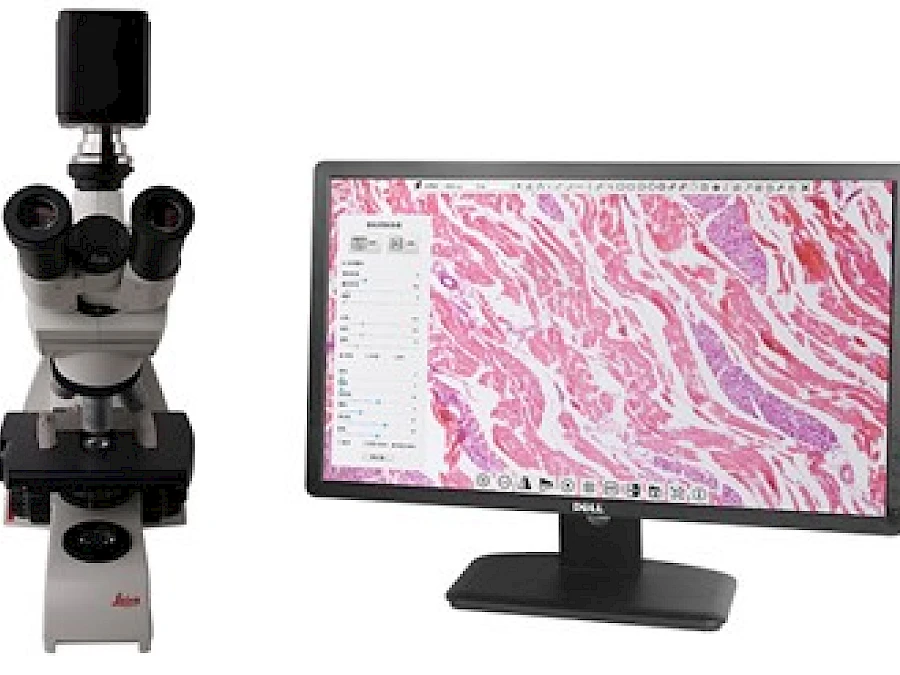

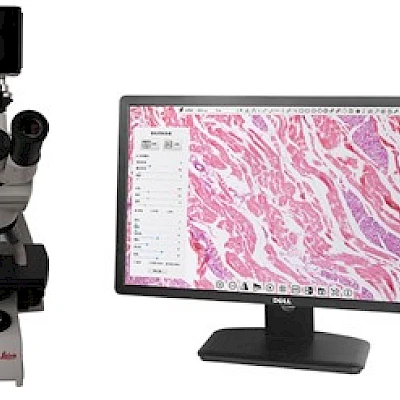

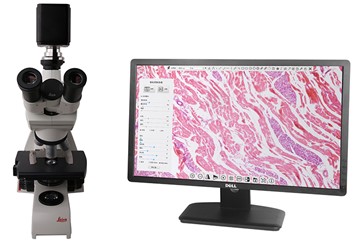

XCAMLITE4K with its connected Microscope

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity	FPS/Resolution	Binning	Exposure(ms)
XCAMLITE4K8MPA	Sony IMX334(C) 1/1.8"(7.68x4.32)	2.0x2.0	505mv with 1/30s 0.1mv with 1/30s	30@38402160(HDMI) 20@38402160(USB)	1x1	0.04~1000

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

FPS/Resolution

Binning

Exposure(ms)

XCAMLITE4K8MPA

Sony IMX334(C)

1/1.8"(7.68x4.32)

2.0x2.0

505mv with 1/30s

0.1mv with 1/30s

30@3840*2160(HDMI)

20@3840*2160(USB)

1x1

0.04~1000

Interface	Function Description
USB Mouse	Connect USB mouse for easy operation with embedded XCamView software;
USB Video	Connect PC or other host device to realize video image transmission;
HDMI	Comply with HDMI1.4 standard. 4K or 1080P format video output for standard monitor;
DC12V	Power adapter connection (12V/1A);
SD	Comply with SDIO3.0 standard and SD card could be inserted for video and images storage;
LED	LED status indicator;
ON/OFF	Power switch;

Video Output Interface	Function Description
HDMI Interface	Comply with HDMI1.4 standard; 30fps@4K or 30fps@1080P;
USB Video Interface	Connecting USB port of PC for video transfer ; MJPEG format video;

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI1.4 standard;

30fps@4K or 30fps@1080P;

USB Video Interface

Connecting USB port of PC for video transfer ;

MJPEG format video;

Function Name	Function Description
Video Saving	Video format：8M(3840*2160) H264/H265 encoded MP4 file; Video saving frame rate：30fps;
Image Capture	8M (3840*2160) JPEG/TIFF image in SD card ;
Measurement Saving	Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode.

Function Name

Function Description

Video Saving

Video format：8M(3840*2160) H264/H265 encoded MP4 file;

Video saving frame rate：30fps;

Image Capture

8M (3840*2160) JPEG/TIFF image in SD card ;

Measurement Saving

Measurement information saved in layer mode with image content;

Measurement information is saved together with image content in burn in mode.

Function Name	Function Description
Exposure / Gain	Automatic / Manual Exposure
White Balance	Manual / Automatic / ROI Mode
Sharpening	Supported
3D Denoise	Supported
Saturation Adjustment	Supported
Contrast Adjustment	Supported
Brightness Adjustment	Supported
Gamma Adjustment	Supported
50HZ/60HZ Anti-flicker Function	Supported

Function Name	Function Description
Zoom In/Zoom Out	Up to 10X
Mirror/Flip	Supported
Freeze	Supported
Cross Line	Supported
Overlay	Supported
Embedded Files Browser	Supported
Video Playback	Supported
Measurement Function	Supported

Function Name	Function Description
Embedded RTC(Optional)	To support accurate time on board
Restore Factory Settings	Supported
Multiple Language Support	English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian

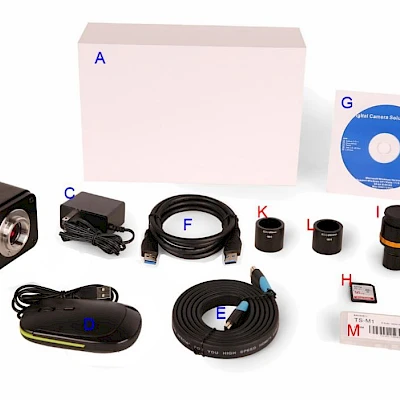

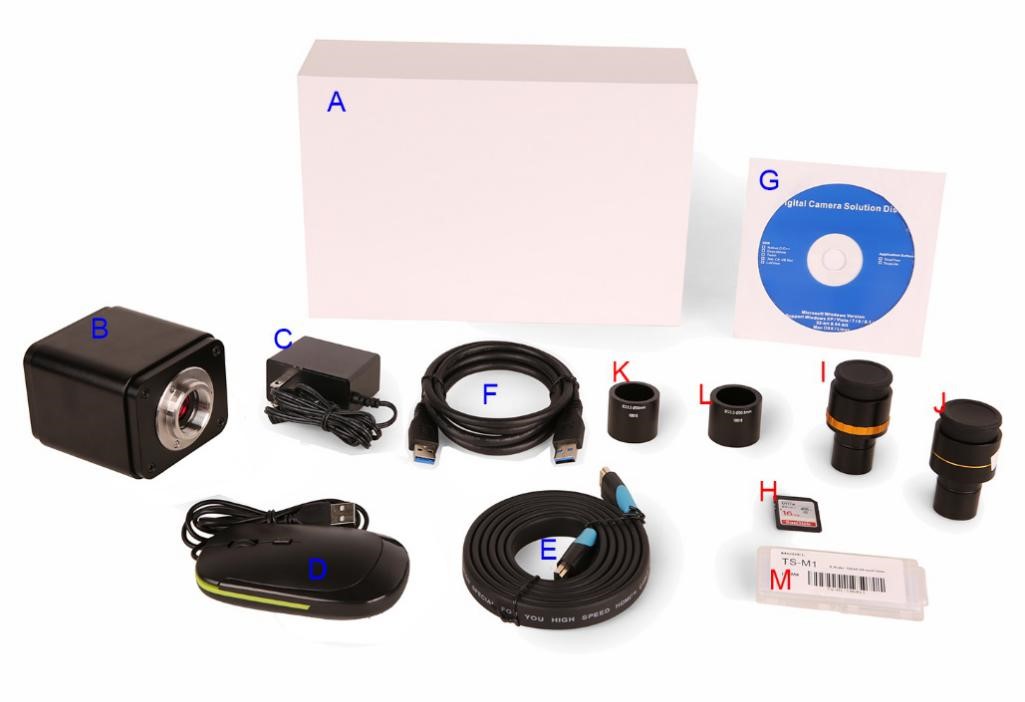

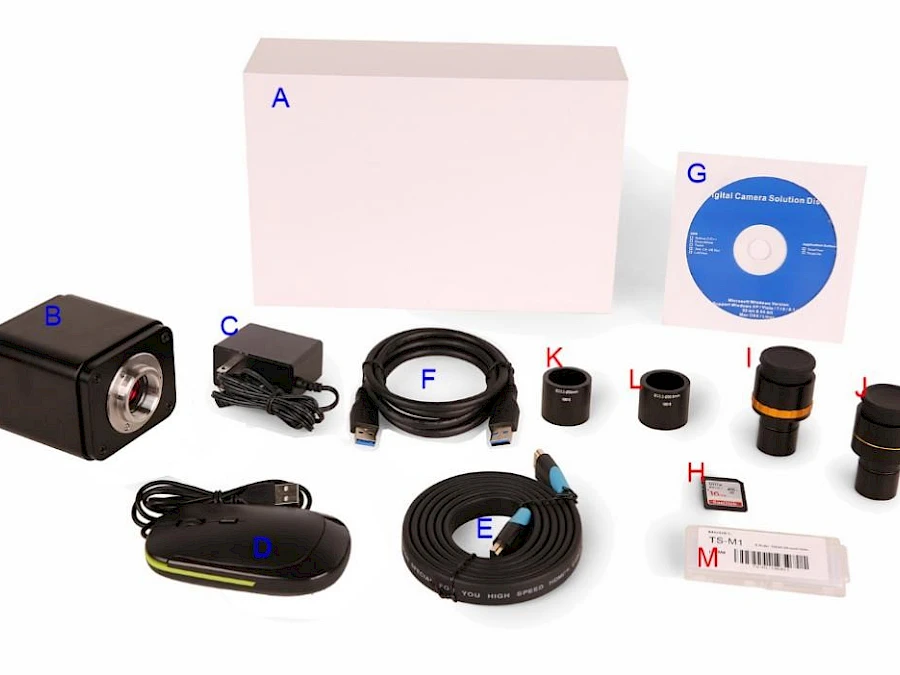

Standard Packing List
A	Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs,1.57kg/ box)
B	XCAMTOP4K series camera
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6
D	USB Mouse
E	HDMI cable
F	USB2.0 A male to A male gold-plated connectors cable /2.0m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H	SD Card(16G or above; Speed: class 10)
I	Adjustable lens adapter	C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)		108001/AMA037 108002/AMA050 108003/AMA075
J	Fixed lens adapter	C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)		108005/FMA037 108006/FMA050 108007/FMA075
NOTE: For I and J optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application;
K	108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
L	108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
M	Calibration kit		106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
N	USB flash drive
O	USB WLAN adapter
P	Ethernet cable
