XCAMTOP4K

XCAMTOP4K 3840*2160 SONY 4K Digital Microscope Camera with HDMI+USB+LAN+WIFI Outputs for School Jewelry Soldering

Sony IMX334(C) 1/1.8"(7.68x4.32) Sensor; With ISP Processing Functions, SD Card/ USB Flash Drive to Save

Core Features

Sony Exmor/STARVIS back-illuminated CMOS sensor
4K HDMI/ NETWORK/ USB multiple video outputs
4K/1080P auto switching according to monitor resolution
SD card/USB flash drive for captured image and video storage, support local preview and playback

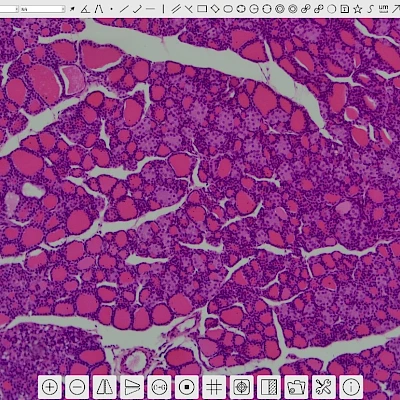

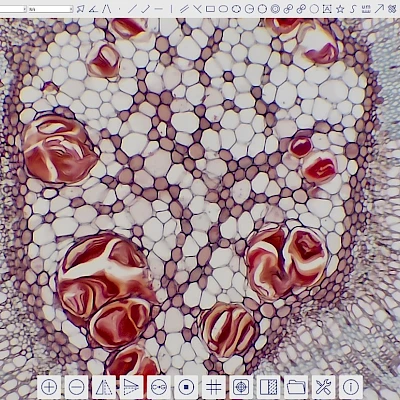

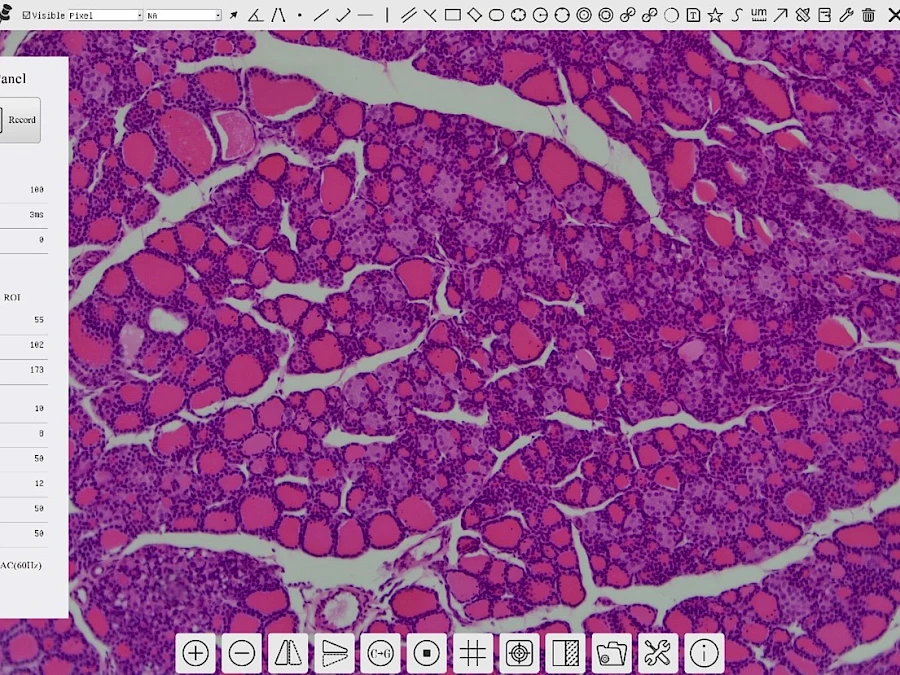

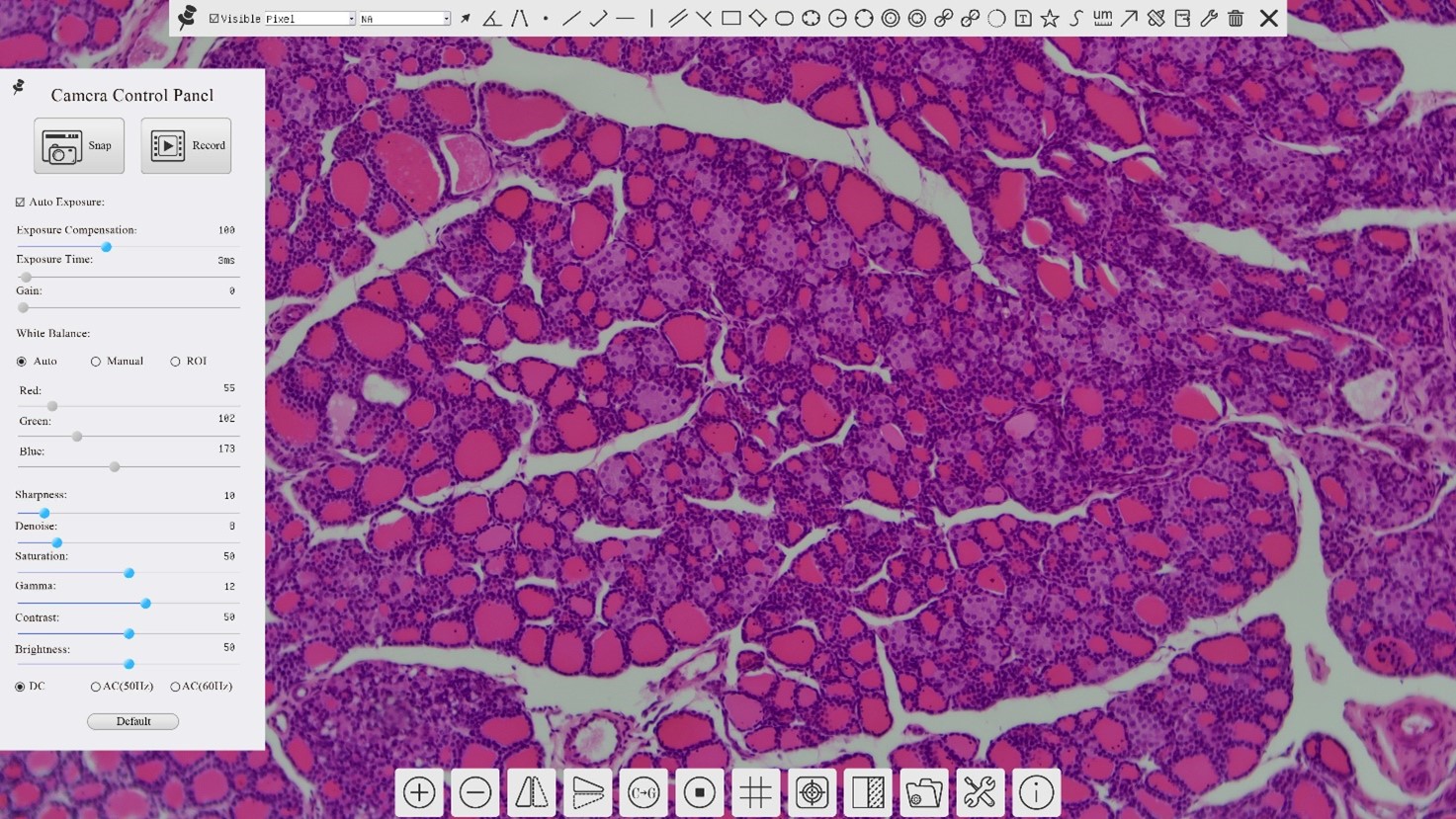

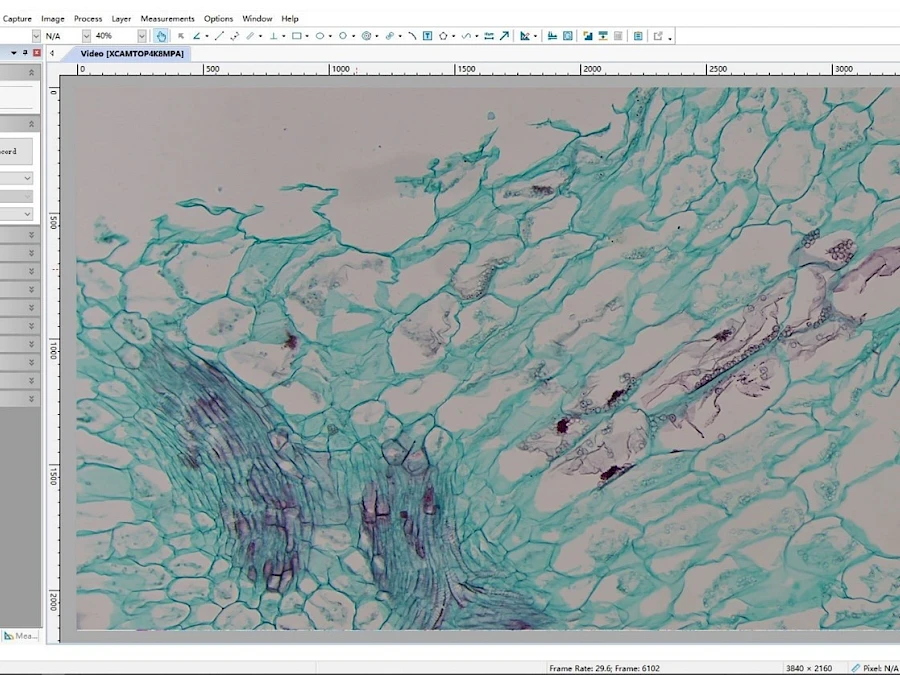

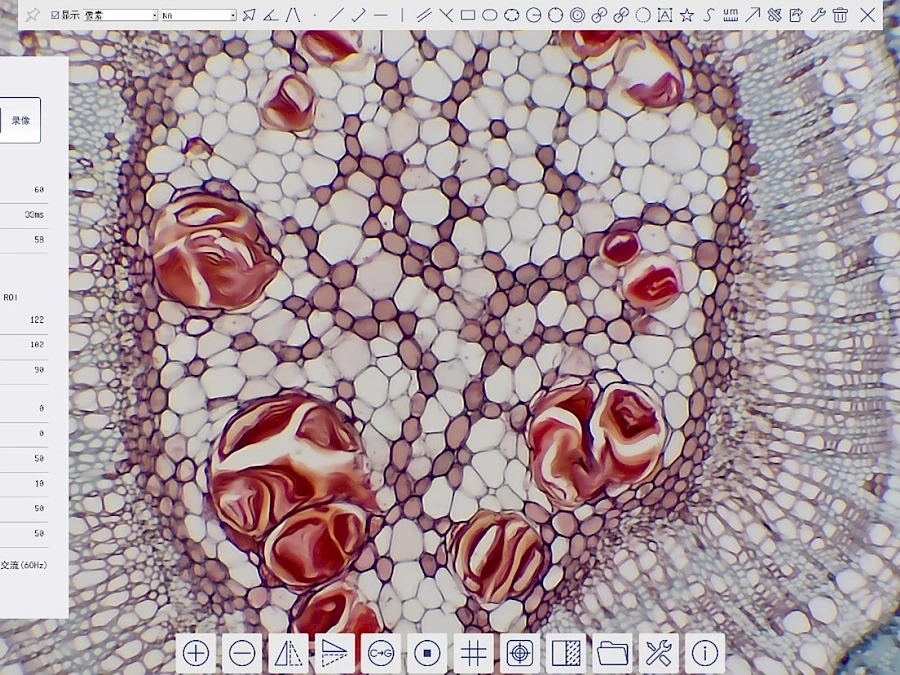

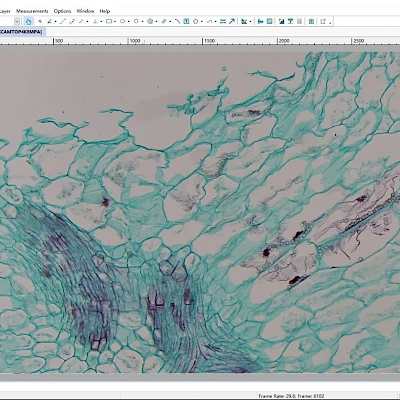

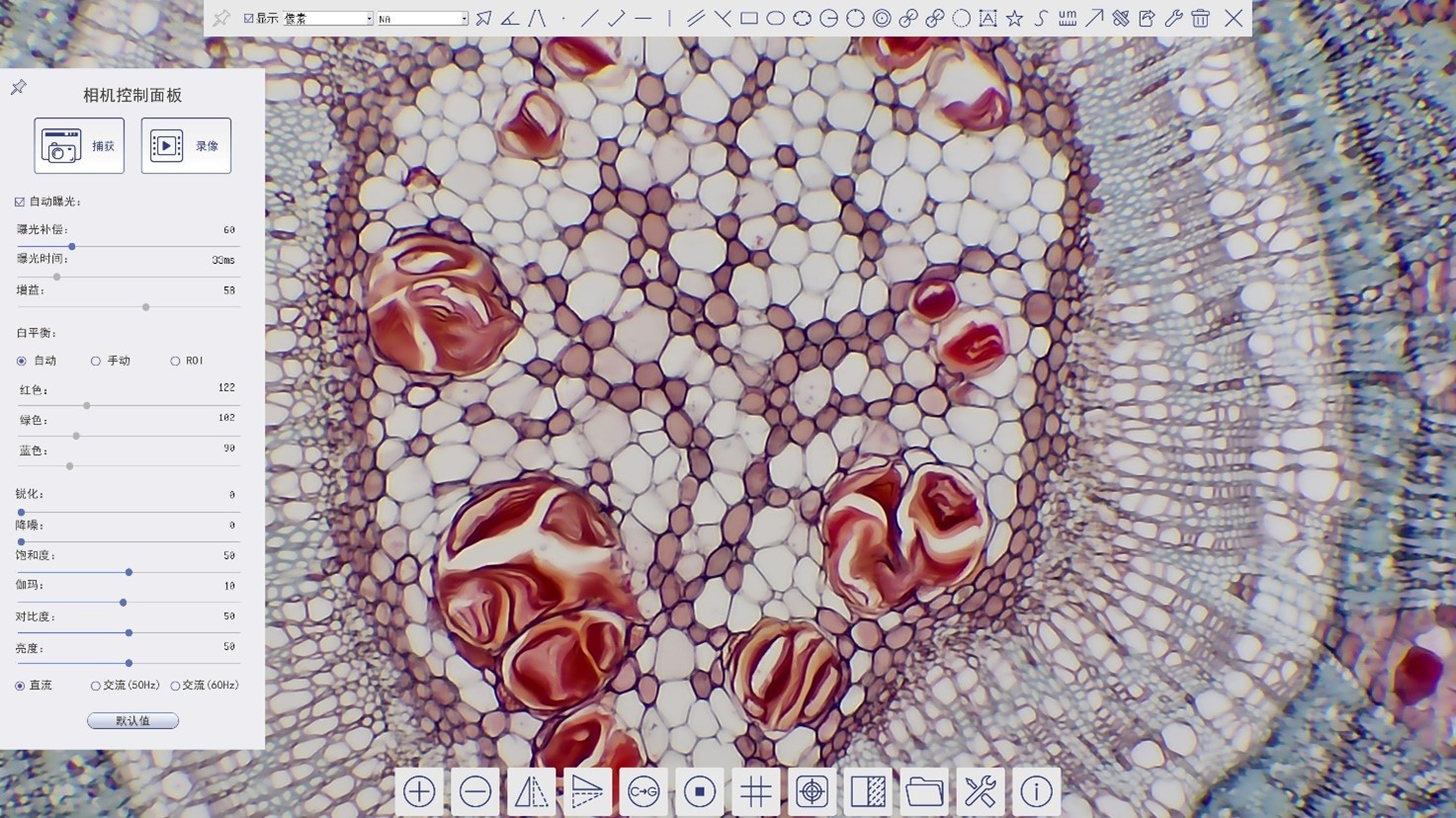

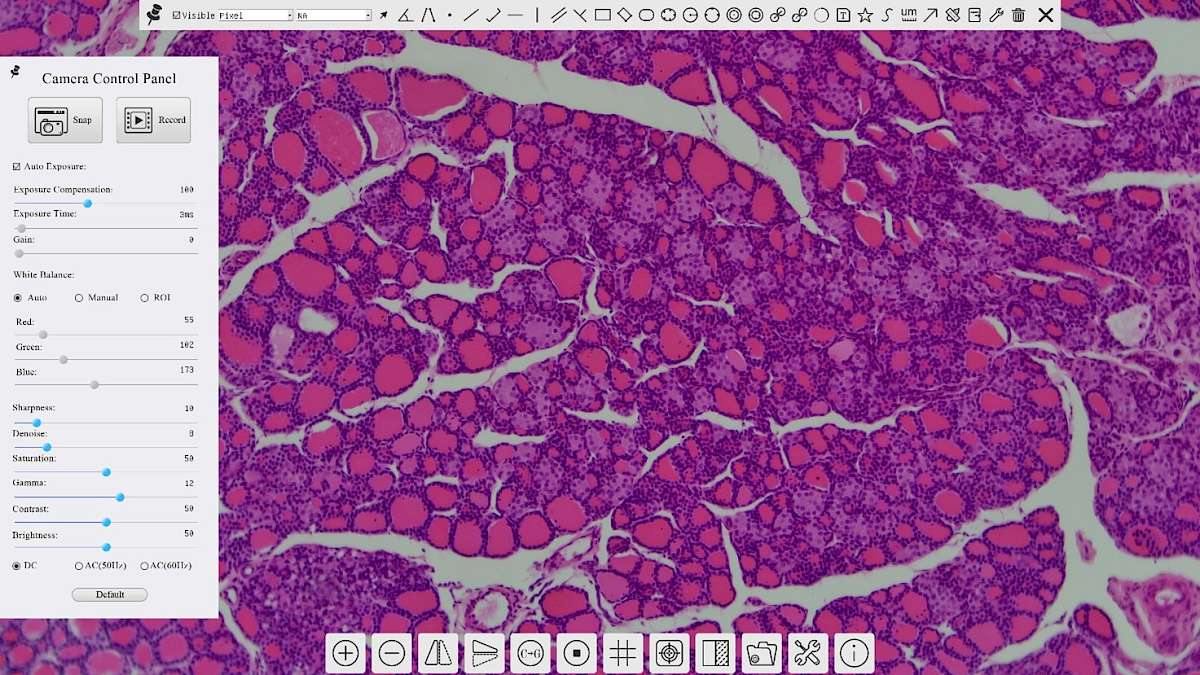

Embedded XCAMView for the control of the camera and image processing
Excellent ISP with local tone mapping and 3D denoising

Configurations

HDMI USB

LAN WIFI

Video=Saving

Measurement

White Balance

Request Quotation Email Phone Back to Products

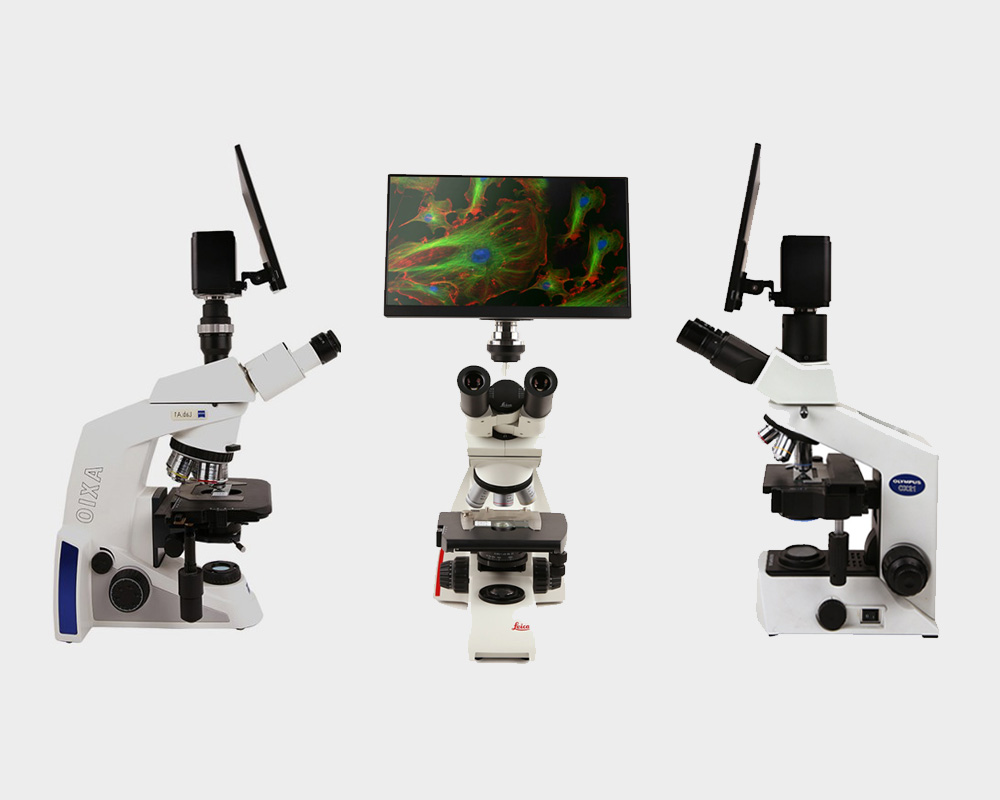

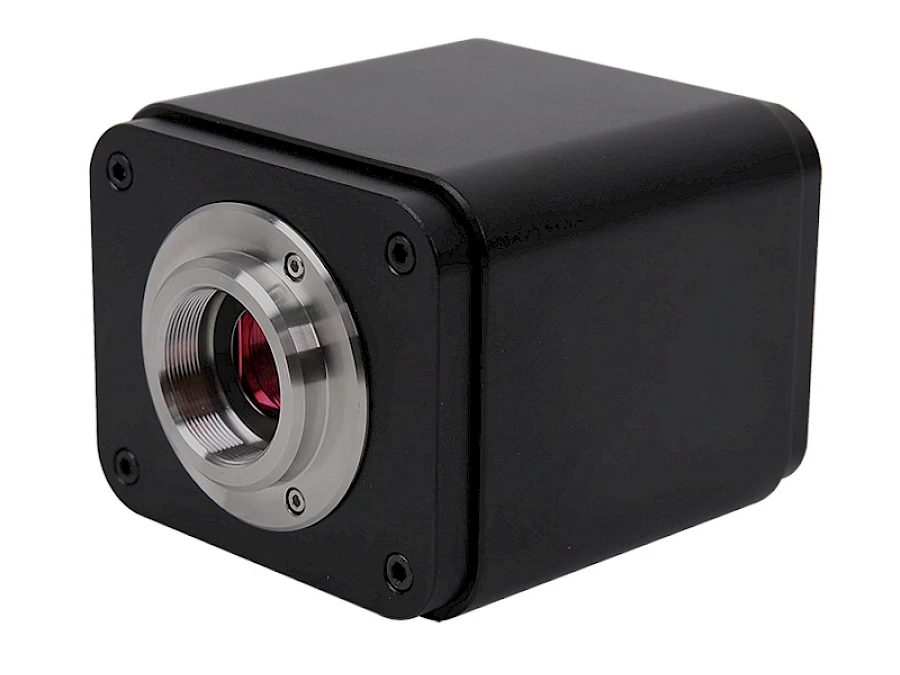

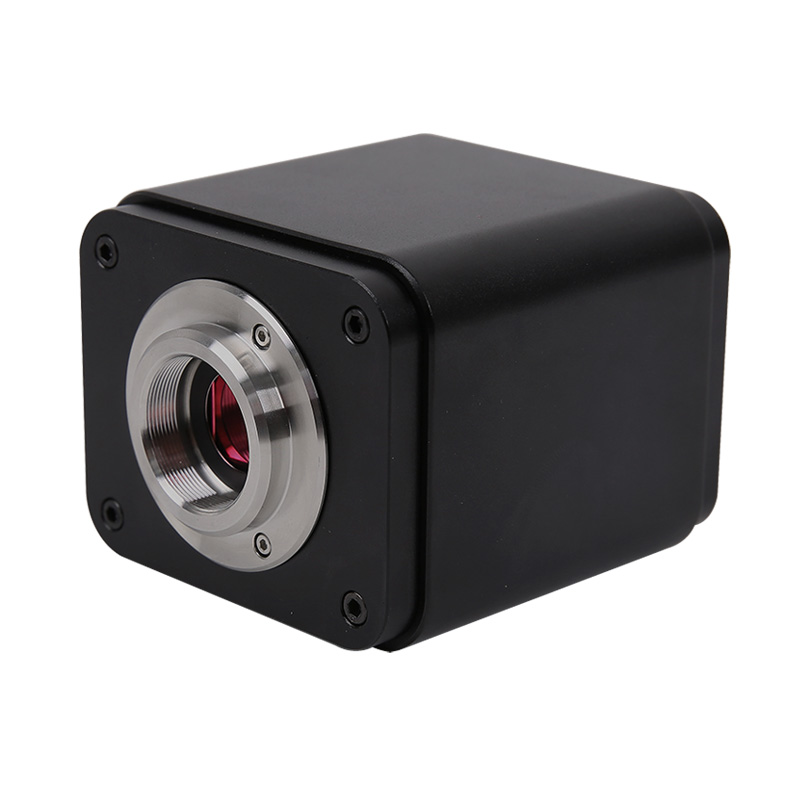

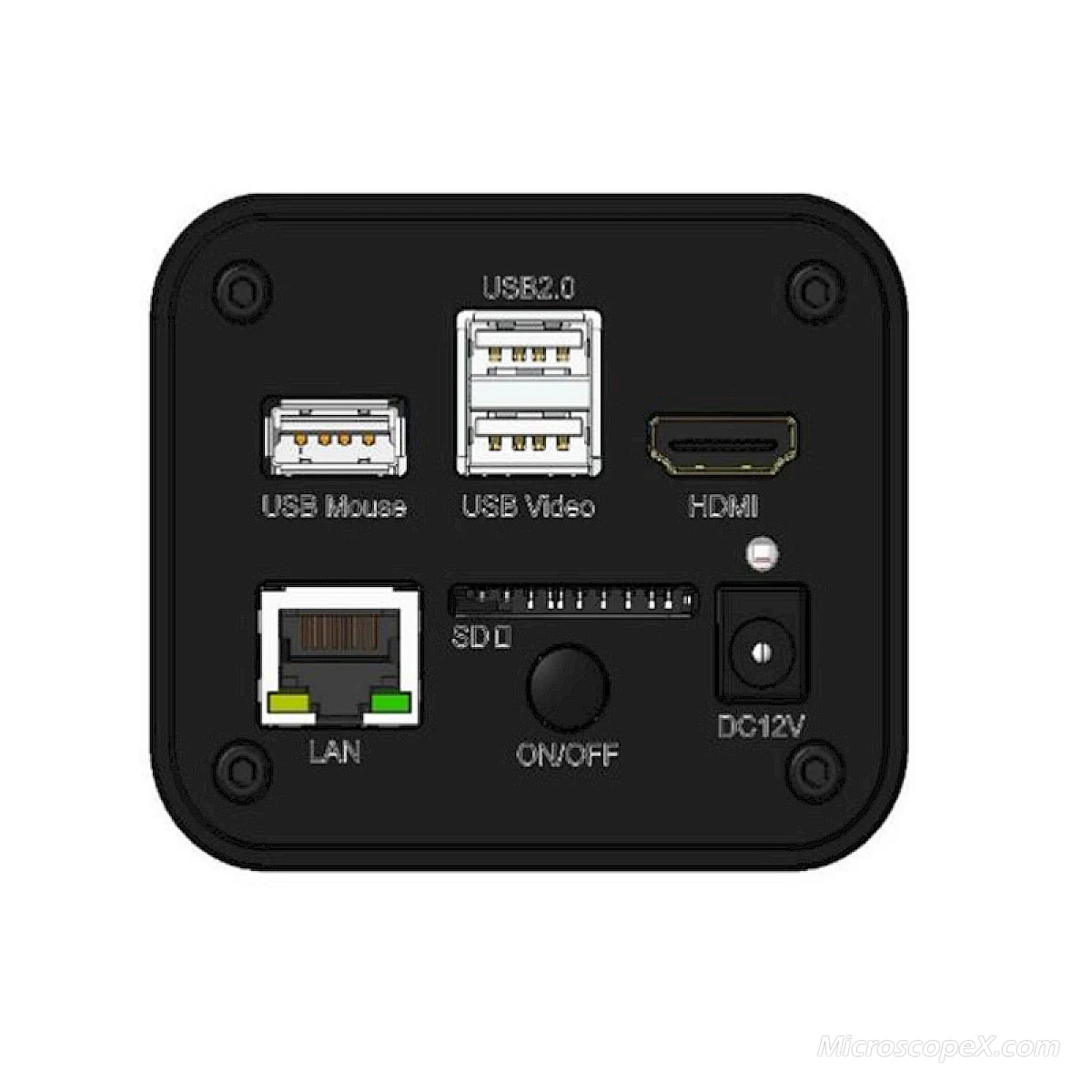

Different Views of XCAMTOP4K Microscope Camera

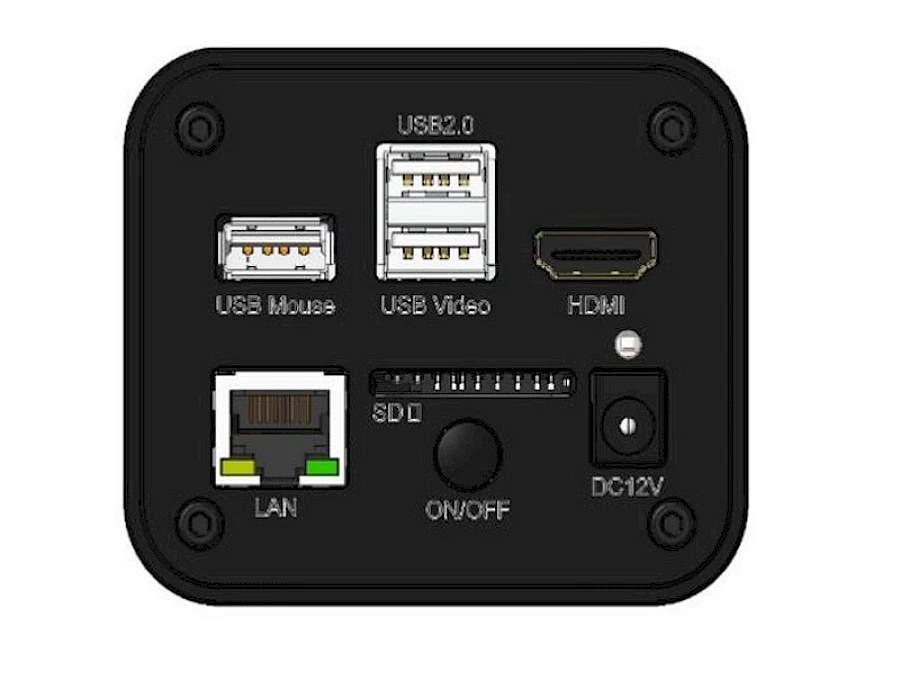

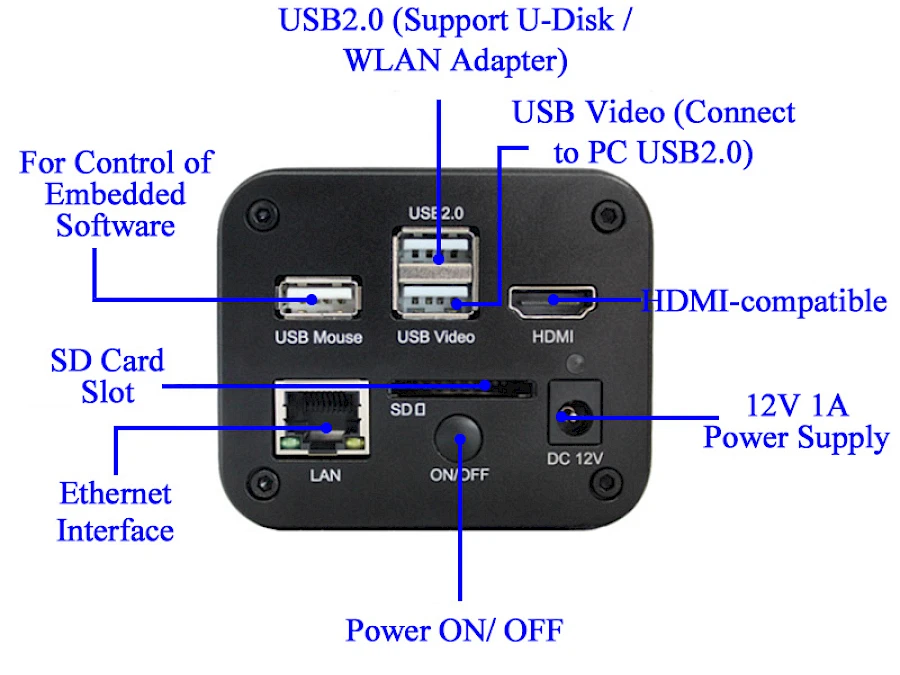

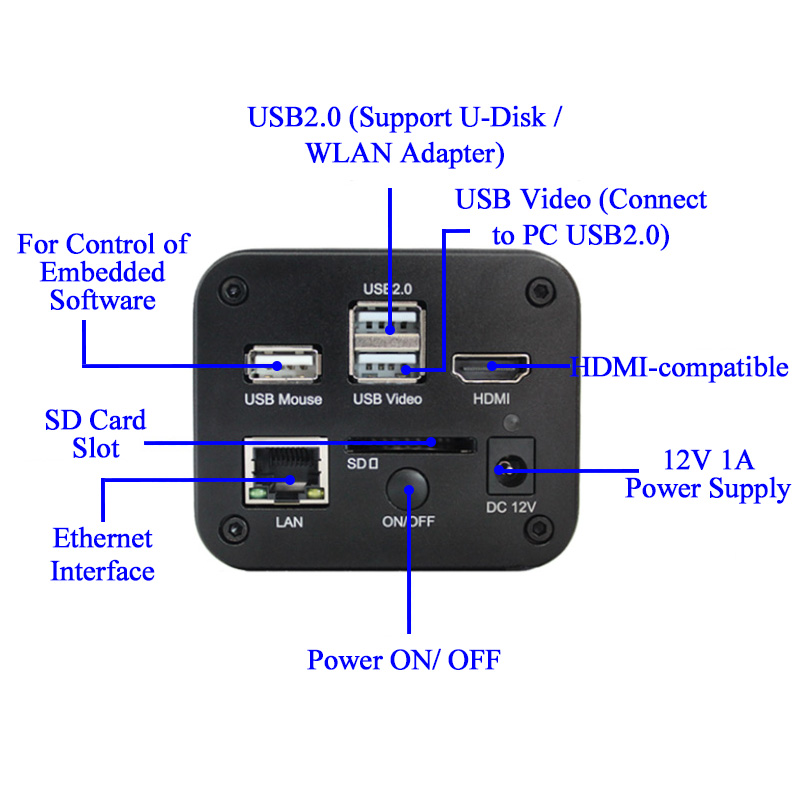

Structure of XCAMTOP4K

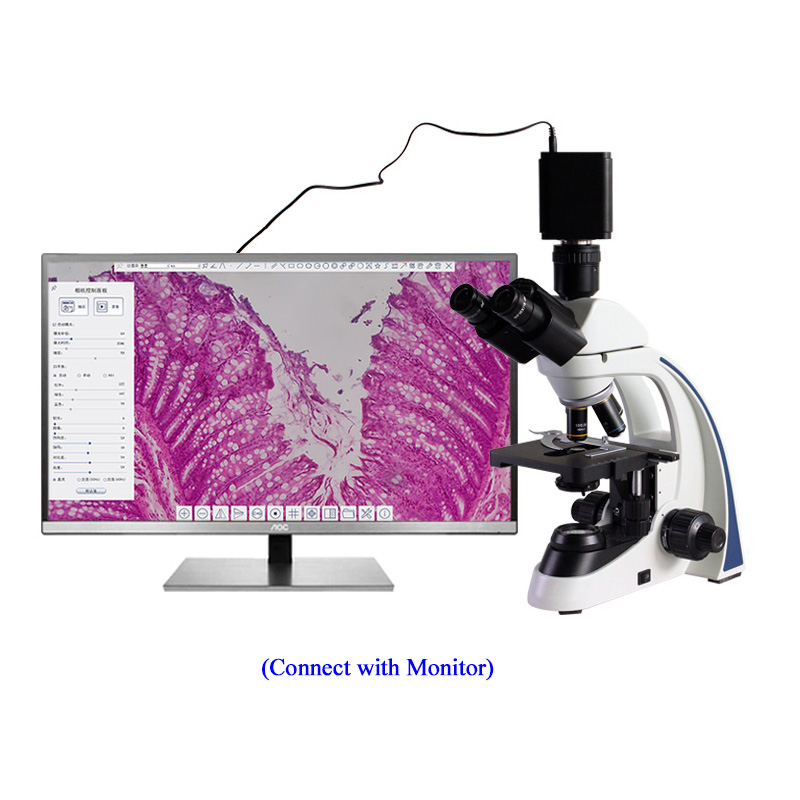

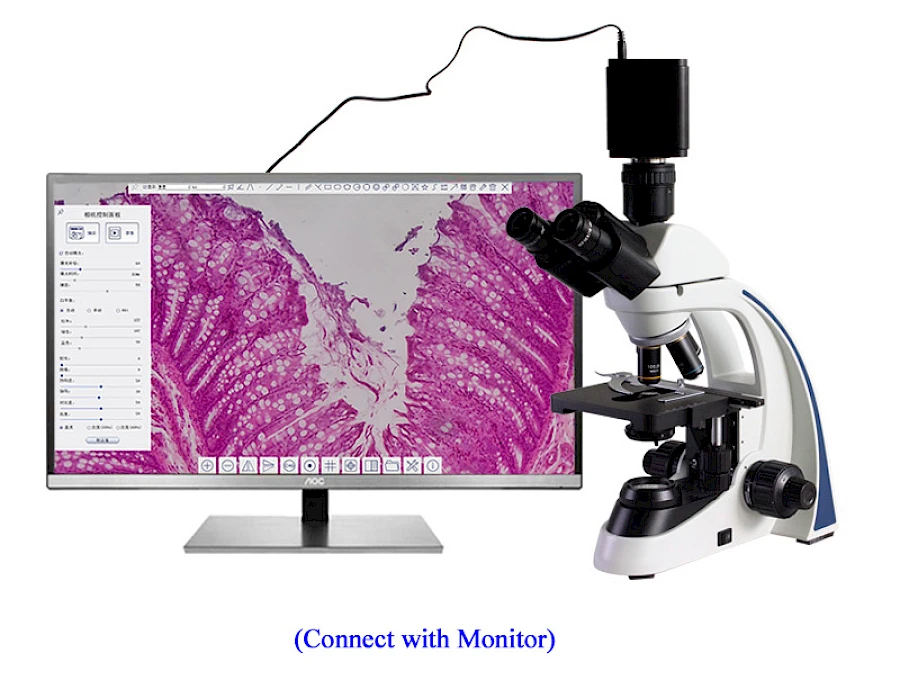

XCAMTOP4K with its connected Microscope

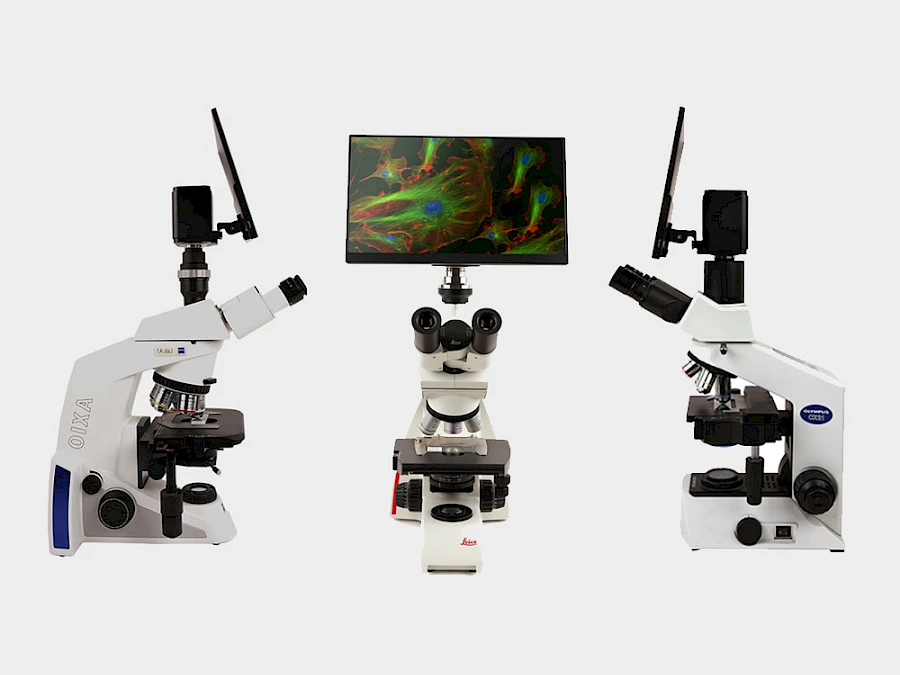

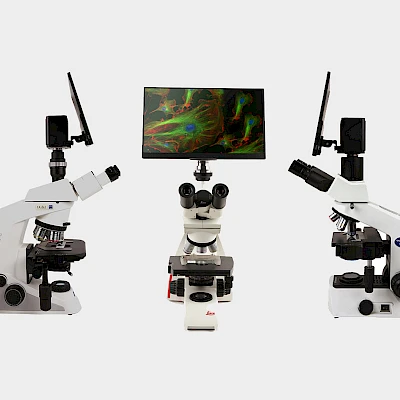

XCAMTOP4K with its connected 4K Monitor

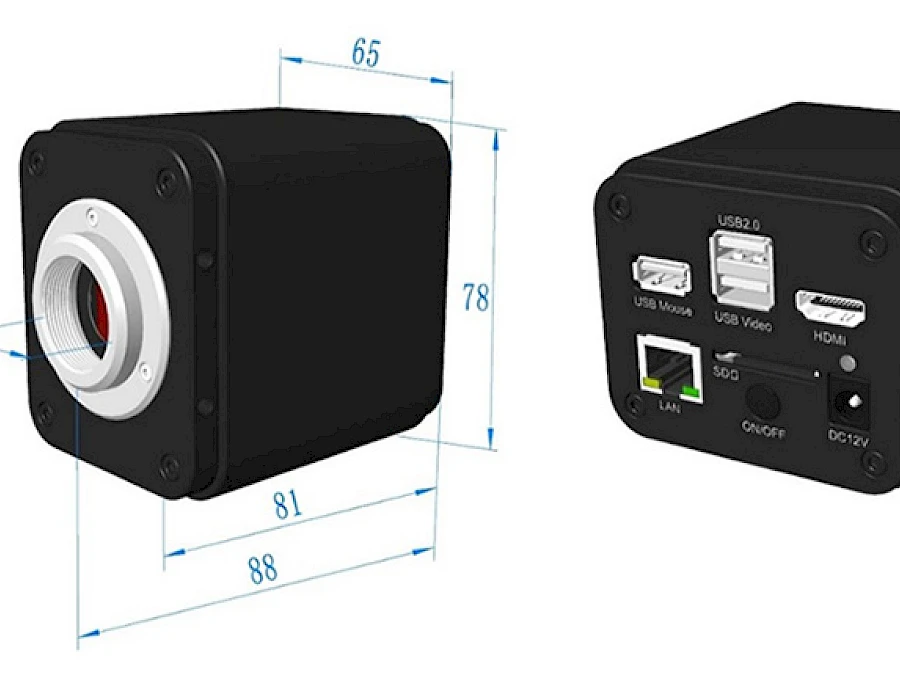

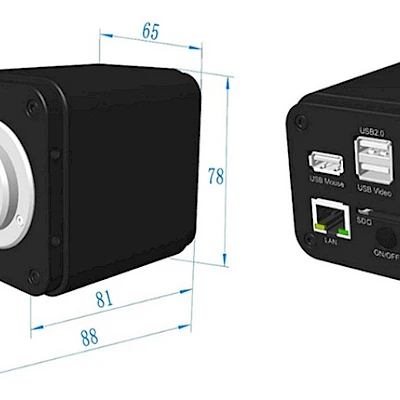

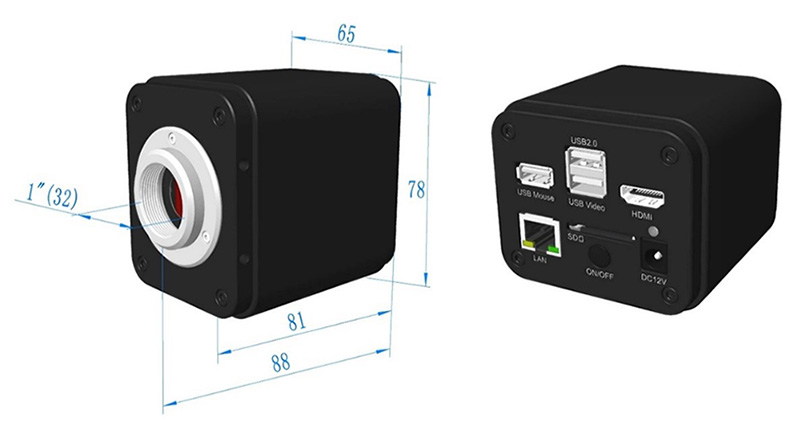

Dimension of XCAMTOP4K

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure(ms)
XCAMTOP4K8MPA	Sony IMX334(C) 1/1.8"(7.68x4.32)	2.0x2.0	505mv with 1/30s 0.1mv with 1/30s	30@38402160(HDMI) 30@38402160(NETWORK) 30@3840*2160(USB)	1x1	0.04~1000
XCAMTOP4K8MPB	Sony IMX485(C) 1/1.2"(11.14x6.26)	2.9x2.9	2188mv with 1/30s 0.39mv with 1/30s	30@38402160(HDMI) 30@38402160(NETWORK) 30@3840*2160(USB)	1x1	0.04~1000

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure(ms)

XCAMTOP4K8MPA

Sony IMX334(C)
1/1.8"(7.68x4.32)

2.0x2.0

505mv with 1/30s
0.1mv with 1/30s

30@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)

1x1

0.04~1000

XCAMTOP4K8MPB

Sony IMX485(C)
1/1.2"(11.14x6.26)

2.9x2.9

2188mv with 1/30s
0.39mv with 1/30s

30@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)

1x1

0.04~1000

Interface or Button	Function Description
USB Mouse	Connect USB mouse for easy operation with embedded XCAMView software
USB2.0	Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time
USB Video	Connect PC or other host device to realize video image transmission
HDMI	Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors
LAN	LAN port to connect router and switch to transfer video
SD	Comply with SDIO3.0 standard and SD card could be inserted for video and images saving
ON/OFF	Power switch
LED	LED status indicator
DC12V	Power adapter connection (12V/1A)
Video Output Interface	Function Description
HDMI Interface	Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P
LAN Interface	support real time resolution switching(4K/1080P/720P) H264 encoded video DHCP configuration or manual configuration Unicast/multicast configuration
WLAN Interface	Connecting 5G WLAN adapter (USB2.0 slot) in AP/STA mode
USB Video Interface	Connecting USB Video port of PC for video transfer MJPEG format video
Other Function	Function Description
Video Saving	Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps
Image Capture	8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive
Measurement Saving	Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode
ISP	Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment， Color to Gray， 50HZ/60HZ Anti-flicker Function
Image Operation	Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison between real time video and images in SD card or USB flash drive ), Embedded Files Browser, Video Playback, Measurement Function
Embedded RTC(Optional)	To support accurate time on board
Restore Factory Settings	Restore camera parameters to its factory status
Multiple Language Support	English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian

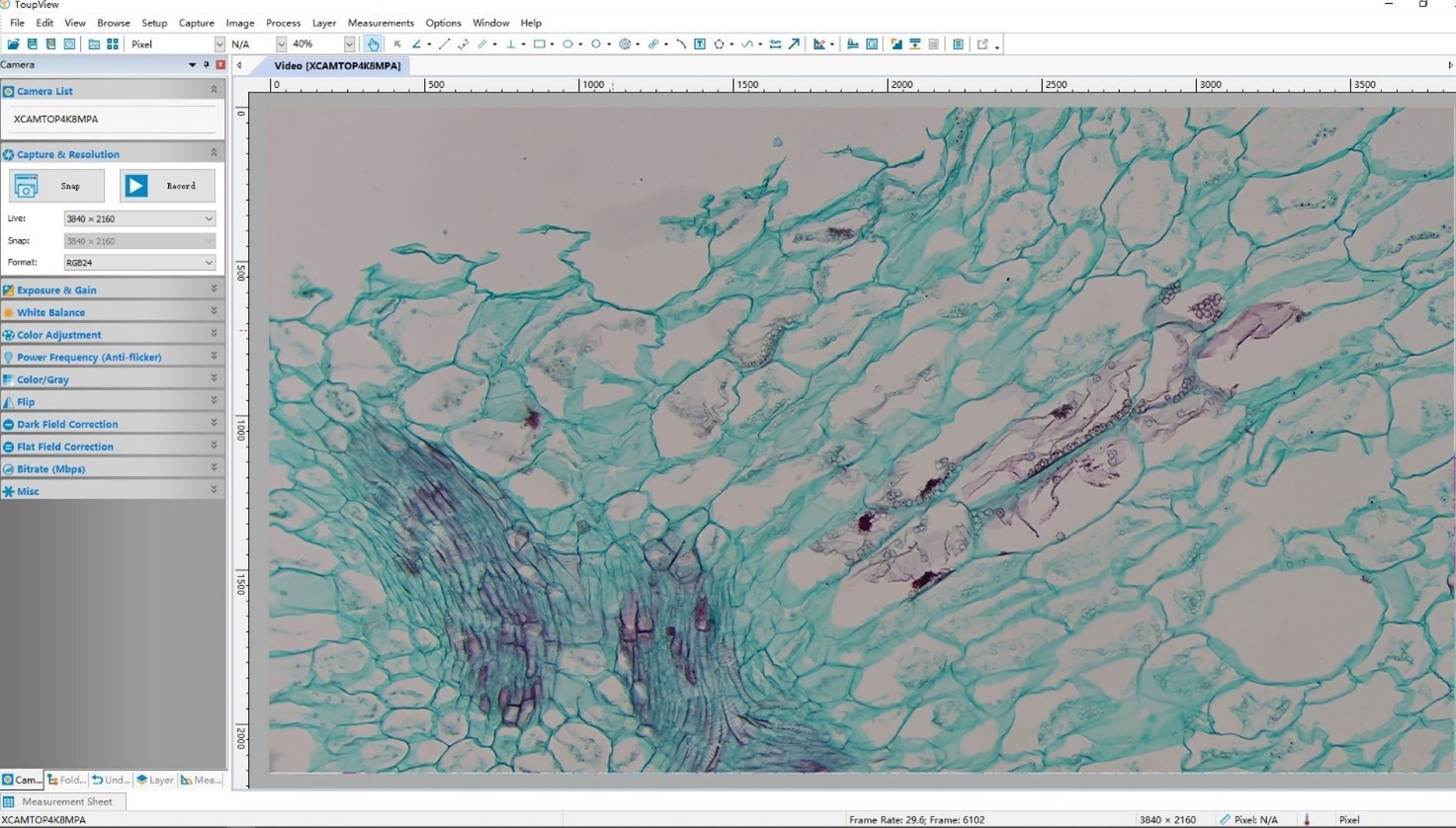

Software Environment under LAN/WLAN/USB Video Output
White Balance	Auto White Balance
Color Technique	Ultra-Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture or Movie
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	Ethernet Port: RJ45 Ethernet Port
	Display:19” or Larger
	CD-ROM
Operating Environment
Operating Temperature (in Centidegree)	-10°~ 50°
Storage Temperature (in Centidegree)	-20°~ 60°
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/1A Adapter

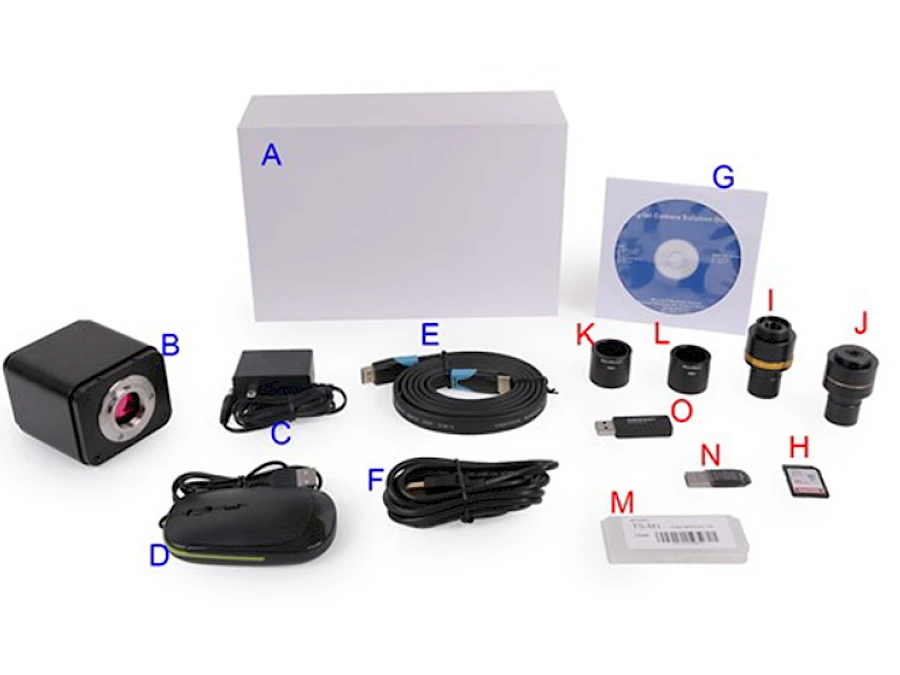

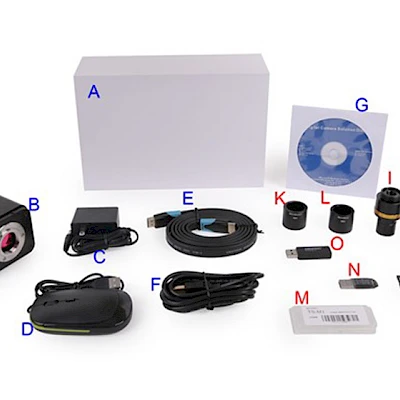

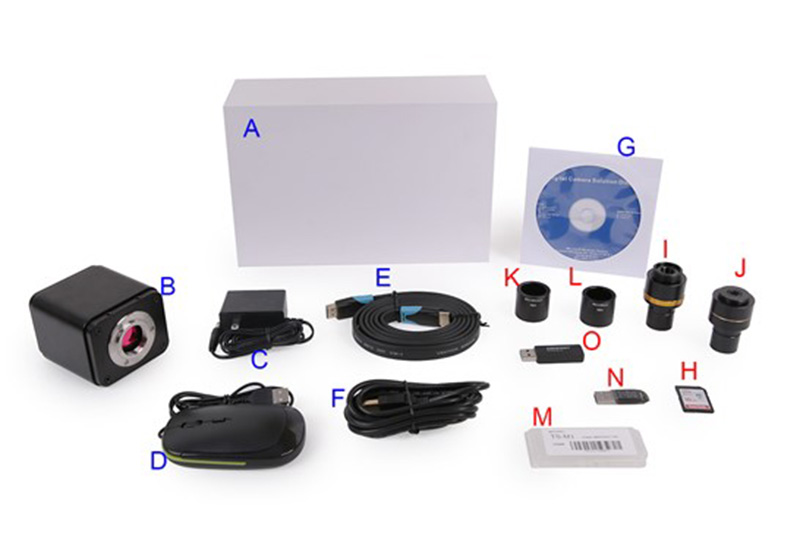

Standard Packing List
A	Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.57Kg/ box)
B	XCAMTOP4K Camera
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6
D	USB Mouse
E	HDMI Cable
F	USB2.0 A male to A male gold-plated connectors cable /2.0m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H	SD Card(16G or above; Speed: class 10)
I	Adjustable lens adapter		C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
J	Fixed lens adapter		C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
J	Note: For I and J optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application;
K	108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
L	108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
M	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
N	USB flash drive
O	USB WLAN adapter
P	Ethernet cable
