VMS303

VMS303 40X Binocular Industrial Stereo Microscope with Adjustable Magnetic Base & Flexible Arm

Optional Mag. 5X/ 10X/20X/ 40X; Max W.D.: 250mm; Super Long Arm; Strong Force of Base

Core Features

WF10X/20mm Eyepiece (WF20X Optional)
1X Objective (0.5X, 2X Optional)
Super long working distance, for any directions
Wide field of view, clear imaging and strong stereo sensation
Suitable for large magnetic workpiece surface parts inspection and maintenance, mechanical parts observation and repairing

Configurations

Max Working Distance

250mm

Interpupillary Adjustment

55~75mm

Magnetic Base

800N

Flexible Arm

360° directions

Length of Arm

317mm

Request Quotation Email Phone Back to Products

VMS303 is a stereo microscope which has super long working distance (standard: 230mm) and clear sharp images. The standard equipment is WF10X/20mm eyepiece & 1X objective. The left eyepiece’s interpupillary adjustment is 55~75mm, ±5DP. This microscope base is adjustable magnetic base and flexible arm, for 360° directions.

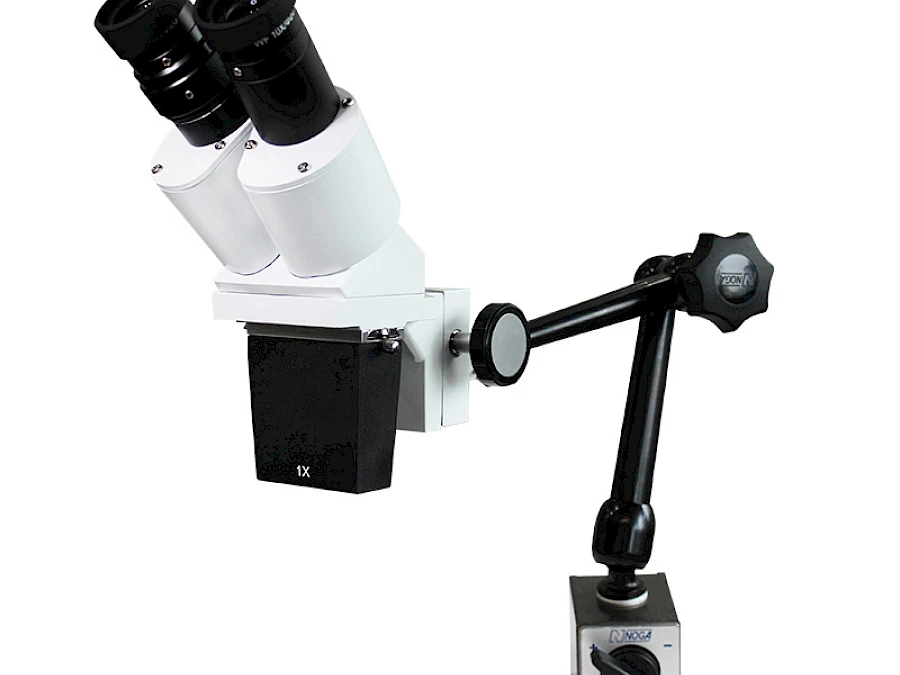

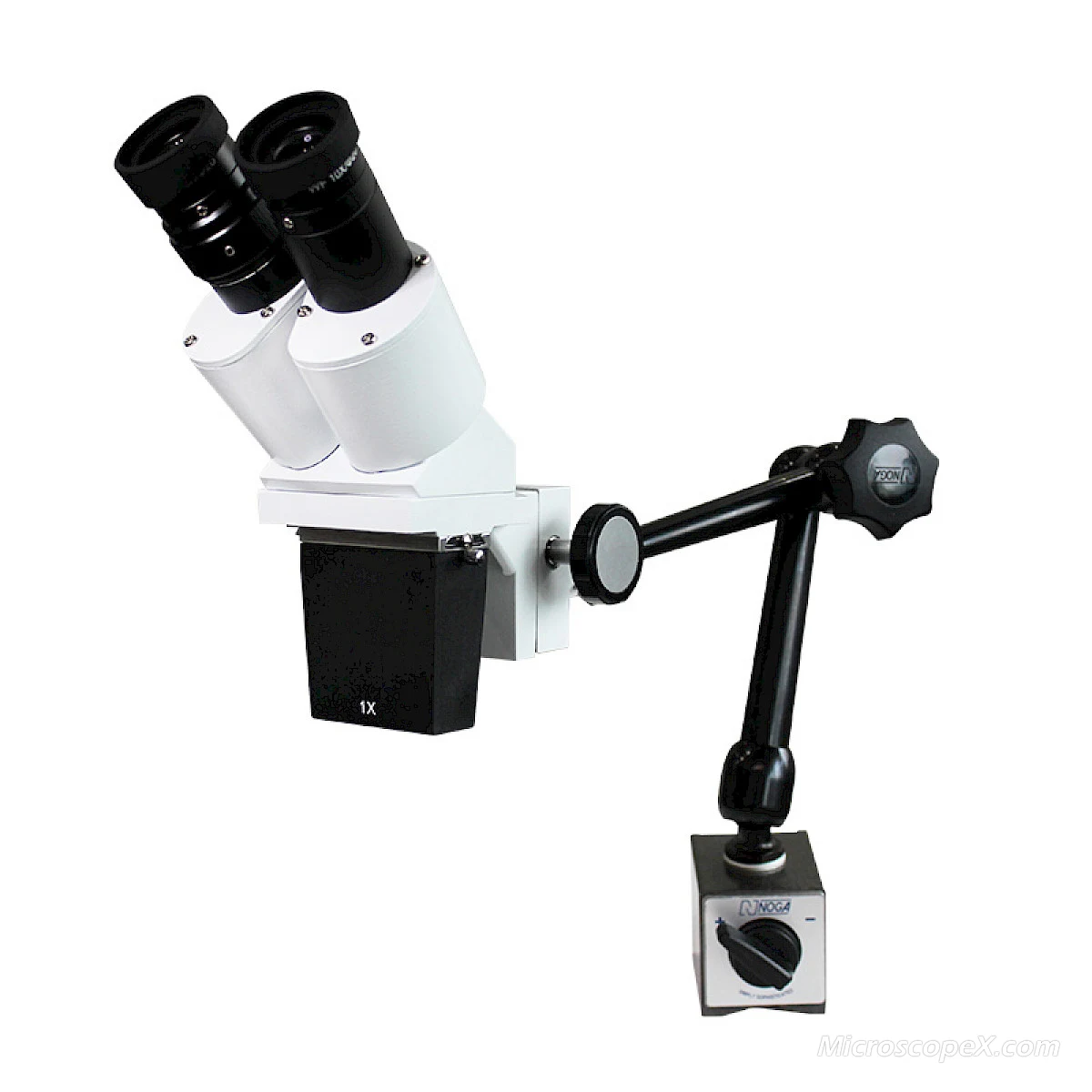

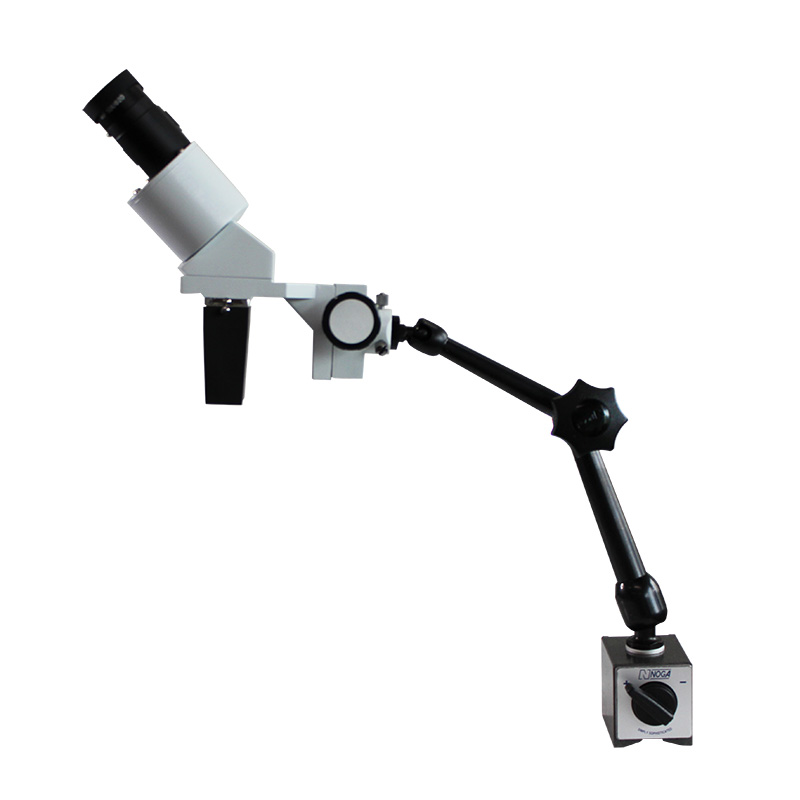

VMS303 Industrail Stereo Microscope with Magnetic Base & Flexible Arm

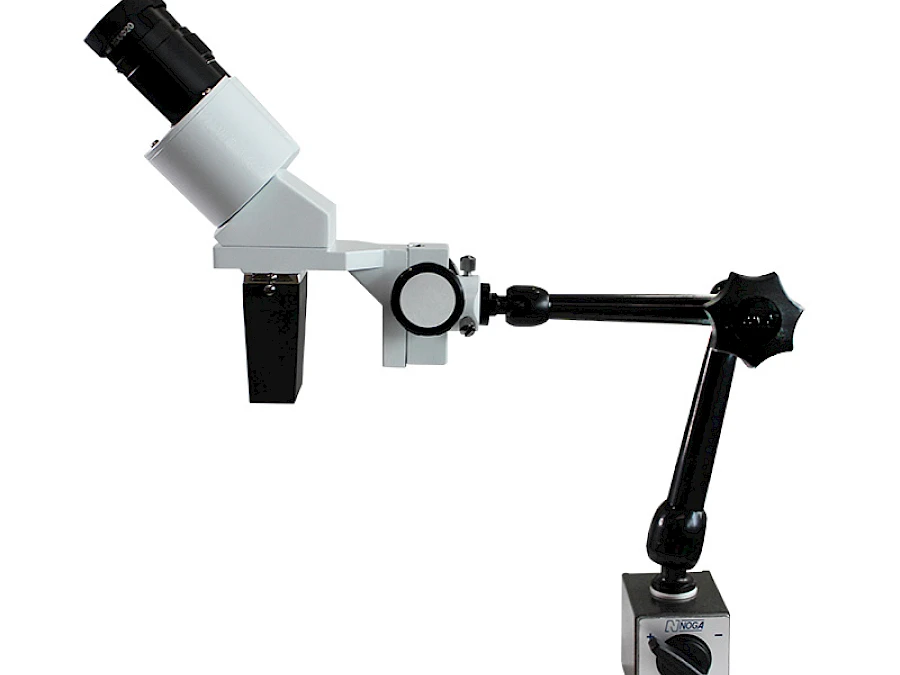

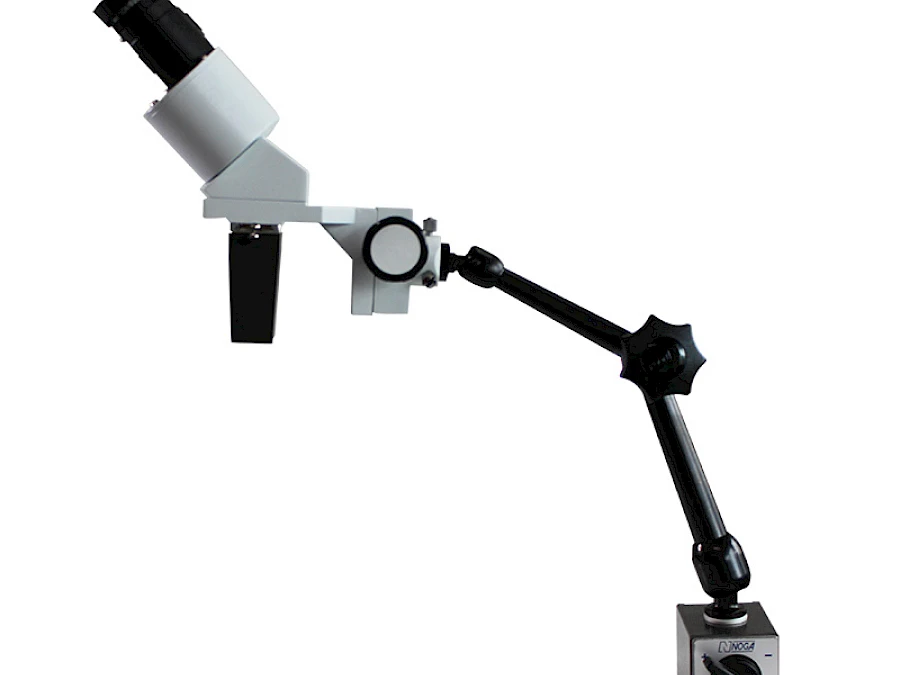

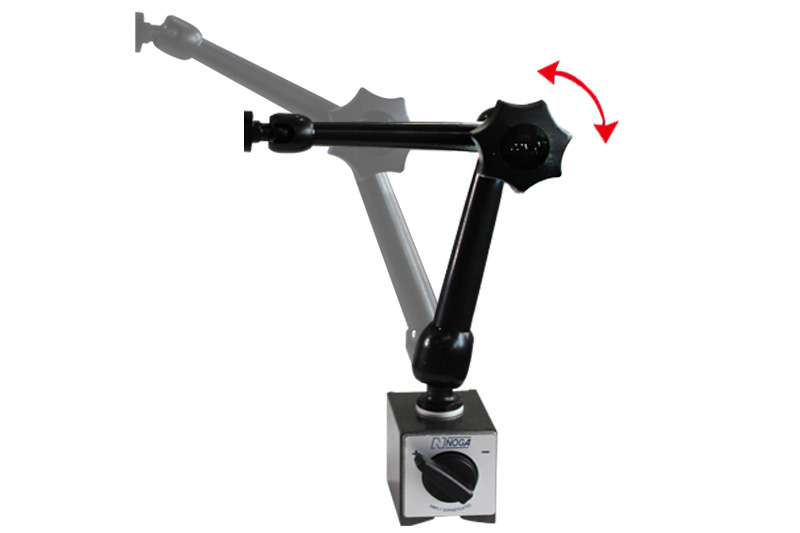

Flexible Arm of VMS303

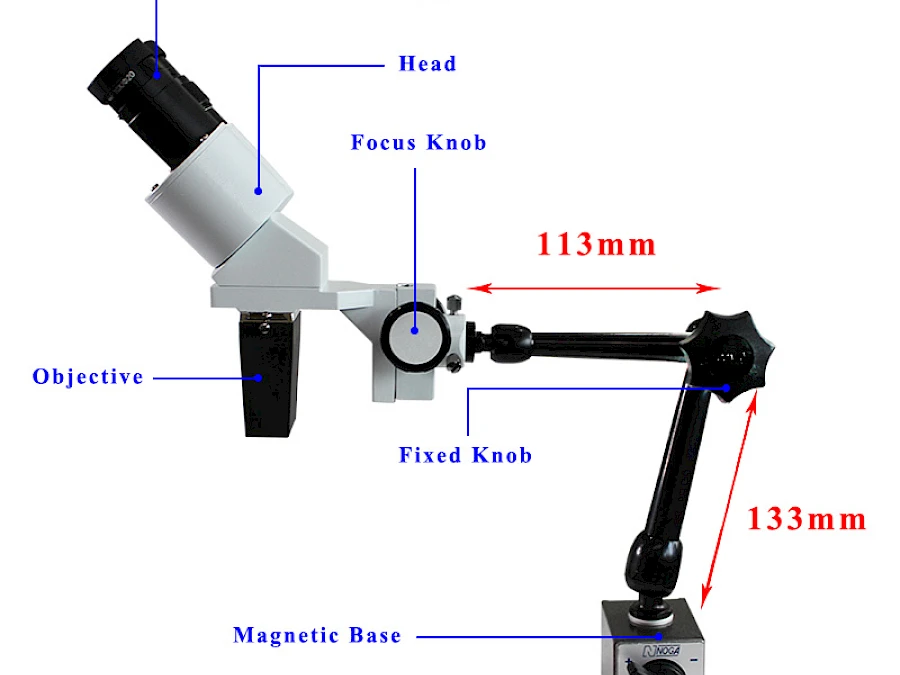

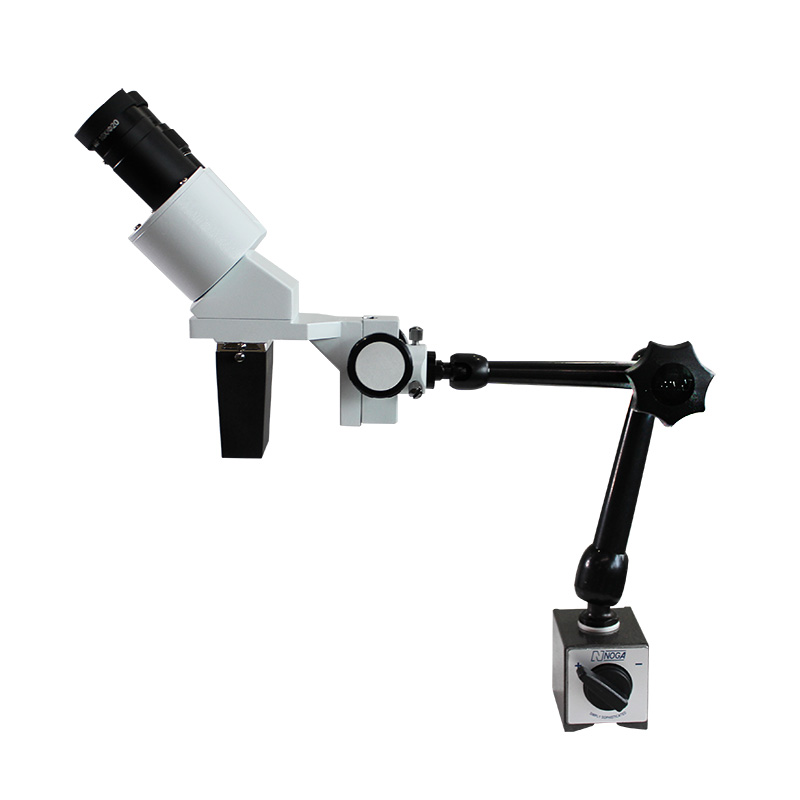

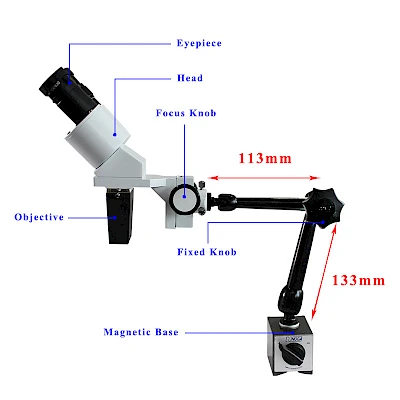

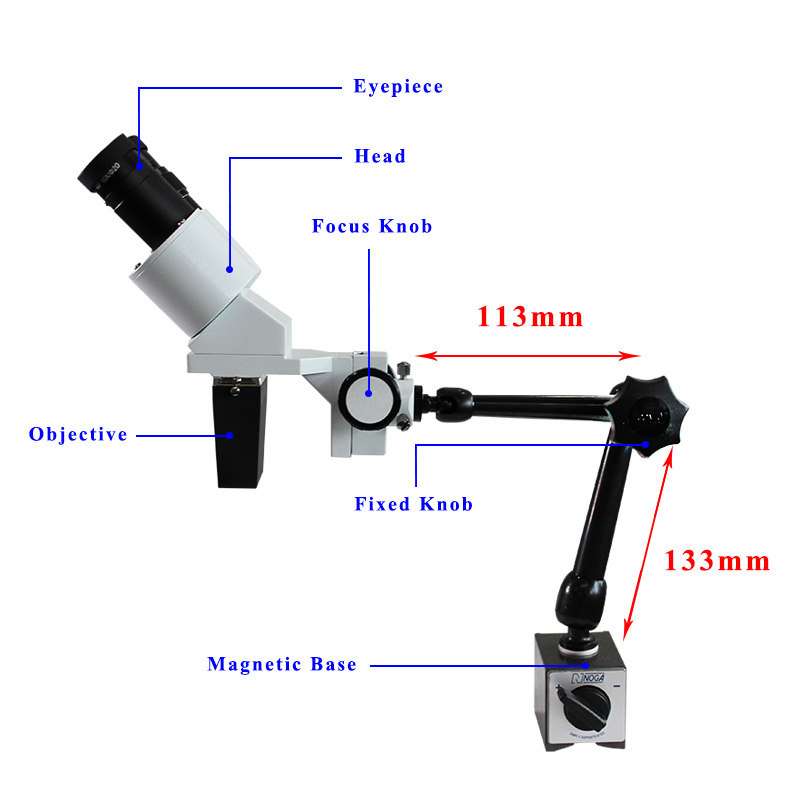

Structure of VMS303

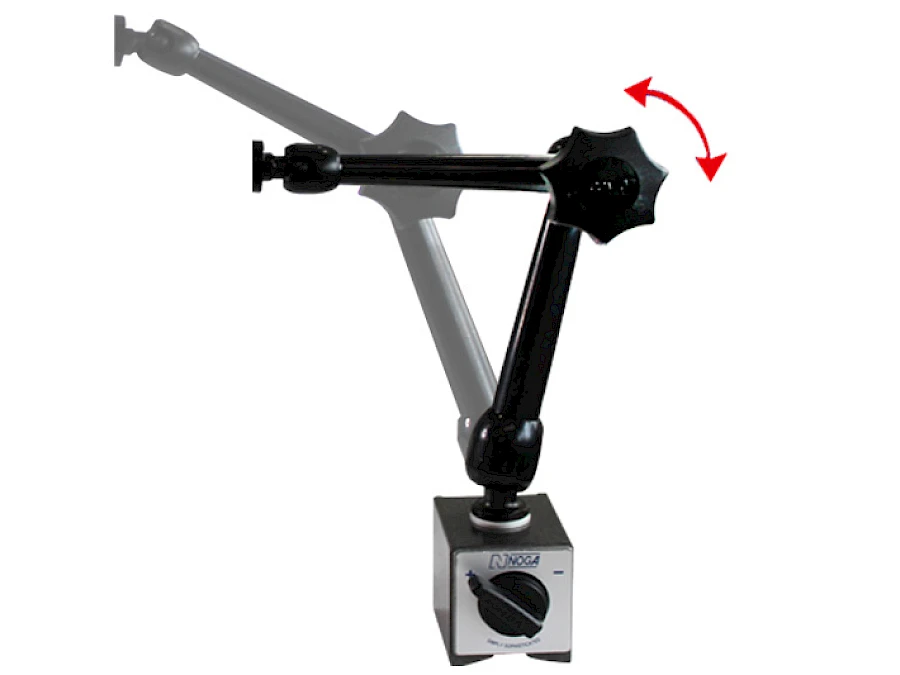

0°~180° adjustable of VMS303

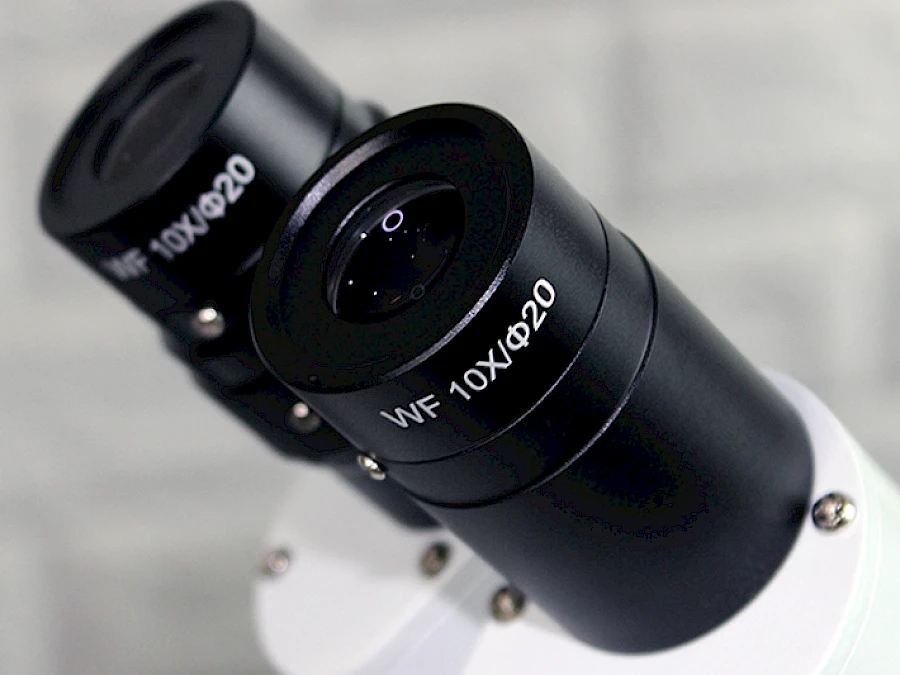

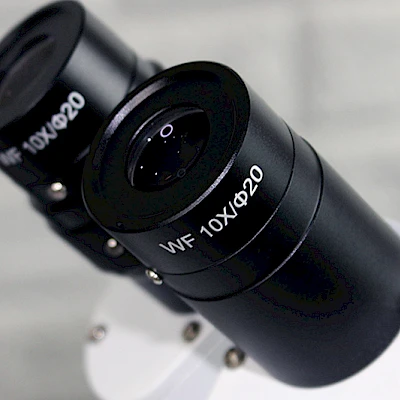

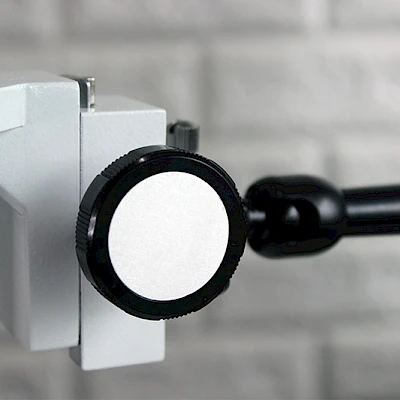

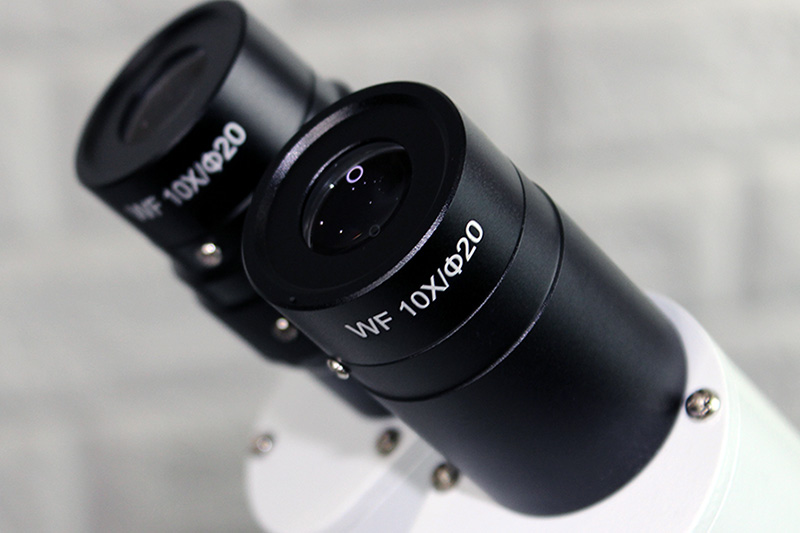

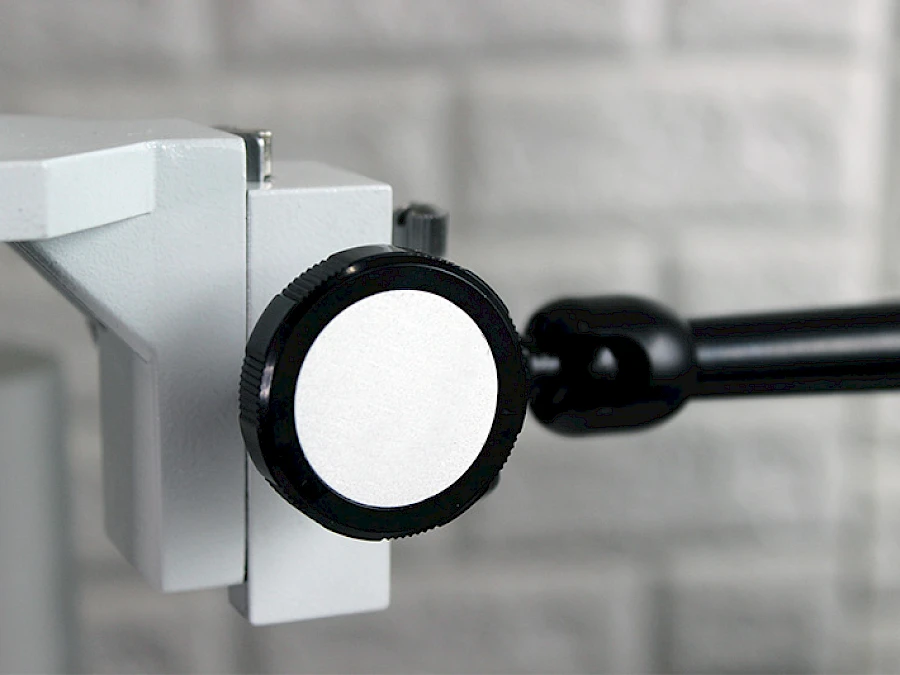

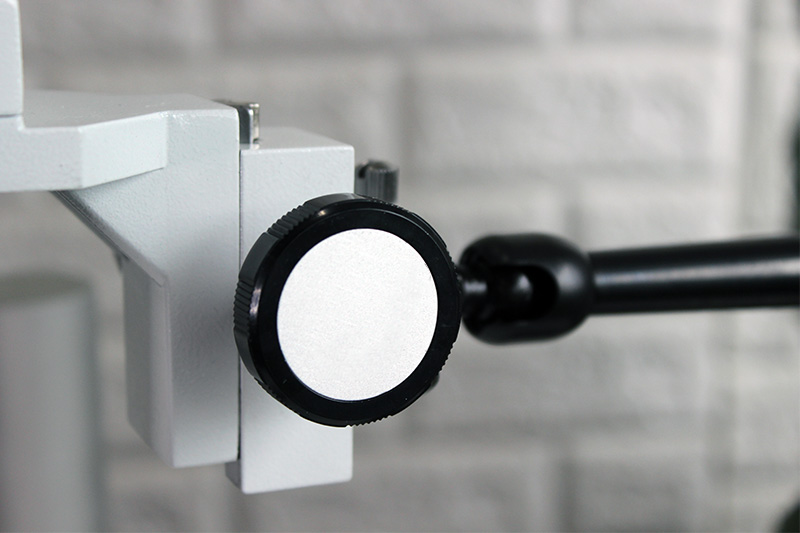

Eyepiece & Focus Knob of VMS303

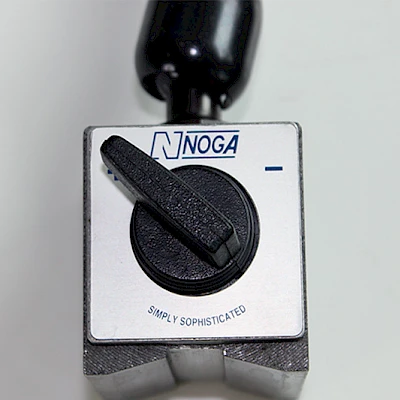

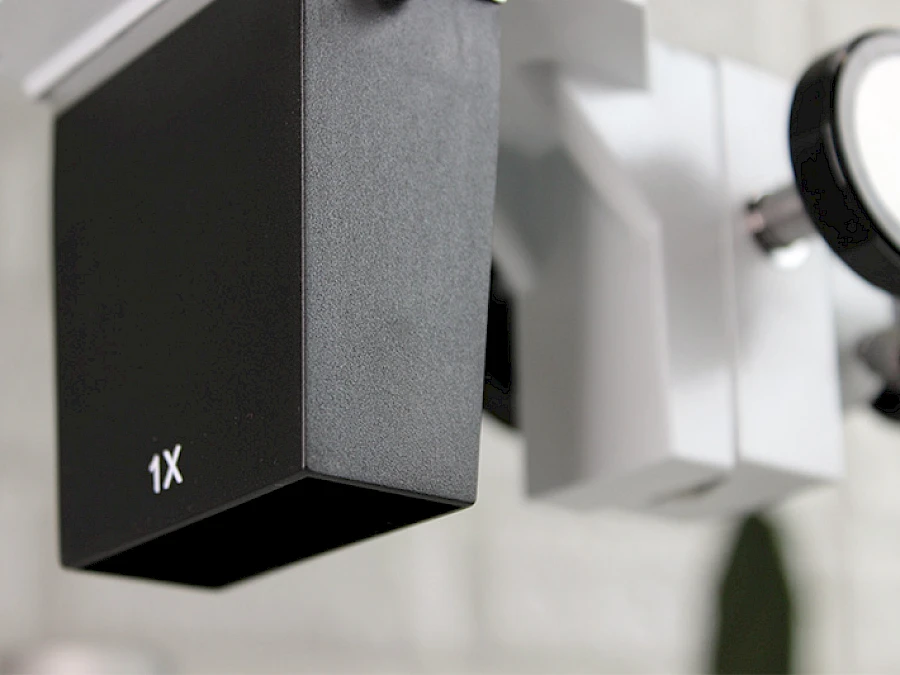

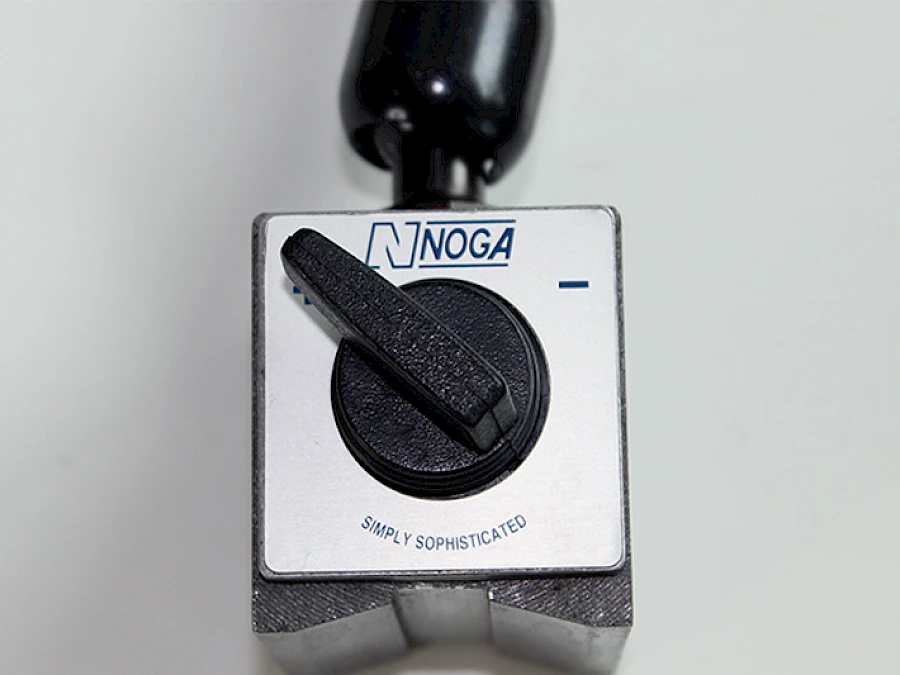

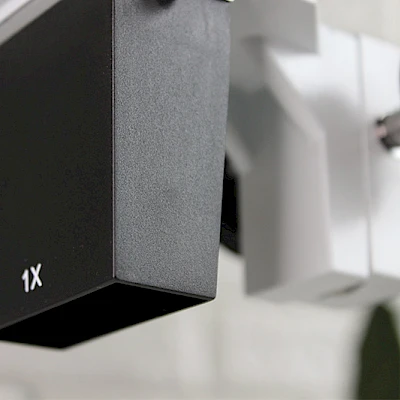

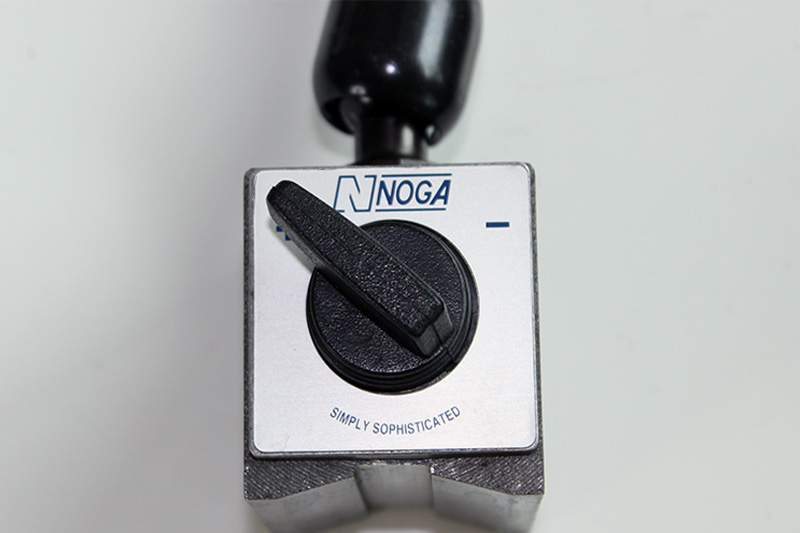

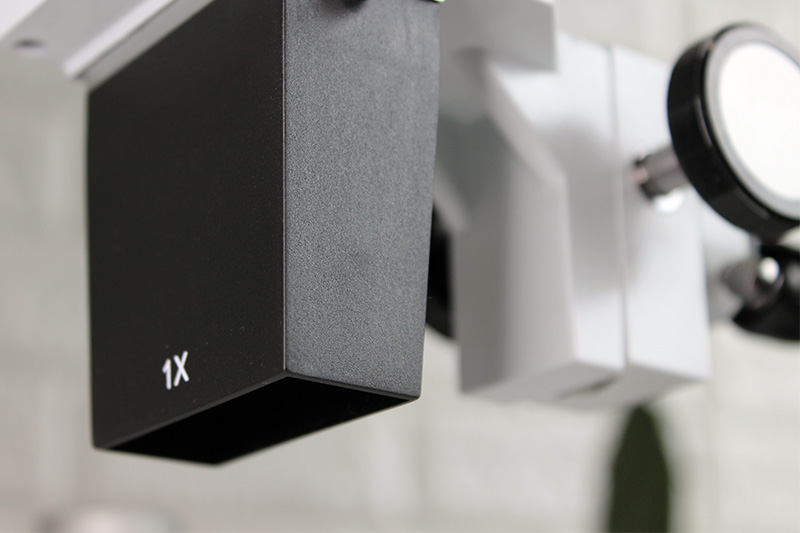

Objective Lens & Magnetic Base of VMS303

Specification for VMS303
Eyepiece	Objective
	0.5X		1X (Standard)		2X
	Mag.	FOV.	Mag.	FOV.	Mag.	FOV.
10X(Standard)	5X	40mm	10X	20mm	20X	10mm
20X	10X	20mm	20X	10mm	40X	6.5mm
WD.	250mm		230mm		80mm
Head	View 45° Inclined, 55~75mm, ±5DP
Connecting Thread	M8
Weight for the Base Stand	1.9KG
Length of Arm	L1+L2=133+113mm
Total Length	L1+L2+L3=317mm
Force of Base	Magnetic: 800N
Size of Base	50 x 60 x55 mm
Packing	Foam+Carton
