VMS105CD Dental Microscope Operating with Integrated Camera & Image Software

VMS105CD

2MP 1/3” CMOS Sensor, HDMI+USB Ports, Support for SD Card, Any Directions

Core Features

Super long working distance, for any directions
Wide field of view, clear imaging and strong stereo sensation
Zoom lens 0.7x-4.5x; built-in camera with HDR image,1/3” COMS
Can be connected with PC, dental endoscope, monitor, TV, projector, etc.
---Real-time inspection, video recording and photography, Measurement, Storage, Data output

Configurations

1920*1080P

@60FPS

100V-240V

AC50/60Hz

0.7X-4.5X

1/3” COMS

F=250mm

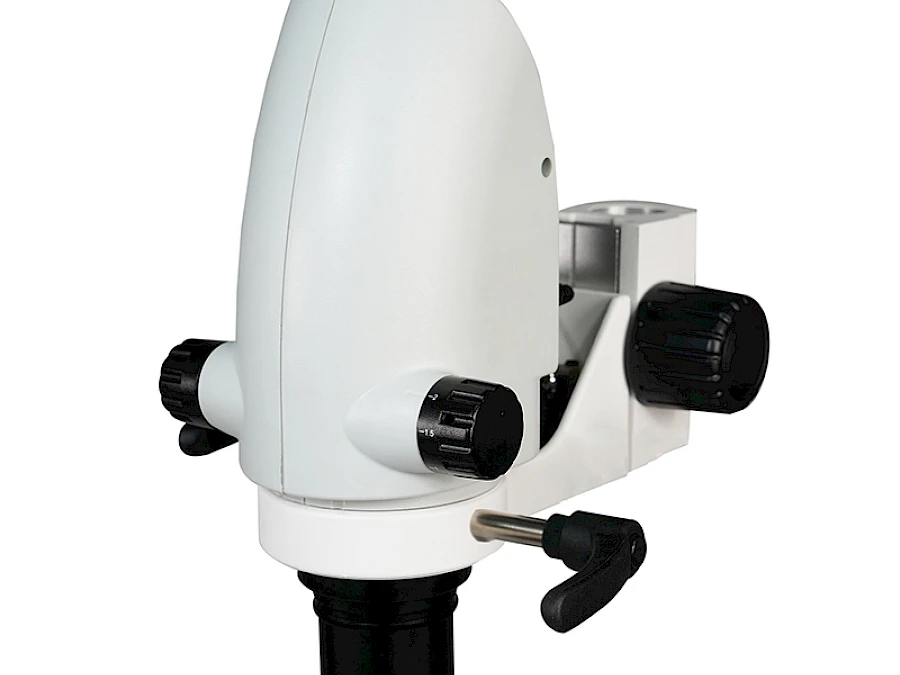

VMS105CD is dental microscope which has super long working distance and clear sharp images. It adopts with integrated digital camera microscope head, which combined the traditional optical and electronic video technology.

It adopts with 1/3” CMOS Sensor, and the resolution is 1920*1080P @ 60FPS. The interfaces are HDMI & USB; and the optional display screen could be equipped. It is compact in size, one power cord connect the body and screen provides easy operation.

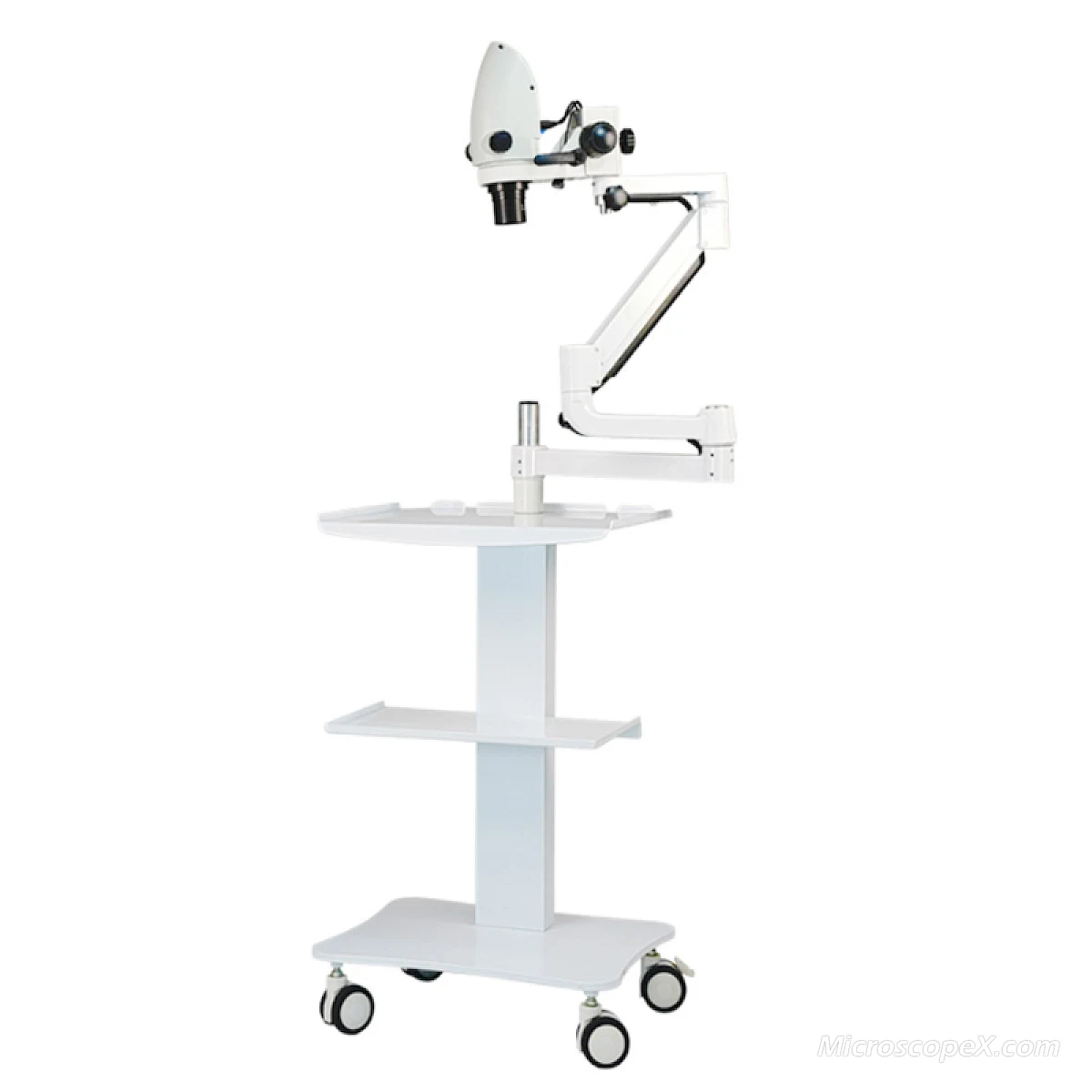

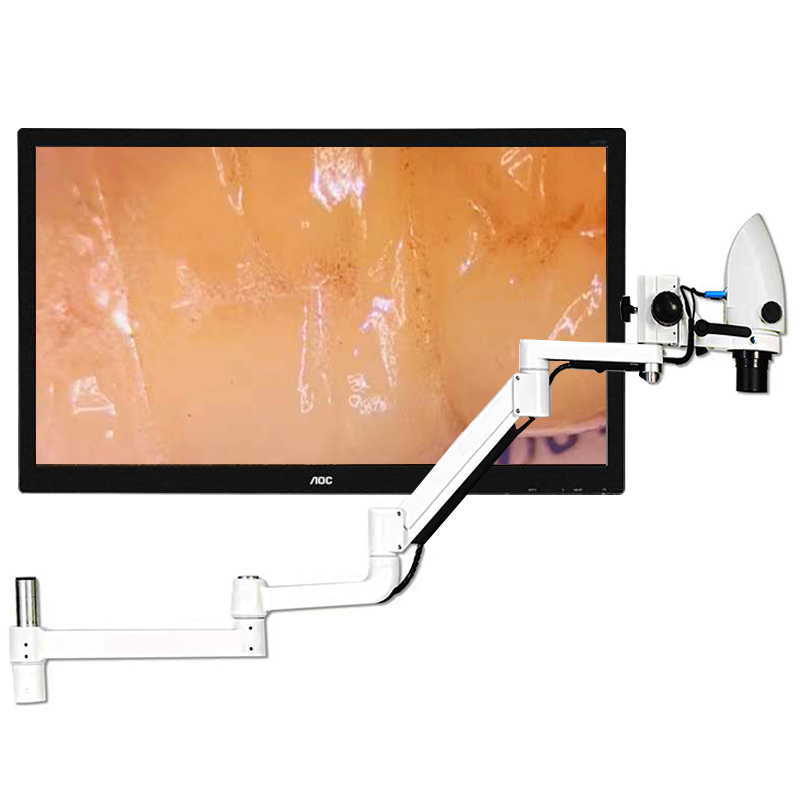

VMS105CD Dental Microscope

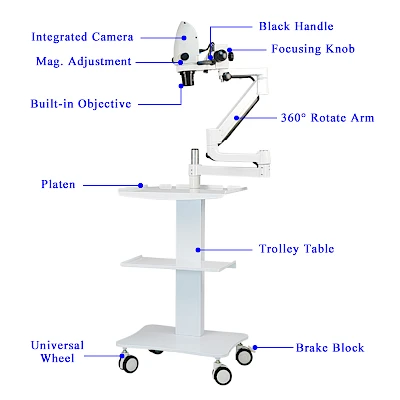

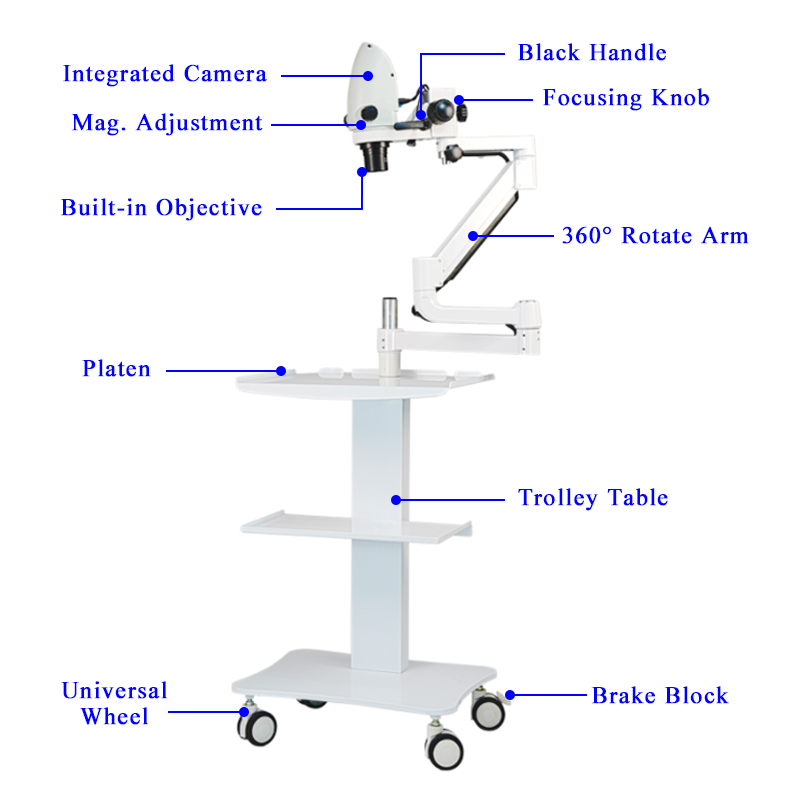

Structure of VMS105CD Dental Microscope

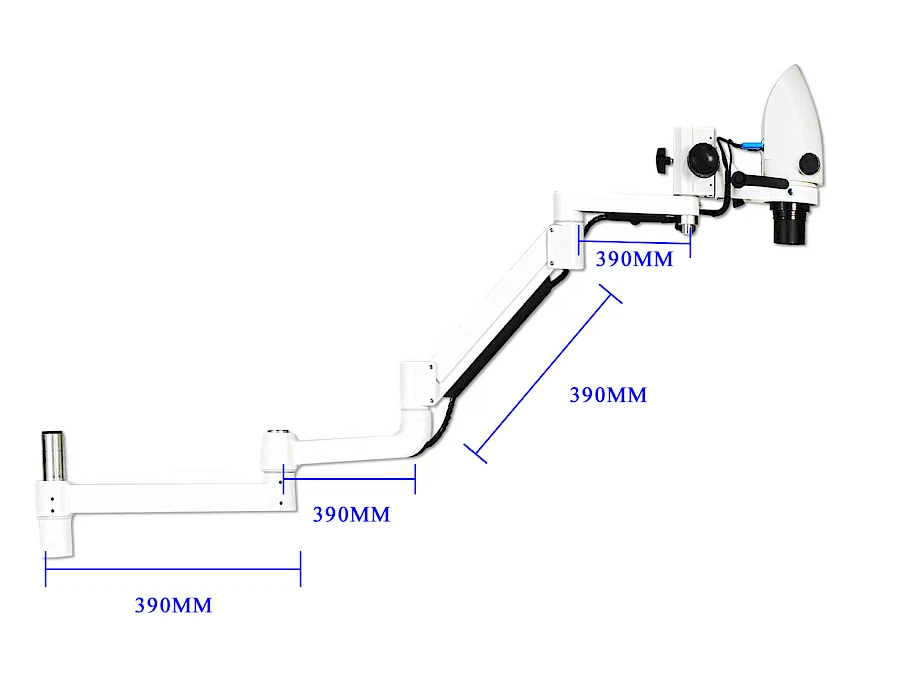

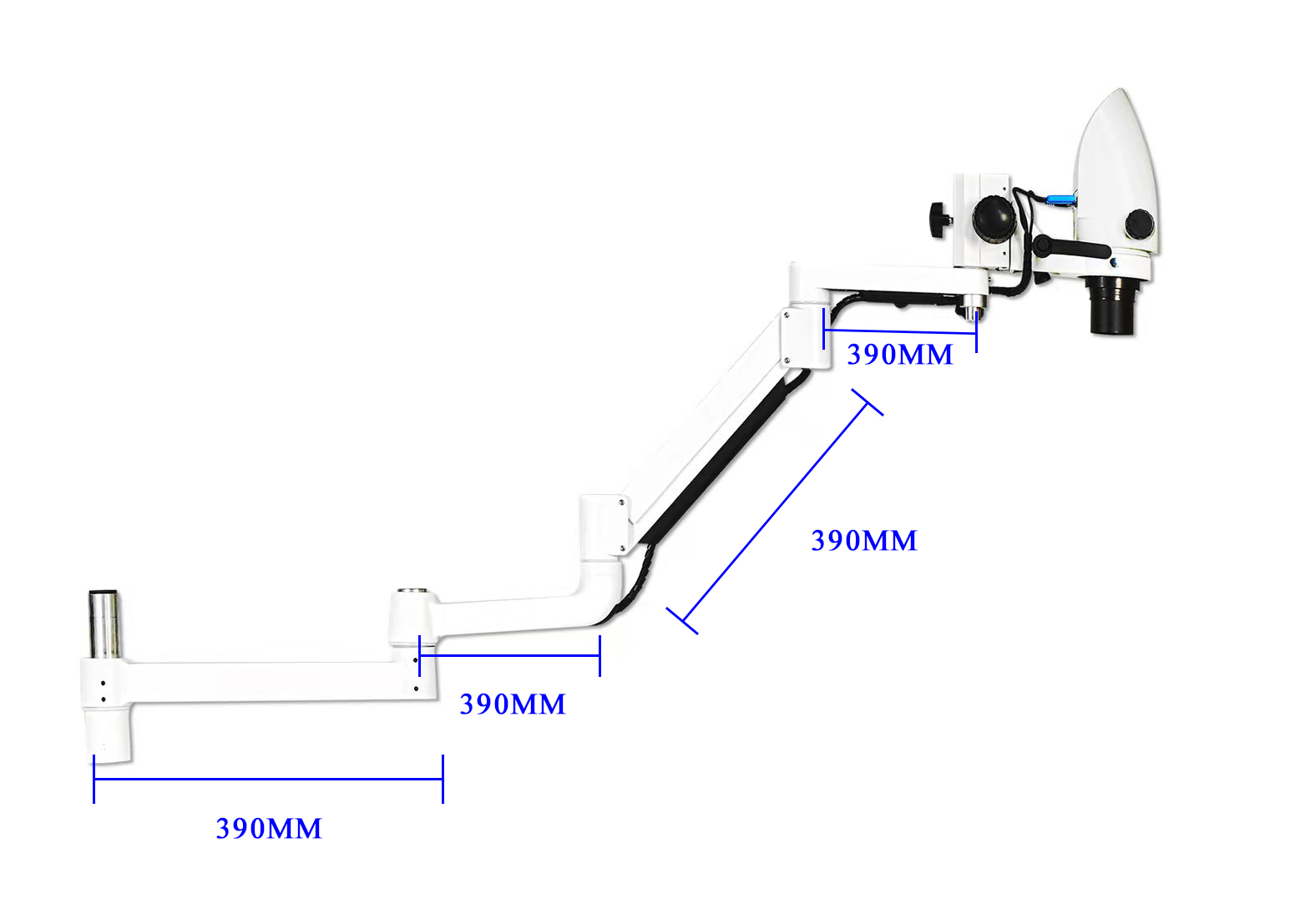

Size of VMS105CD Arm Mounting

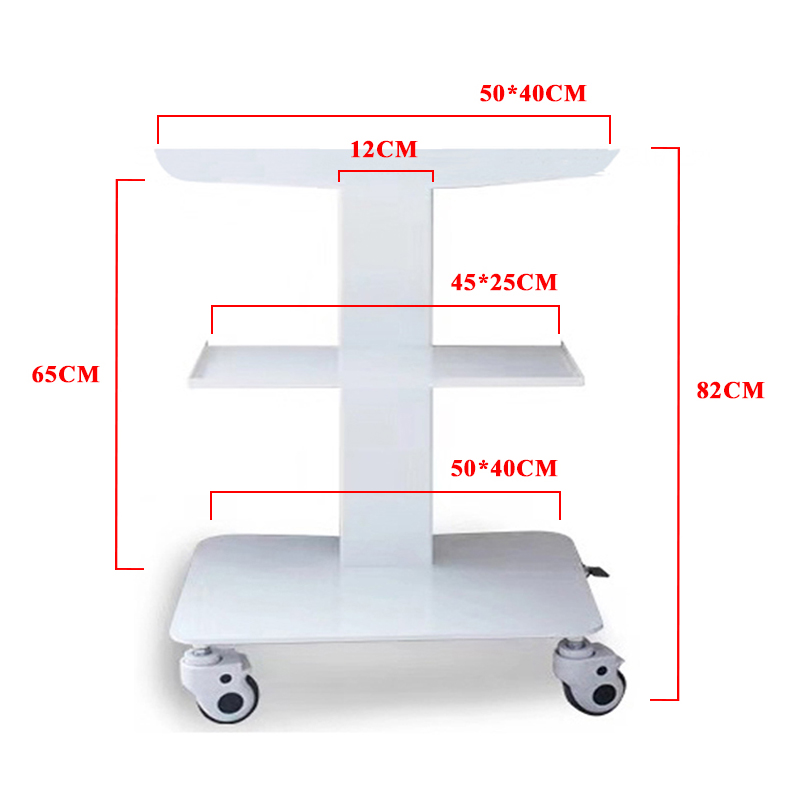

Size of VMS105CD Trolley Table

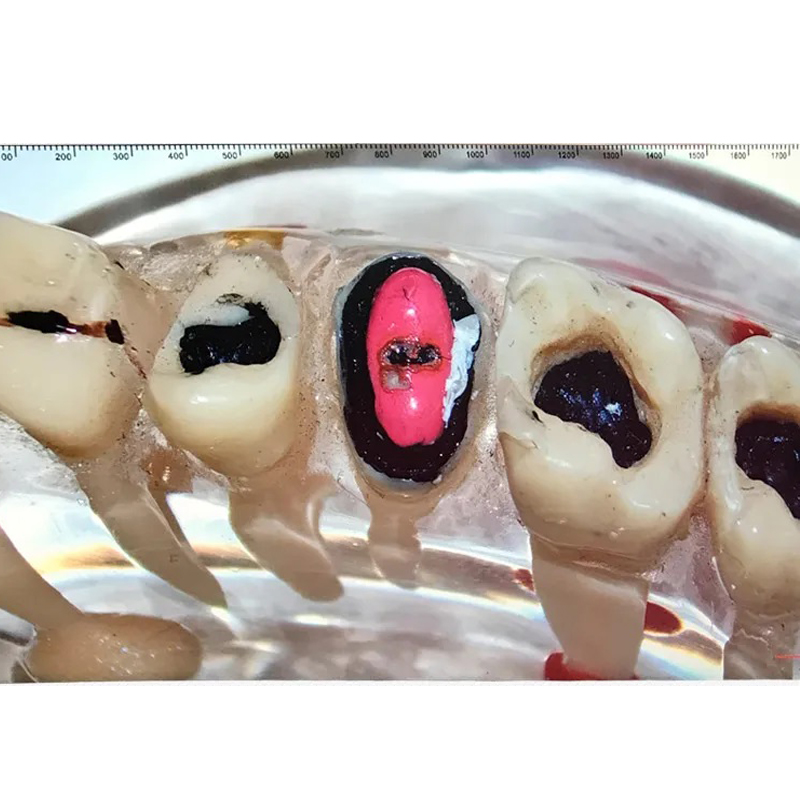

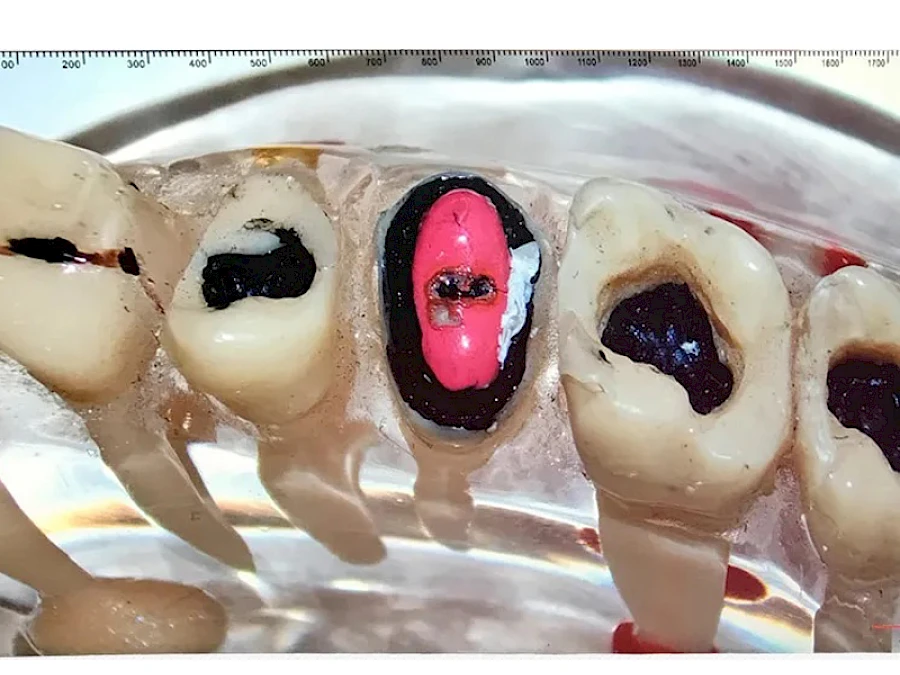

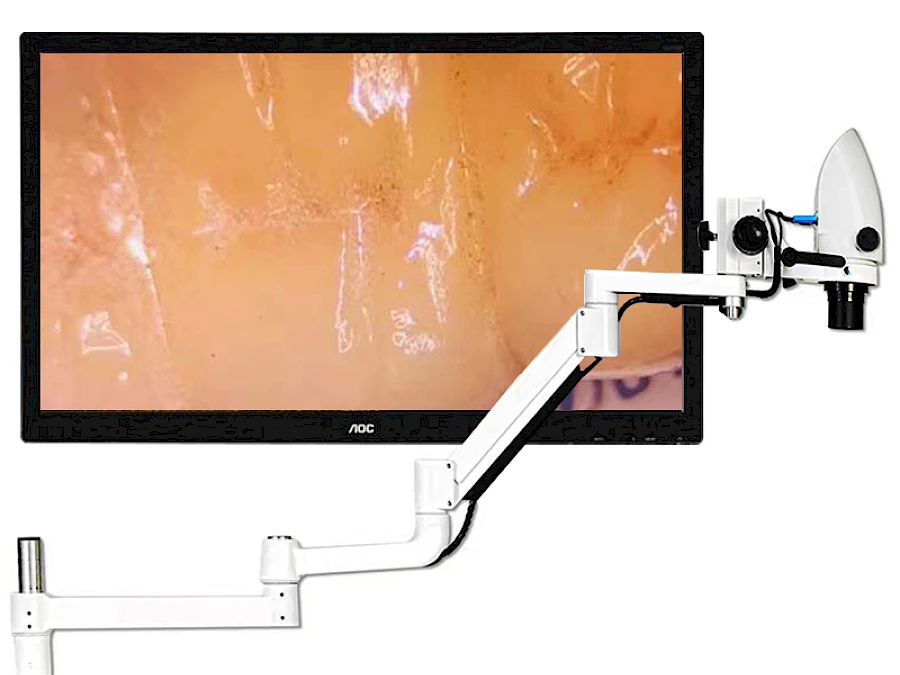

Real Picture Captured by VMS105CD Dental Microscope

Specification for VMS105CD
Operation	Wireless mouse operation
Big objective lens	F=250mm
Camera pixel	2 MP, HDMI
Magnification ratio	Zoom lens 0.7x-4.5x; built-in camera with HDR image,1/3” COMS
Maximum resolution	1920*1080P@60FPS
View diameter	10mm-100mm
Working distance	About 280mm
Microscope light source	LED spot light
Light color	White and orange ring light source
Illumination	LED light source>45,000LX
Connection	Computer, dental endoscope, monitor, TV, projector, etc, Support for SD Card
Function	Real-time inspection, Video recording and photography, Measurement, Storage, Data output
Displayer	According to customer's preference
Displayer Size	Standard			0.5x Auxiliary Lens			2.0x Auxiliary Lens				0.3X Auxiliary Lens
	W.D. 100mm			W.D. 180mm			W.D. 30mm				W.D. 250mm
	Mag.	F.O.V.(mm)				Mag.	F.O.V.(mm)			Mag.		F.O.V.(mm)
11.6”	17.2x-110.5x		18.510.5-2.81.5		8.6x-55.2x			37.521-5.53.0	34.4x-221x				9.55.5-1.50.7
21.5”	31.9x-204.8x		18.510.5-2.81.5		15.9x-102.4x			37.521-5.53.0	63.7x-409.6x				9.55.5-1.50.7
Power	Input 100V-240V, AC50/60Hz; Output DC12V/2A
Features	Support video and imaging Special software system, operating your connected displaying device like a endoscope, support 1/4 pictures display , screen freeze, make pictures comparison, screen color adjustment , data storage as evidence and many other functions
