VMS103CD

VMS103CD Operating Dental Microscope Trolley Type Operating

Super long working distance, for any directions; wide field of view

Core Features

WF10X Eyepiece
0.65X-5.5X objective, ratio: 1:8.5
Super long working distance, for any directions
Wide field of view, clear imaging and strong stereo sensation

Configurations

Eyepiece

WF 10X

Objective

0.65X-5.5X

For Any Directions

Request Quotation Email Phone Back to Products

VMS103CD is a dental microscope which has super long working distance and clear sharp images. The standard equipment is WF 10X eyepiece & 0.65X~5.5X objective, high brightness LED lamp.

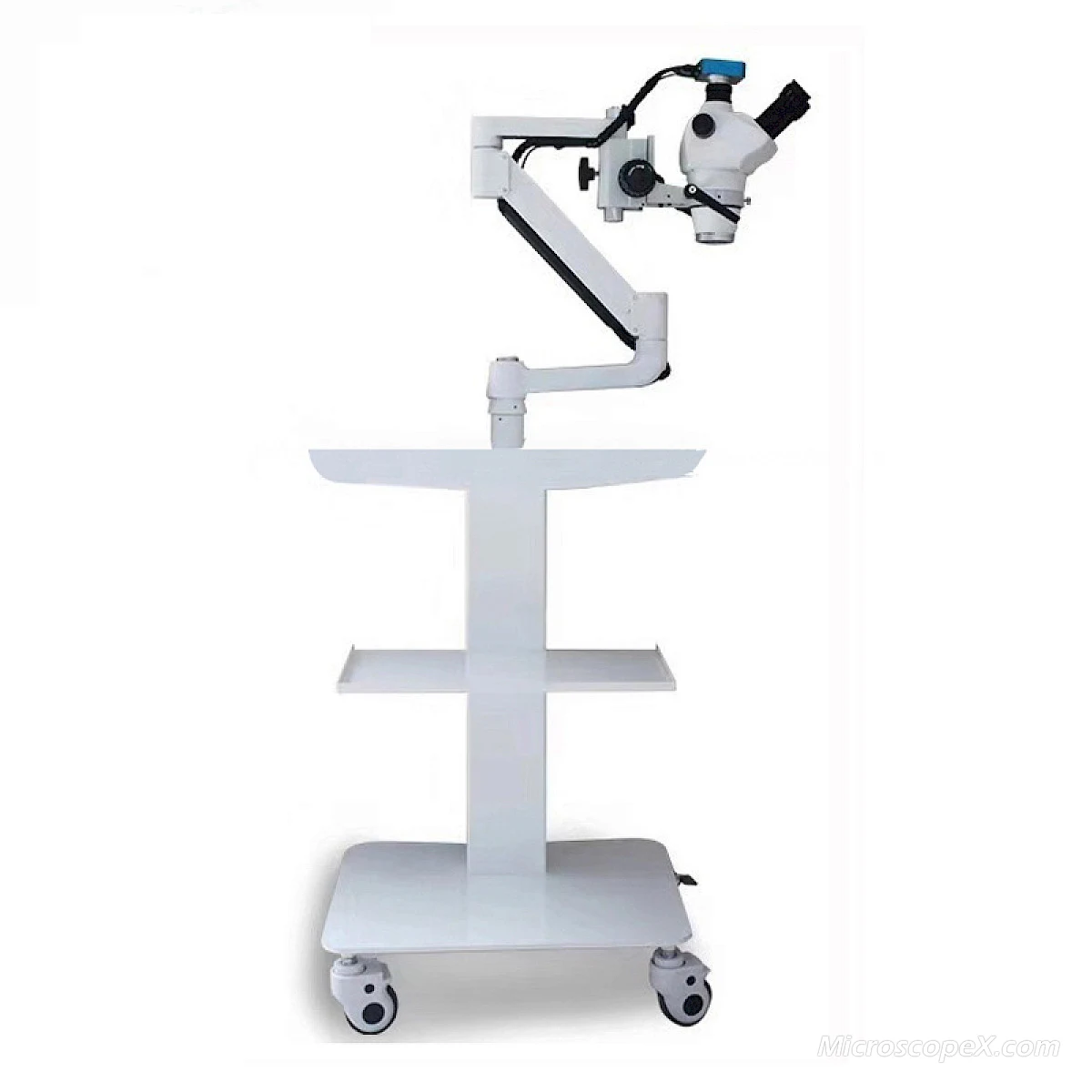

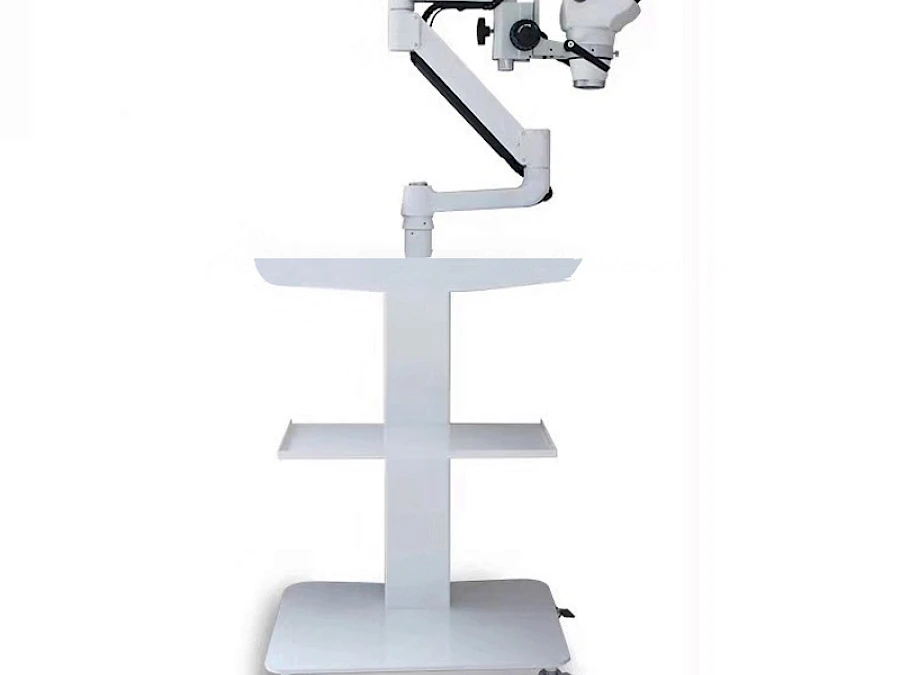

VMS103CD Dental Microscope

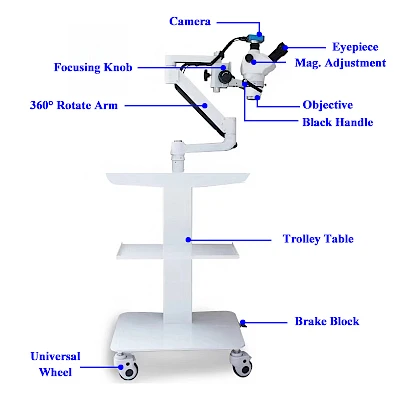

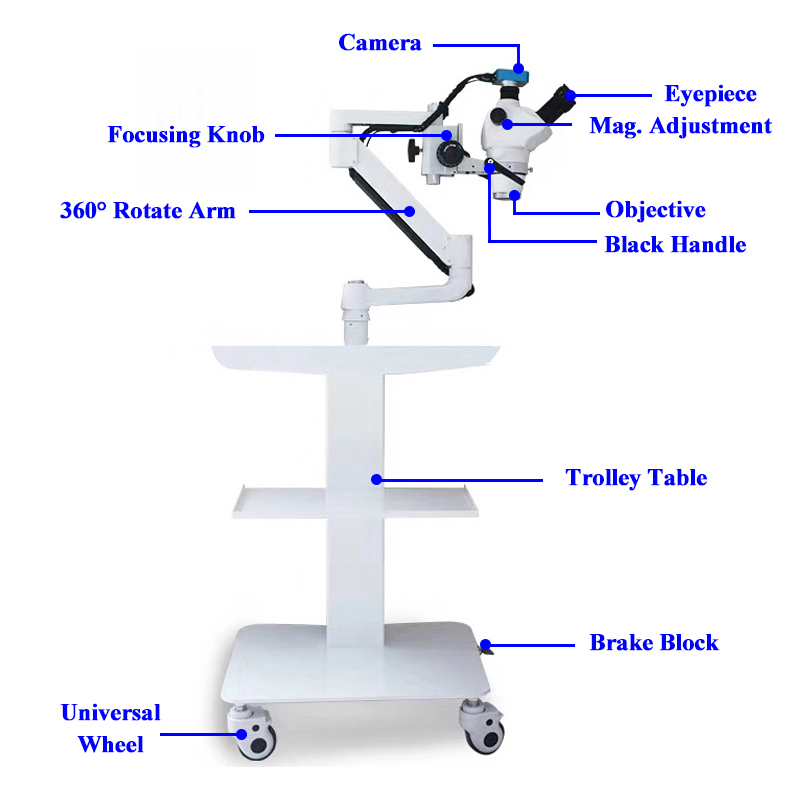

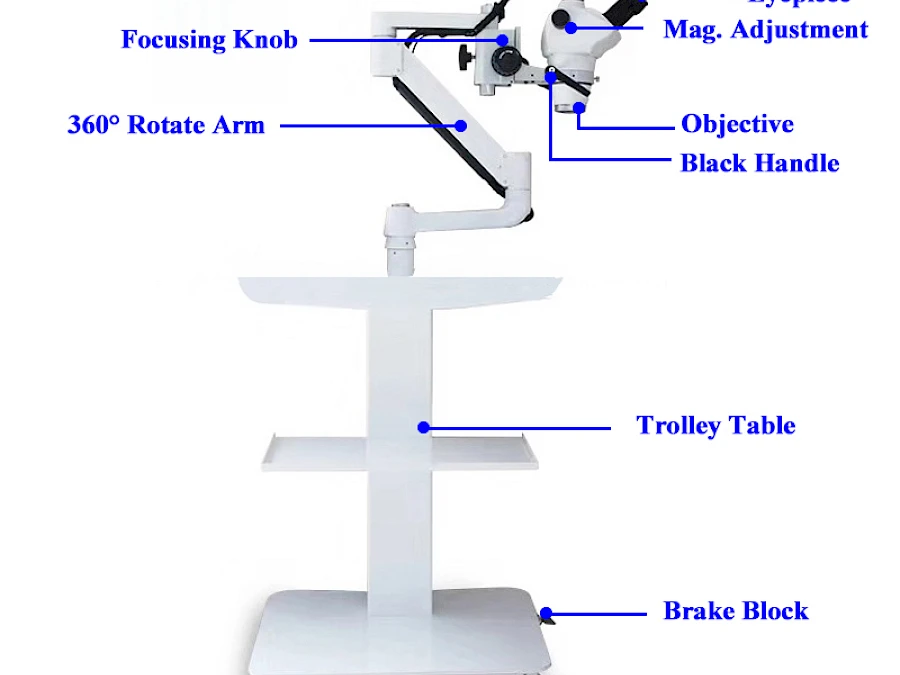

Structure of VMS103CD Dental Microscope

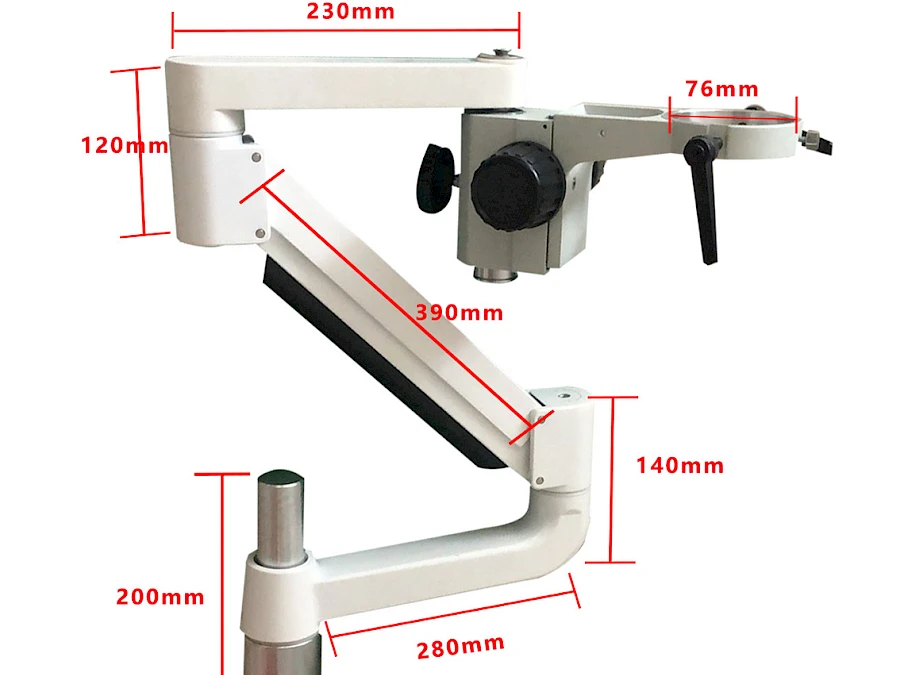

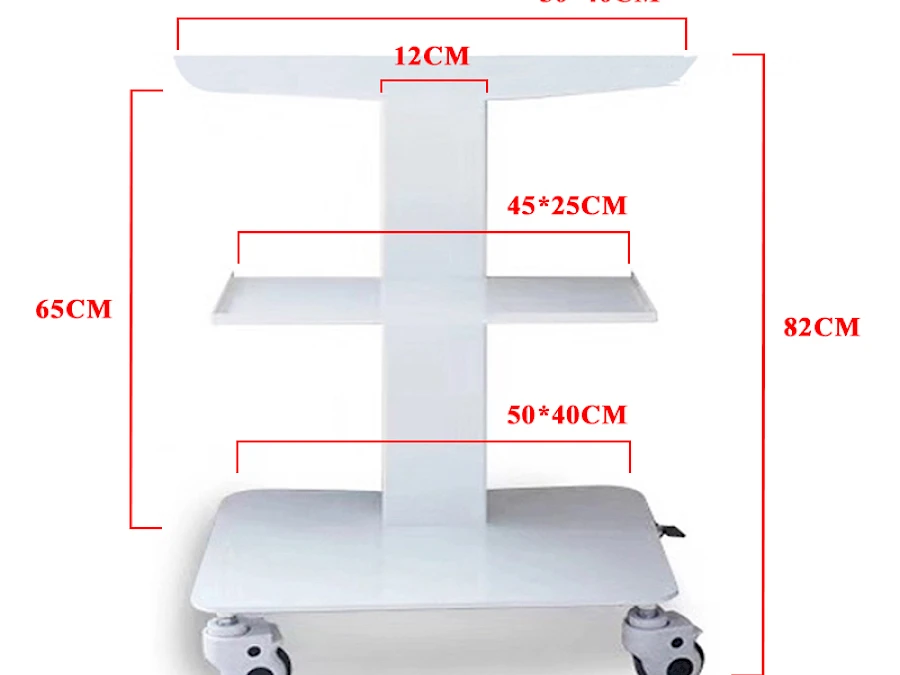

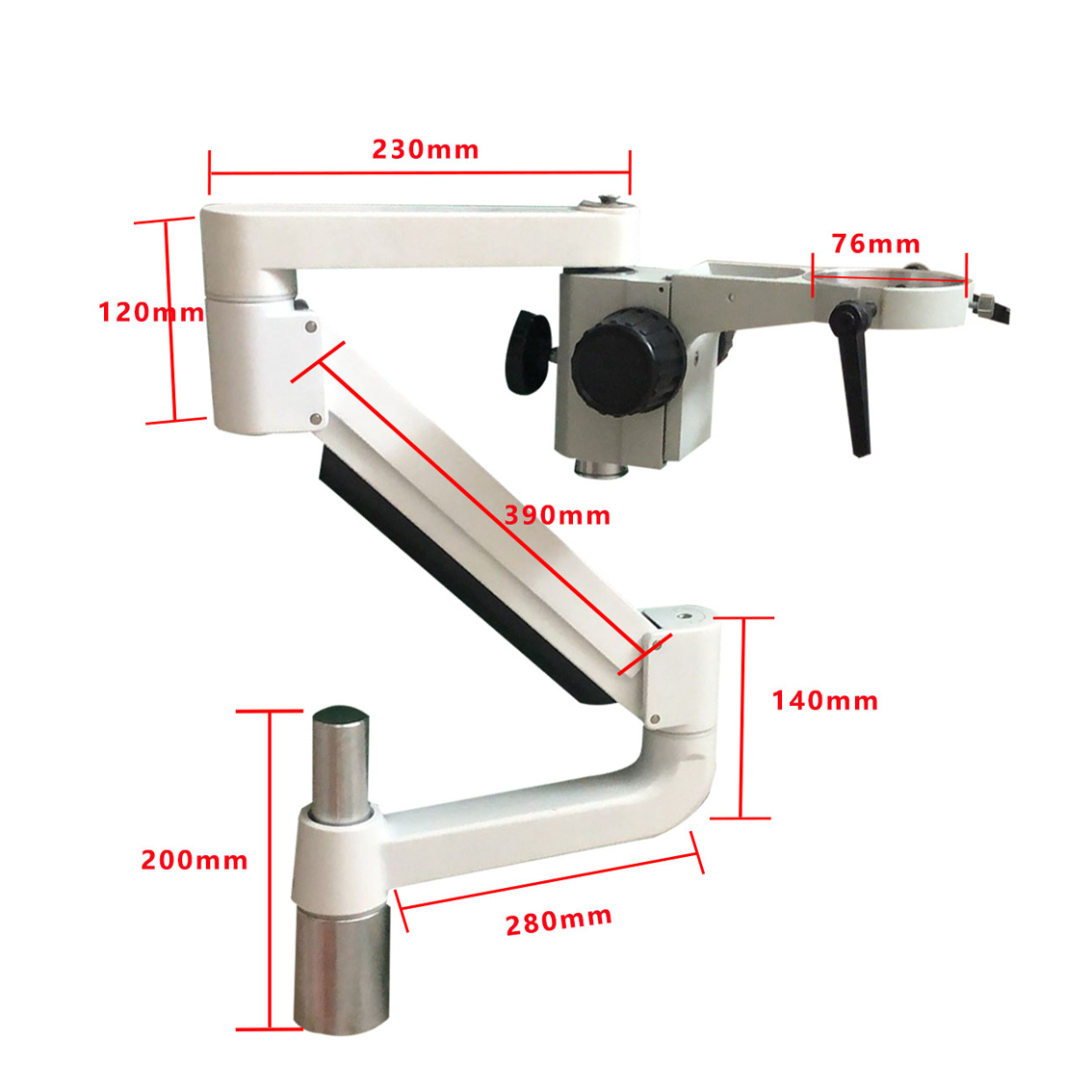

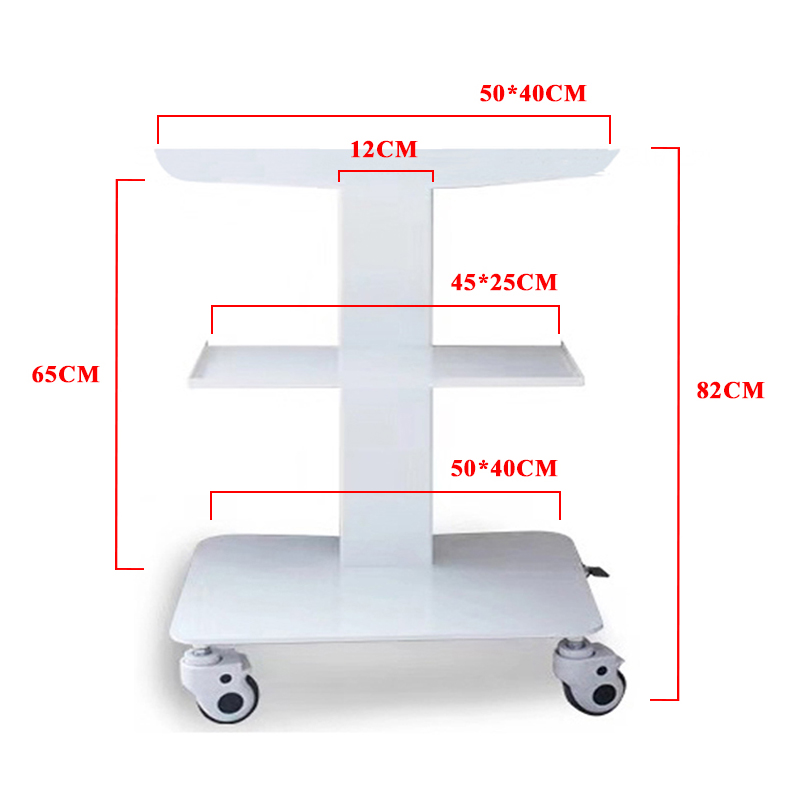

Different Sizes of VMS103CD Arm Mounting & Trolley Table

Real Images Captured by VMS103CD Dental Microscope

Specification for Head
Eyepiece	High eye point WF10X/Φ22mm
Objective	0.65X-5.5X, ratio: 1:8.5
Total Mag.	Standard:6.5X-55X (Optional Aux.0.5X, 2X ) 3.3X-220X with optional 20X eyepiece
Head	Trinocular, inclined 45°, rotatable 360°, Diopter adjustment: ±5 diopters
F.O.V	4.0-31.4mm
Interpupillary Distance	54-75mm
Working Distance	105mm
Focusing Range	45mm (pole: 240mm)
Illuminator	LED Ring Light
