TZW7045X Series

TZW7045X Series Trinocular Educational & Agricultural Research Continuous Zoom Stereo Microscope

7X-45X, 3.5X-270X (optional lens), industrial inspection & measurement, education research

Core Features

remain clear and sharp images
high resolution and good depth
widely used in various fields: electronic industry, educational demonstration and agricultural research

Configurations

crystal clear sharp images

high resolution

good depth

micro-object observation

inspection and measurement

Request Quotation Email Phone Back to Products

TZW7045X Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

TZW7045X-PS

TZW7045X-PRT

TZW7045X-PL

TZW7045X-PLGL

TZW7045X-PI

TZW7045X-PI2L

TZW7045X-PIGL

TZW7045X-PF

TZW7045X-PF2L

TZW7045X-AS

TZW7045X-AL

TZW7045X-AI

TZW7045X-AI2L

TZW7045X-AF

TZW7045X-AF2L

TZW7045X-SU1

TZW7045X-SU2

TZW7045X-SU3

TZW7045X-DU1

TZW7045X-DU2

TZW7045X-RU1

TZW7045X-U2

TZW7045X-PS

TZW7045X-PRT

TZW7045X-PL

TZW7045X-PLGL

TZW7045X-PI

TZW7045X-PI2L

TZW7045X-PIGL

TZW7045X-PF

TZW7045X-PF2L

TZW7045X-U2

Item	Stand	Illumination	Focusing Mount

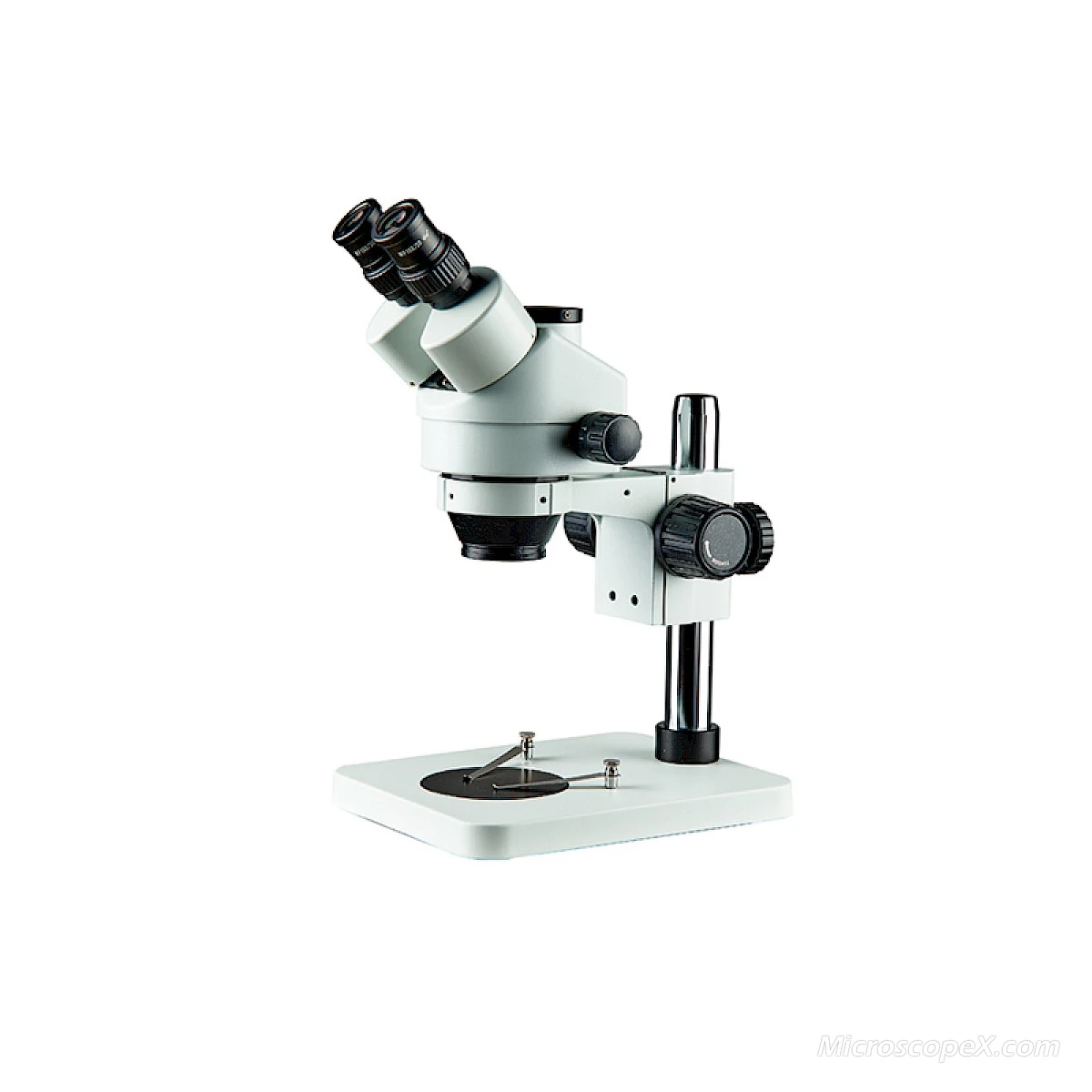

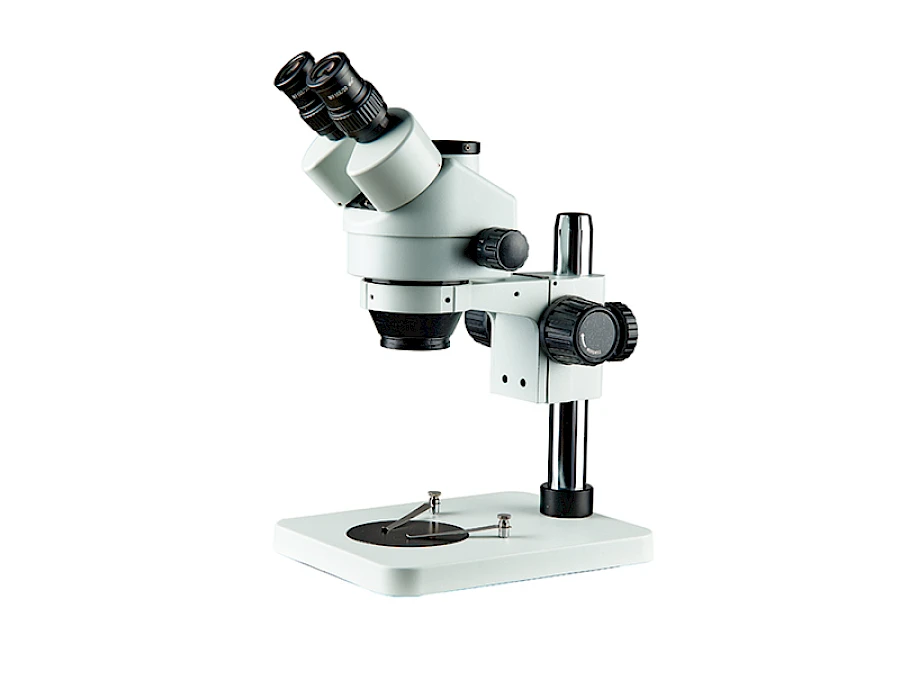

TZW7045X -PS	PS pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

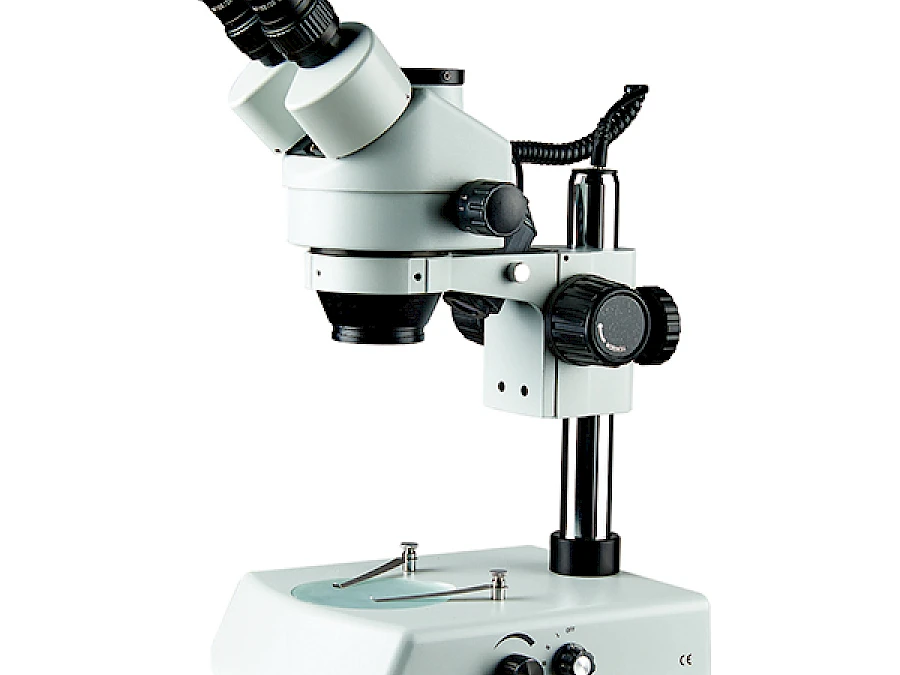

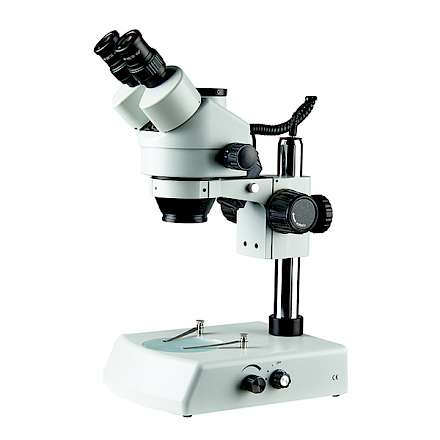

TZW7045X -PRT	PRT pole stand	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination	C1 focusing mount with vertical working distance 50mm

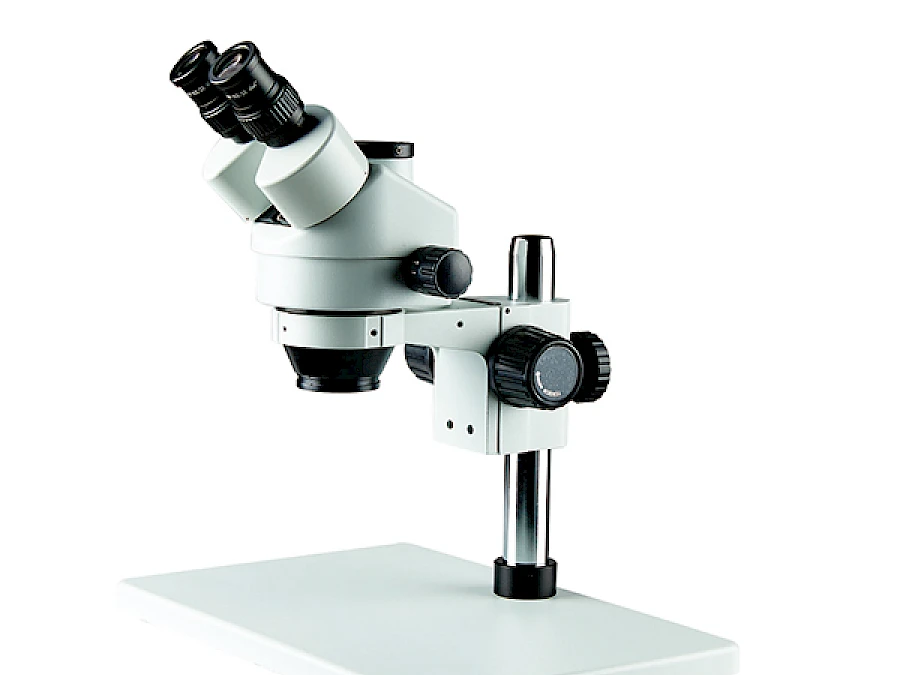

TZW7045X -PL	PL pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

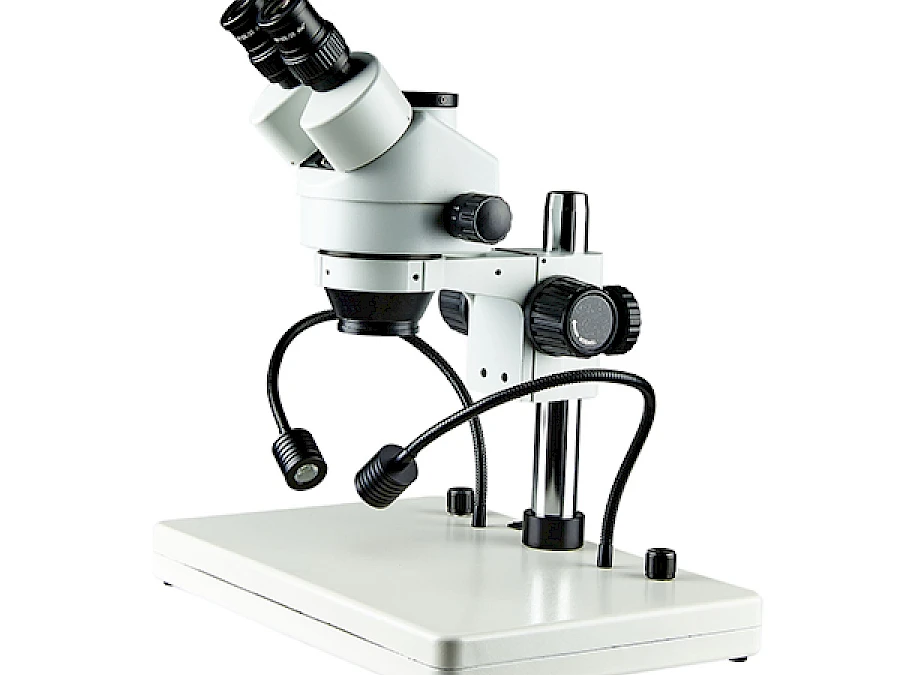

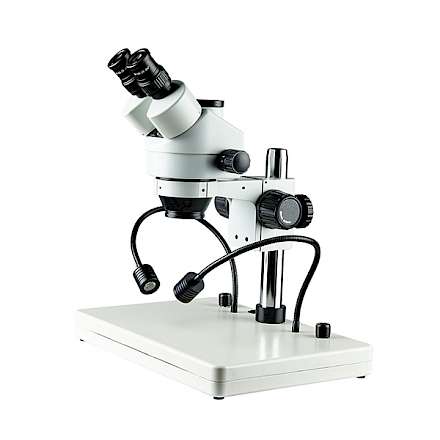

TZW7045X -PLGL	PLGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

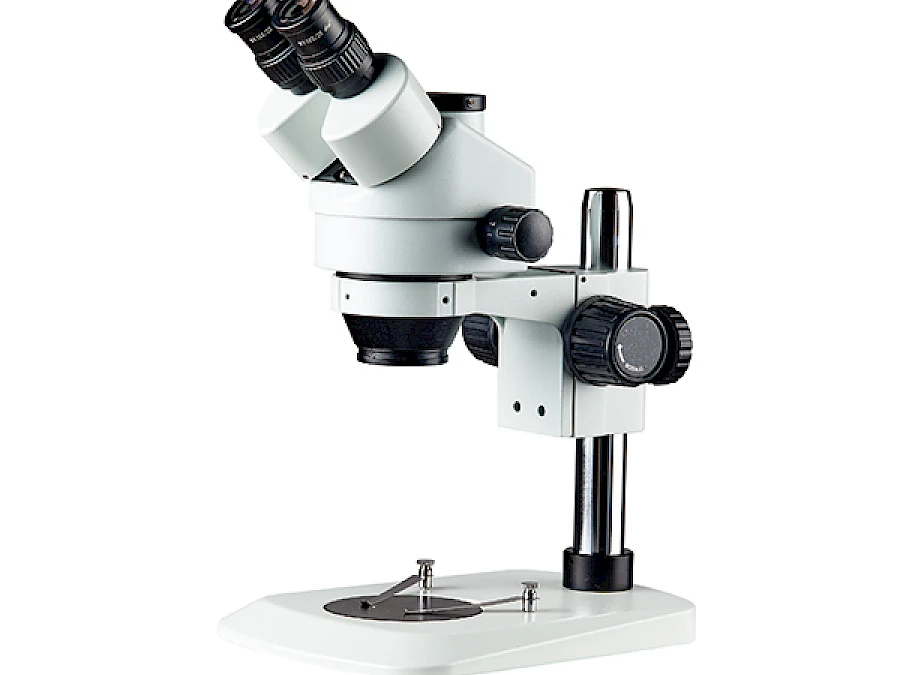

TZW7045X -PI	PI pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

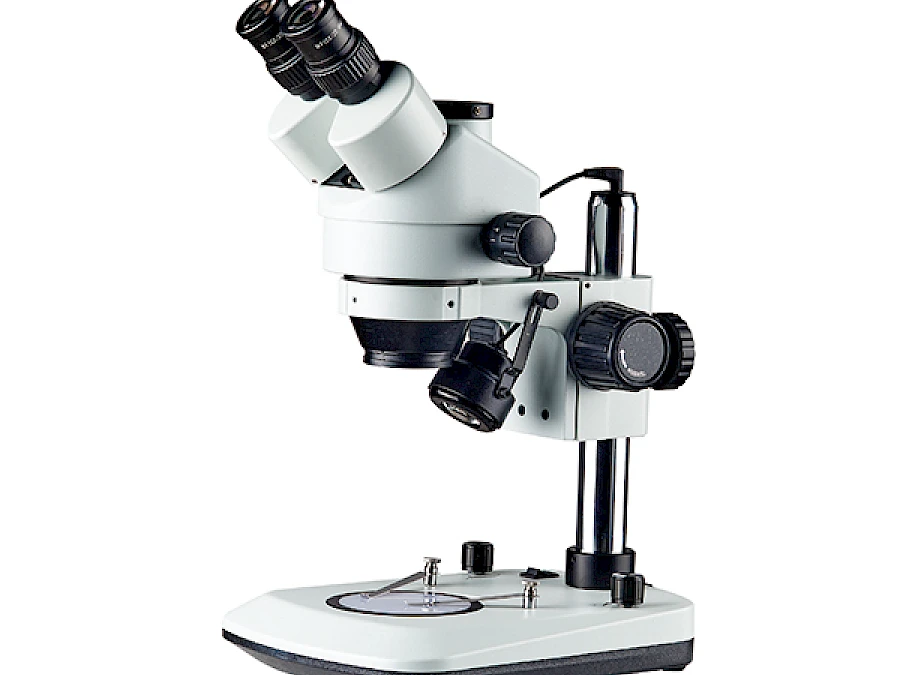

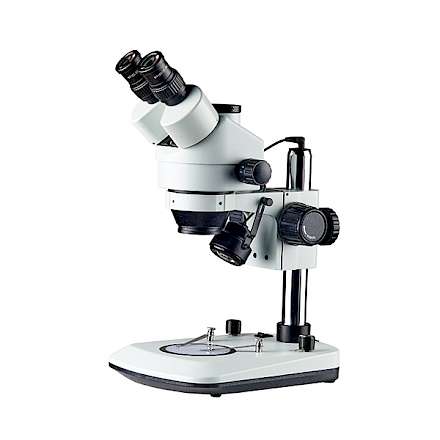

TZW7045X -PI2L	PI2L pole stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

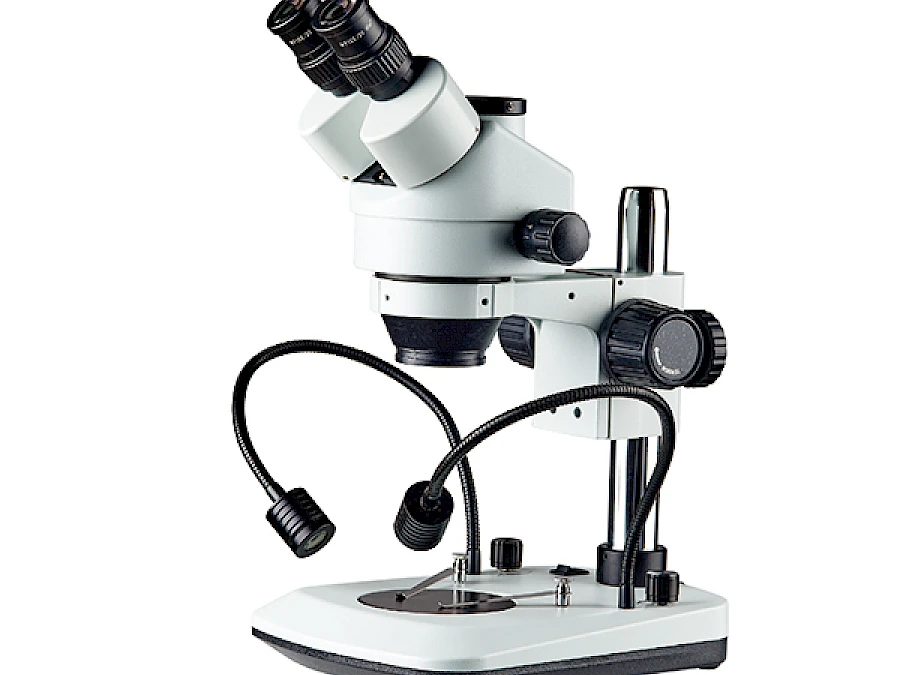

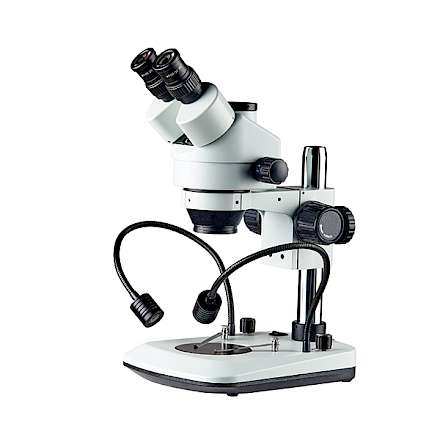

TZW7045X -PIGL	PIGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

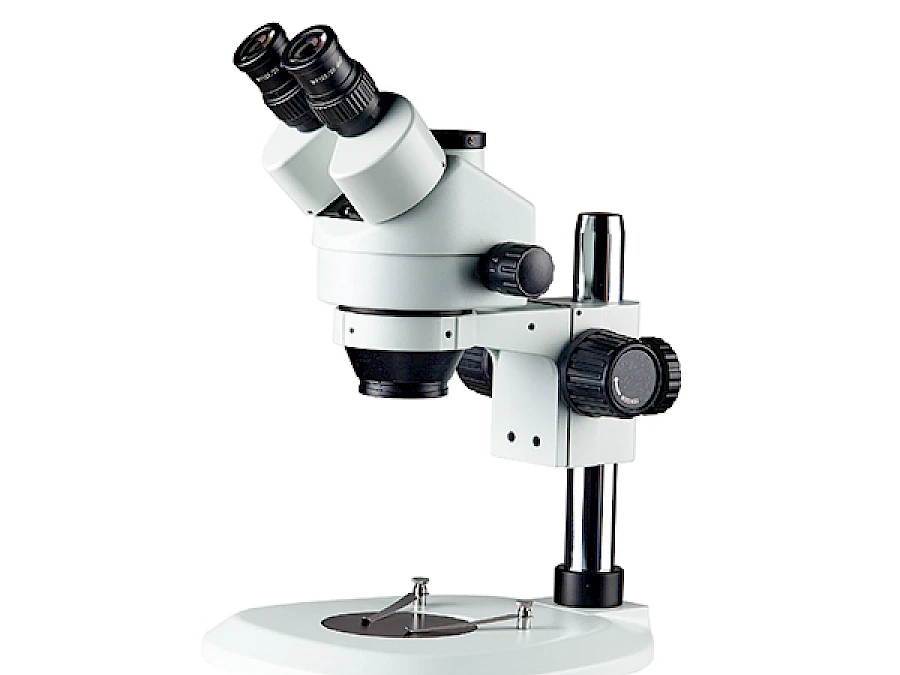

TZW7045X -PF	PF fan base pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

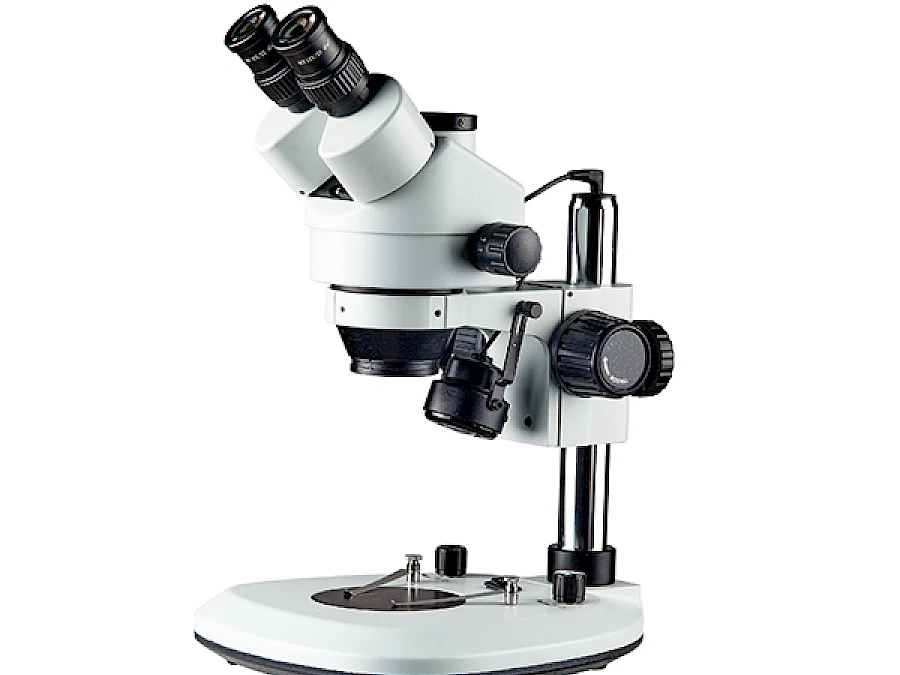

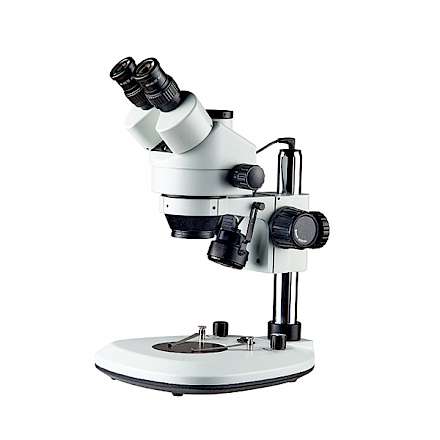

TZW7045X -PF2L	PF2L fan base pole stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

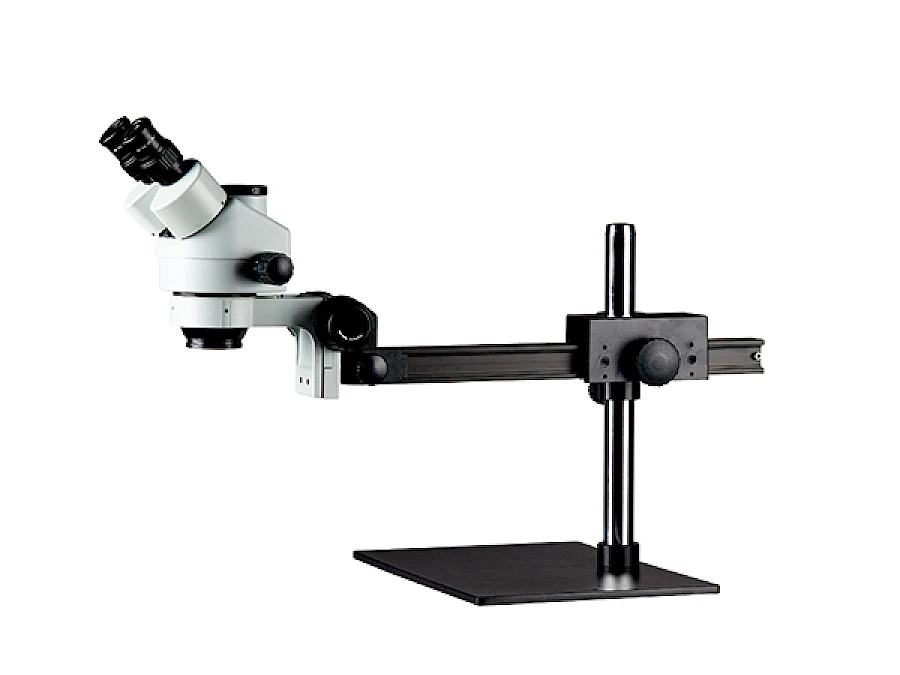

TZW7045X -U2	U2 pole stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for TZW7045X Pole Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main body	Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

TZW7045X-AS

TZW7045X-AL

TZW7045X-AI

TZW7045X-AI2L

TZW7045X-AF

TZW7045X-AF2L

Item	Stand	Illumination

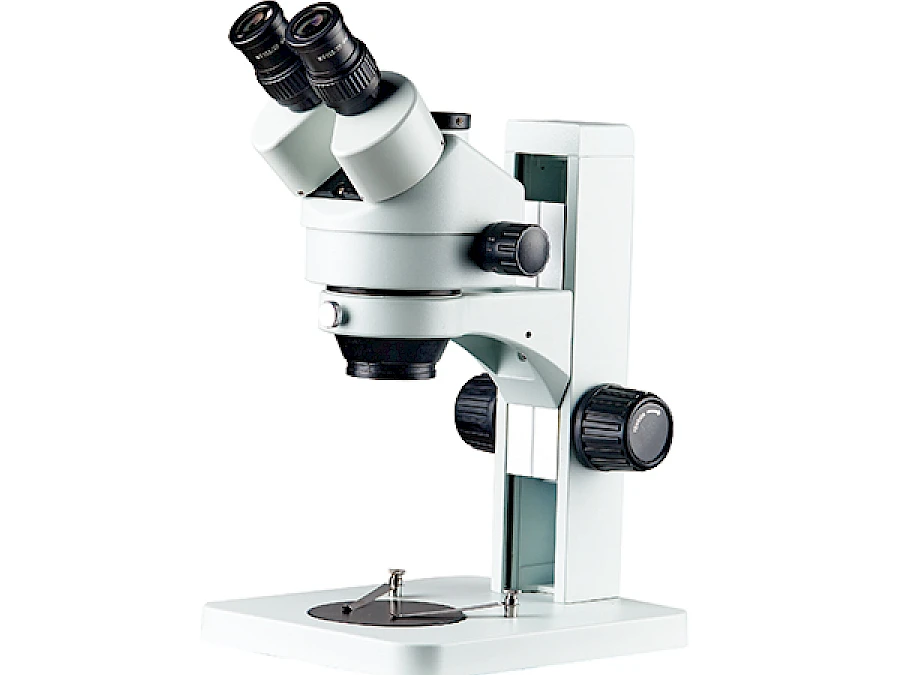

TZW7045X-AS	AS track stand	Fluorescent lamp, LED ring light

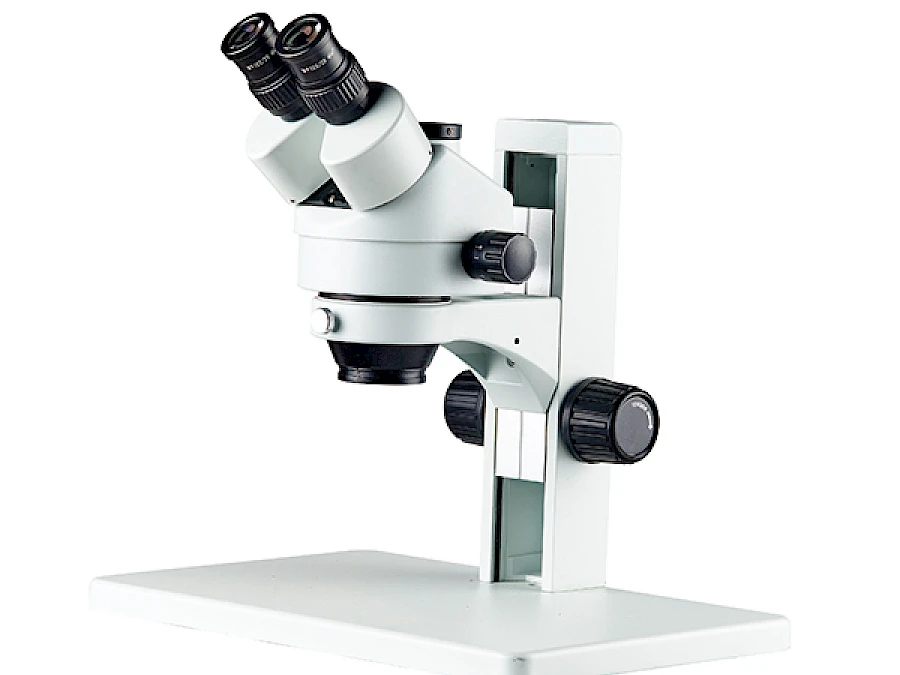

TZW7045X-AL	AL track stand	Fluorescent lamp, LED ring light

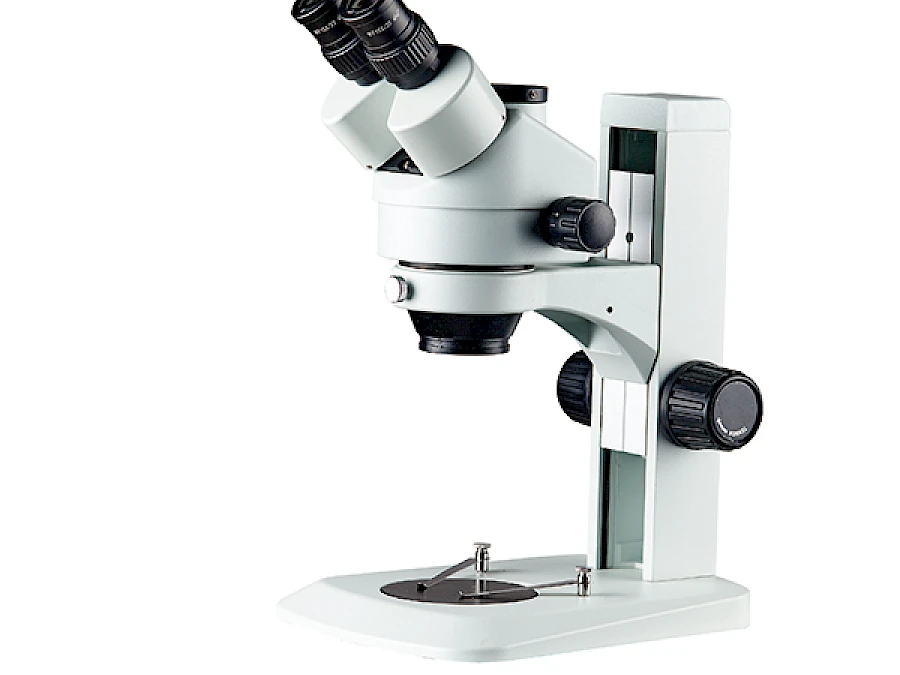

TZW7045X-AI	AI track stand	Fluorescent lamp, LED ring light

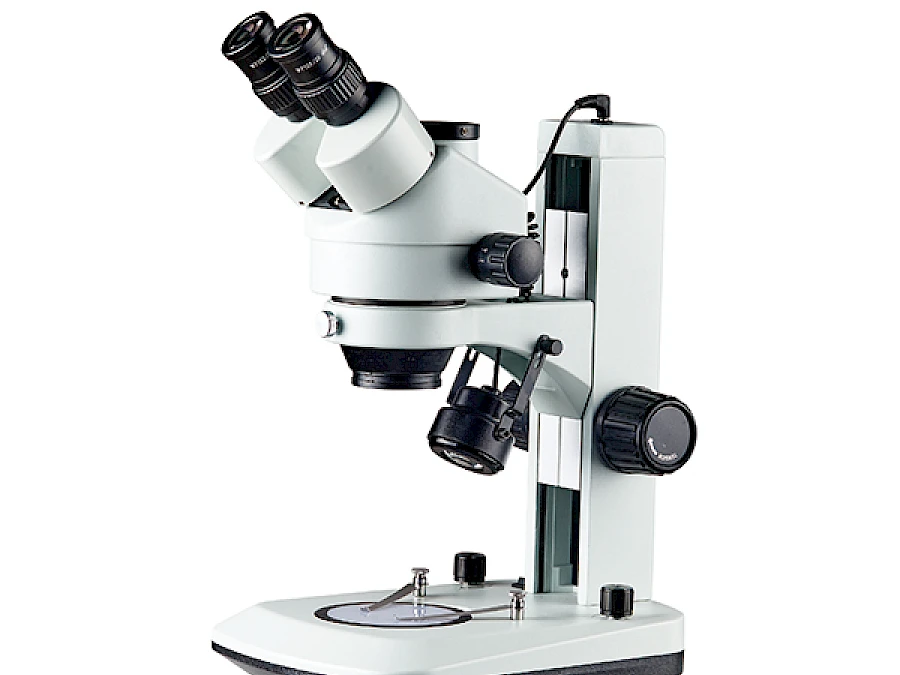

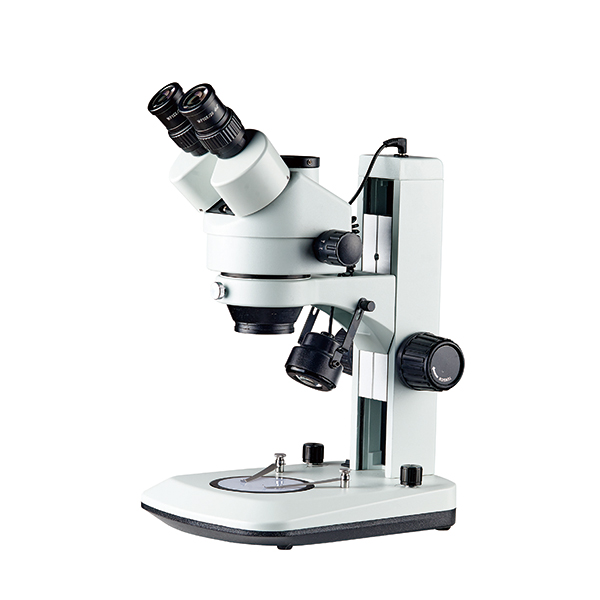

TZW7045X-AI2L	AI2L track stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

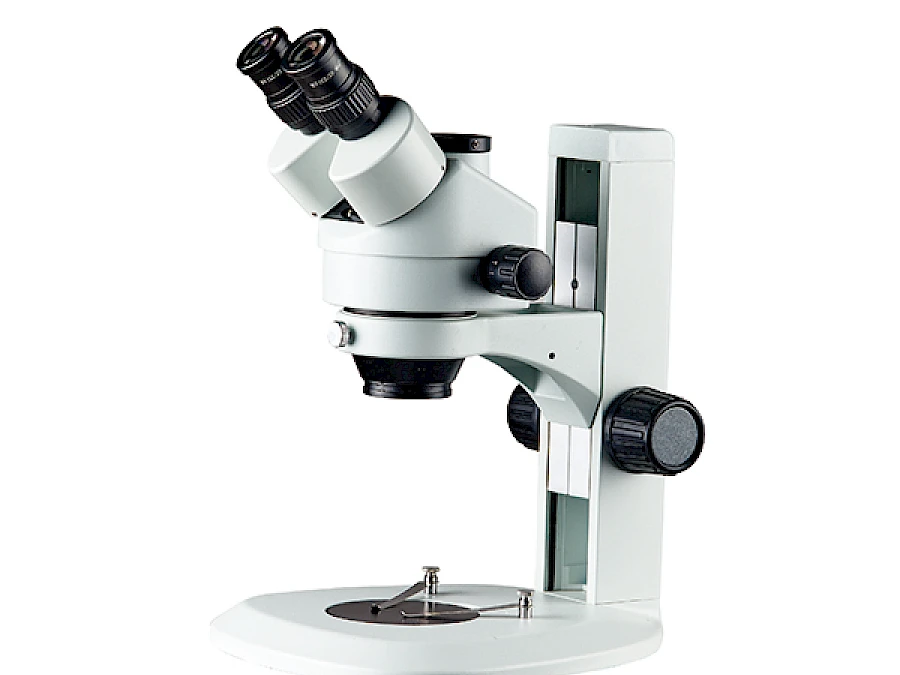

TZW7045X-AF	AF fan track stand	Fluorescent lamp, LED ring light

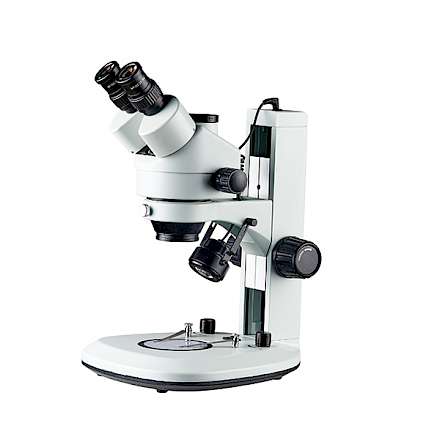

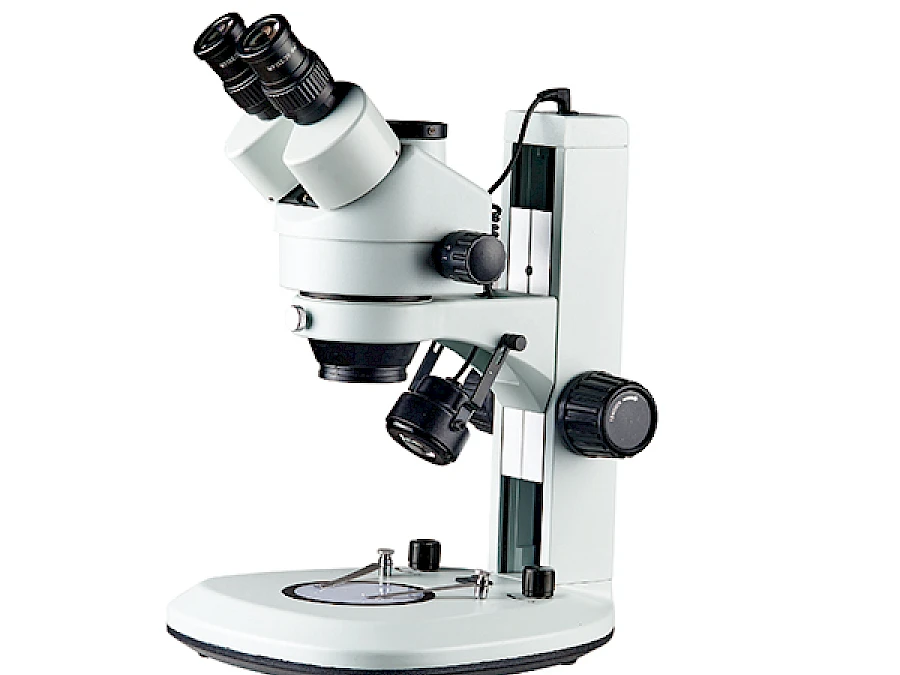

TZW7045X-AF2L	AF2L fan base track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for TZW7045X Track Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main body	Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Focusing Mount	Focusing track mount with vertical working distance 106mm

TZW7045X-SU1

TZW7045X-SU2

TZW7045X-SU3

TZW7045X-DU1

TZW7045X-DU2

TZW7045X-RU1

Item	Stand	Focusing Mount

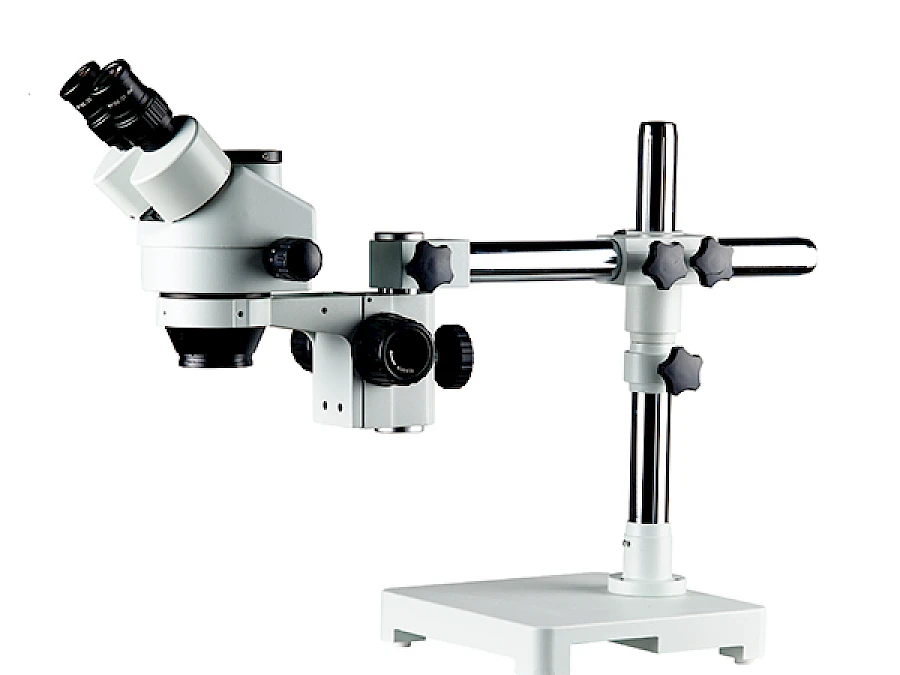

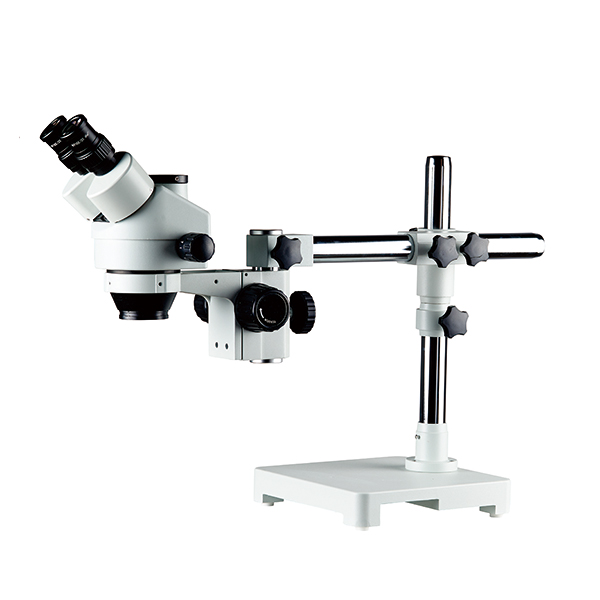

TZW7045X-SU1	SU1 boom stand	C1 focusing mount with vertical working distance 50mm

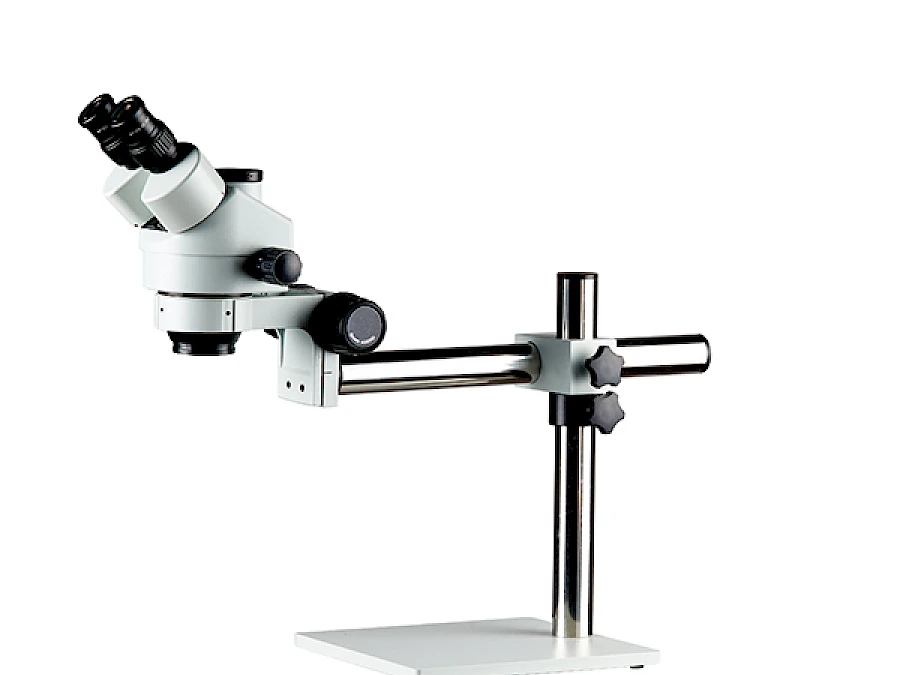

TZW7045X-SU2	SU2 boom stand	C3 focusing mount with vertical working distance 50mm

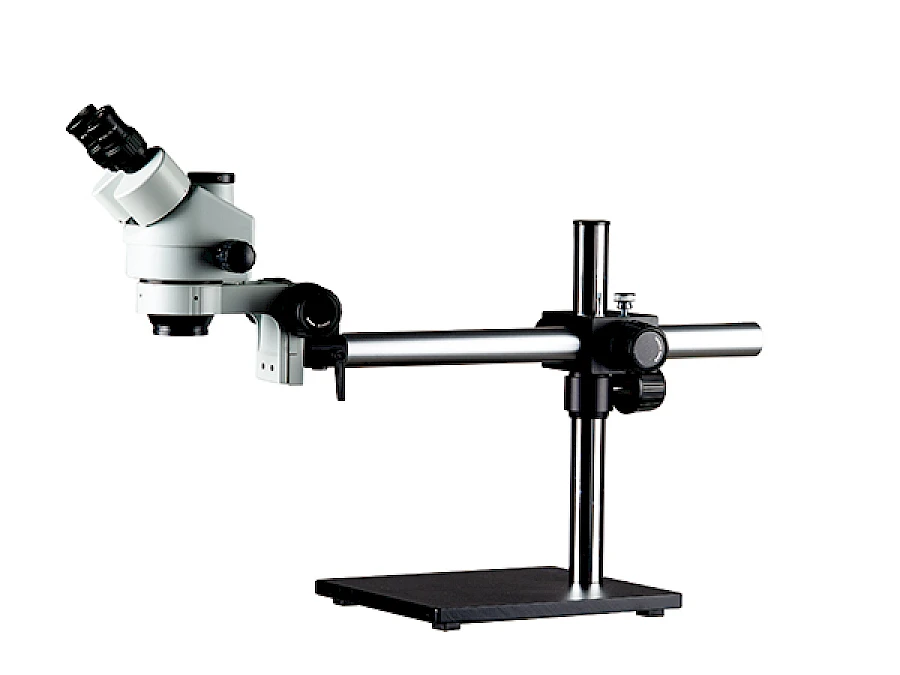

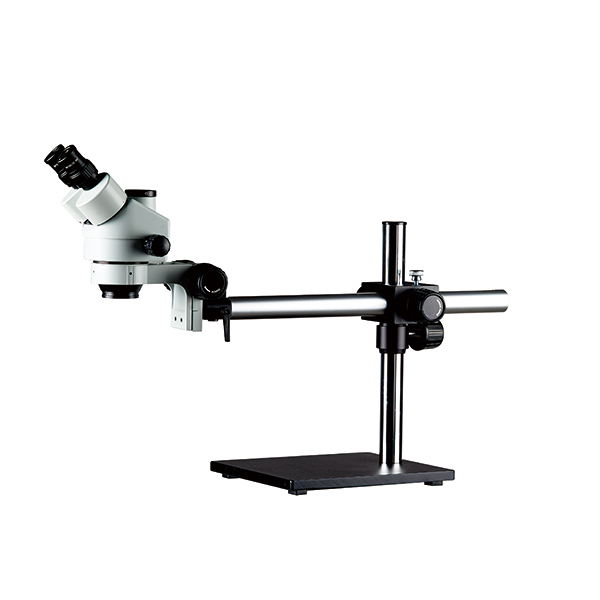

TZW7045X-SU3	SU3 boom stand	C3 focusing mount with vertical working distance 50mm

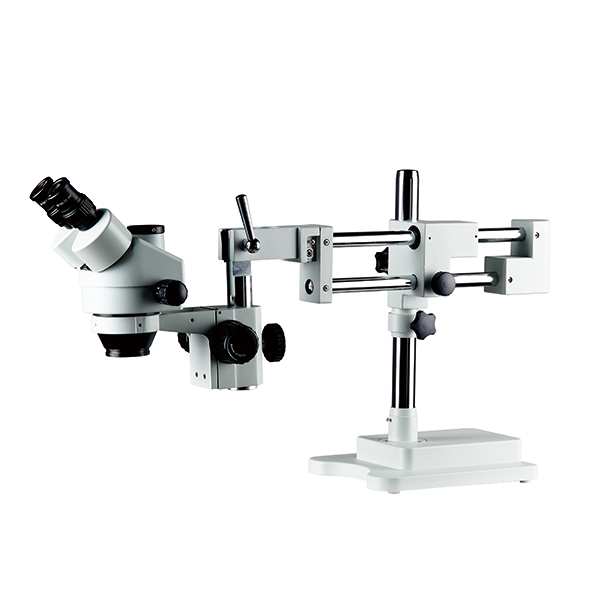

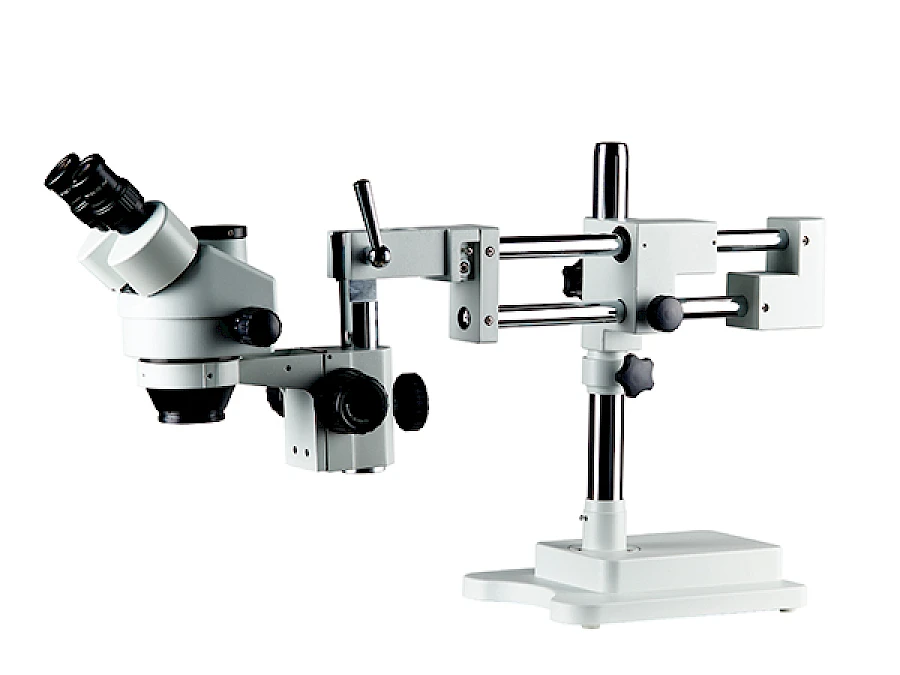

TZW7045X-DU1	DU1 boom stand	C1 focusing mount with vertical working distance 50mm

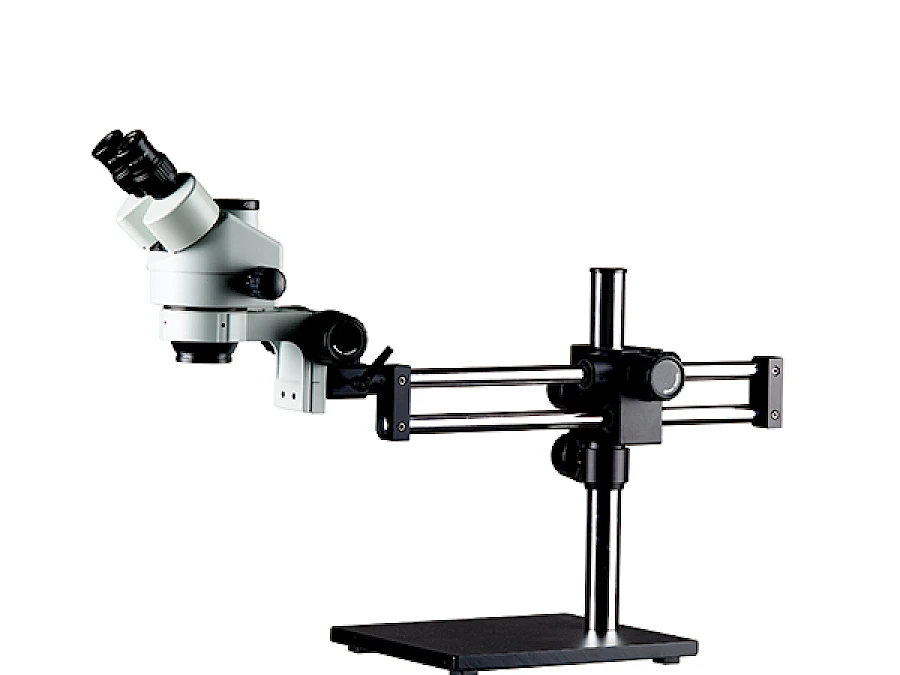

TZW7045X-DU2	DU2 boom stand	C3 focusing mount with vertical working distance 50mm

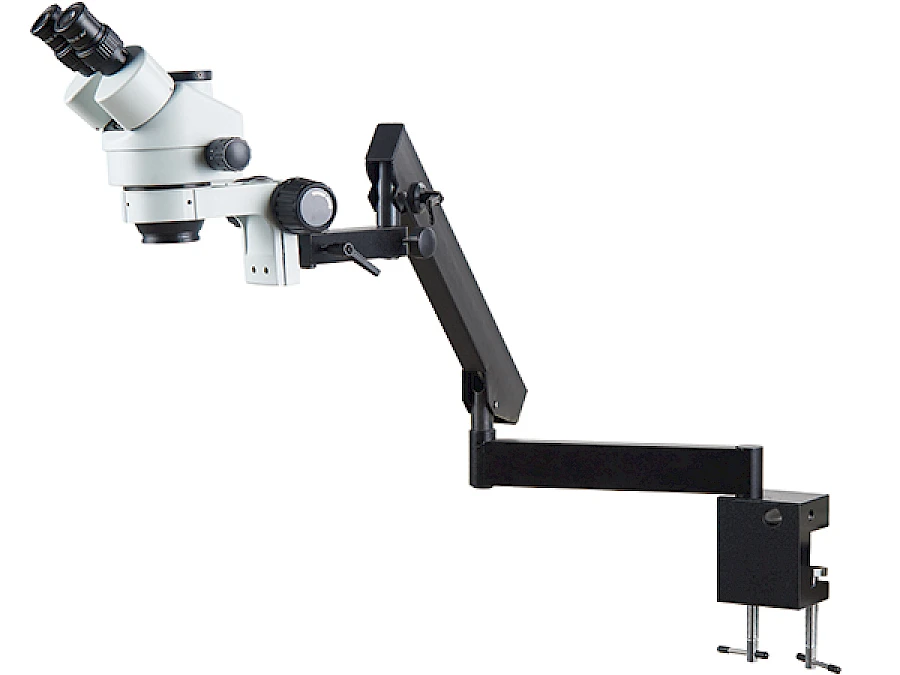

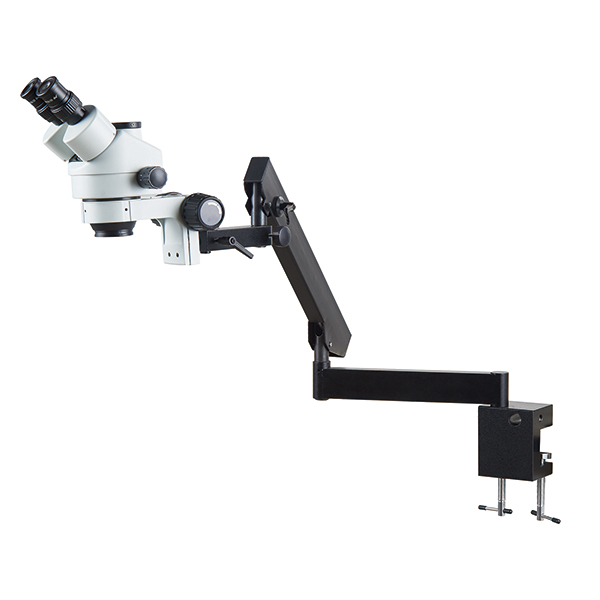

TZW7045 -RU1	RU1 clamp boom stand	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for TZW7045X Boom Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main body	Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Illumination	Fluorescent lamp, LED ring light
