HVS-15AF

HVS-15AF Monocular Autofocus Integrated Stereo Video Microscope with Measurement Function

Auto Focus, Large F.O.V,HDMI Output, Directly Measurement without Calibration, Digital Keypad

Core Features

Auto Focus, large field of view
The digital keypad can be connected to control the camera
Magnification displayed on the monitor in real time for easy comparison
HDMI Output, supporting 1080P@60Hz or 1080P@50Hz display monitor
Providing directly measurement without calibration, photo, video and other images processing functions, save to U disk

Configurations

Sensor Size

1/2.8” Color CMOS

1080P@60fps

1080P@50fps

Full Digital UI Design

Save Function

U Disk

Request Quotation Email Phone Back to Products

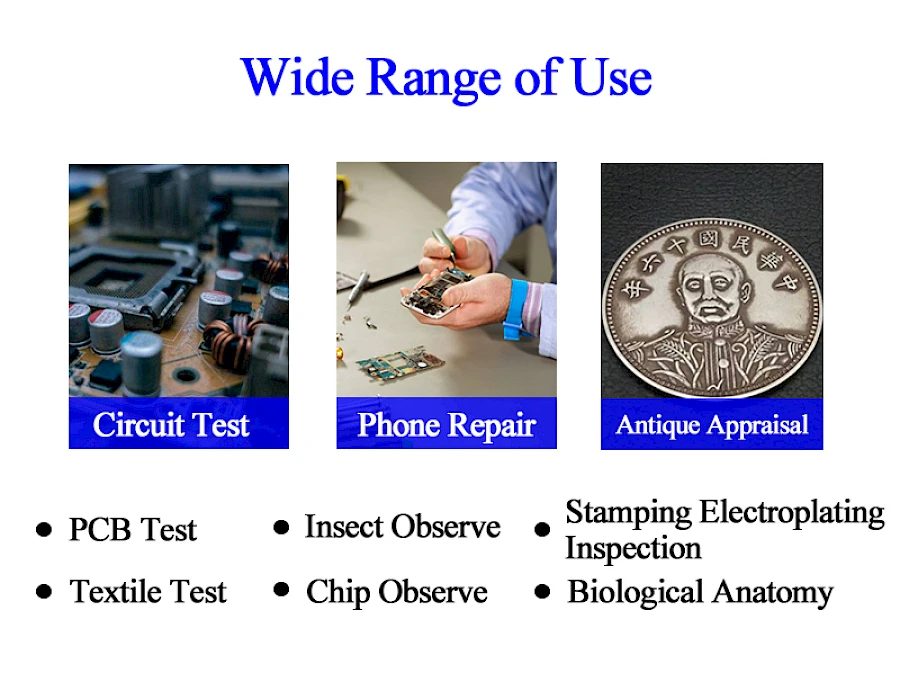

HVS-15AF Autofocus large field of view measurement microscope has the characteristics of fast transmission rate, and take pictures, videos and other picture processing functions. Suitable for medical and health, agriculture and forestry geology, electronic precision machinery and other industries and departments, especially suitable for LED, PCB inspection, stamping electroplating inspection, electronic components inspection and so on. It is also suitable for biological anatomy and macroscopic observation of insects. Language mode: Simplified Chinese, English, traditional Chinese and Japanese.

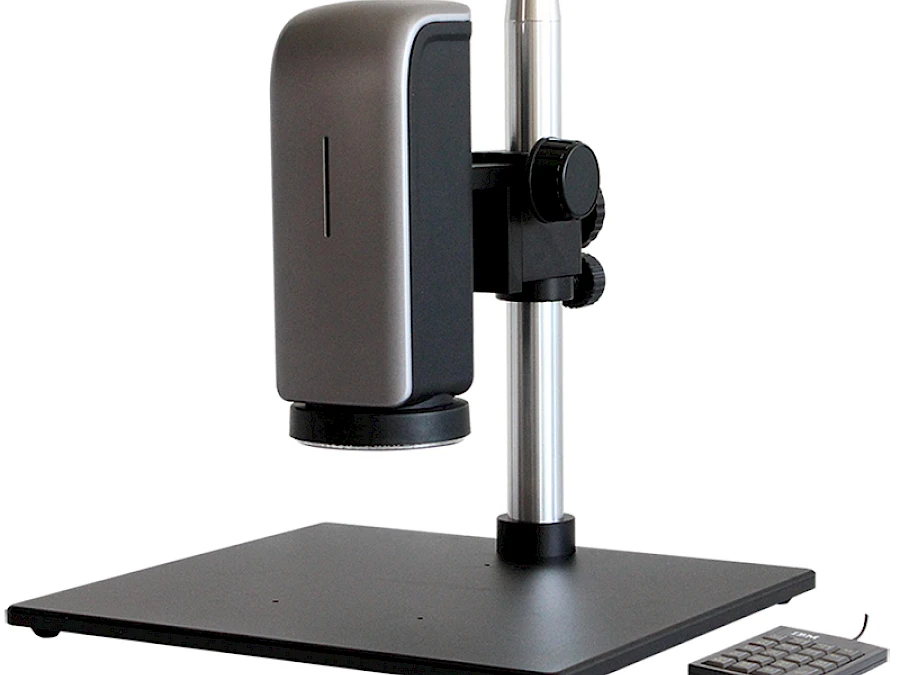

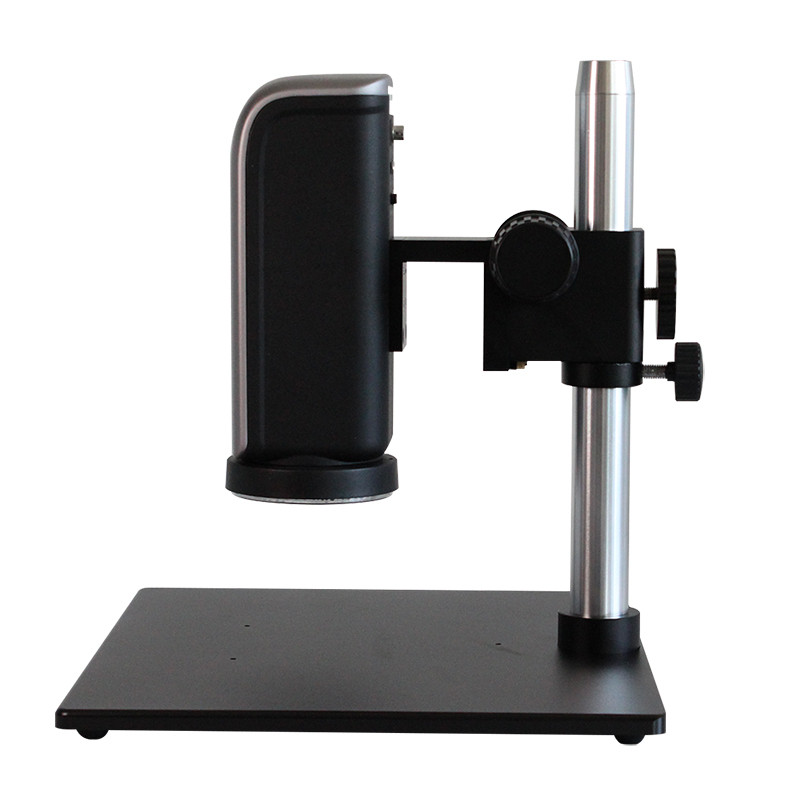

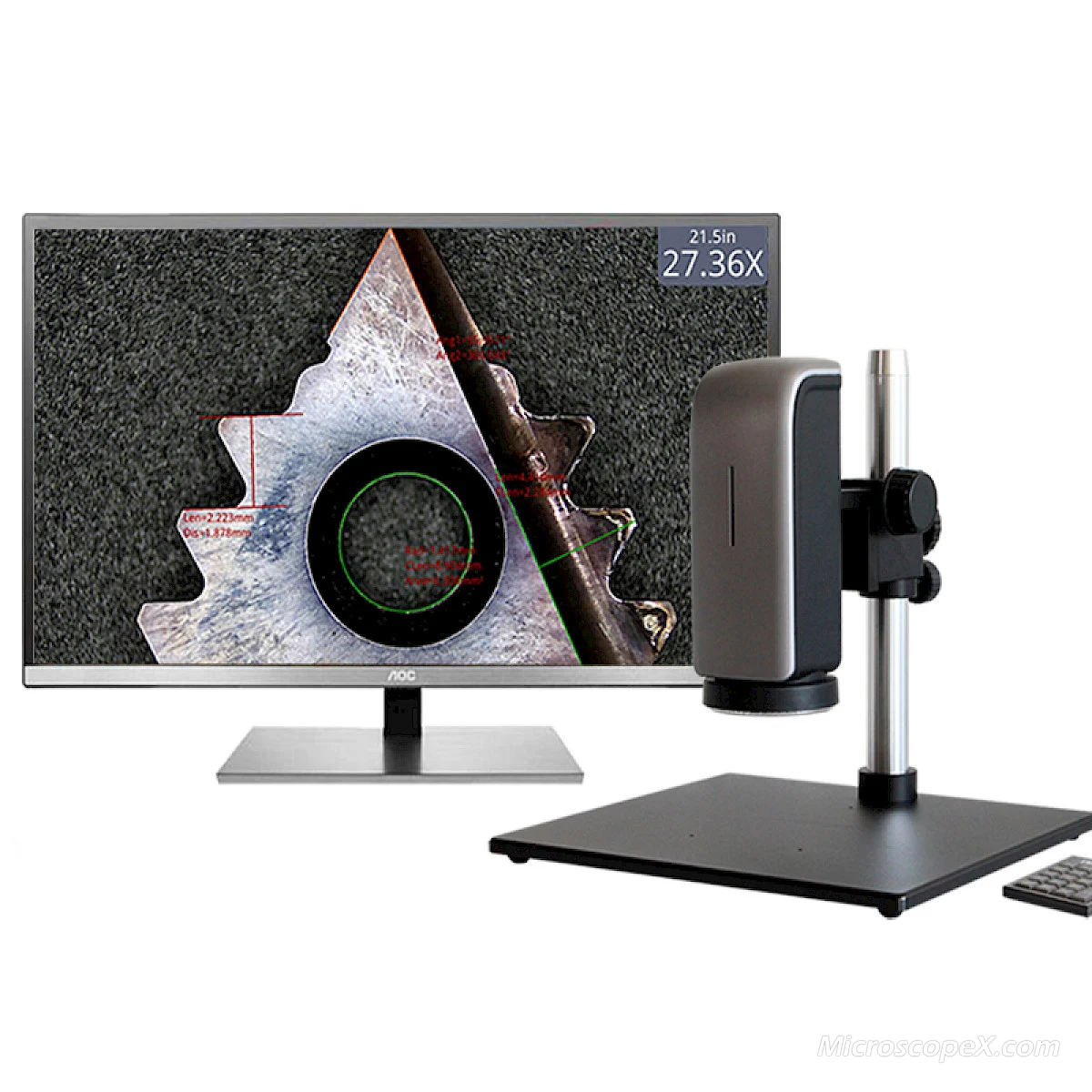

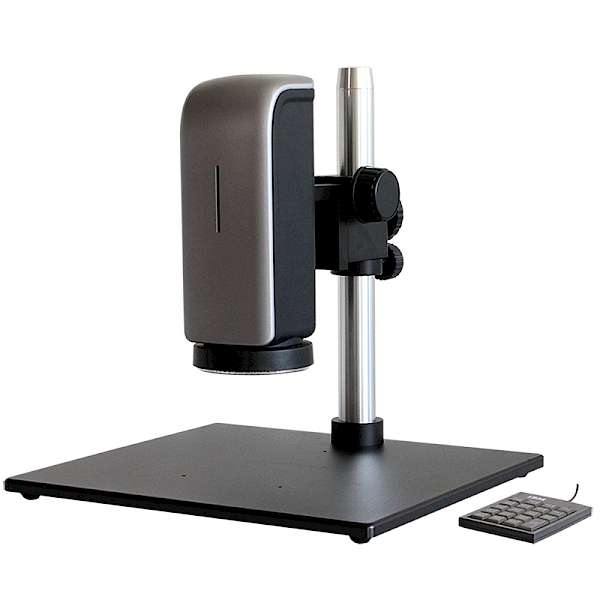

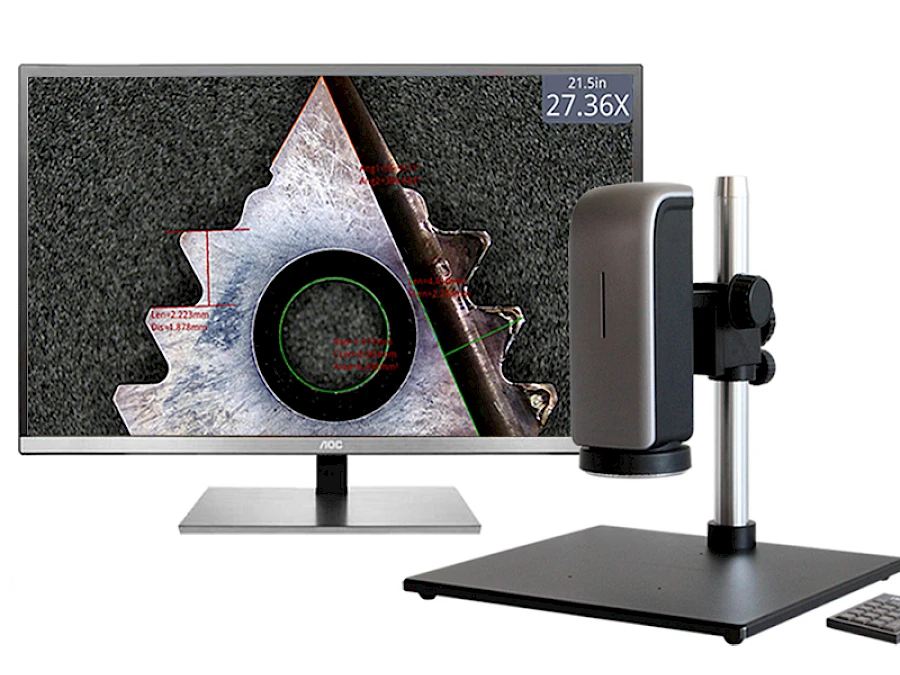

HVS-15AF Video Stereo Microscope

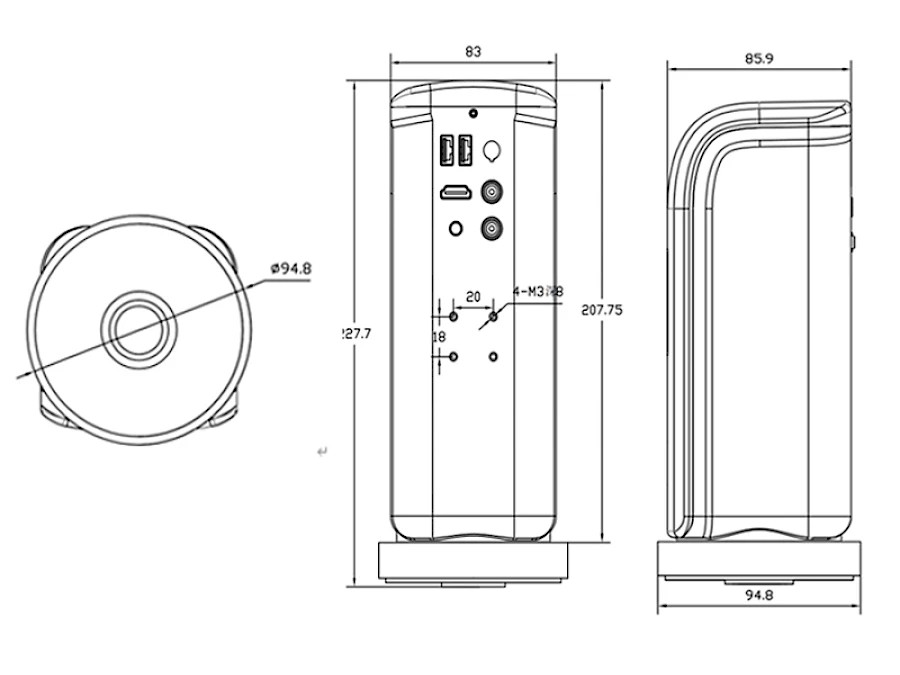

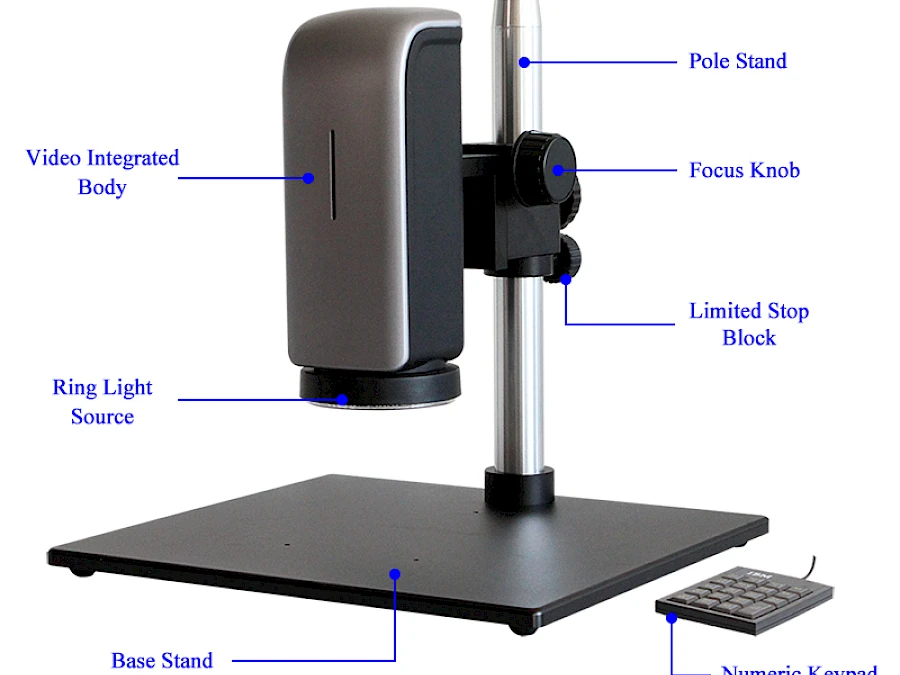

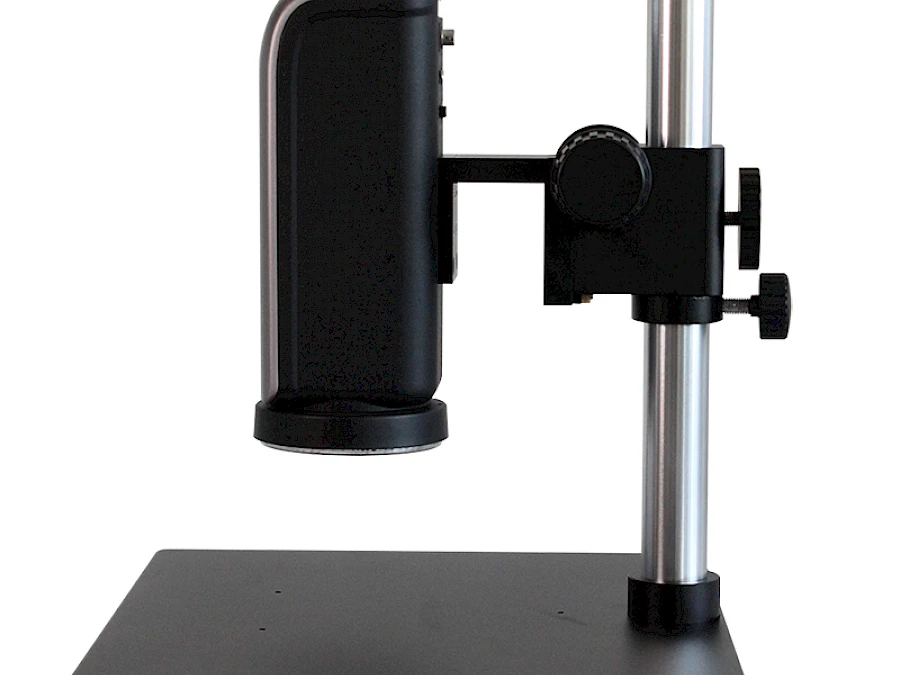

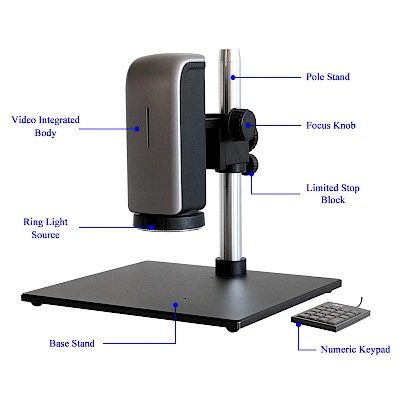

Structure of HVS-15AF Video Stereo Microscope

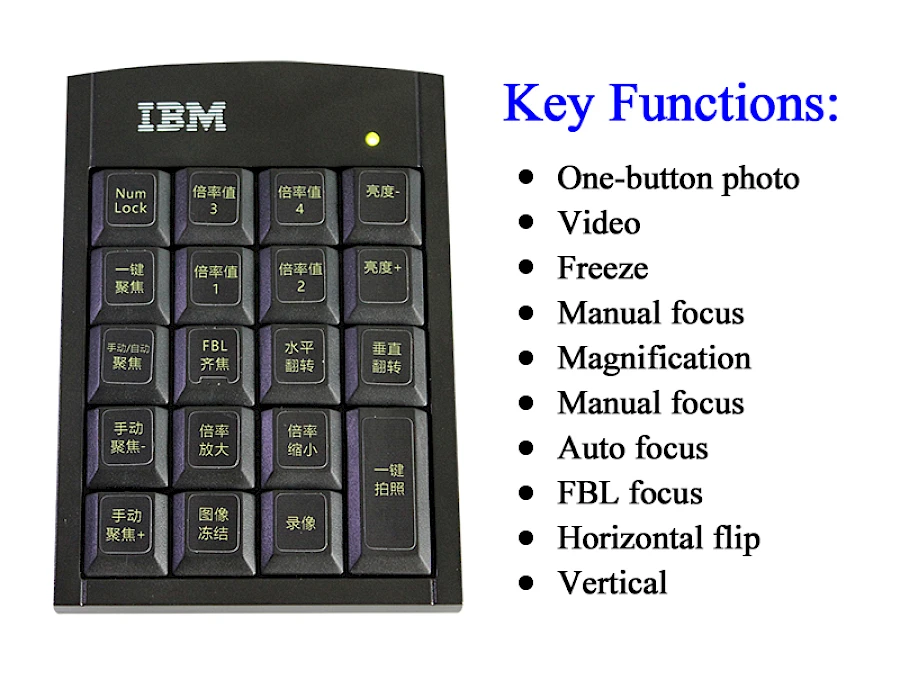

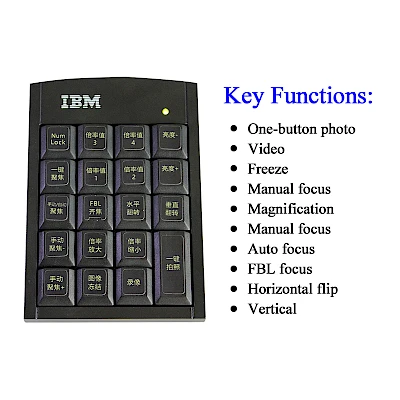

Keypad of HVS-15AF Video Stereo Microscope

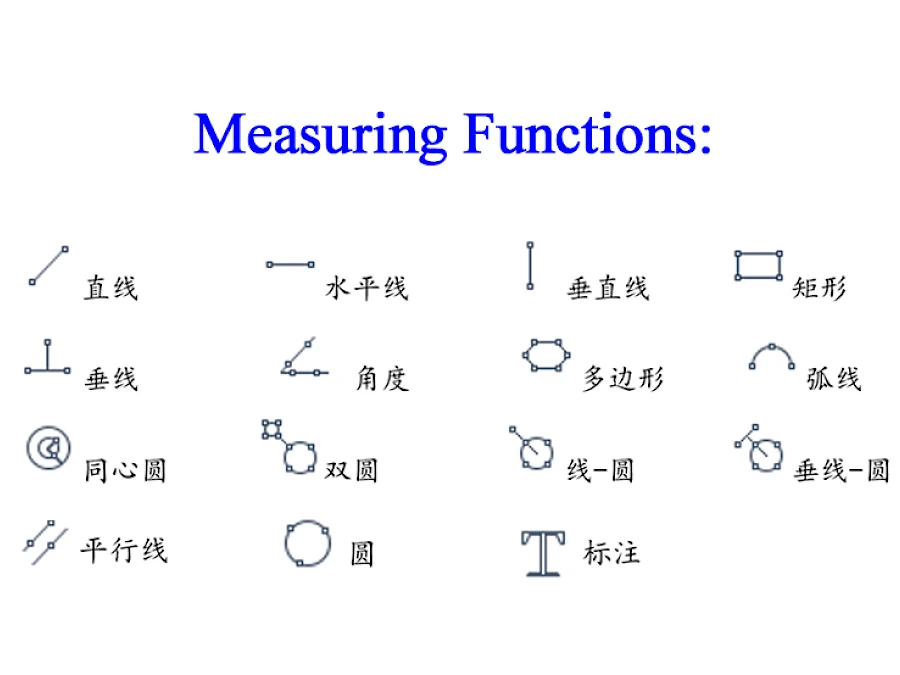

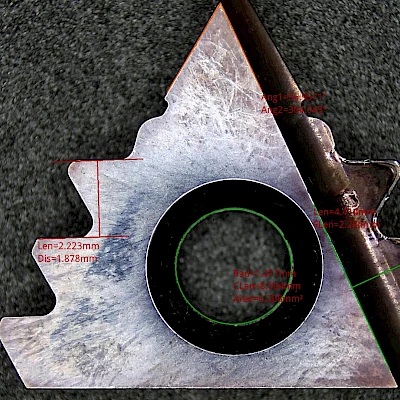

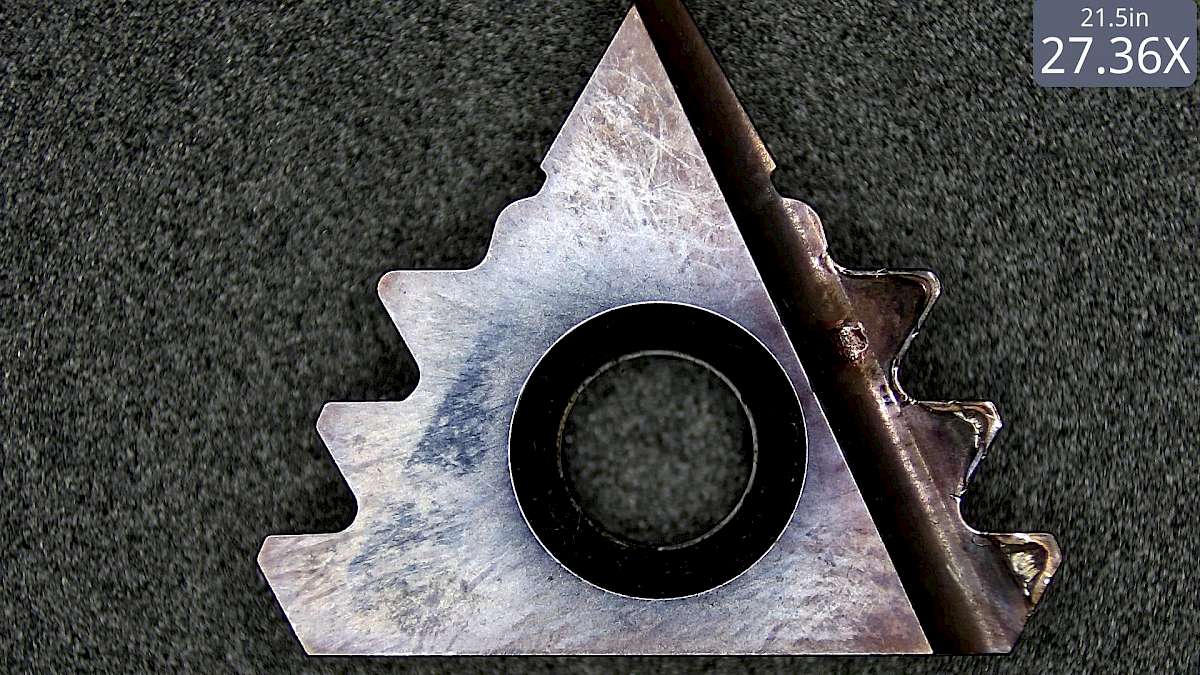

Measuring Functions of HVS-15AF Video Stereo Microscope

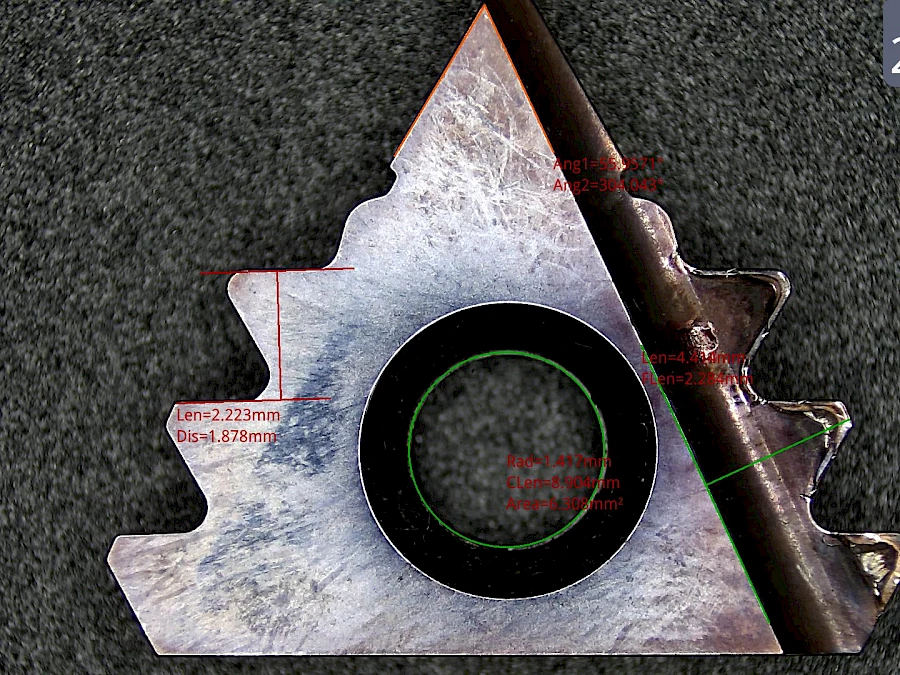

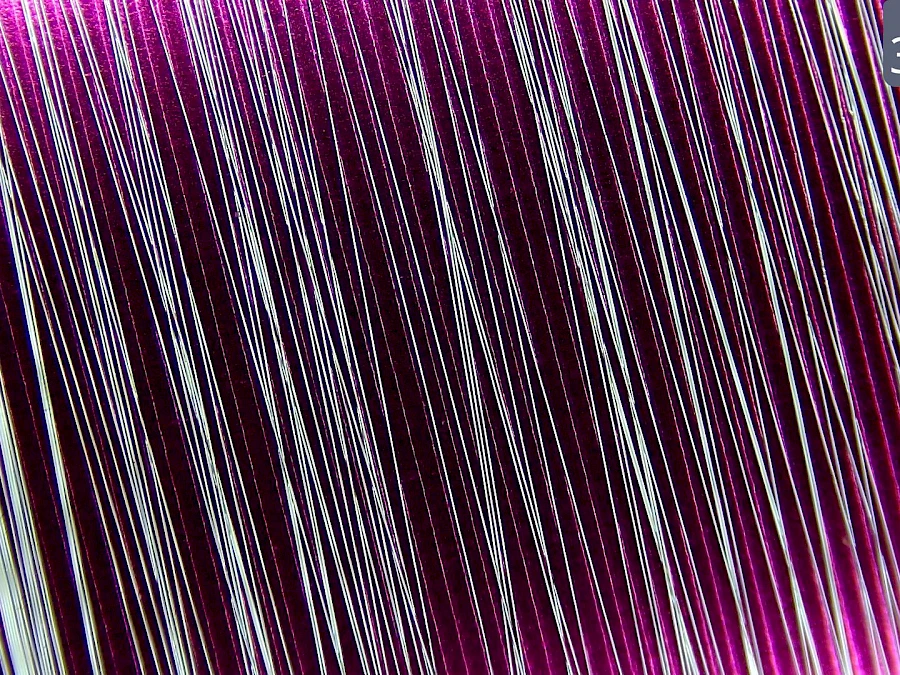

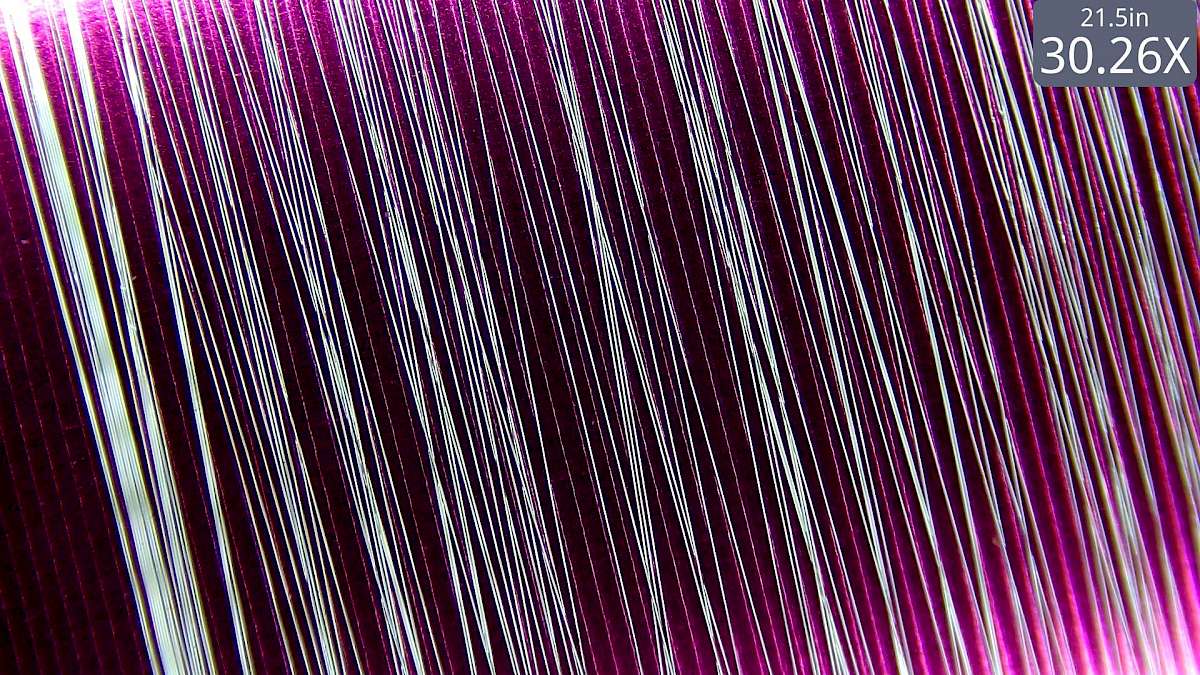

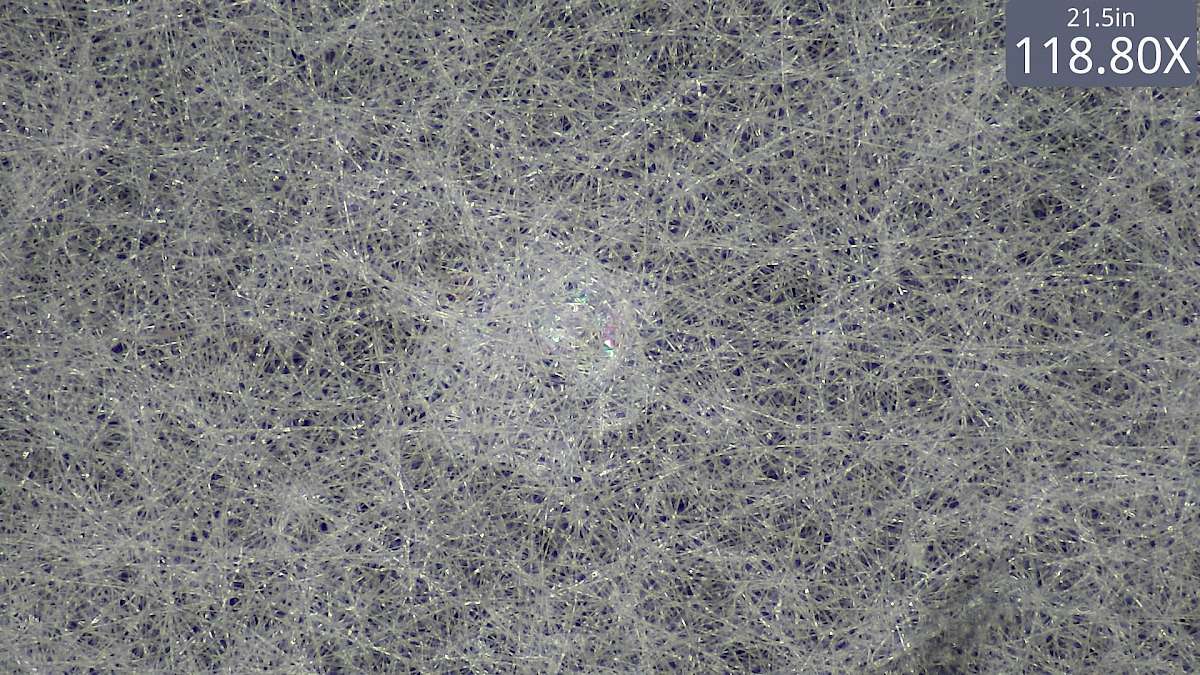

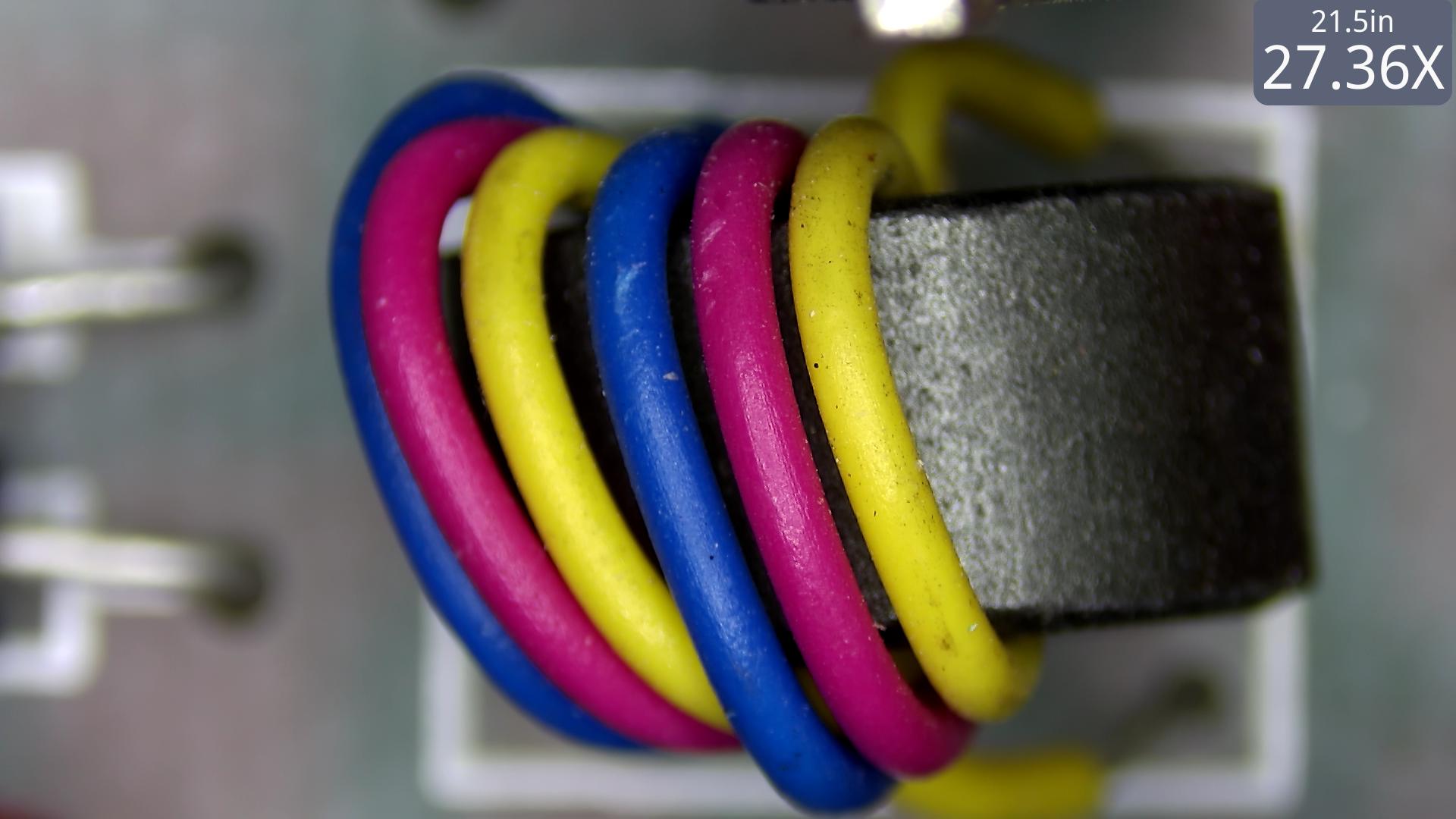

Measured Sample Captured by HVS-15AF Video Stereo Microscope

Specification for HVS-15AF
Sensor	Color CMOS
Real Resolution	2MP
Sensor Size	1/2.8” CMOS
Menu	Full Digital UI Design
Control	Mouse Action
Power Supply	DC12V
Output interface	HDMI
Rate of Frame	1080P@60fps/1080P@50fps
Scanning Mode	Progressive scanning
White Balance	Manual / Auto
Exposure	Manual / Auto
Electronic shutter speed	1/50s(1/60s)～1/10000s
Optical Ratio	0.80～4.76
Digital Ratio	1.0～6.0
Digital Magnification	Available
Save Function	U Disk

Mag.	Visible Range (Wide*Length) when W.D.100mm	Visible Range (Wide*Length) when W.D.300mm
1X	171*92mm	420*230mm
2X	89*50mm	196*110mm
3X	71*40mm	150*84mm
4X	60*33mm	116*65mm
5X	52*29mm	101*57mm
14X	24.3*13.5mm	45.5*25mm
