DTV10-AF Real-time Inspection, Video Digital Stereo Microscope with optional displayer

DTV10-AF

HDMI, connect to different size of display, Video recording & photography, data output

Core Features

compact and sleek
zoom optical module
high definition camera
1920*1080P@60FPS(2.0Mp) Resolution
independent body design
optional base

Configurations

high definition camera

1920*1080P@60FPS(2.0Mp)

HDMI output interface

optional base

optional displayer

DTV10-AF is compact and sleek, integrated zoom optical module with high definition camera. It concentrates all functions together and makes it ideal for small installation spaces in modern equipment. The independent body design can be equipped with various bases according to customer's preference.

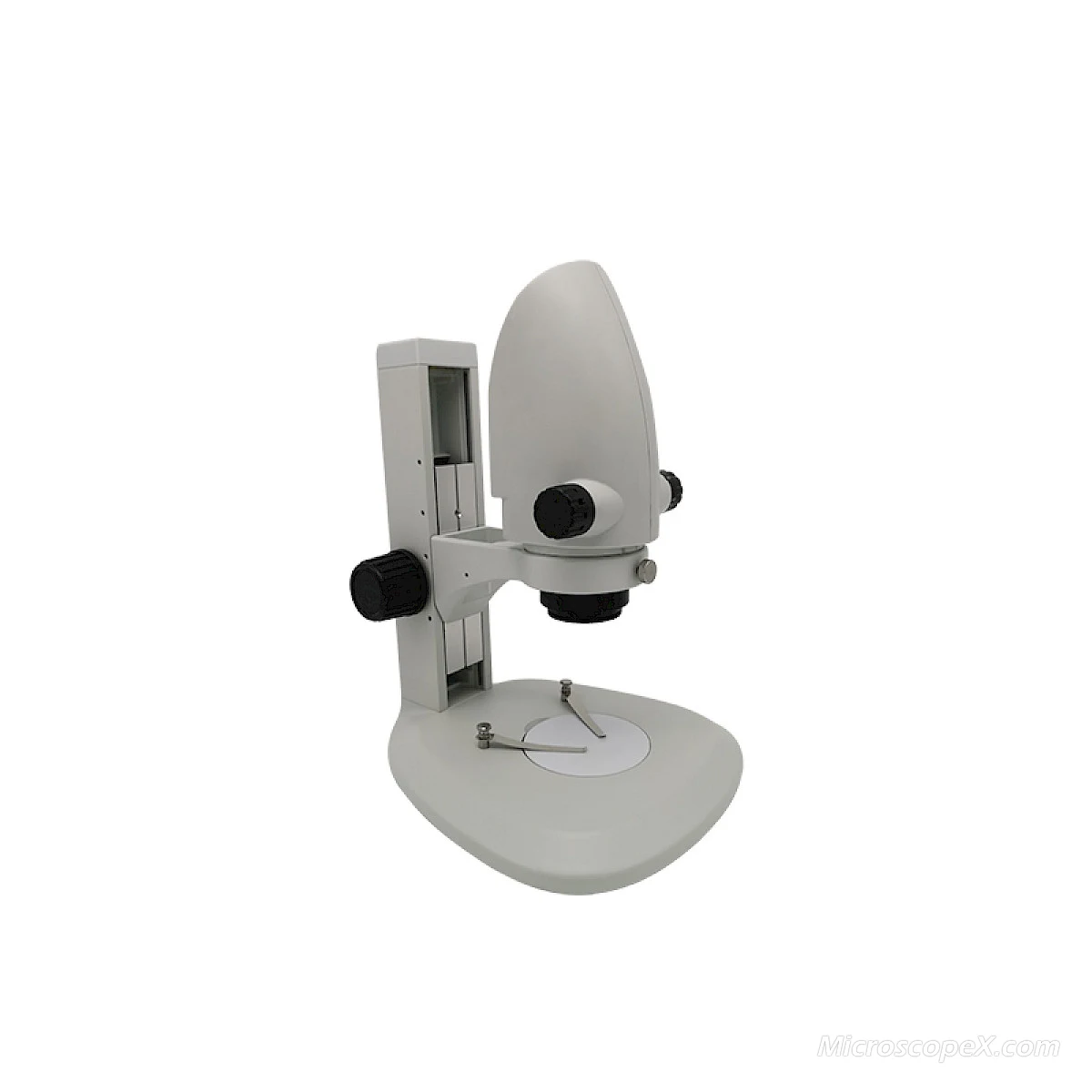

DTV10-AF

Specification for DTV10-AF
Body	Zoom lens 0.7x-4.5x; built-in camera with HDR image,1/3” COMS, 2.0Mp; HDMI output; support for SD card
Resolution	1920*1080P@60FPS(2.0Mp)
Function	Real-time inspection, Video recording and photography, Measurement, Storage, Data output
Displayer	According to customer's preference
Displayer Size	Standard		0.5x Auxiliary Lens		2.0x Auxiliary Lens
	W.D. 100mm		W.D. 165mm		W.D. 30mm
	Mag.	F.O.V.(mm)	Mag.	F.O.V.(mm)	Mag.	F.O.V.(mm)
11.6”	17.2x-110.5x	18.510.5-2.81.5	8.6x-55.2x	37.521-5.53.0	34.4x-221x	9.55.5-1.50.7
21.5”	31.9x-204.8x	18.510.5-2.81.5	15.9x-102.4x	37.521-5.53.0	63.7x-409.6x	9.55.5-1.50.7
Stand	AF track stand. For more options, please refer to “ACCESSORIES-MICROSCOPE STAND”
Illumination	Fluorescent lamp, LED ring light, for more option, please refer to “ACCESSORIES-ILLUMINATOR”
Display	Can connect to different size of display through HDMI output interface
Power	Input 100V-240V, AC50/60Hz; Output DC12V/2A
