BZW7045 Series

BZW7045 Series Industrial measurement & Agricultural research Continuous Zoom Stereo Microscope

7X-45X, crystal clear sharp images, electronic industry, educational demonstration, measurement, inspection

Core Features

provide crystal clear sharp images with high resolution
remains clear and sharp images throughout the whole zoom range
widely used in electronic industry, educational demonstration and agricultural research

Configurations

high resolution

good depth

clear and sharp images

7X-45X

3.5X-270X

optional eyepieces & objectives

Request Quotation Email Phone Back to Products

BZW7045 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.

BZW7045-PS

BZW7045-PRT

BZW7045-PL

BZW7045-PLGL

BZW7045-PI

BZW7045-PI2L

BZW7045-PIGL

BZW7045-PF

BZW7045-PF2L

BZW7045-AS

BZW7045-AL

BZW7045-AI

BZW7045-AI2L

BZW7045-AF

BZW7045-AF2L

BZW7045-AC

BZW7045-AC2L

BZW7045-SU1

BZW7045-SU2

BZW7045-SU3

BZW7045-DU1

BZW7045-DU2

BZW7045-RU1

BZW7045-RU2

BZW7045-RU3

BZW7045-U2

BZW7045-PS

BZW7045-PRT

BZW7045-PL

BZW7045-PLGL

BZW7045-PI

BZW7045-PI2L

BZW7045-PIGL

BZW7045-PF

BZW7045-PF2L

BZW7045-U2

Item	Stand	Illumination	Focusing Mount

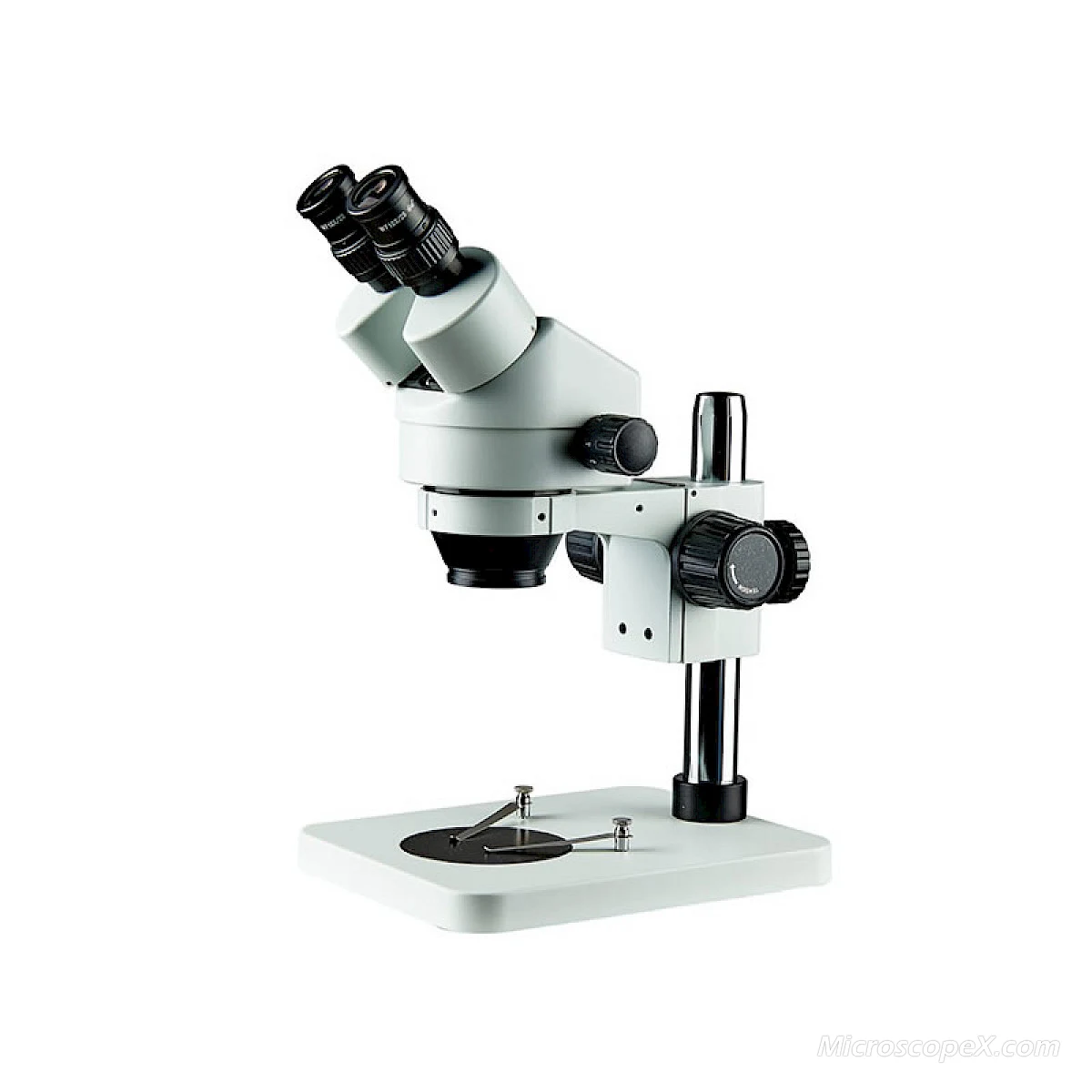

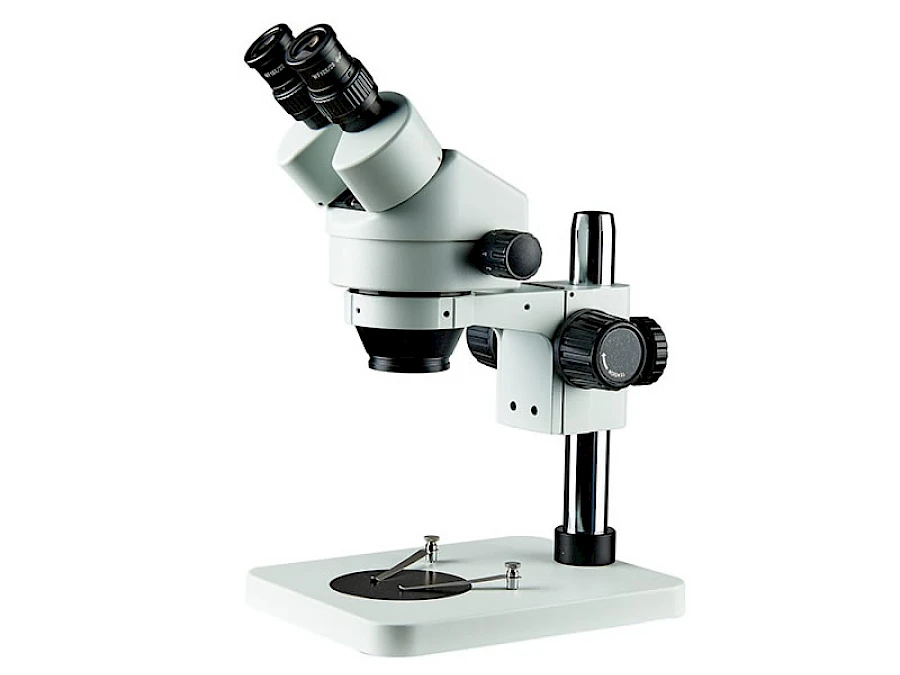

BZW7045-PS	PS pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

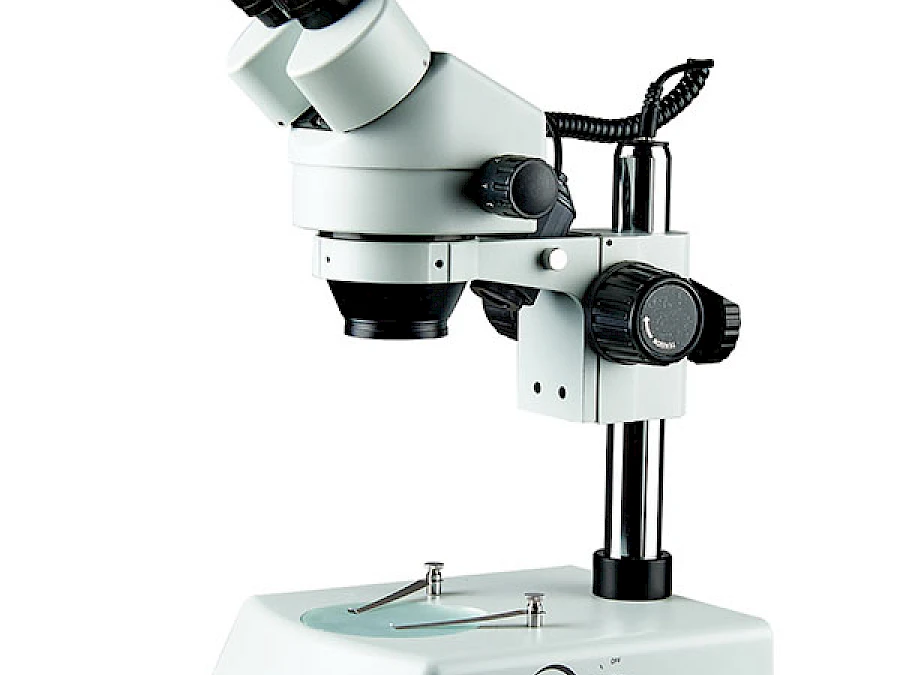

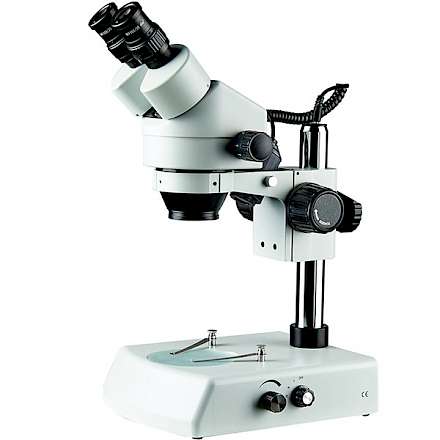

BZW7045- PRT	PRT pole stand	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination	C1 focusing mount with vertical working distance 50mm

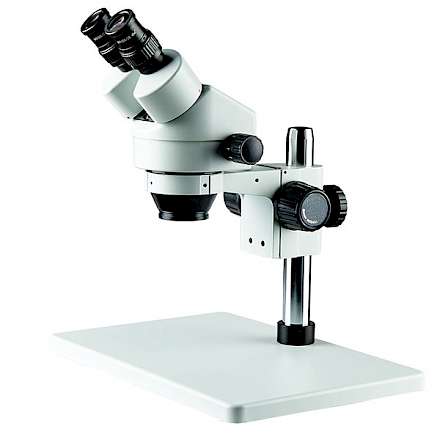

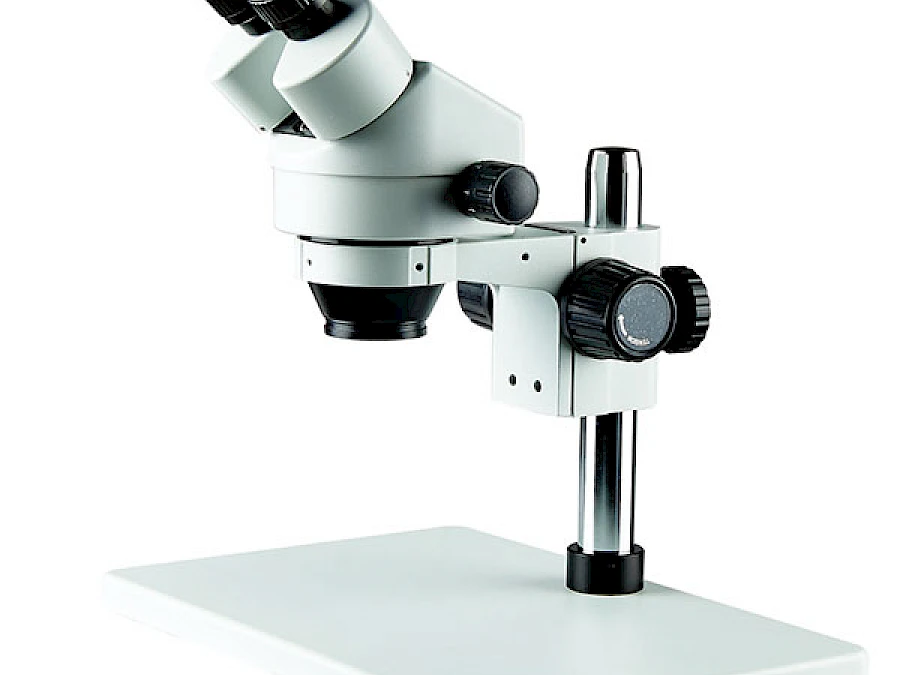

BZW7045- PL	PL pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

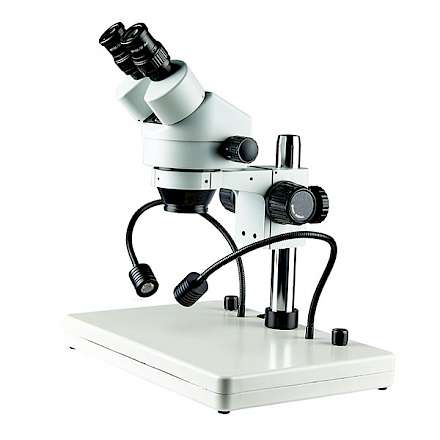

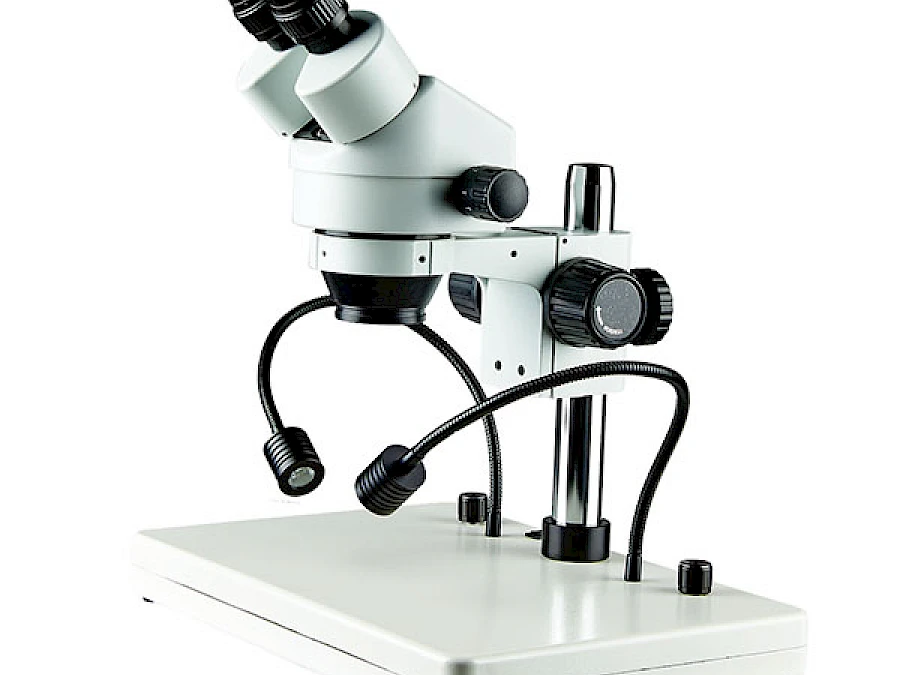

BZW7045- PLGL	PLGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

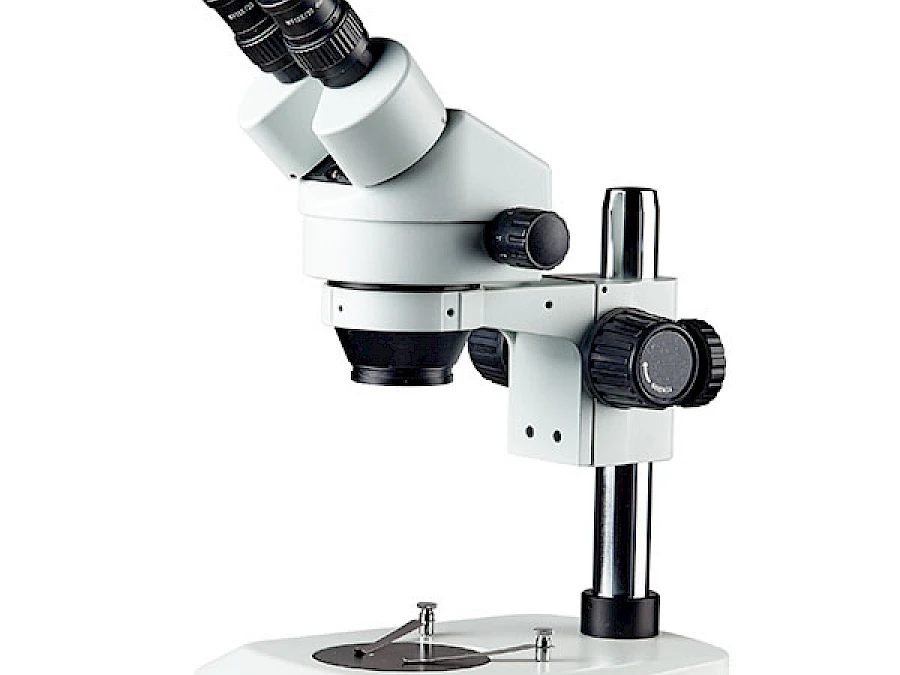

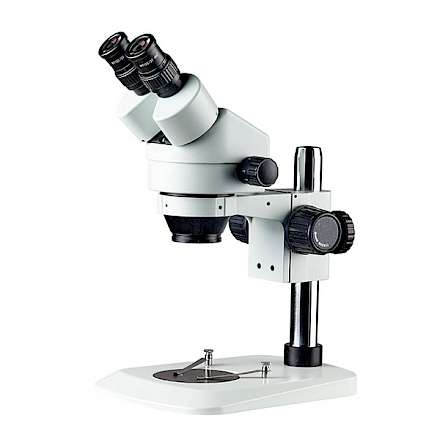

BZW7045 PI	PI pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

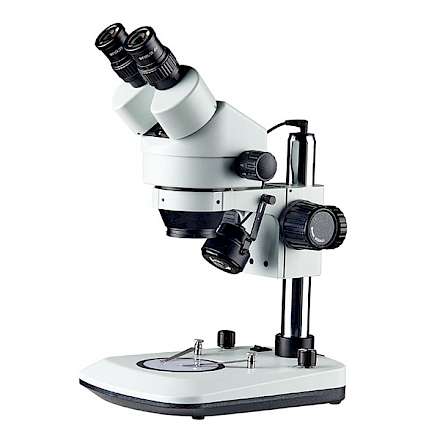

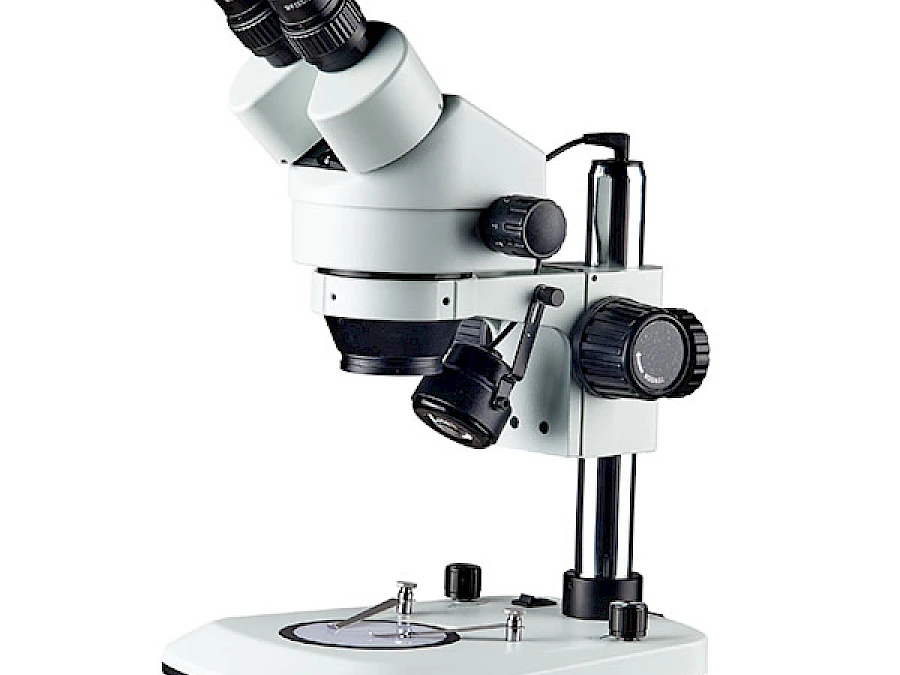

BZW7045-PI2L	PI2L pole stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

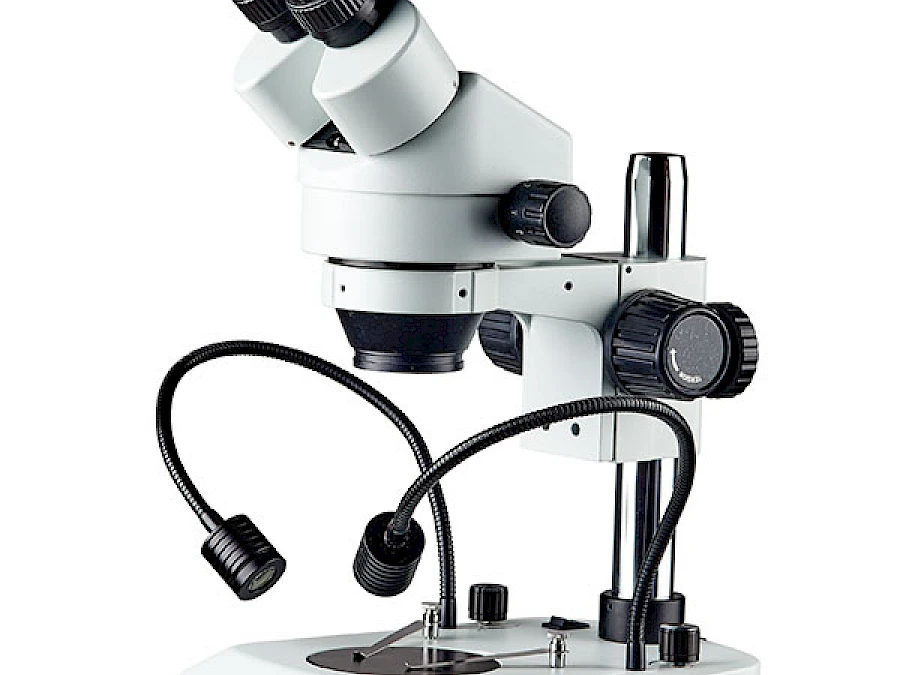

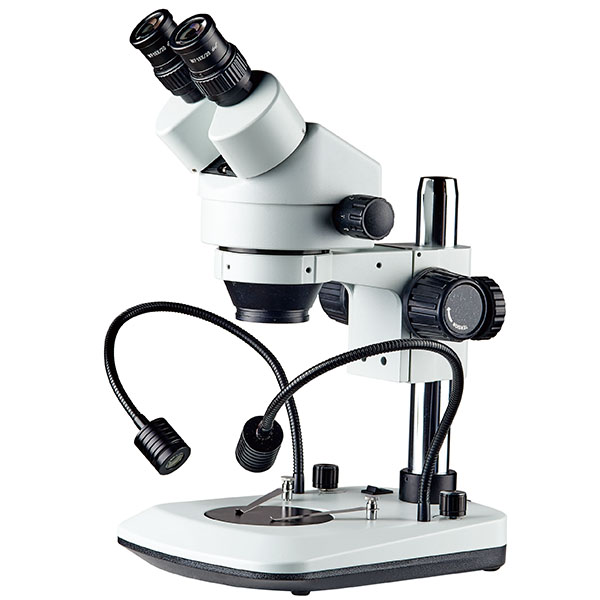

BZW7045-PIGL	PIGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

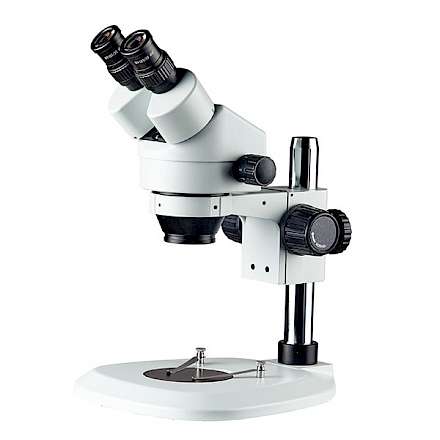

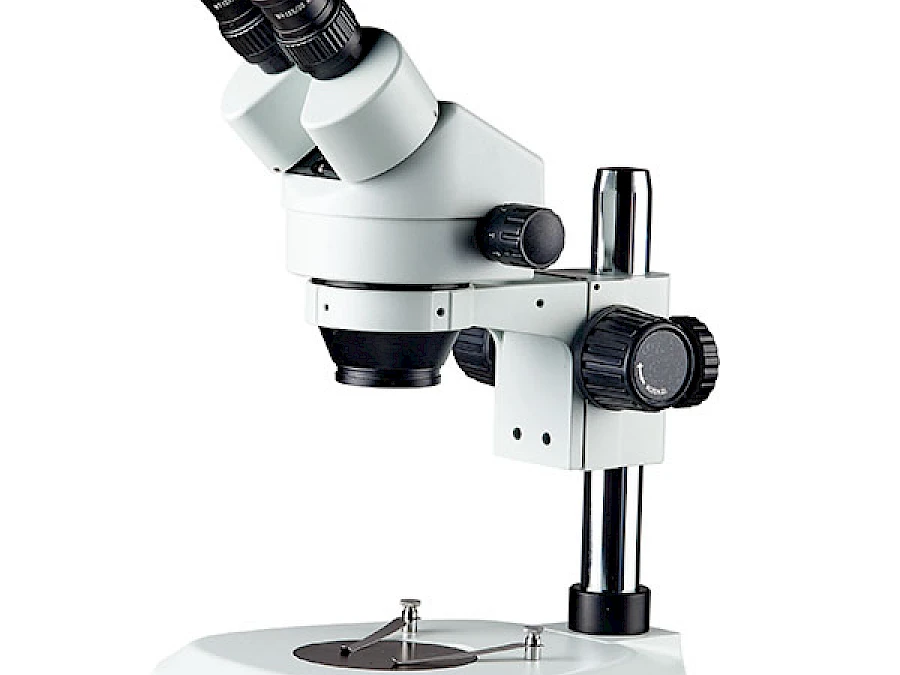

BZW7045-PF	PF fan base pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

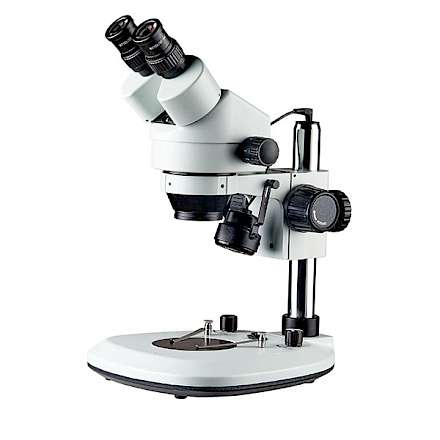

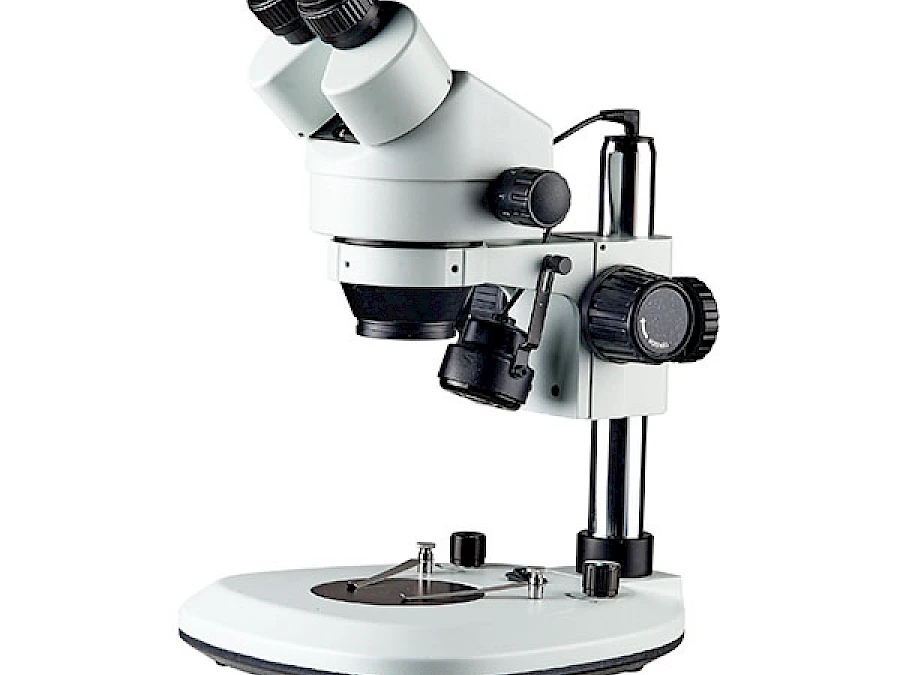

BZW7045-PF2L	PF2L fan base pole stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

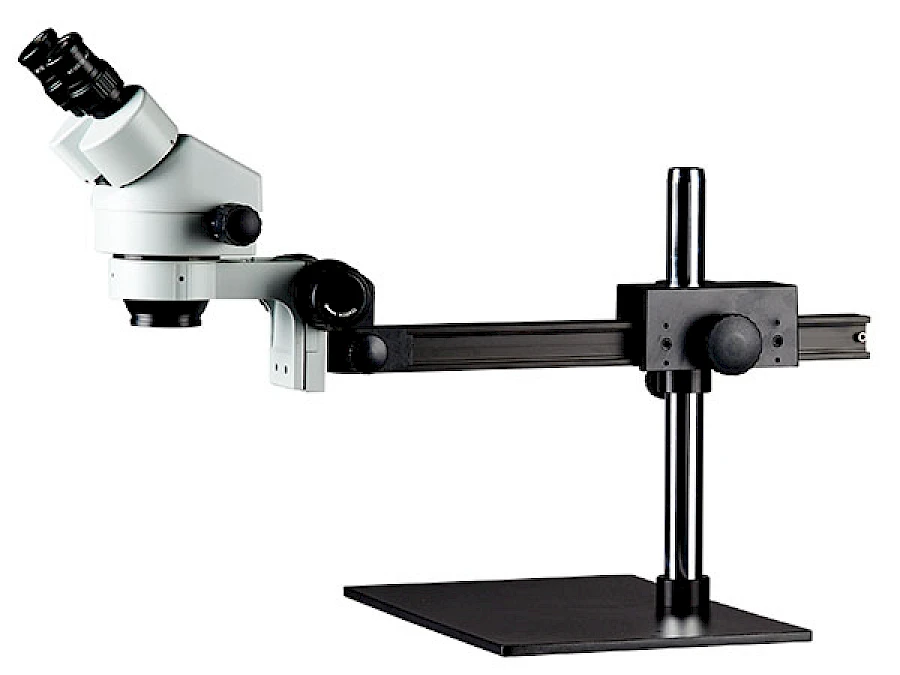

BZW7045-U2	U2 pole stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for BZW7045 Pole Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

BZW7045-AS

BZW7045-AL

BZW7045-AI

BZW7045-AI2L

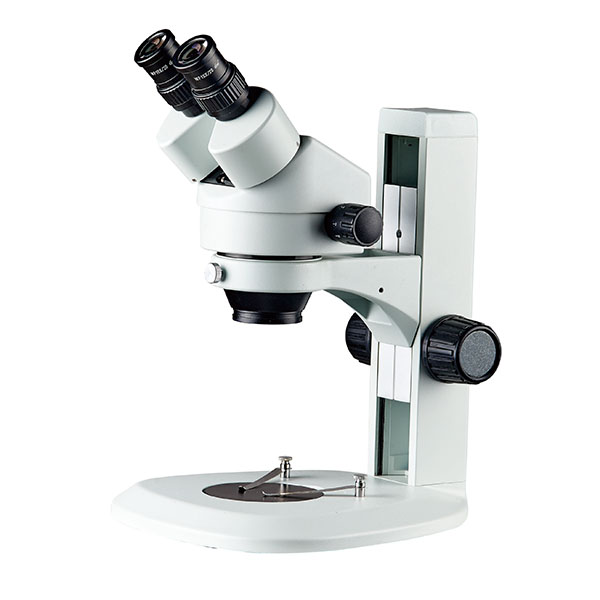

BZW7045-AF

BZW7045-AF2L

BZW7045-AC

BZW7045-AC2L

Item	Stand	Illumination

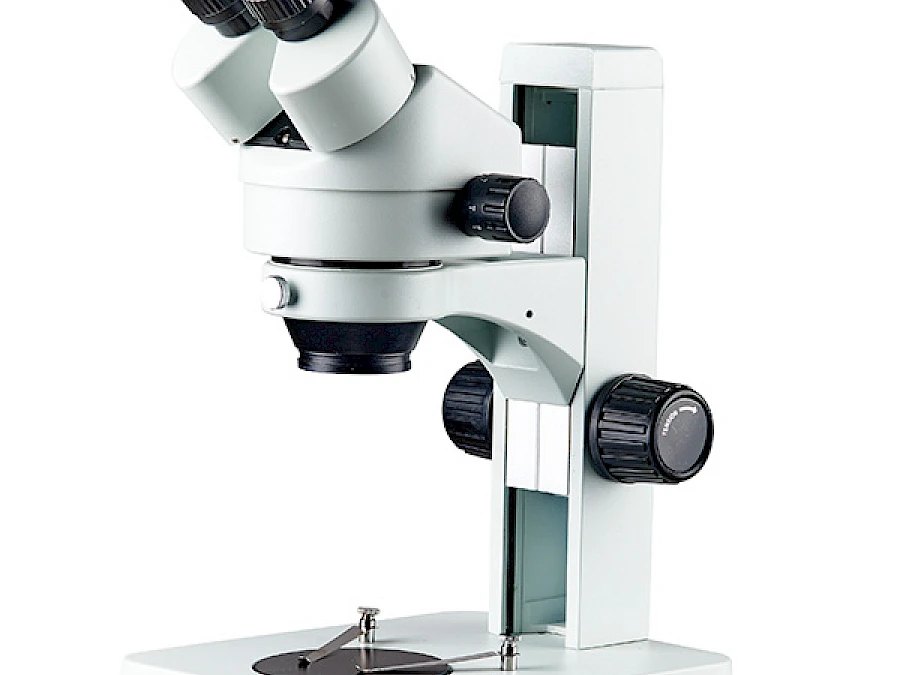

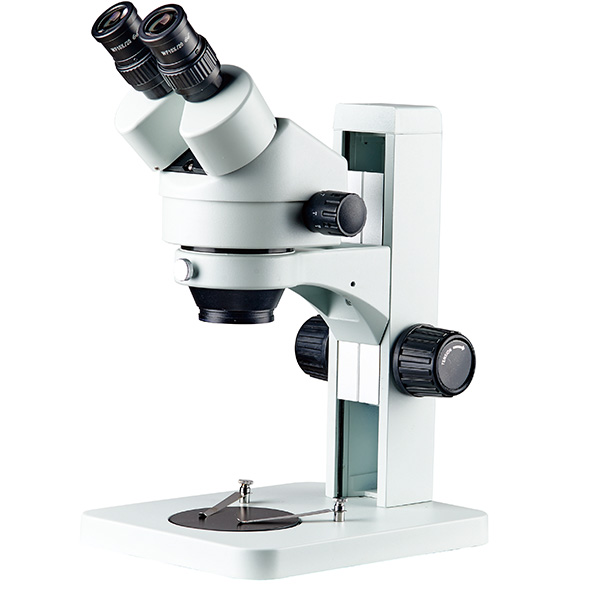

BZW7045-AS	AS track stand	Fluorescent lamp, LED ring light

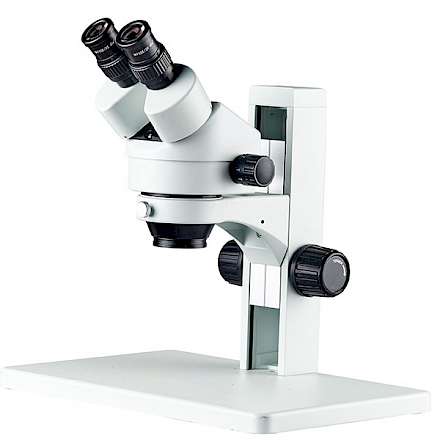

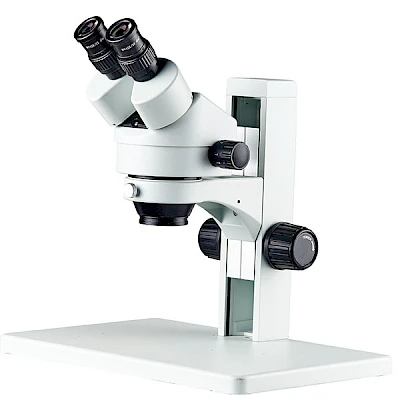

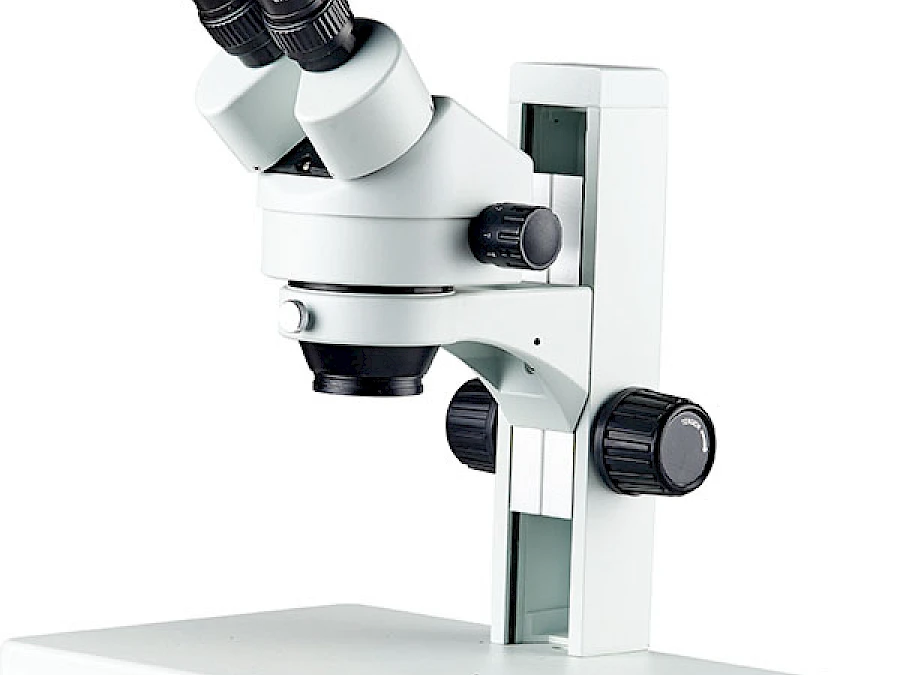

BZW7045- AL	AL track stand	Fluorescent lamp, LED ring light

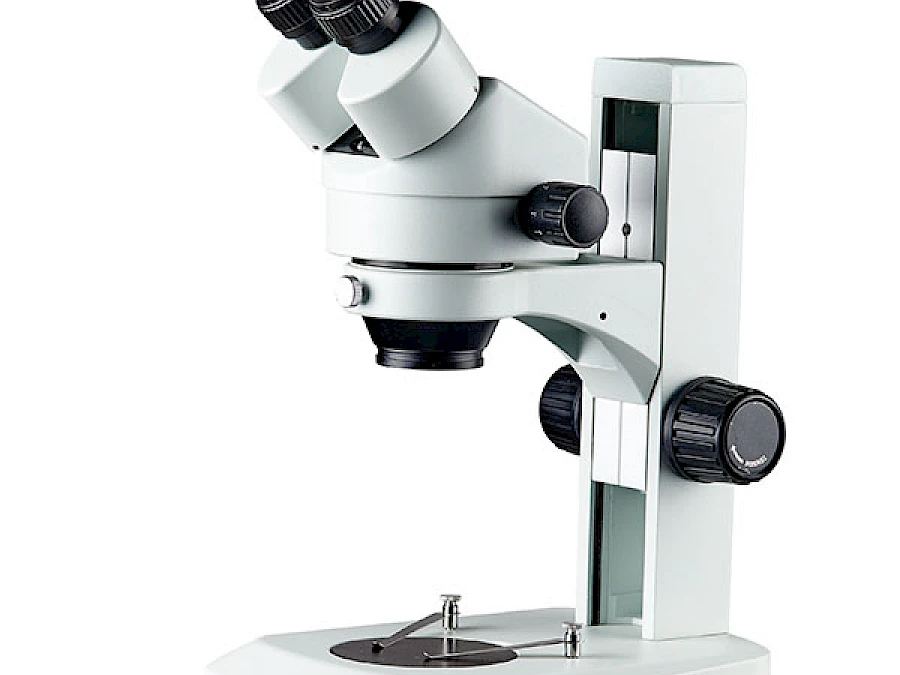

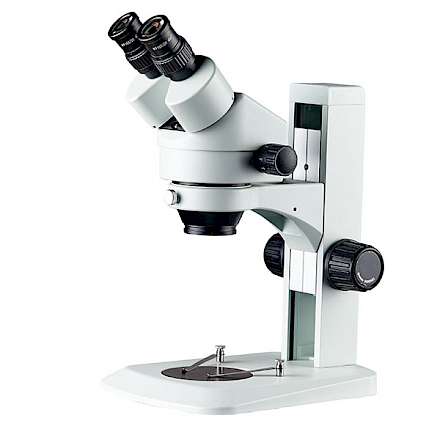

BZW7045- AI	AI track stand	Fluorescent lamp, LED ring light

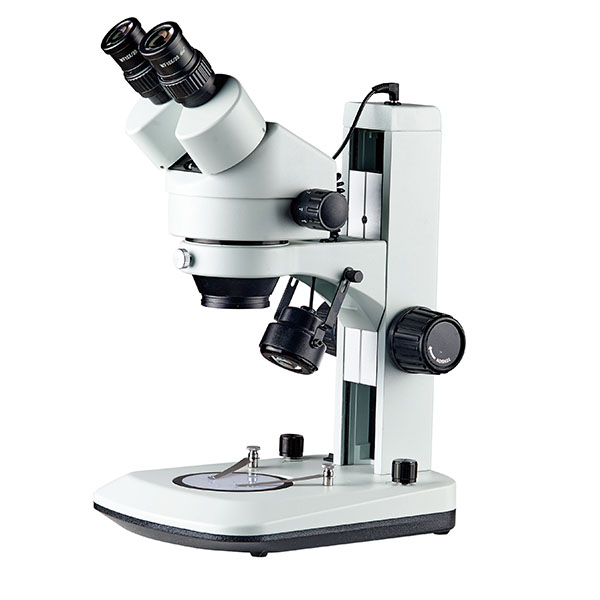

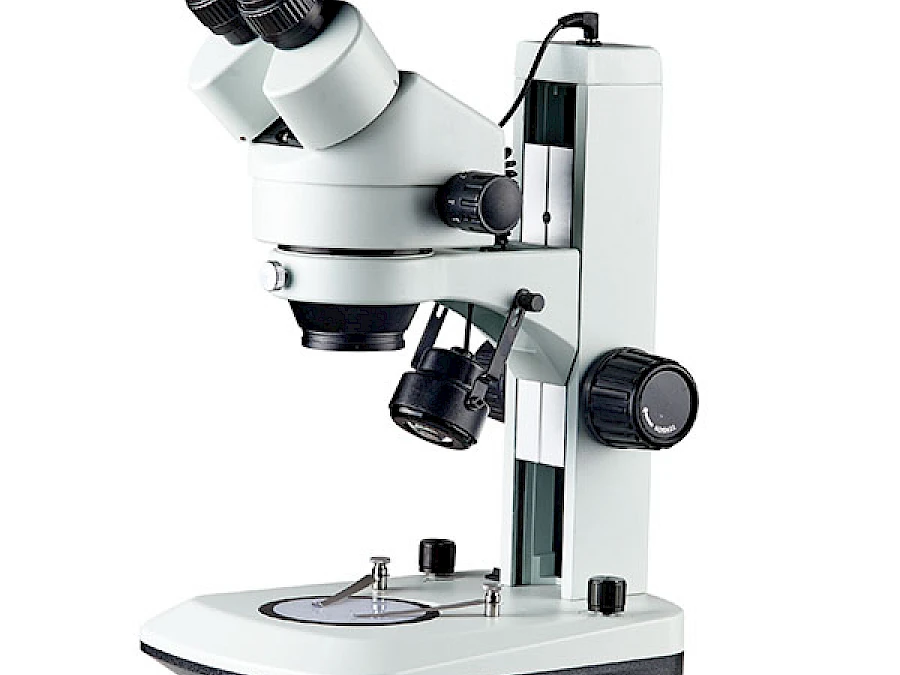

BZW7045- AI2L	AI2L track stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

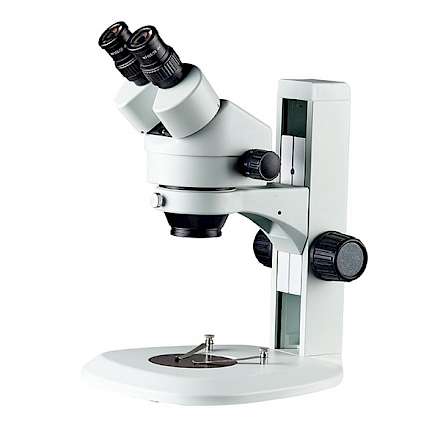

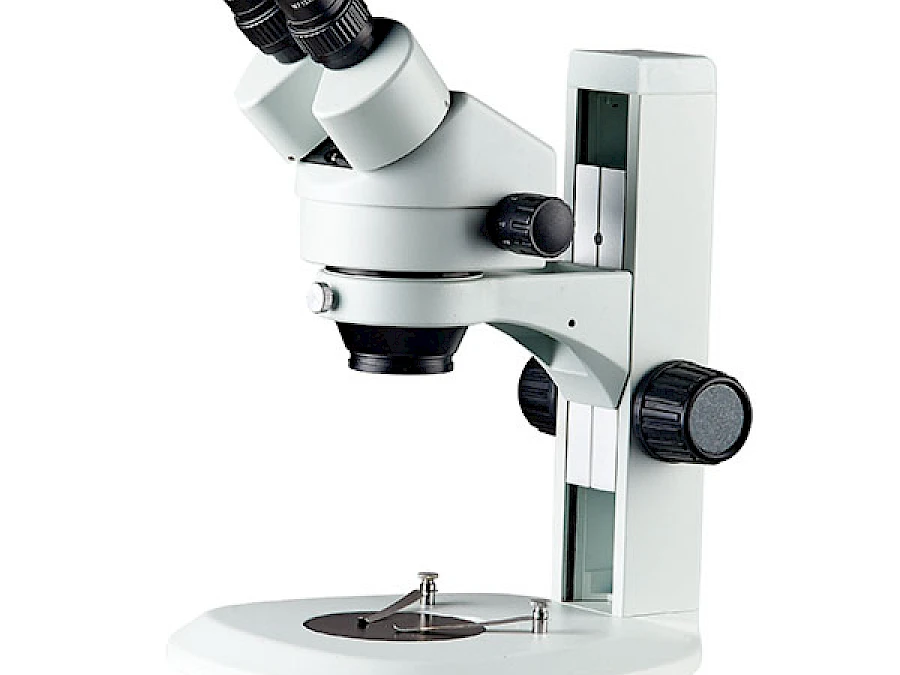

BZW7045 AF	AF fan track stand	Fluorescent lamp, LED ring light

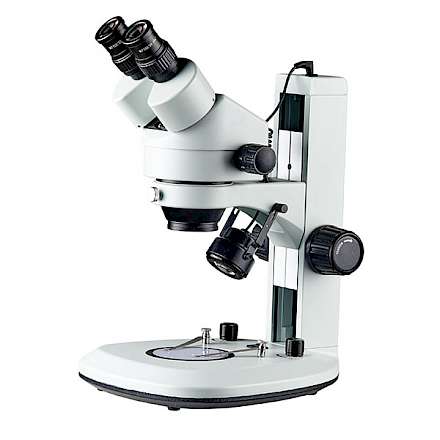

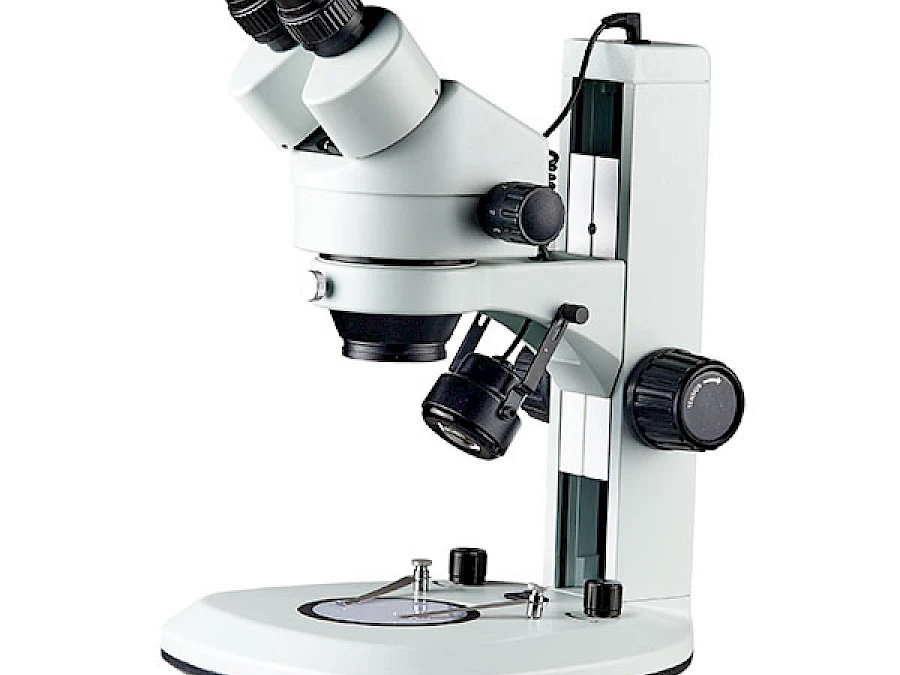

BZW7045-AF2L	AF2L fan track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

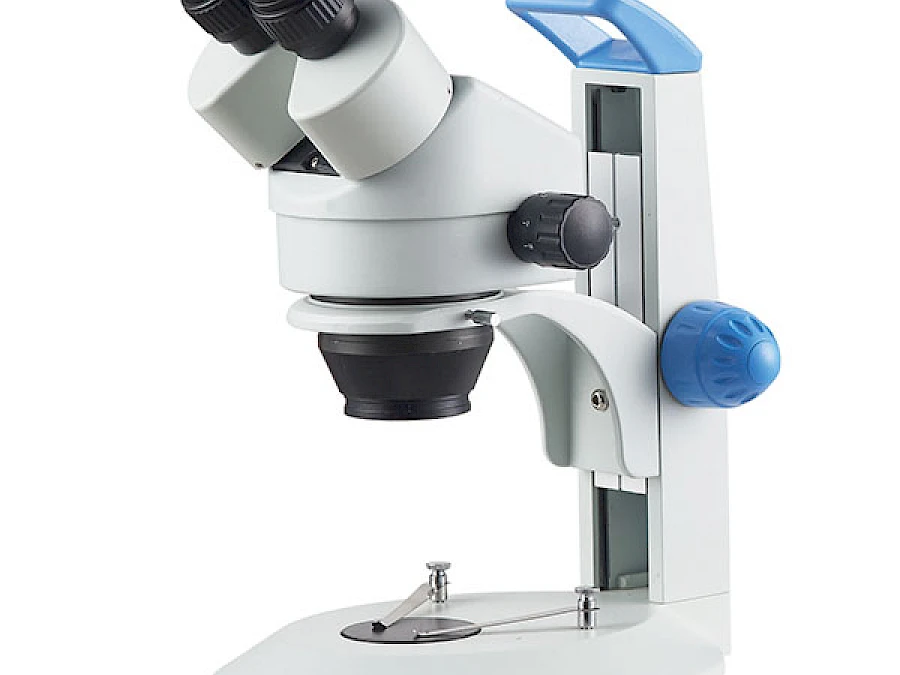

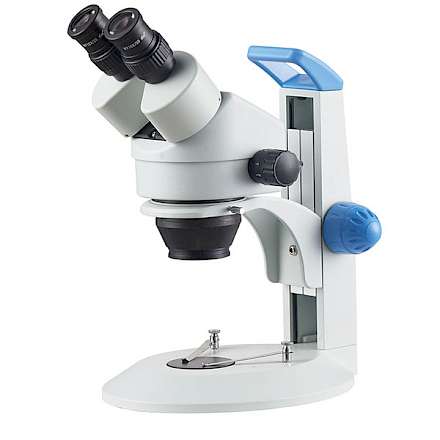

BZW7045-AC	AC track stand	Fluorescent lamp, LED ring light

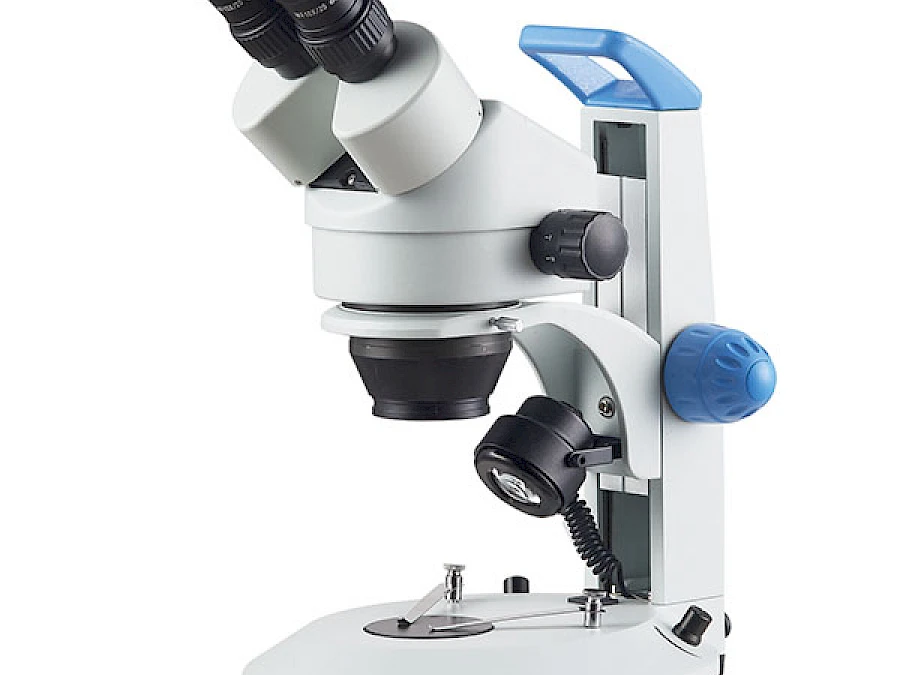

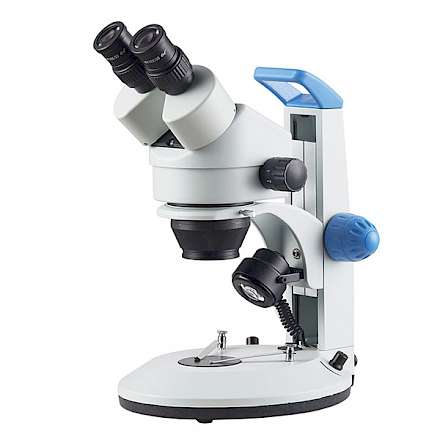

BZW7045-AC2L	AC2L track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for BZW7045 Track Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Focusing Mount	Focusing track mount with vertical working distance 106mm

BZW7045-SU1

BZW7045-SU2

BZW7045-SU3

BZW7045-DU1

BZW7045-DU2

BZW7045-RU1

BZW7045-RU2

BZW7045-RU3

Item	Stand	Focusing Mount

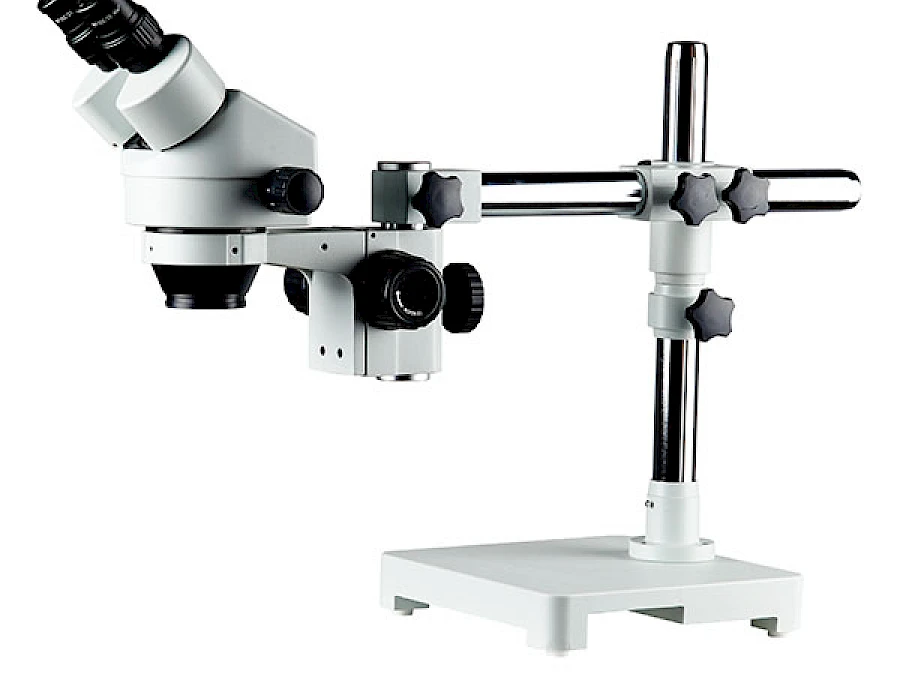

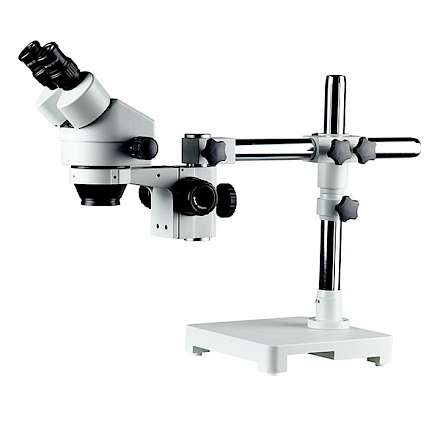

BZW7045-SU1	SU1 boom stand	C1 focusing mount with vertical working distance 50mm

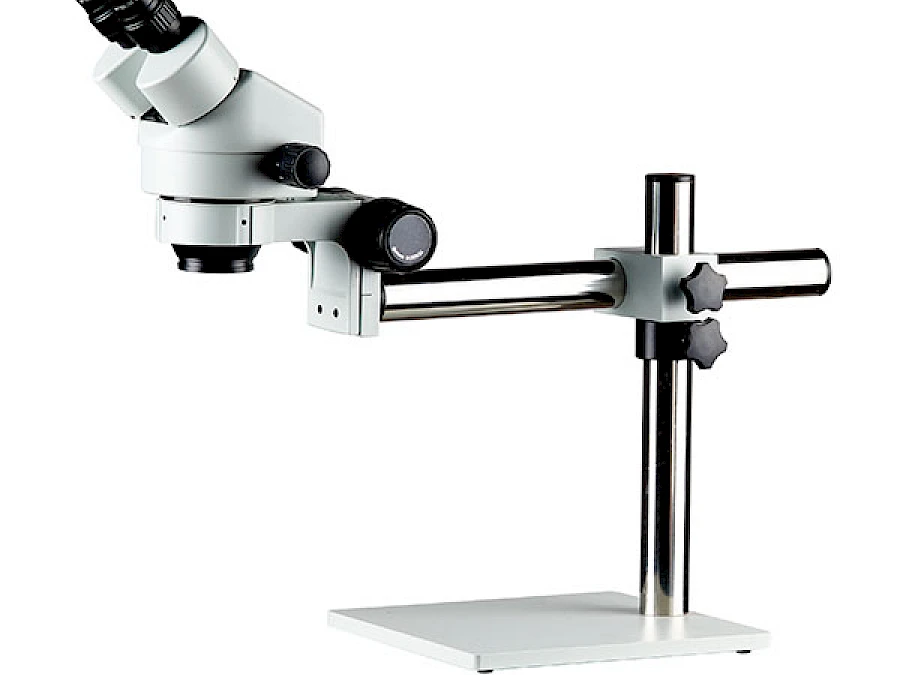

BZW7045- SU2	SU2 boom stand	C3 focusing mount with vertical working distance 50mm

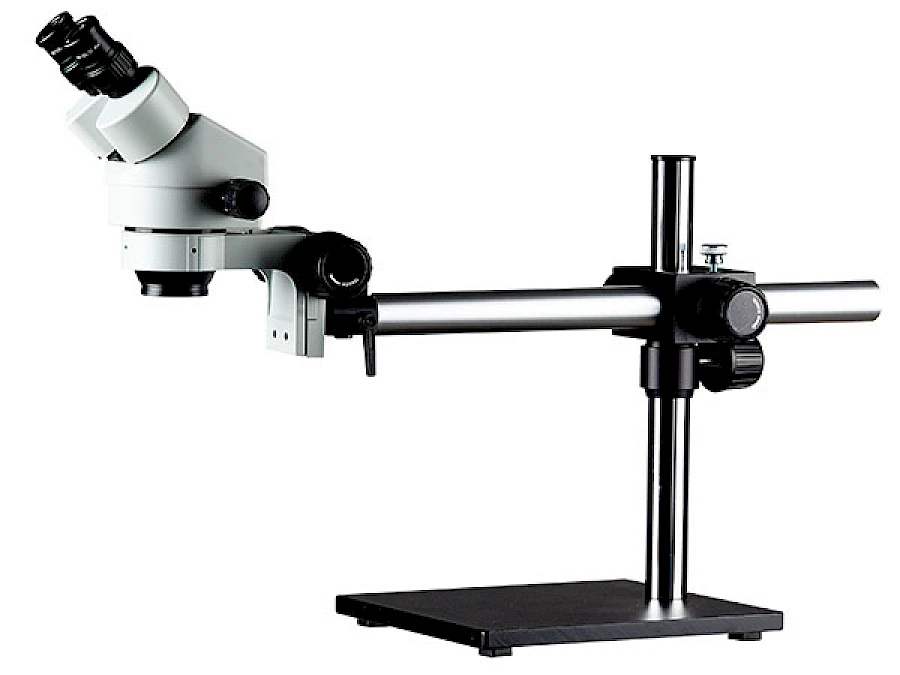

BZW7045- SU3	SU3 boom stand	C3 focusing mount with vertical working distance 50mm

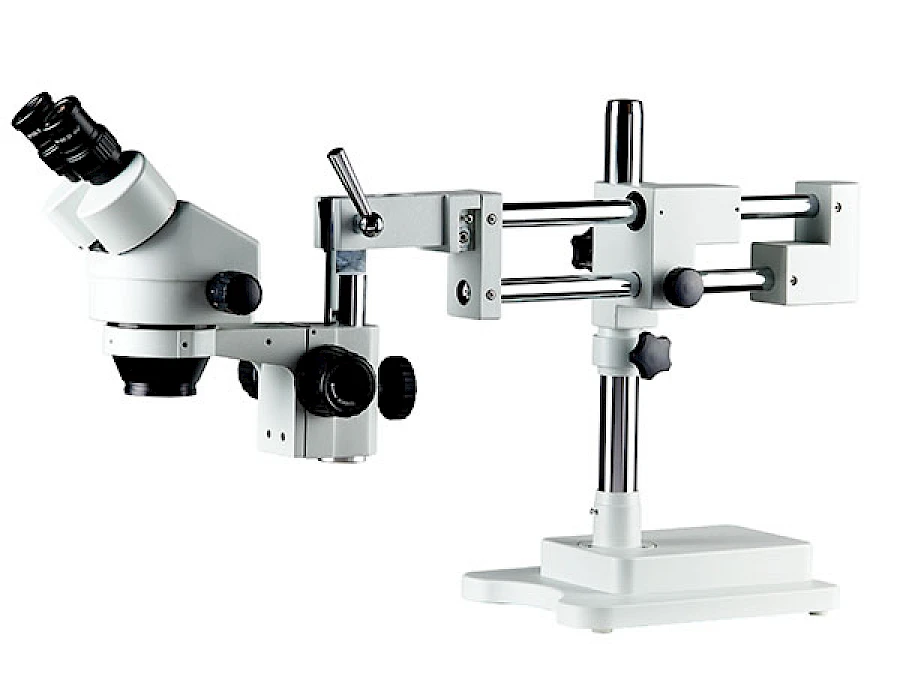

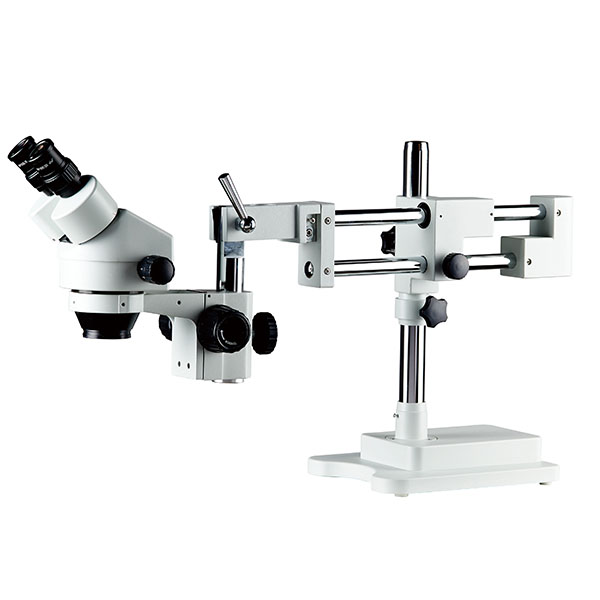

BZW7045-DU1	DU1 boom stand	C1 focusing mount with vertical working distance 50mm

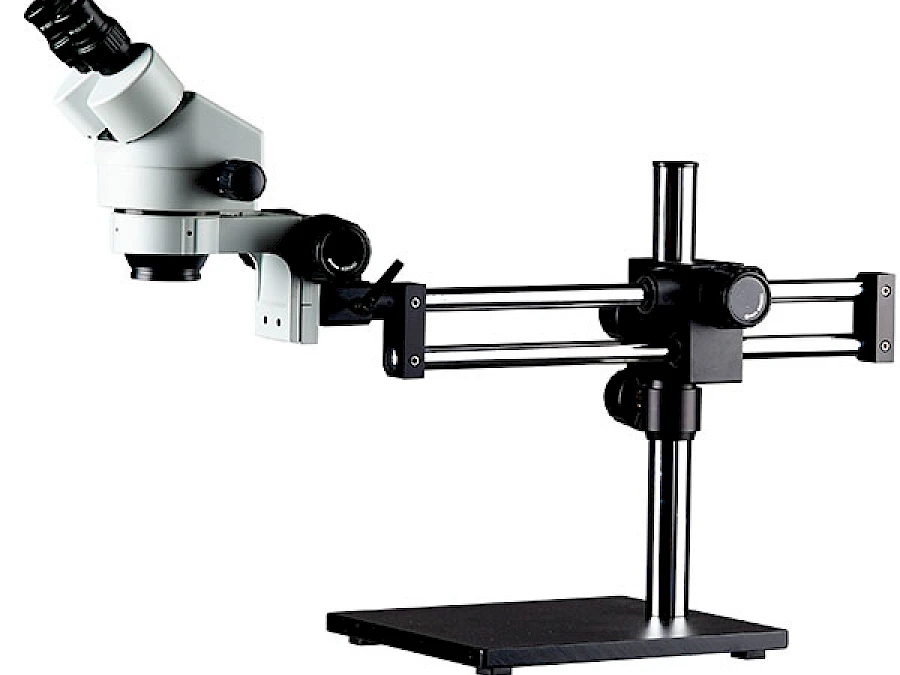

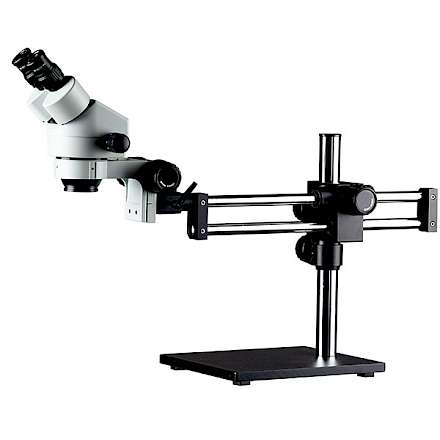

BZW7045-DU2	DU2 boom stand	C3 focusing mount with vertical working distance 50mm

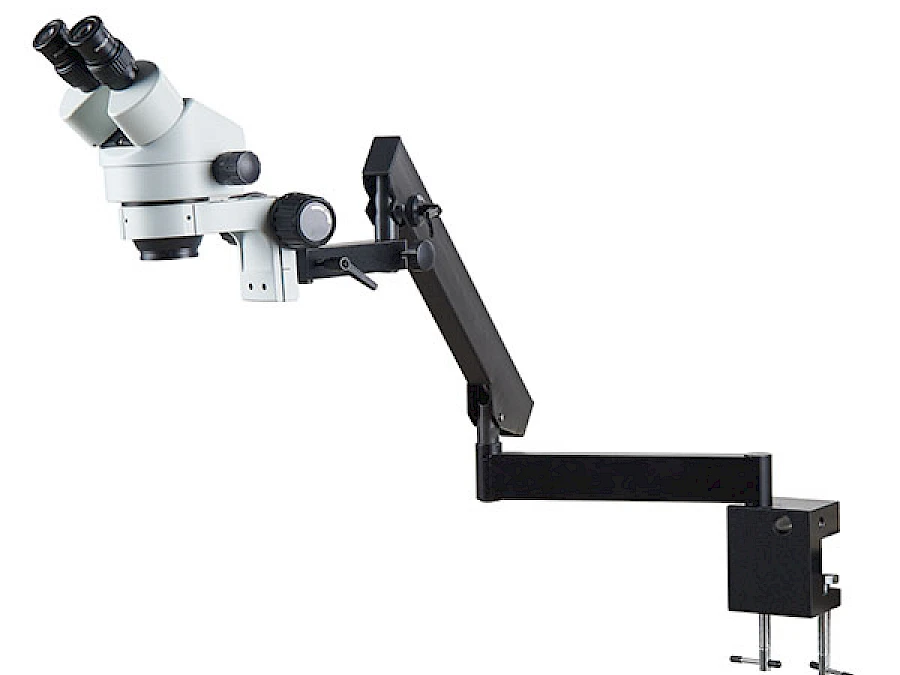

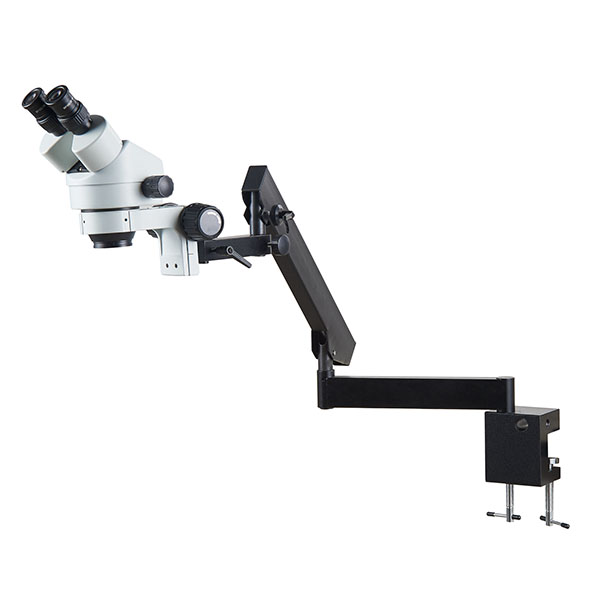

BZW7045-RU1	RU1 clamp boom stand	C3 focusing mount with vertical working distance 50mm

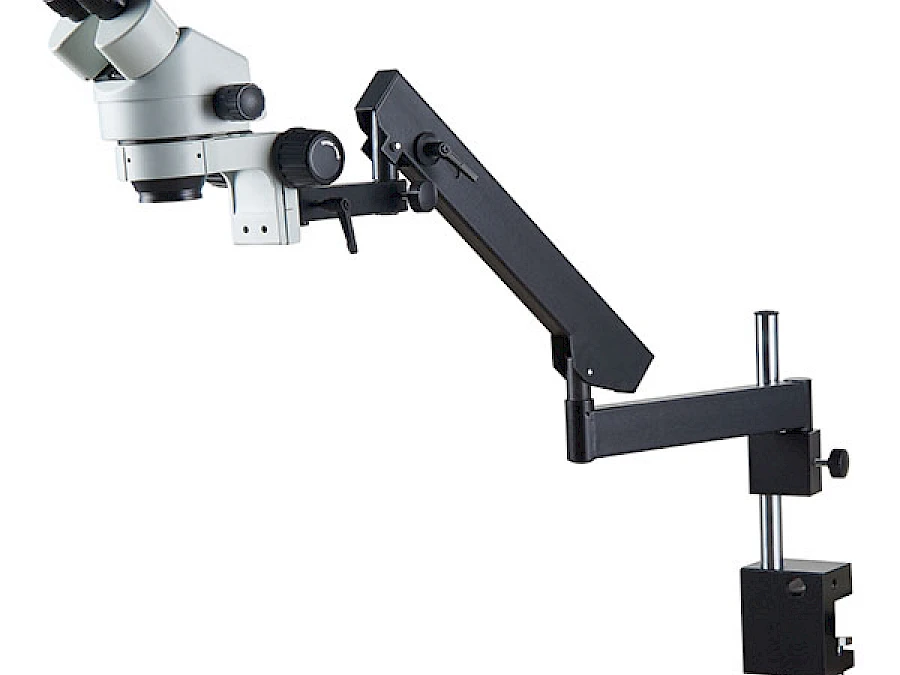

BZW7045-RU2	RU2 clamp boom stand	C3 focusing mount with vertical working distance 50mm

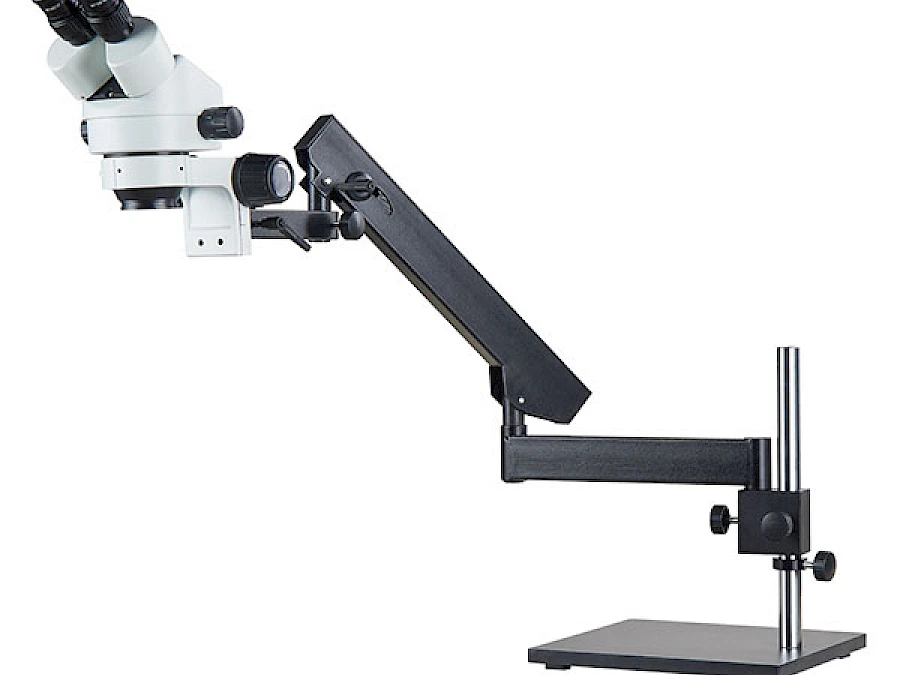

BZW7045-RU3	RU3 boom stand	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Other Specification for BZW7045 Boom Stand Series
Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Illumination	Fluorescent lamp, LED ring light
