BD6024C Series

BD6024C Series Binocular Jewelry & Gemology Stereo Microscope

two magnification levels(10x/20x, 10x/30x, or 20x/40x), inspection & training

Core Features

20X-40X, 10X-80X (optional eyepiece & objective)
easy operation
educational teaching & learning
jewelry & gemology
zoology

Configurations

working distance

100mm

eyepiece

WF10X/20mm

jewelry & gemology

identification & appraisal

zoology analysis

easy to operate

Request Quotation Email Phone Back to Products

BD6024C Series Stereo Microscope has two magnification levels(10x/20x, 10x/30x, or 20x/40x). It is easy to operate and it is an ideal microscope for student learning and classroom teaching. It is also a perfect device for viewing jewel, PCB, insects and so on.

BD6024C-PS

BD6024C-PRT

BD6024C-PL

BD6024C-PLGL

BD6024C-PI

BD6024C-PI2L

BD6024C-PIGL

BD6024C-PF

BD6024C-PF2L

BD6024C-AS

BD6024C-AL

BD6024C-AI

BD6024C-AI2L

BD6024C-AF

BD6024C-AF2L

BD6024C-AC

BD6024C-AC2L

BD6024C-SU1

BD6024C-SU2

BD6024C-SU3

BD6024C-DU1

BD6024C-DU2

BD6024C-RU1

BD6024C-U2

BD6024C-PS

BD6024C-PRT

BD6024C-PL

BD6024C-PLGL

BD6024C-PI

BD6024C-PI2L

BD6024C-PIGL

BD6024C-PF

BD6024C-PF2L

BD6024C-U2

Item	Stand	Illumination	Focusing Mount

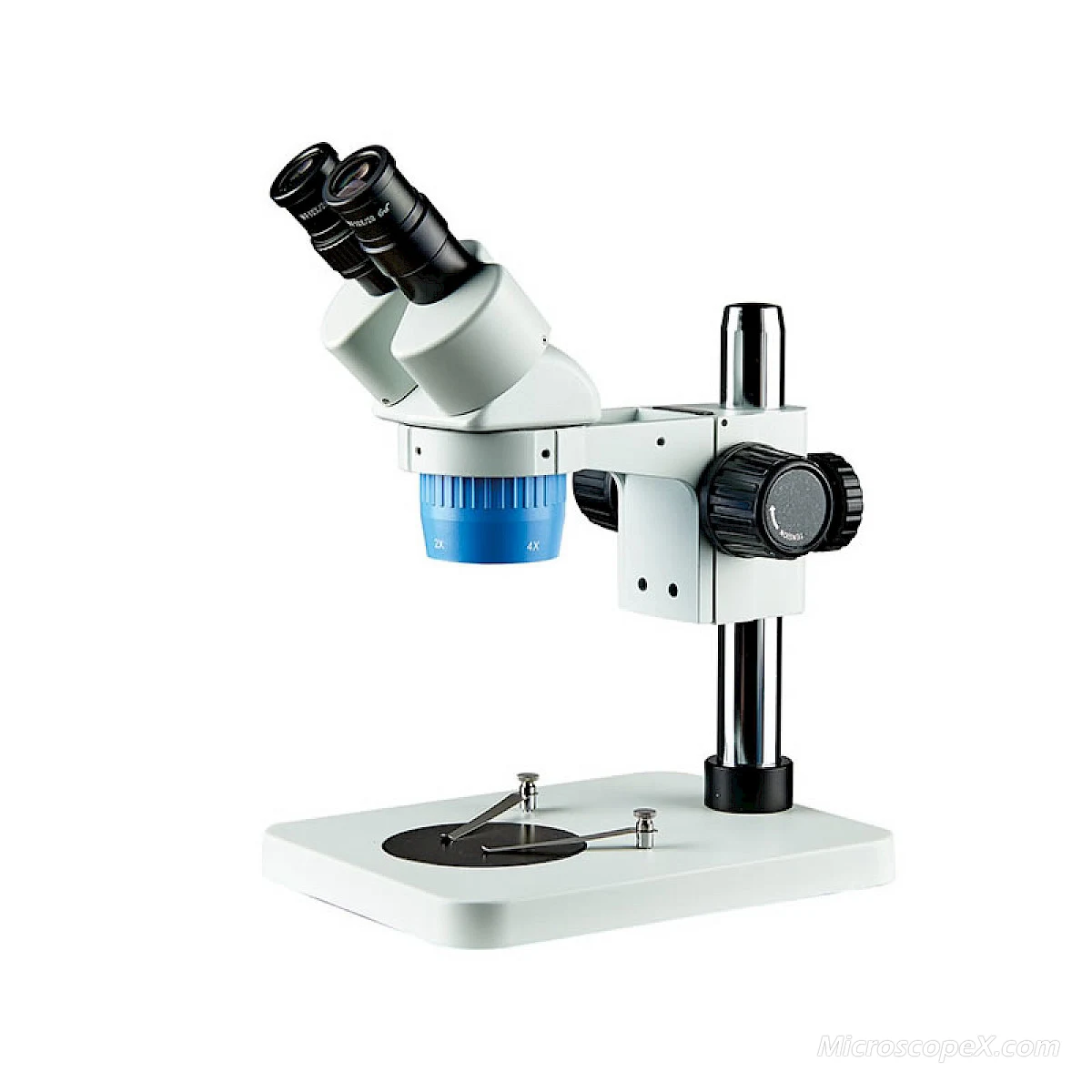

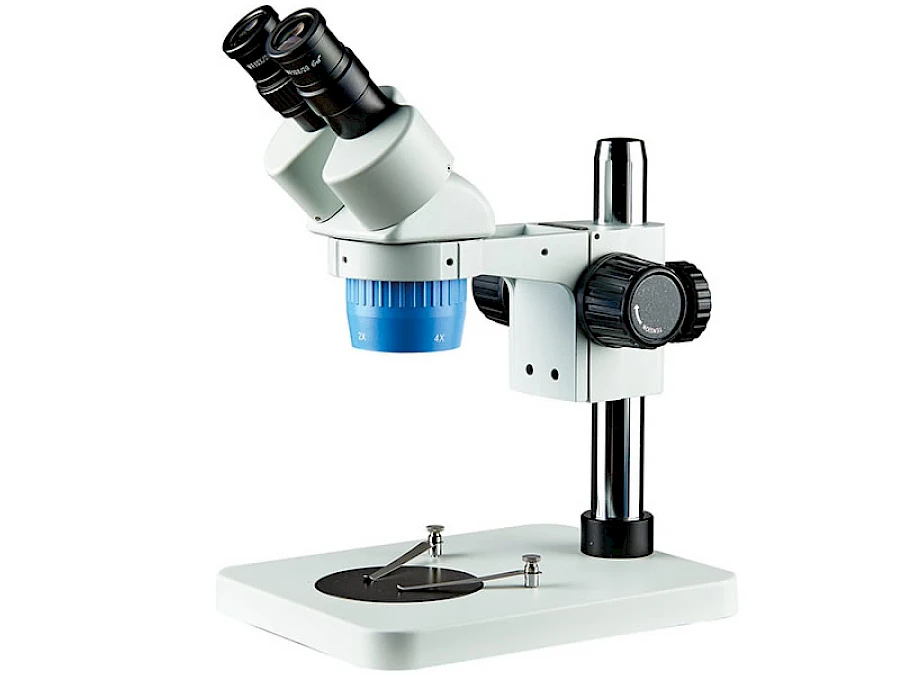

BD6024C -PS	PS pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

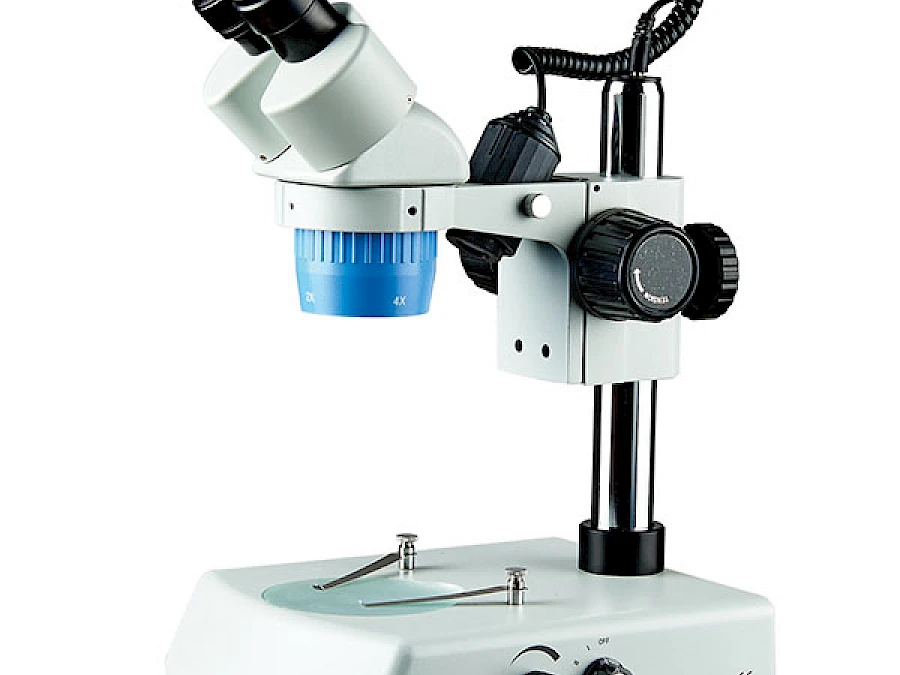

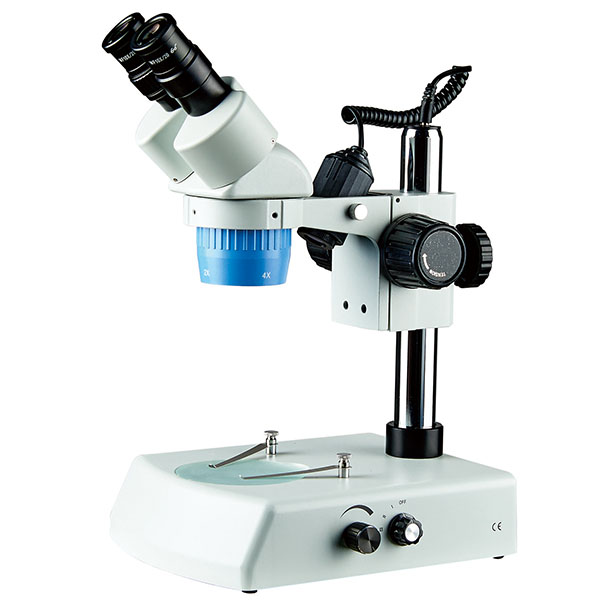

BD6024C -PRT	PRT pole stand	Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination	C1 focusing mount with vertical working distance 50mm

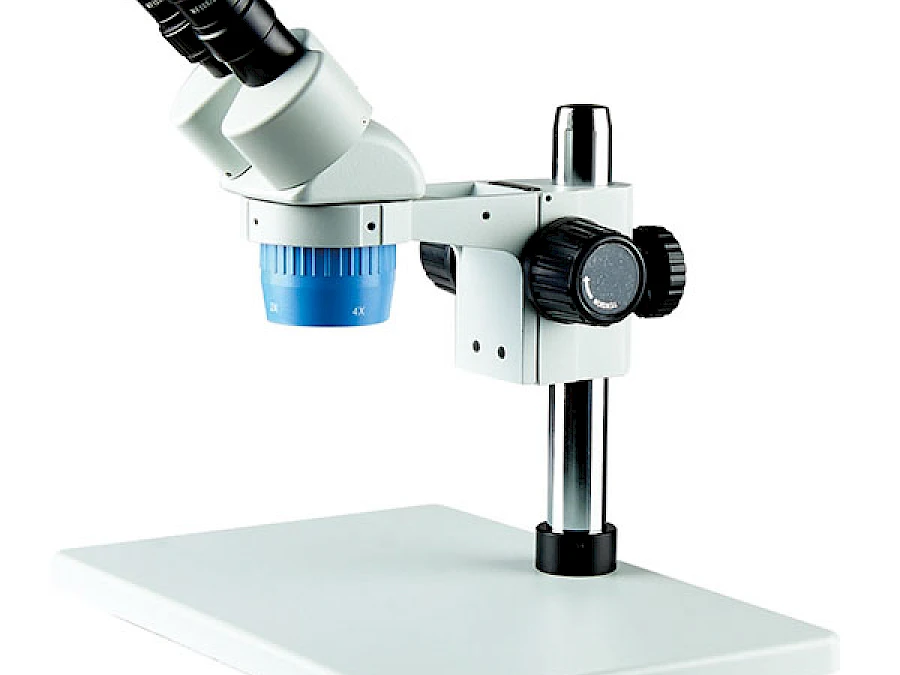

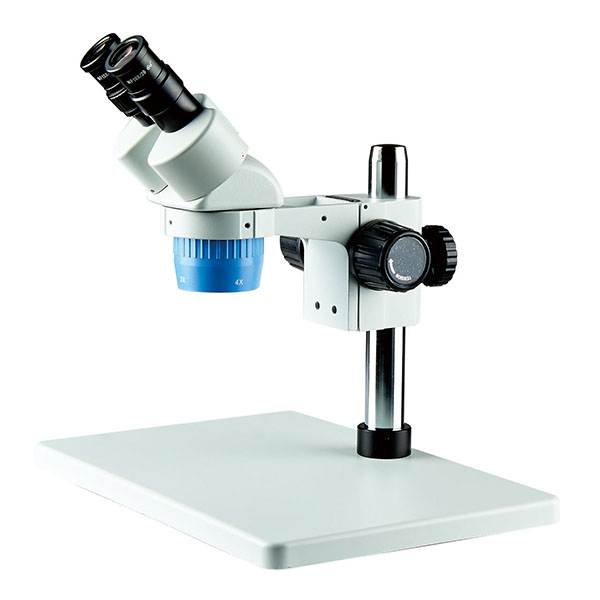

BD6024C -PL	PL pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

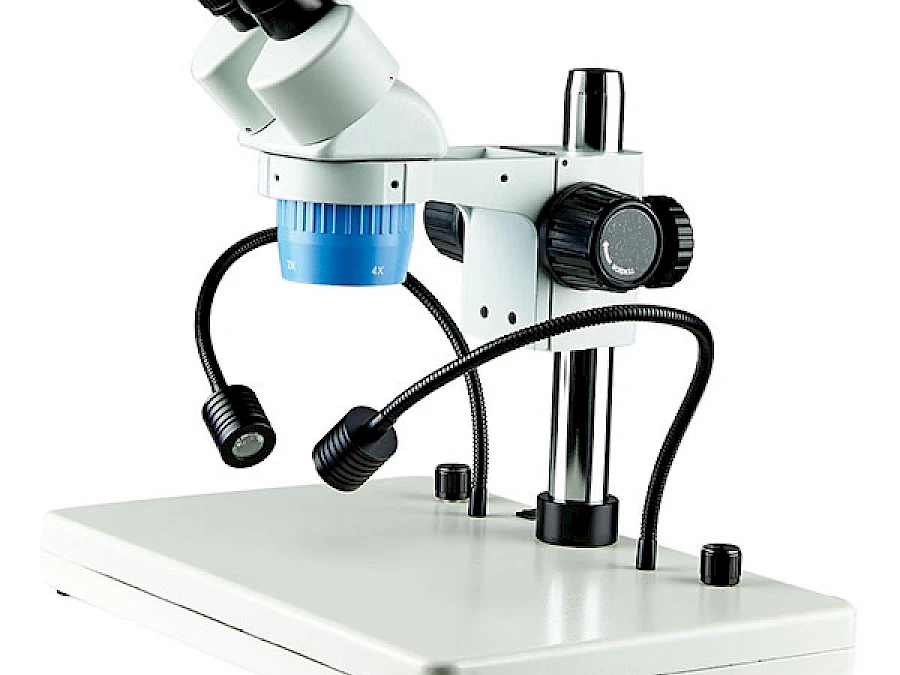

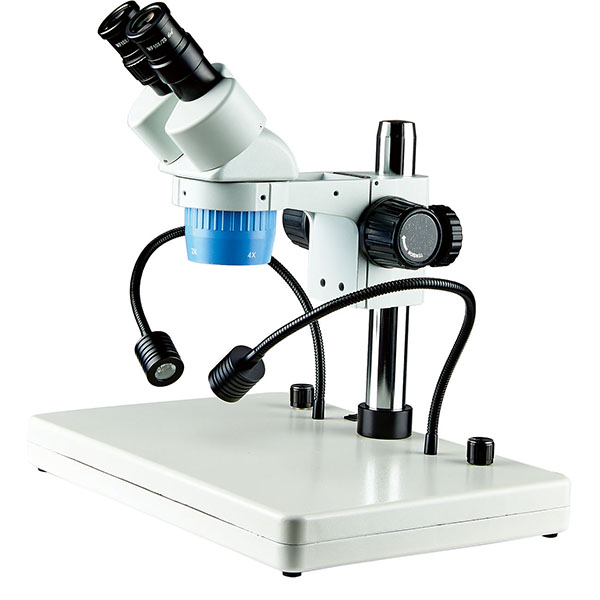

BD6024C -PLGL	PLGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

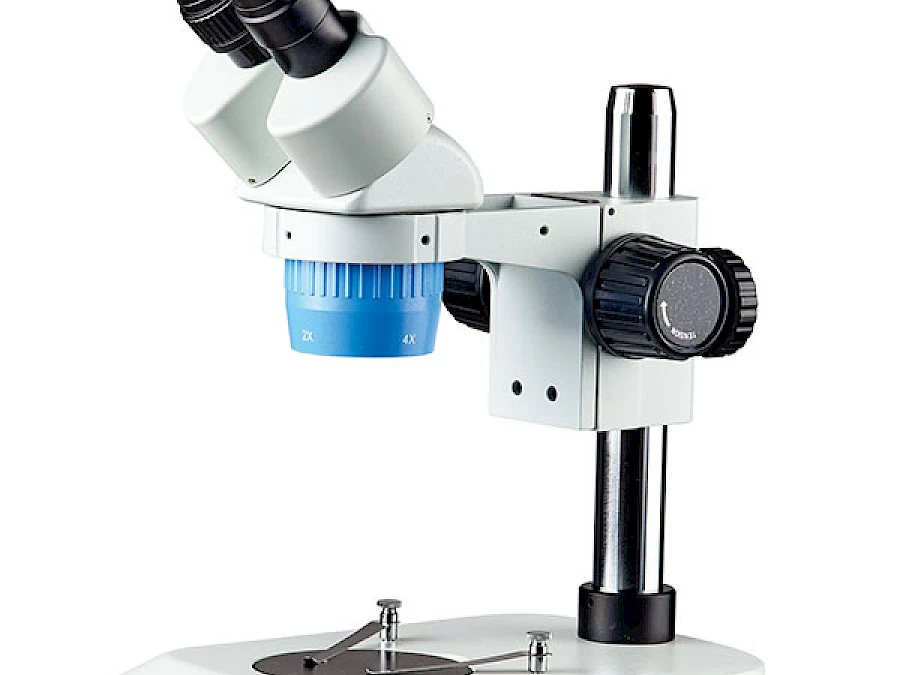

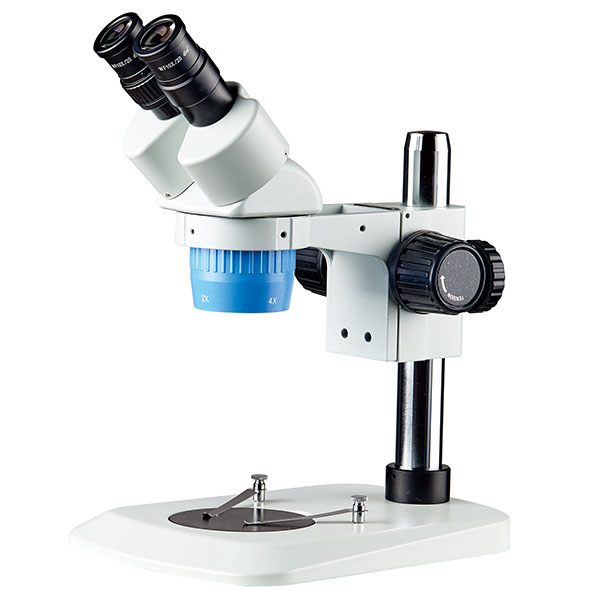

BD6024C -PI	PI pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

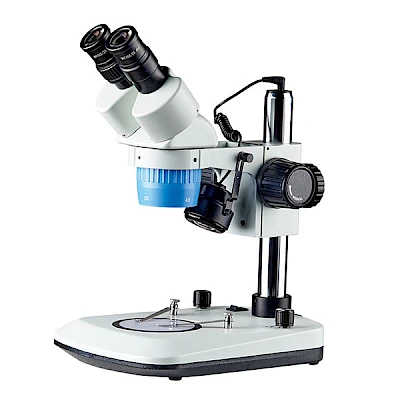

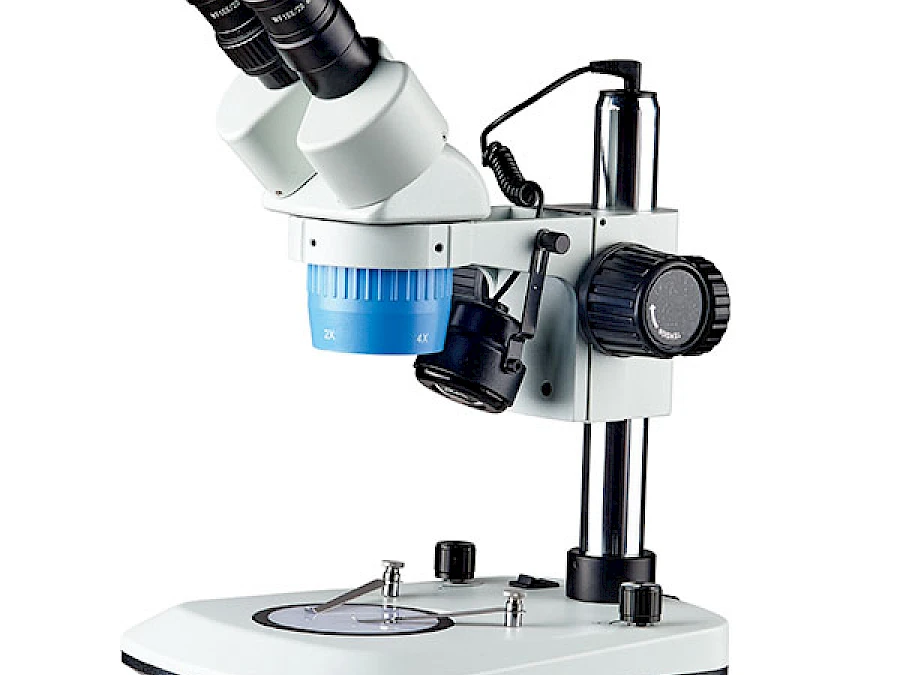

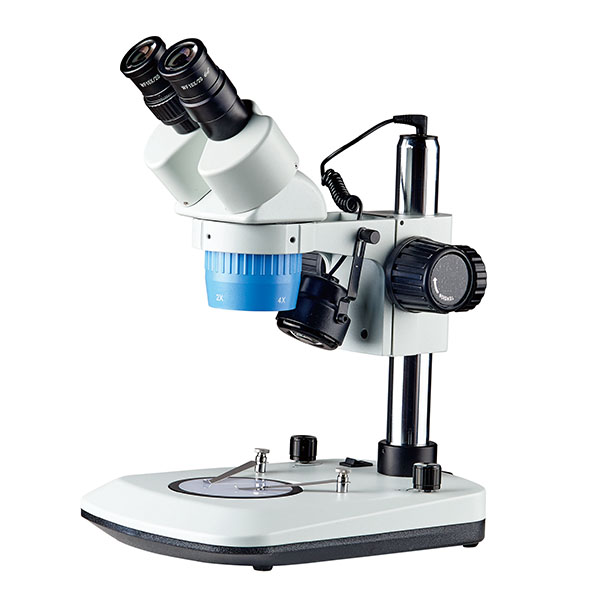

BD6024C -PI2L	PI2L pole stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

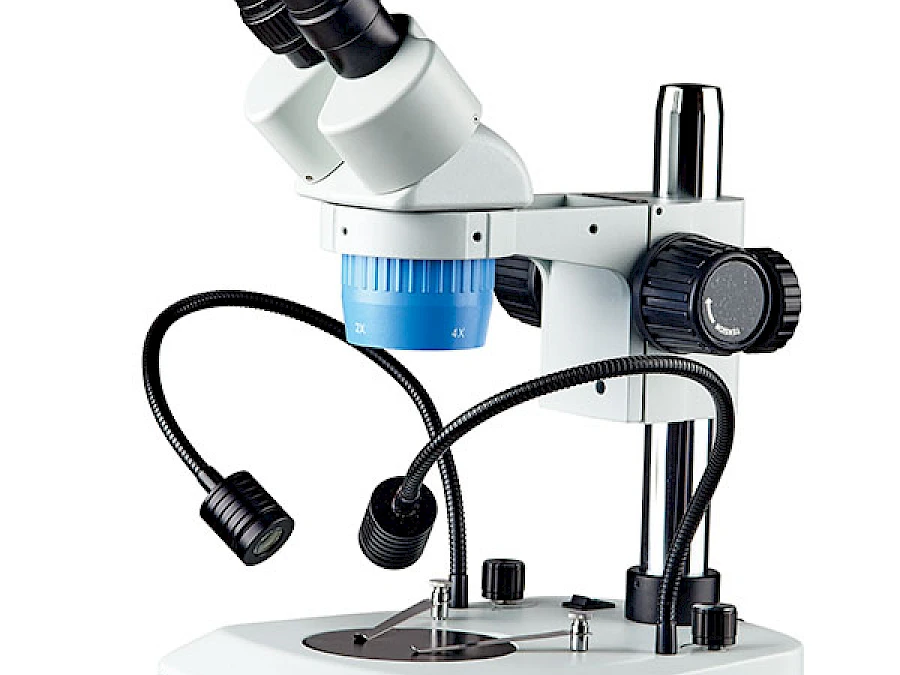

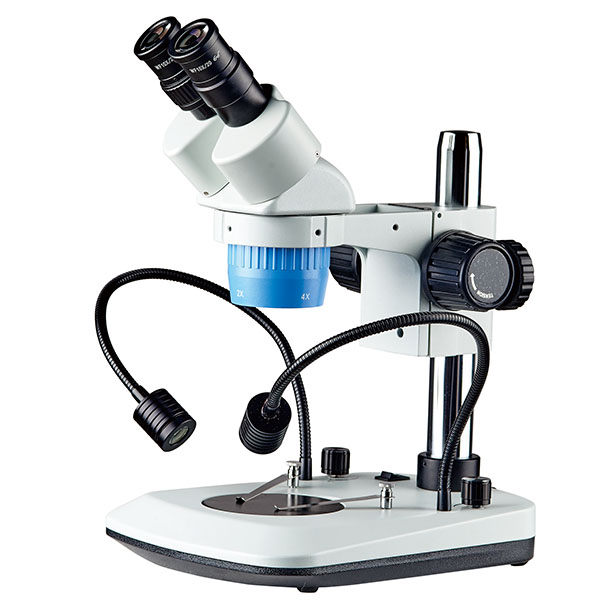

BD6024C -PIGL	PIGL pole stand	Double gooseneck LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

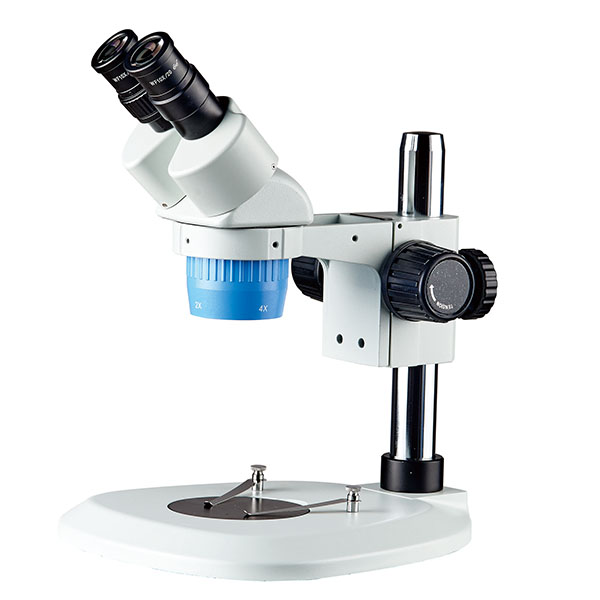

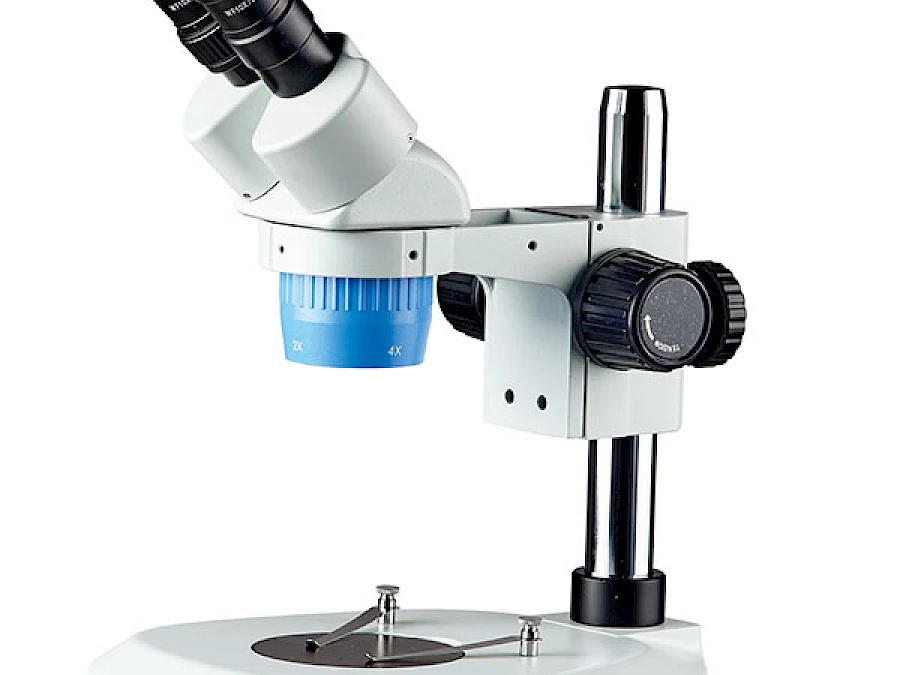

BD6024C -PF	PF fan base pole stand	Fluorescent lamp, LED ring light	C1 focusing mount with vertical working distance 50mm

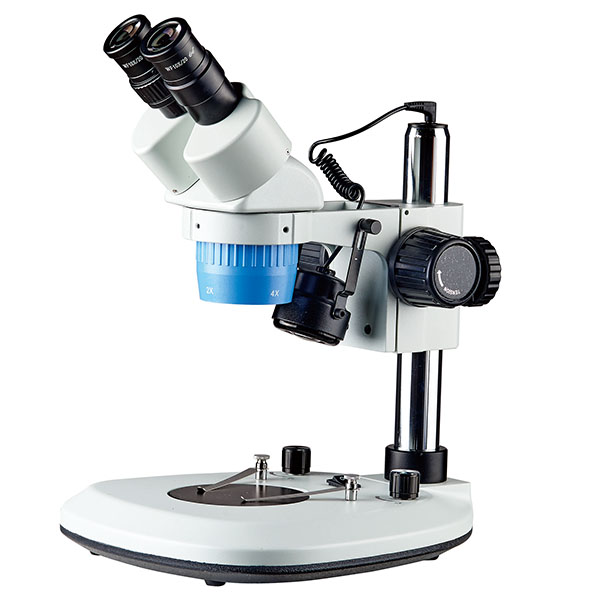

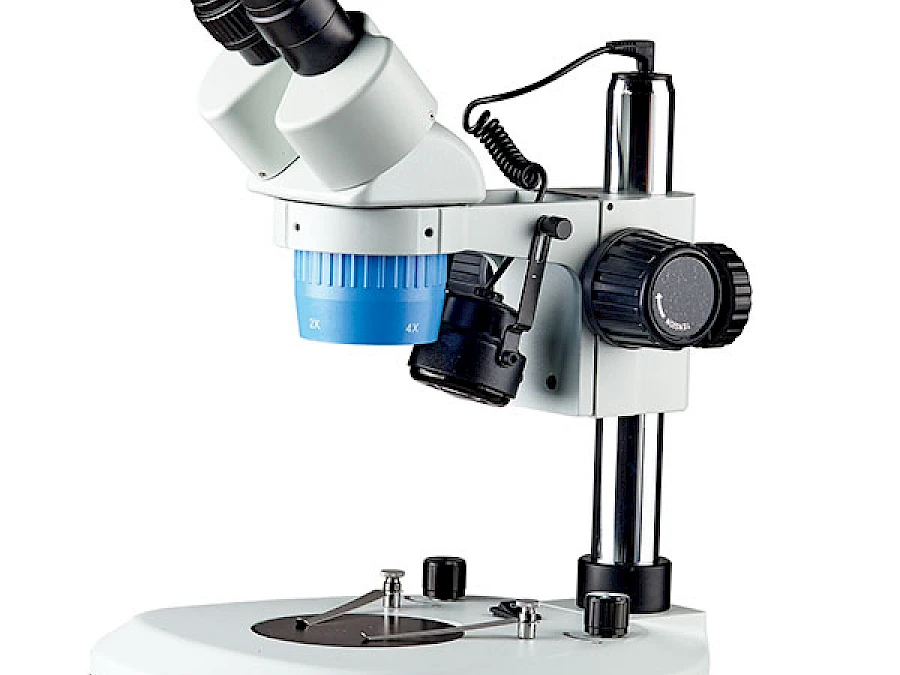

BD6024C -PF2L	PF2L fan base pole stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity	C1 focusing mount with vertical working distance 50mm

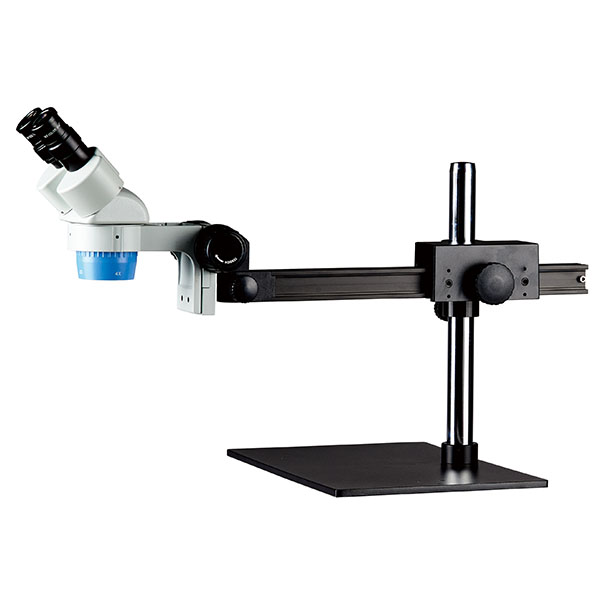

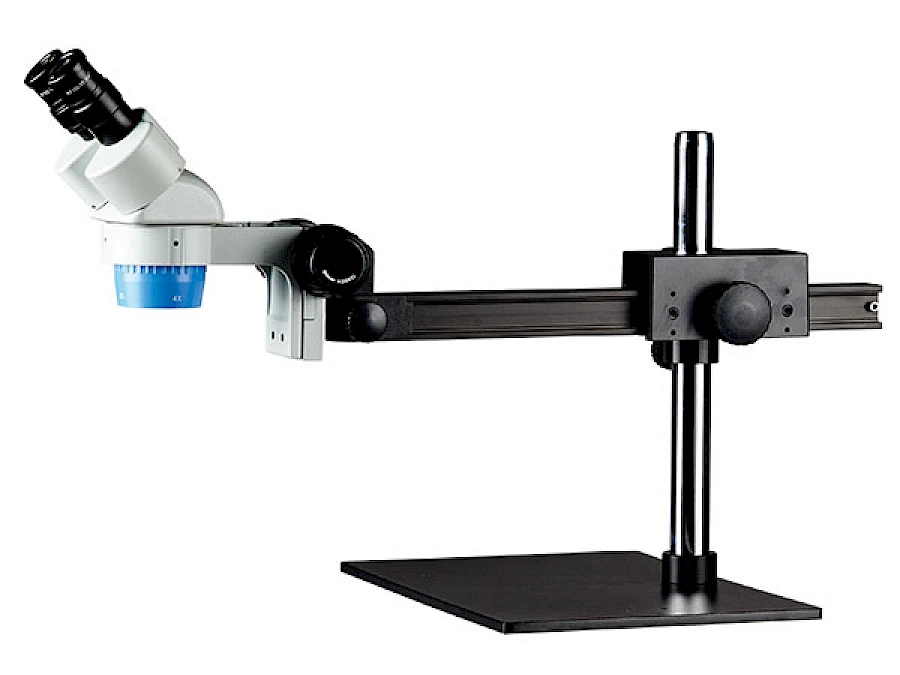

BD6024C -U2	U2 pole stand	Fluorescent lamp, LED ring light	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BD6024C Pole Stand Series
Eyepiece	Objective 1X		Objective 2X		Objective 3X		Objective 4X
	Working Distance 100mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	10X	20.0mm	20X	10.0mm	30X	7.5mm	40X	5.0mm
15X/15mm	12X	15.0mm	30X	7.5mm	45X	5.0mm	60X	3.3mm
20X/10mm	20X	10.0mm	40X	5.0mm	60X	3.3mm	80X	2.5mm
Magnification	20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	2X/4X, 1X/3X, 1X/2X

BD6024C-AS

BD6024C-AL

BD6024C-AI

BD6024C-AI2L

BD6024C-AF

BD6024C-AF2L

BD6024C-AC

BD6024C-AC2L

Item	Stand	Illumination

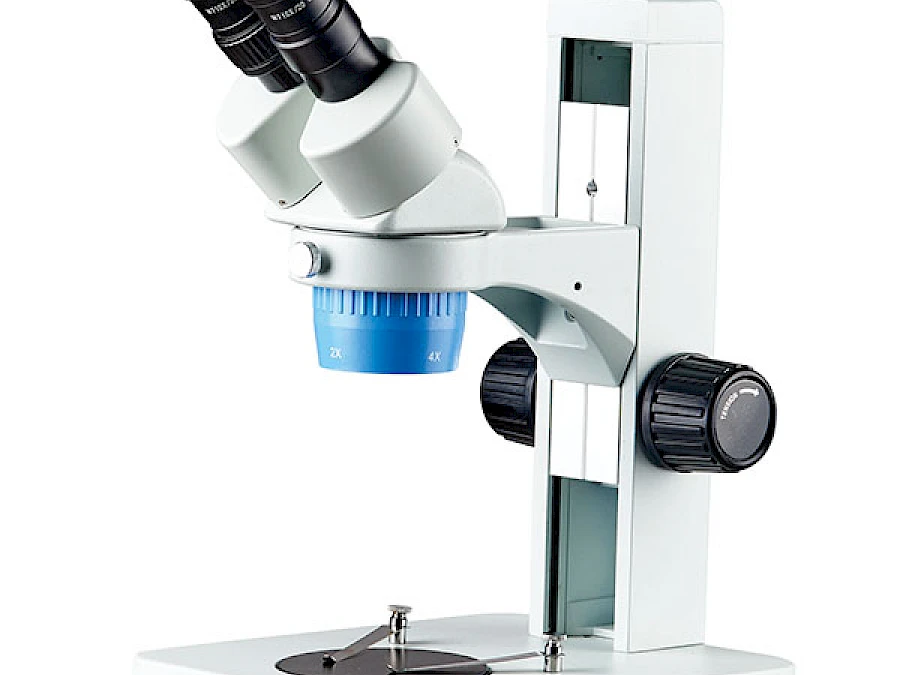

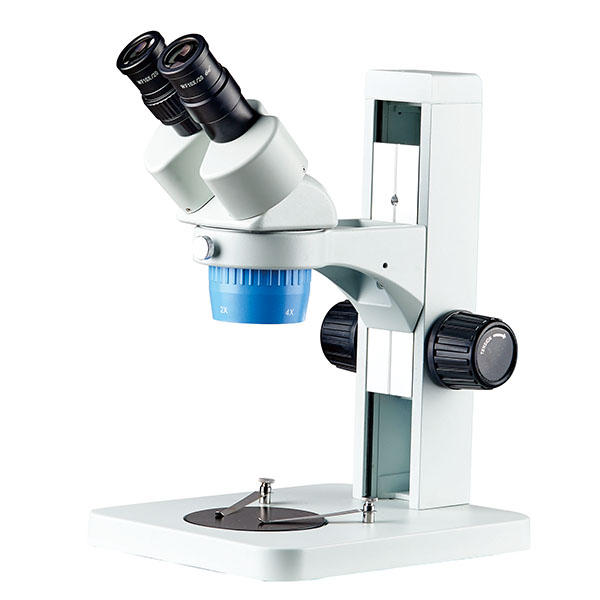

BD6024C-AS	AS track stand	Fluorescent lamp, LED ring light

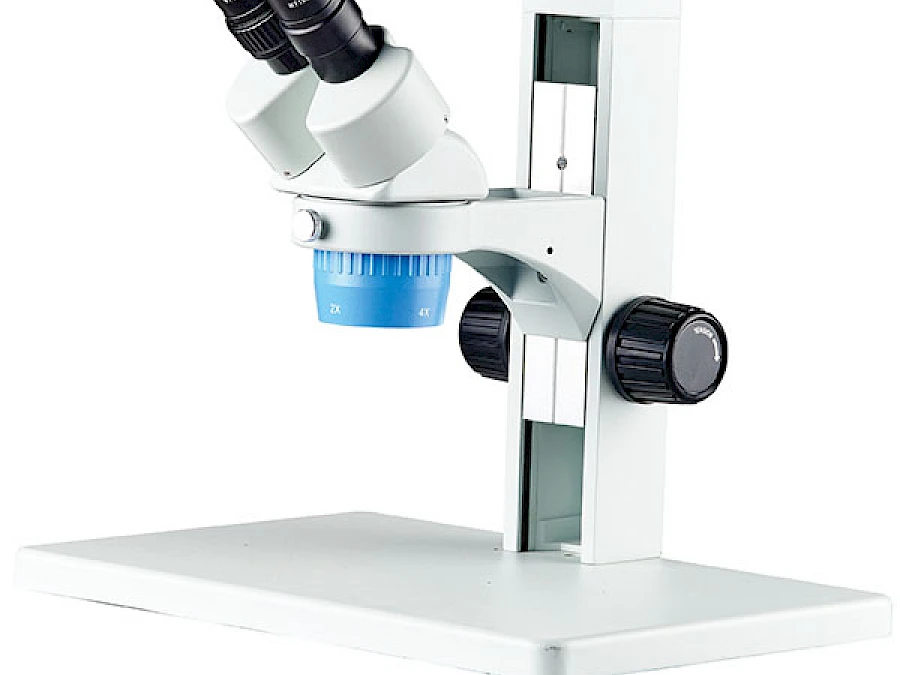

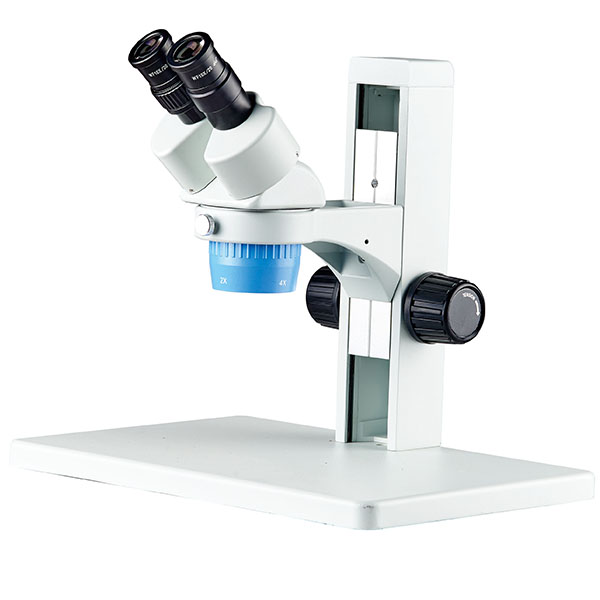

BD6024C-AL	AL track stand	Fluorescent lamp, LED ring light

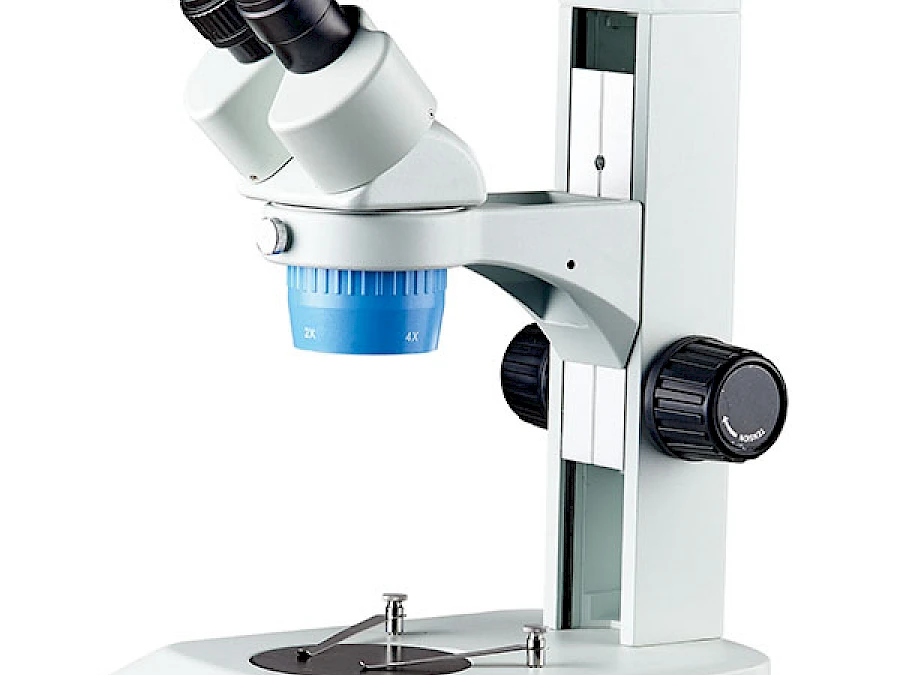

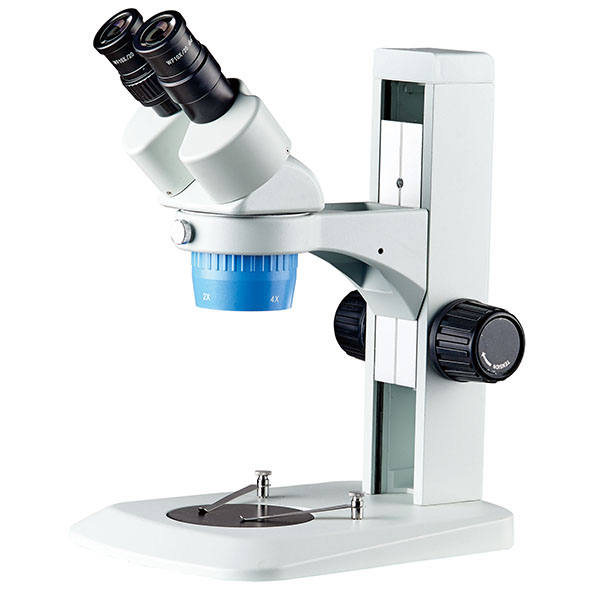

BD6024C-AI	AI track stand	Fluorescent lamp, LED ring light

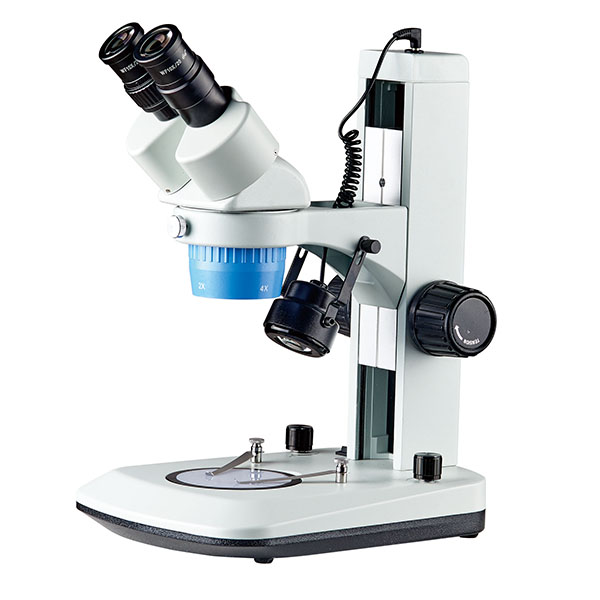

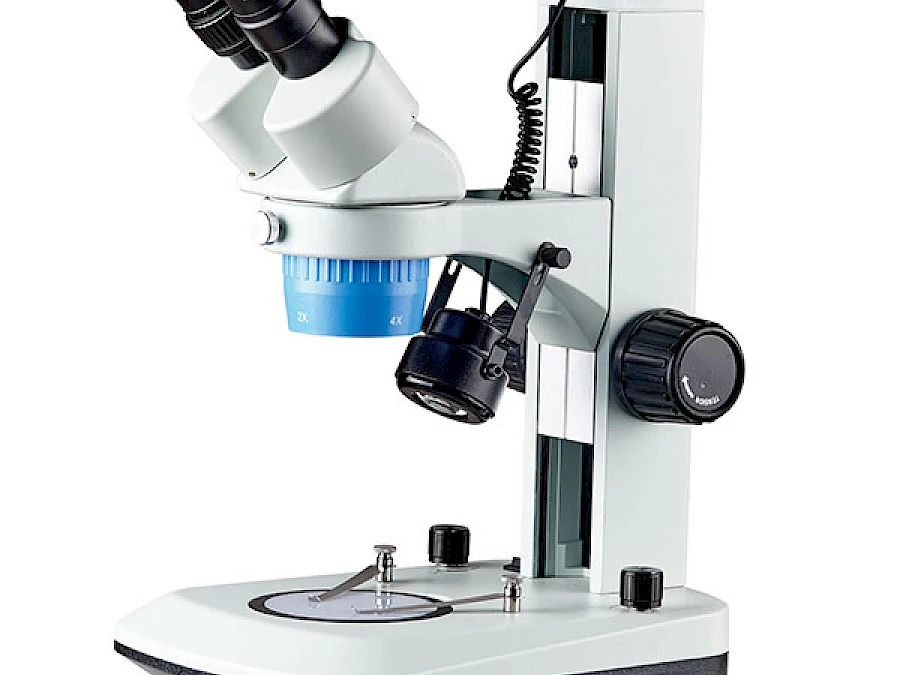

BD6024C-AI2L	AI2L track stand	Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity

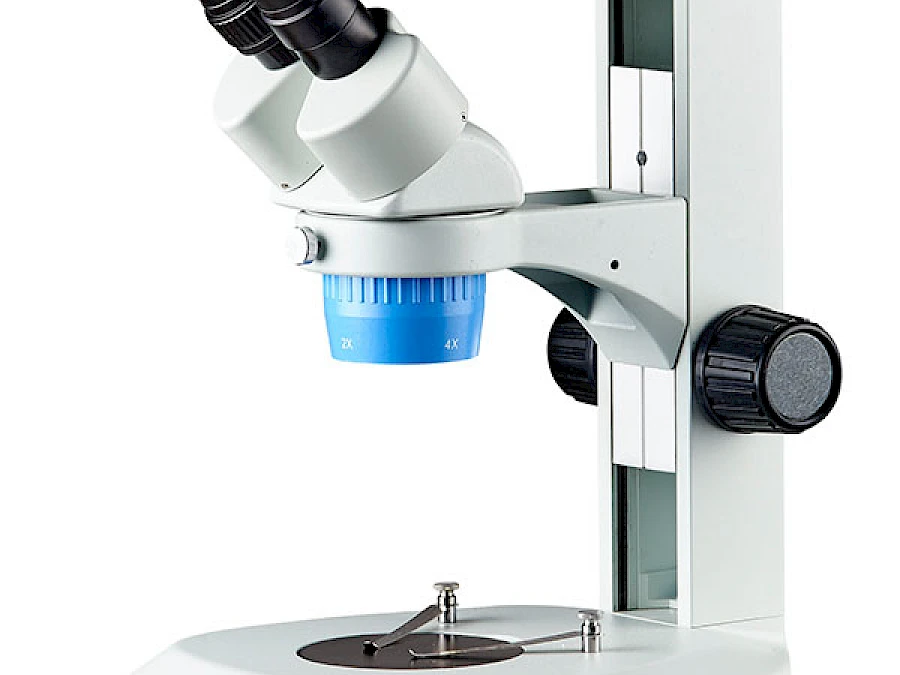

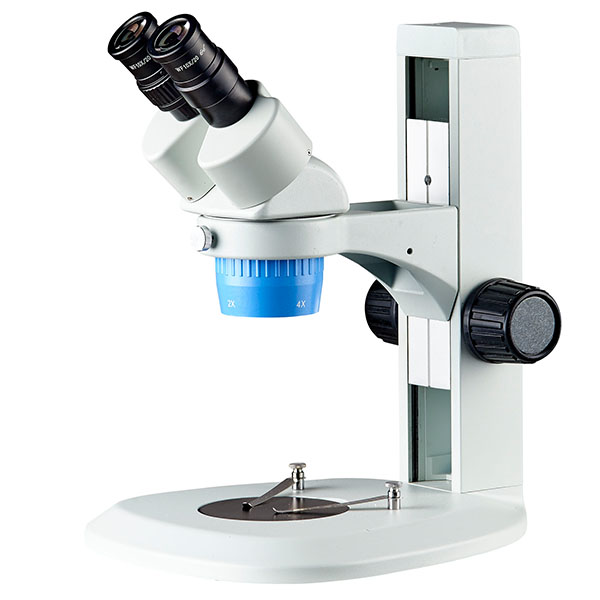

BD6024C-AF	AF fan track stand	Fluorescent lamp, LED ring light

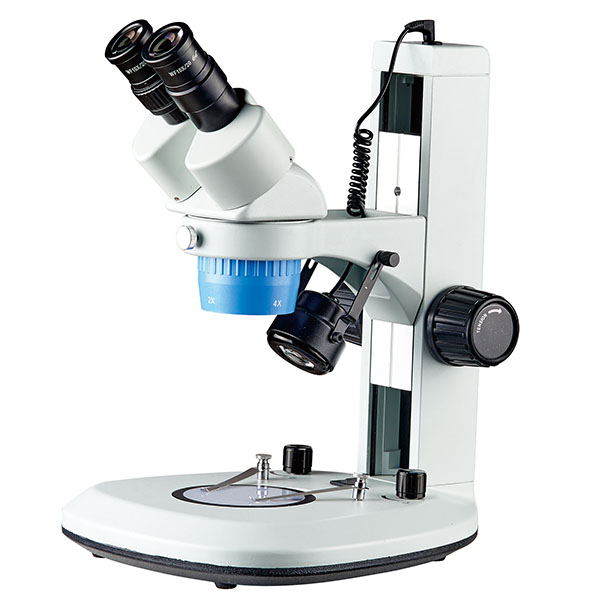

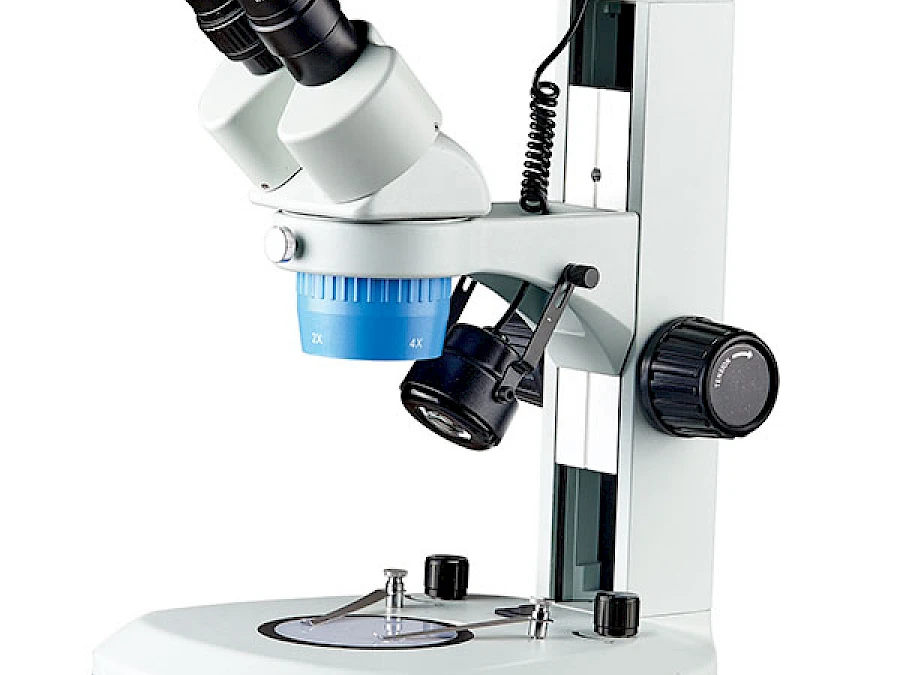

BD6024C-AF2L	AF2L fan base track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

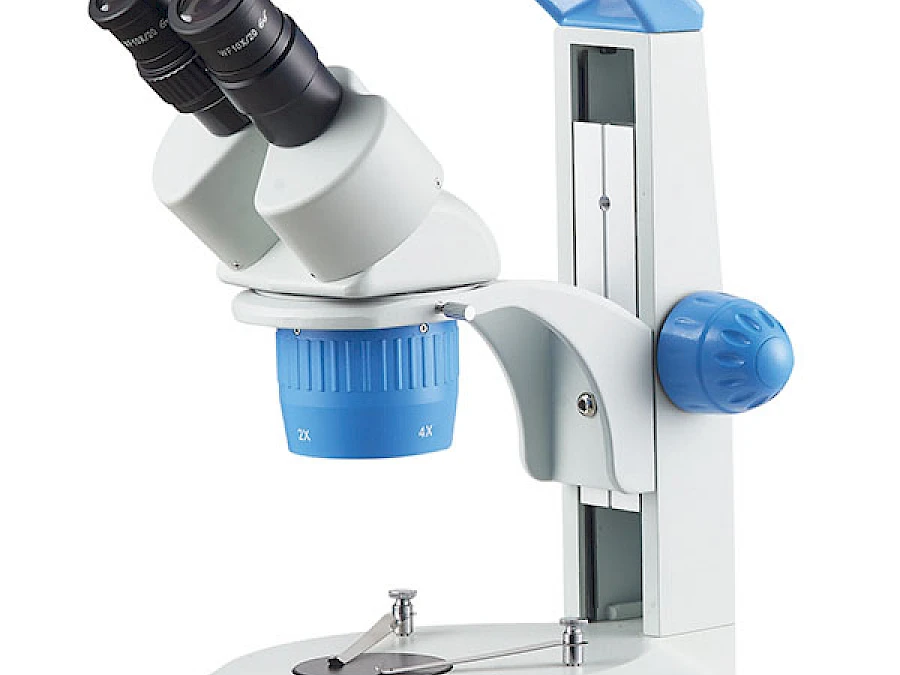

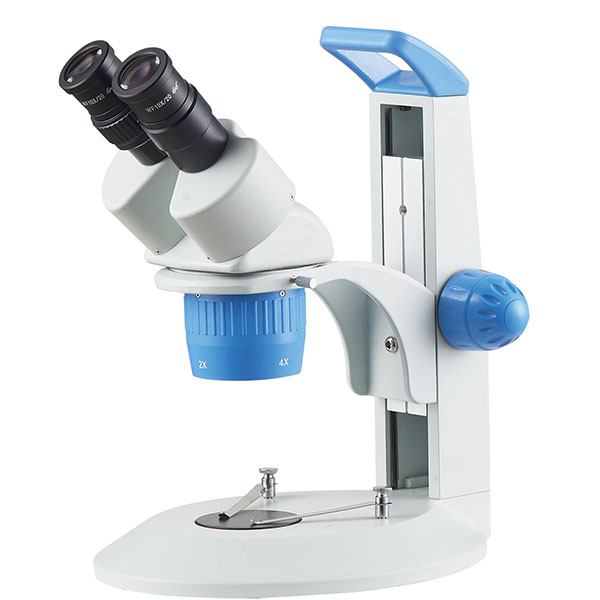

BD6024C-AC	AC track stand	Fluorescent lamp, LED ring light

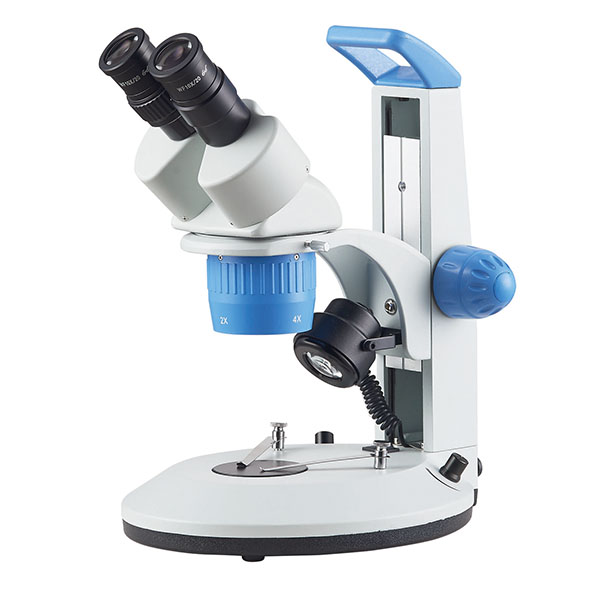

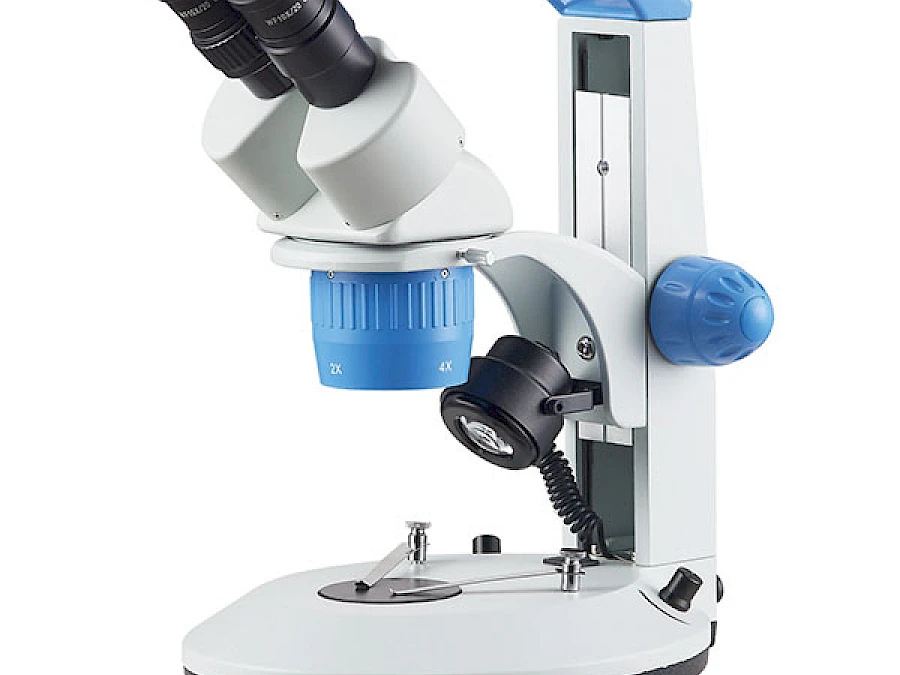

BD6024C-AC2L	AC2L track stand	Transmitted and reflected LED illumination with independent switches and adjustable intensity

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BD6024C Track Stand Series
Eyepiece	Objective 1X		Objective 2X		Objective 3X		Objective 4X
	Working Distance 100mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	10X	20.0mm	20X	10.0mm	30X	7.5mm	40X	5.0mm
15X/15mm	12X	15.0mm	30X	7.5mm	45X	5.0mm	60X	3.3mm
20X/10mm	20X	10.0mm	40X	5.0mm	60X	3.3mm	80X	2.5mm
Magnification	20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	2X/4X, 1X/3X, 1X/2X
Focusing Mount	Focusing track mount with vertical working distance 50mm

BD6024C-SU1

BD6024C-SU2

BD6024C-SU3

BD6024C-DU1

BD6024C-DU2

BD6024C-RU1

Item	Stand	Focusing Mount

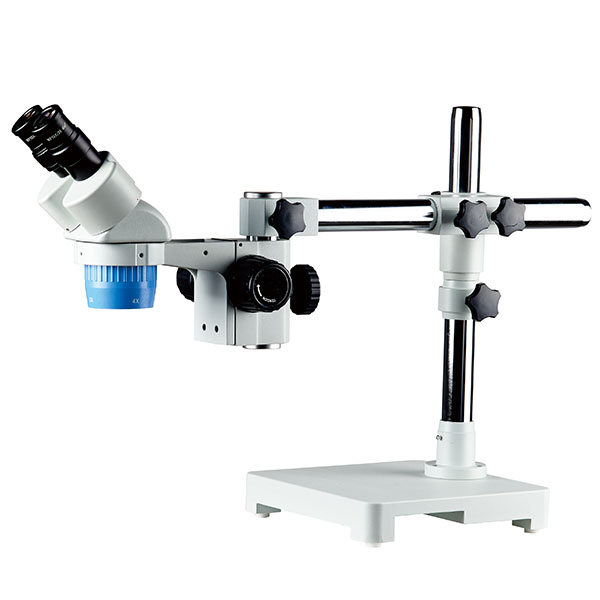

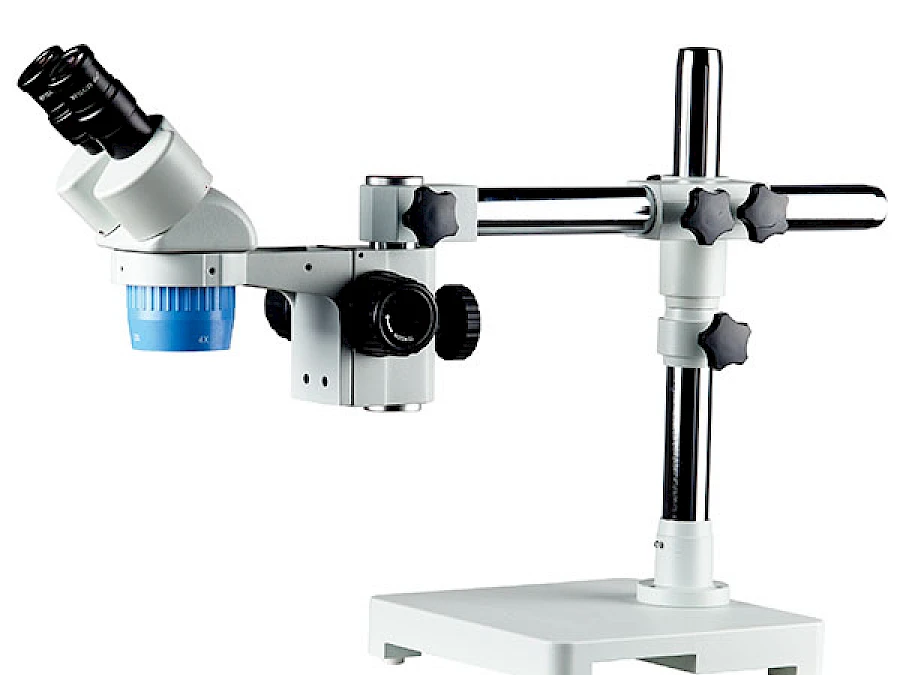

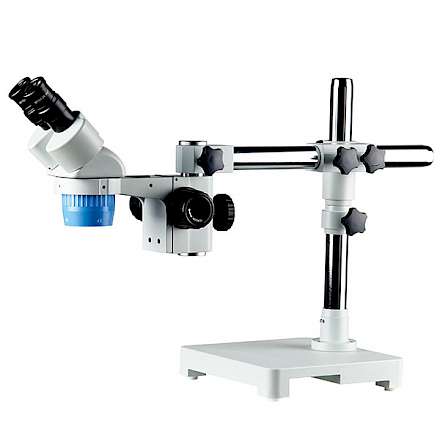

BD6024C-SU1	SU1 boom stand	C1 focusing mount with vertical working distance 50mm

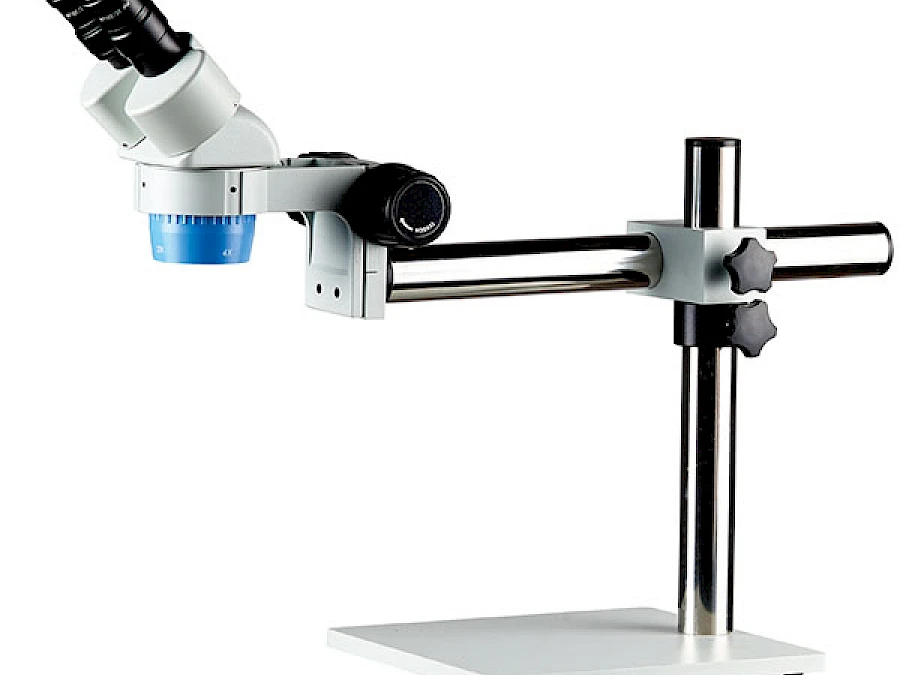

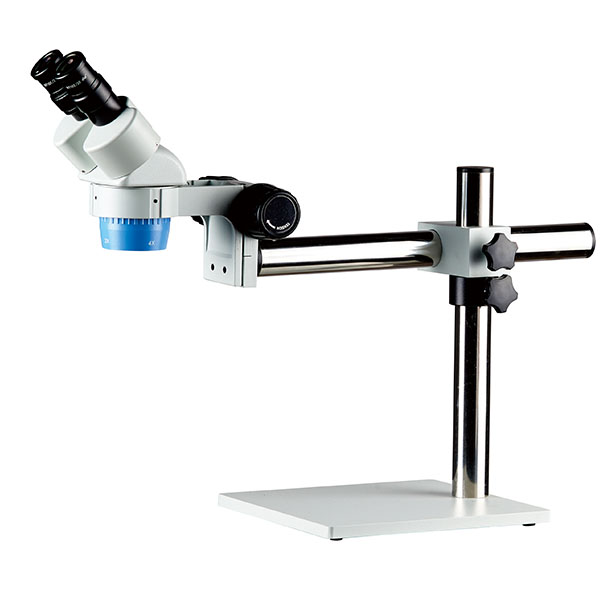

BD6024C-SU2	SU2 boom stand	C3 focusing mount with vertical working distance 50mm

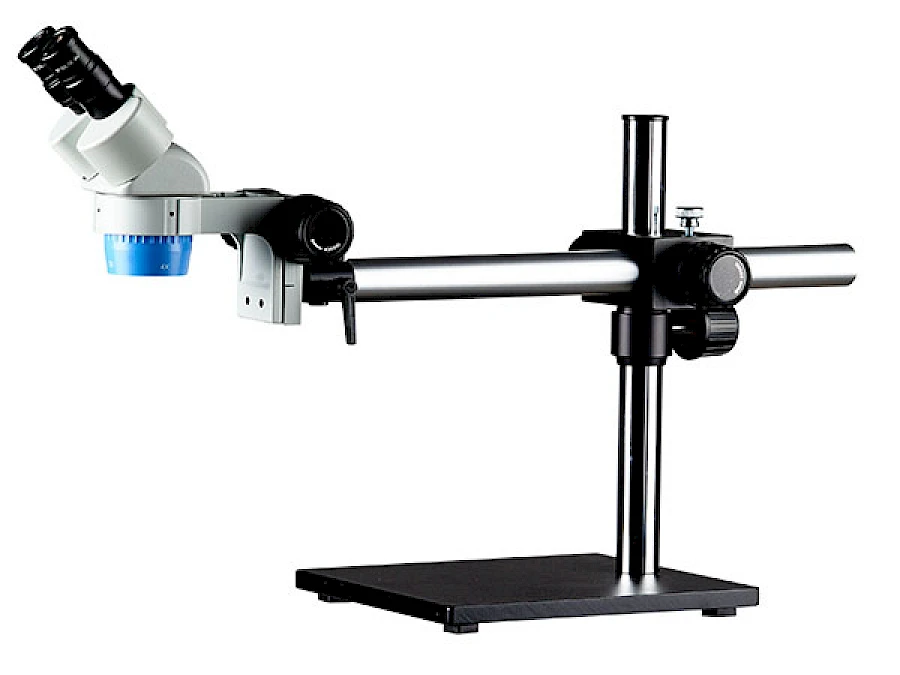

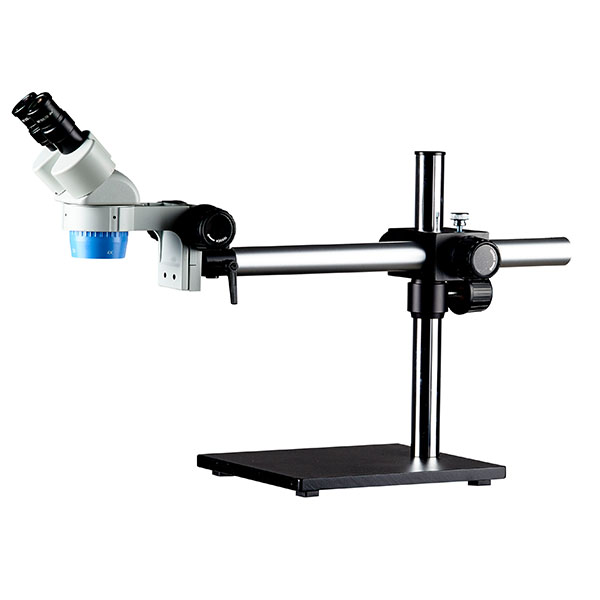

BD6024C-SU3	SU3 boom stand	C3 focusing mount with vertical working distance 50mm

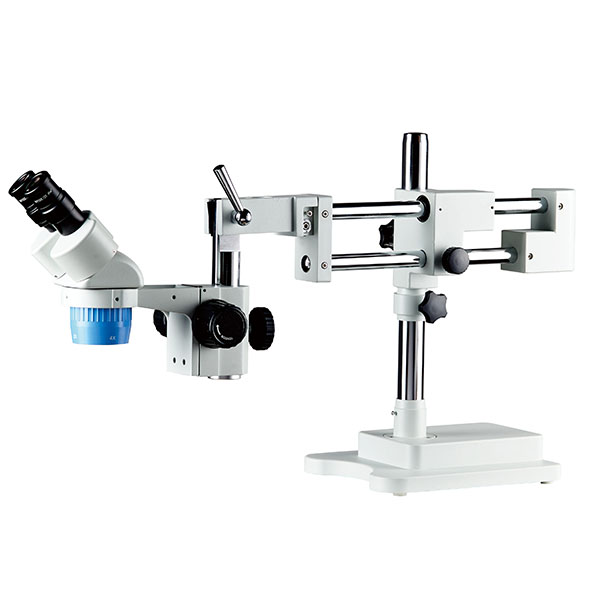

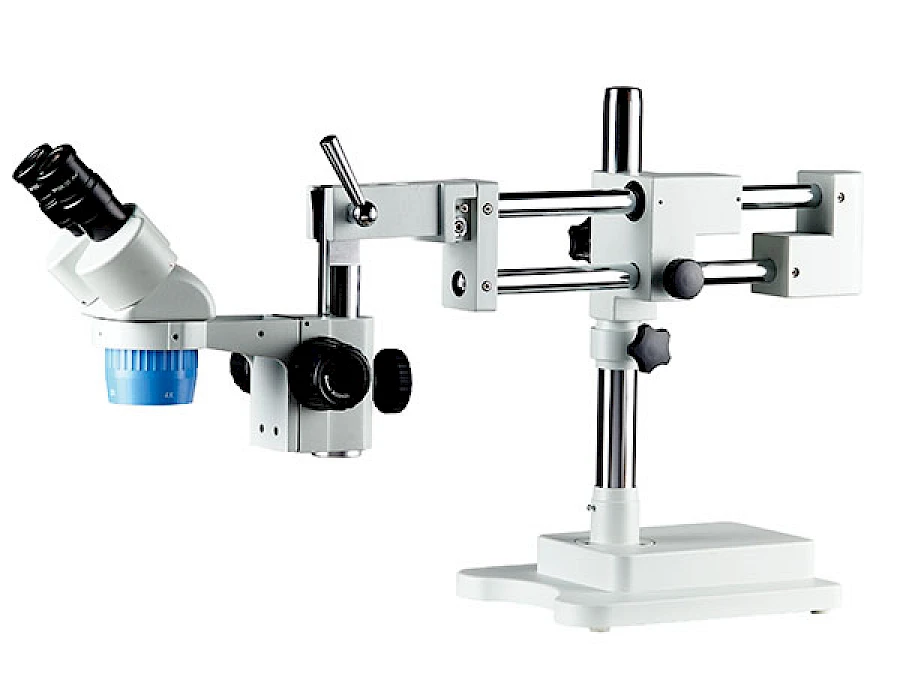

BD6024C-DU1	DU1 boom stand	C1 focusing mount with vertical working distance 50mm

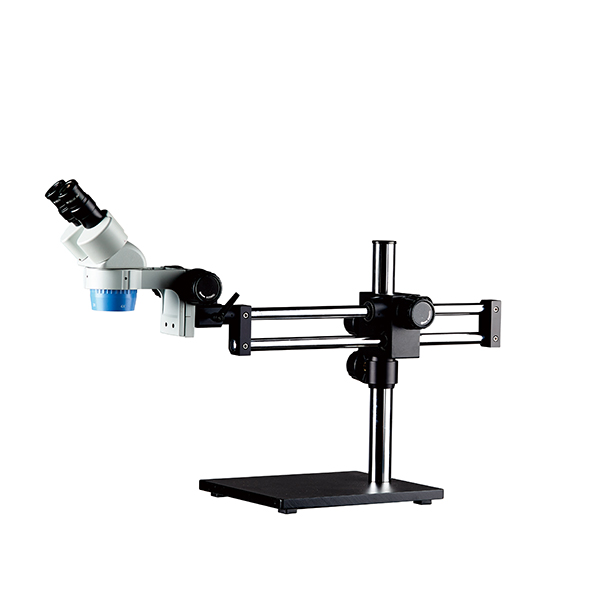

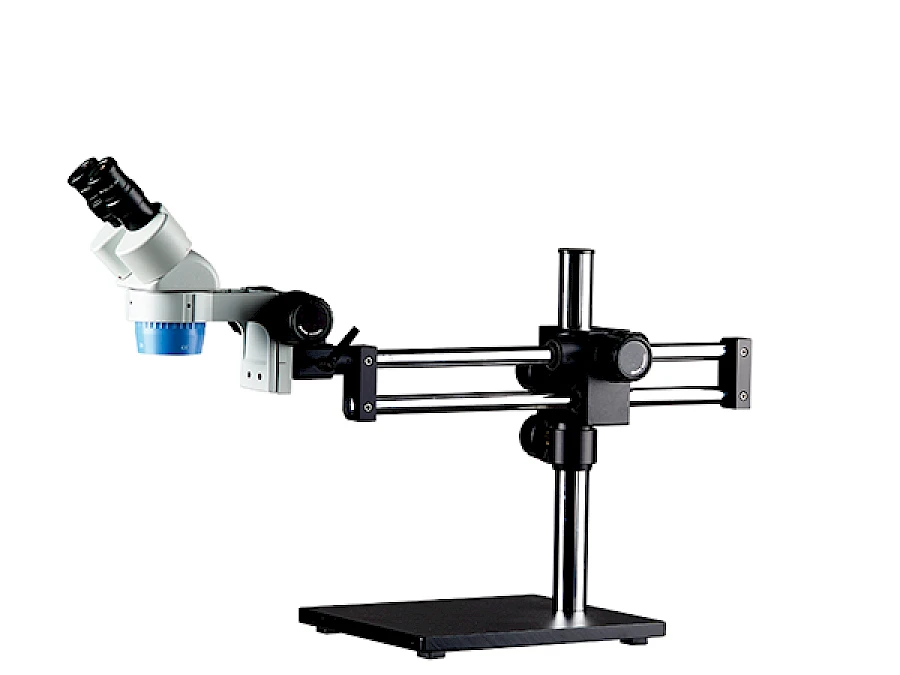

BD6024C-DU2	DU2 boom stand	C3 focusing mount with vertical working distance 50mm

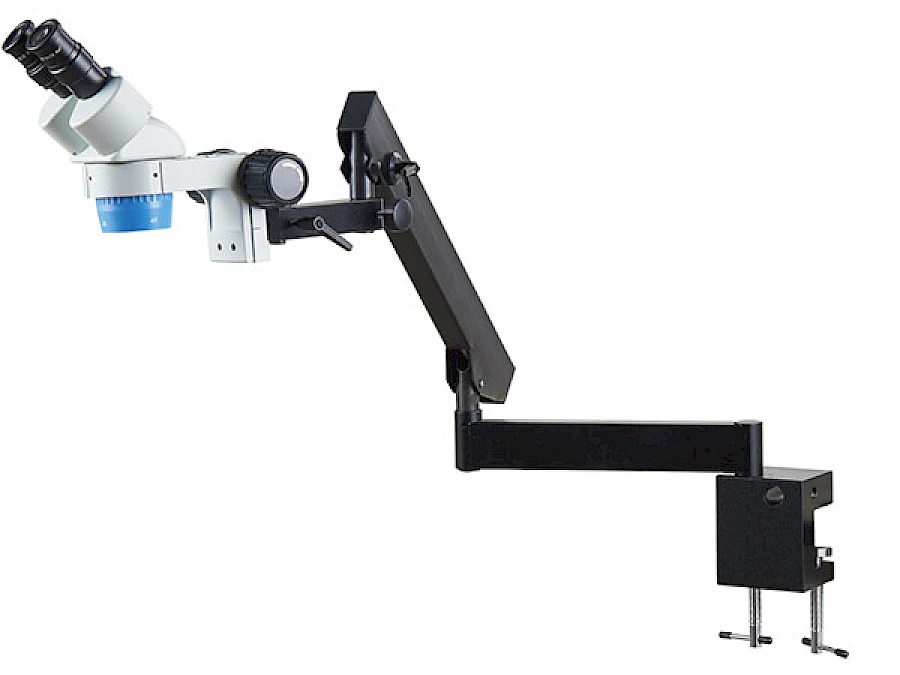

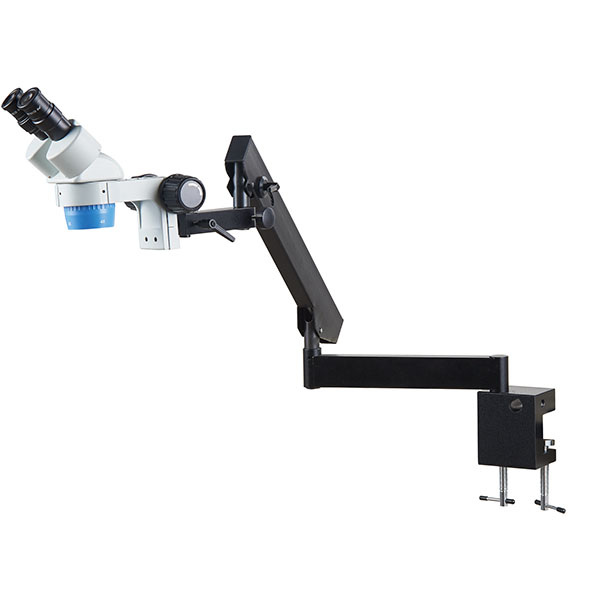

BD6024C-RU1	RU1 clamp boom stand	C3 focusing mount with vertical working distance 50mm

For more options, please refer to "ACCESSORIES-MICROSCOPE STAND" &“ACCESSORIES-ILLUMINATOR”

Specification for BD6024C Boom Stand Series
Eyepiece	Objective 1X		Objective 2X		Objective 3X		Objective 4X
	Working Distance 100mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	10X	20.0mm	20X	10.0mm	30X	7.5mm	40X	5.0mm
15X/15mm	12X	15.0mm	30X	7.5mm	45X	5.0mm	60X	3.3mm
20X/10mm	20X	10.0mm	40X	5.0mm	60X	3.3mm	80X	2.5mm
Magnification	20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	2X/4X, 1X/3X, 1X/2X
Illumination	Fluorescent lamp, LED ring light
