Features:
- All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor
- Auto/Manual focus with the movement of the sensor
- For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and control can also be realized by the XCamView
- 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application
- For HDMI application, 2.0M or 5M resolution image(1920*1080 XFCAM1080PHD,2592*1944 XCAM1080PHB) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved
- With the USB WiFi adapter, the XFCAM1080PHB/PHD can be used as WiFi camera, the advanced image processing software is used to display the video and capture image. support plug and play application
- Ultra-Fine Color Engine with perfect color reproduction capability(WiFi)
- With advanced video & image processing application, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB)
- XFCAM1080PHB/PHD can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc
The possible applications of XFCAM1080PHB/PHD are as follows:
- Scientific research, education (teaching, demonstration and academic exchanges)
- Digital laboratory, medical research
- Industrial visual (PCB examination, IC quality control)
- Medical treatment (pathological observation)
- Food (microbial colony observation and counting)
- Aerospace, military (high sophisticated weapons)

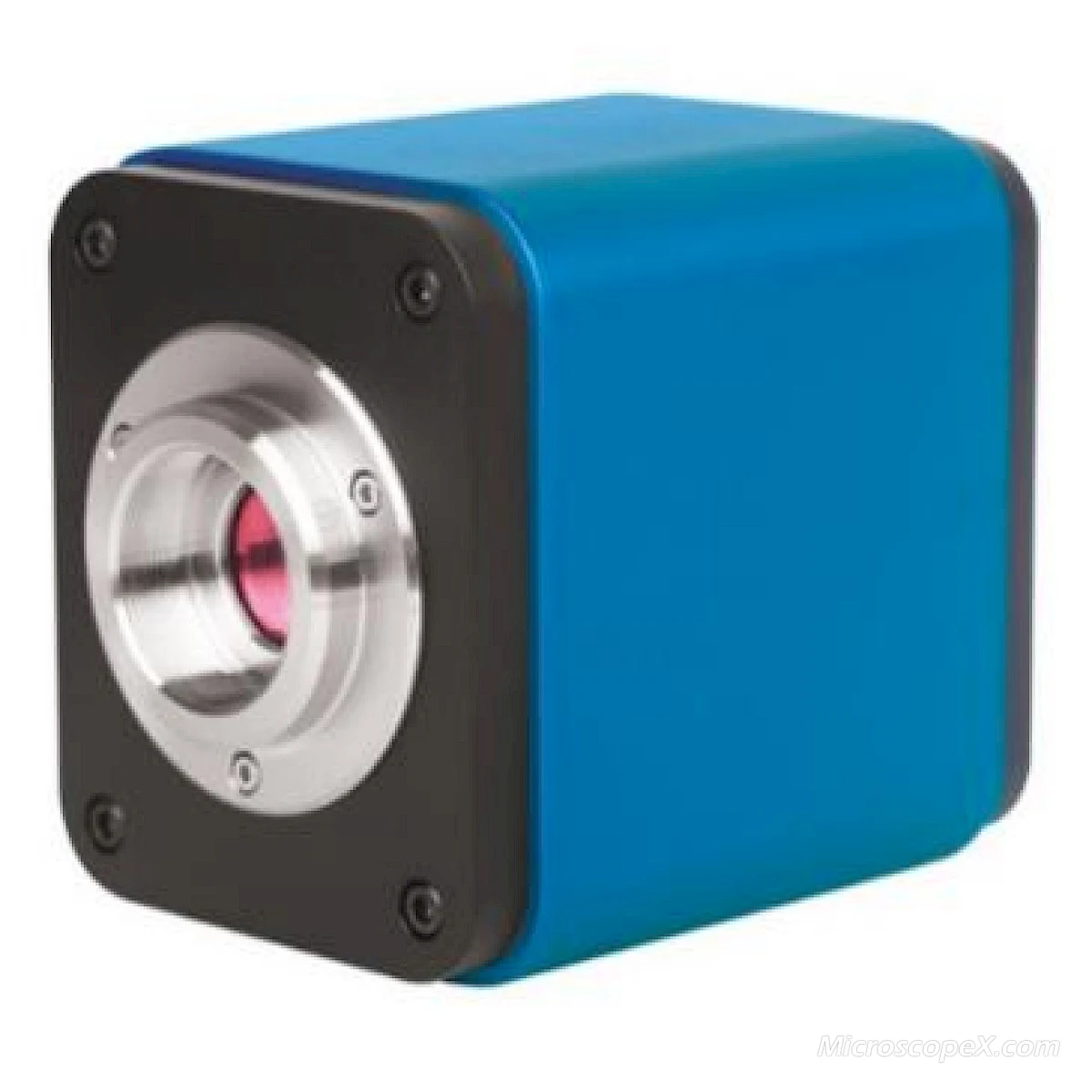

XFCAM1080PHB/PHD is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS camera with autofocus function (F means autofocus) and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital
In HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software. So you can control the camera, process the image as JingTong 's other USB series camera

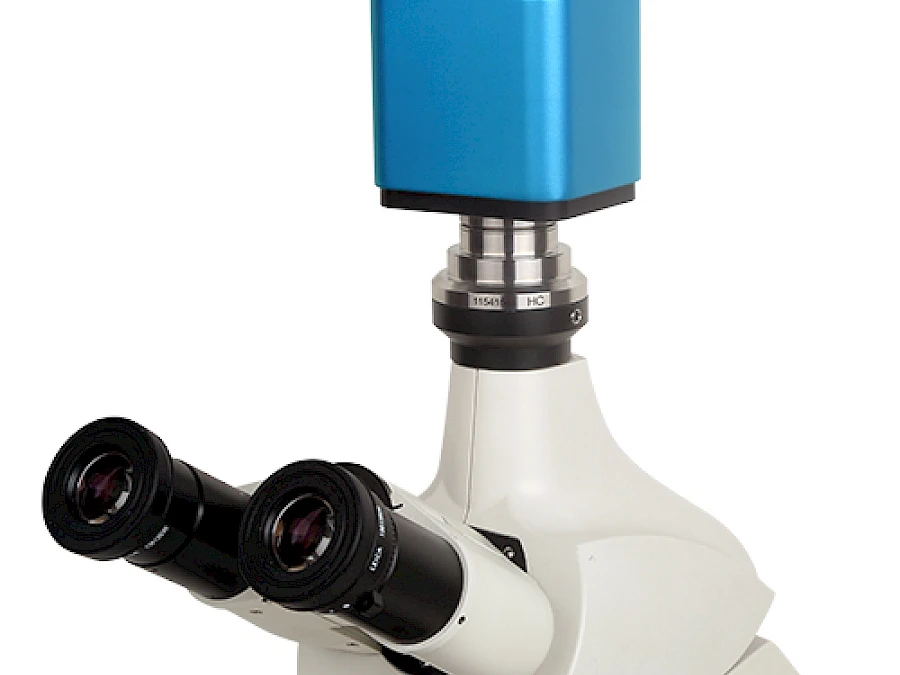

XFCAM1080PHB/PHD and Microscope

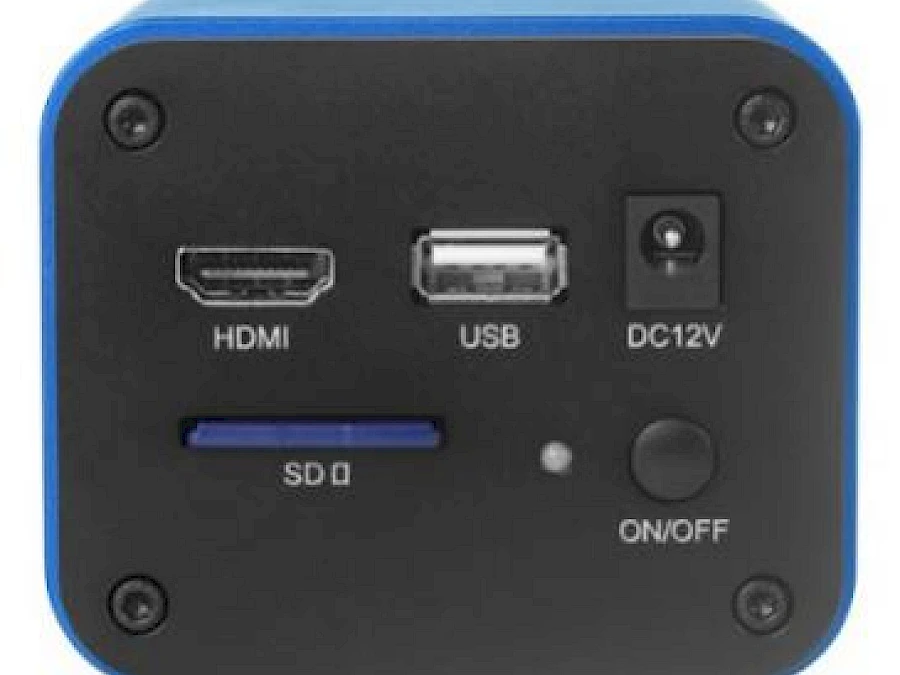

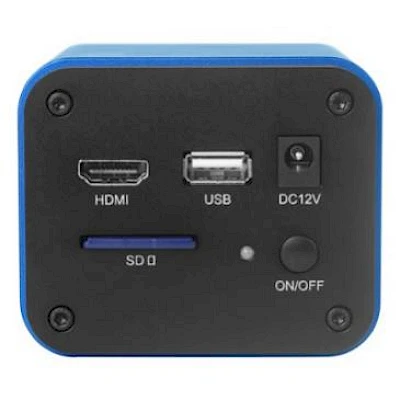

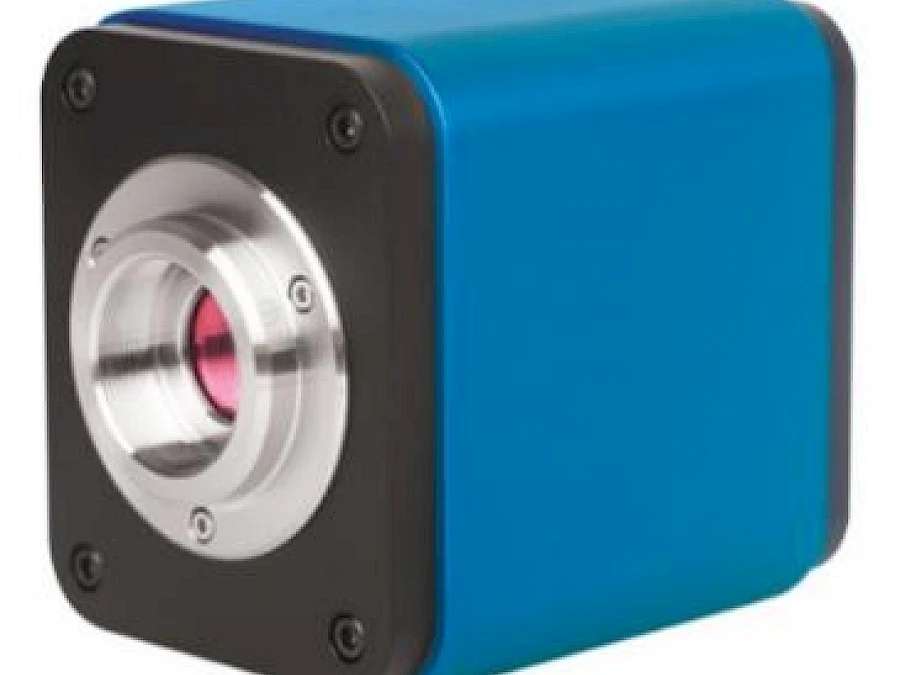

XFCAM 1080PHB/PHD and its Back Panel

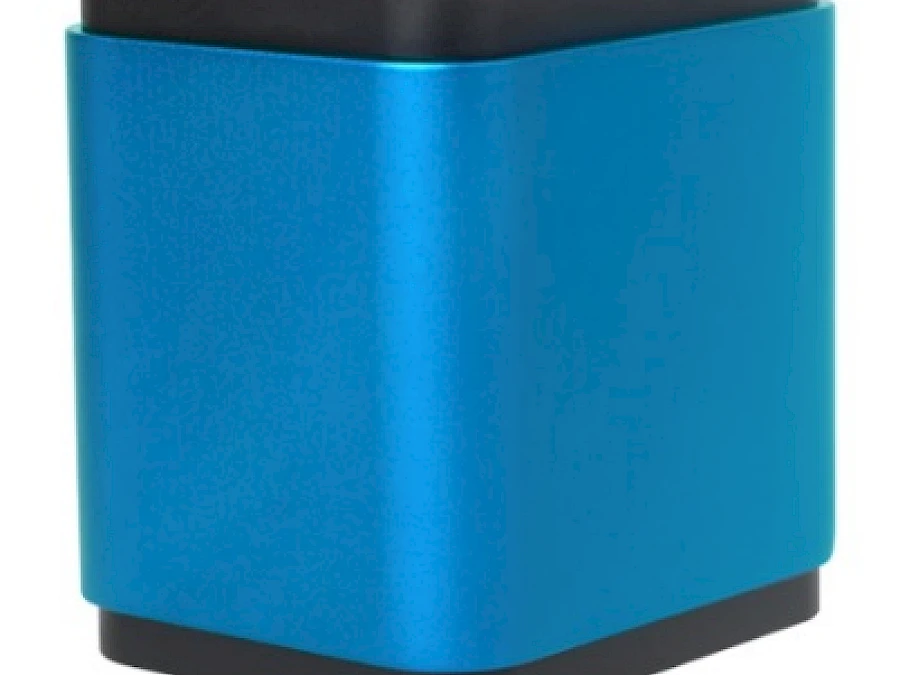

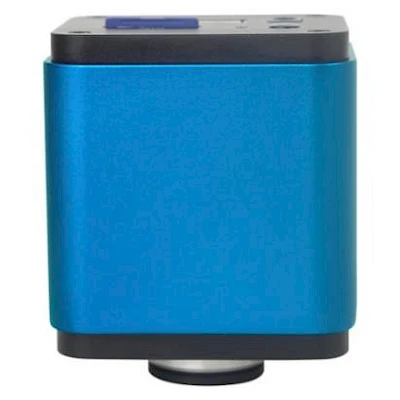

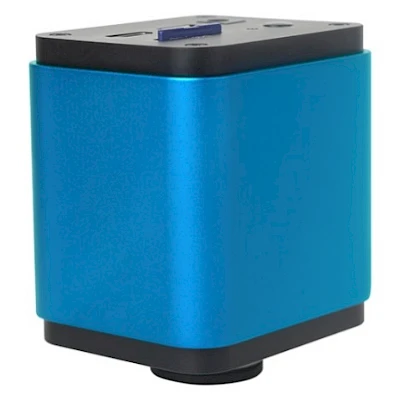

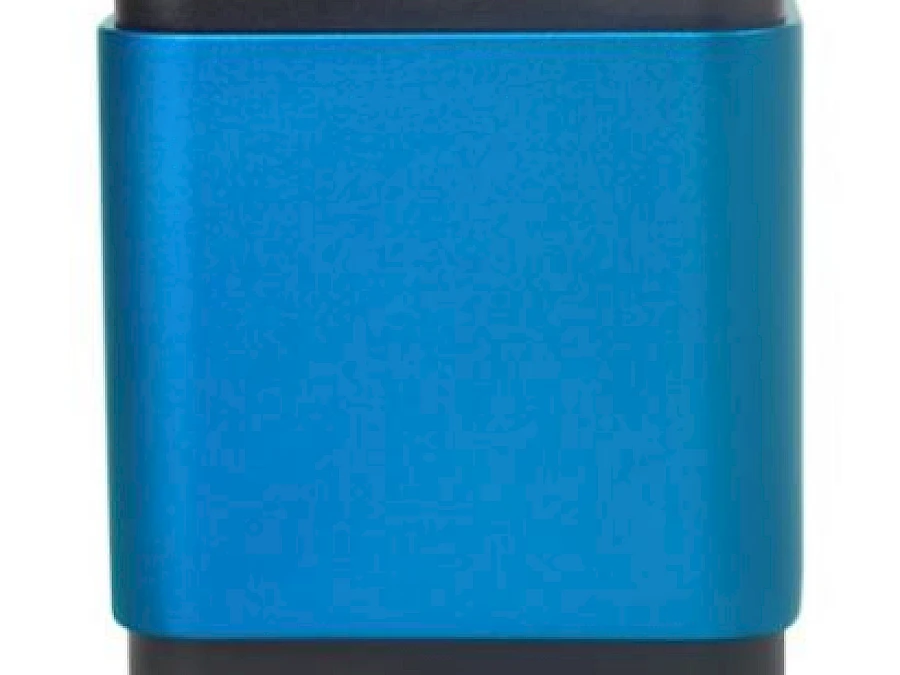

Different Views of XFCAM1080PHB/PHD

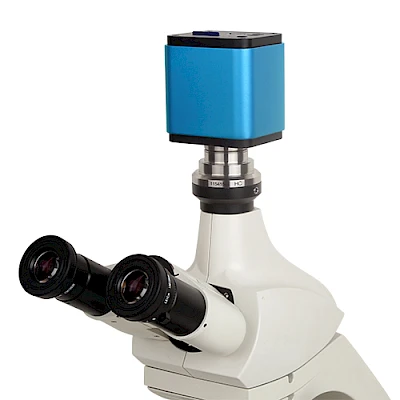

XFCAM 1080PHB/PHD and Microscope

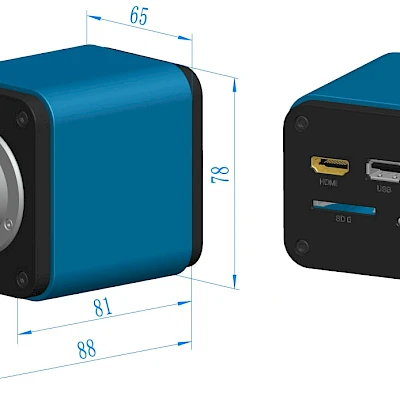

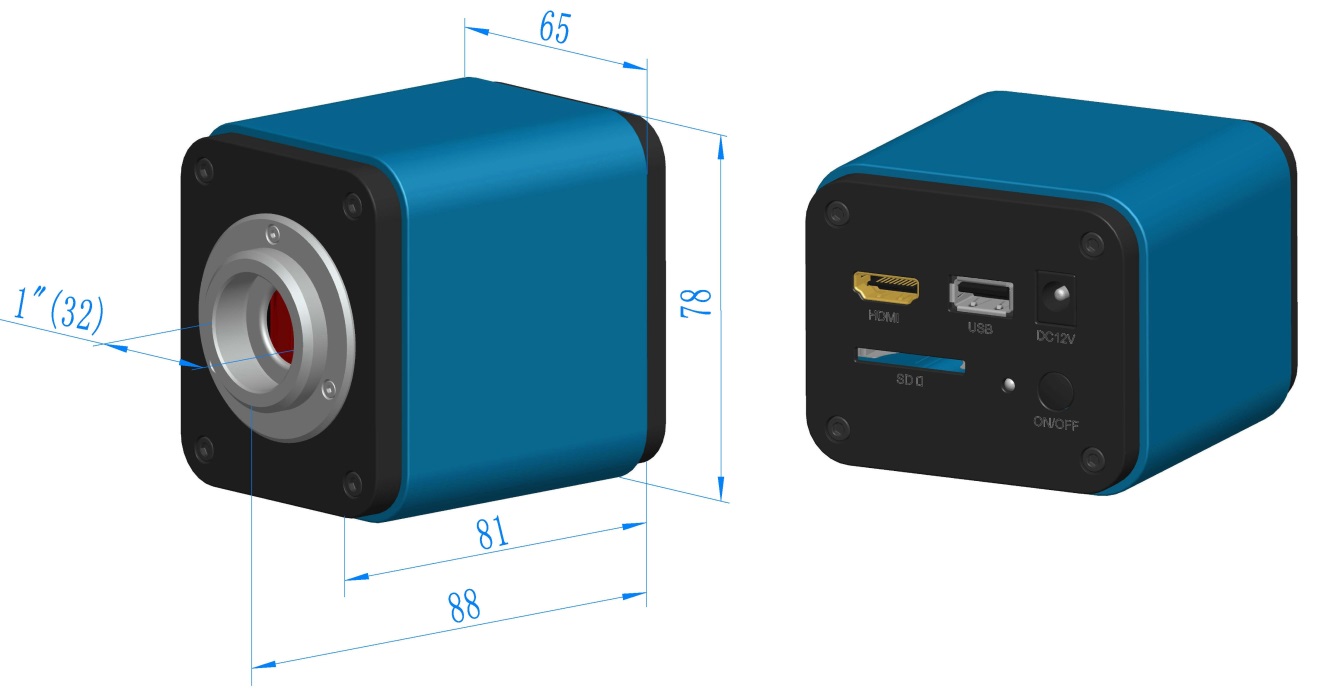

Dimension of XFCAM 1080PHB/PHD

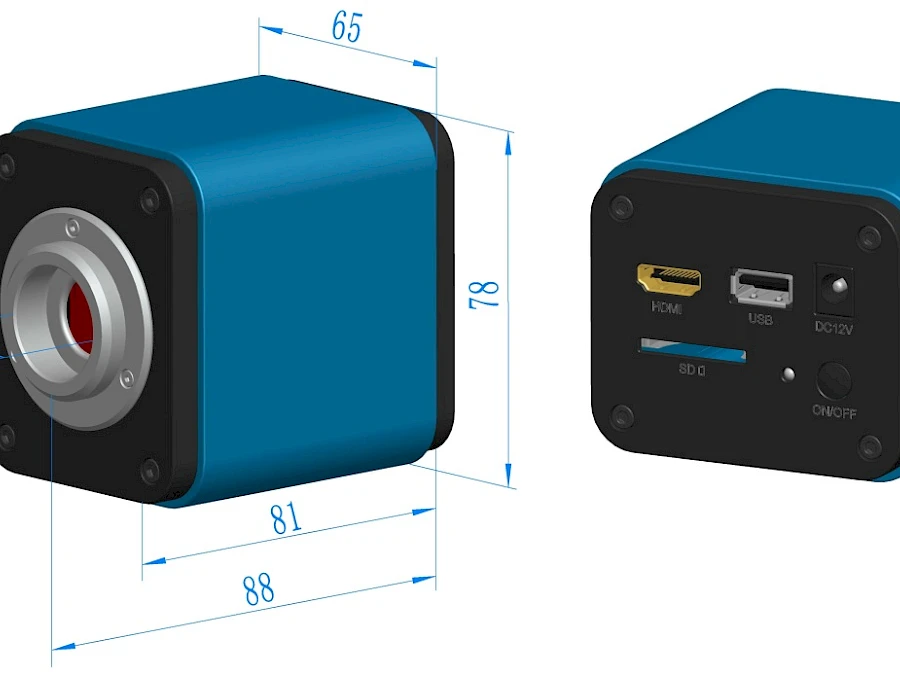

Dimension of XFCAM1080PHB/PHD

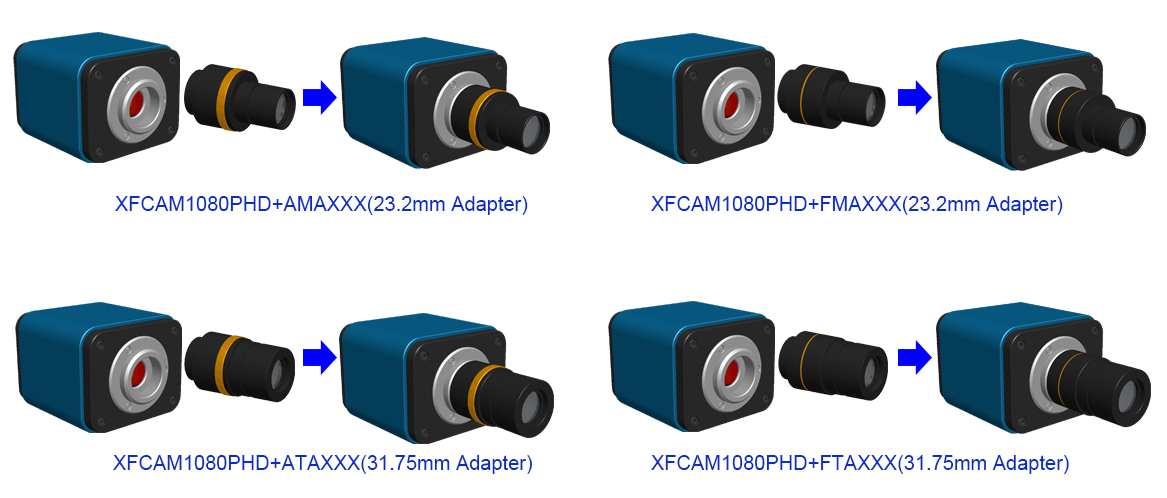

Extension of XCAM1080PHB/PHD with Microscope or Telescope Adapter
Extension | Picture | |
|---|---|---|
C-mount Camera |
| Machine vision; Medical imaging; |
| ||
Telescope Camera: | ||
