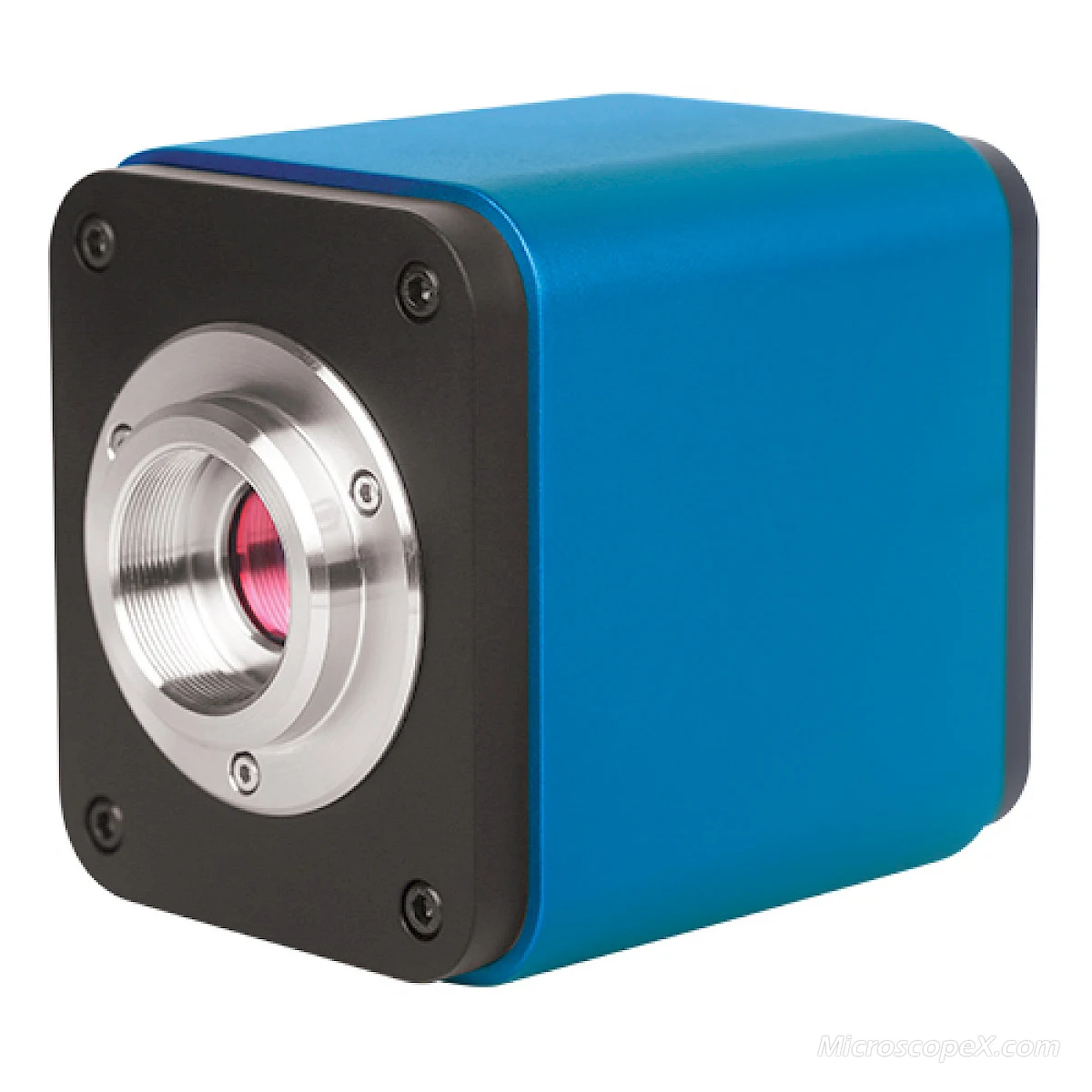

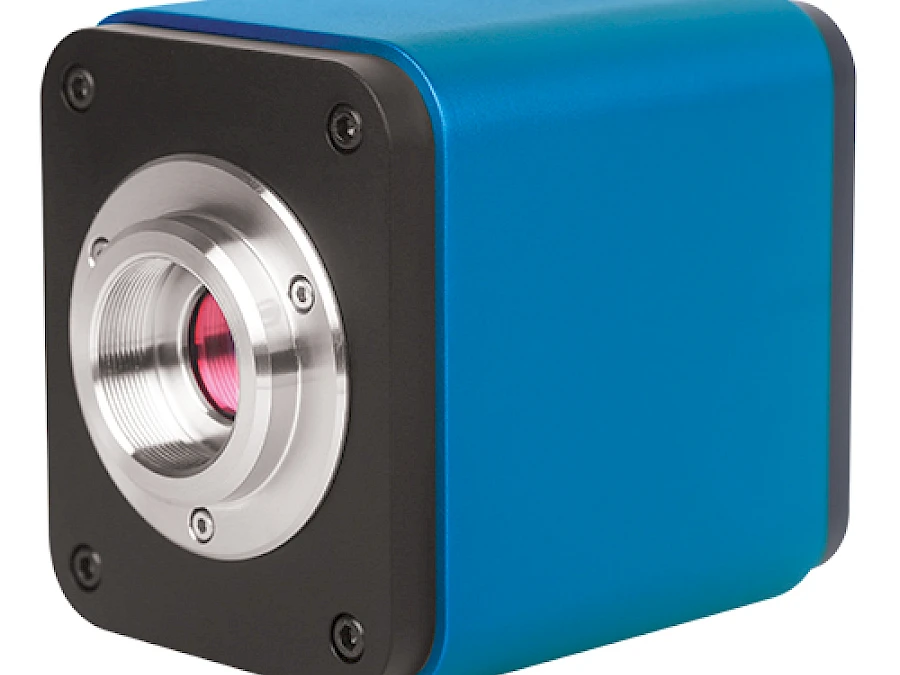

XCAM1080PHA C-mount HDMI+USB CMOS Camera

HDMI+USB, connect to HDMI display & computer simultaneously,intelligent image processing

Core Features

All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor
Simultaneous HDMI & USB output
CNC precision machining shell
Built-in mouse control
Built-in image capture & video record to SD card
Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control

Configurations

HDMI+USB+SD card

Simultaneous HDMI & USB output

CNC precision machining shell

Request Quotation Email Phone Back to Products

The possible applications of XCAM1080PHA are as follows:

Scientific research, education (teaching, demonstration and academic exchanges)
Digital laboratory, medical research
Industrial visual (PCB examination, IC quality control)
Medical treatment (pathological observation)
Food (microbial colony observation and counting)
Aerospace, military (high sophisticated weapons)

XCAM1080PHA is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony IMX236 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.

For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as Jingtong's other USB series camera.

XCAM1080PHA and Microscope

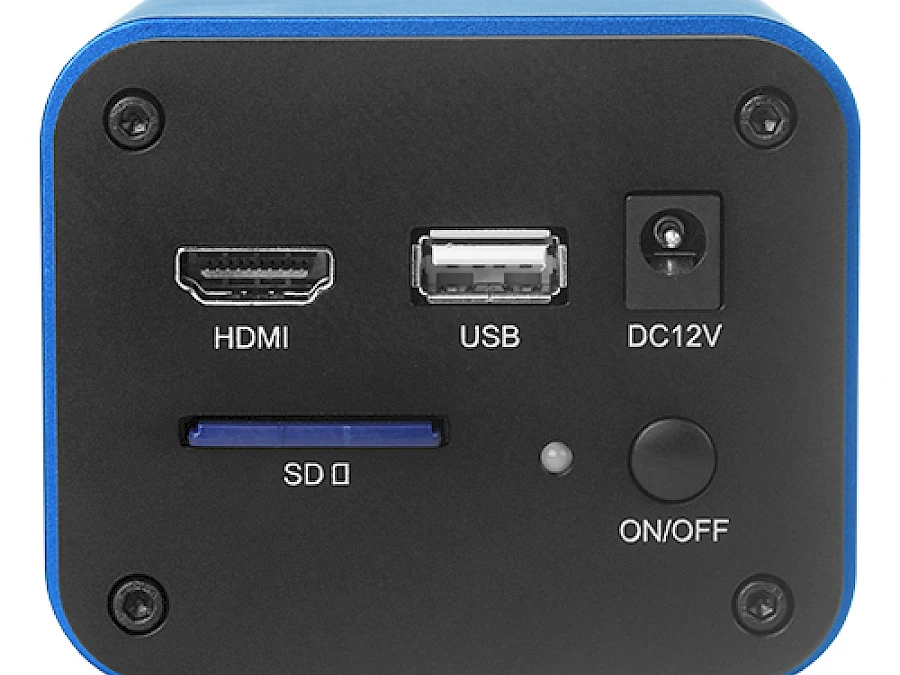

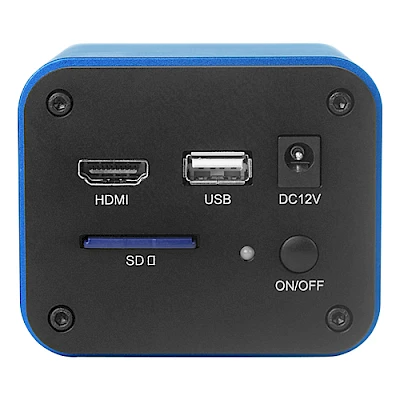

XCAM1080PHA XCAM1080PHA's Back Panel

XCAM1080PHA and Its Back Panel

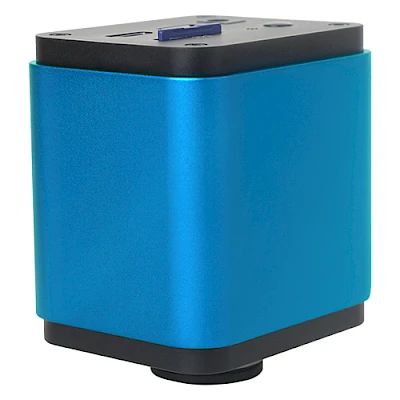

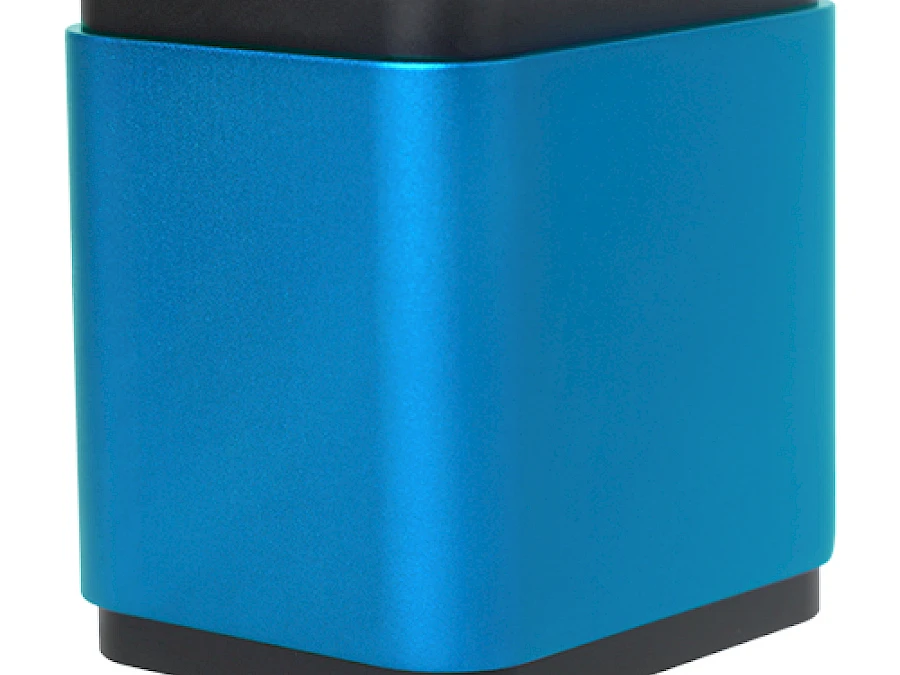

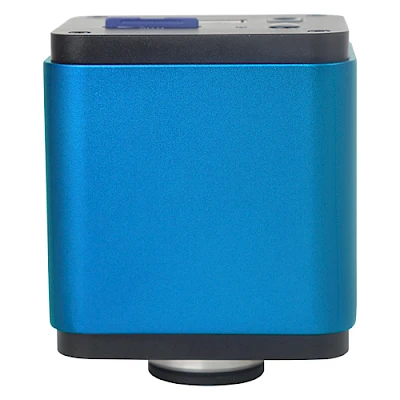

Different View of XCAM1080PHA

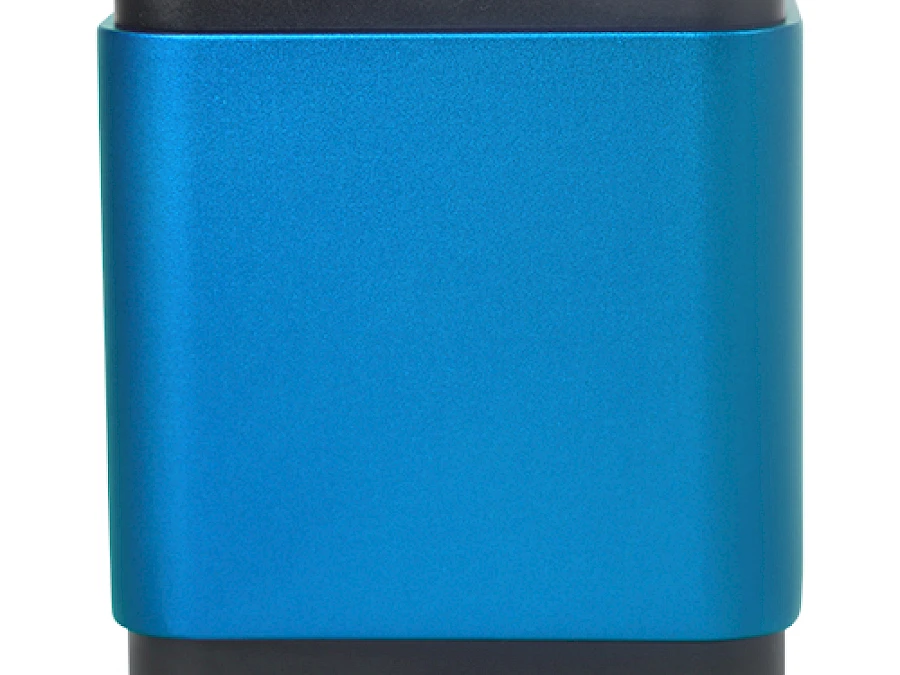

Different Views of XCAM1080PHA

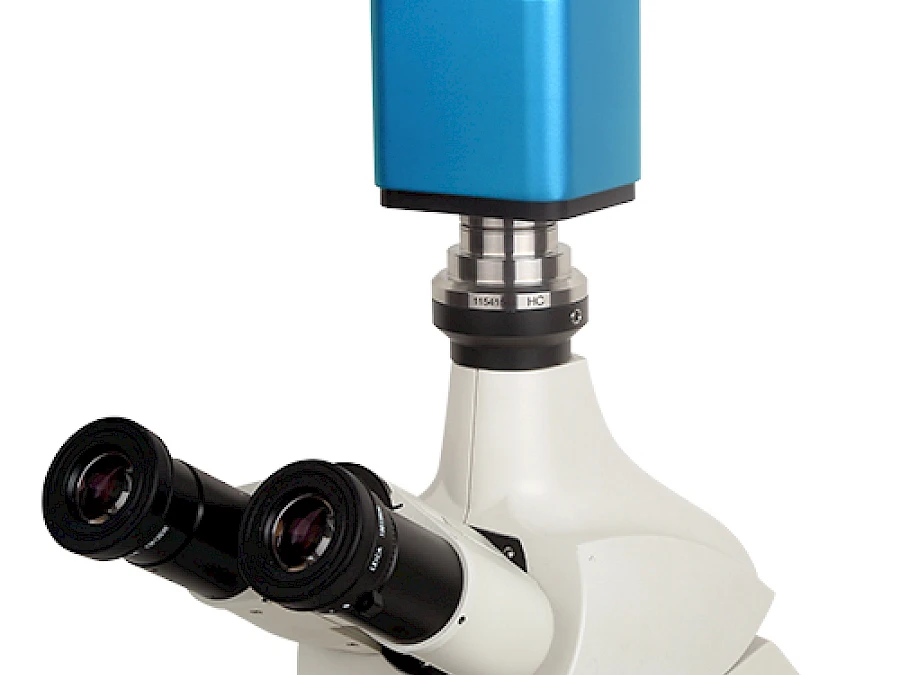

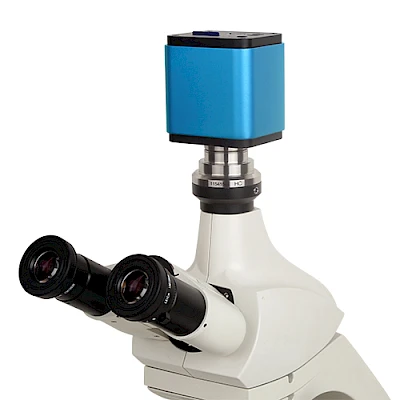

XCAM1080PHA and Microscope

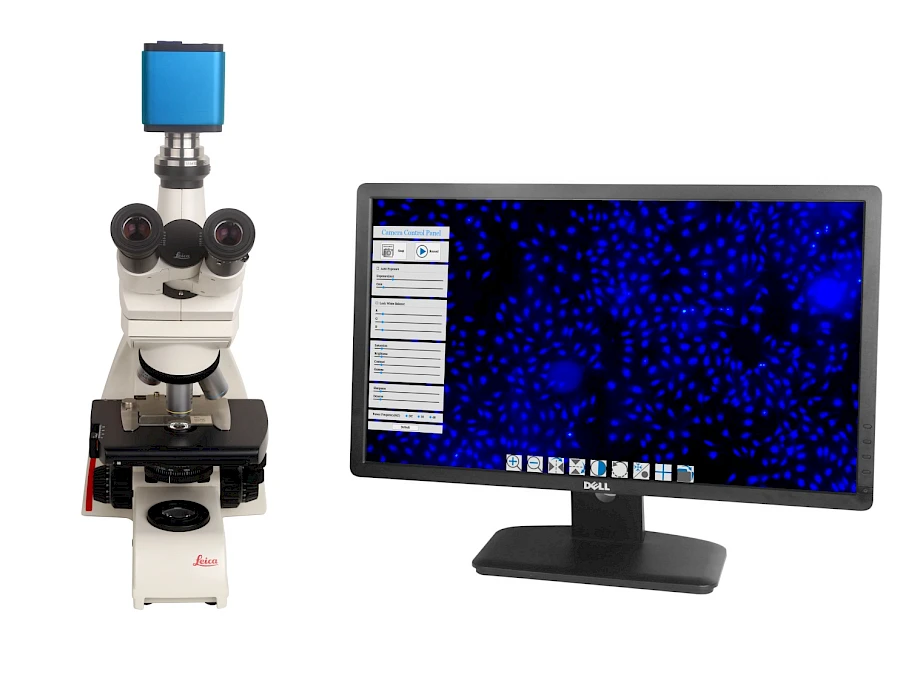

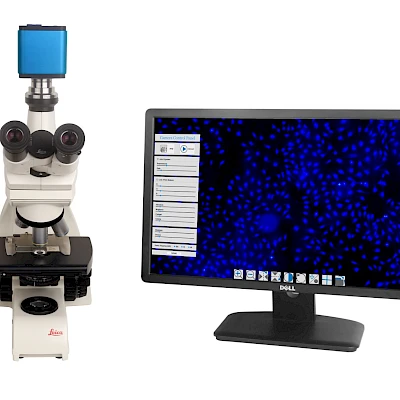

XCAM1080PHA+ Microscope+Display

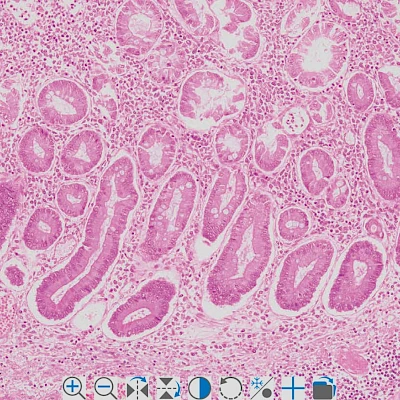

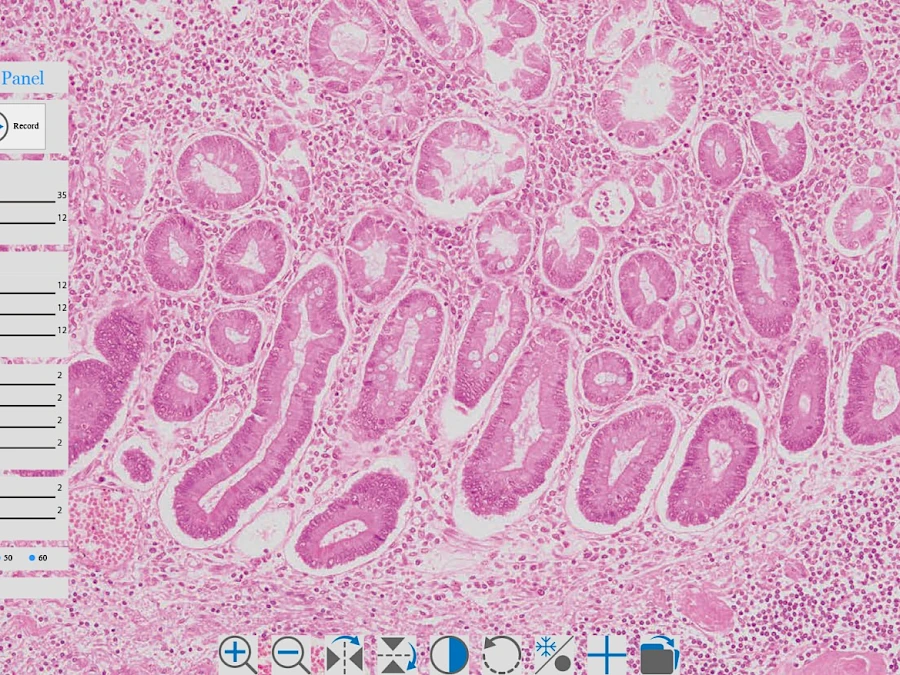

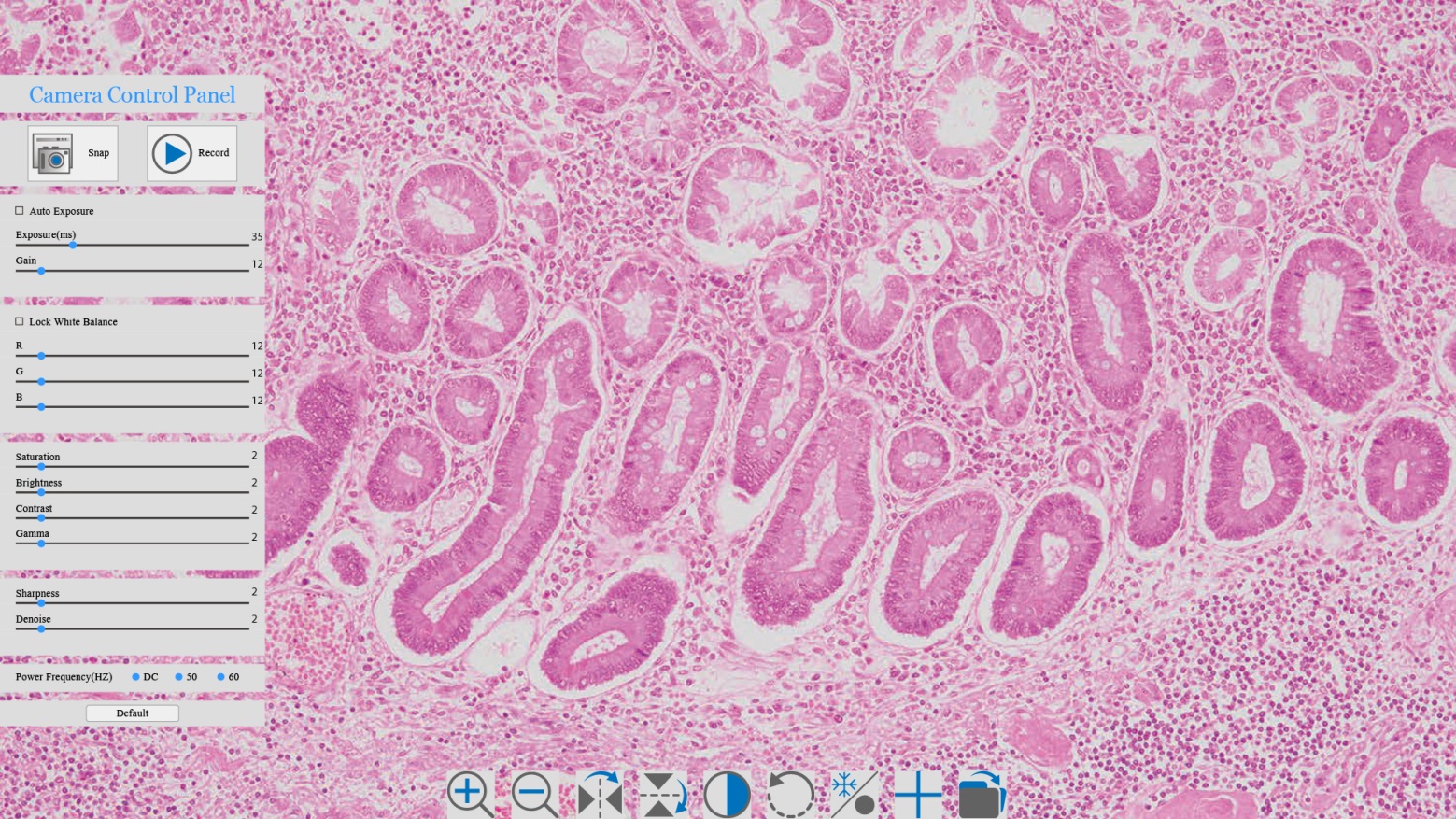

XCamView UI for Mouse Control

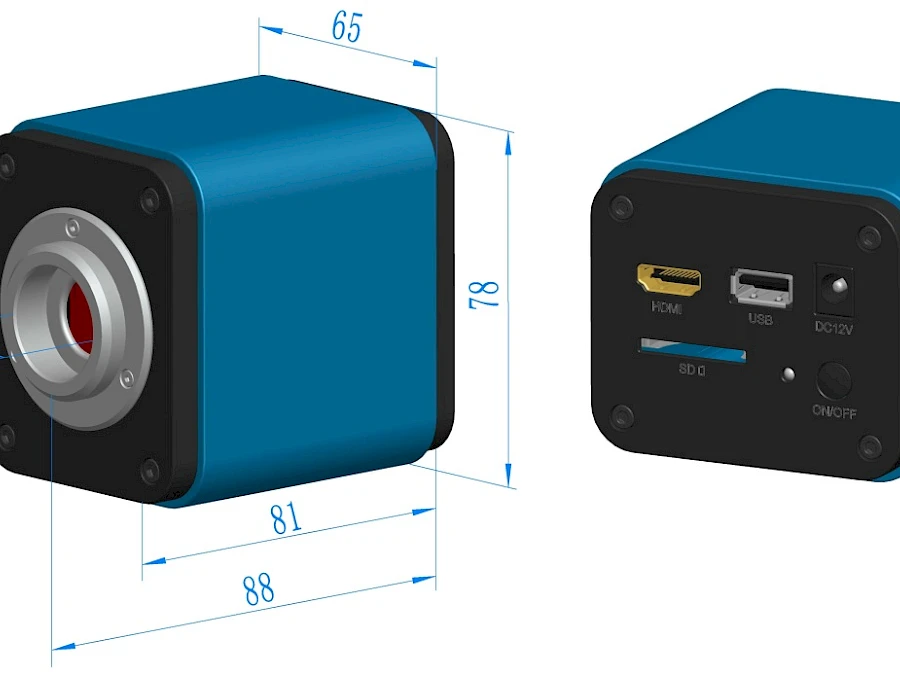

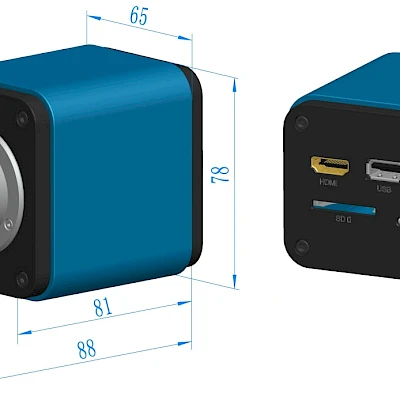

Dimension of XCAM1080PHA

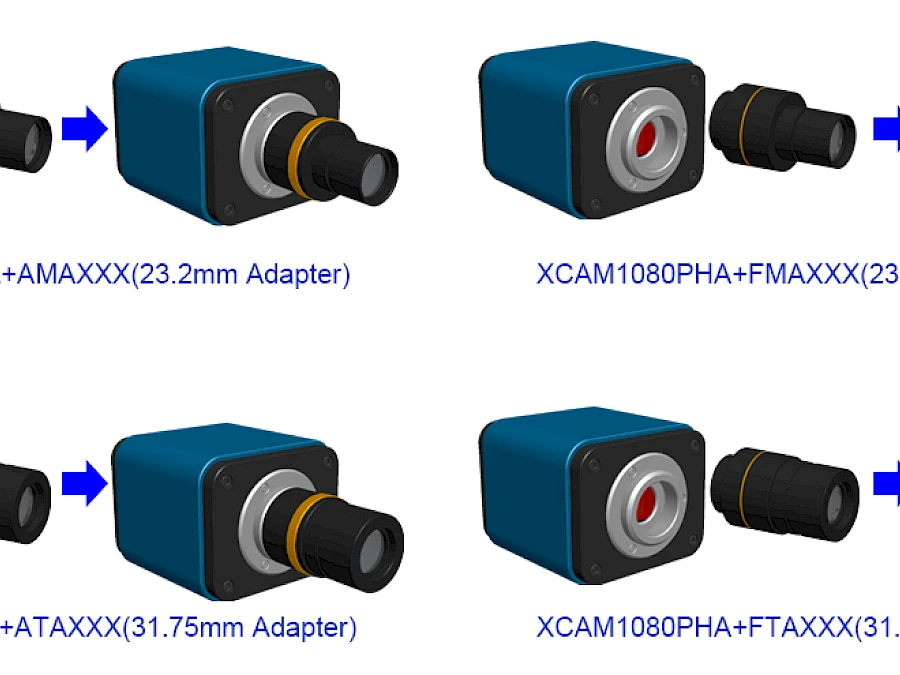

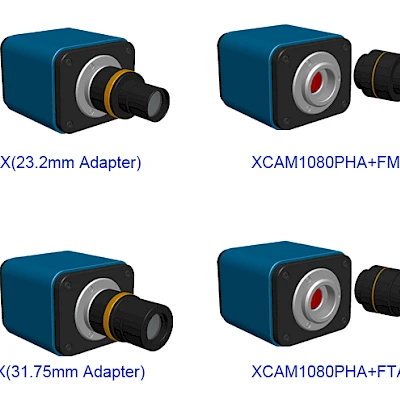

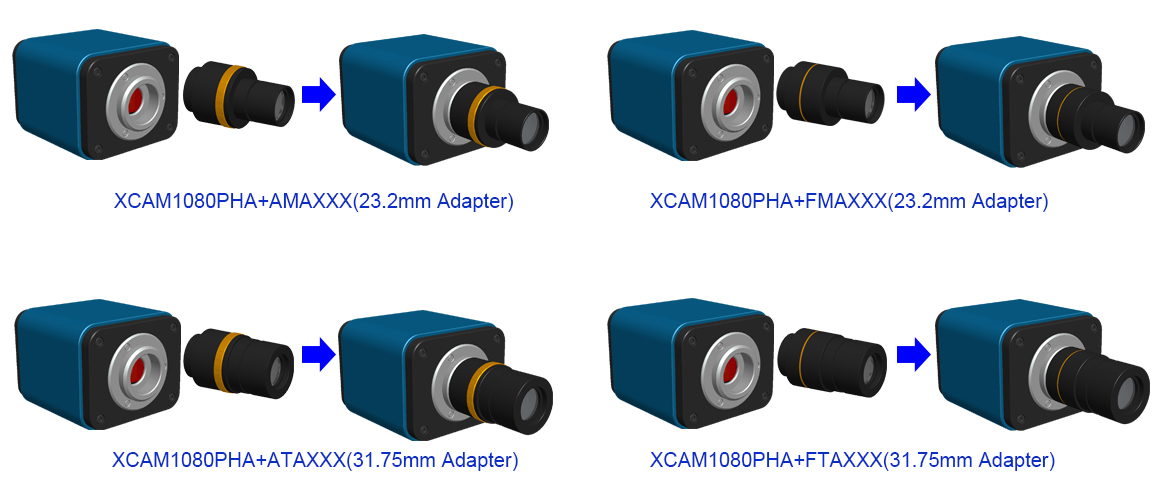

Extension of XCAM1080PHA with Microscope or Telescope Adapter

Extension	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;
Microscope Camera
Telescope Camera:

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
XCAM1080PHA XP1080A	1080P/Sony IMX236 1/2.8”(5.38x3.02)	2.8x2.8	510 mv with 1/30s 0.15 mv with 1/30s	60@1920X1080P (HDMI) 30@1920X1080 (USB)	1x1	0.1ms~999ms

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

XCAM1080PHA
XP1080A

1080P/Sony IMX236
1/2.8”(5.38x3.02)

2.8x2.8

510 mv with 1/30s

0.15 mv with 1/30s

60@1920X1080P
(HDMI)
30@1920X1080
(USB)

1x1

0.1ms~999ms

C: Color; M: Monochrome;

Interface & Button Functions
			USB	USB Camera or USB Mouse
			HDMI	HDMI Output
			DC12V	12V Power in
			SD	SD Card Slot
			ON/OFF	Power On/off Switch
Other Specification for HDMI Output
UI Operation		With USB Mouse
Image Capture		High Speed in SD Card(8G)
Video Record		1080P 30fps in SD Card(8G)
Camera Control Panel		Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar		Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function
Other Specification for USB Output
White Balance	Auto White Balance
Color Technique	Ultra-FineTM Color Engine (USB)
Capture/Control API	Standard UVC for Windows/Linux/Mac(USB)
Recording System	Still Picture or Movie (USB)
Software Environment (for USB2.0 Connection)
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:4GB or More
	USB Port:USB2.0 High-speed Port
	Display:19” or Larger
	CD-ROM
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/1A Adapter

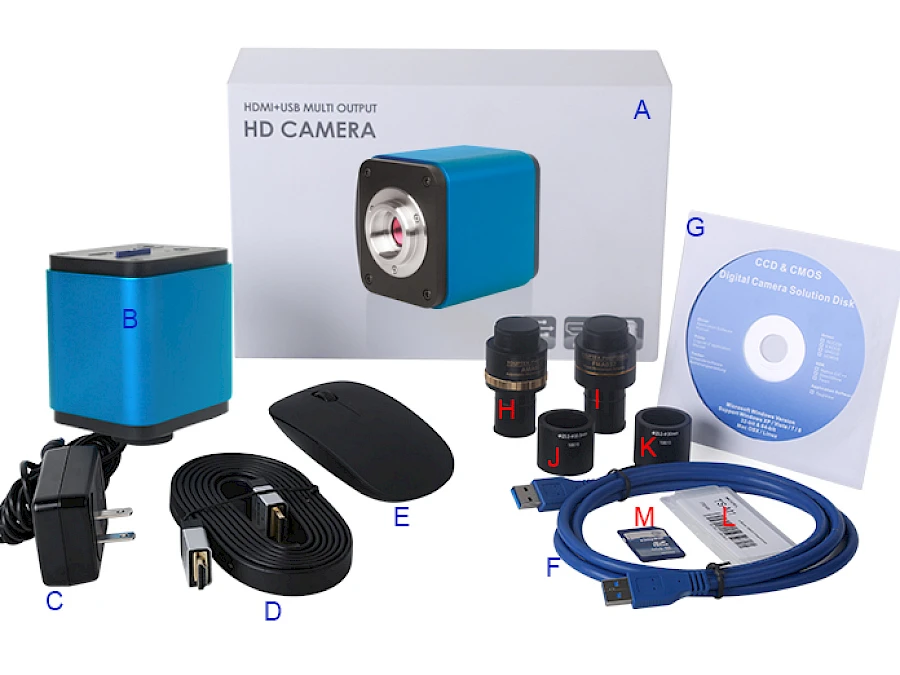

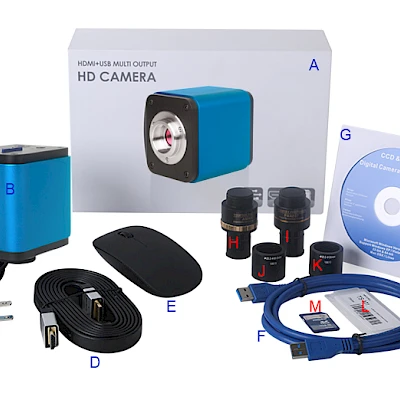

Packing Information for XCAM1080PHA

Standard Packing List
A	Gift box : L:25.5cm W:17.0cm H:19.0cm (1pcs, 1.55kg/ box)
B	XCAM1080PHA camera
C	Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
D	HDMI Cable
E	USB Mouse
F	High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m
G	CD (Driver & utilities software, Ø12cm)
Optional Accessory
H		Adjustable lens adapter	C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
H		Adjustable lens adapter	C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075
I		Fixed lens Adapter	C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
		Fixed lens Adapter	C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075
		Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;
J		108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
K		108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
L		Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
M		SD Card(4G or 8G)
