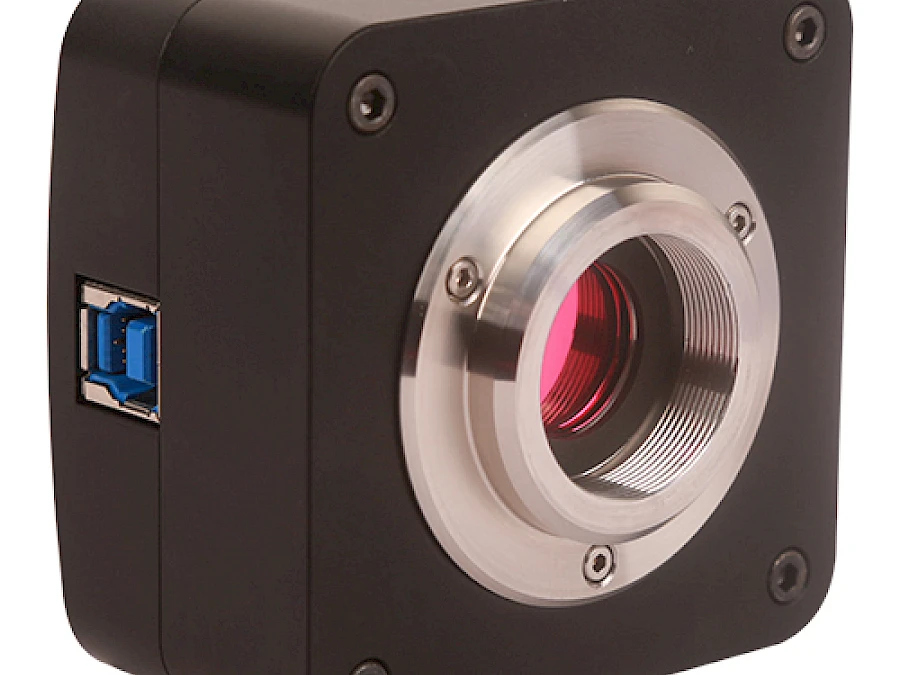

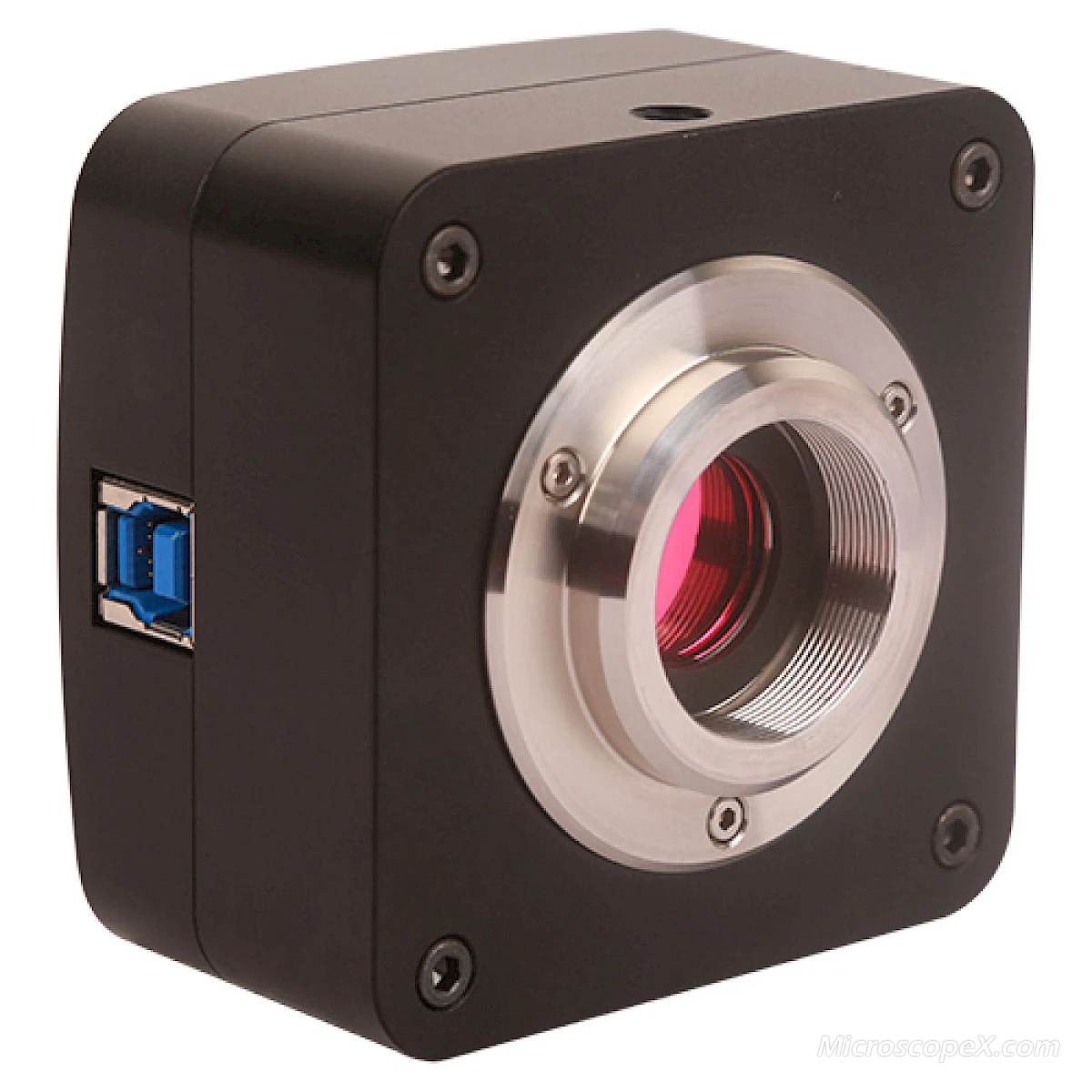

U3CCD is an ExView HAD CCD series camera. It adopts Sony ExView HADCCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. Jingtong uses EXCCD for simplicity. USB3.0 is used as the data transfer interface.
U3CCD hardware resolutions range from 1.4M to 12M and come with the integrated CNC aluminum alloy compact housing.
U3CCD comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The U3CCD can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
U3CCD Series
Dimension of U3CCD
The U3CCD body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

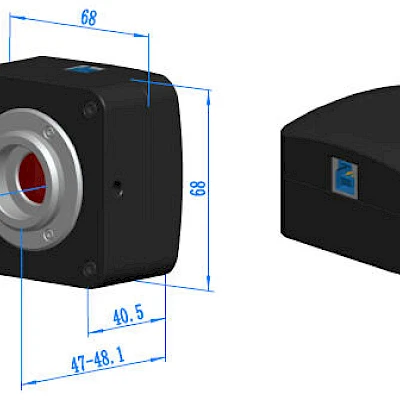

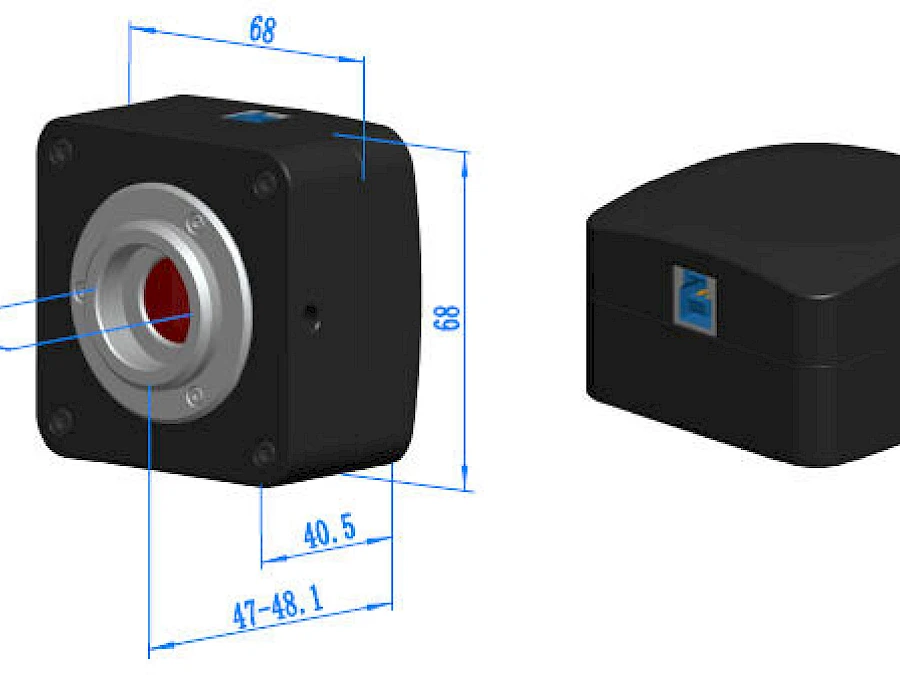

Dimension of U3CCD Series Camera

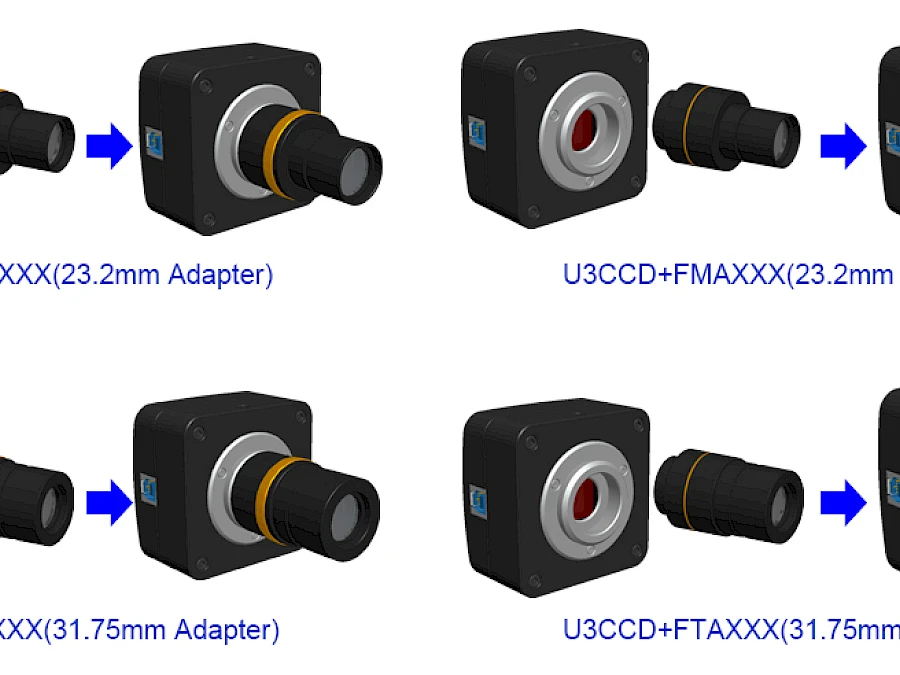

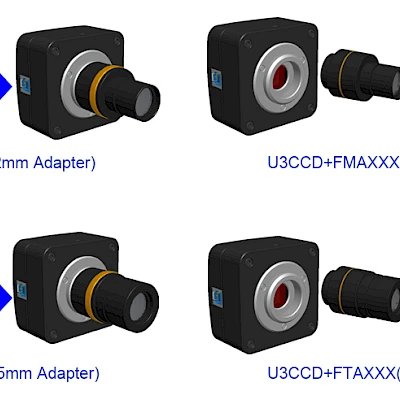

Extension of U3CCD with Microscope or Telescope Adapter
Extension | Picture | |
|---|---|---|
C-mount Camera |
| Machine vision; Medical imaging; |
| ||
Telescope Camera | ||
