MC500-G3 USB Microscope Digital Camera

MC500-G3

intelligent and professional image processing, 5.0MP

Core Features

5.0MP HD Live image
30FPS 2592x1944
Full 1080P record
Standard C-mount High-end metal housing
Perfect match for both stereoscopic and biological microscopes, as well as LED and halogen lamps
Professional image software: Capture/Record, Edit/Annotation, Dynamic/Static Measurement, Image Settings, Export to Word, Excel, Outlook, Printer with one button

Configurations

5.0MP

1080P record

Standard C-mount

5.0MP HD Live image
30FPS 2592x1944
Full 1080P record
Standard C-mount High-end metal housing
Perfect match for both stereoscopic and biological microscopes, as well as LED and halogen lamps
Professional image software: Capture/Record, Edit/Annotation, Dynamic/Static Measurement, Image Settings, Export to Word, Excel, Outlook, Printer with one button

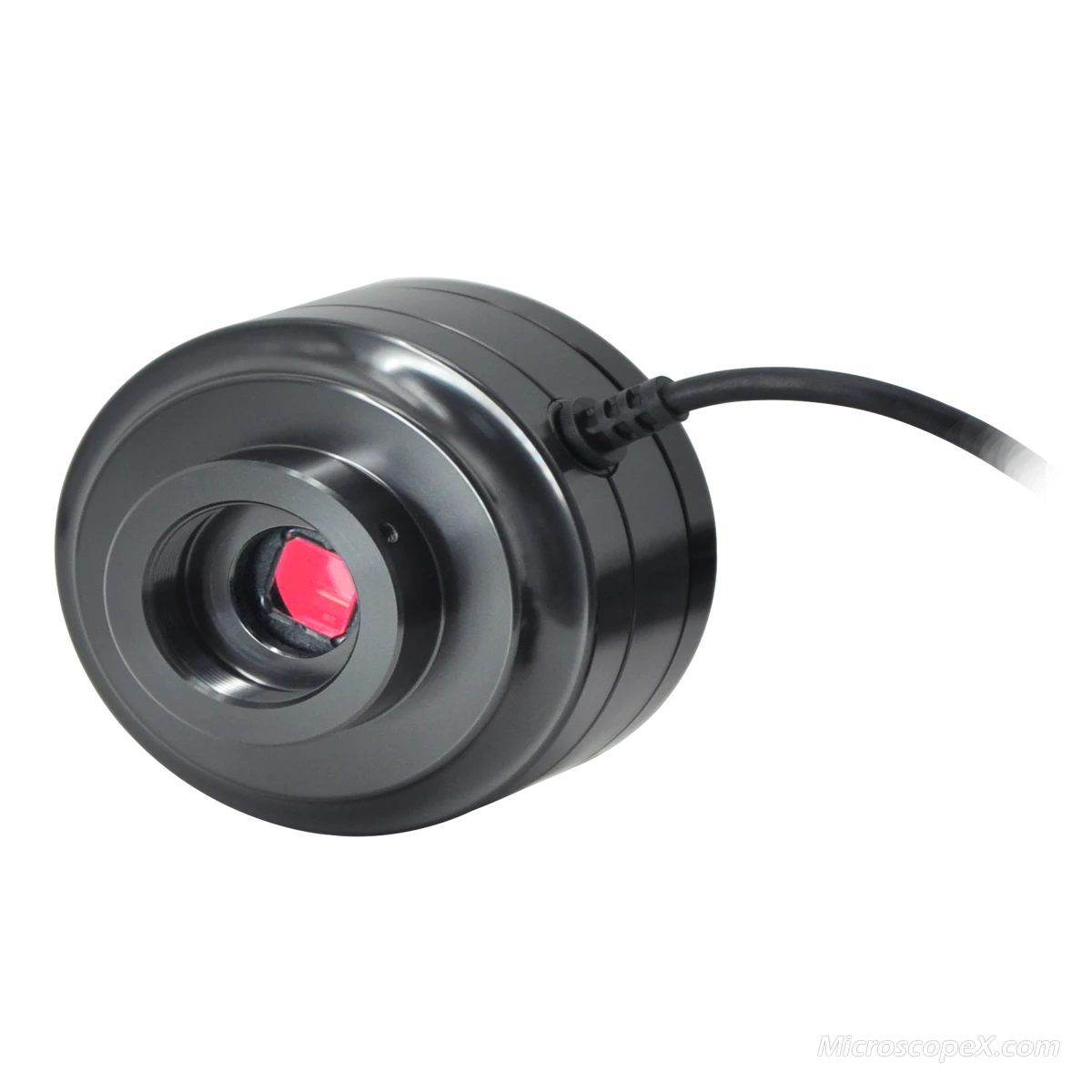

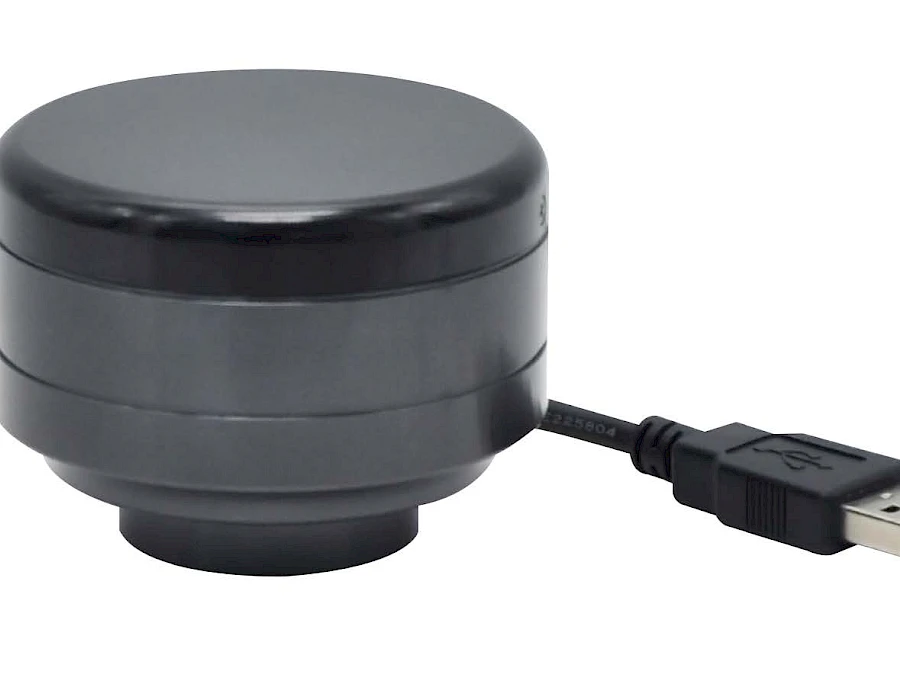

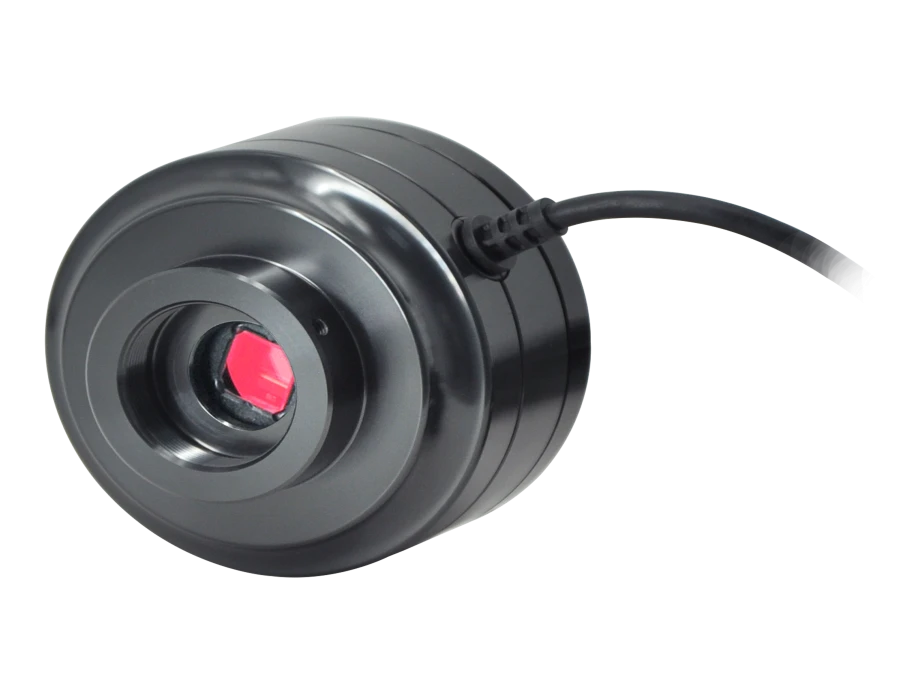

Different Views of MC500-G3

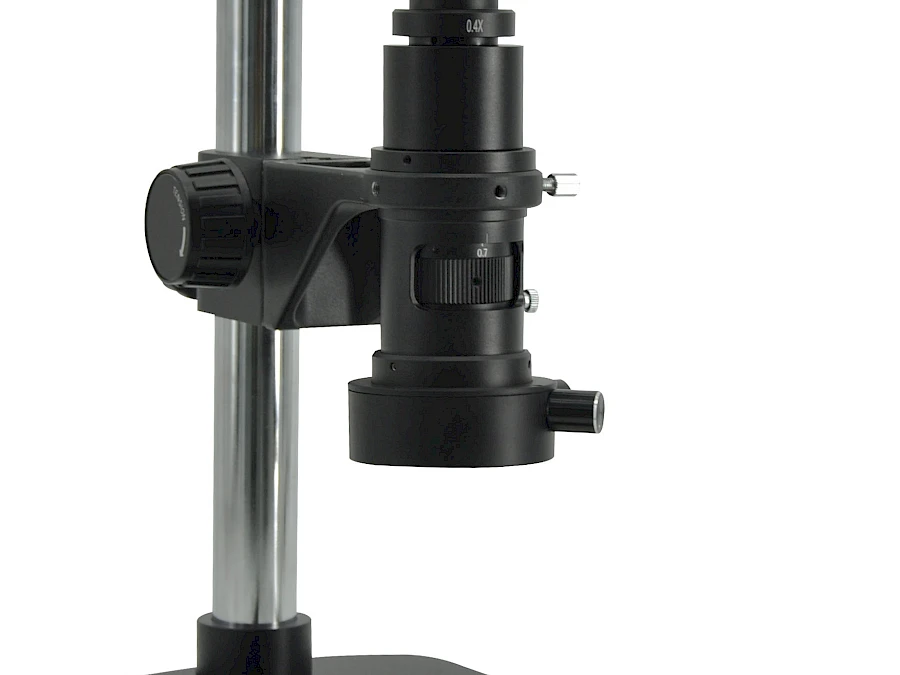

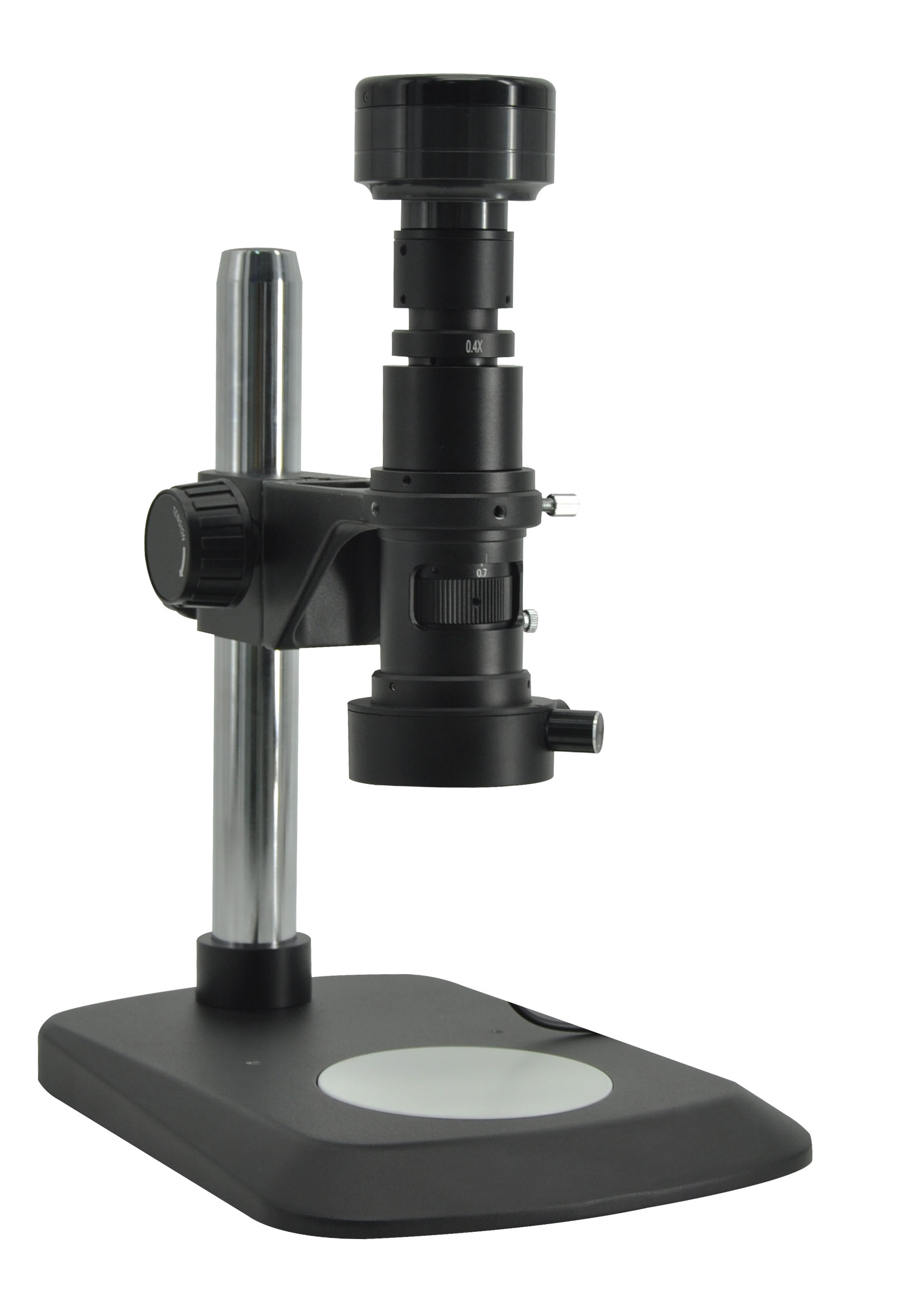

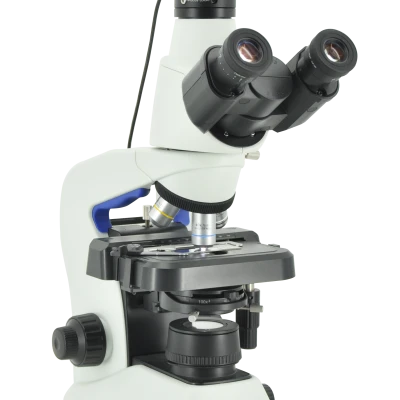

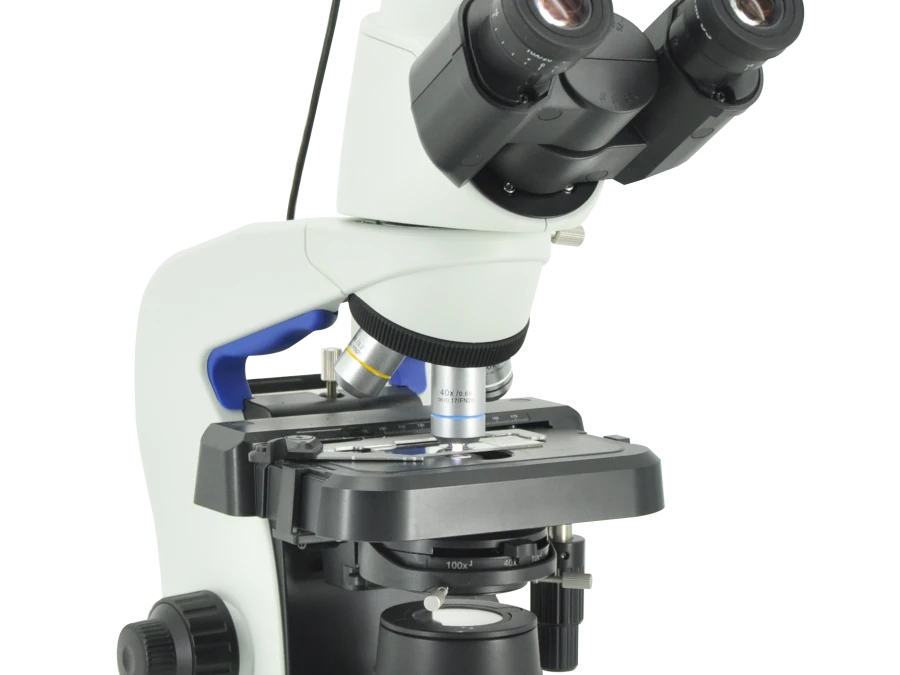

MC500-G3 and its Microscopes

Hardware Configuration
Image Sensor	Color
Expose mode	Rolling shutter
Maximum Resolution	2592x1944 (5,038,848 pixels)
Sensor Optical Format	1/2.5'' (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size	2.2μm x 2.2μm(BSI)
Dynamic Range	74.3dB Linear, more than 96 dB (Interleaved)
SNRmax	40dB
Spectral Characteristics	380～650nm
Exposure Capability	3.9ms-320ms, Automatic and manual
White Balance	Automatic and manual
Preview Modes	30FPS@2592x1944, 1920x1080, 1024x768, 640x480
Record format	Snapshot Picture Format：JPG, BMP,PNG,TIFF,PDF Resolution：2592x1944, 1920x1080, 1024x768, 640x480 Record Video Format：MJPG format AVI file Resolution：1920x1080, 1024x768, 640x480
Software Environment
Windows System Demand	Microsoft® Windows® XP / 7 / 8 /8.1/10(32 & 64 bit)
	CPU: equal or more than the second generation Intel core 2.8GHz
	Memory ：2G or more
	USB port：USB2.0 or compatible port
	Displayer ：suggest 17 inches or larger
Operating Environment
Operating Temperature	0℃～40℃
Storage Temperature	-20℃～60℃
Operating Humidity	30～80%RH
Storage Humidity	10～60%RH
Power Supply	Direct-current 5V, supply by USB port
