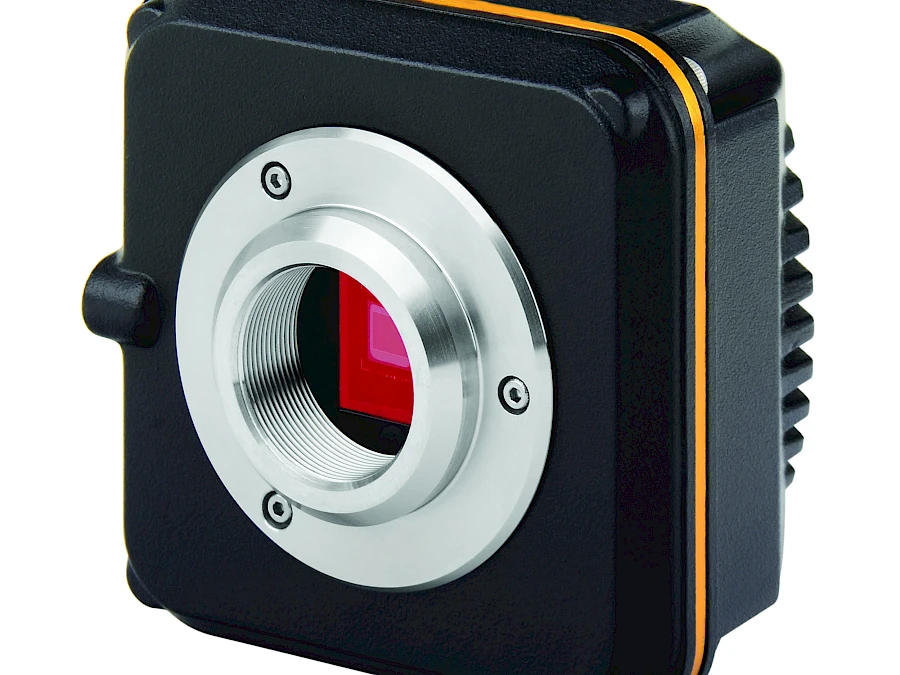

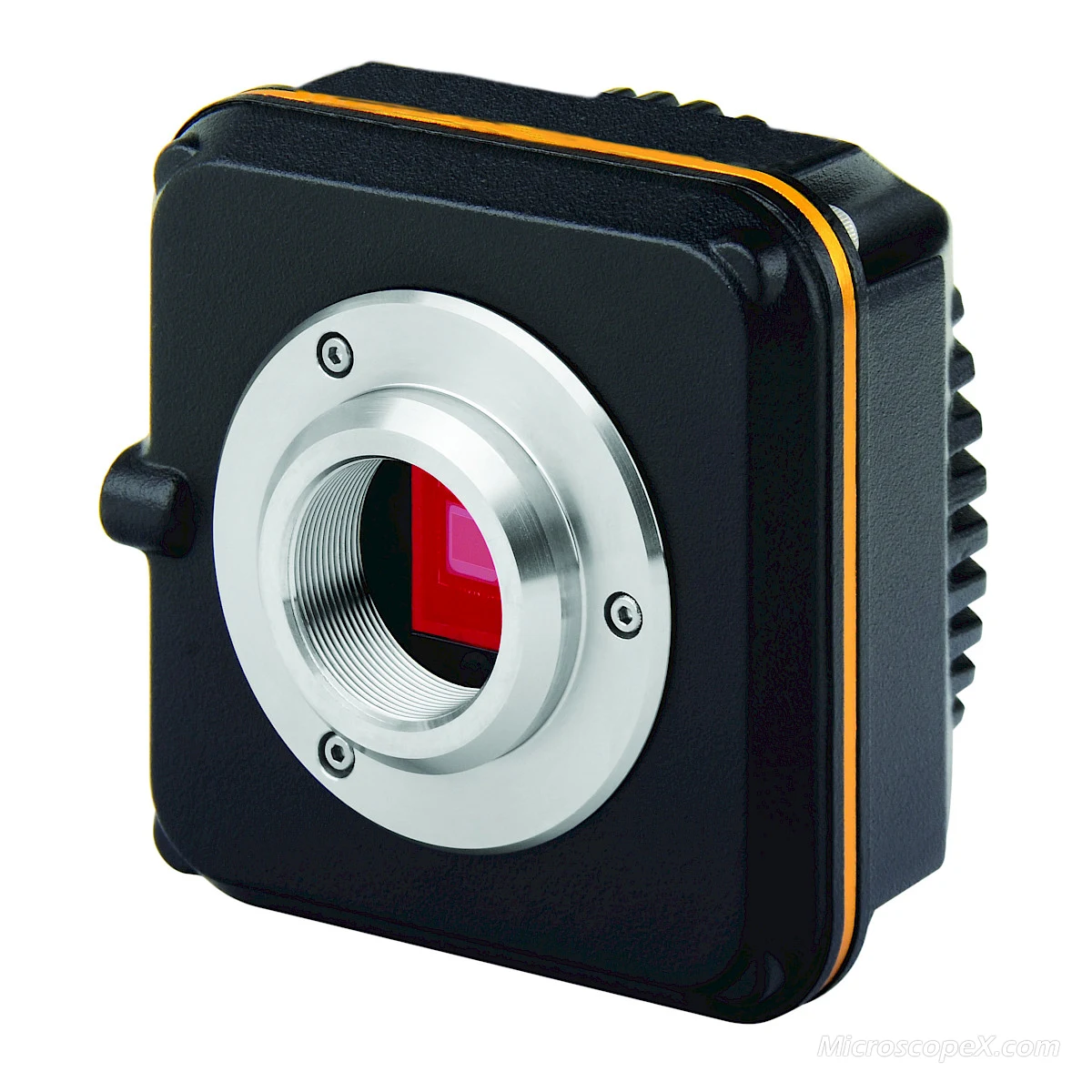

LCMOS Series C-mount USB2.0 CMOS Camera

stable performance, USB

Core Features

Stand C-Mount camera with Aptina CMOS sensor
With hardware resolution among 1.2M to 14M
On-board memory for perfect synchronization，higher frame rate and stable performance
High performance cooling structure, ensures low image noise
USB2.0 interface ensuring high speed data transmission
Ultra-FineTM color engine with perfect color reproduction capability

Configurations

Hardware resolution

1.2M to 14M

Stand C-Mount

On-board memory

Cooling structure

Low image noise

Ultra-FineTM color engine

USB2.0

Request Quotation Email Phone Back to Products

LCMOS is luxurious USB2.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB2.0 is used as the data transfer interface.

LCMOS comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The LCMOS can be widely used in bright field environment and microscope image capture and analysis with moderate speed.

LCMOS Series

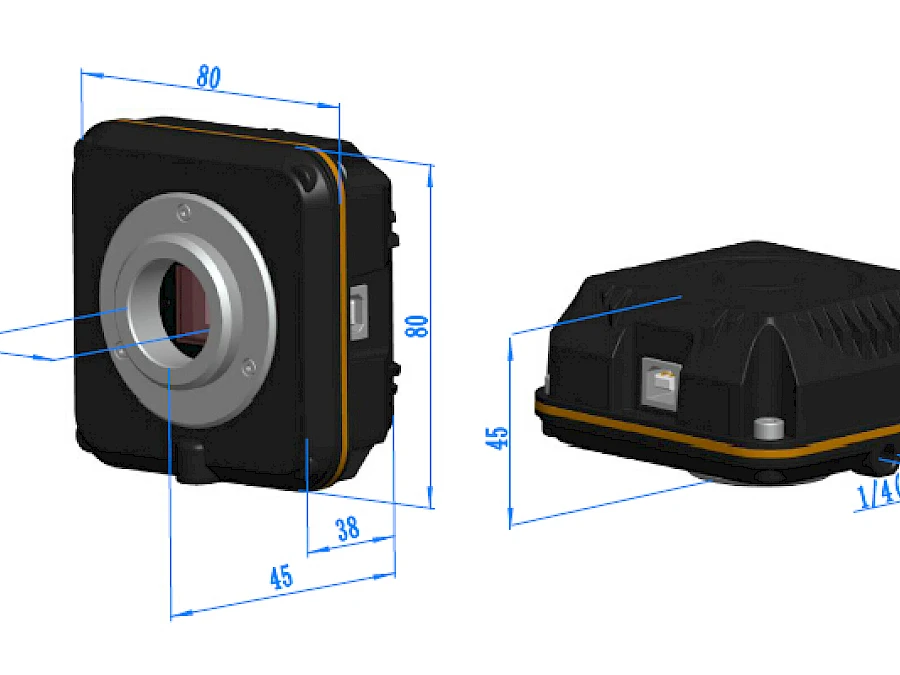

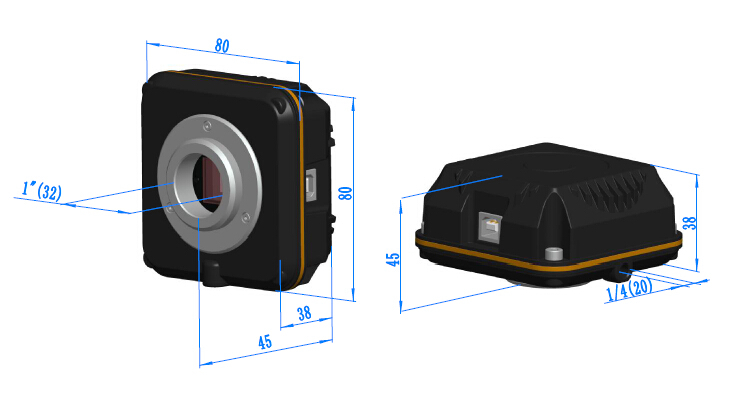

Dimension of LCMOS

The LCMOS body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

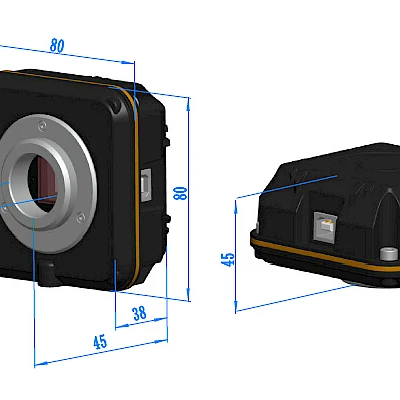

Dimension of LCMOS

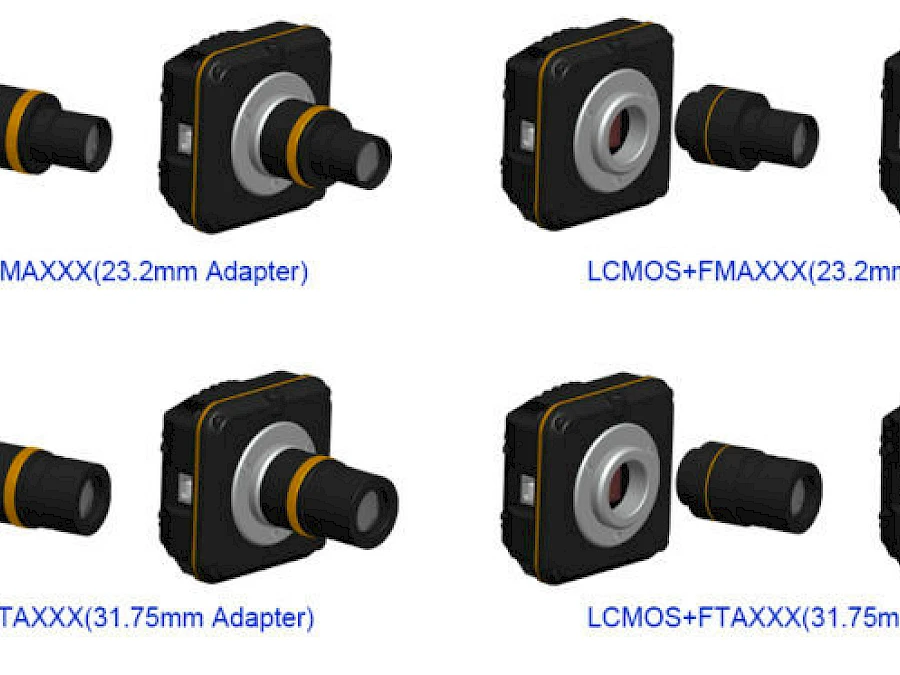

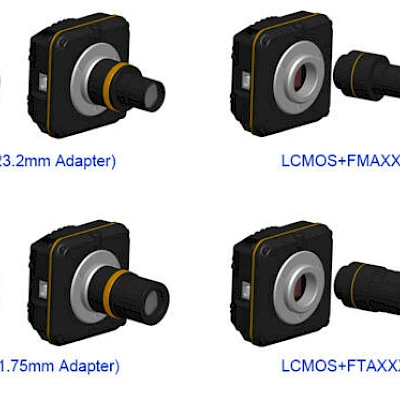

Extension of LCMOS with Microscope or Telescope Adapter

Extension	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;
Microscope Camera
Telescope Camera

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dynamic range SNRmax	FPS/Resolution	Binning	Exposure
LCMOS14000KPA LP614000A	14M/MT9F002(C) 1/2.3”(5.73x4.60)	1.4x1.4	0.724v/lux-sec 65.3dB 35.5dB	2.7@4096x3288 10@2048x1644 35@1024 x822	1x1, 2x2, 4x4	0.4ms~2000ms
LCMOS10000KPA LP610000A	10M/MT9J003(C) 1/2.3“ (5.98x4.59)	1.67x1.67	0.31v/lux-sec 65.2dB 34dB	3.7@3584x2748 13@1792x1374 35@896 x684	1x1, 2x2, 4x4	0.4ms~2000ms
LCMOS09000KPB LP609000B	9M/Special(C) 1/2.4“(5.83x4.37)	1.67x1.67	0.31v/lux-sec 65.2dB 34dB	3.9@3488x2616 15@1744x1308 47@872 x654	1x1, 2x2, 4x4	0.4ms~2000ms
LCMOS08000KPB LP608000B	8M/Special(C) 1/2.5“(5.45x4.09)	1.67x1.67	0.31v/lux-sec 65.2dB 34dB	4.4@3264x2448 17@1600x1200 55@800x600	1x1, 2x2, 4x4	0.4ms~2000ms
LCMOS05100KPA LP605100A	5.1M/MT9P001(C) 1/2.5“(5.70x4.28)	2.2x2.2	0.53 V/lux-sec 66.5dB 40.5dB	6.8@2592x1944 18@1280x960 55@640x480	1x1, 2x2, 4x4	0.294ms~2000ms
LCMOS03100KPA LP603100A	3.1M/MT9T001(C) 1/2“(6.55x4.92)	3.2x3.2	1.0 V/lux-sec 61dB 43dB	11.5@2048x1536 32@1024x768 45@680x510	1x1, 2x2, 3x3	0.244ms~2000ms
LCMOS03100KPB LP603100B	3.1M/IMX036(C) 1/2.8"(5.12x3.84)	2.5x2.5	200mv with 1/30s 0.5mv with 1/30s	12@2048x1536 48@1024x768 48@680x510	1x1,2x2,3x3	0.244ms~2000ms
LCMOS02000KPB LP602000B	2.0M/Special(C) 1/2.6“(5.12x3.84)	3.2x3.2	1.0 V/lux-sec 61dB 43dB	16@1600x1200 40@800x600	1x1, 2x2	0.244ms~2000ms
LCMOS01300KPA LP601300A	1.3M/MT9M111(C) 1/3“(4.60x3.70)	3.6x3.6	2.1V/lux-sec 68.2dB 45dB	15@1280x1024 26@640x512 48@320x256	1x1, 2x2, 4x4	0.14ms~2000ms
LCMOS01200KPB LP601200B	1.2M/AR0130(C) 1/3“(4.80x3.60)	3.75 x3.75	5.5v/lux-sec 85.3dB 44dB	28@1280x960 30@640x480	1x1, 2x2	0.4ms~2000ms

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

LCMOS14000KPA

LP614000A

14M/MT9F002(C)

1/2.3”(5.73x4.60)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

2.7@4096x3288

10@2048x1644

35@1024 x822

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS10000KPA

LP610000A

10M/MT9J003(C)

1/2.3“ (5.98x4.59)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

3.7@3584x2748

13@1792x1374

35@896 x684

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS09000KPB

LP609000B

9M/Special(C)

1/2.4“(5.83x4.37)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

3.9@3488x2616

15@1744x1308

47@872 x654

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS08000KPB

LP608000B

8M/Special(C)

1/2.5“(5.45x4.09)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

4.4@3264x2448

17@1600x1200

55@800x600

1x1, 2x2, 4x4

0.4ms~2000ms

LCMOS05100KPA

LP605100A

5.1M/MT9P001(C)

1/2.5“(5.70x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

6.8@2592x1944

18@1280x960

55@640x480

1x1, 2x2, 4x4

0.294ms~2000ms

LCMOS03100KPA

LP603100A

3.1M/MT9T001(C)

1/2“(6.55x4.92)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

11.5@2048x1536

32@1024x768

45@680x510

1x1, 2x2, 3x3

0.244ms~2000ms

LCMOS03100KPB

LP603100B

3.1M/IMX036(C)

1/2.8"(5.12x3.84)

2.5x2.5

200mv with 1/30s

0.5mv with 1/30s

12@2048x1536

48@1024x768

48@680x510

1x1,2x2,3x3

0.244ms~2000ms

LCMOS02000KPB

LP602000B

2.0M/Special(C)

1/2.6“(5.12x3.84)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

16@1600x1200

40@800x600

1x1, 2x2

0.244ms~2000ms

LCMOS01300KPA

LP601300A

1.3M/MT9M111(C)

1/3“(4.60x3.70)

3.6x3.6

2.1V/lux-sec

68.2dB

45dB

15@1280x1024

26@640x512

48@320x256

1x1, 2x2, 4x4

0.14ms~2000ms

LCMOS01200KPB

LP601200B

1.2M/AR0130(C)

1/3“(4.80x3.60)

3.75 x3.75

5.5v/lux-sec

85.3dB

44dB

28@1280x960

30@640x480

1x1, 2x2

0.4ms~2000ms

C: Color; M: Monochrome;

Other Specification for LCMOS Cameras
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-FineTM Color Engine/NA for Monochromatic Sensor
Capture/Control API	Native C/C++, C#/VB.NET, DirectShow, Twain and Labview
Recording System	Still Picture and Movie
Cooling System*	Natural with High Performance Cooling Structure
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)，OSx(Mac OS X),Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:2GB or More
	USB Port:USB2.0 High-speed Port
	Display:17” or Larger
	CD-ROM

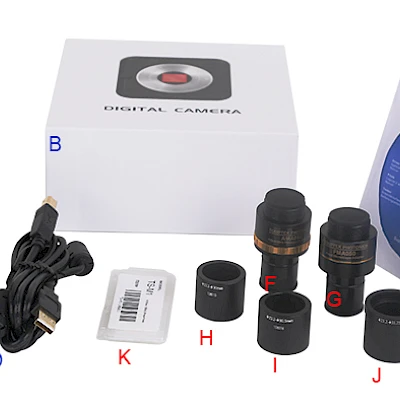

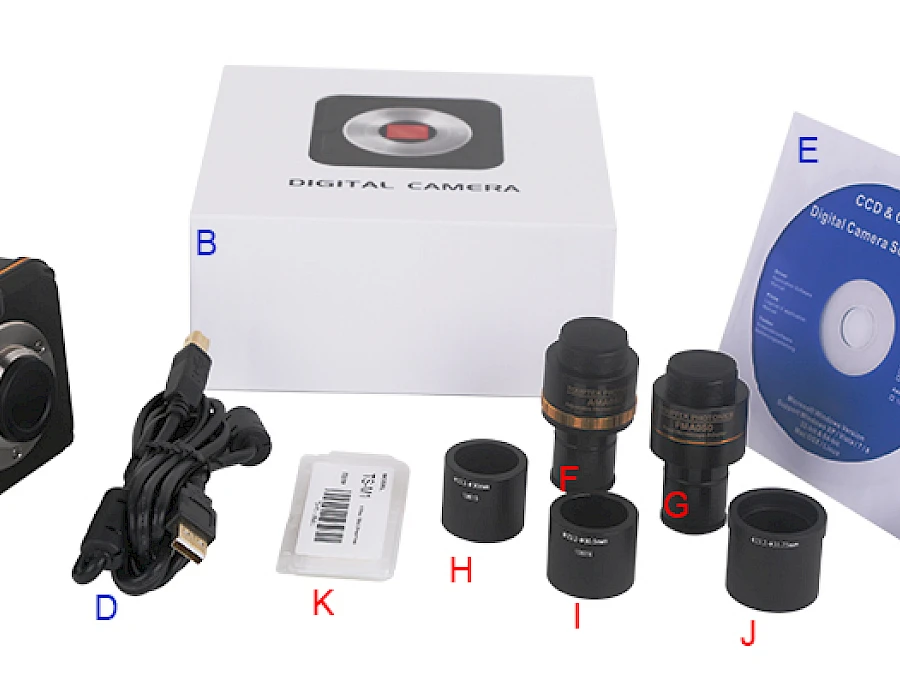

Packing Information for LCMOS

Standard Camera Packing List
A	Carton L:40cm W:36cm H:36cm (16pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:16.4cm W:16.4cm H:9.6cm (0.7~0.8Kg/ box)
C	LCMOS series USB2.0 C-mount CMOS camera
D	High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, Ø12cm)
Optional Accessory
F	Adjustable lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
F	Adjustable lens adapter	C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075
G	Fixed lens Adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
	Fixed lens Adapter	C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075
	Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube
J	108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
K	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
