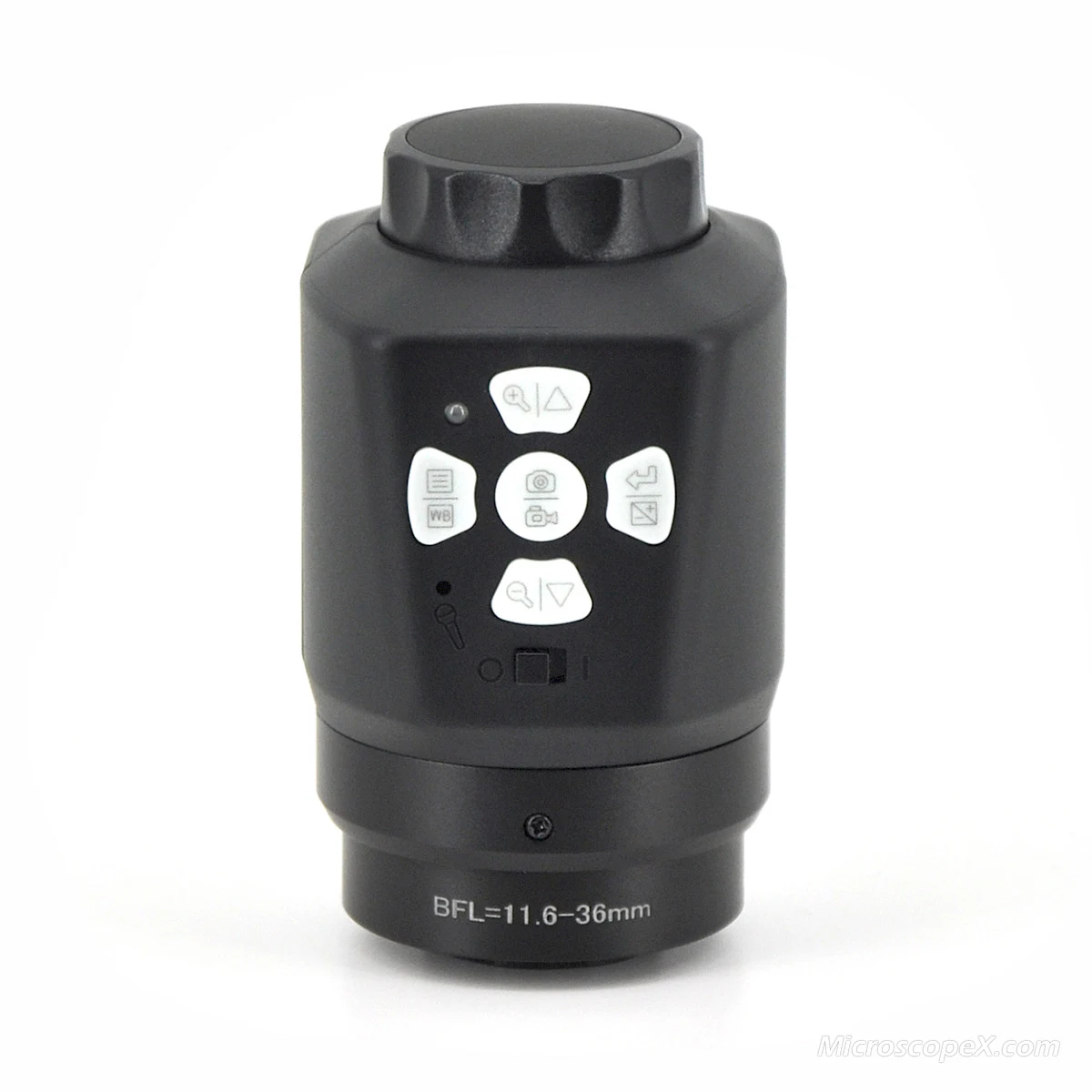

DM350-C HDMI Digital Eyepiece Camera

DM350-C

practical operation. HDMI 1080i

Core Features

Configurations

TF card

64G

manual focus

HDMI 1080i

4X digital zoom

Aptina CMOS

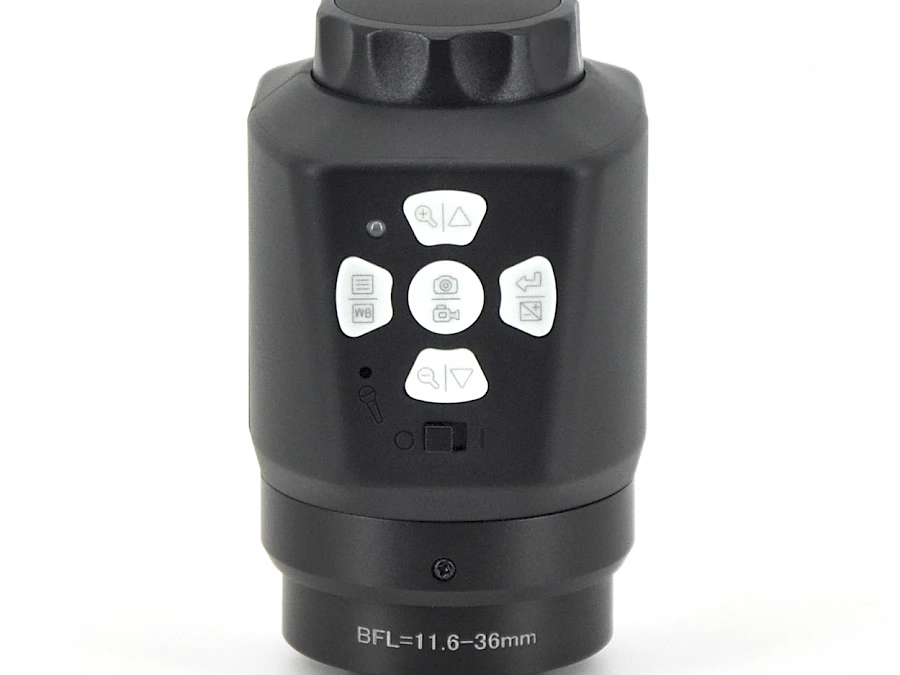

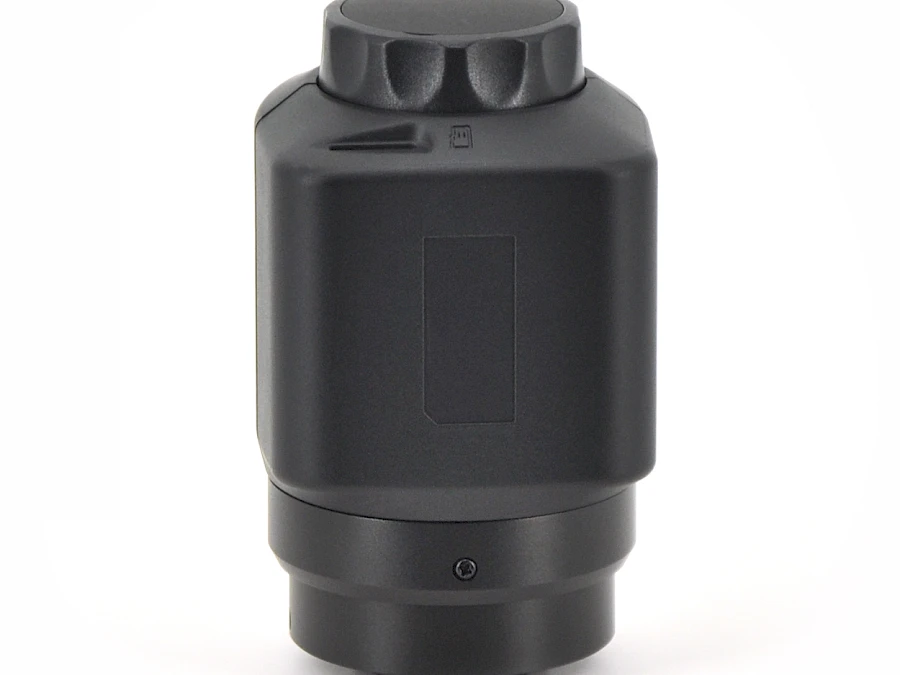

DM350-C and its Back Panel

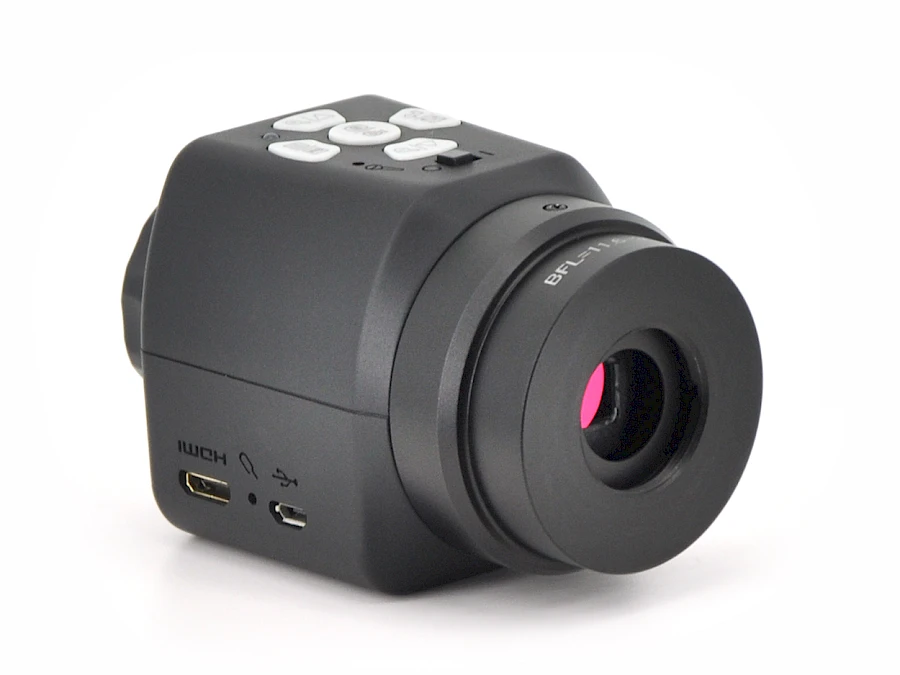

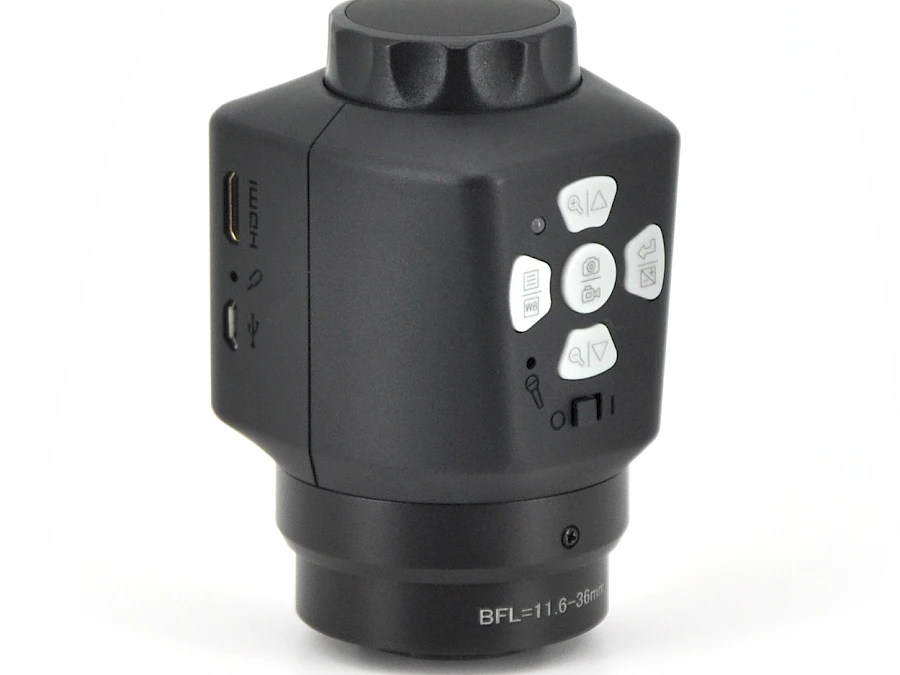

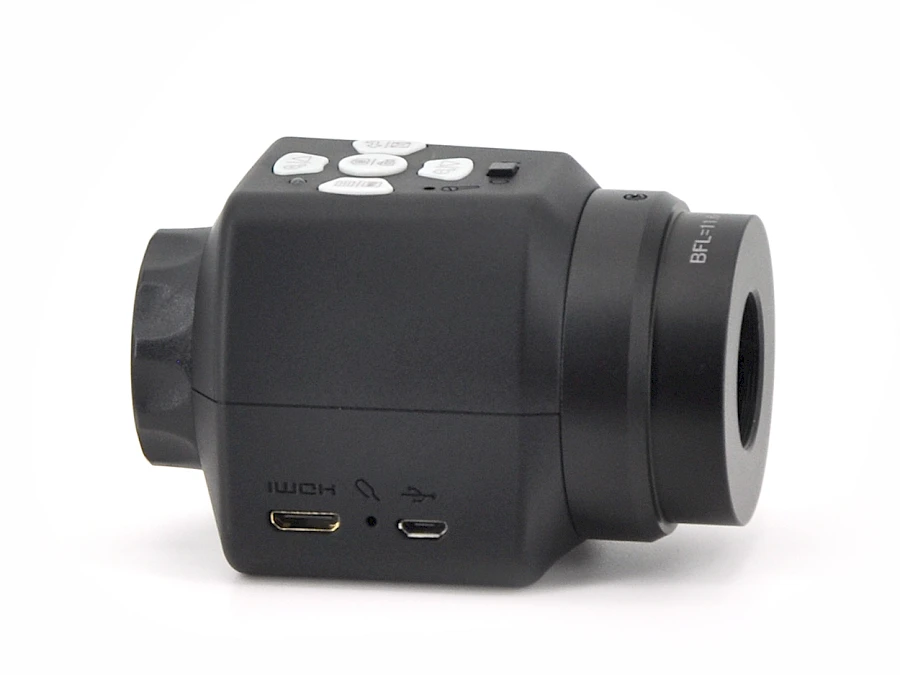

Different view of DM350-C

Different views of DM350-C

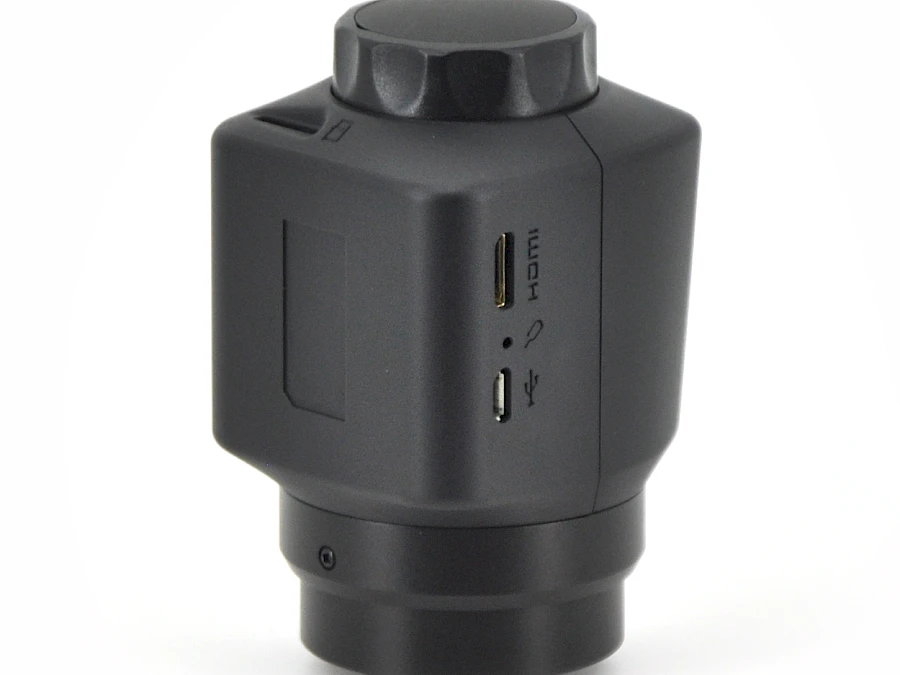

Different view of DM350-C

Different views of DM350-C

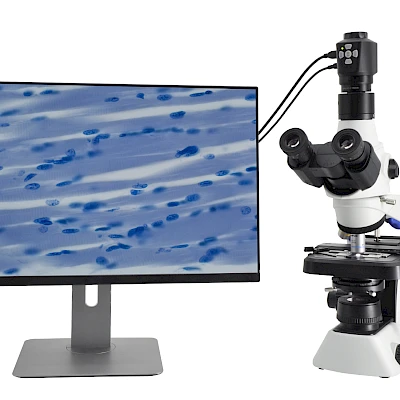

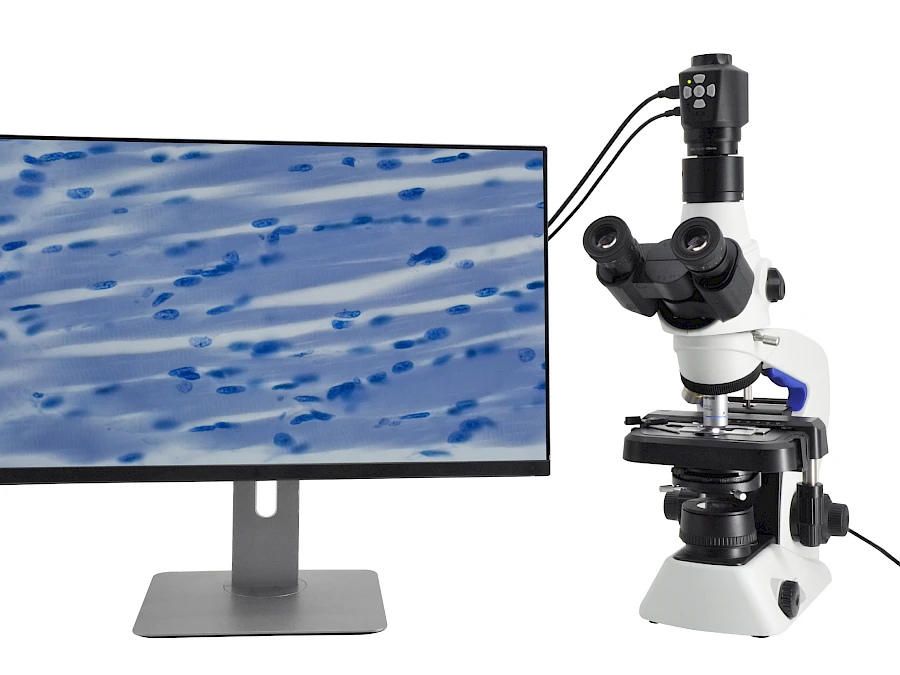

DM350-C and its Microscope

Hardware configuration
Image Sensor	Aptina AR0330 CMOS Sensor
Expose mode	Rolling shutter
Maximum Resolution	2304 x 1536 (3,538,944 pixels)
Sensor Optical Format	1/3'' (5.07mm(H) x 3.38mm(V), Diagonal 6.09mm)
Pixel Size	2.2μm x 2.2μm
Dynamic Range	69.5dB
SNR（Signal Noise Ratio）	39dB
Spectral Characteristics	380～650nm
Exposure Capability	Real-time auto, Single auto, Manual adjustment
White Balance	Real-time auto, Single auto, Manual adjust R G B seperately
Display(preview) resolution	HDMI:1920X1080i60，1920X1080P30,1280x720P60,640x480P60(Auto fit-to-fill displayer) USB:1920X1080@30FPS,1280x720@30FPS(Optional to display)
Record format	Snapshot Picture Format：JPG Resolution： HDMI: 2304 x 1536，2304 x 1296，1920x1080，1280x720，800x480 USB: 1920x1080，1280x720，800x480 Record Video Format：MOV Resolution： HDMI：1280x720@30FPS, 800x480@30FPS USB：1920x1080@30FPS, 1280x720@30FPS, 800x480@30FPS
Record Route	HDMI：TF card(Maximum support 64G) USB：PC
Software Environment
Power supply	HDMI: Direct current 5.0V, power plug, (maximum current 1A)
Power supply	USB：USB port of PC or laptop (no need other power supply)
Displayer	Recommend 16:9 , at least 1080P HD displayer
Operating Environment
Operating Temperature	0℃～40℃
Storage Temperature	-20℃～60℃
Operating Humidity	30～60%RH
Storage Humidity	10～80%RH

DM350-C
