DM210 HDMI Digital Eyepiece Camera (Biological Microscope)

DM210(Biological Microscope)

match for biological microscope, excellent performance, HDMI 1080P

Core Features

Configurations

TF card

128G

HDMI 1080P

support hot plug

4X digital zoom

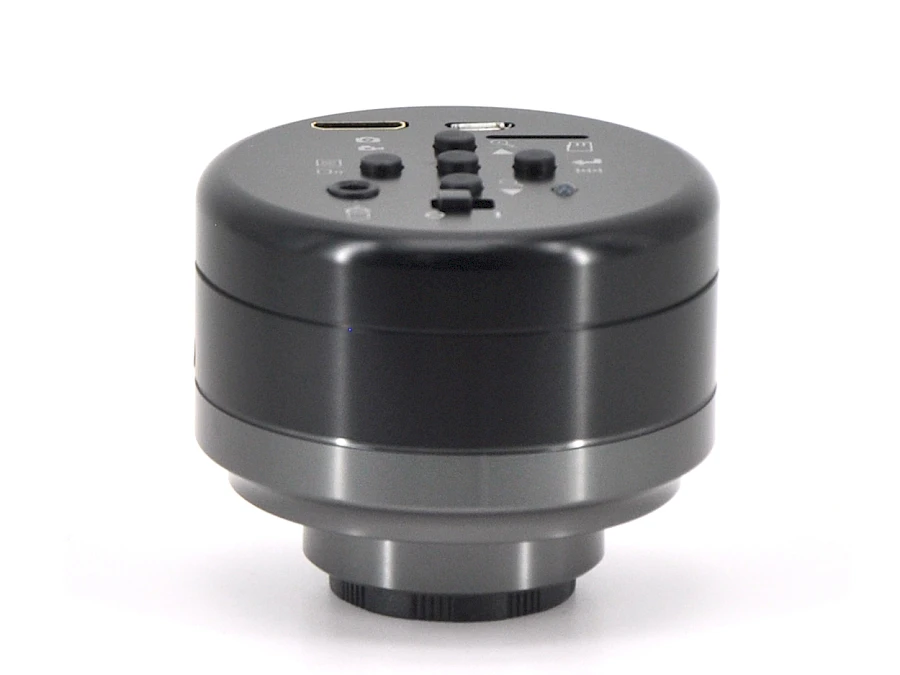

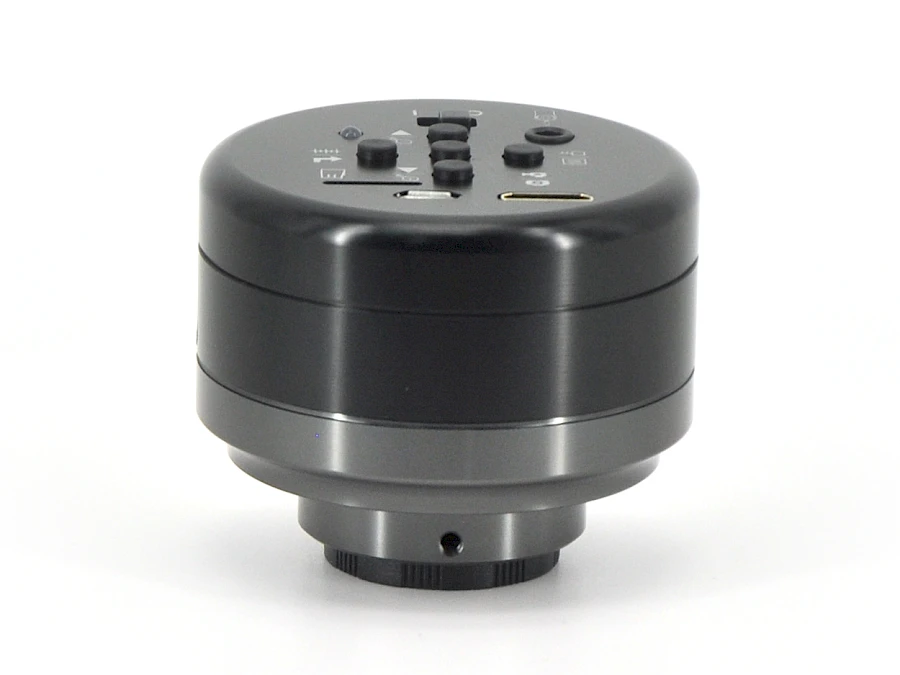

DM210 DM210s Back Panel

DM210 and its Back Panel

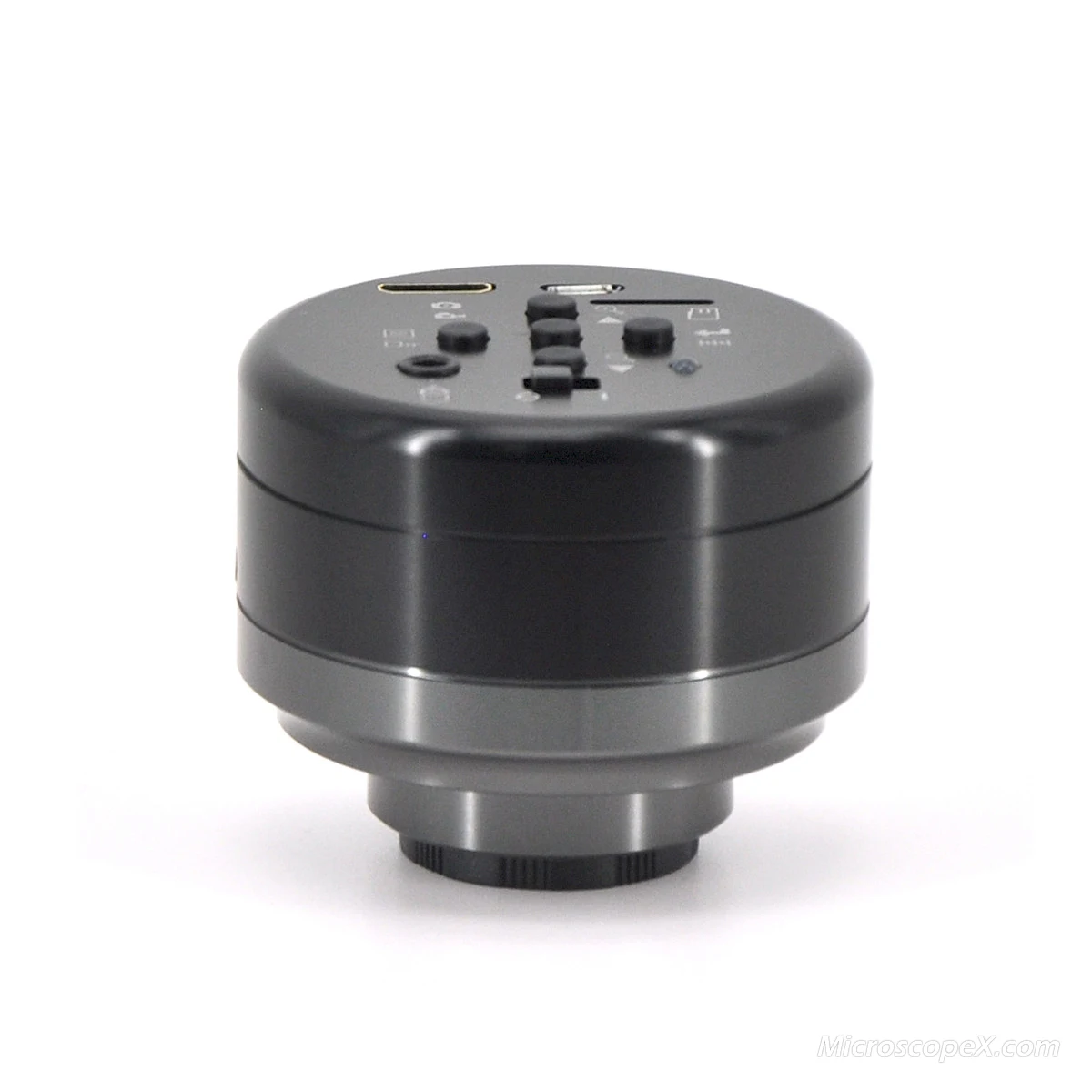

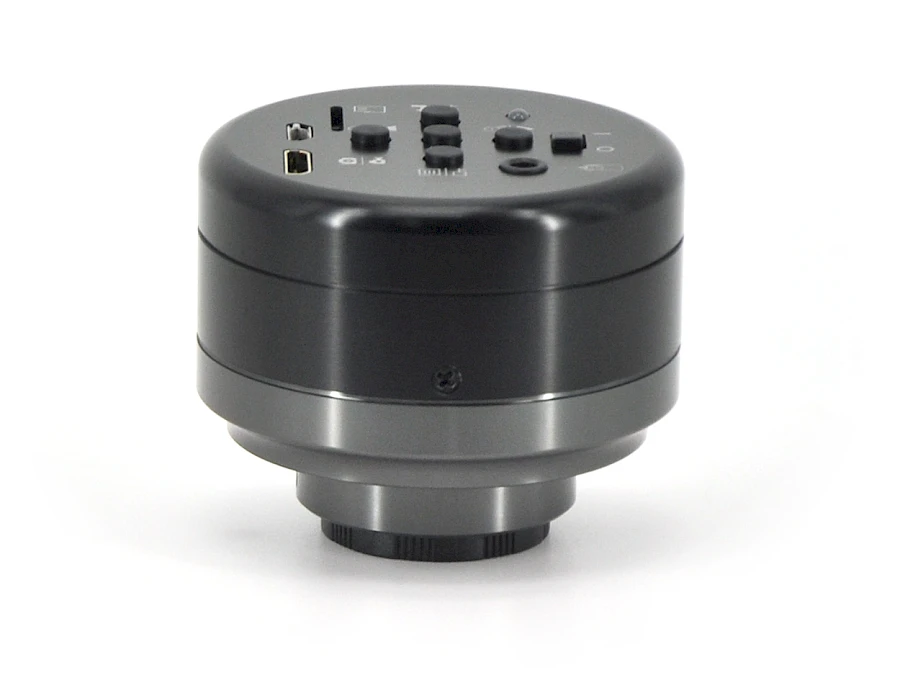

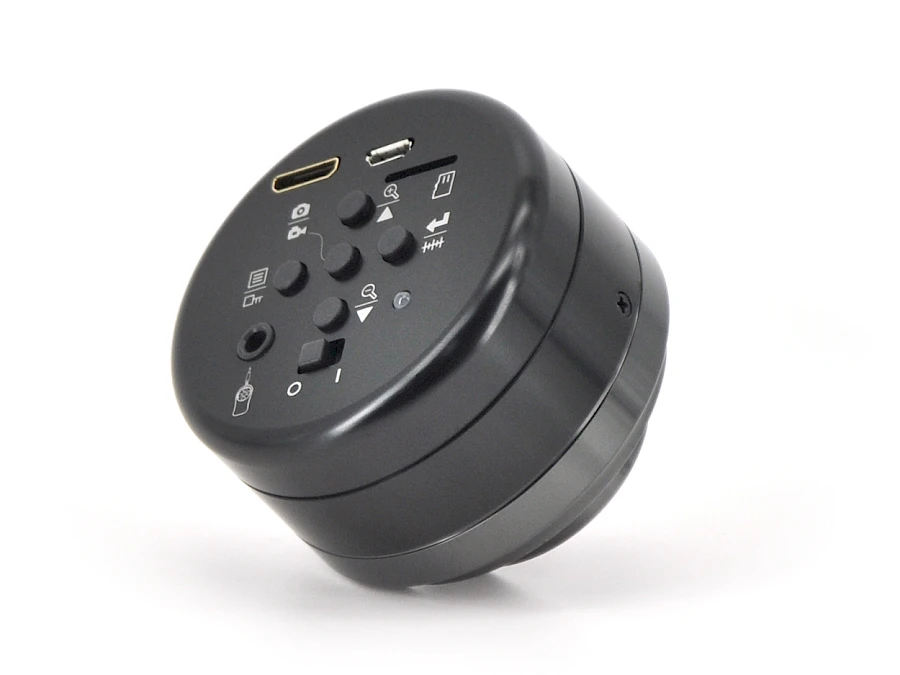

Different View of DM210

Different Views of DM210

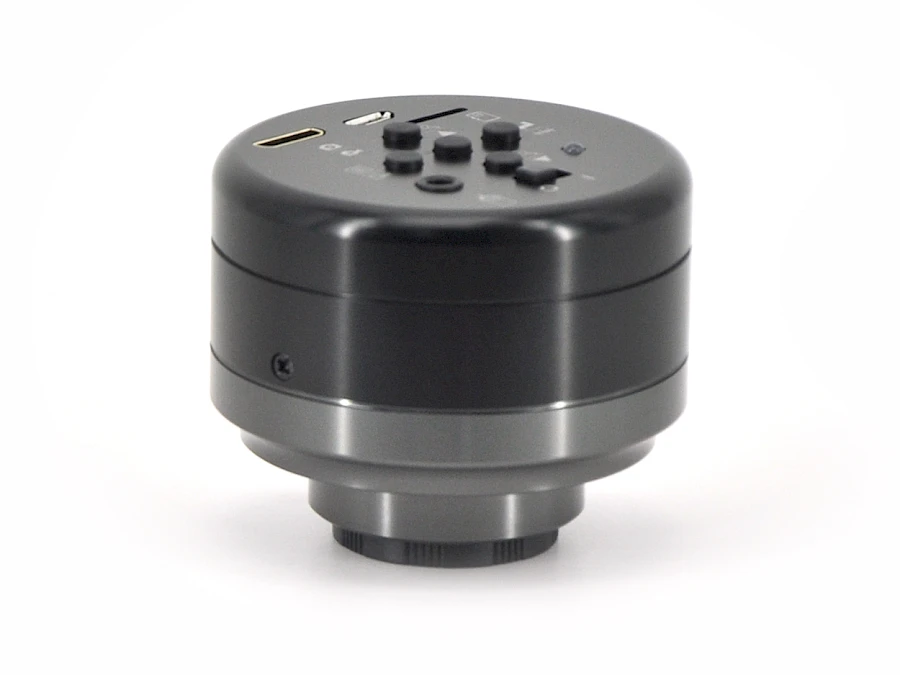

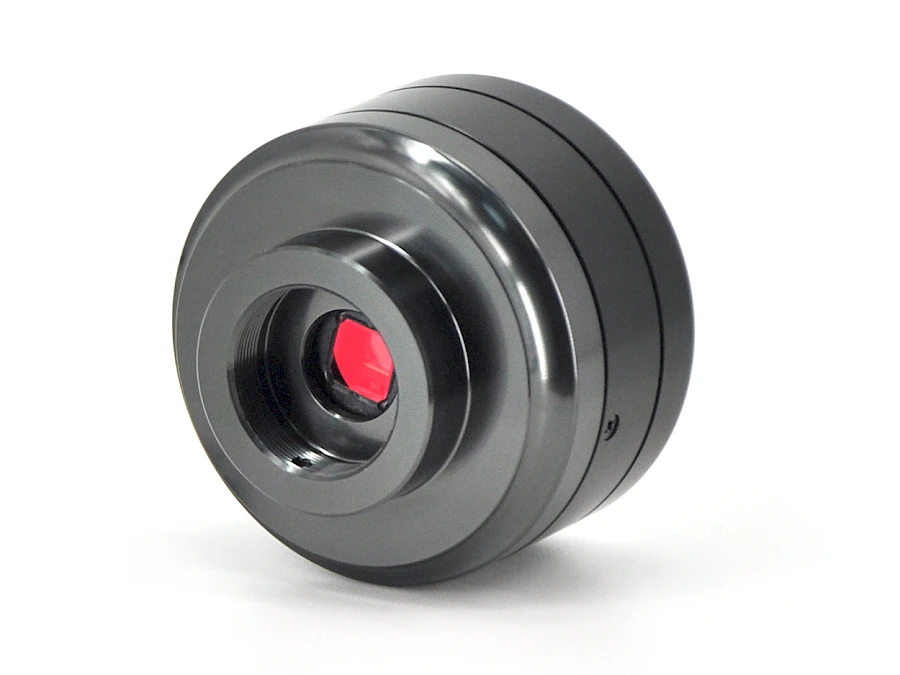

Different View of DM210
Different Views of DM210

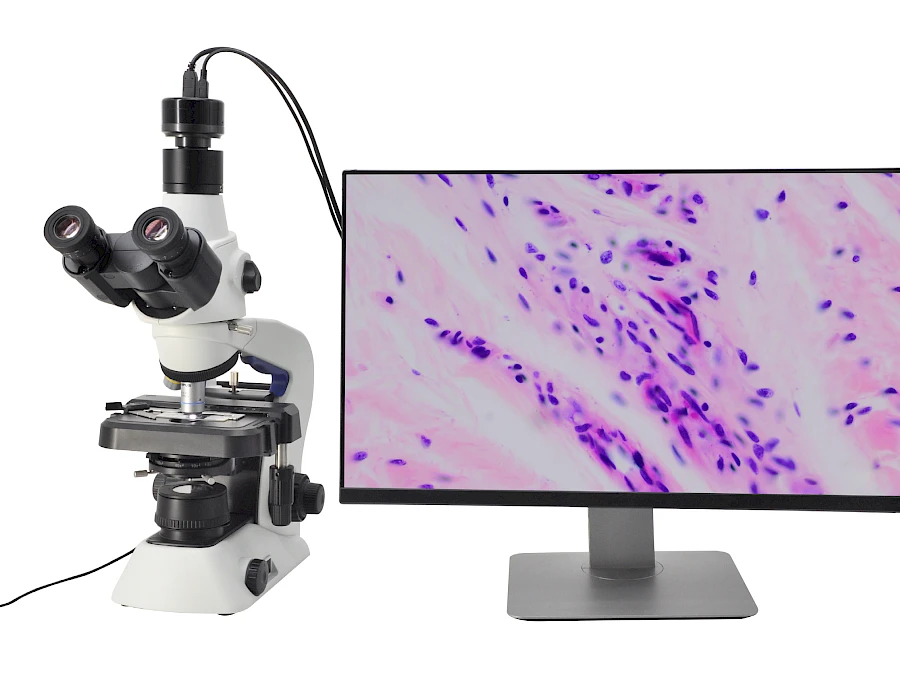

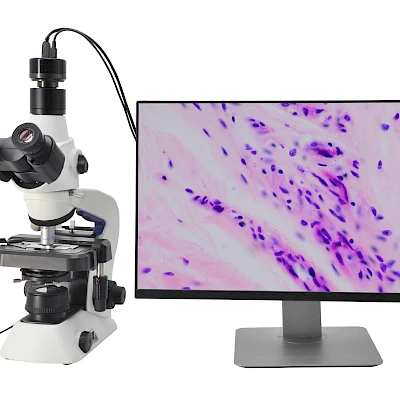

DM210 and its Biological Microscope + Display

Hardware Configuration
Image Sensor	SONY CMOS IMX291 super wide dynamic CMOS Sensor
Expose mode	Rolling shutter
Maximum Resolution	1920 x 1080(2,073,600 pixels)
Sensor Optical Format	1/2.8'' (6.058mm(H) x 4.415mm(V))
Pixel Size	2.9μm x 2.9μm
Dynamic Range	128dB
SNRmax	30dB
Spectral Charactristics	380-650nm
Exposure Capability	Real-time auto, Single auto, Manual adjustment
White Balance	Real-time auto, Single auto, Manual adjust R G B seperately
HDMI Output Resolution	1920X1080P60，1920X1080P50，1920X1080P30，1920X1080P25，1920X1080I60， 1920X1080I50，1280X720P60，1280X720P50，640X480P60 (Auto adjust according to displayer)
Record format	Snapshot Picture Format：JPG Resolution：1920x1080 Record Video Format：MOV Resolution：1920X1080P30,1280x720P120,1280x720P60
Record Route	TF card(Maximum support 128G,support hot plug)
Interface Parameter
Camera Interface	C mount thread（1＂×1/32）
Wired picture interface	HDMI TYPE C Mini HDMI
Charger interface	Micro USB，DC5.0V (Maximum current 1A)
Software Environment
Displayer	Recommend 16:9 , at least 1080P HD displayer
Operating Environment
Operating Temperature	0℃~ 40℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~60%RH
Storage Humidity	10~80%RH
