CS200V

Cheap 2MP HD VGA Output Industrial Digital Microscope Camera for Industrial Phone Repairing Stereo Microscope

Super Excellent Cost Performance, VGA Output, HD 2MP, 1/2.7" Sensor, 30FPS

Core Features

VGA 2.0MP HD preview and Save
Built-in 8 group cross curves, adjustable
Brightness, sharpness,saturation, B/W, Chinese/English Menu
Cross Curve: Vertical lines, Horizontal lines, color, line width adjustable, moveable

Configurations

Resolution

2MP

Target Size

1/2.7“

Frame

30 FPS

Request Quotation Email Phone Back to Products

CS200V VGA industrial camera is used with the monocular continuous zoom stereo microscope through the VGA interface. The Operator can view the specimen through the display screen. This industrial camera is widely used in the industrial inspection, medical treatment, soldering and welding etc.

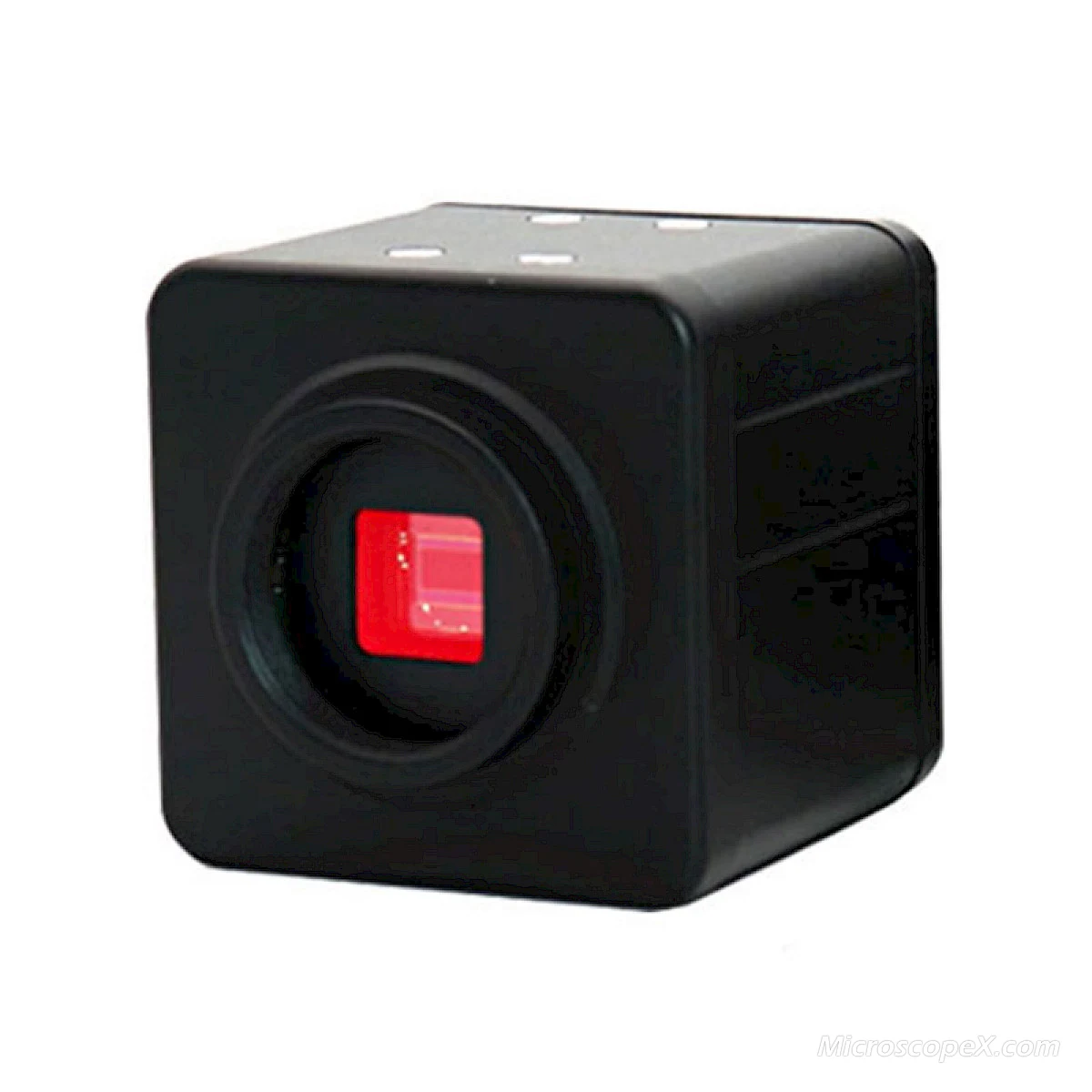

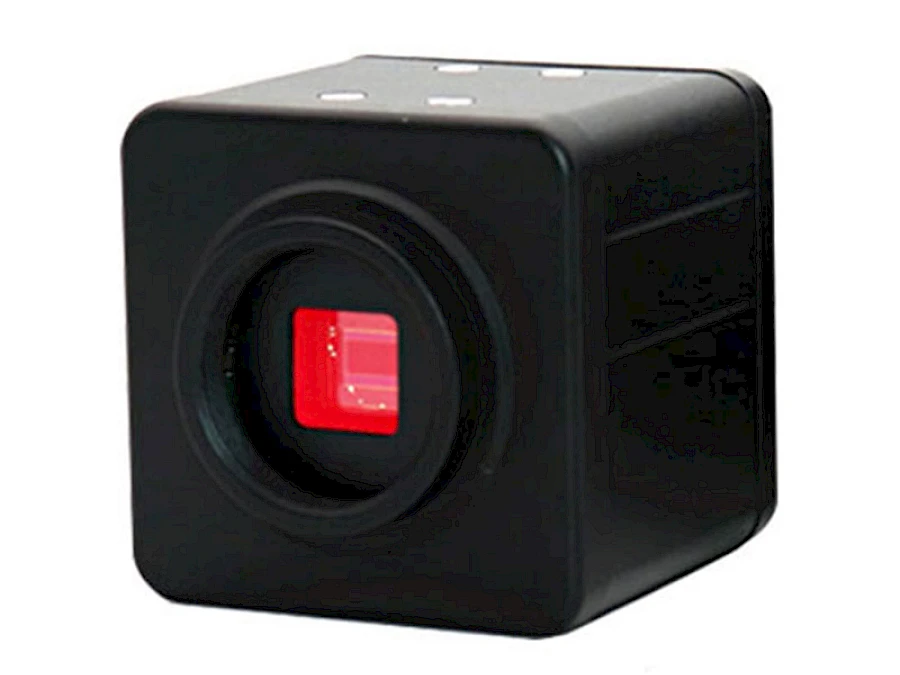

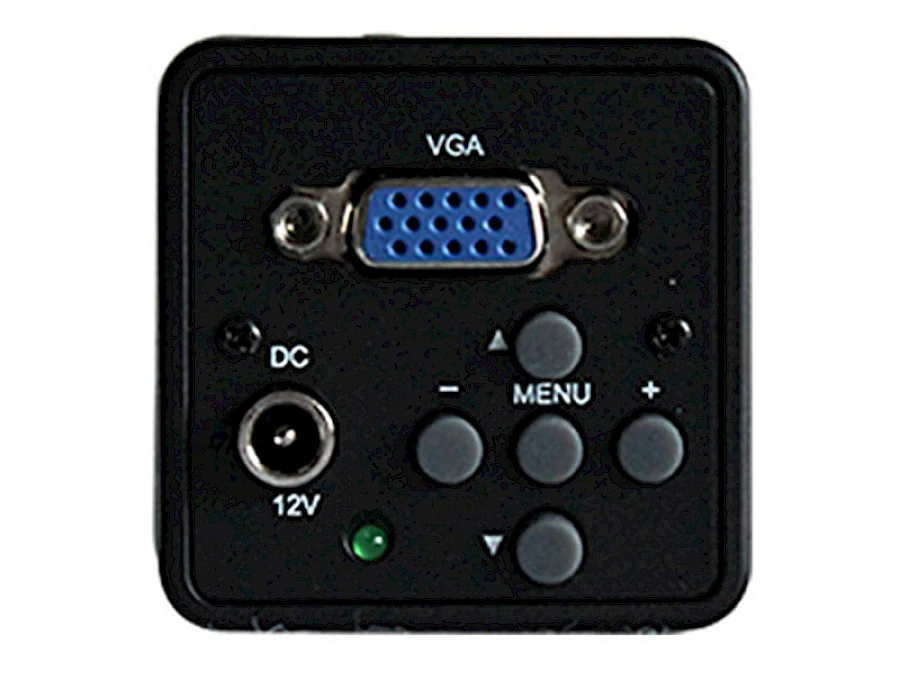

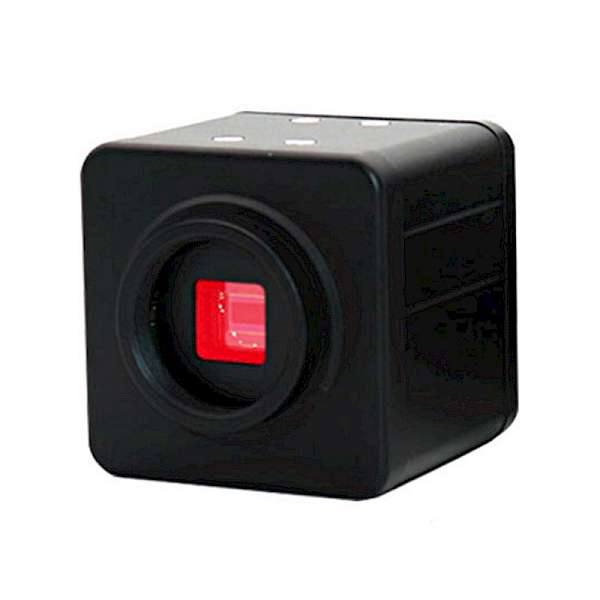

Different Views of CS200V VGA Camera

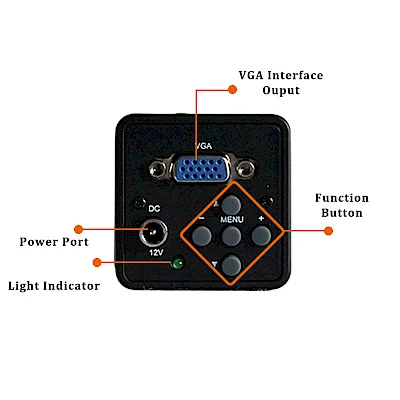

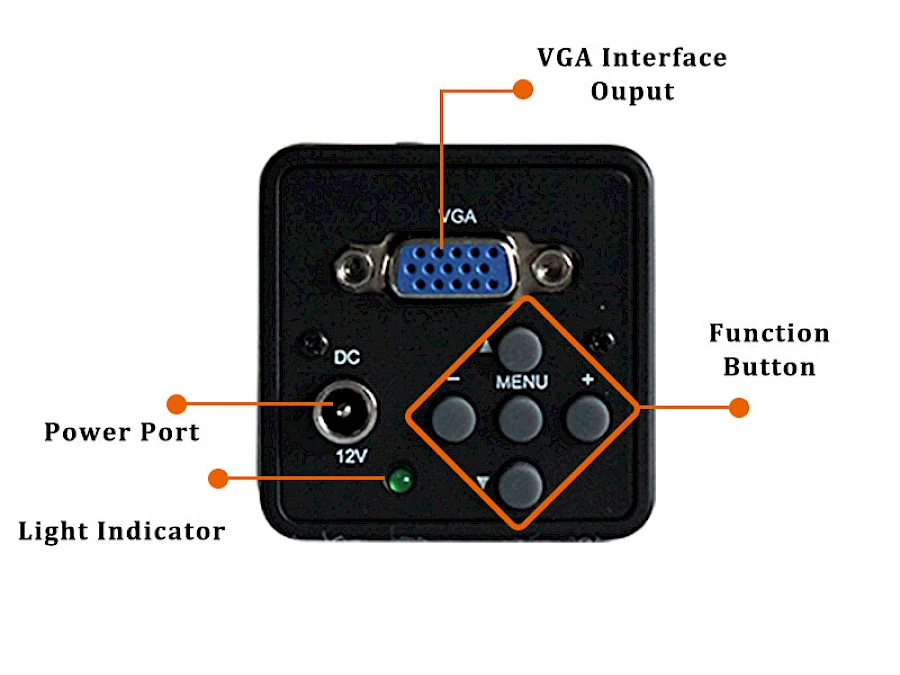

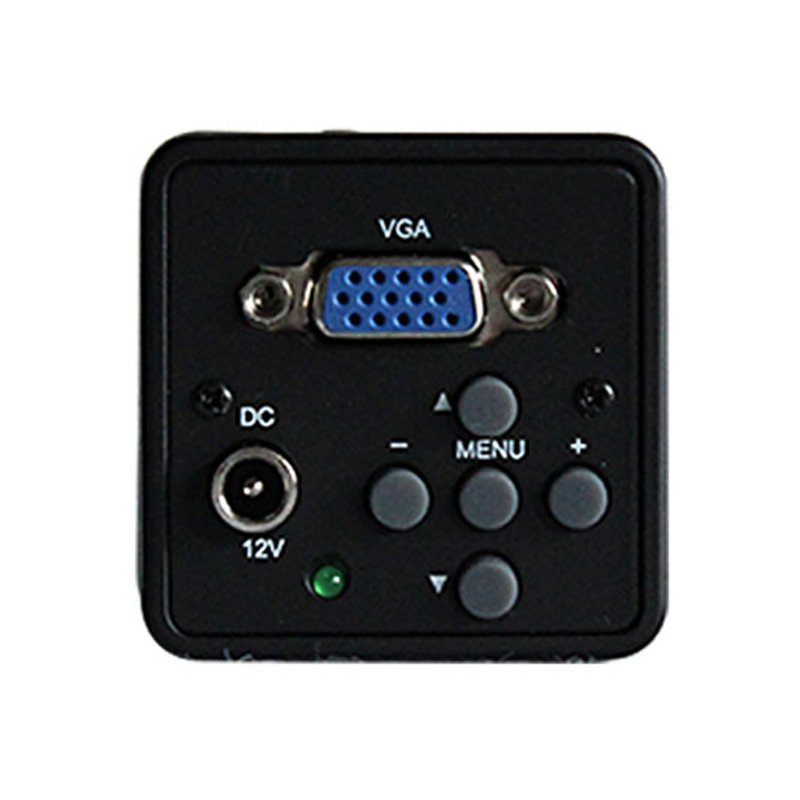

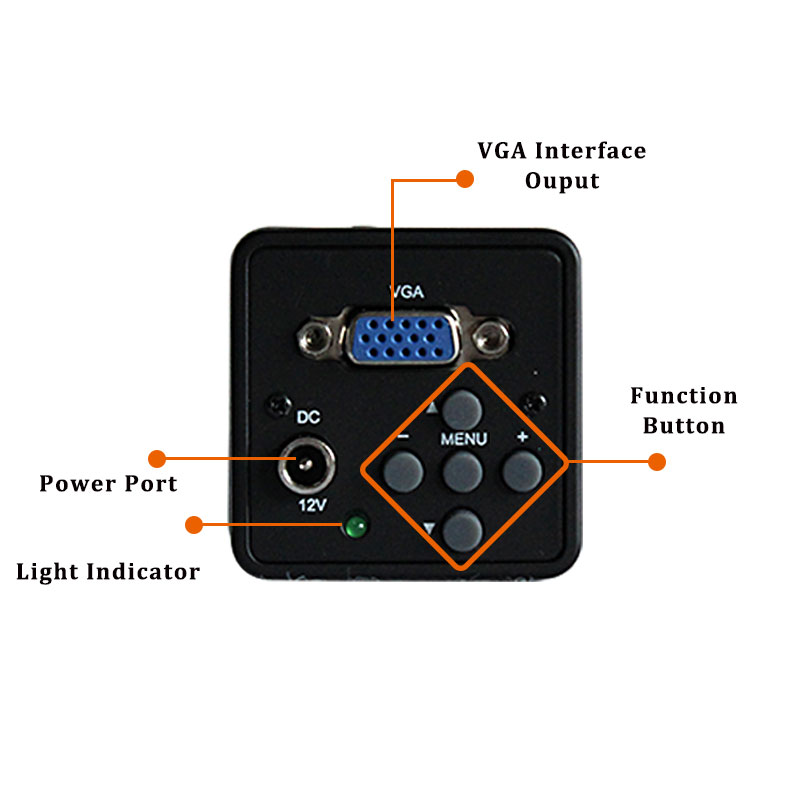

Structure of CS200V

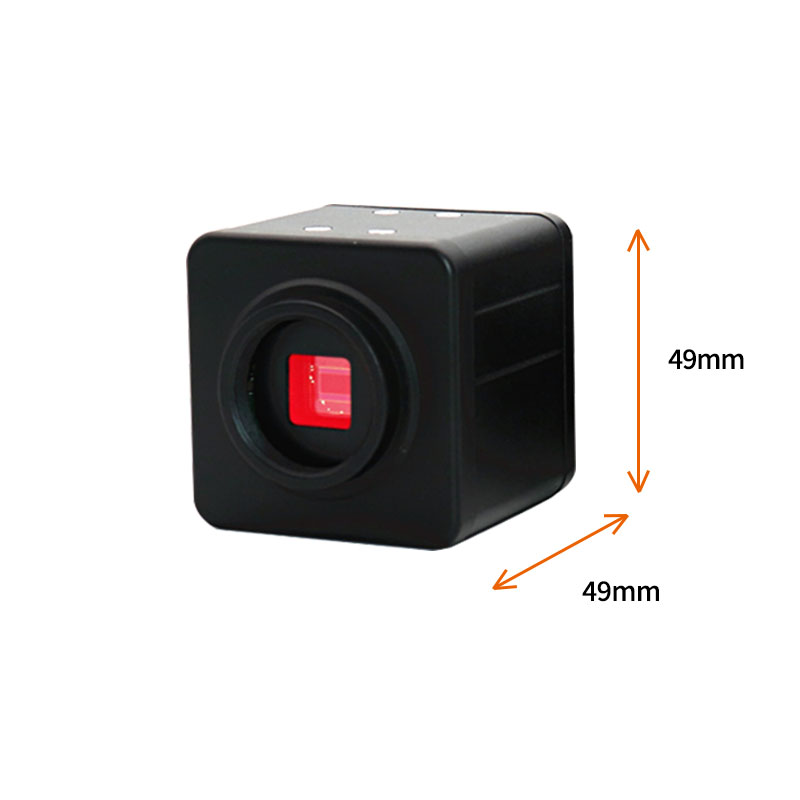

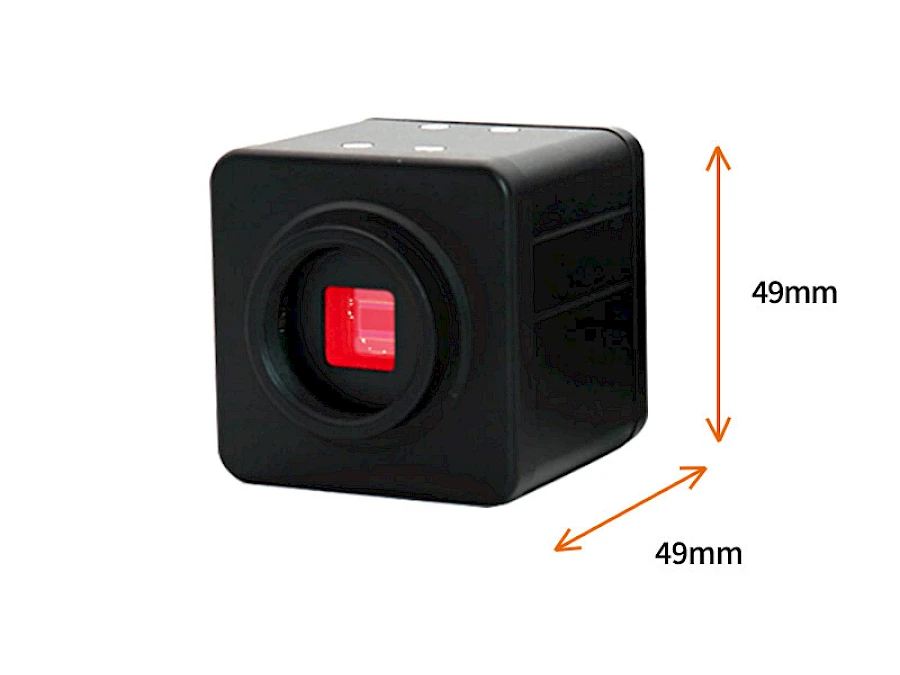

Dimension of CS200V

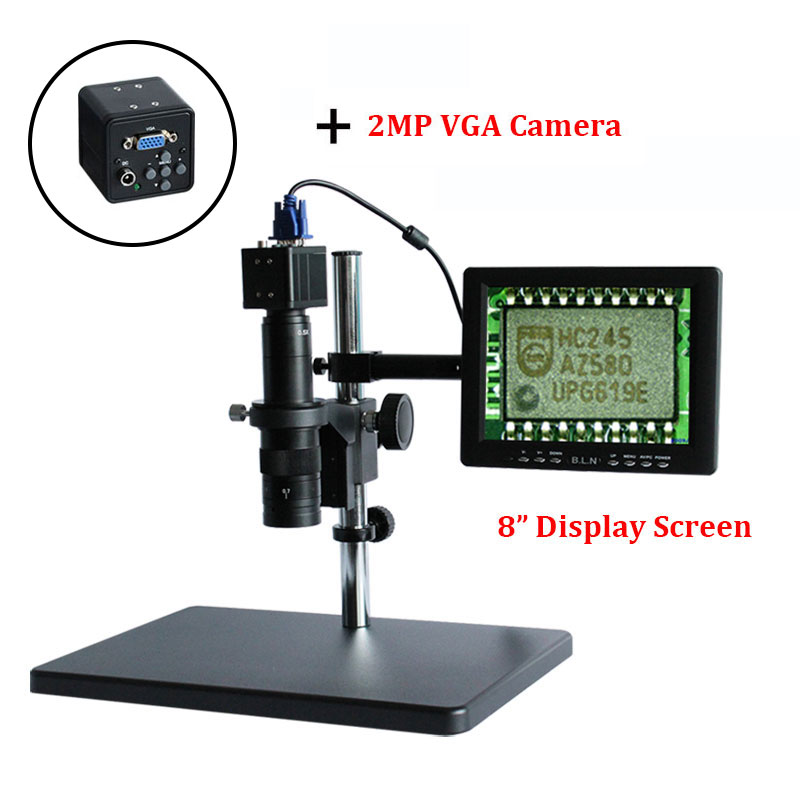

CS200V with its connected Microscope

Parameters for VGA Camera
Resolution	HD 2MP
Size	49mmx49mmx49mm
Target Size	1/2.7
Frame	30 FPS
Interface	VGA Output
Function	Built-in 8 group cross curves, adjustable

Manual
Set Output Resolution	Enter the menu, output resolution, choose the corresponding resolution, save.
Set White Balance	Put White paper, adjust light source, focusing, enter the menu, one White Balance, confirm. Or choose White Balance, auto/manual
Menu	Set a white balance/auto/manual white balance, reduced glare, full screen freeze, screen contrast, negative, Vertical mirror, horizontal mirror. Resistant blink
	Cross Curve: Vertical lines, Horizontal lines, color, line width adjustable, moveable
	Brightness, sharpness, saturation, B/W, Chinese/English Menu
	8 Groups VGA output resolution set, supply all display screen
