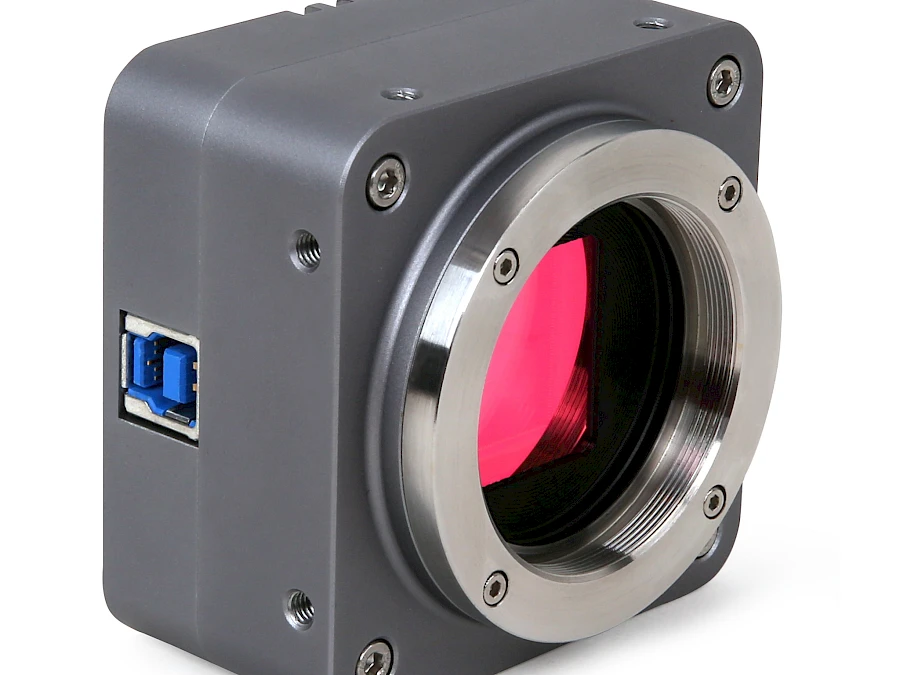

BigEye Series M42 and M42 to C or F Mount USB3.0 CMOS Camera

high-speed transmission, USB3.0, superior performance

Core Features

Large scientific CMOS sensor (SONY or GSENSE Back-illuminated CMOS sensor)
Wide spectrum range, some models even have high response in the ultra-violet to infrared wavelength
Real-time 8/12bit depth switch(depending on sensor)
Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 30 frames for 10M resolution)
Ultra low noise and low power dissipation by using column-parallel A/D conversion
With hardware resolution from 4.2M to 10.3M

Configurations

SONY or GSENSE Back-illuminated CMOS

USB3.0

Real-time 8/12bit depth switch

CNC aluminum alloy housing

Request Quotation Email Phone Back to Products

BigEye Series adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.

BigEye Series hardware resolutions range from 4.2M to 10.3M and come with the integrated CNC aluminum alloy housing.

BigEye Series integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISP VP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed.

BigEye Series come with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The BigEye Series can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

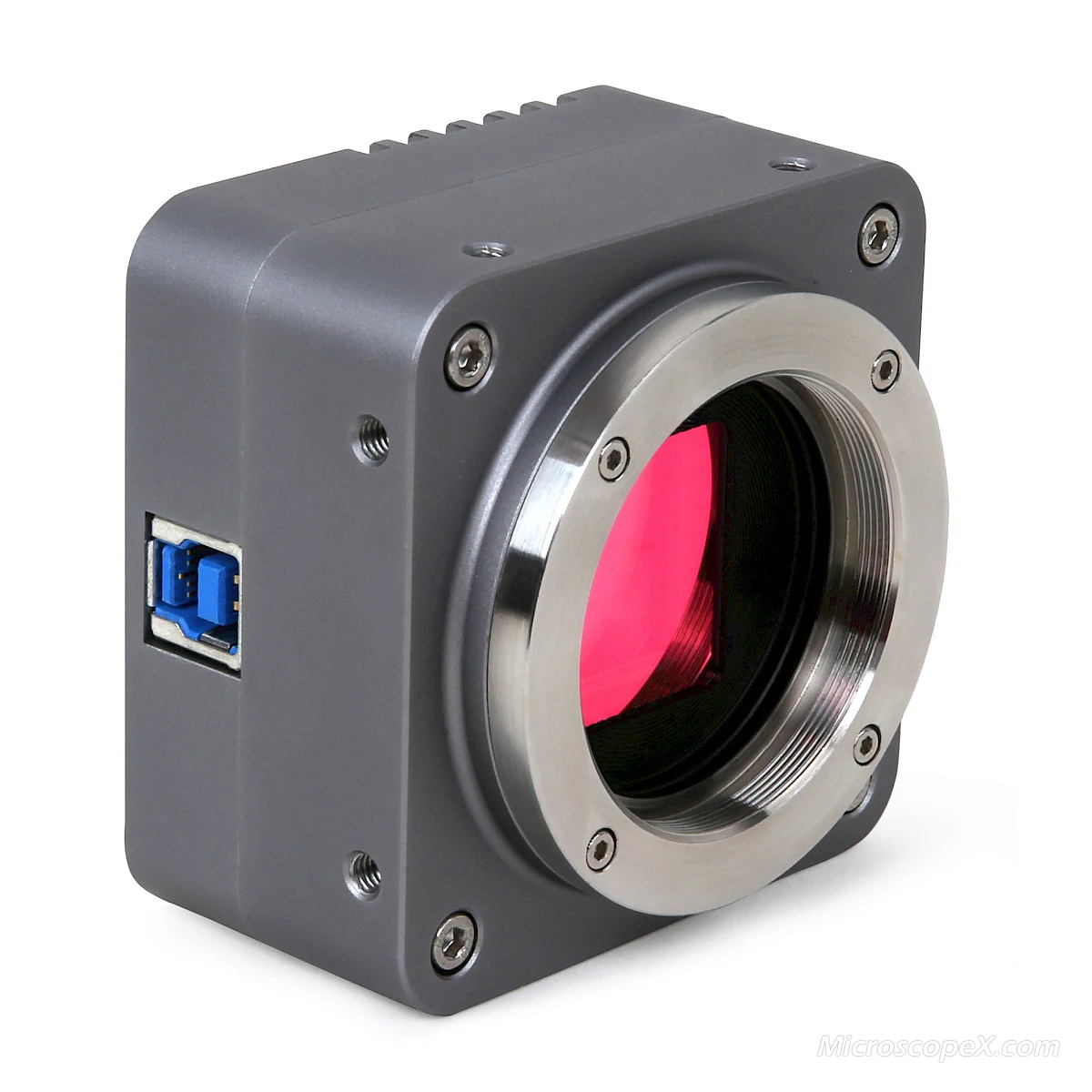

BigEye Series Different View of BigEye

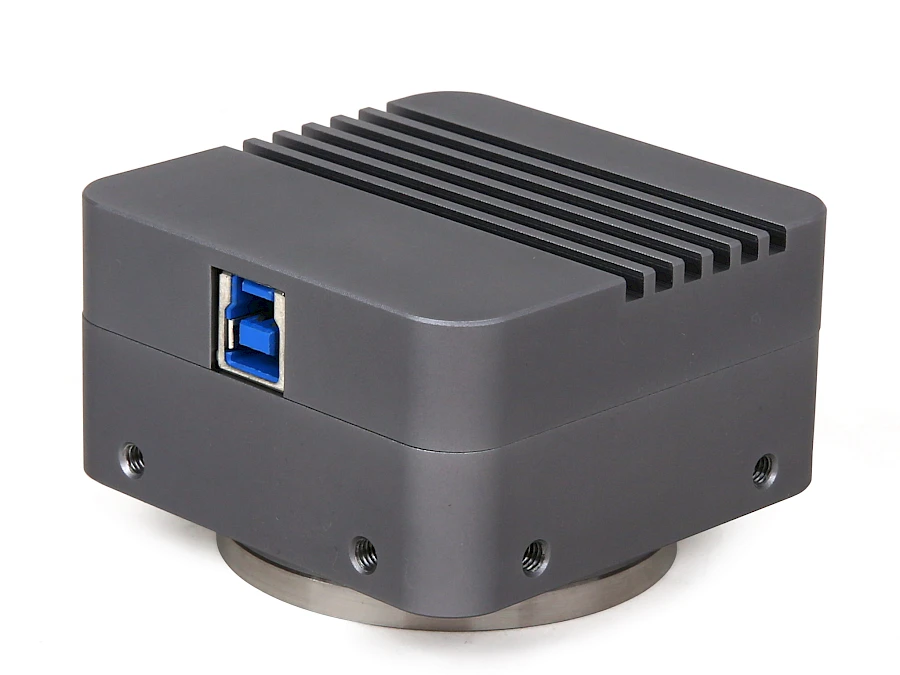

BigEye's different views

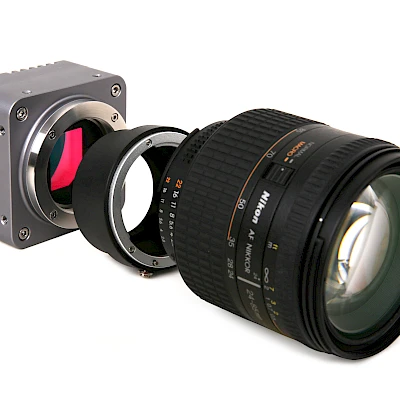

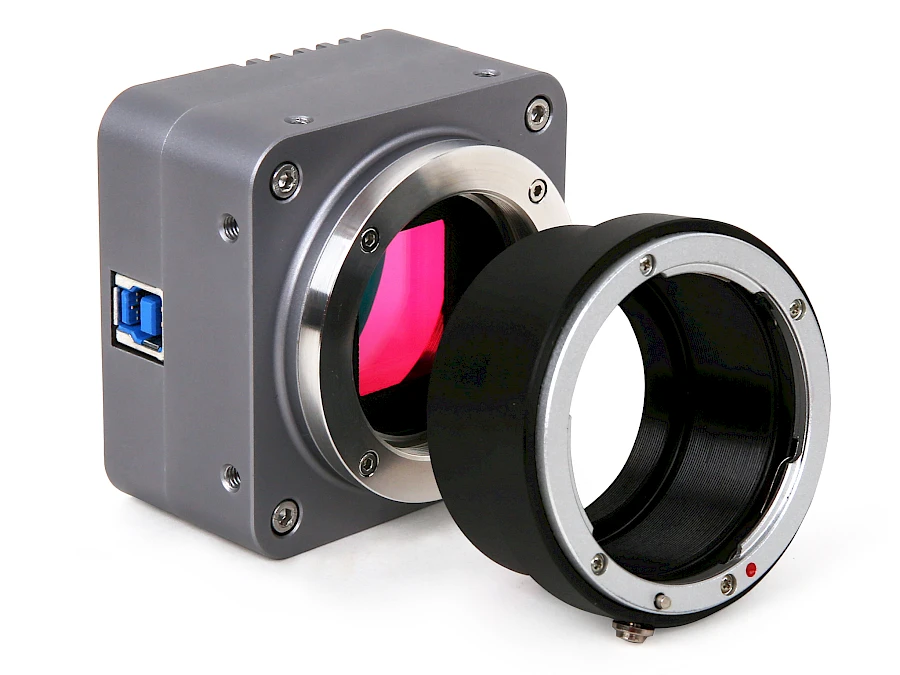

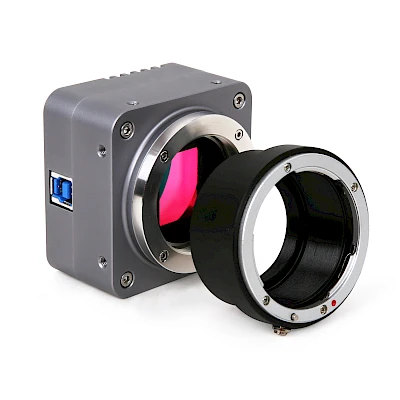

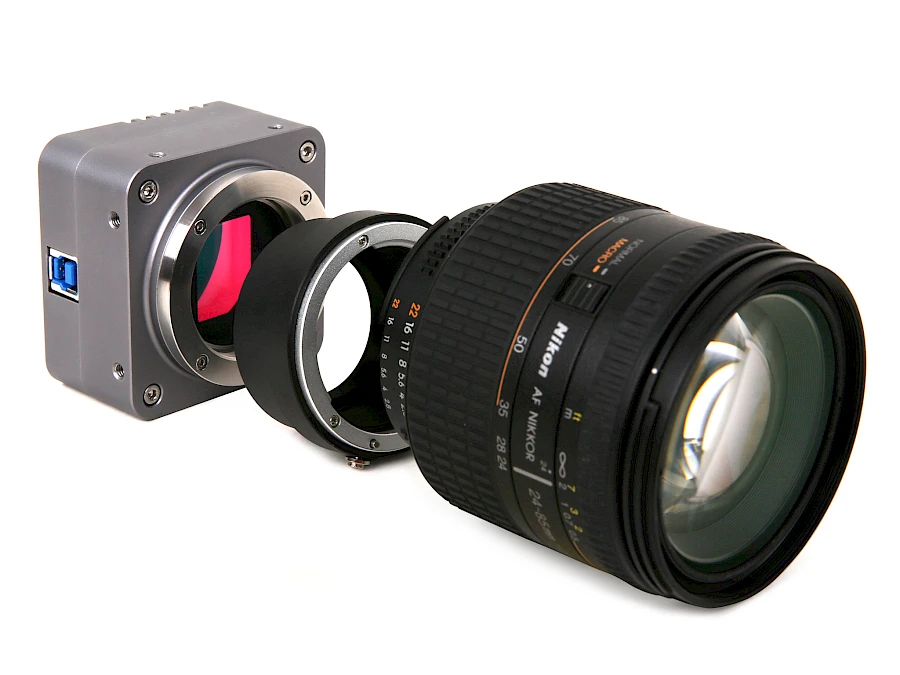

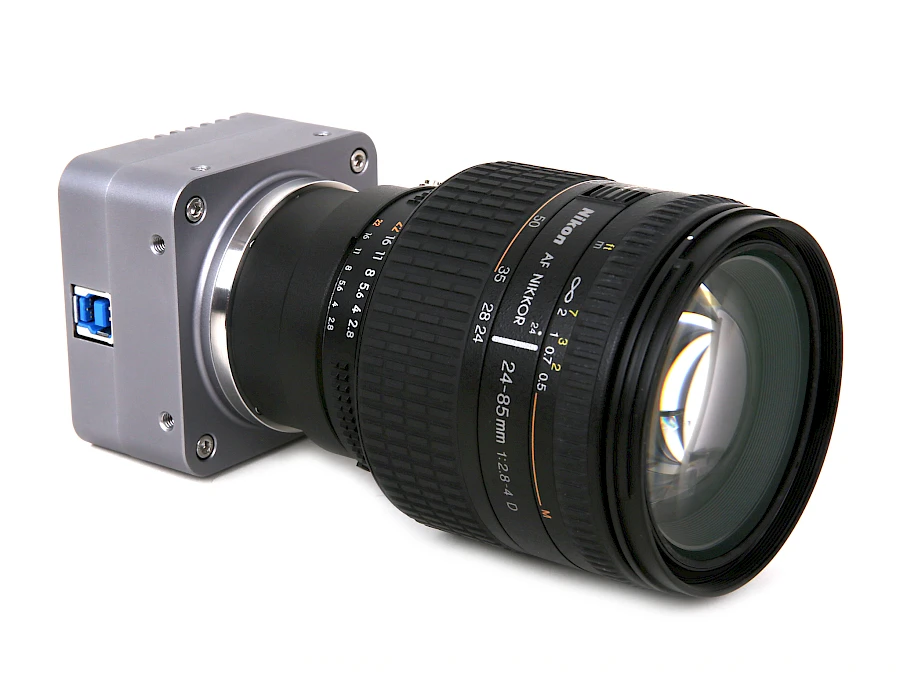

BigEye+F-mount BigEye + F-mount+Lens

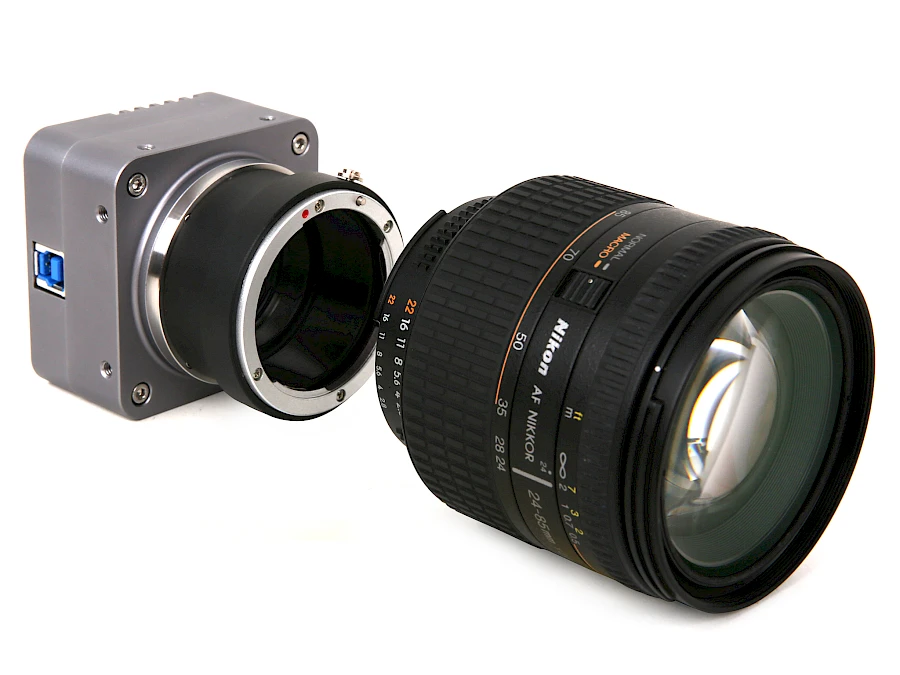

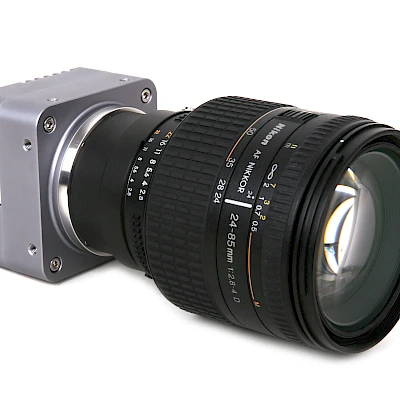

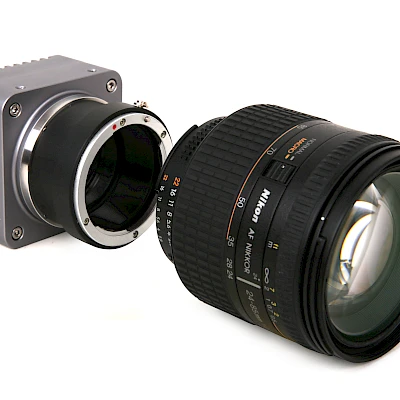

BigEye with F-mount+Lens BigEye with F-mount and Lens

Dimension of BigEye

The BigEye body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR glass to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

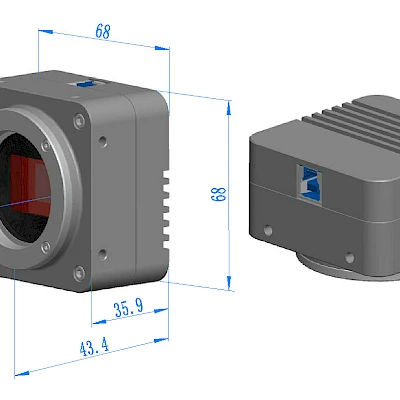

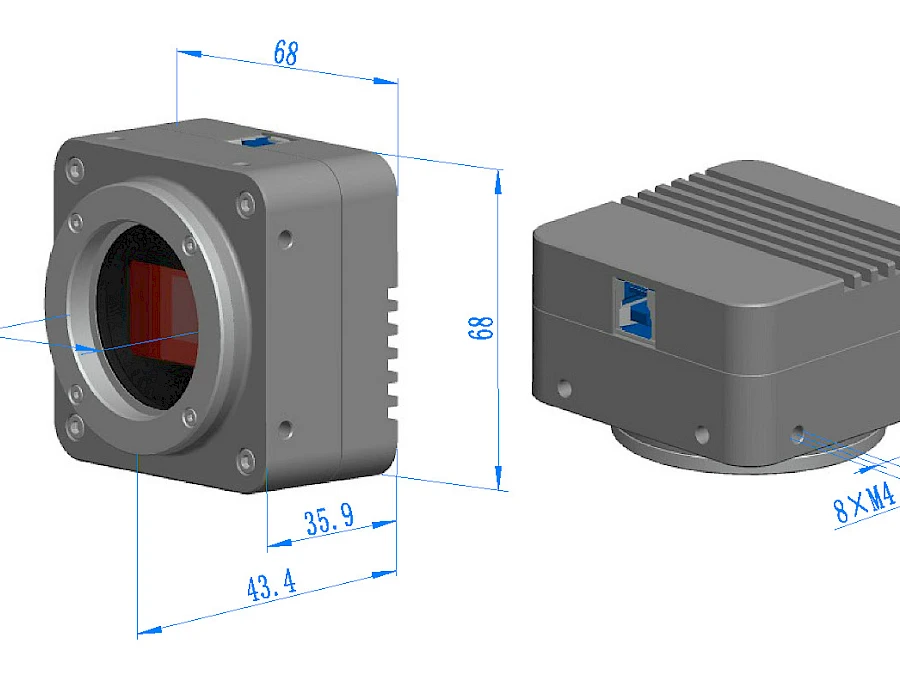

Dimension of BigEye with M42x0.75 or F-mount Interface

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
BigEye10000KPA BP910000A（New）	10.3M/IMX294(C) 4/3 “(17.47x12.86)	4.63 x4.63	419mv with 1/30s 0.12mv with 1/30s	30@3704x2778 34.5@4096x2160 39.5@2760x2072 62@2048x1080 86@1360x720	1x1, 1x1, 1x1, 2x2, 3x3	0.1ms~15s
BigEye4200KMA BM94200A（New）	4.2M/GSENSE2020S(M,RS or GS) 1.2”(13.31x13.31)	6.5x 6.5	8.1x107 (e-/((W/m2).s)) Peak QE 64.2% @595nm DS	45@2048x2046 45@1024 x 1023	1x1 2x2	0.01ms~1000s
BigEye4200KMB BM94200B（New）	4.2M/GSENSE2020BSI(M,UV, RS GS) 1.2”(13.31x13.31)	6.5 x 6.5	1.1x108 (e-/((W/m2).s)) Peak QE 93.7% @595nm	43@2048 x2046 42@1024 x1023	1x1 2x2	0.01ms~1000s

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

BigEye10000KPA

BP910000A（New）

10.3M/IMX294(C)
4/3 “(17.47x12.86)

4.63 x4.63

419mv with 1/30s
0.12mv with 1/30s

30@3704x2778

34.5@4096x2160

39.5@2760x2072

62@2048x1080

86@1360x720

1x1,

2x2,

3x3

0.1ms~15s

BigEye4200KMA

BM94200A（New）

4.2M/GSENSE2020S(M,RS or GS)
1.2”(13.31x13.31)

6.5x 6.5

8.1x107 (e-/((W/m2).s))
Peak QE 64.2% @595nm

45@2048x2046
45@1024 x 1023

1x1
2x2

0.01ms~1000s

BigEye4200KMB

BM94200B（New）

4.2M/GSENSE2020BSI(M,UV, RS GS)
1.2”(13.31x13.31)

6.5 x 6.5

1.1x108 (e-/((W/m2).s))
Peak QE 93.7% @595nm

43@2048 x2046
42@1024 x1023

1x1
2x2

0.01ms~1000s

C: Color; M: Monochrome; GS: Global Shutter, UV: Good UV response

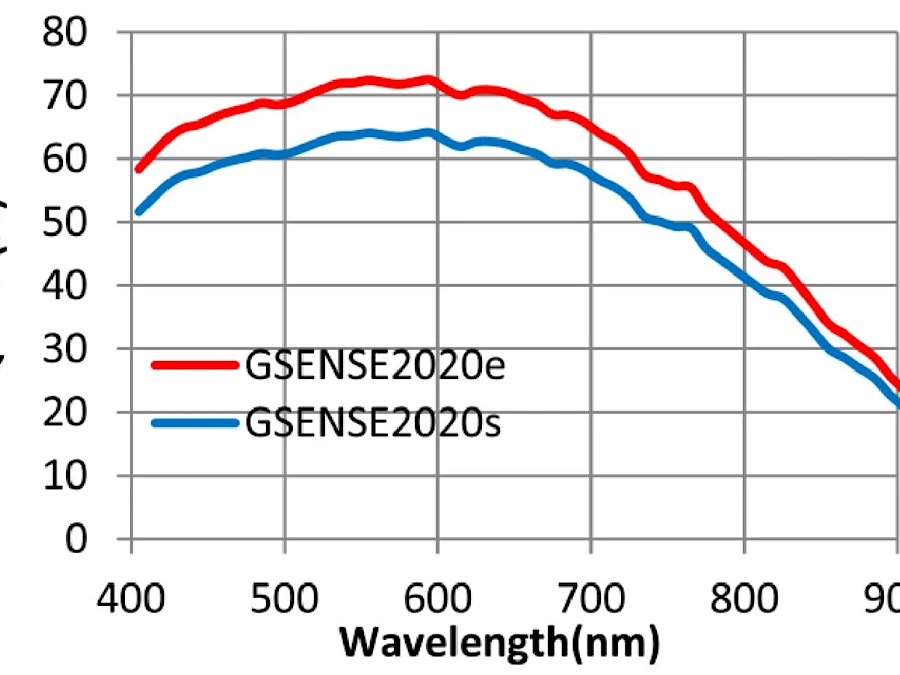

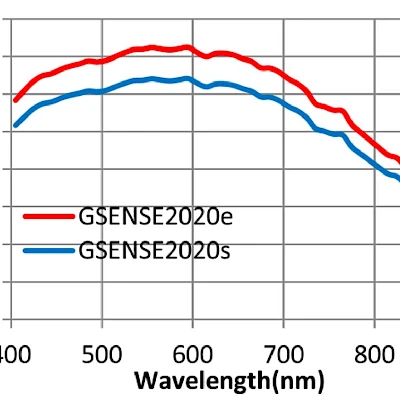

Spectral response of GSENSE2020e and GSENSE2020s

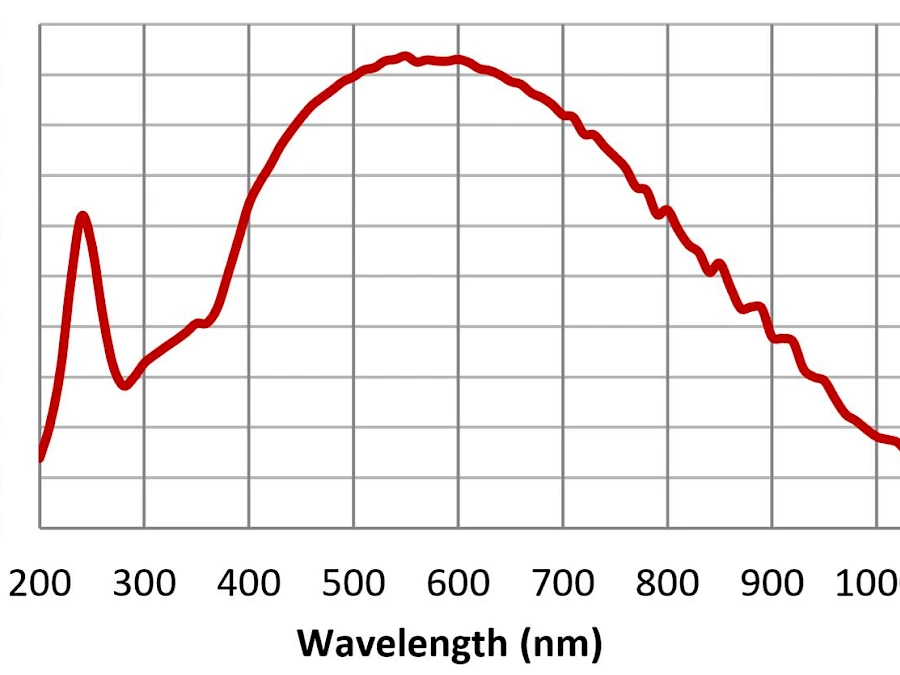

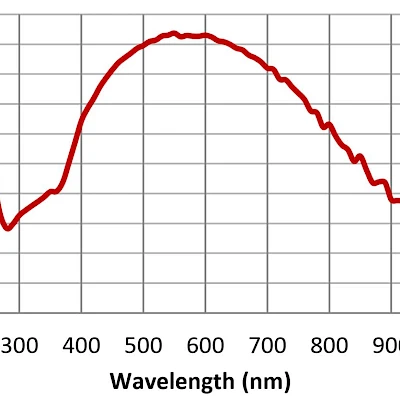

Spectral Response of GSENSE2020BSI

Other Specification for BigEye Camera
Spectral Range	200-1100nm (UV without IR-cut Filter) or 400-900nm
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-fineTM HISPVP /NA for Monochromatic Sensor
Capture/Control API	Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview
Recording System	Still Picture and Movie
Cooling System*	Natural
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB Port: USB3.0 High-speed Port
	Display: 17” or Larger
	CD-ROM

About the GSENSE2020BSI

Designed with the state-of-art backside illuminated scientific CMOS technology, GSENSE2020BSI is a 4.2 Megapixel sensor with 6.5um pixel size, featuring 94% quantum efficiency and a readout noise of less than 1.2e- with correlated multi-sampling (CMS). Ideal for life science, astronomy and scientific imaging, GSENSE2020BSI also provides a solution for industrial inspection requiring superior UV sensitivity thanks to its high frame rate and global reset rolling shutter. GSENSE2020BSI is pin-compatible with GSENSE2020s and GSENSE2011s, allowing easy hardware integration with minimized development effort, and fast time-to-market.

- Back-illuminated structure 2.4 µm unit pixel
- 10 bit/12 bit/14 bit A/D converters
- Supporting type 1/2 5M effective pixels in 3 formats
- HLP (High Light Performance) mode
- LLP (Low Light Performance) mode

GSENSE2020 is a 4 MP scientific CMOS image sensor with 6.5μm pitch. The sensor can operate in either rolling shutter or global shutter mode. The devices have ultra-low readout noise of 2e- in rolling shutter mode, and 6.2e- in global shutter mode. To further increase the sensitivity for low light level imaging, the devices support on-chip 2x2 binning. In addition, GSENSE2020 can be operated in standard 12bit mode with 70dB intra-scene dynamic range or in HDR mode with more than 87dB dynamic range. GSENSE2020's max frame rate is up to 376fps in 10bit global shutter mode, and the frame rate can be further enhanced by row-based ROI windowing capability.

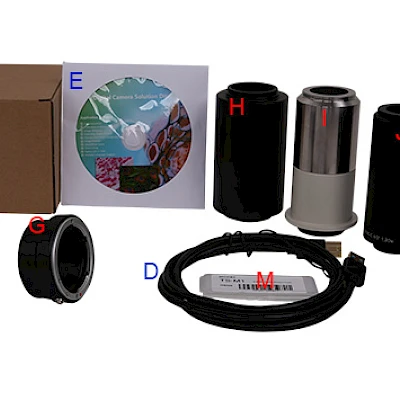

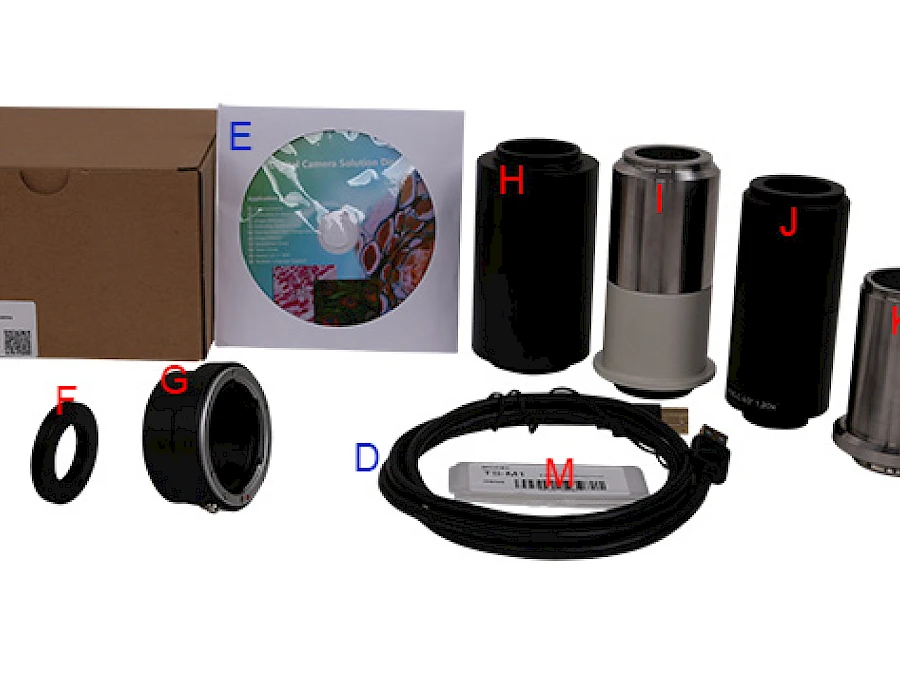

Packing Information for BigEye Series camera

Standard Camera Packing List
A	Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box)
C	BigEye series USB3.0 C-mount CMOS camera
D	High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, Ø12cm)
Optional Accessory
F	M42x0.75mm-mount to C-mount converter (If C-mount adapter is used)
G	M42x0.75mm-mount to F-mount converter (If F-mount lens is used)
H	Phototube to M42x0.75 mount adapter (U-TV1.2XT2) for Olympus microscope
I	Phototube to M42x0.75 mount adapter (MQD42120 MBB42120) for Nikon microscope
J	Phototube to M42x0.75 mount adapter (P95-T2 4/ P95-C 1" 1.0 x 3” 1.2x) for Zeiss Primo Star series , Zeiss Primo vert series microscope
K	Phototube to M42x0.75 mount adapter (11541510-120 HT2-1.2X) for Leica microscope
L	Phototube to M42x0.75 mount adapter (60N-T2 4/3" 1.2x) for Zeiss Axio series microscope
	Note: For 4/3” sensor, 1.2X adapter with M42x0.75 mount should be chosen, for the 1.2” sensor, 1.0X adapter with C-mount could be used to get the better FOV;
M	Calibration kit	106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

BigEye Series

Dimension of BigEye

About the GSENSE2020BSI

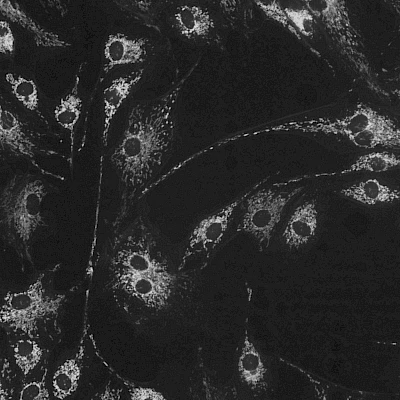

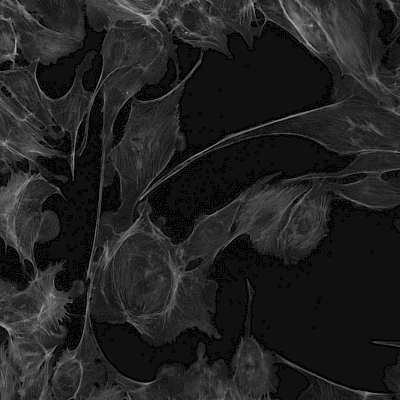

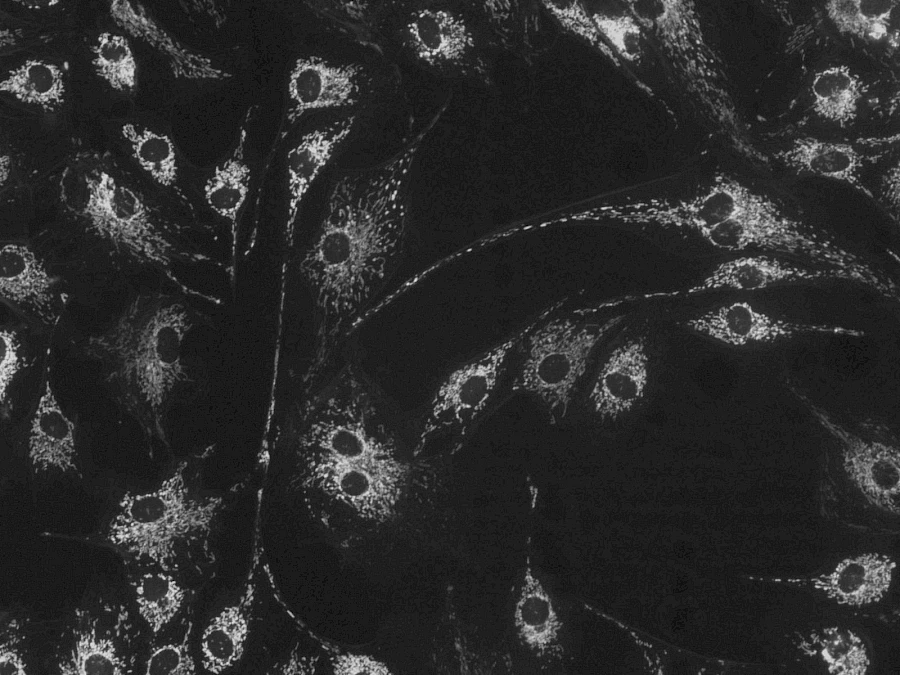

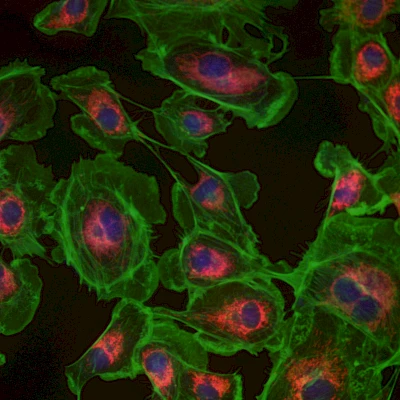

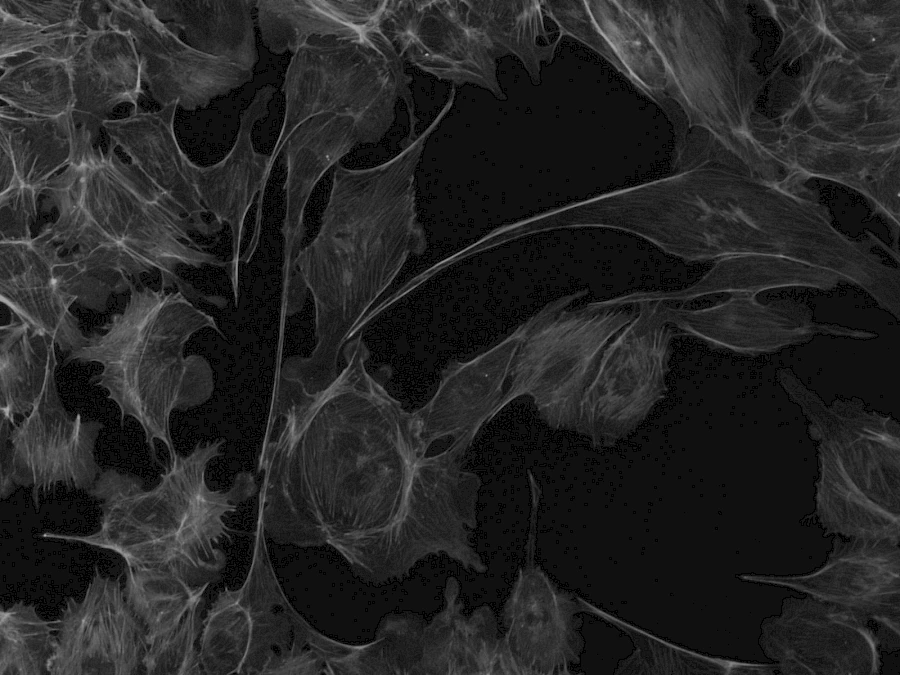

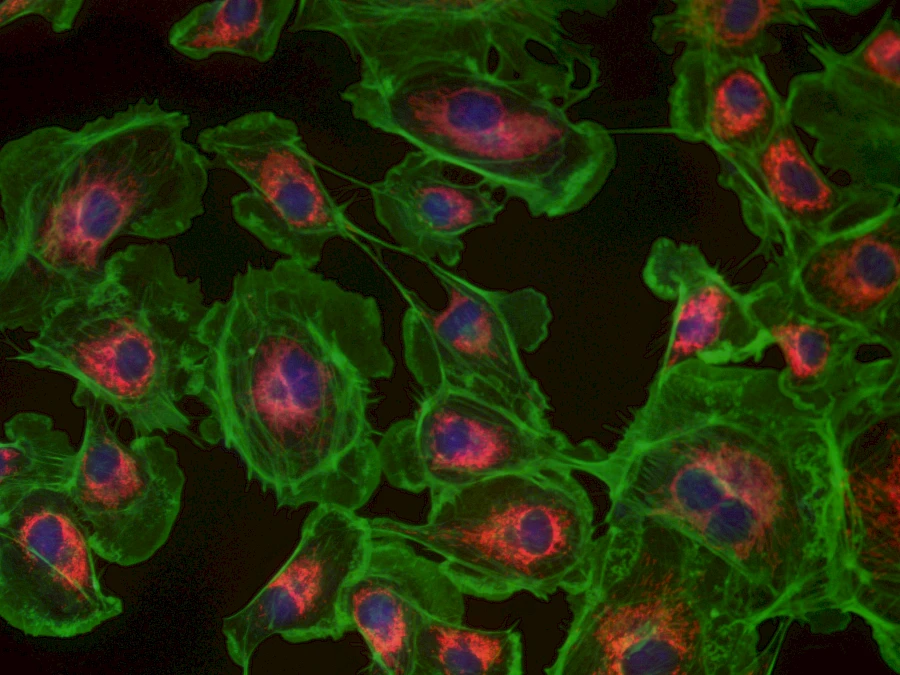

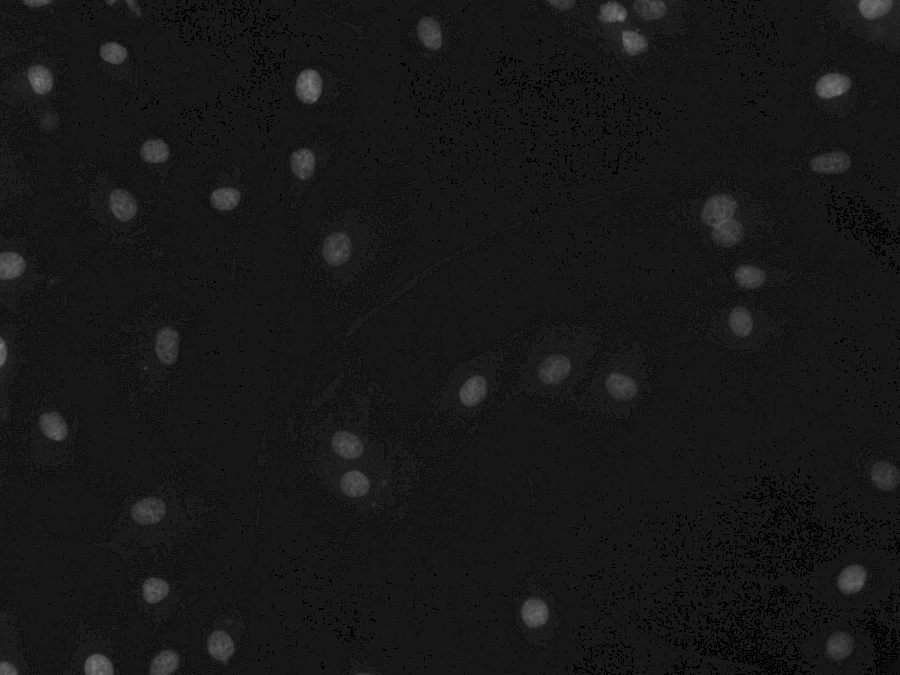

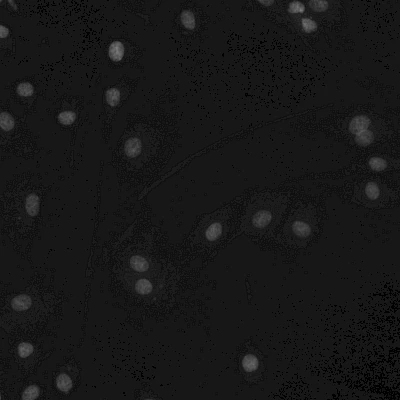

Image Captured with BIGEYE
