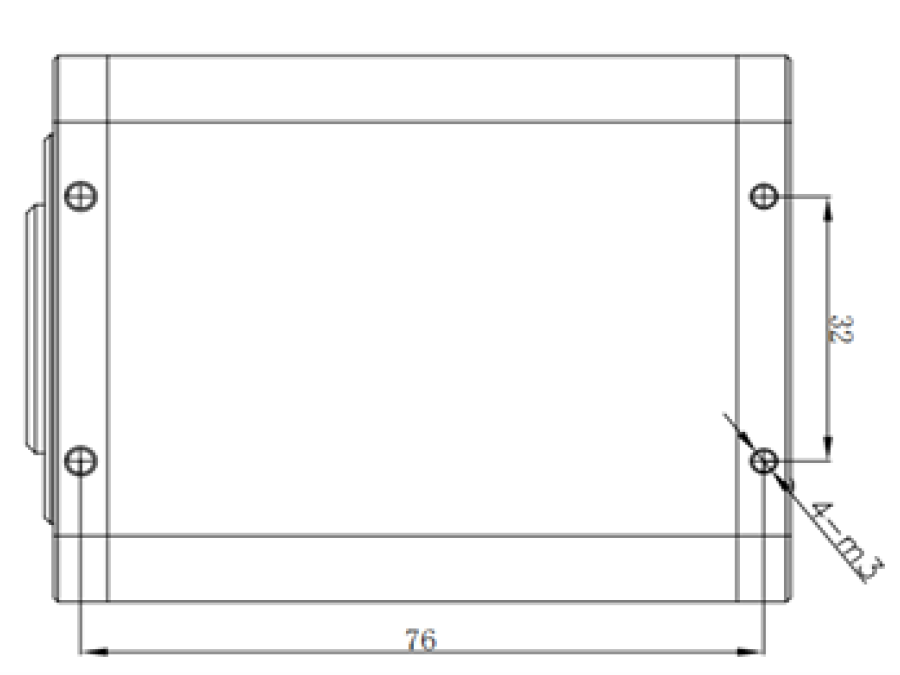

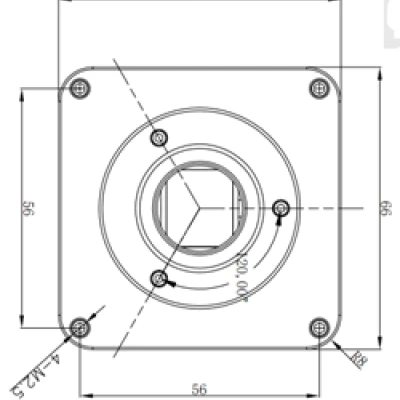

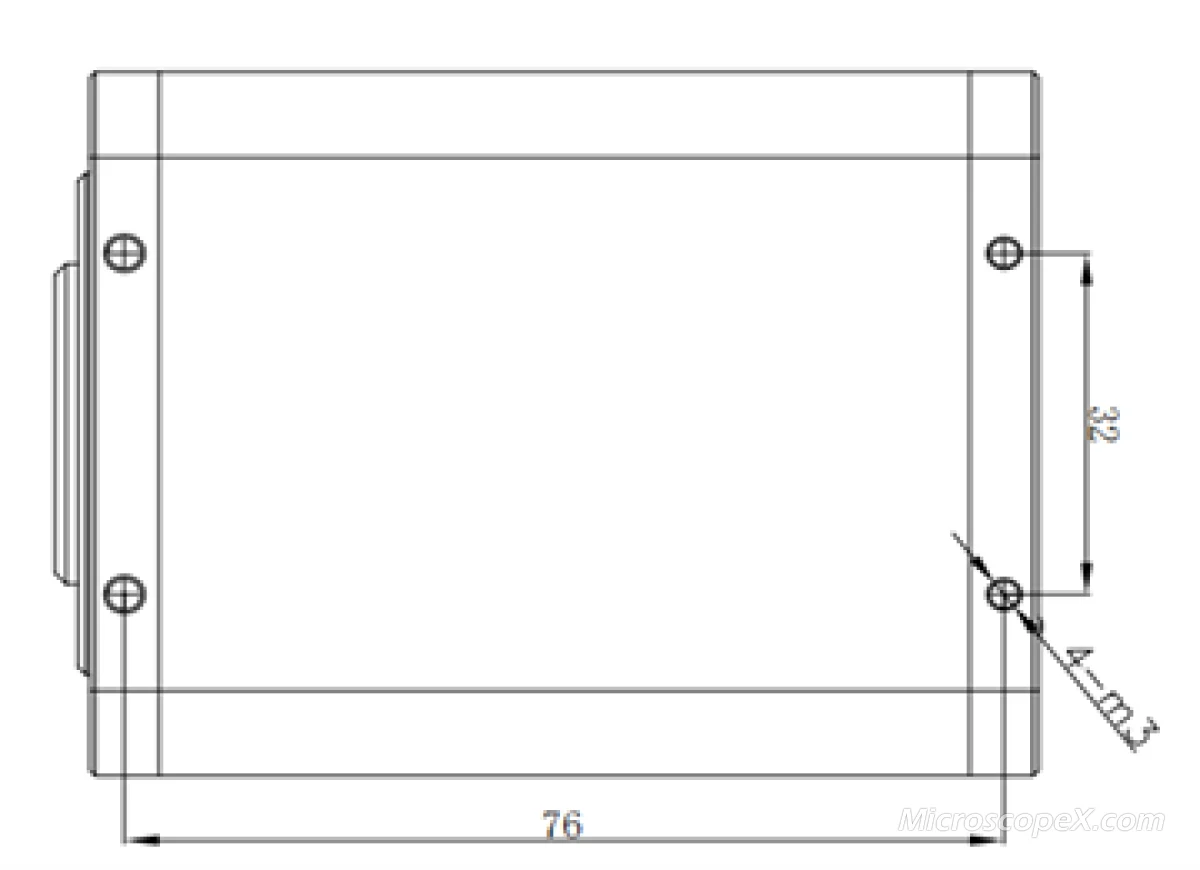

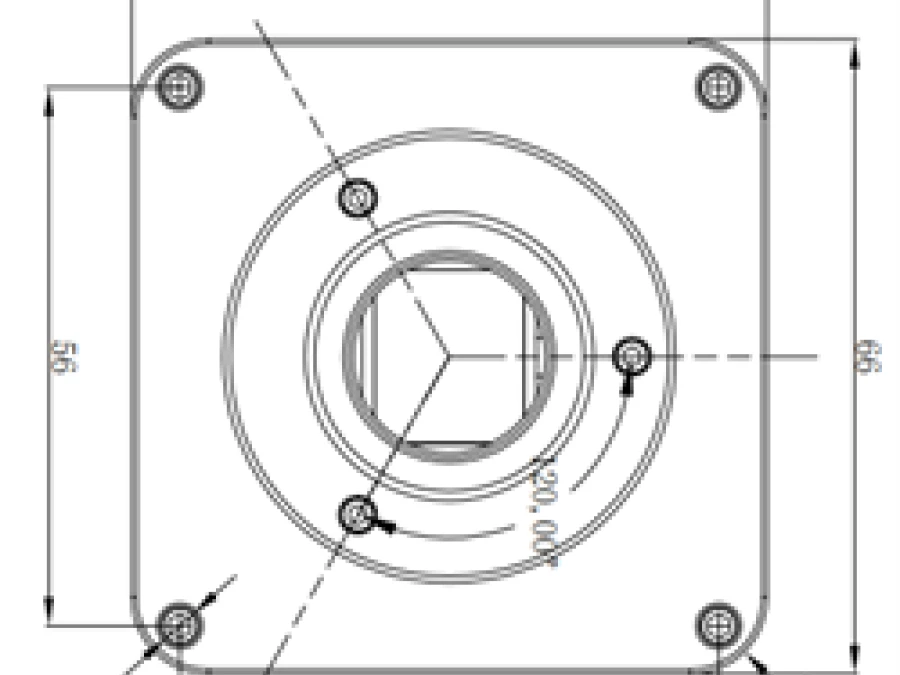

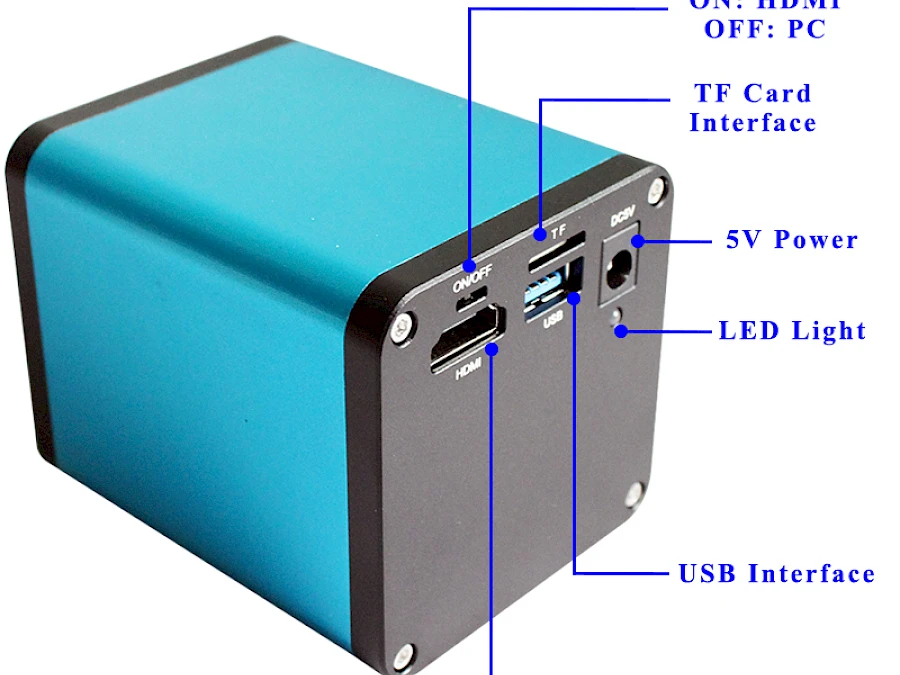

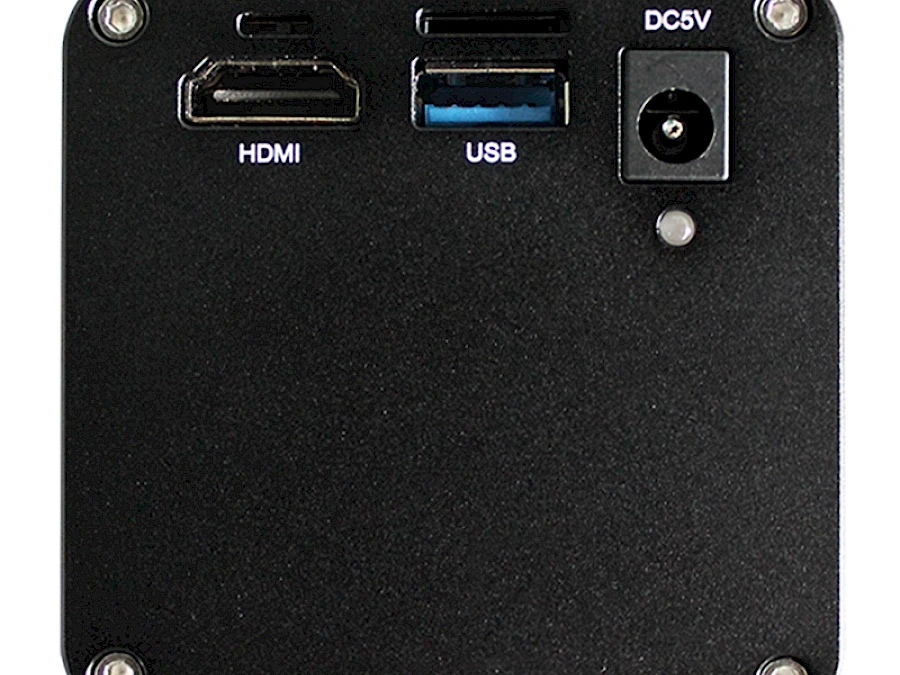

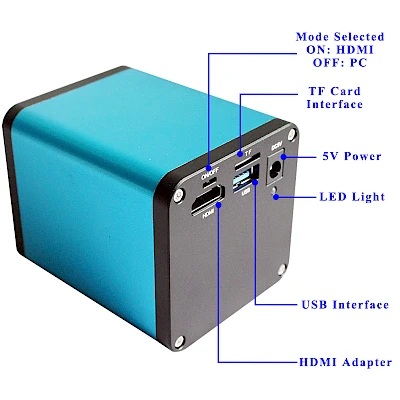

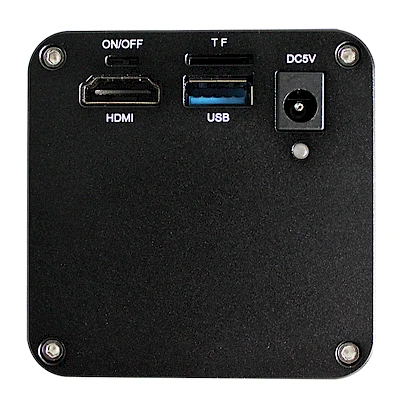

Dimension of AFCUH Auto Focus Microscope Camera

Packing List for AFCUH Auto Focus Microscope Camera

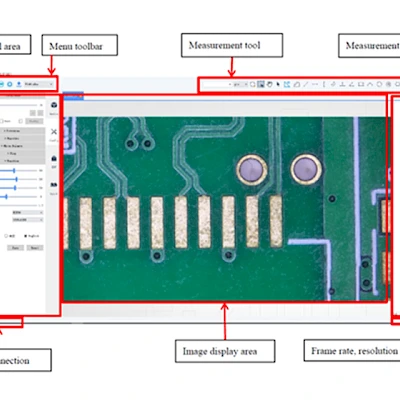

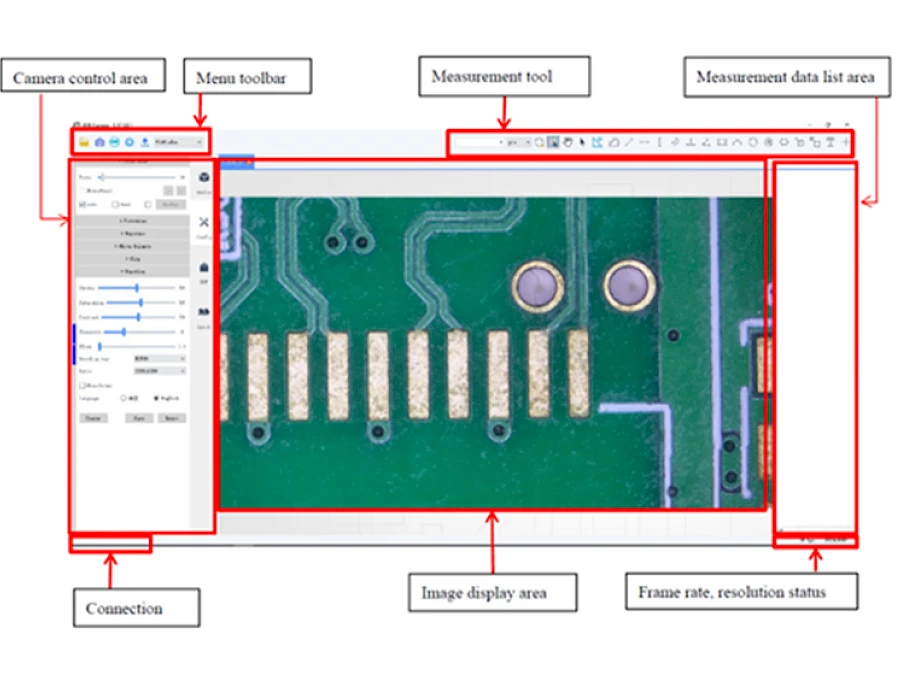

EDF Function

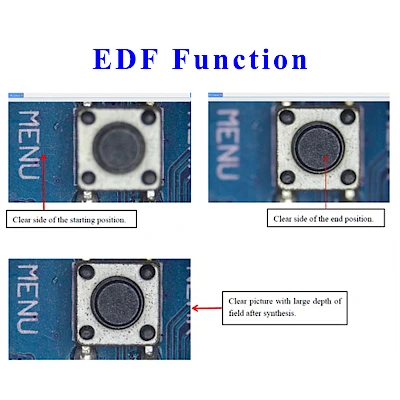

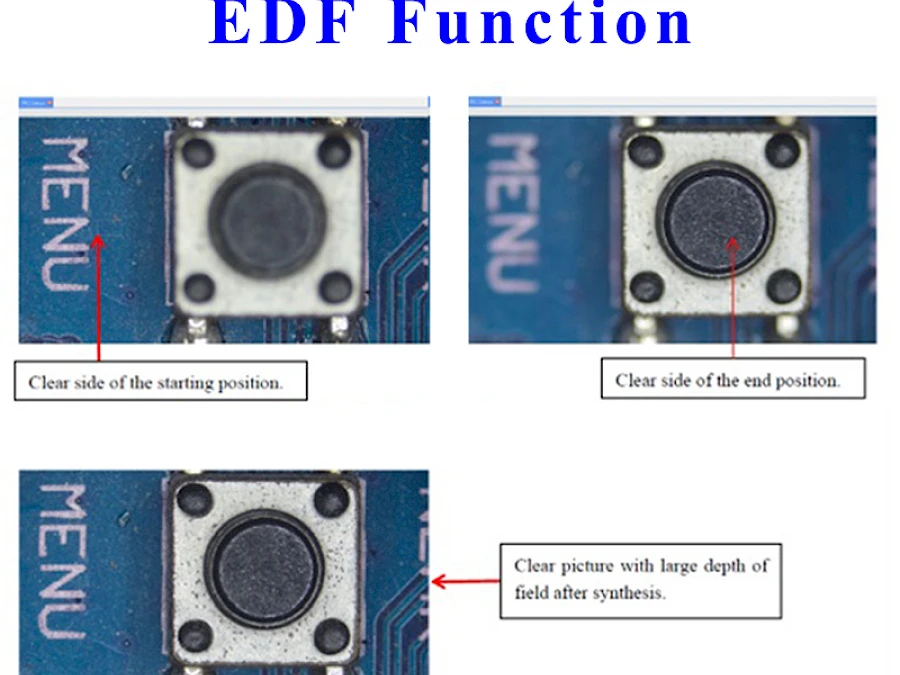

This function can replace the clear part of the image with different focal planes for the unclear part, thereby obtaining a clear picture with a large depth of field. During image fusion, the direction of the object to be measured cannot be moved to avoid misalignment after image synthesis.

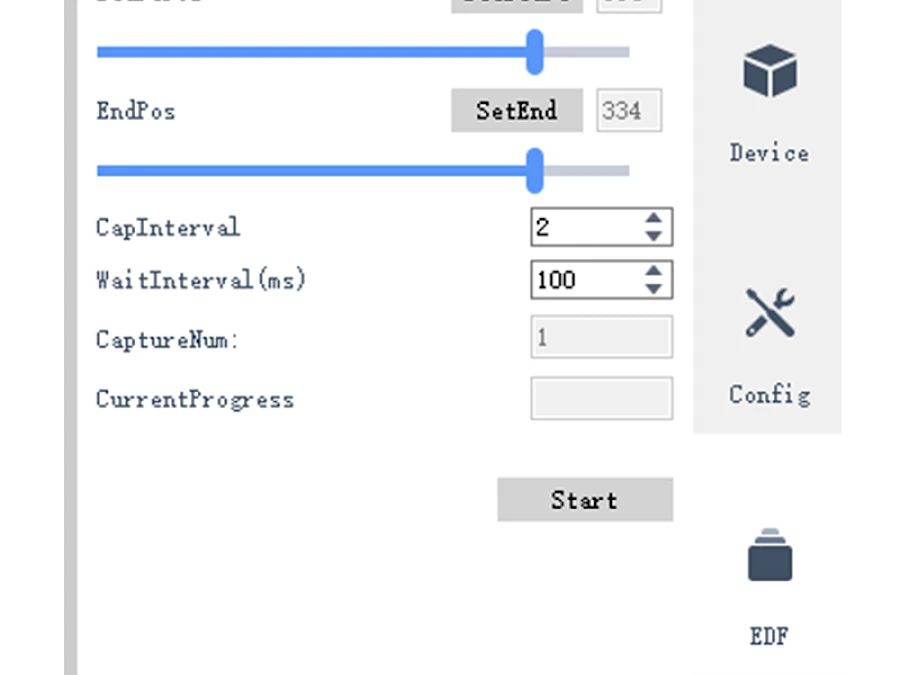

1. Click the "EDF" tool, click on different focal planes in the image display area to set the start position and end position respectively;

2. Set the capture interval, the larger the capture interval value, the less the number of snapshots;

3. Set the grab waiting interval, the unit is ms;

4. Click Start, and when the current progress value is consistent with the number of snapshots, the interface will display a picture. There is a hint when the synthesis is completed, and the depth of field synthesis is completed.

5. Save the synthesized picture: The synthesized picture is displayed on the screen, and then click the "Save" icon in the menu, specify the path and name, and click OK.

6. When operating the depth of field synthesis function, the focus mode will automatically switch to manual mode. The image display area shows the currently synthesized image.

Split Function

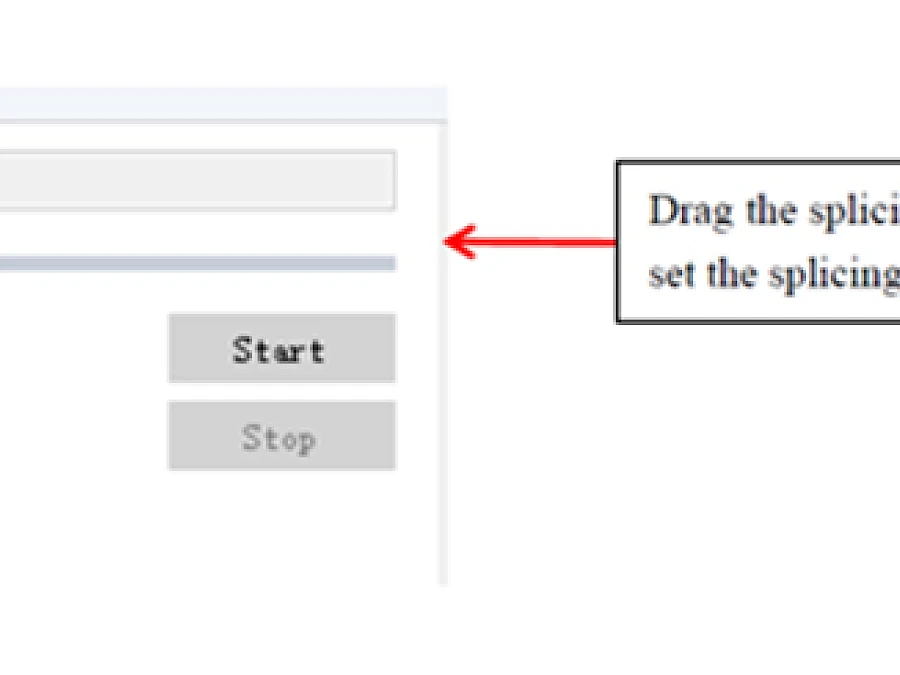

1.First set the white balance and exposure to manual exposure mode. Then adjust the brightness of the light source to adjust the exposure to an appropriate value to avoid overexposure during the splicing process.

2.Select stitching and adjust stitching speed. There are "fast, middle, slow" options for speed. Click ‘start’ to stitch the images, and the moving speed should be kept at a constant speed, not too fast, otherwise the composite image will be blurred. The direction of the image should basically keep moving in both horizontal and vertical directions, otherwise the effect will not be good. Finally click ‘stop’ to complete the image stitching.

Measuring Function

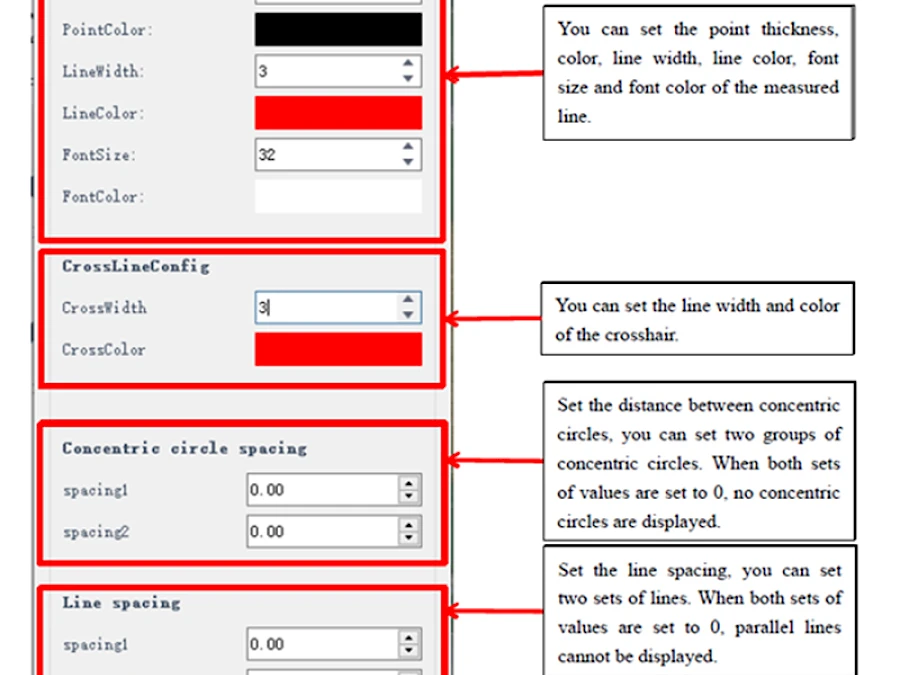

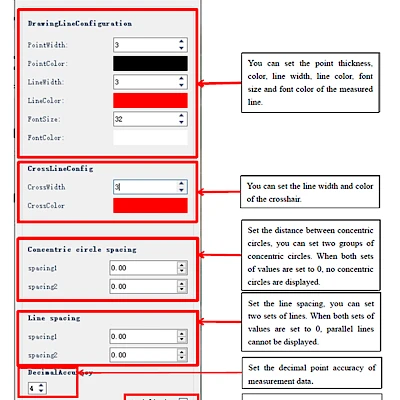

Click the measurement settings icon to set measurement-related options:

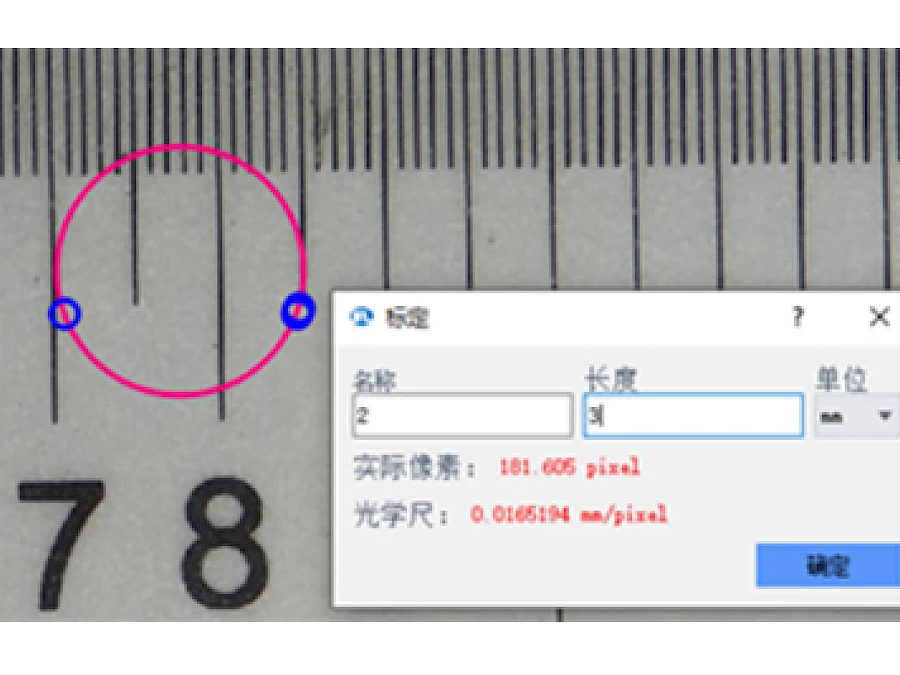

Calibration Function

1. Click the yellow triangle in the lower right corner of the calibration tool and select straight line calibration or circle calibration.

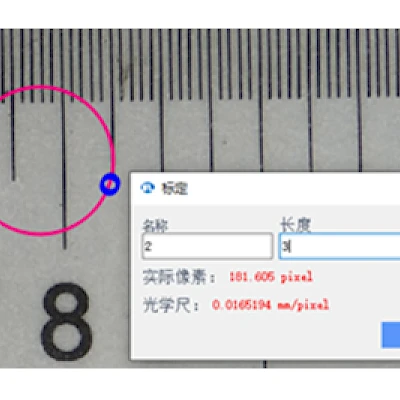

2. Activate the calibration tool in the toolbar, drag the marking line to align with the marking line of the calibration ruler.

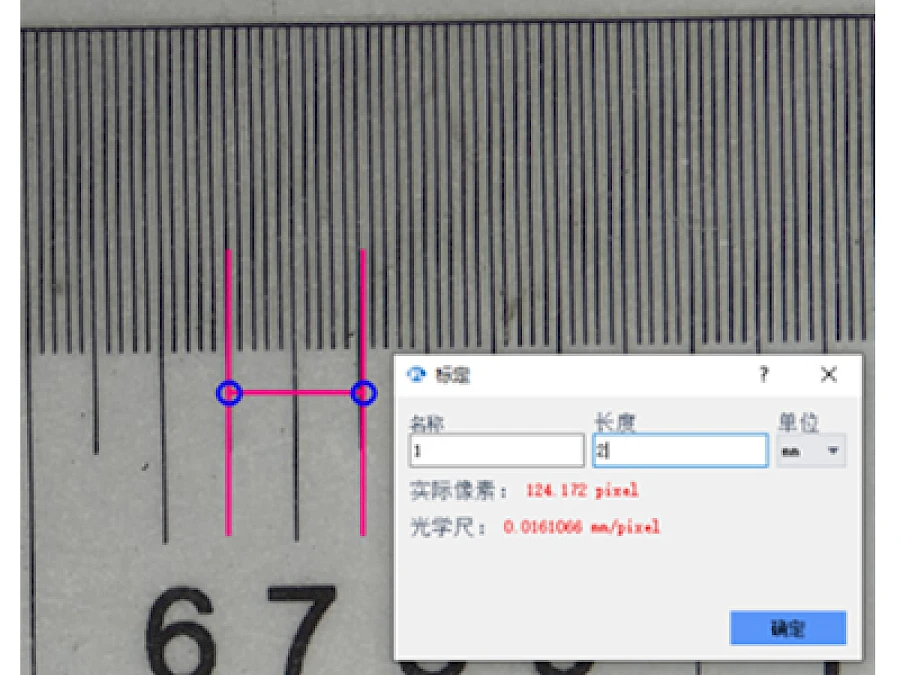

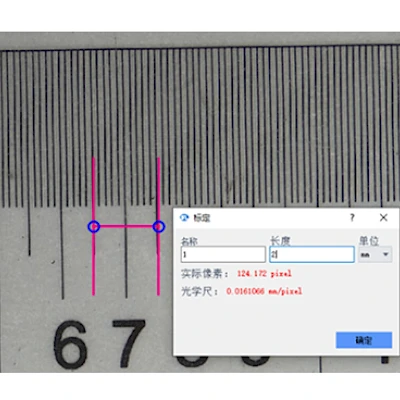

3. Enter the lens magnification value, the actual length between the engraved lines, and then select the unit to complete the calibration.

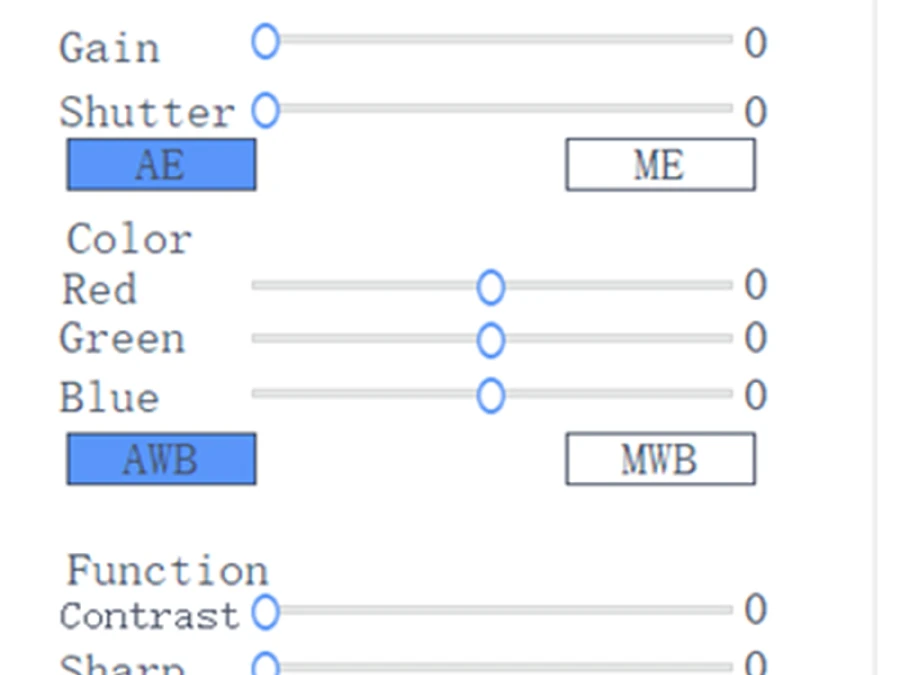

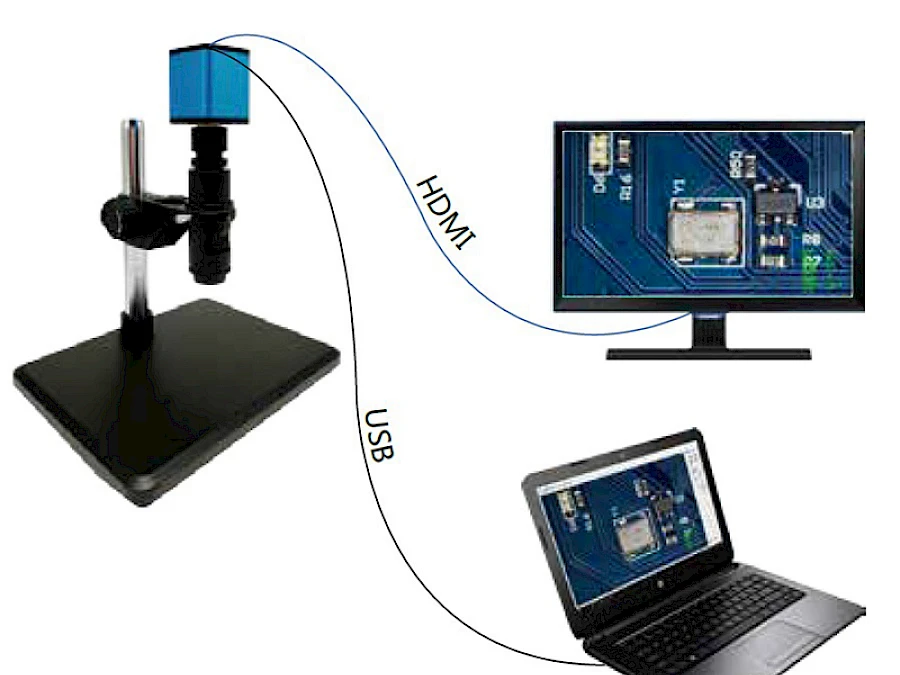

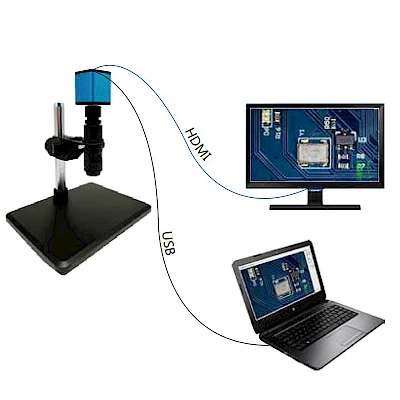

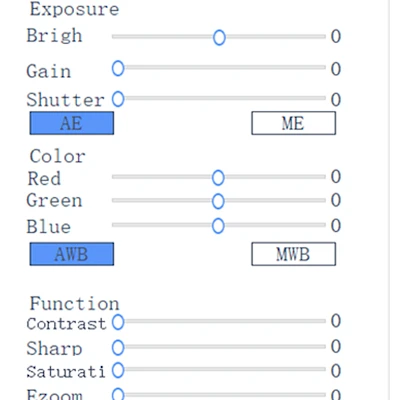

Connect the display screen with HDMI Output, to take pictures, record videos, measure, adjust exposure, white balance, reticle tools etc.
