MS5 50X~1000X USB/WIFI Digital Phone Microscope USB Digital Microscope

MS5

50X~1000X Mag., WIFI, USB multiple interfaces, Within 3 meters distance Wifi, 640x480, 1280*720, 1920*1080

Core Features

Magnification: 50X~1000X
WIFI, USB multiple interfaces
Built-in battery
Photo/Video key button
External LED supplementary light

Configurations

Optical Size

1/6.5"

640x480, 1280*720

1920*1080

Focus Range

10~40mm

2.5V/lux.s

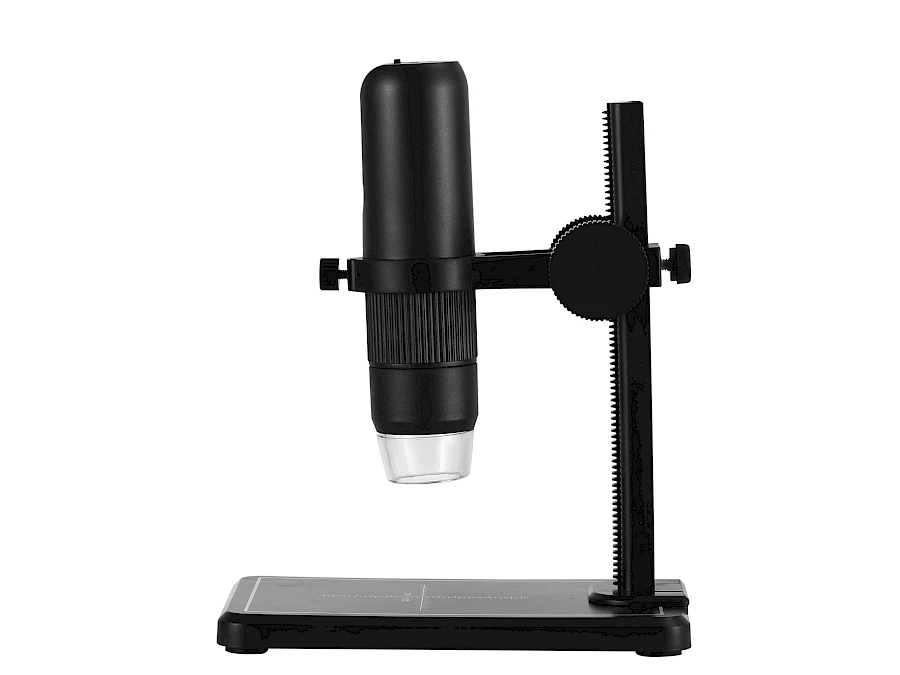

MS5 is a portable digital microscope which has multiple interfaces: WIFI and USB. It also can be connected to phone, pad, Laptop and PC, showing the images directly without using your eyes. It is easy to photo and video through the app and save images.

MS5 has complete functions, clear imaging, exquisite workmanship, built-in battery, computer connection, small in size and portable, support for up to 12 languages, etc.

This portable digital microscope can be used widely in various fields: electronic circuit board testing, industrial testing, textile testing, clock and mobile phone maintenance, skin inspection, scalp inspection, printing inspection, teaching and research tools, precision object amplification measurement, reading help, hobby research, etc.

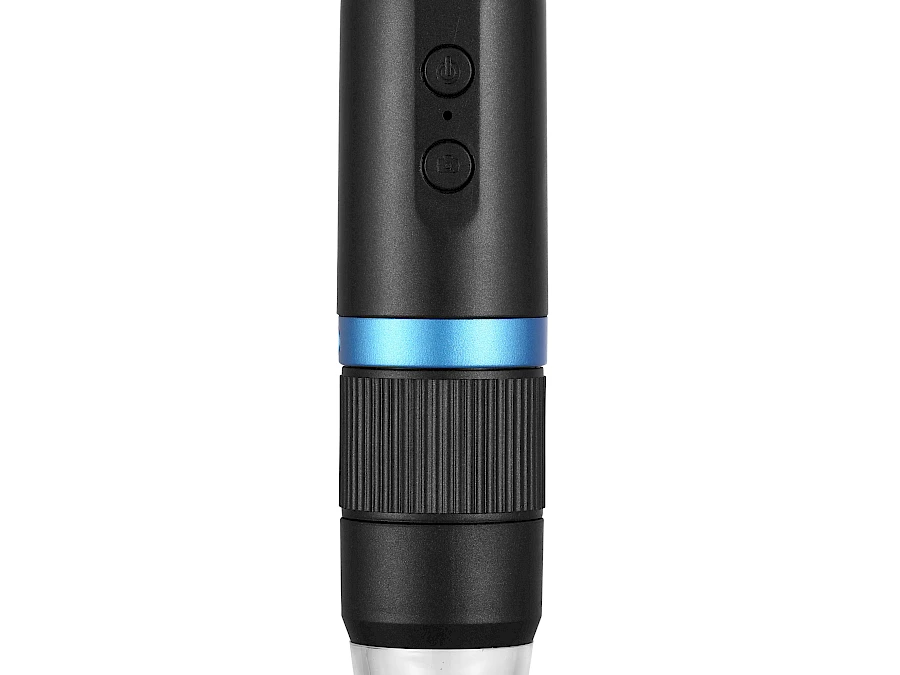

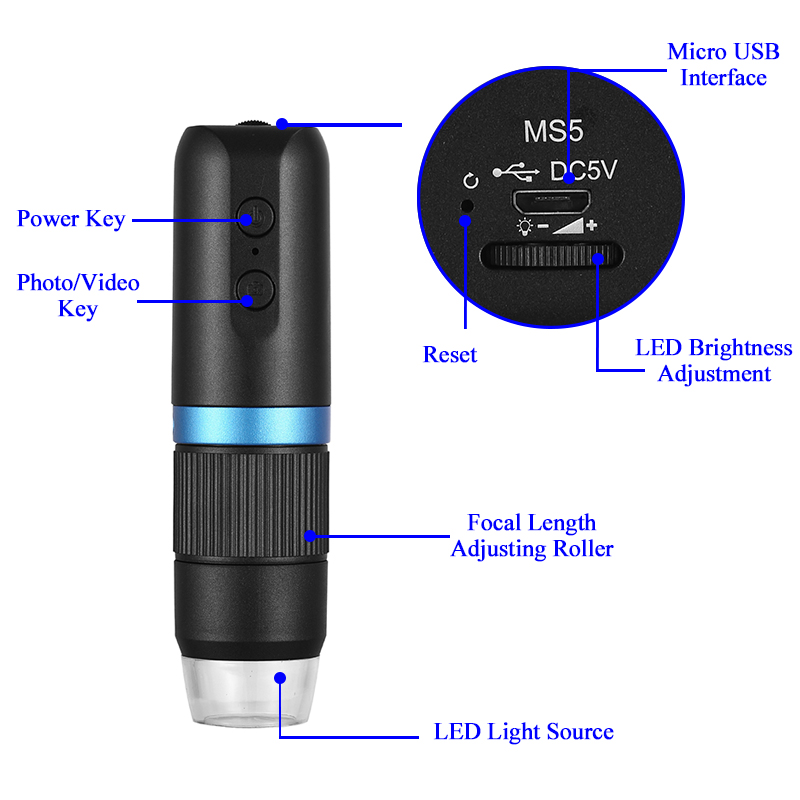

Structure of MS5 Digital Microscope

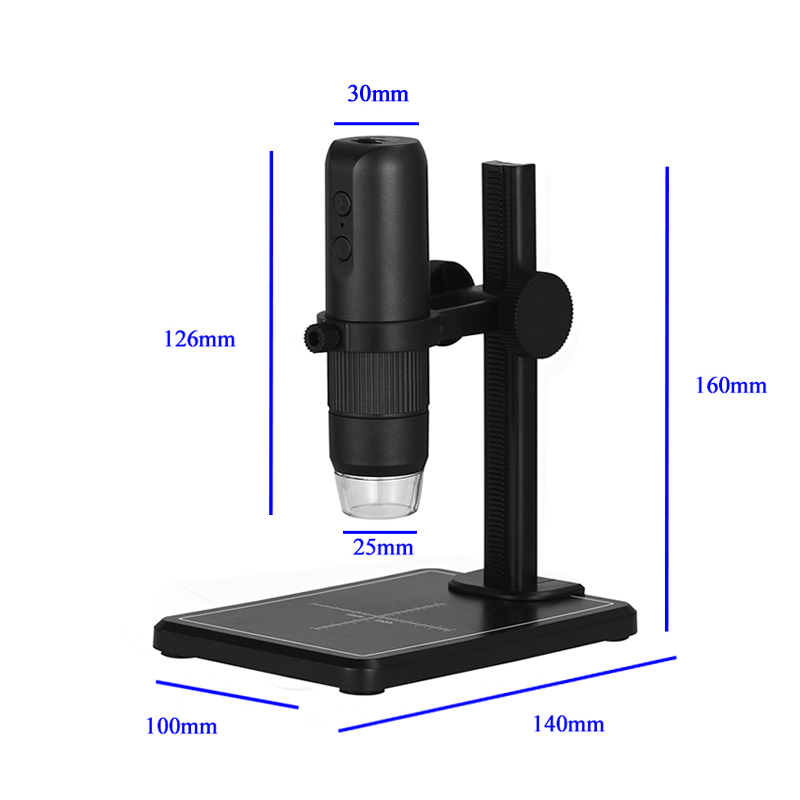

Size of MS5 Digital Microscope

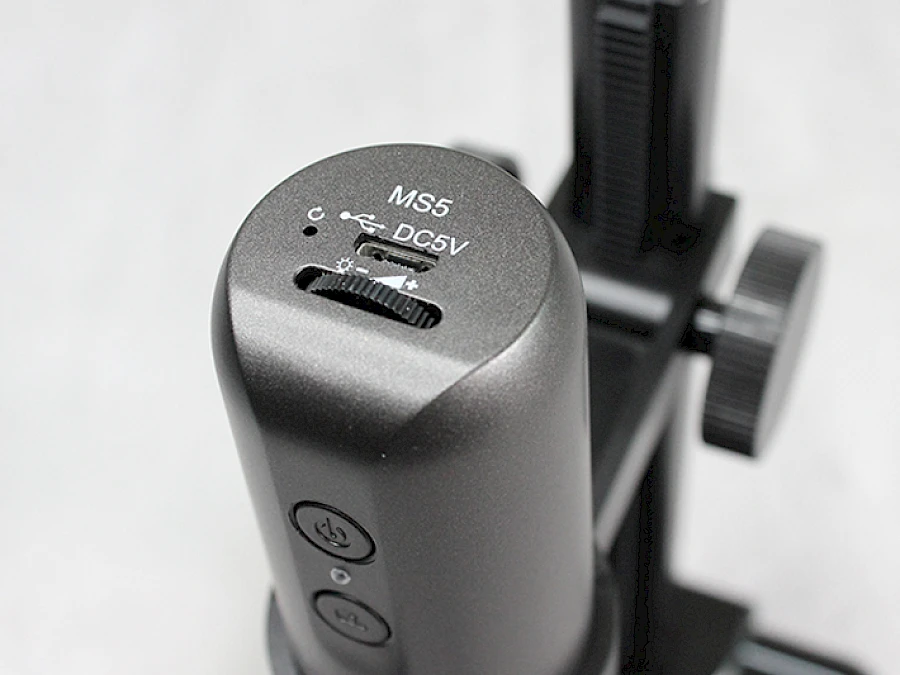

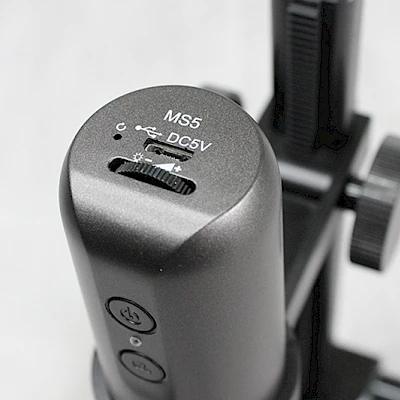

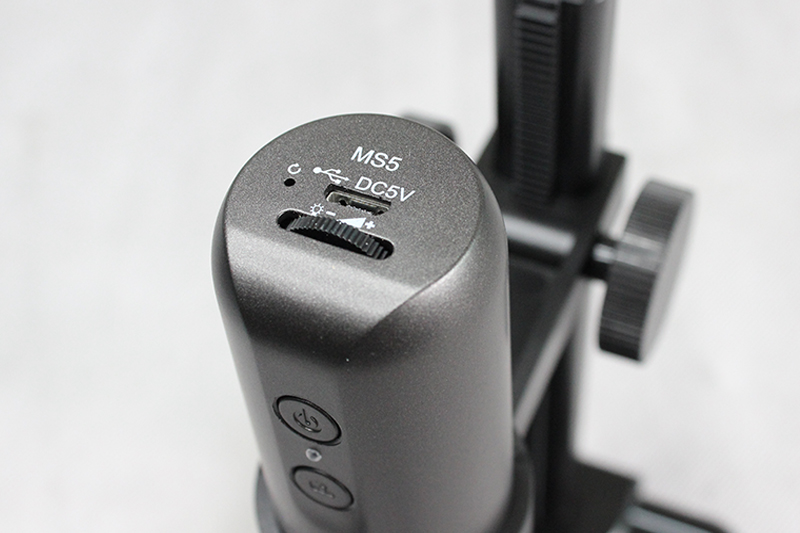

Top Functions of MS5

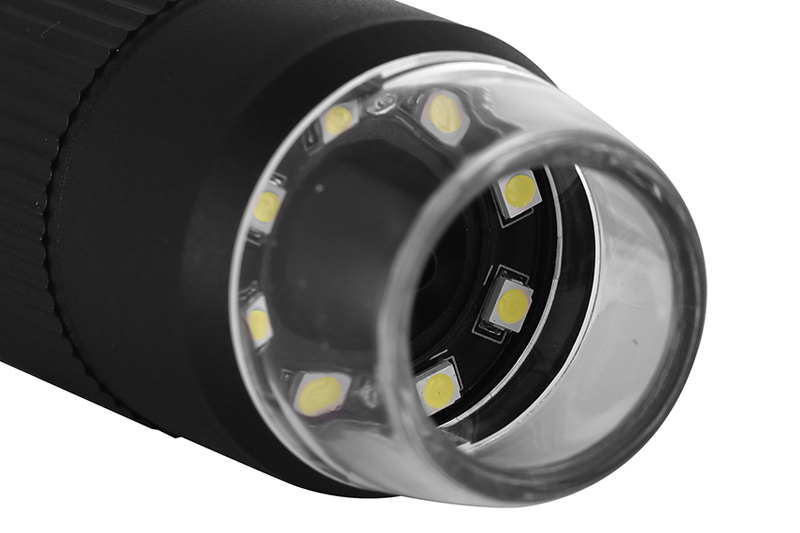

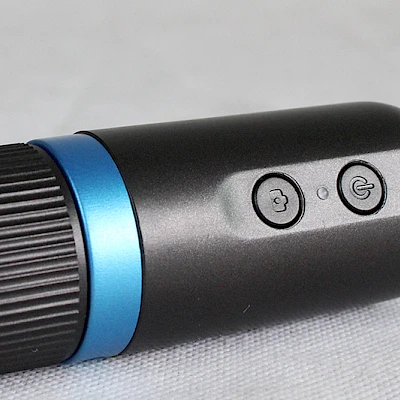

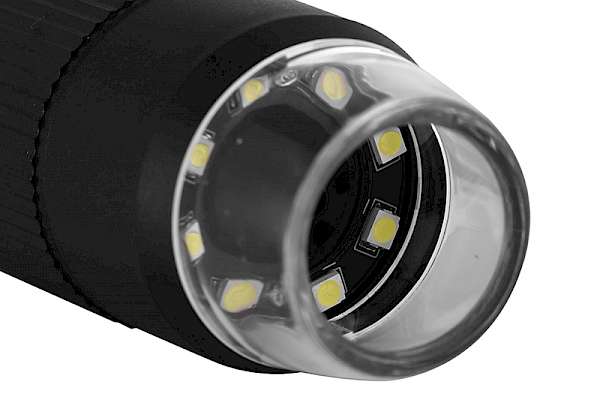

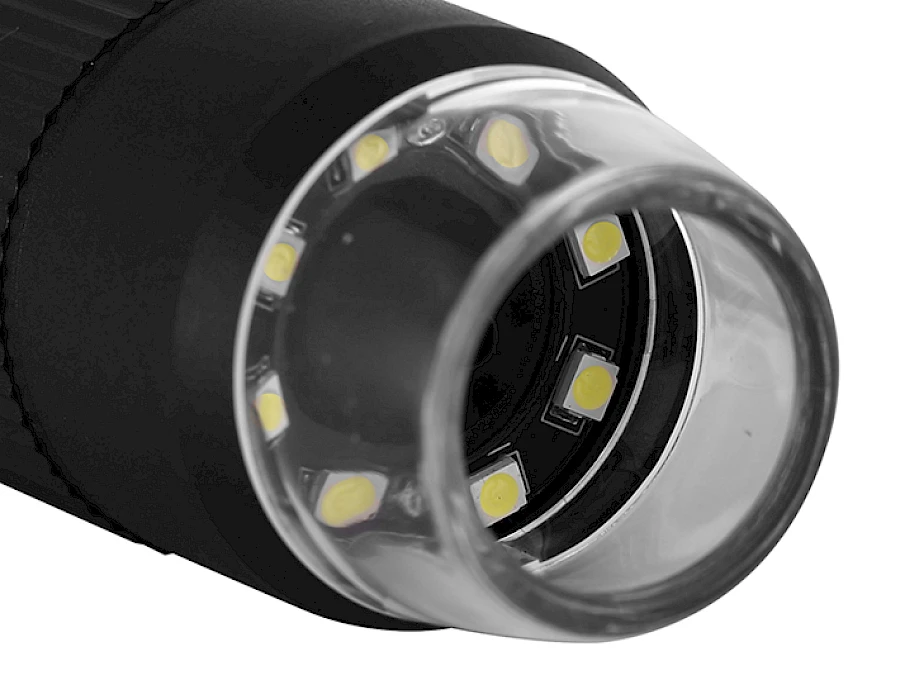

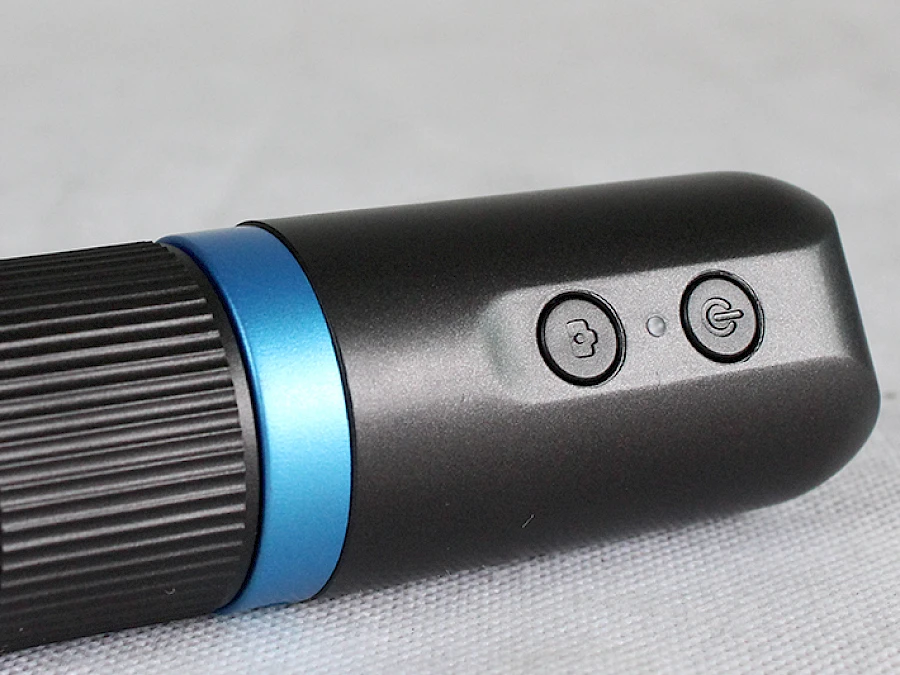

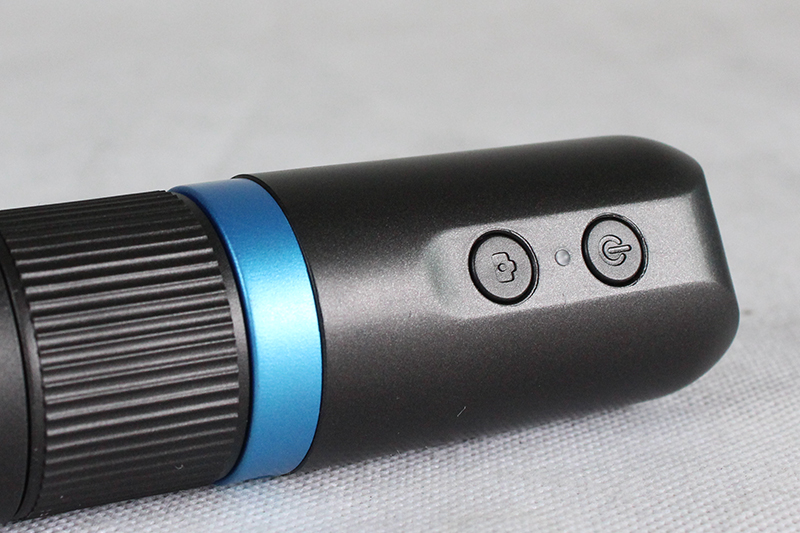

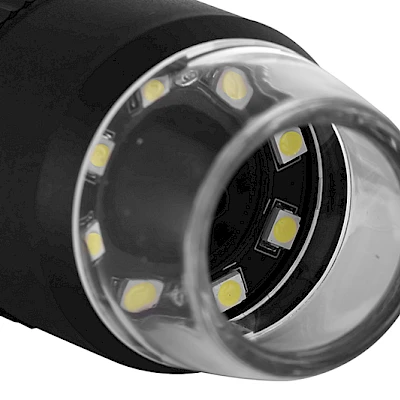

Key Button & LED Light Source of MS5

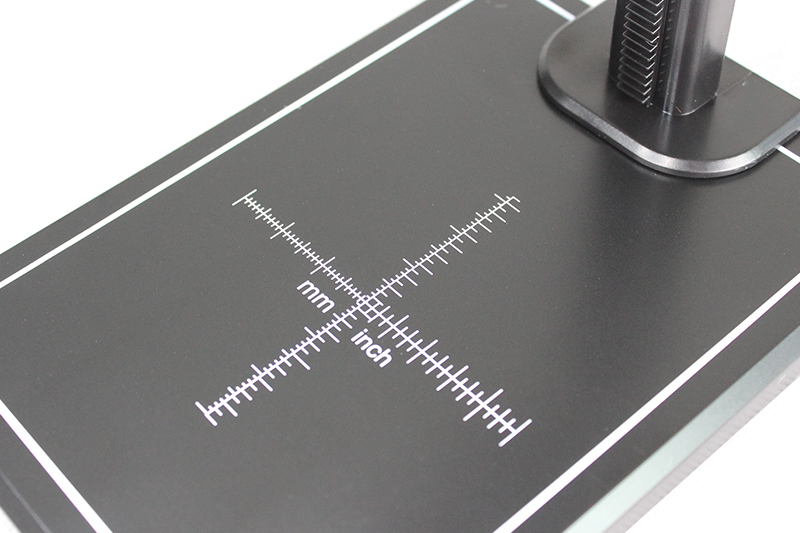

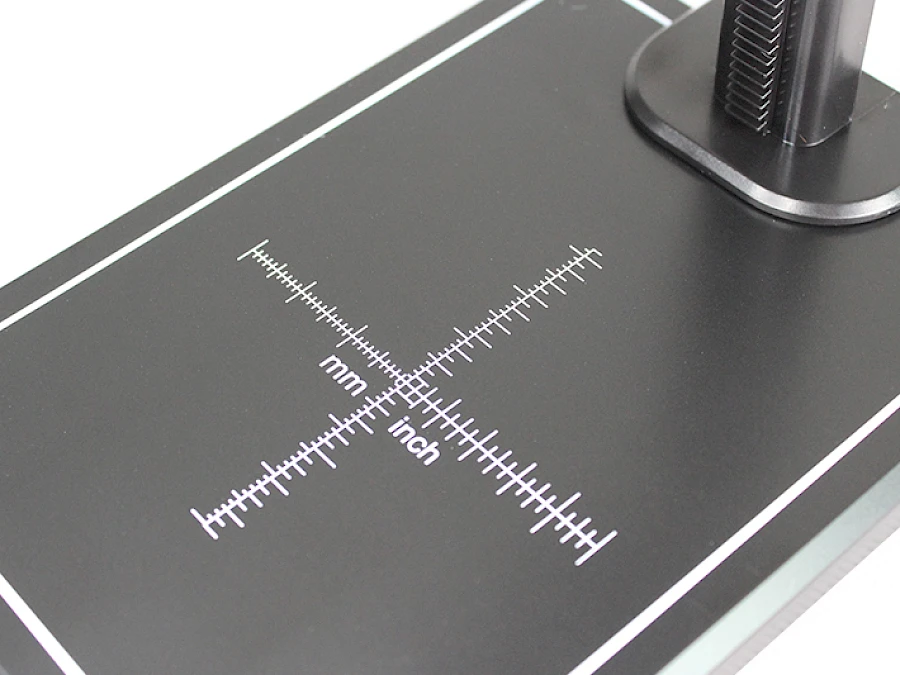

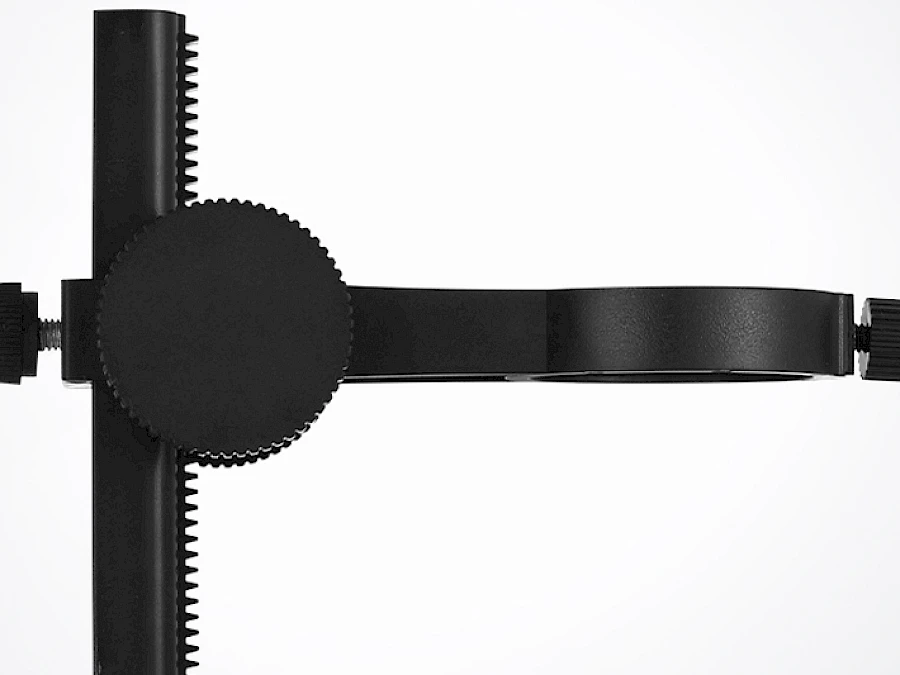

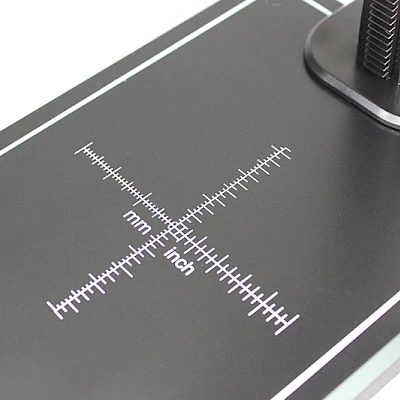

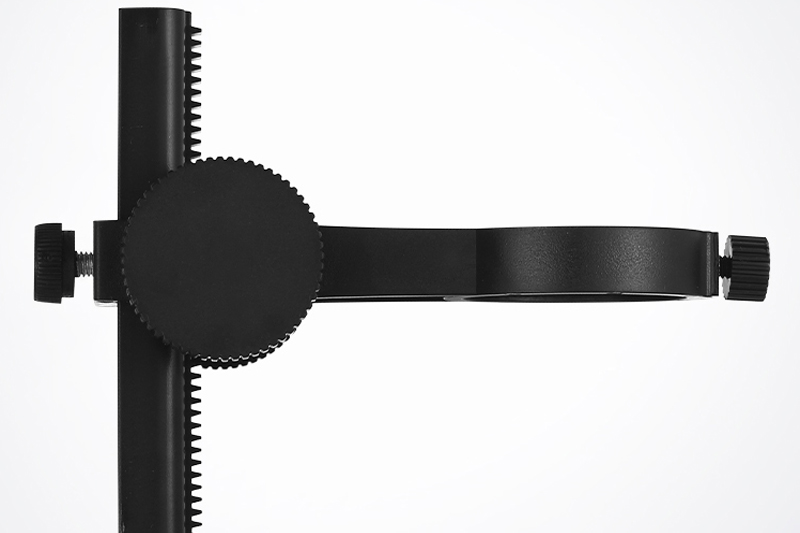

Focal Length Adjusting Roller & Specimen Base of MS5

Specification for MS5
Item	Parameters
Product name	MS5 digital microscope
Optical dimension of lens	1/6.5"
Signal-to-noise ratio	42dB
Sensitivity	2.5V/lux.s
Photographic resolution	640x480, 1280720, 19201080
Video resolution	640x480, 1280720, 19201080
Video format	mov
Picture format	JPG
Focus mode	Manual
Magnification factor	50X-1000X
Light source	8 LEDs (adjustable brightness)
Focusing range	10 ~ 40mm (long-range view)
White balance	Automatic
Exposure	Automatic
PC operating system	Windows xp, win7, win8, win10, Mac OS x 10.5 or higher
WiFi distance	Within 3 meters
Lens structure	2G + IR
Aperture	F4.5
Lens angle of view	16°
Interface and signal transmission mode	Micro/usb2.0
Storage temperature/humidity	-20°C - +60°C 10-80% RH
Operating temperature/humidity	0°C - +50°C 30% ~ 85% Rh
Operating current	~ 250 mA
Power consumption	1.25 W
APP working environment	Android 5.0 and above, ios 8.0 and above
WIFI implementation standard	2.4 Ghz (IEEE 802.11 b/g/n)

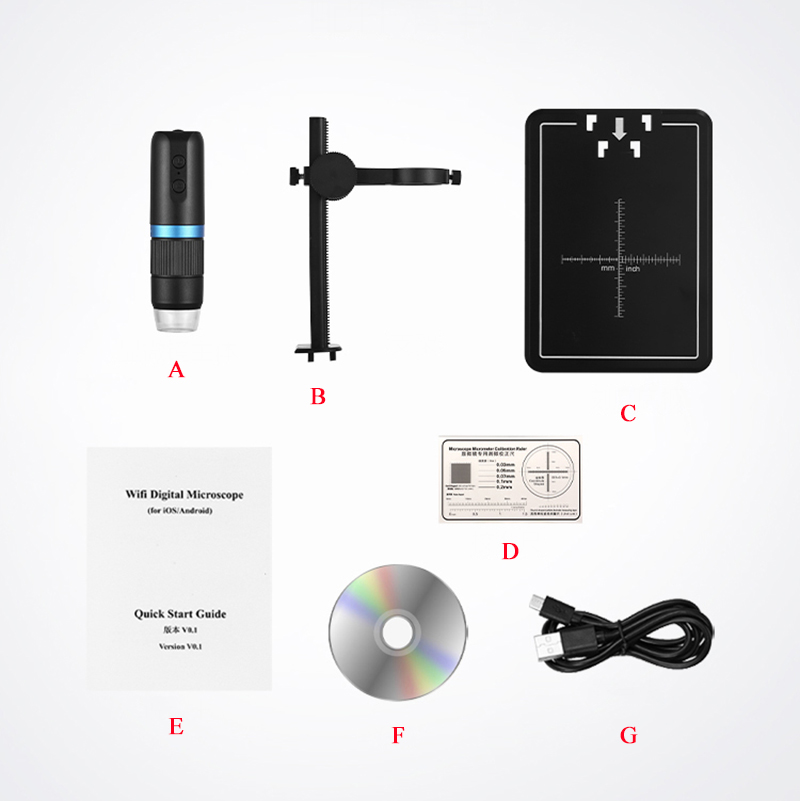

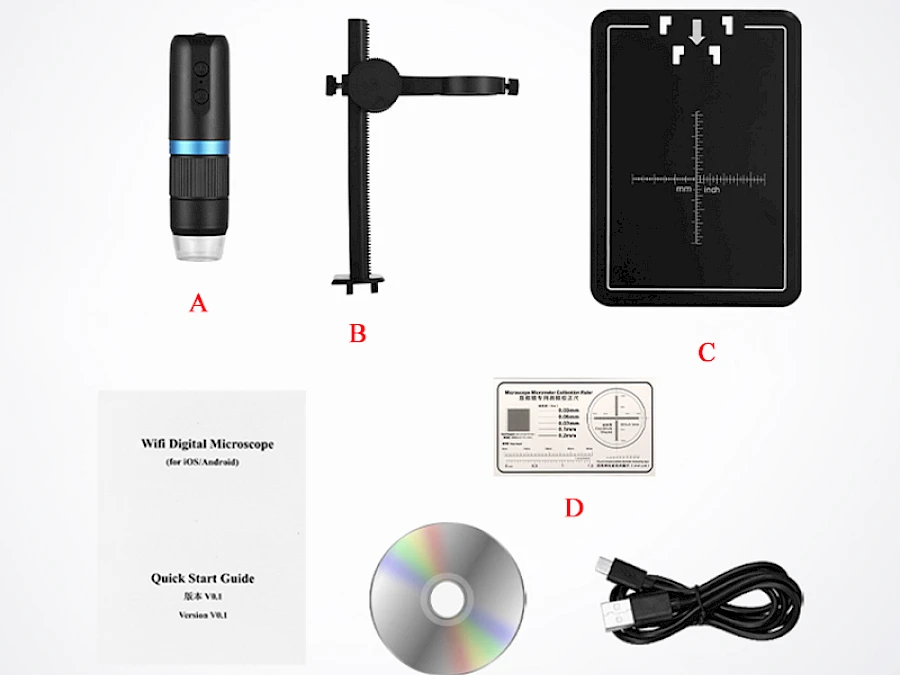

Standard Packing List
No.	Project Name	Quantity
A	Microscope Main Body	1
B	Main Body Bracket	1
C	Base Stand	1
D	Calibration	1
E	Operation Manual	1
F	CD Drive	1
G	Power Cord	1
H	Box	1
