MS2

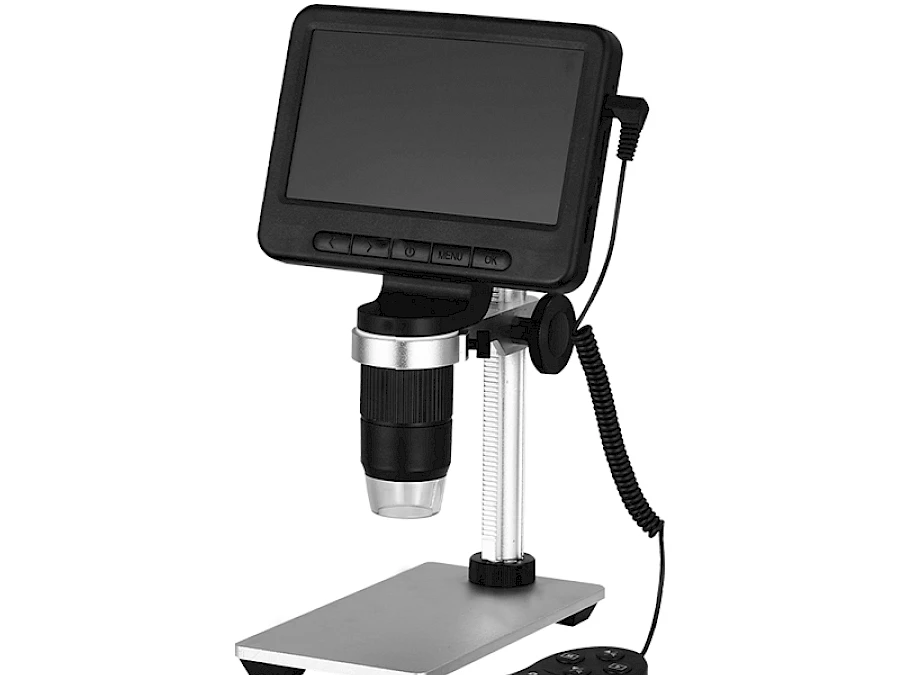

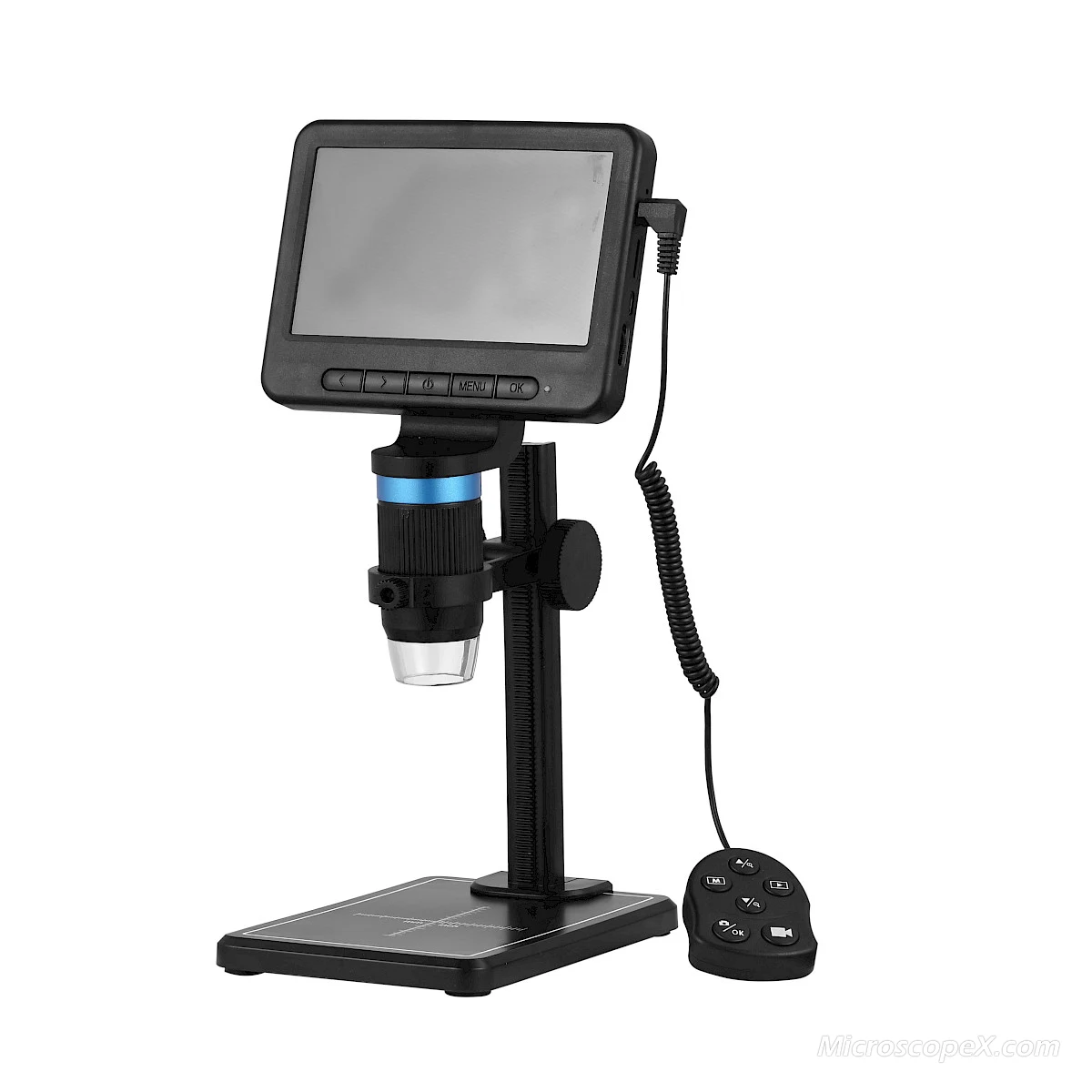

MS2 1000X 5inch 1080P HD LCD Wireless WIFI USB Digital Microscope for Testing and Inspection

1000X Mag., WIFI,USB multiple interfaces, 5inch HD LCD Display, External Wire Control

Core Features

Magnification: 1000X
External Wire Control
5inch HD LCD display screen
WIFI, USB multiple interfaces
Support Charging while using
External LED supplementary light

Configurations

Optical Size

1/4"

Resolution

1920*1080

Focus Range

10~40mm

Micro

usb2.0

Request Quotation Email Phone Back to Products

MS2 is a smart microscope which has multiple interfaces: WIFI and USB. It also can be connected to phone, pad, Laptop and PC, showing the images directly without using your eyes. It is easy to photo and video through the app and save images.

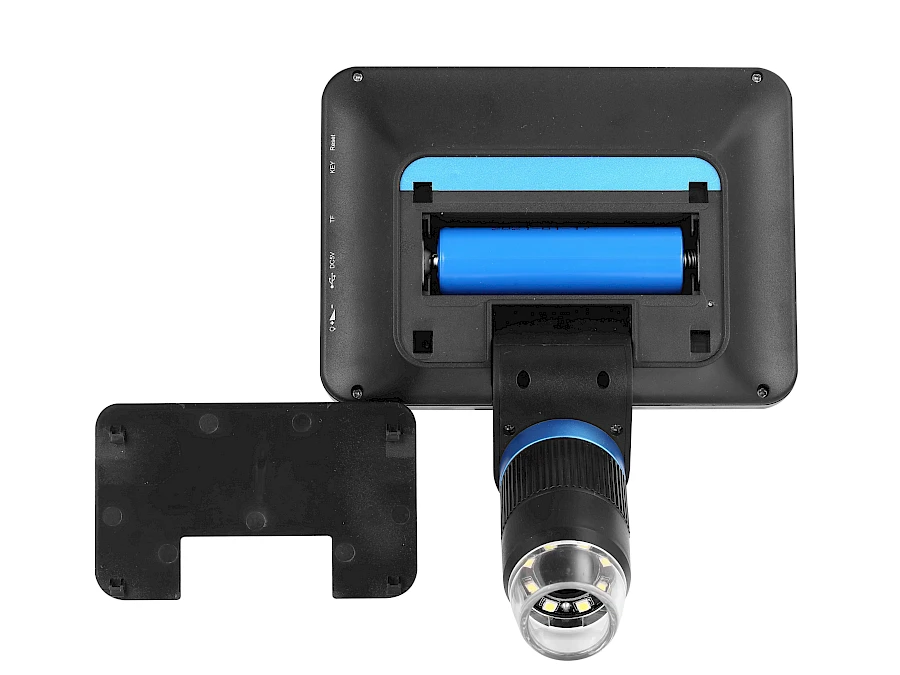

MS2 not only has sharp and clear images, but also convenient to take because of its detachability. It has complete functions, clear imaging, exquisite workmanship, large 5inch screen display, external wire control, convenient operation, external LED supplementary light, 18650 battery replacement, computer connection, support for up to 9 languages, etc.

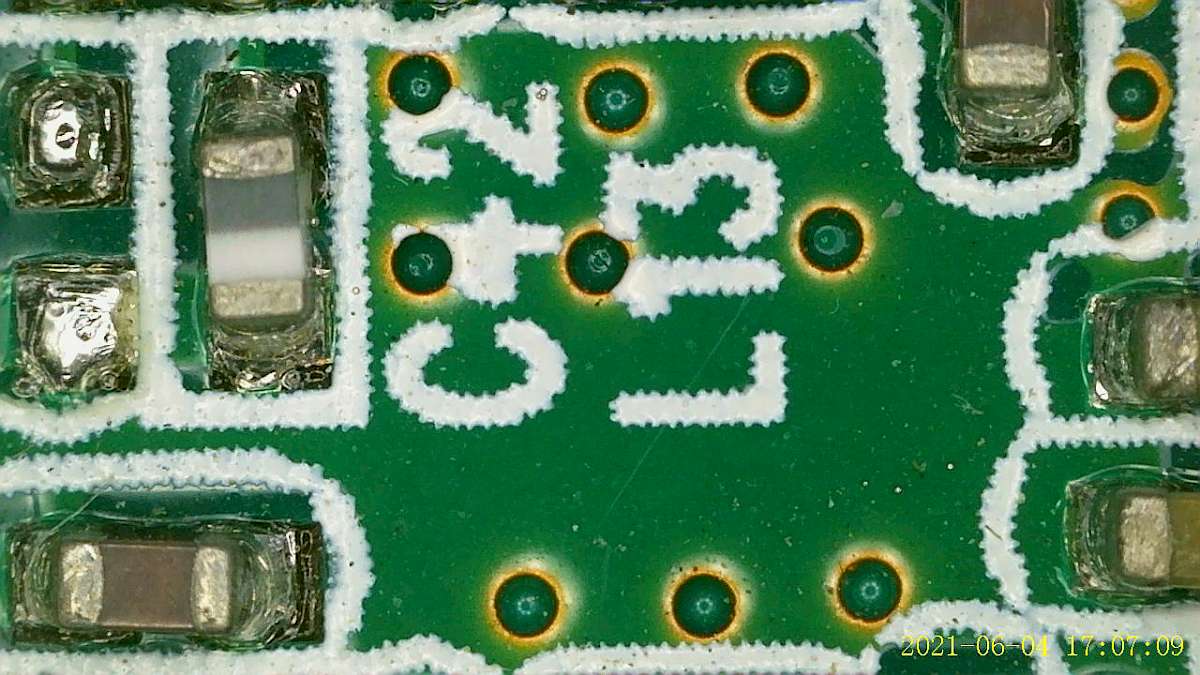

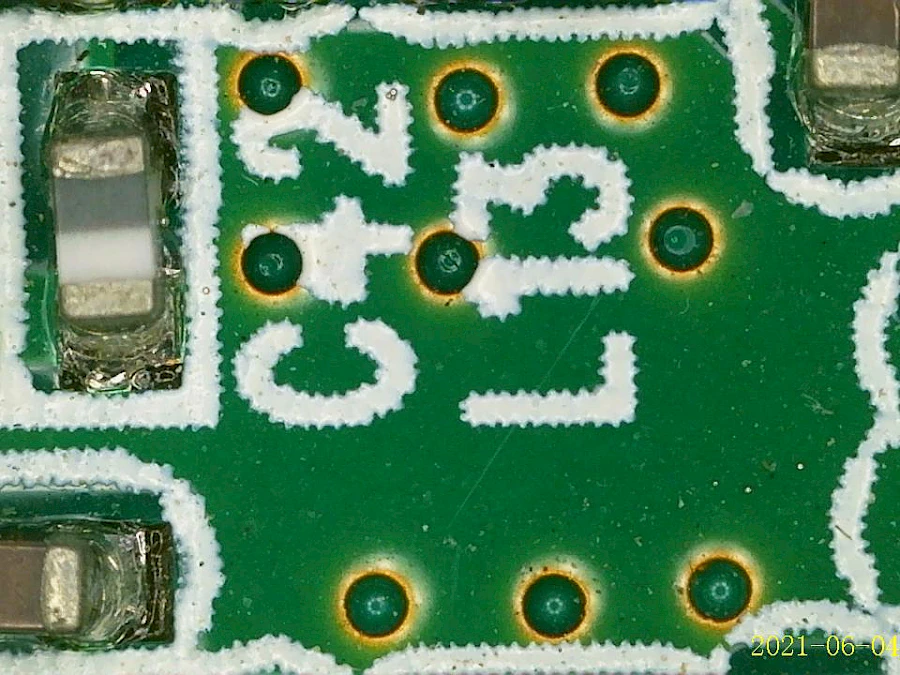

This smart microscope can be used widely in various fields: electronic circuit board testing, industrial testing, textile testing, clock and mobile phone maintenance, skin inspection, scalp inspection, printing inspection, teaching and research tools, precision object amplification measurement, reading help, hobby research, etc.

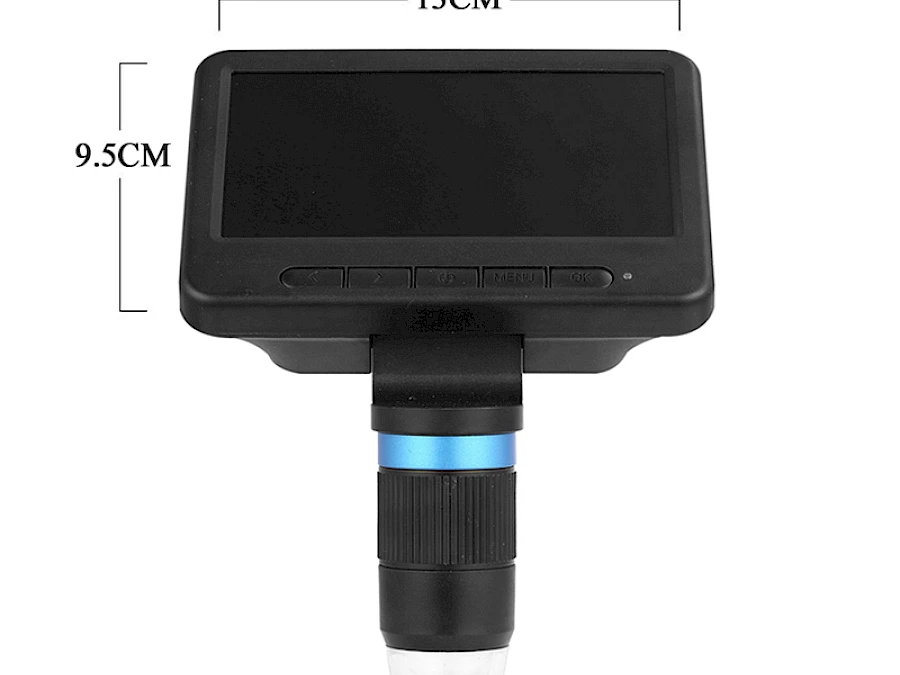

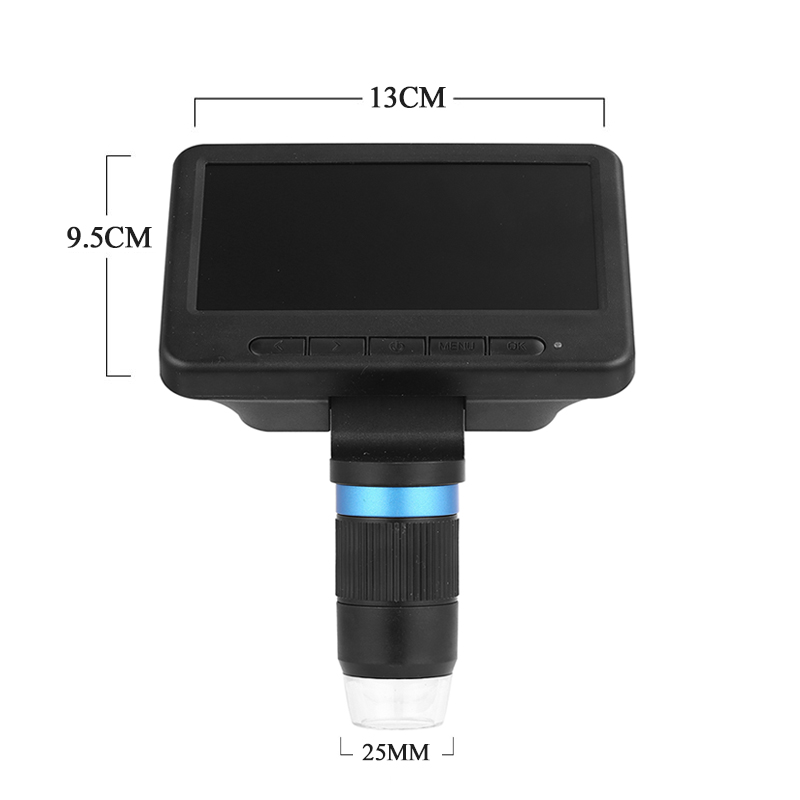

Size of MS2 Digital Microscope

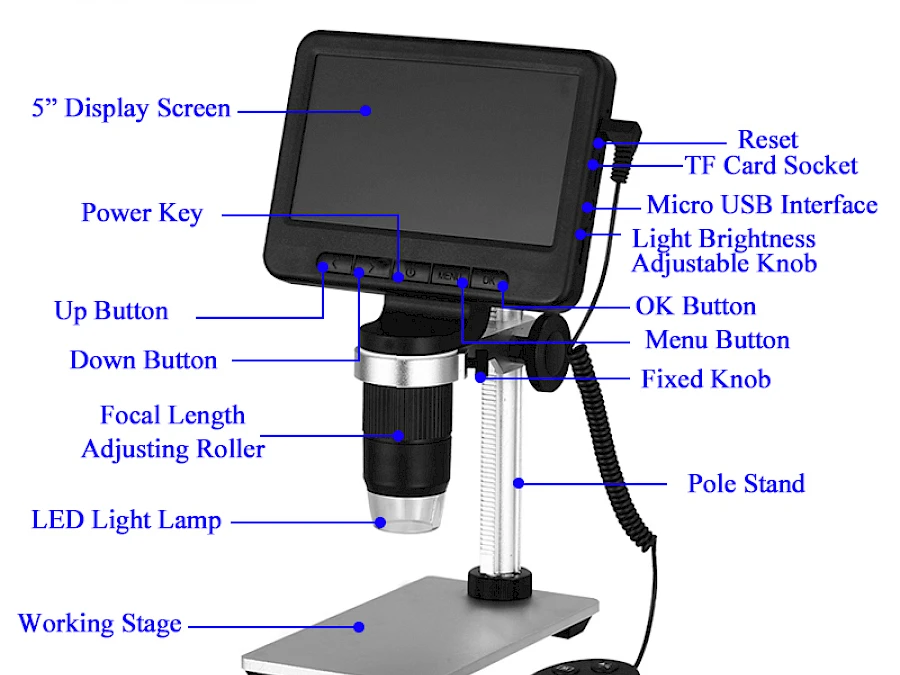

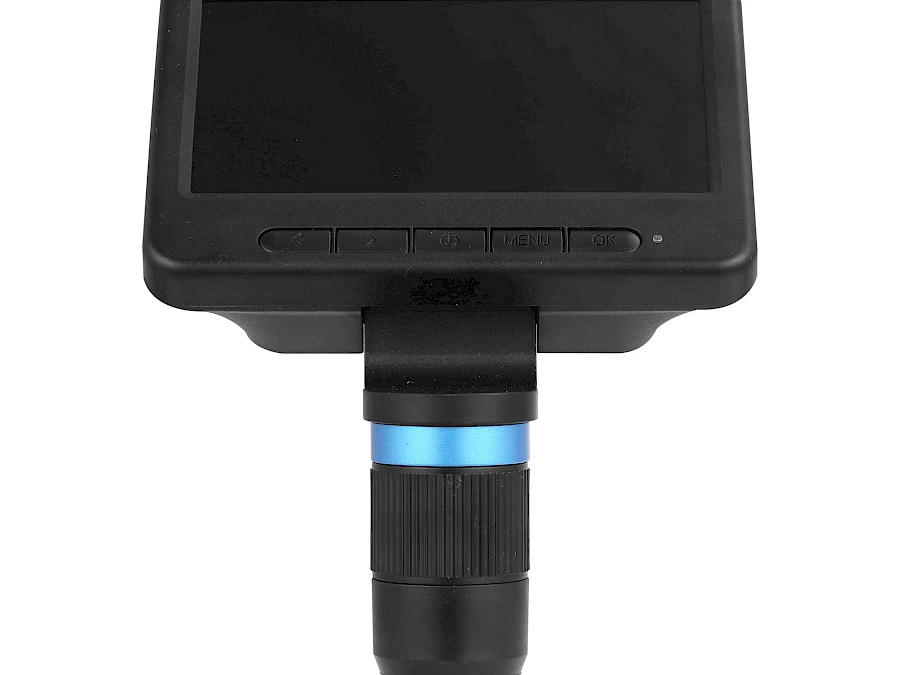

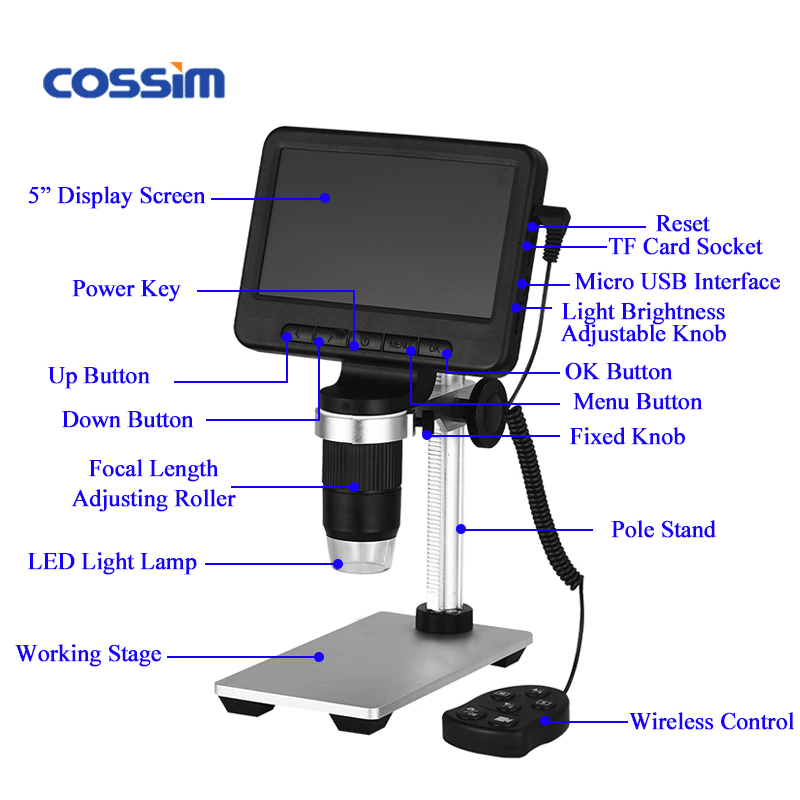

Structure of MS2 Digital Microscope

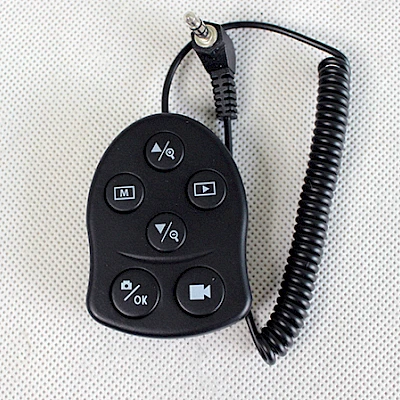

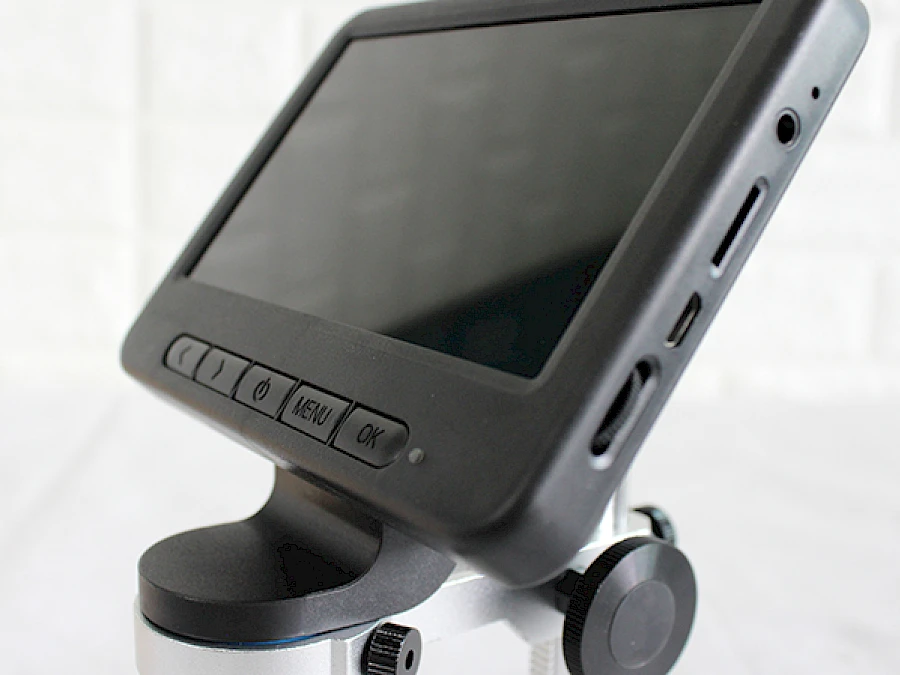

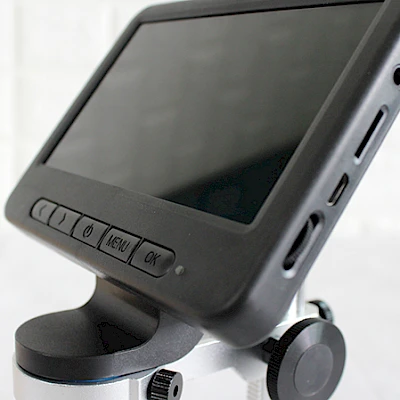

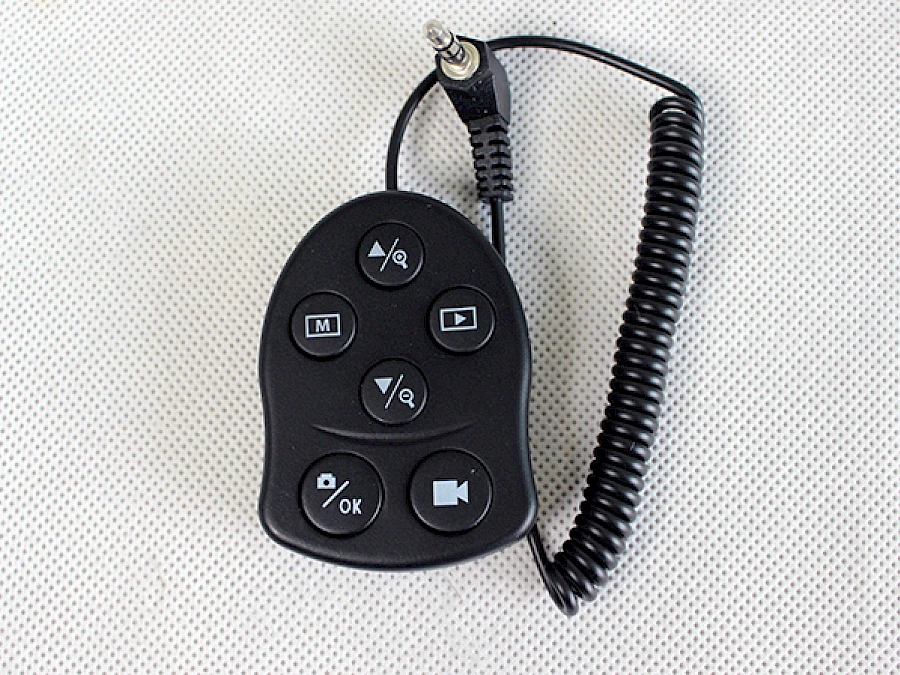

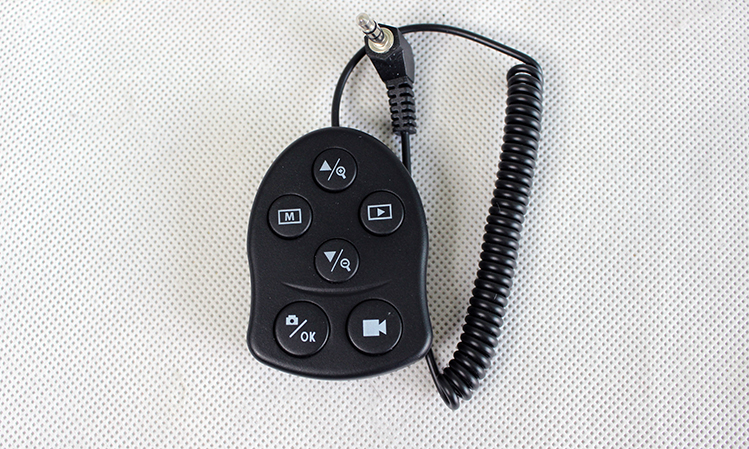

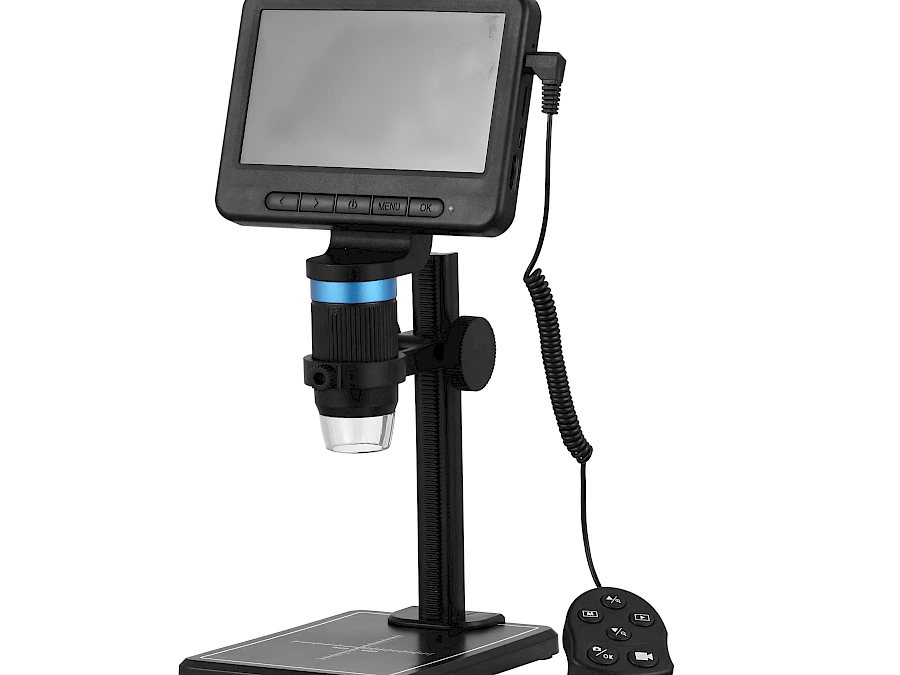

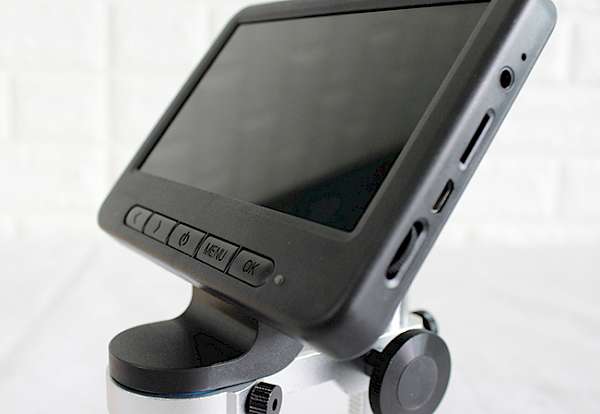

Multi-interfaces & Remote Control of MS2

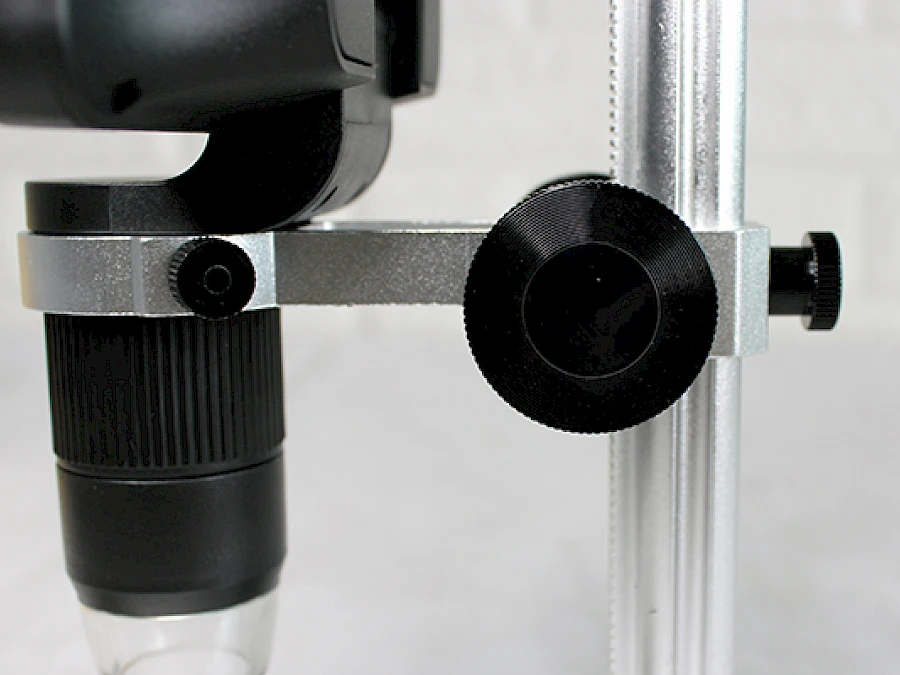

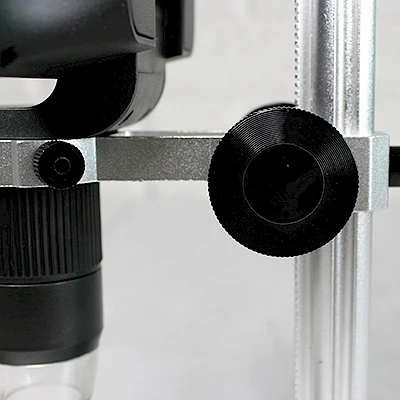

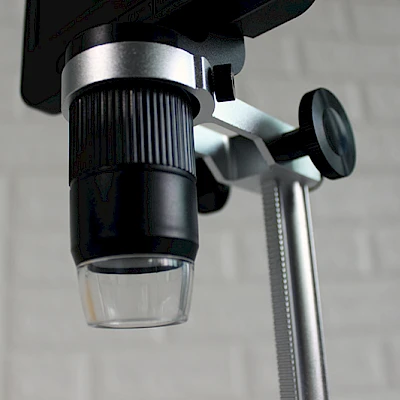

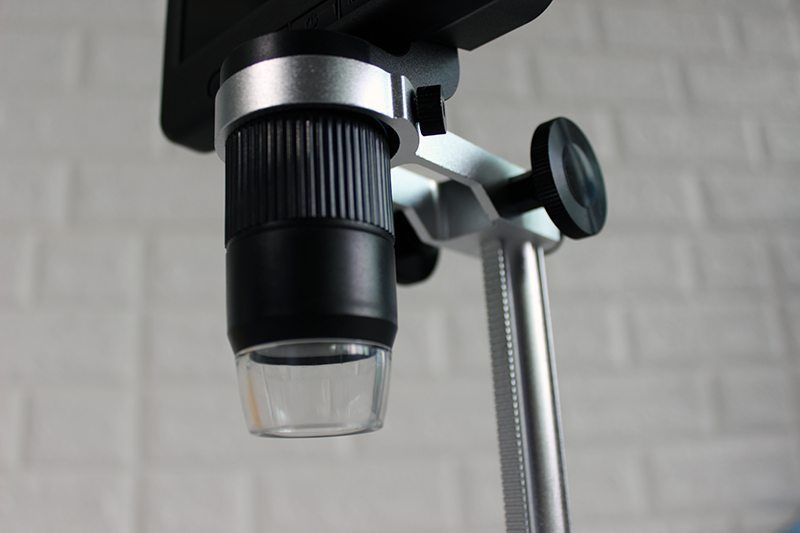

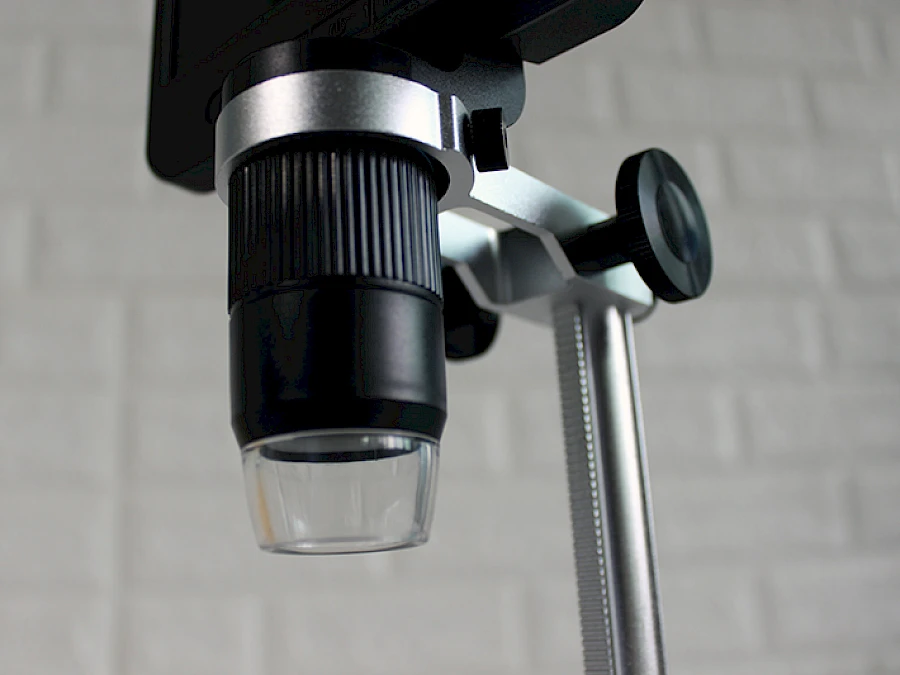

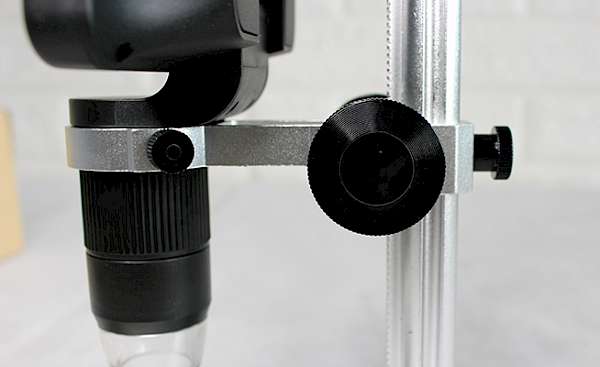

Focusing Knob & LED Light Lamp of MS2

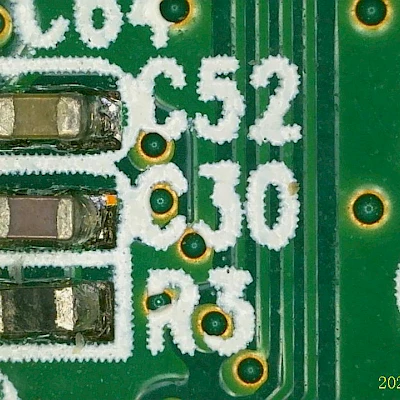

Applications of MS2 Digital Microscope

Specification for MS2
Maximum pixels of video	1920*1080
Optical dimension of lens	1/4"
Photographic resolution	3M (20481536), 2M (19201080), 1M (1280*720)
Video resolution	VGA 720P 1080FHD
Video format	MOV
Focus mode	Manual
Picture format	JPG
Magnification factor	500/1000
Digital zoom	Support
Light source	8 LEDs (adjustable brightness)
Focusing range	10 ~ 40mm (long-range view)
PC resolution and image transmission rate	1280* 720/36 fps
White balance	Automatic
Exposure	Automatic
PC operating system	Windows XP, win7, win8.1, win10, Mac OSX 10.5 or higher
Supported languages	Simplified Chinese, Traditional Chinese, Japanese, English, Korean, French, German, Italian, Polish, Russian
Lens structure	2G + IR
Aperture	F4.5
Lens angle of view	16°
Interface and signal transmission mode	Micro/usb2.0
Operating temperature	-20 °C ~ + 60 °C
Working humidity	30% ~ 85% Rh
Operating current	470mA
Power consumption	2.35 W
APP working environment	Android 5.0 and above, ios8.0 and above
WIFI implementation standard	IEEE 802.11 b/g/n
Charging and discharging time	4H

Packing of MS2 Digital Microscope

Standard Packing List
No.	Project Name	Quantity
A	Microscope Main Body	1
B	Main Body Bracket	1
C	Base Stand	1
D	Power Cord	1
E	Calibration	1
F	Box	1
G	CD Drive	1
H	Wireless Control	1
I	Operation Manual	1
