DM-10

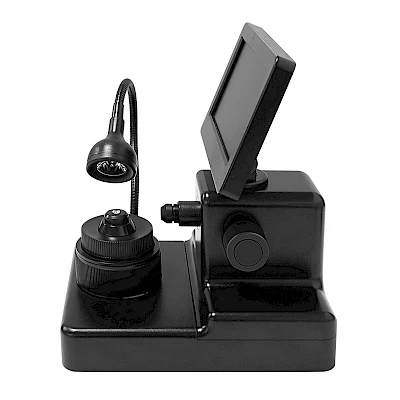

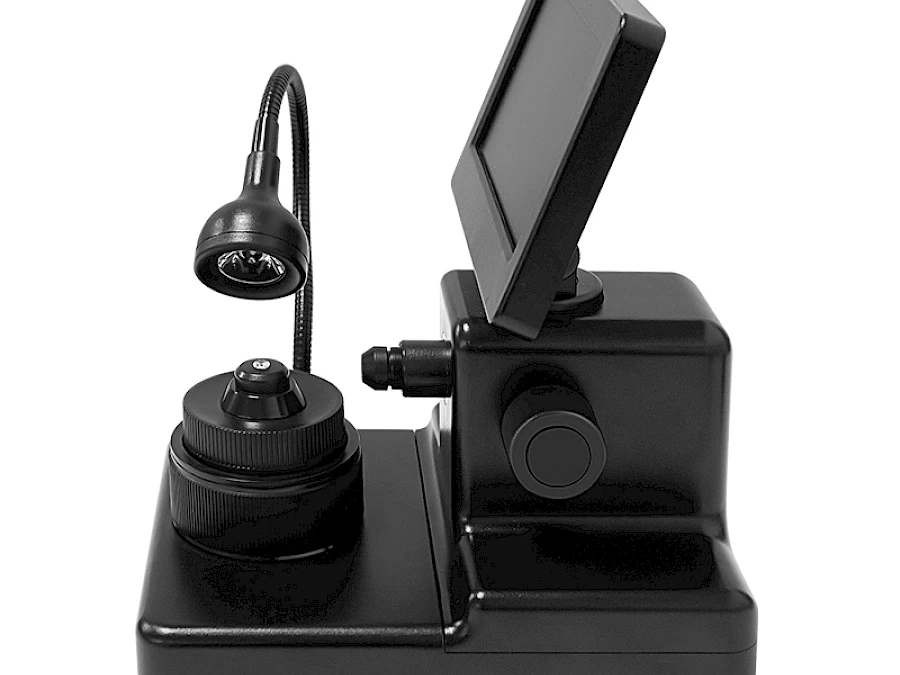

DM-10 50X~1000X 4.3inch HD Digital Diamond Gem Microscope with Rechargeable Battery

4.3inch LCD Screen, LED Light Source, Gem Digital Microscope, Jewelry Appraisal & Diamond Inspection

Core Features

50X~1000X Magnification
4.3inch LCD screen, which is convenient to observe more
1000X Magnified, offer more clarity imaging
USB2.0 interface output

Configurations

1280*720

640*480

Focus Range

10~40mm

USB2.0 Interface

ABS + Glass

Request Quotation Email Phone Back to Products

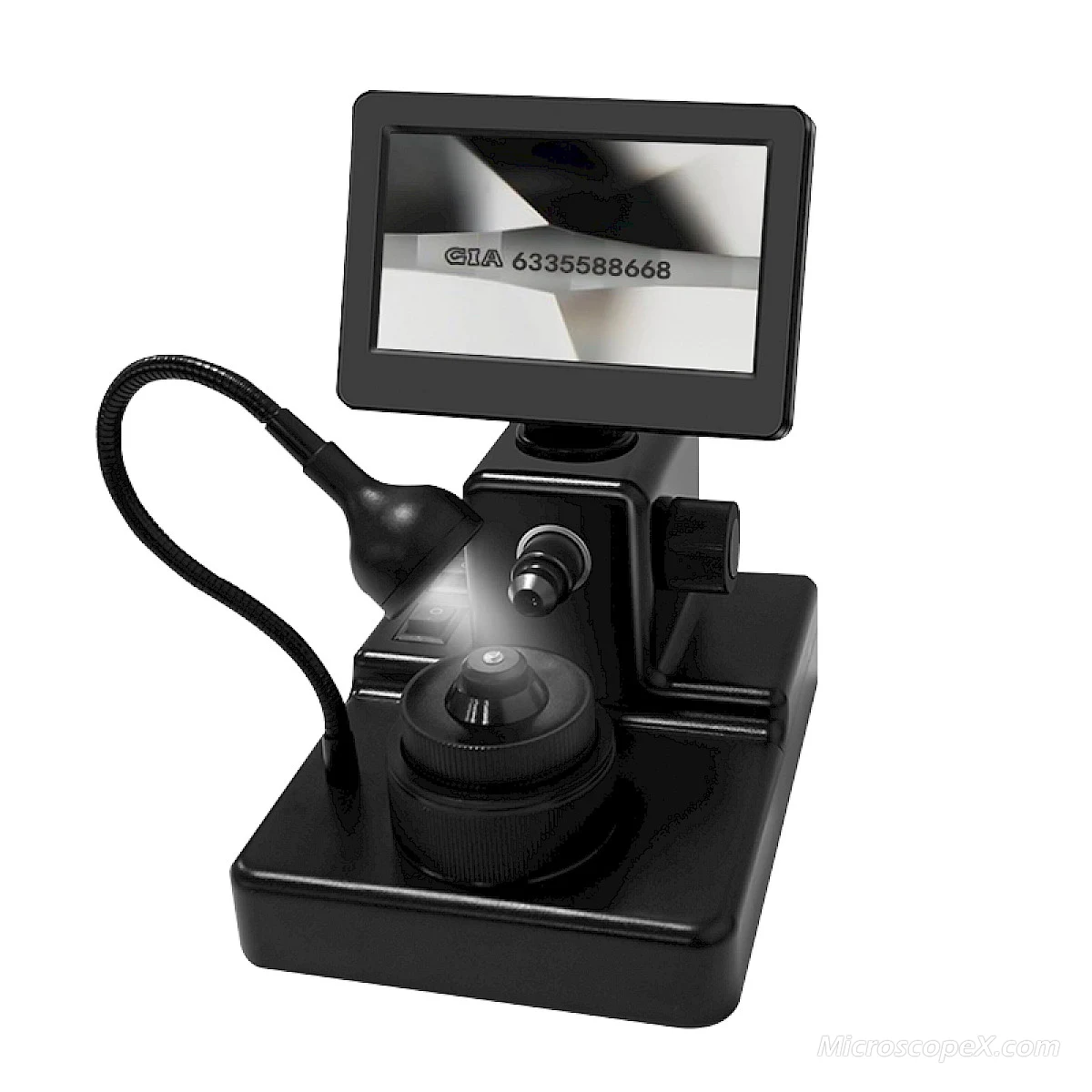

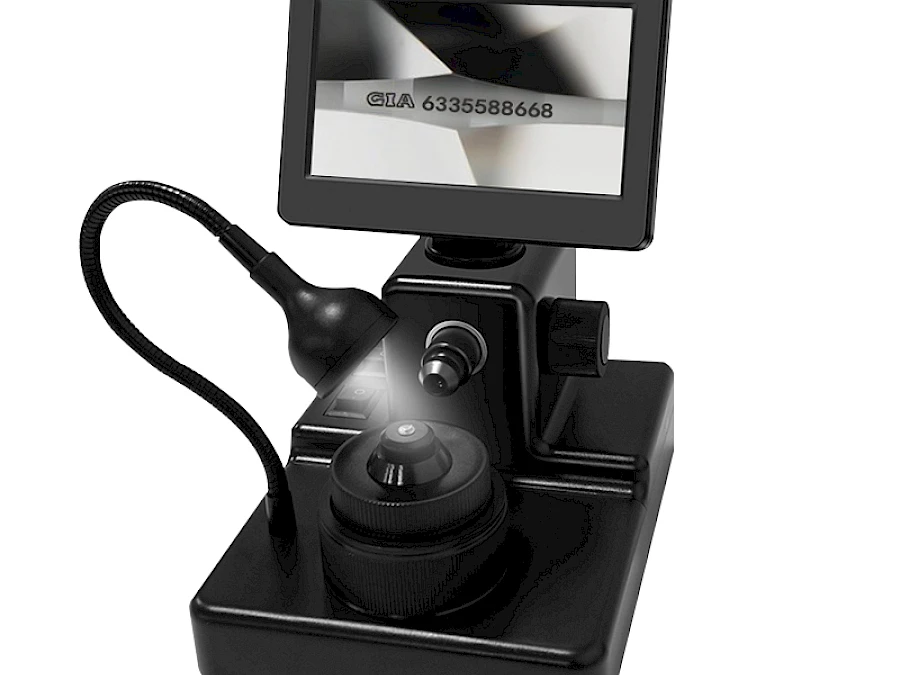

DM-10 is a 50X~1000X Diamond Inspection and Processing Digital Microscope, it has 4.3inch LCD screen, equipped with the diamond tray, which are convenient to observe the samples. Connecting to the PC is available, support Windows XP, Win7, Win8, Win10.

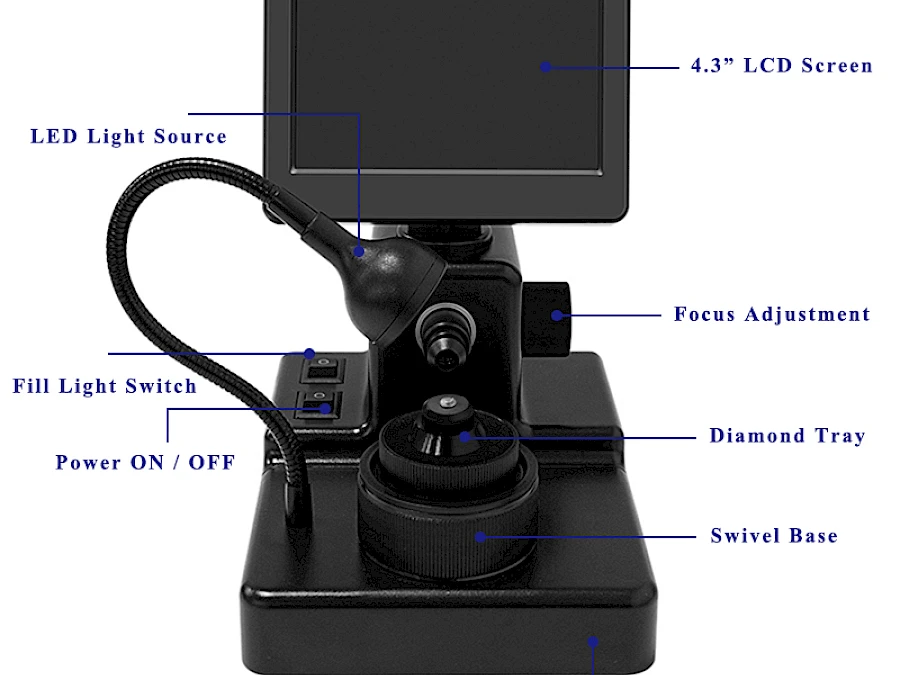

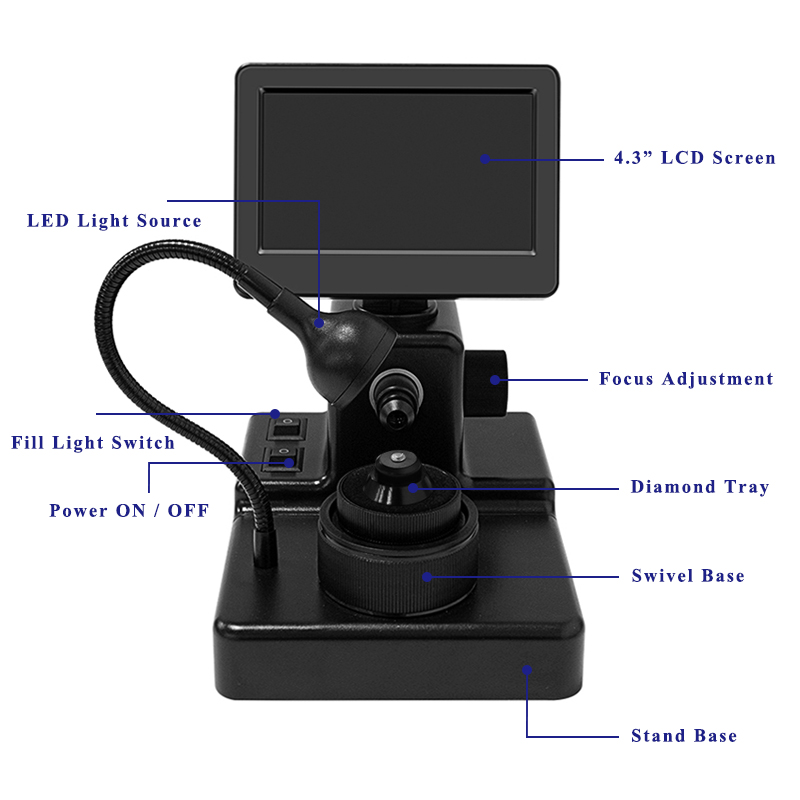

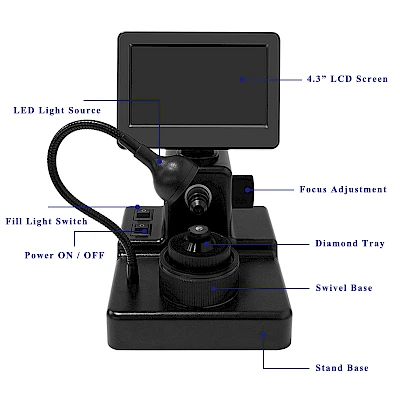

Structure of DM-10 Digital Microscope

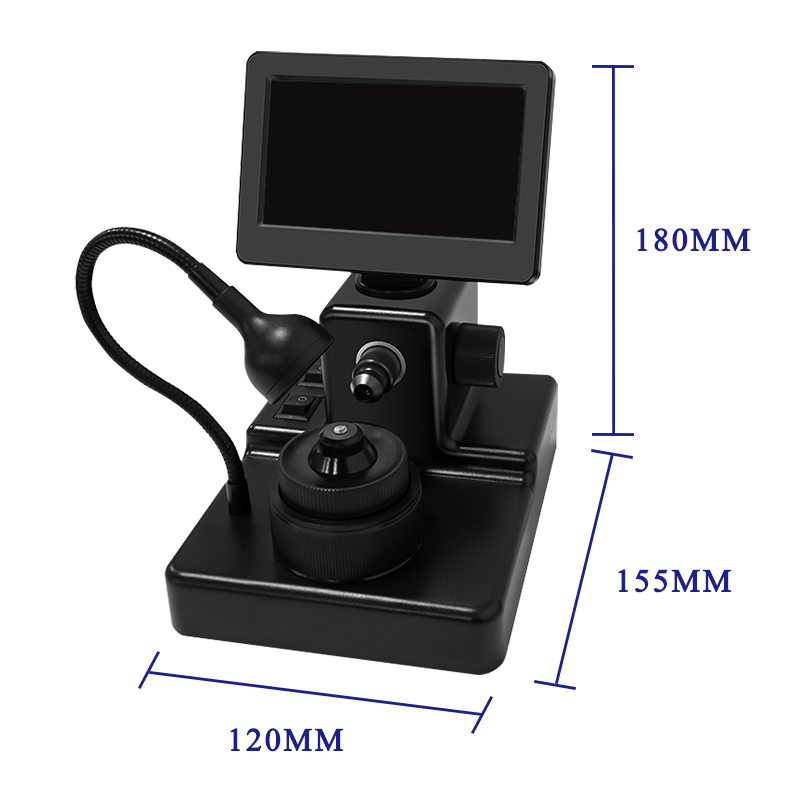

Size of DM-10 Digital Microscope

Application of DM-10 Digital Microscope

Specification for DM-10
Model	DM-10 Diamond Digital Microscope
Display Screen	4.3inch LCD
Drawtube	Monocular
Magnification	50X~1000X
Resolution	1280720, 640480
Focusing	Manual, 10~40mm
Work Distance	10~40mm
Stage	360° Rotatable
Illumination	LED Light Source
Interface Output	USB2.0
Operating System Support	Window XP, Win7, Win8 Win10
Operation Tem.	0°C- +50°C 30%~85%Rh
Operation Humi.	-20°C- +60°C 10-80%RH
Battery	Built-in Recharging Battery
Lens Structure	2G+IR
Material	ABS + Glass
Box Dimension	262016CM
Weight	960g
Carton	8 boxes in one Carton
	Weight: 8.3KG
	Dimension: 554035CM

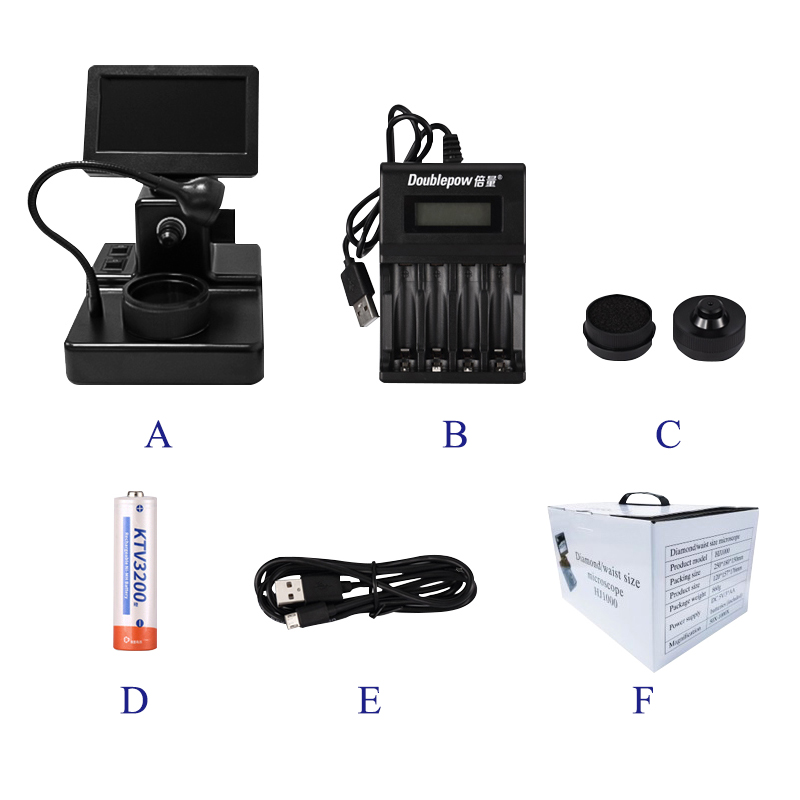

Standard Packing List
No.	Project Name	Quantity
A	Microscope Main Body	1
B	Battery Charger	1
C	Tray	2
D	Battery	4
E	USB Cord	1
F	Box	1
