VMF32ALED LED Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear picture and wide view field. The transmitted and epi-fluorescent illumination light source are high power & brightness LED, but power consumption is lower and use life longer, very good radiating heat effect. Safely and comfortably using the instrument, the cost of use and maintenance are more lower. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ20mm, can provide an expanse and smooth space for observation.
3W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source every monochromatic LED for light source every monochromatic LED wave band: Green (475nm~550nm), Blue (410nm~490nm). Fluorescence filter: B (Blue) and G (Green).
Abbe condenser NA.1.25 Rack & pinion adjustable. Blue filter and ground glass. Collertor for LED illumination and integrated field diaphragm. 3W high brightness white LED, brightness adjustable.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

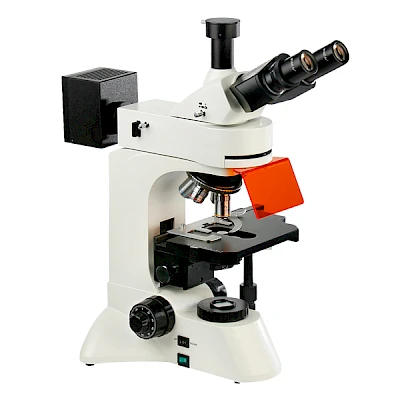

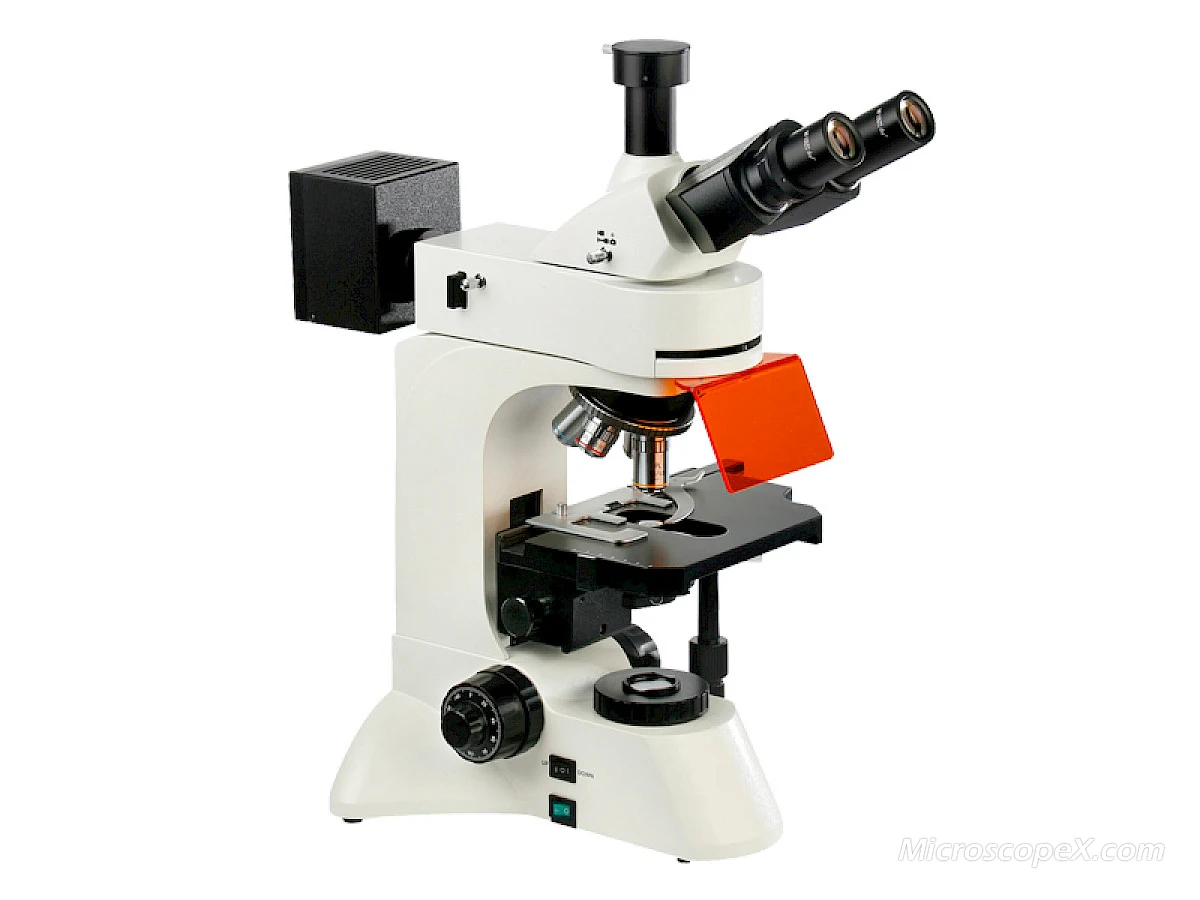

VMF32ALED

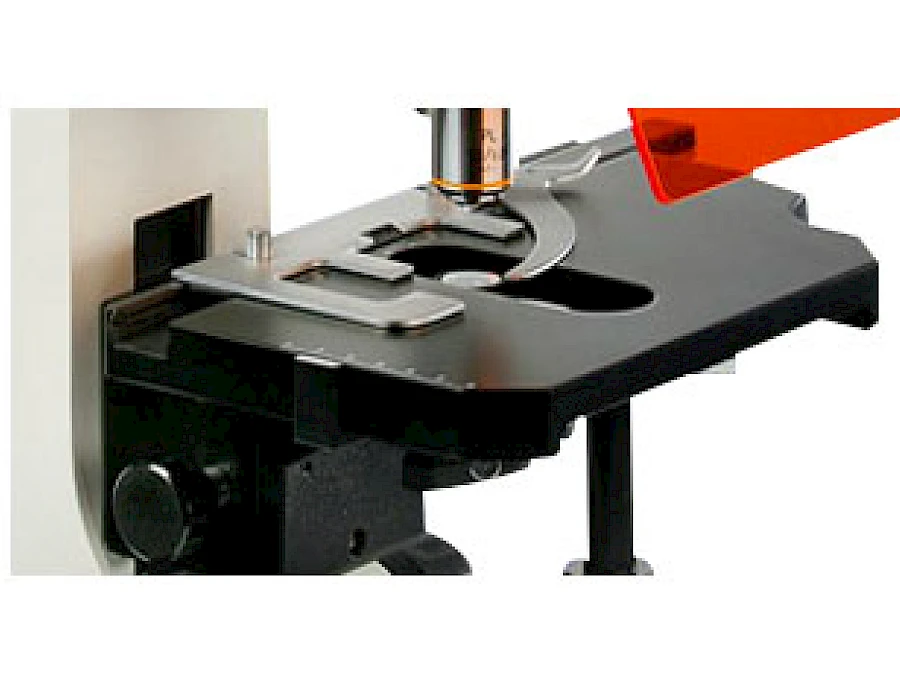

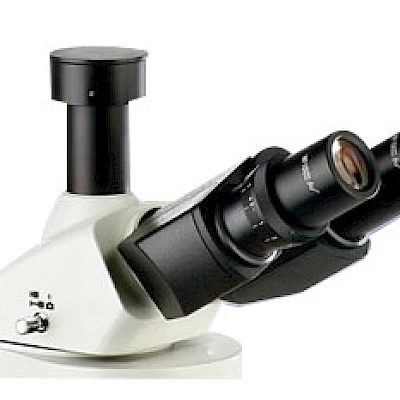

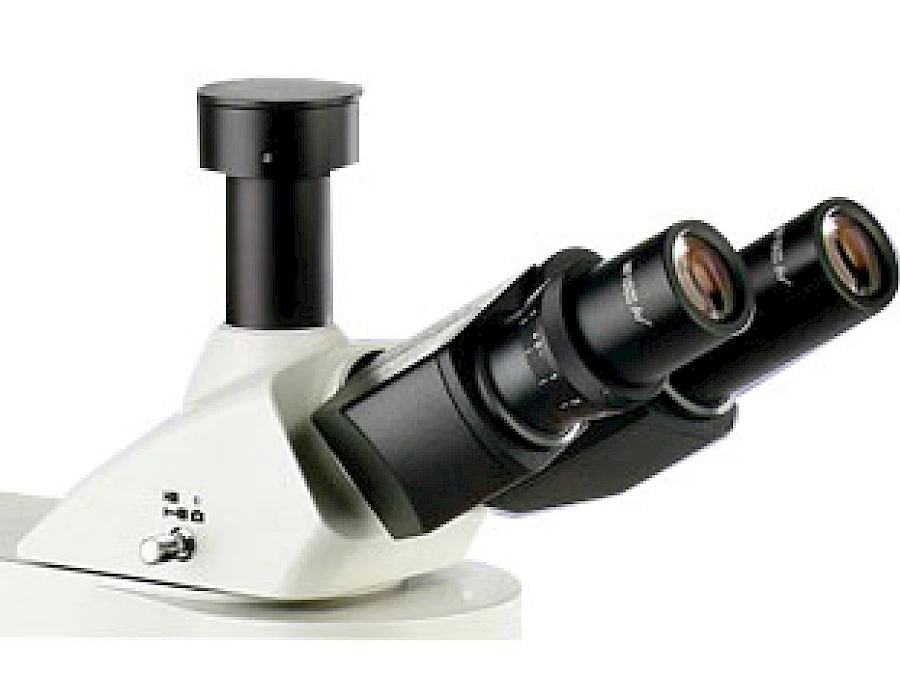

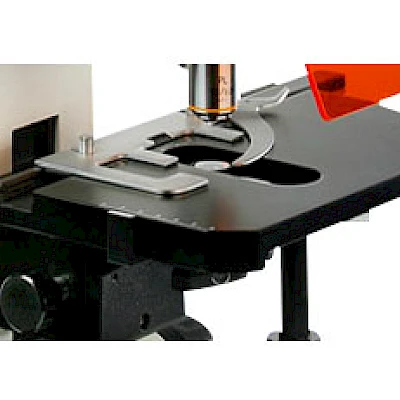

Head & Mechanical Stage of VMF32ALED

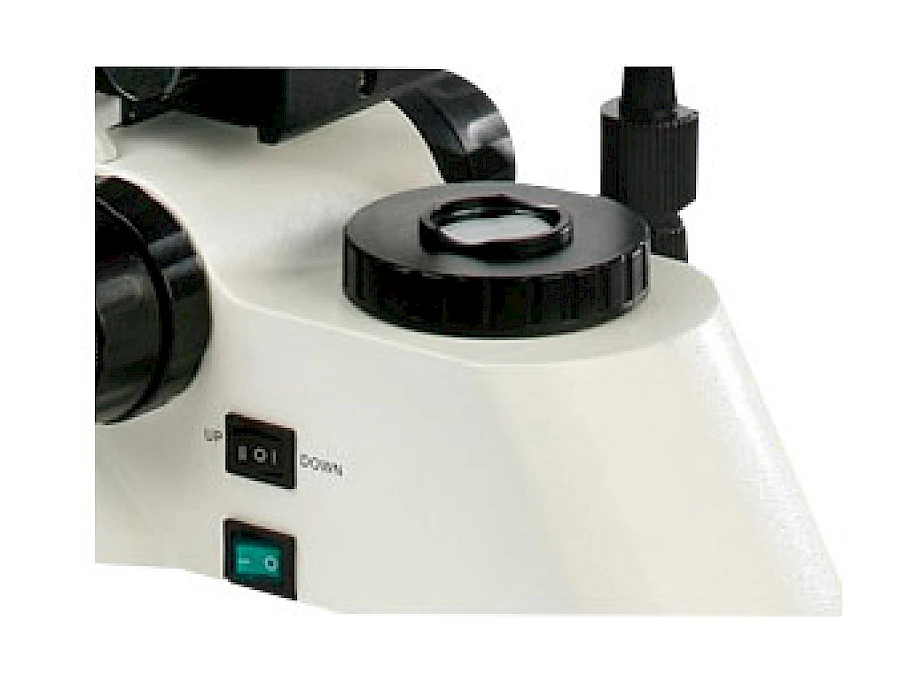

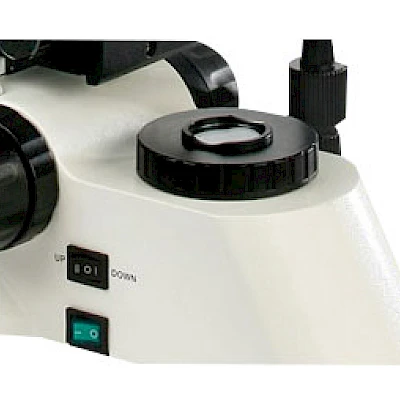

Transmitted Illumination System of VMF32ALED
Digital Camera Photo
Fluorescent Observe

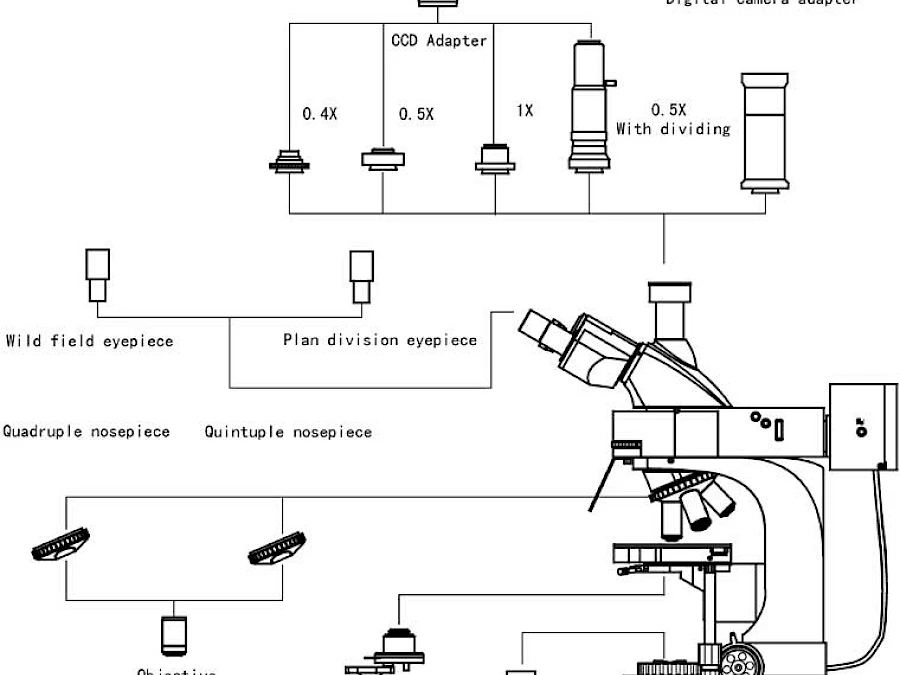

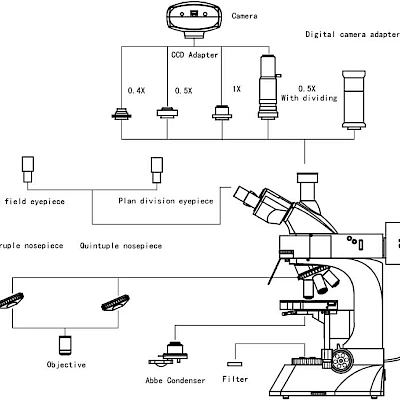

Diagram of VMF32ALED

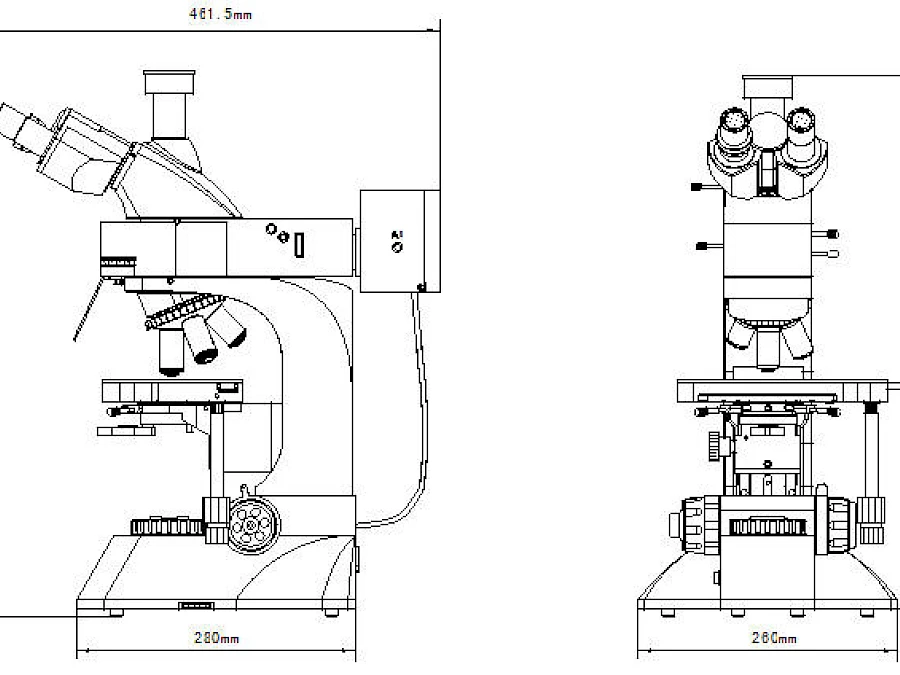

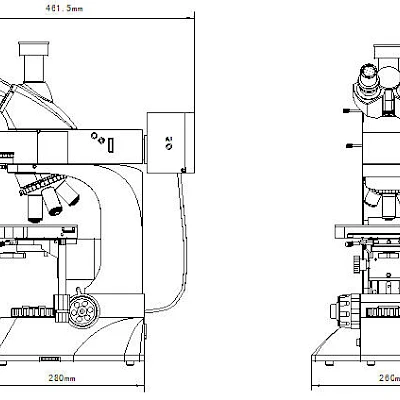

Dimension of VMF32ALED
