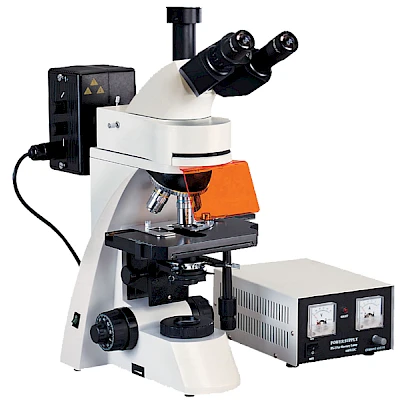

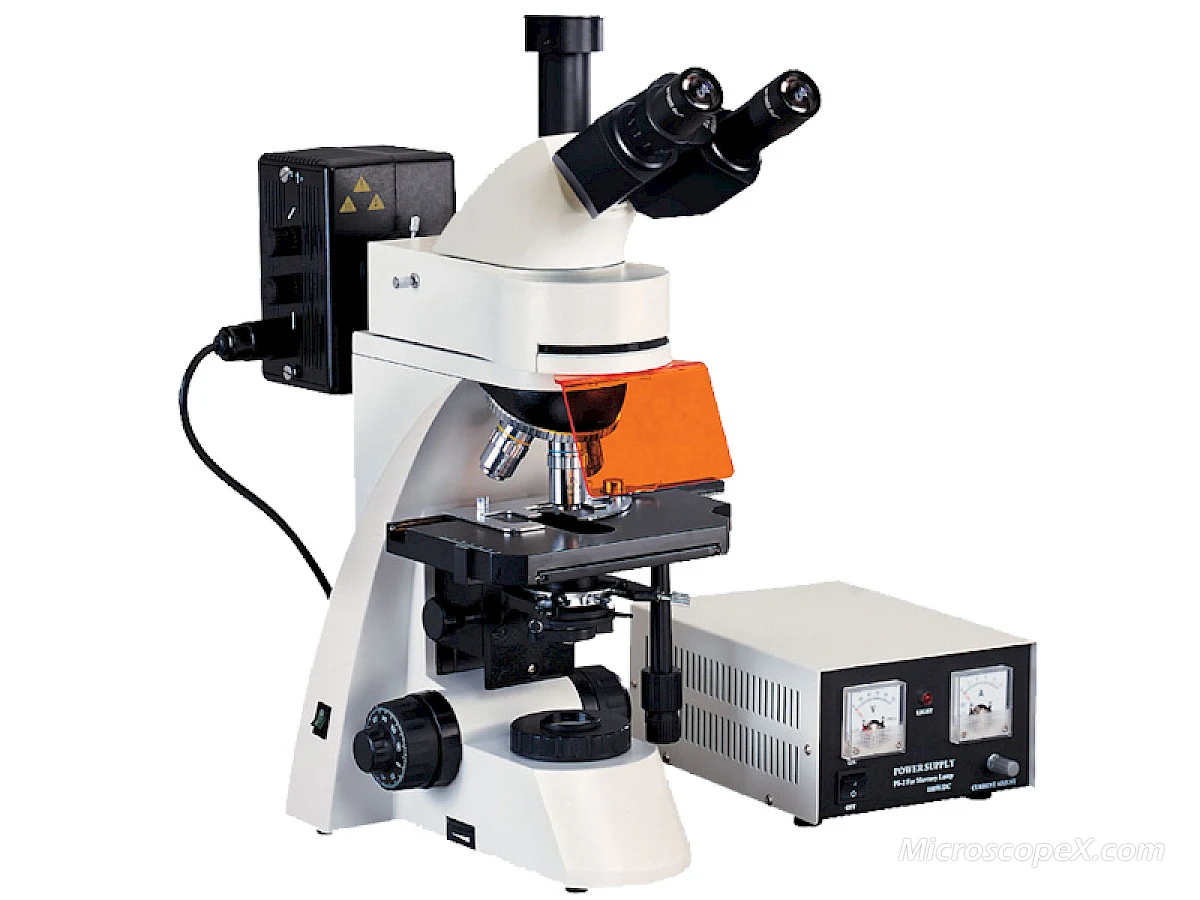

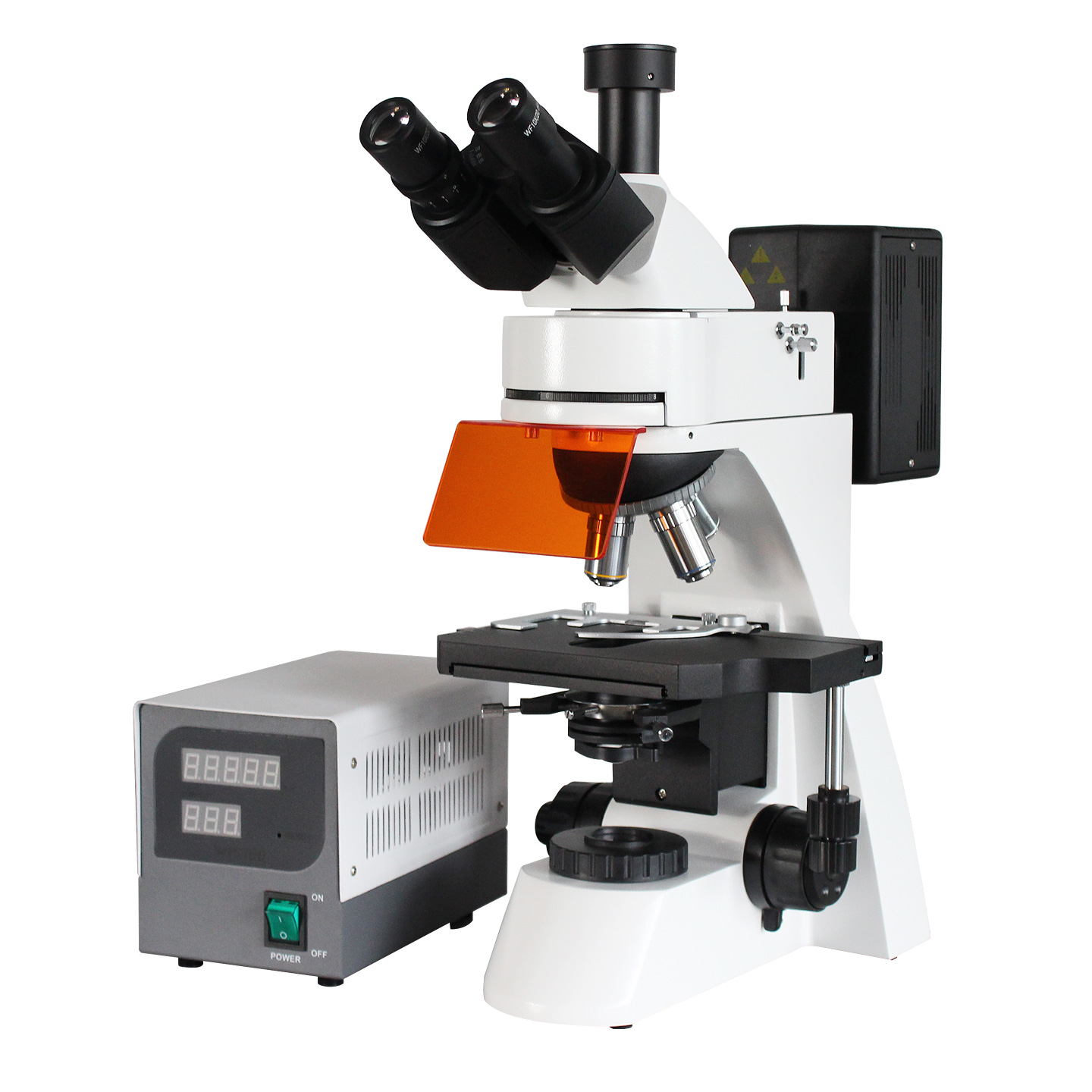

VMF30A Biological & Medical Treatment Fluorescent Microscope with Up & Down Light Source

VMF30A

Optional camera observation unit / phase contract unit

Core Features

With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
20W 6V halogen lamp with electronic dimmer

Configurations

WF 10X (Φ20mm)

Inclined 30°

N.A.1.25 Abbe Condenser

6V 20W Halogen

Mercury Lamp

110V or 220V

VMF30A Epifluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan
achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology,
genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

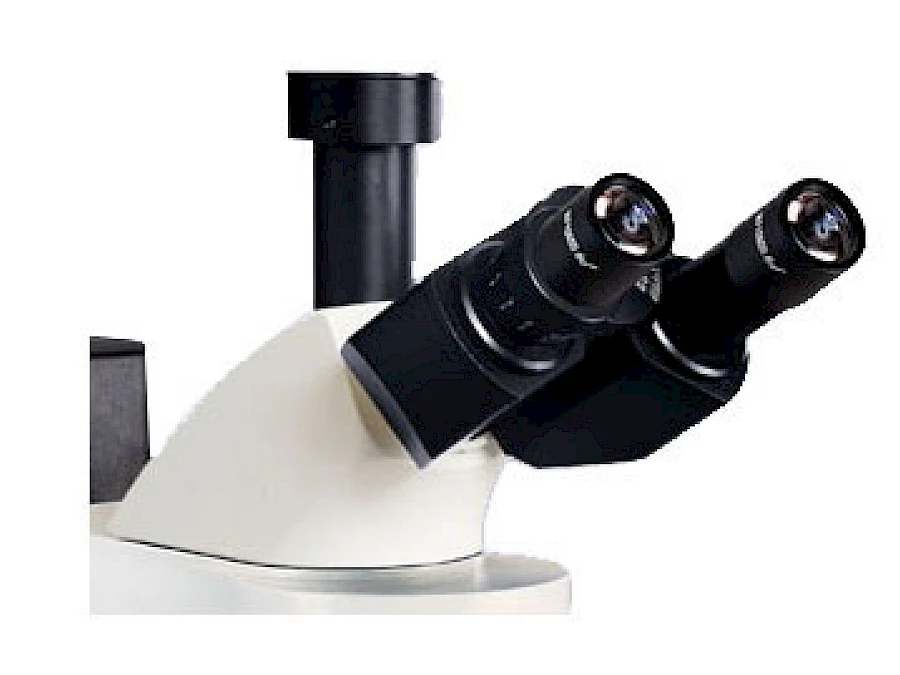

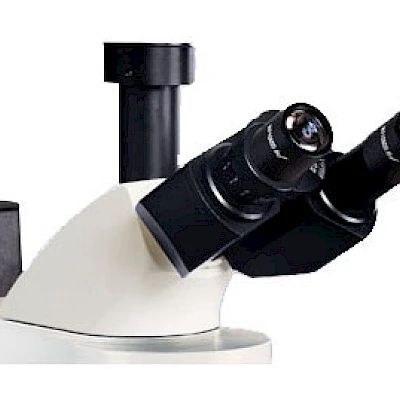

Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ20mm, can provide an expanse and smooth space for observation.

Turnplate reflected fluorescence observation set provides four fluorescence filter system as UV, V, B and G. This kind of frame can make it switch fleetly between each fluorescence system. 100W mercury lamp can provide ample illumiantion for fluorescence observation. Built-in field diaphragm, center adjustable, is good for the control of field range.

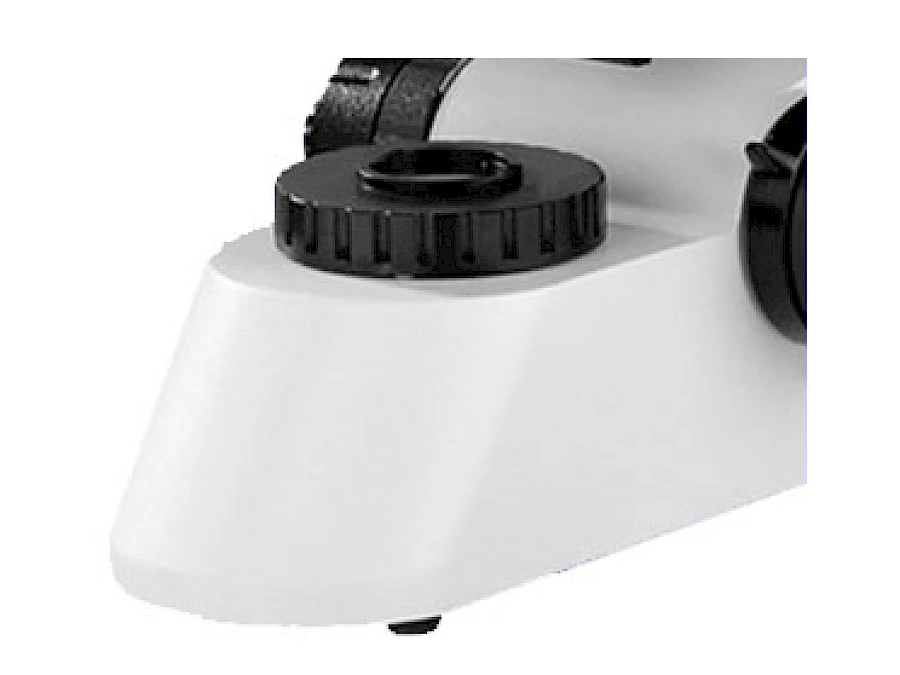

The illumination system with 6V 30W halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for phase contrast observation. The system also includes the collector with field diaphragm.

By adding the appurtenance of phase contrast unit and camera unit, it can spread to mainfold modes for observation that satisfy the need to different research work.

VMF30A

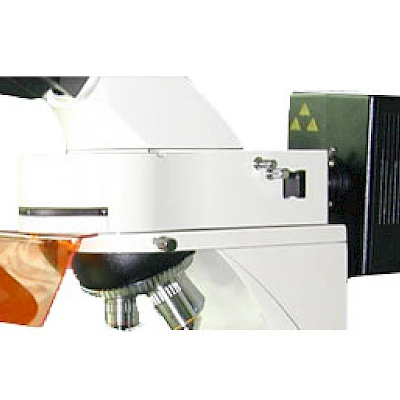

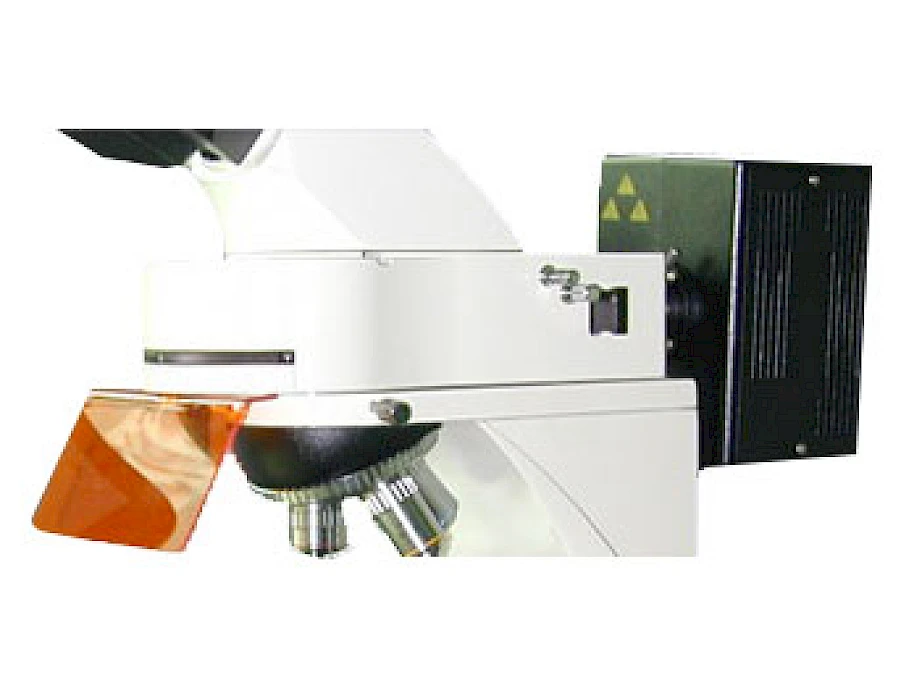

Reflected Fluorescence & Transmitted Illumination System of VMF30A

Digital Camera Photo

Fluorescence Observe

Phase Observe

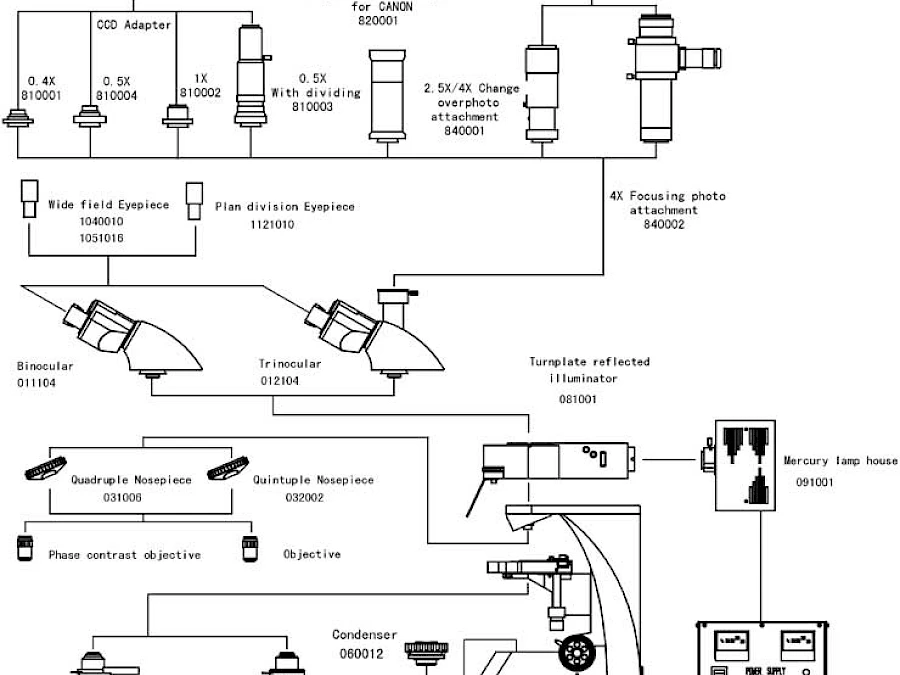

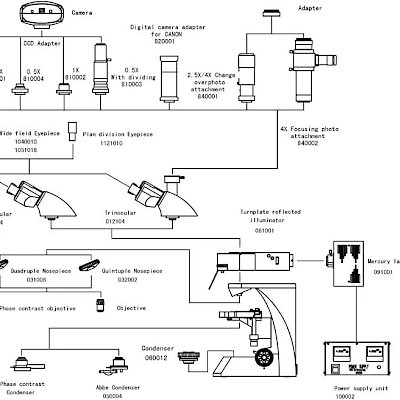

Diagram of VMF30A

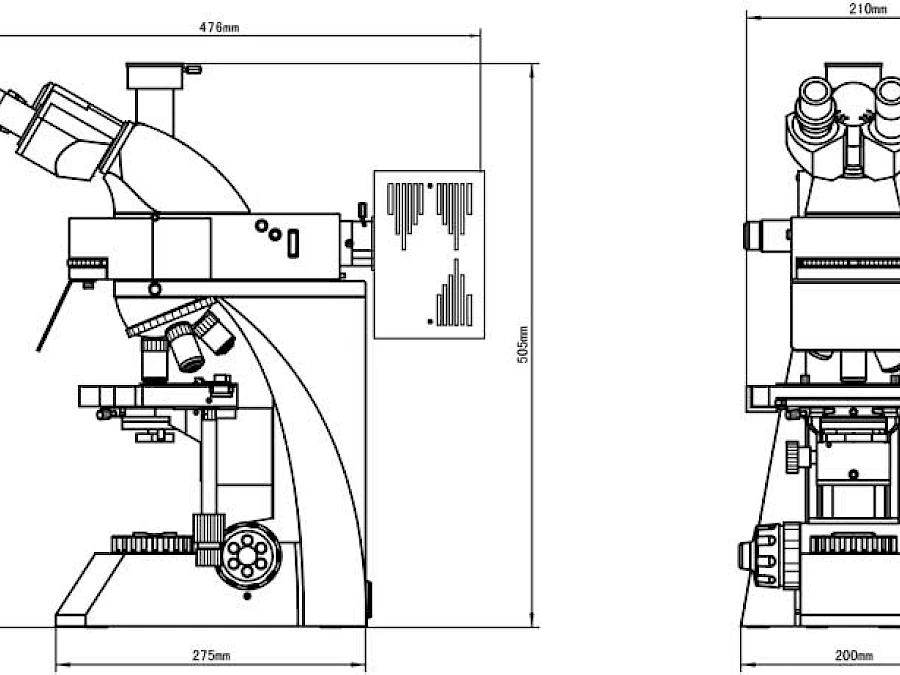

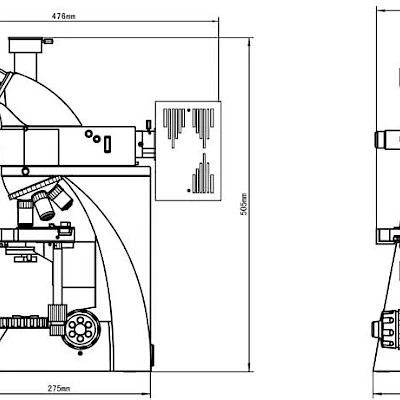

Dimension of VMF30A

Specification for VMF30A
Eyepiece	WF 10X (Φ20mm)
Eyepiece Tube	Trinocular, inclined 30°
Objective	Infinity Plan Achromatic Objectives PL 4X/0.10
Infinity Plan Achromatic Objectives PL 10X/0.25
Infinity Plan Achromatic Objectives PL 40X/0.65 (Spring)
Infinity Plan Achromatic Objectives PL 100X/1.25 (Spring、Oil)
Focus System	Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm
Nosepiece	Quadruple (Backward ball bearing inner locating)
Working Stage	Double layer mechanical (Size:210mmX140mm,moving range:75mmX50mm)
Abbe Condenser	N.A.1.25 Rack & pinion adjustable
Filter	Blue filter
Frosted filter
Collector	For Halogen Lamp
Light Source	6V 20W Halogen Lamp, adjustable brightness
Reflected Fluorescence System	Mercury Lamp House 100W/DC
Power Supply Unit: AV: 110V or 220V
Fluorescence filter system B Exciton Wavelength: 450~490nm
Fluorescence filter system G Exciton Wavelength: 495~555nm
Fluorescence filter system UV Exciton Wavelength: 320~380nm
Fluorescence filter system V Exciton Wavelength: 380~415nm

Accessories for VMF30A
Eyepiece	WF 16X (Φ11mm)
Eyepiece	Dividing 10X(Φ20mm) 0.1mm/Div
Objective	Infinity plan achromatic 20X /0.40
Eyepiece Tube	Binocular (inclined 30°)
Nosepiece	Quintuple (Backward Ball Bearing inner Locating)
Filter	Yellow filte
Filter	Green filter
Phase Contrast Unit	Eyepiece	Centering Telescope
	Objective	Infinity phase contrast plan achromatic 10X/0.25 PHP
		Infinity phase contrast plan achromatic 20X/0.40PHP
		Infinity phase contrast plan achromatic 40X/0.65 PHP (Spring)
		Infinity phase contrast plan achromatic 100X/1.25 PHP (Spring, Oil)
	(PH-¢ñ) Turnplate phase contrast condenser
	(PH-¢ò) Turnplate phase contrast condenser
	Flashboard phase contrast condenser
	Pull board phase contrast condenser
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	With USB & Video Output
	With USB Output
	With Video Output
Digital camera adapter	CANON Digital Camera Adapter (A610, A620, A630, A640)
Photograph Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD Adapter
	PK Adapter
