VMF200I Inverted & Reflected Fluorescence Microscopes is composed with inverted microscope and reflected fluorescence microscope, equipped with long working distances plan achromatic objectives and wide field eyepieces, you can use long working distance phase contrast objectives and special long working distance condenser with phase contrast unit when inverted observation, and change the fluorescence excitation system freely. The microscope has clear image, wide field, compact framework, beautility sculpt and comfortable operation etc. It's mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent living without staining and fluorescence slice up, it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc. The microscope can be used for scientific researching, medical treatment, epidemic prevention and animal husbandry etc.

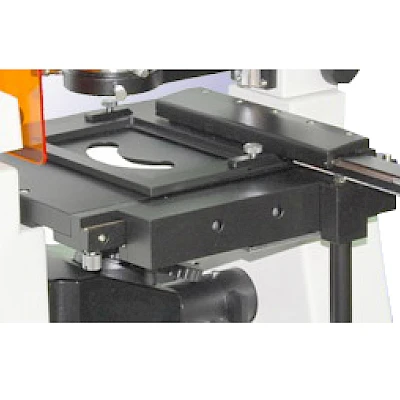

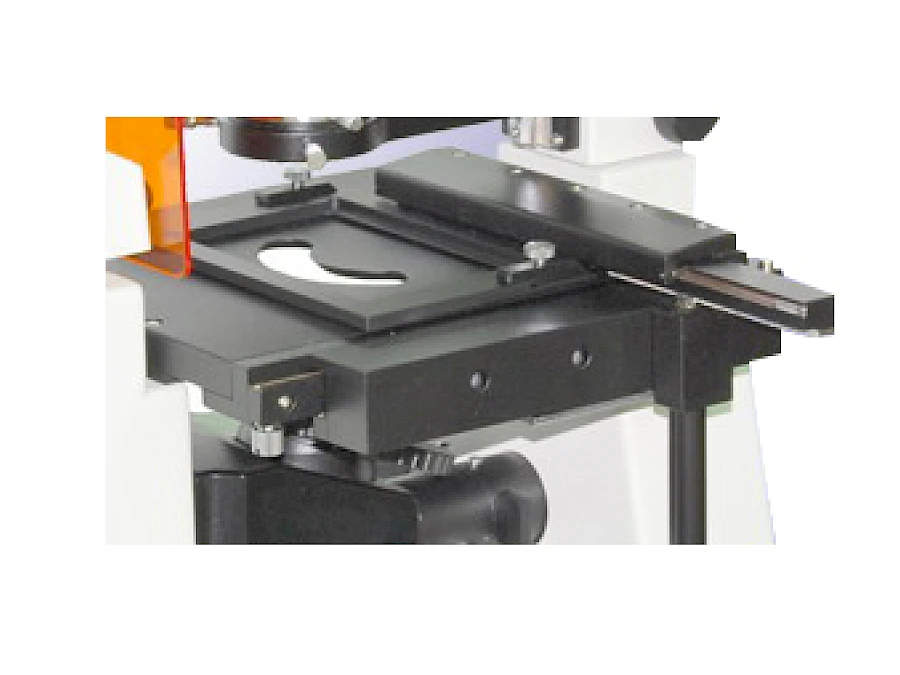

The disassembly type mechanical moving stage enable to fill the requirements that observe in the different culture dish. Equipped with two kinds of stage board. Stage size: 224mm x 208mm, Moving range: 112mm x 79mm. There are two mode culture dish holder for selection.
The enable turning out or into condenser system is suited for tissue observation in a high culture dish.
Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer.
Pushed fluorescence filter provides four fluorescence filter system, such as UV, V, B and G. This kind of frame can make it switch fleetly between each fluorescence system. 100W mercury lamp can provide ample illumination for fluorescence observation. Equip power supply unit.
Equip high quality phase contrast condenser operation.

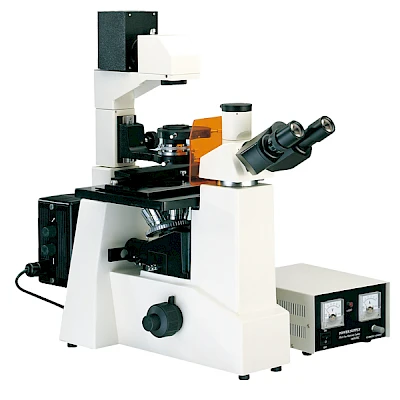

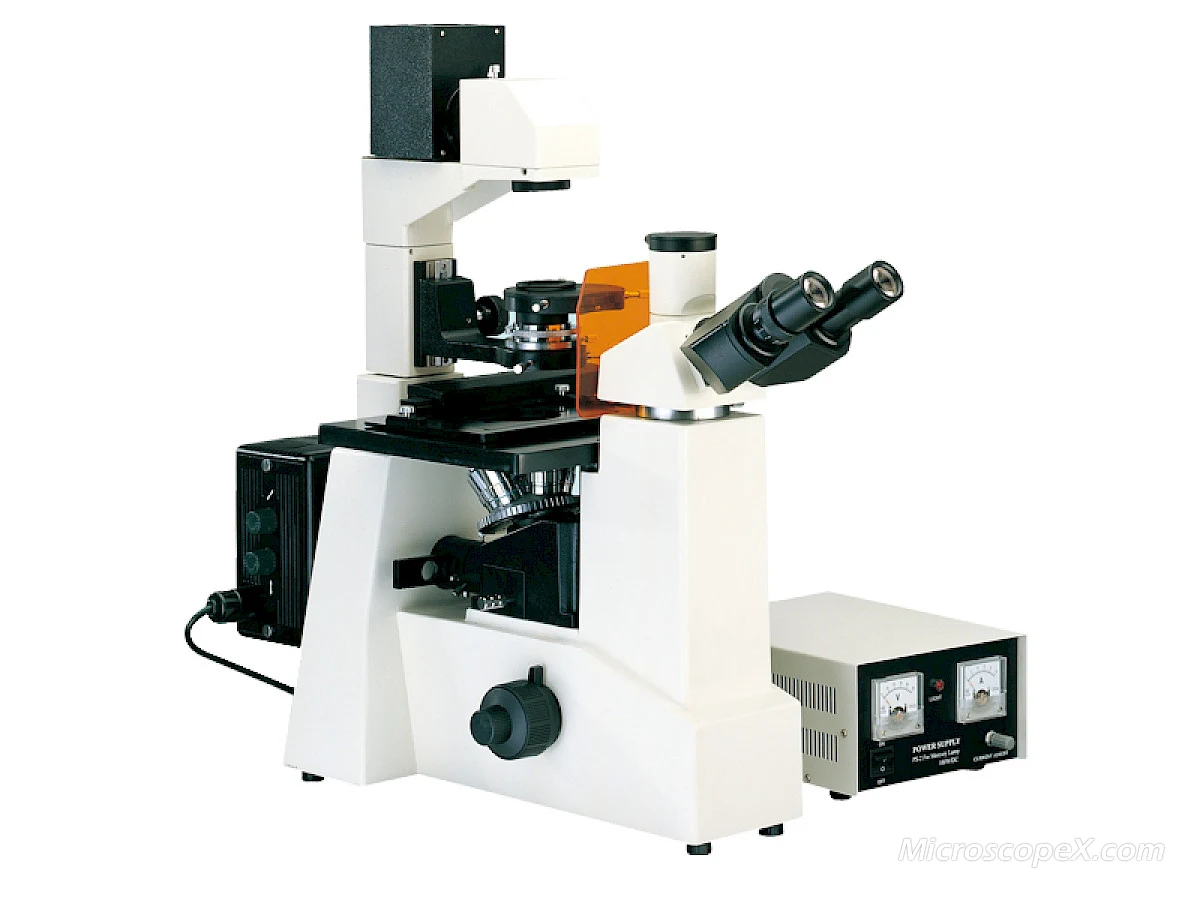

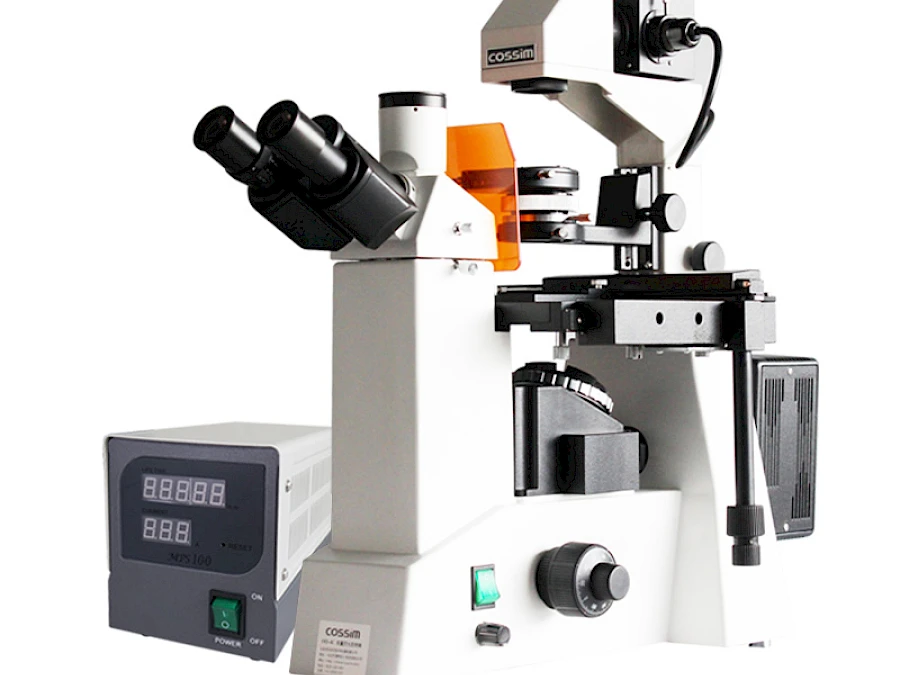

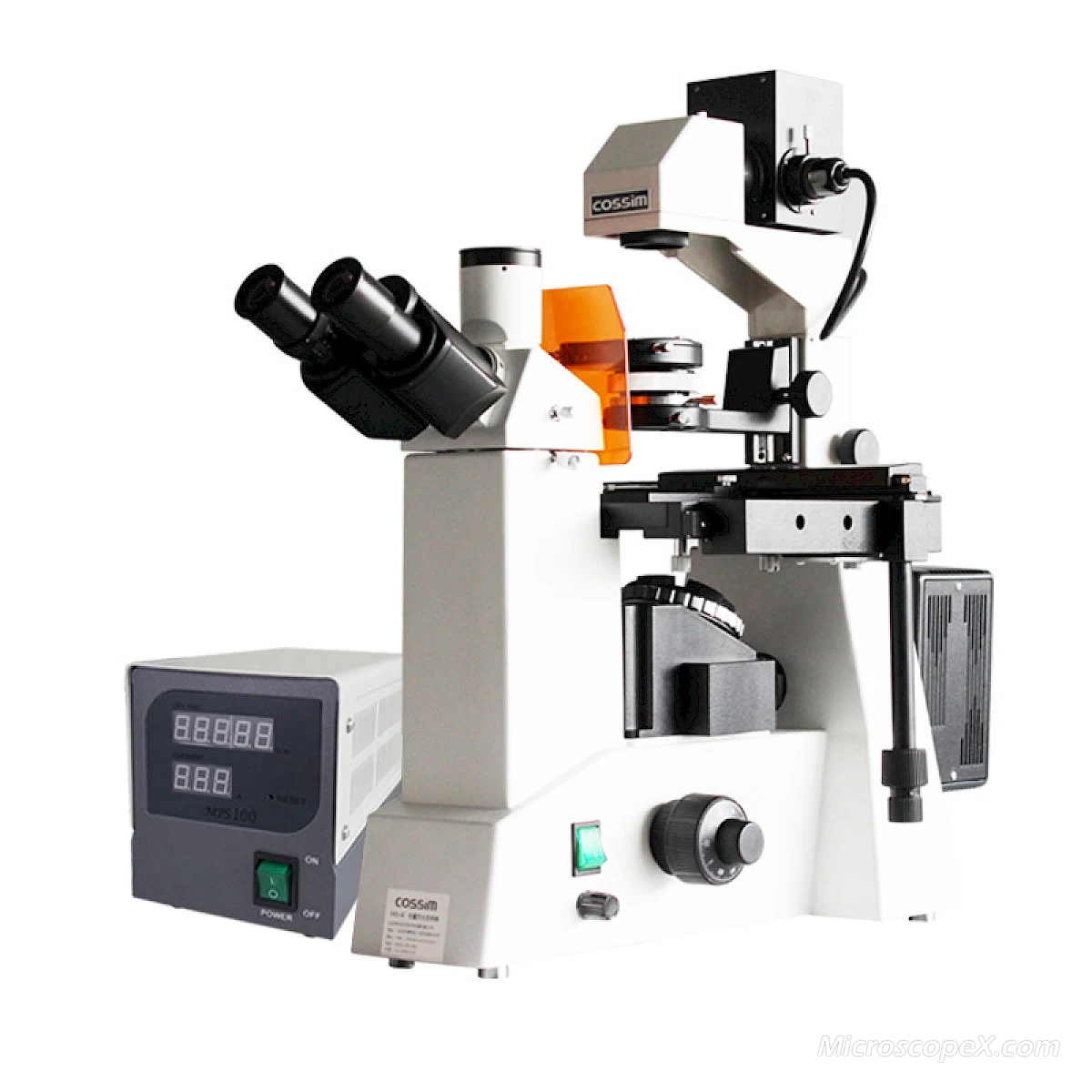

VMF200I

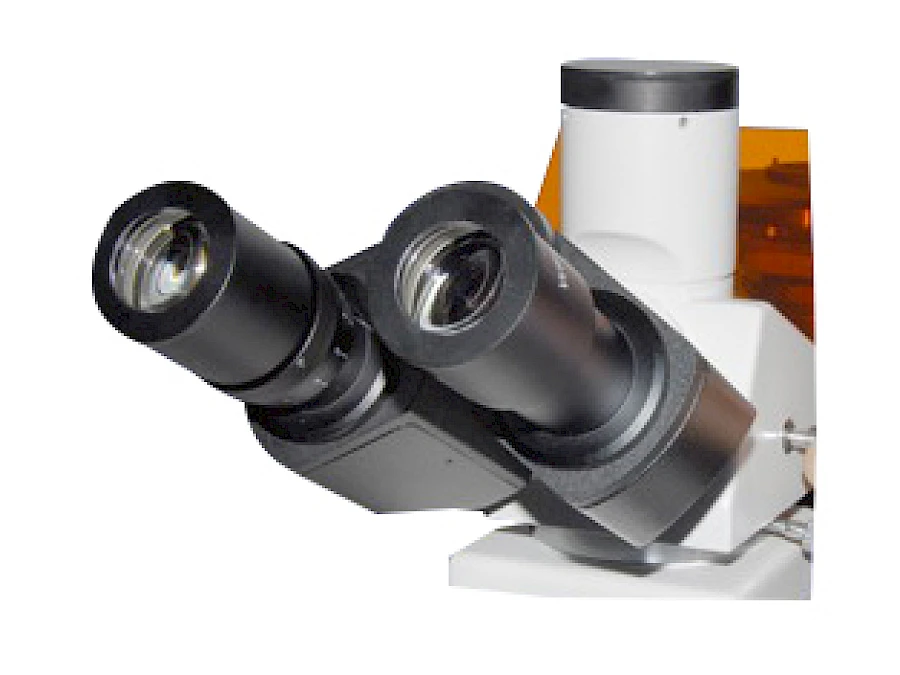

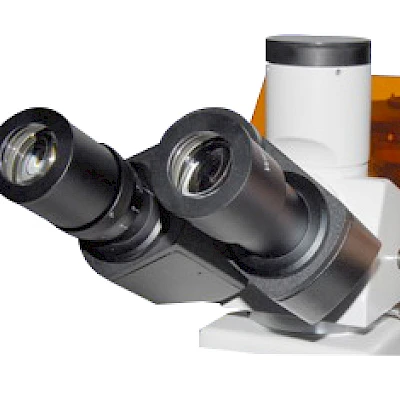

Head & Mechanical Stage of VMF200I

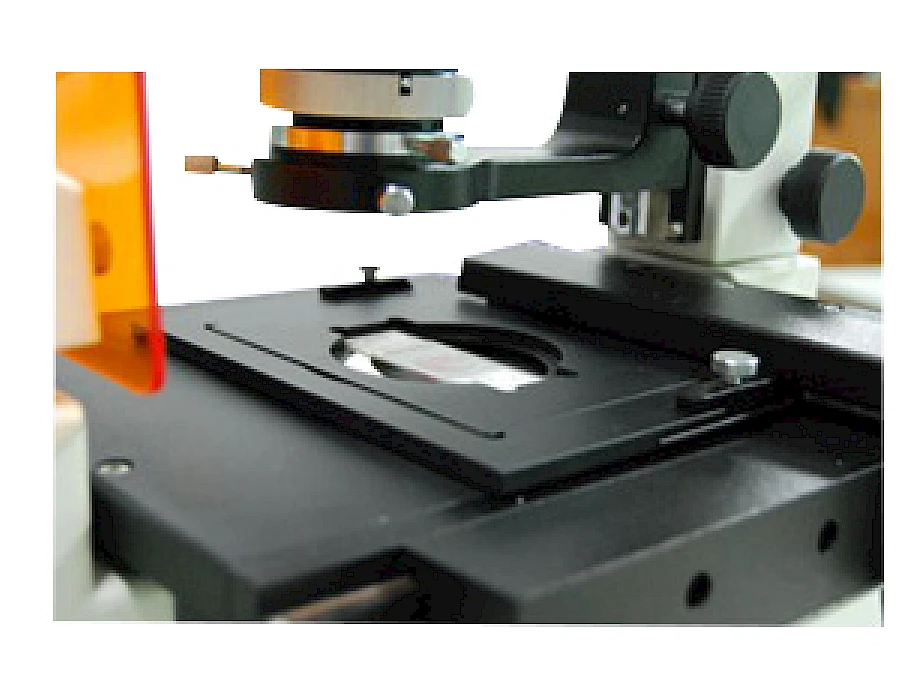

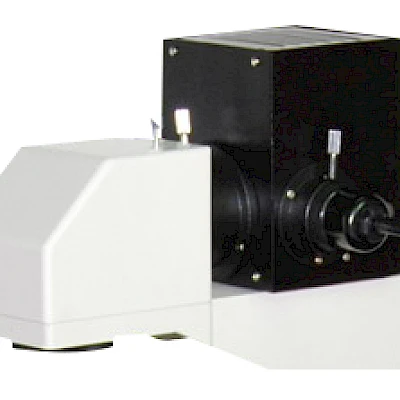

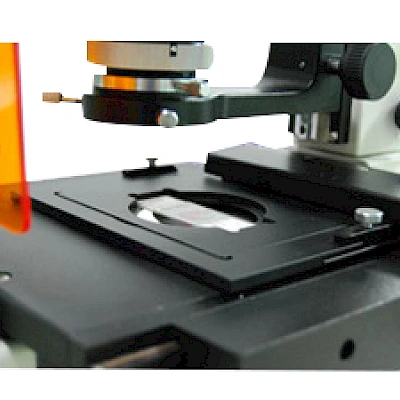

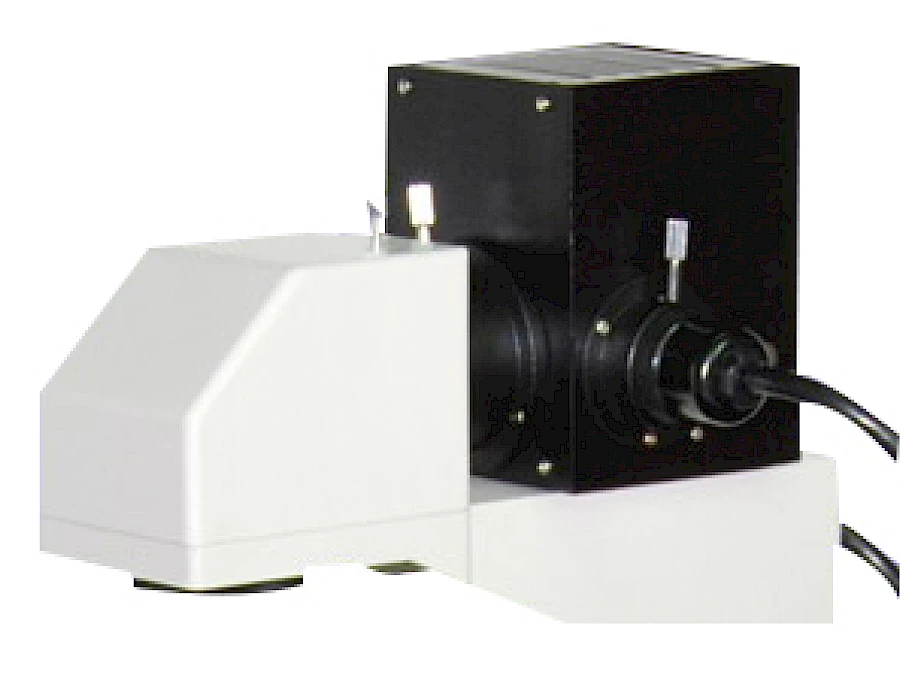

Reflected Fluorescence & Transmitted System of VMF200I
Digital Camera Photo
Fluorescent Observe
Phase Contrast Observe

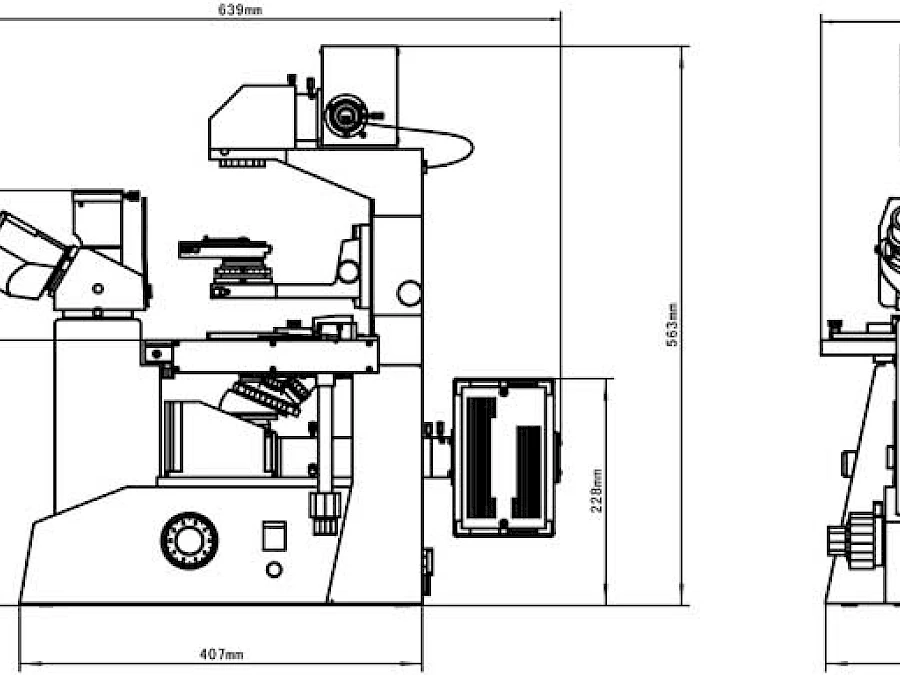

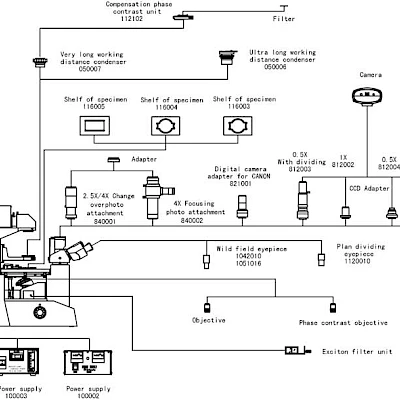

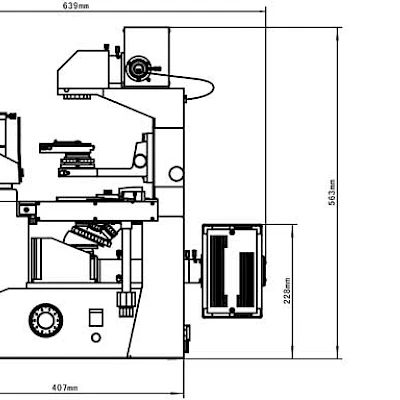

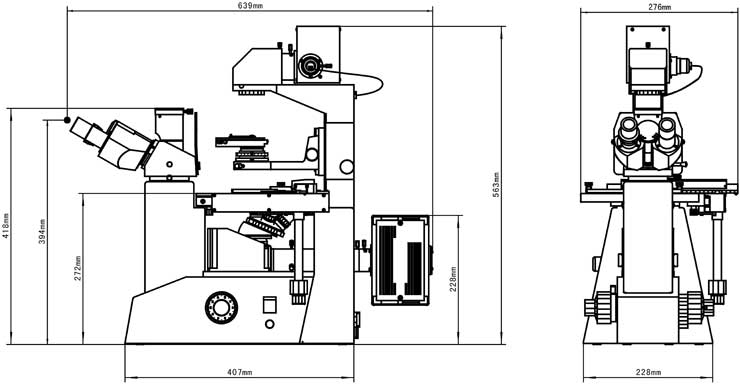

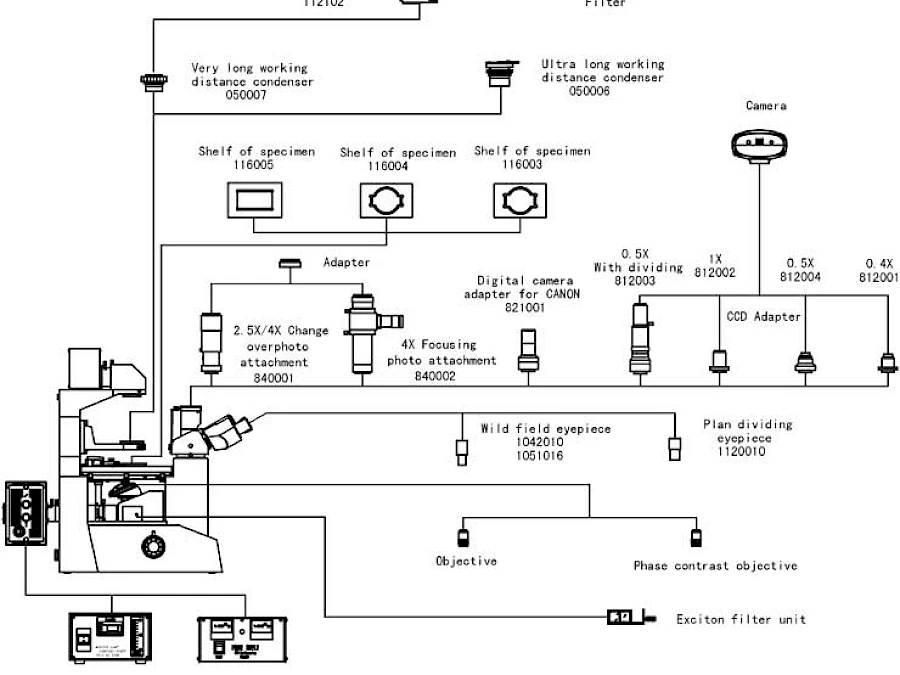

Diagram of VMF200I
