Compound Microscopes Fluorescence Microscope

VMF180I

VMF180I Infinity LED Epi-Fluorescence Microscope with Multi-Wave Switch

Collector for LED (integrated Field Diaphragm)

Core Features
  • With infinity plan achromatic objectives and wide-field eyepieces, can get clear iamge and wide view field.
  • Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
  • Reflected and Transmitted LED light source, brightness adjustable
Configurations
WF 10X (Φ22mm)
Trinocular, inclined 30°
5W LED
Quintuple
Abbe Condenser N.A.1.25
3W LED
Request Quotation Email Phone Back to Products

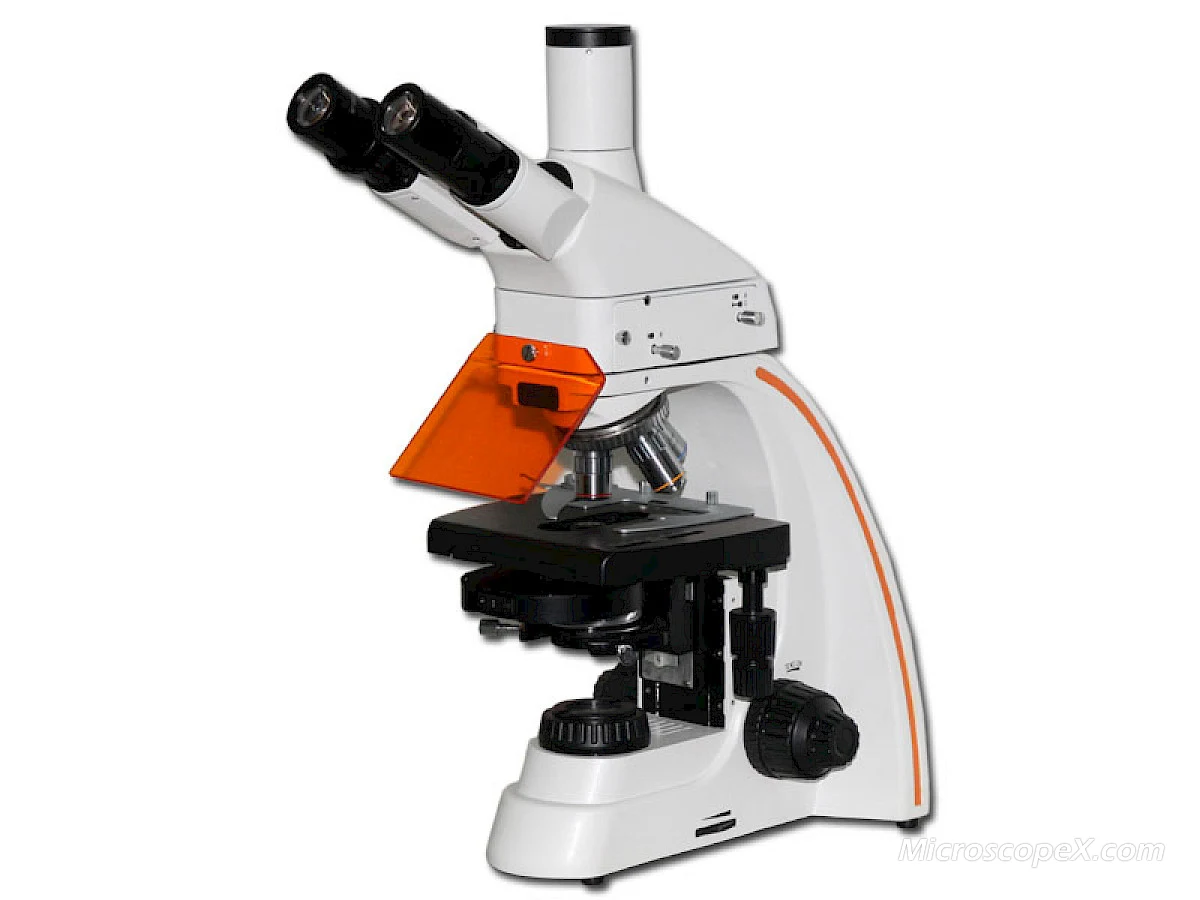

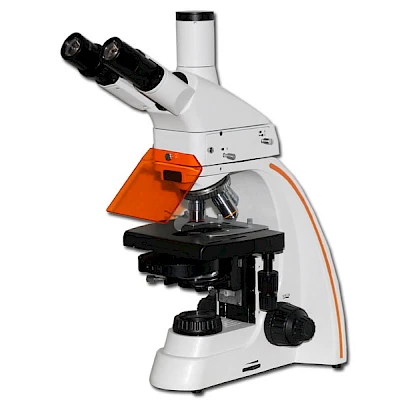

VMF180I

VMF180I LED Epi-Fluorescence Microscope adopts superior infinity optical system and modular design. It is also equipped with infinity plan achromatic fluorescence objectives and wide field objectives, so that the system give clear and sharp images.

The power supply is 100-240V 50/60HZ wide voltage adapter, convenient and safe. It is easy to switch the bright field and fluorescence observation through pushbeam.

The external battery modular design can supply power, and the LED fluorescence observation can provides up to continuous 8 hours working time.

The multi-wave can be switch easily and composition later available.

Trinocular (inclined 30°) can be connected to the camera. 10X wide field plan eyepiece, field Φ22mm, microphotography in 100% light flux, can provide an expanse and smooth space for observation.

Equipped with 5W LED, standard modular includes B (BLue) & G (Green). Common V (Violet) & UV (Ultra Violet) is optional, and the special exciton filter sets which for CFP, FITC, CY3, DAPI are also optional.

The condenser for LED is built-in field diaphragm, standard LED illumination or halogen lamp (optional).

VMF180I

VMF180I

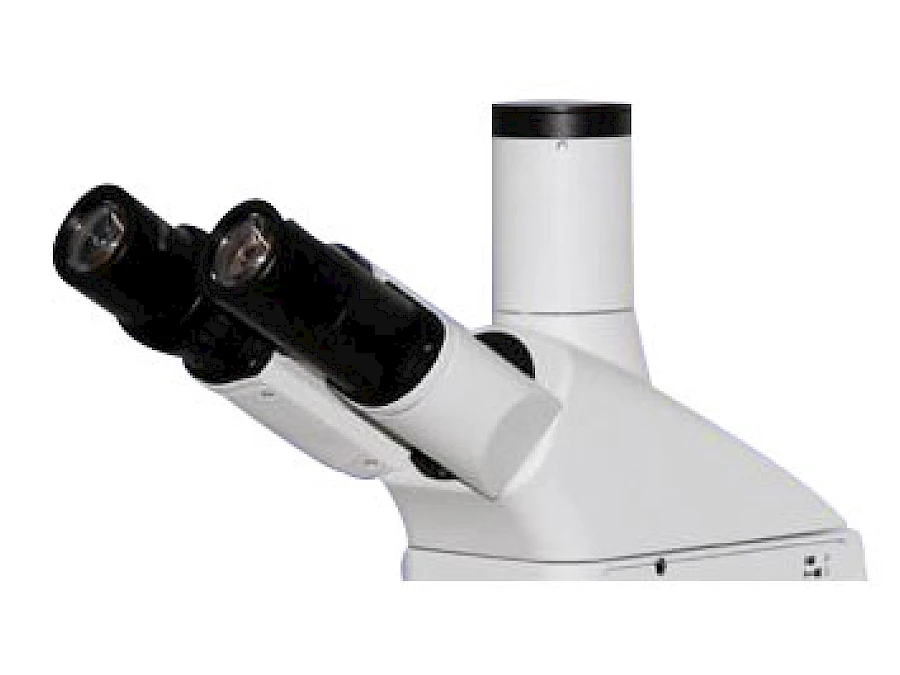

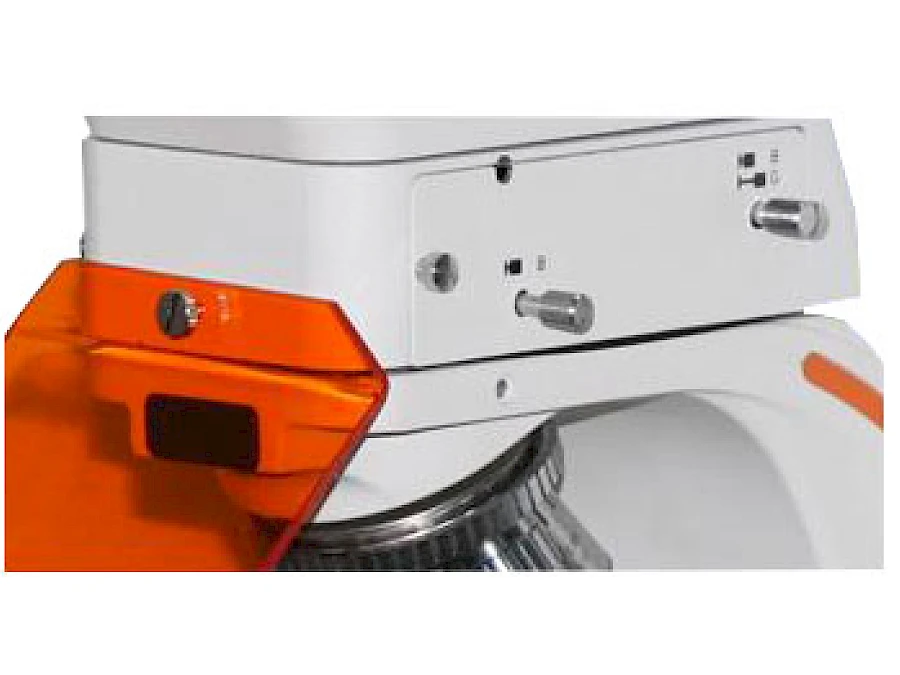

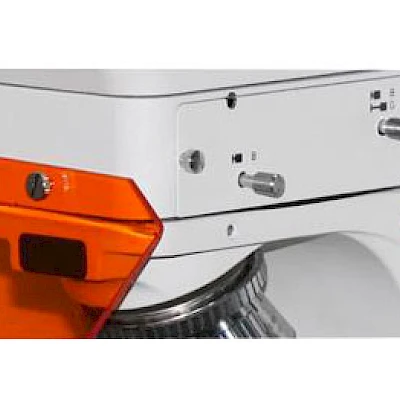

Head of VMF180IReflected Fluorescence Illumination System of VMF180I

Head & Reflected Fluorescence Illumination System of VMF180I
