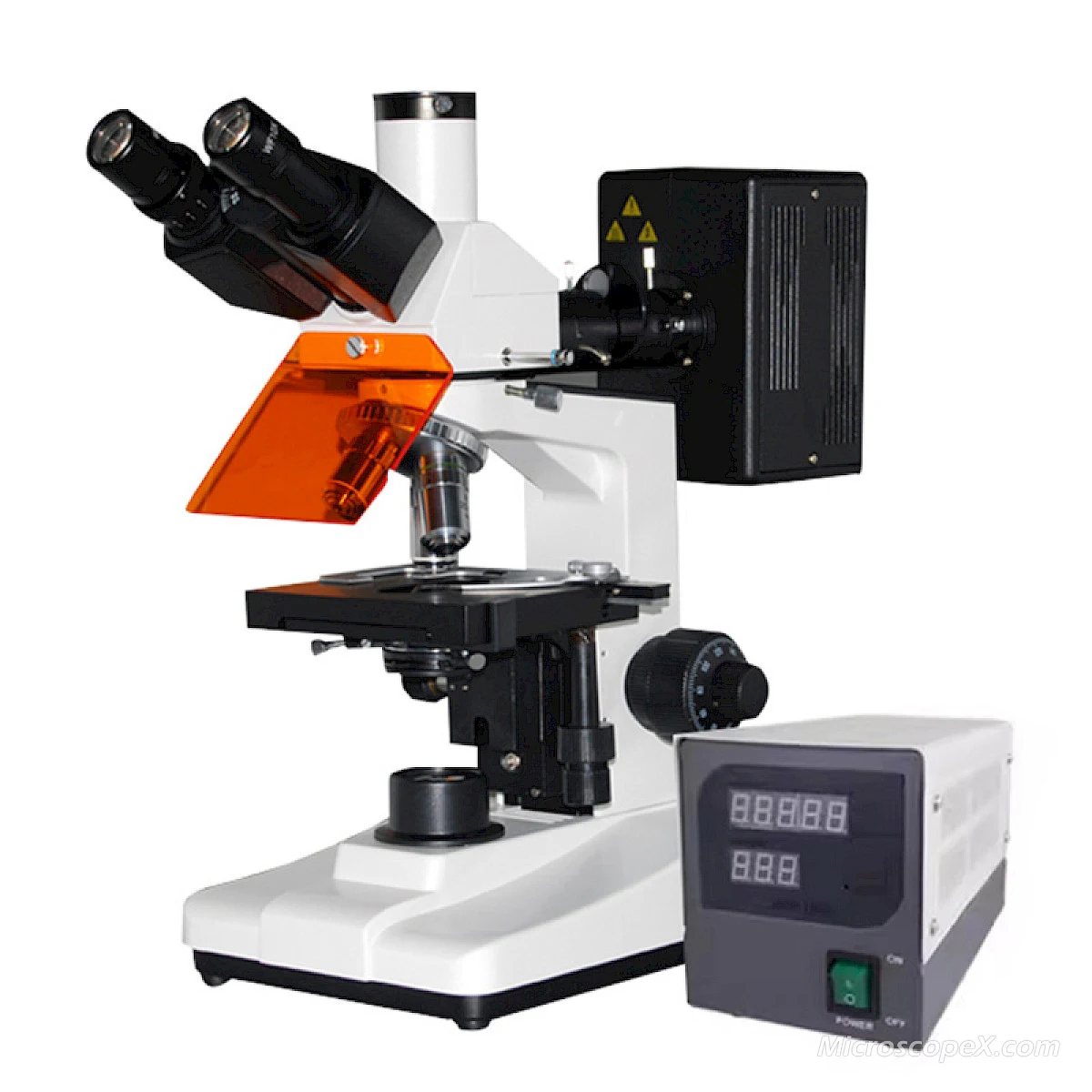

VMF15A

VMF15A Halogen Lamp Inspection & Biological Fluorescence Microscope

40X~1000X, 135mmX125mm Double Layer Mechanical Stage

Core Features

With wide field eyepieces, and achromatic objectives, the field of view is widely and clear
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
6V 20W halogen lamp with brightness control

Configurations

WF 10X (Φ18mm)

Trinocular, inclined 30°

Quadruple / Quintuple

N.A.1.25 Abbe Condenser

6V 20W Halogen

Mercury Lamp

110V or 220V

Request Quotation Email Phone Back to Products

VMF15A Reflected fluorescence microscope model is used for fluorescence microscopy and transmitted bright field microscopy observation. It is the ideal instrument in sediment in sedimentary rock, inspection of impurity of semiconductor, environmental protection and microchemistry etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ18mm, can provide an expanse and smooth space for observation.

100W mercury lamp can provide ample illumiantion for fluorescence observation. The illumination system with 6V 20W halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for phase contrast observation.

By adding the appurtenance of phase contrast unit and camera unit, it can spread to mainfold modes for observation that satisfy the need to different research work.

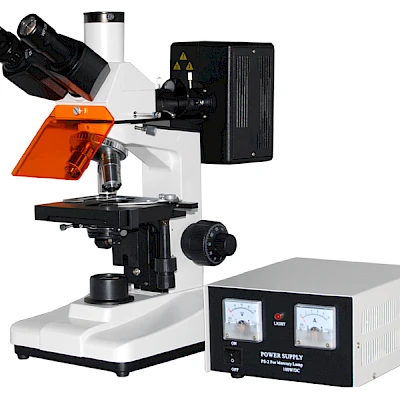

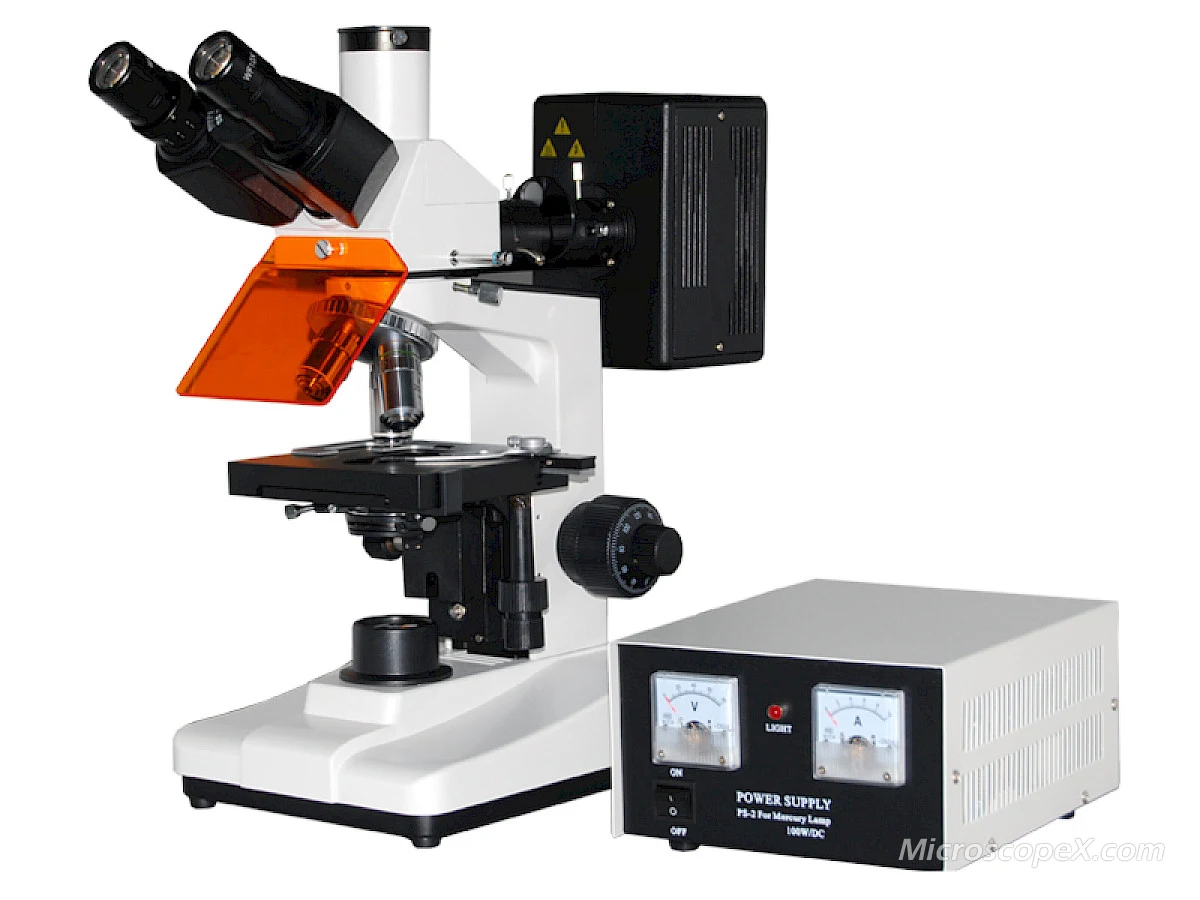

VMF15A

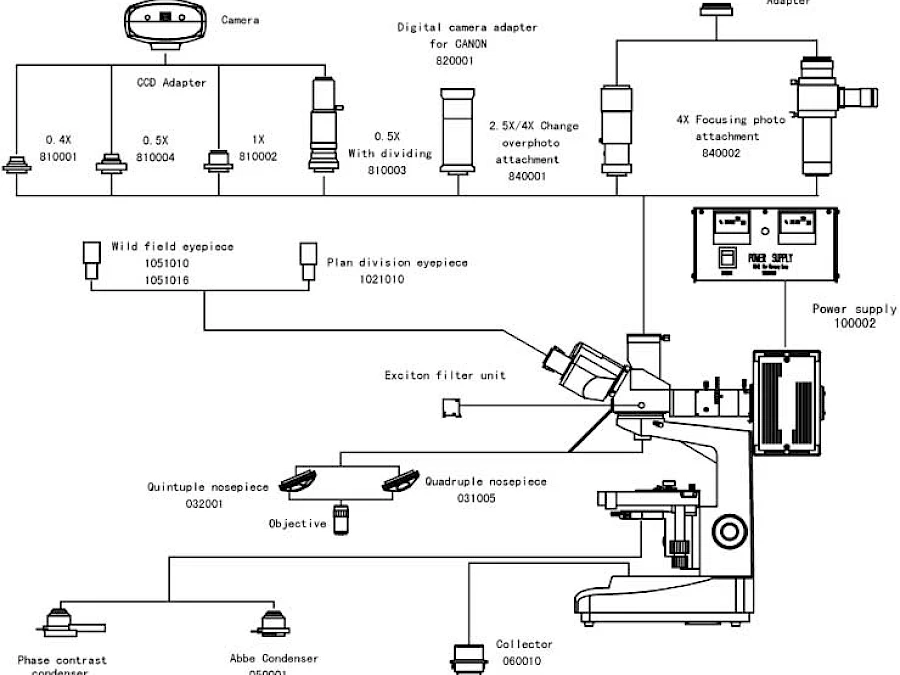

Diagram of VMF15A

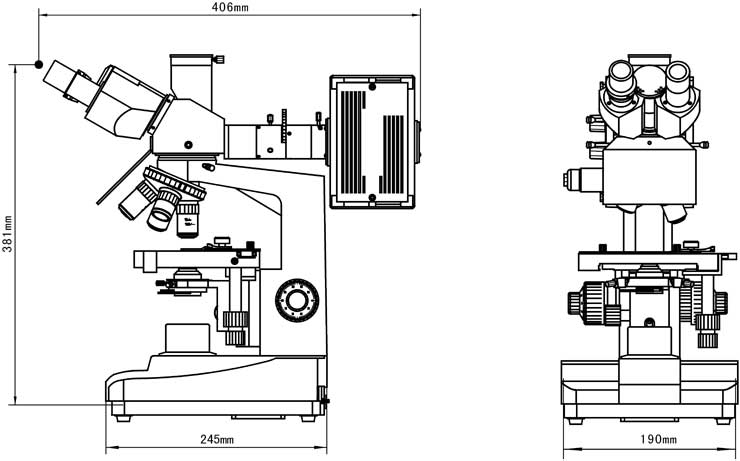

Dimension of VMF15A

Specification for VMF15A
Eyepiece	WF 10X (Φ18mm)
Eyepiece Tube	Trinocular, inclined 30°
Objective	Achromatic 4X /0.10
	Achromatic 10X /0.25
	Achromatic 100X /1.25(Spring, Oil)
	Fluorescence 25X /0.65
Focus System	Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm
Nosepiece	Quadruple (Backward ball bearing inner locating)
Working Stage	Double layer mechanical (Size: 135mmX125mm, moving range:75mmX35mm)
Abbe Condenser	N.A.1.25 Rack & pinion adjustable
Filter	Blue filter
Filter	Frosted filter
Collector	For Halogen Lamp
Light Source	6V 20W Halogen Lamp, adjustable brightness
Reflected Fluorescence System	Mercury Lamp House 100W/DC
	Power Supply Unit: AV: 110V or 220V
	Fluorescence filter system B Exciton Wavelength: 450~490nm
	Fluorescence filter system G Exciton Wavelength: 495~555nm

Accessories for VMF15A
Eyepiece	WF 16X (Φ11mm)
Eyepiece	Dividing 10X(Φ18mm) 0.1mm/Div
Objective	Fluorescence objectives FL 40X /1.00 (Spring, Glycerin)
Objective	Fluorescence objectives FL 100X /1.25 (Spring, Glycerin)
Nosepiece	Quintuple (Backward ball bearing inner locating)
Filter	Yellow filte
Filter	Green filter
Fluorescence Power Supply	100W Fluorescence Power Supply (Wide Voltage range and Constant Power and Calculagraph)
Reflected Fluorescence System	Fluorescence filter system UV exciton wavelength: 320~380nm
Reflected Fluorescence System	Fluorescence filter system V exciton wavelength: 380~415nm
Phase Contrast Unit	Eyepiece	Centering Telescope
	Objective	Phase Contrast Plan Achromatic 10X /0.25 PHP
		Phase Contrast Plan Achromatic 20X /0.40 PHP
		Phase Contrast Plan Achromatic 40X /0.65 PHP (Spring)
		Phase Contrast Plan Achromatic 100X /1.25 PHP (Spring, Oil)
	(PH-1) Turnplate phase contrast condenser
	(PH-2) Turnplate phase contrast condenser
	Flashboard phase contrast condenser
	Pull board phase contrast condenser
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 (With USB & Video Output)
	DV-2 (With USB Output)
	DC-3 (With Video Output)
Digital camera adapter	CANON Digital Camera Adapter (A610, A620, A630, A640)
Photograph Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD Adapter
	PK Adapter
