VMB630A Professional Integrated Coding Nosepiece Upright Trinocular Biological Microscope for Medical Operation & Teaching

VMB630A

SWH10X23mm Eyepiece; LIM Intelligent Light Intensity Management; Encode Hardware integrated with Image Analysis Software

Core Features

Total Mag. 40X~1000X
Rigid T-shaped design conforms to ergonomic principles, providing comfortable operation, aesthetics, practicality, wear resistance, and durability
Large field eyepiece and infinite plan achromatic objective, with a flat and clear field of view
LIM intelligent light intensity management, brightness memory function, panel supports ECO energy-saving
The inward tilting quintuple coded objective disc and five objectives meet the observation needs of multiple magnifications
The whole machine adopts anti mold and antibacterial treatment, effectively protecting the lens and extending the service life of the instrument

Configurations

Adapter

RMS C-mount

Two spectral ratios R: T

=100:0 or 50:50

Kohler Condenser

NA0.1~1.1

LED Illuminator

10W 4500K

VMB630A research grade coded biological microscope adopts a flexible and diversified design of an infinite distance bidirectional chromatic aberration correction optical system, with a focal length of 45mm.

Combined with the newly upgraded Koller illumination system, it presents clear and bright microscopic images at every magnification. Surface spraying of nano silver ion antibacterial coating effectively inhibits the proliferation and spread of contact microorganisms. It has the characteristics of beautiful appearance, clear imaging, wide field of view, and easy operation. Applied to medical and health institutions, laboratories, research institutes, and higher education institutions engaged in cellular microbiology, biological histology, developmental ecology, drug development, environmental science, and agricultural science.

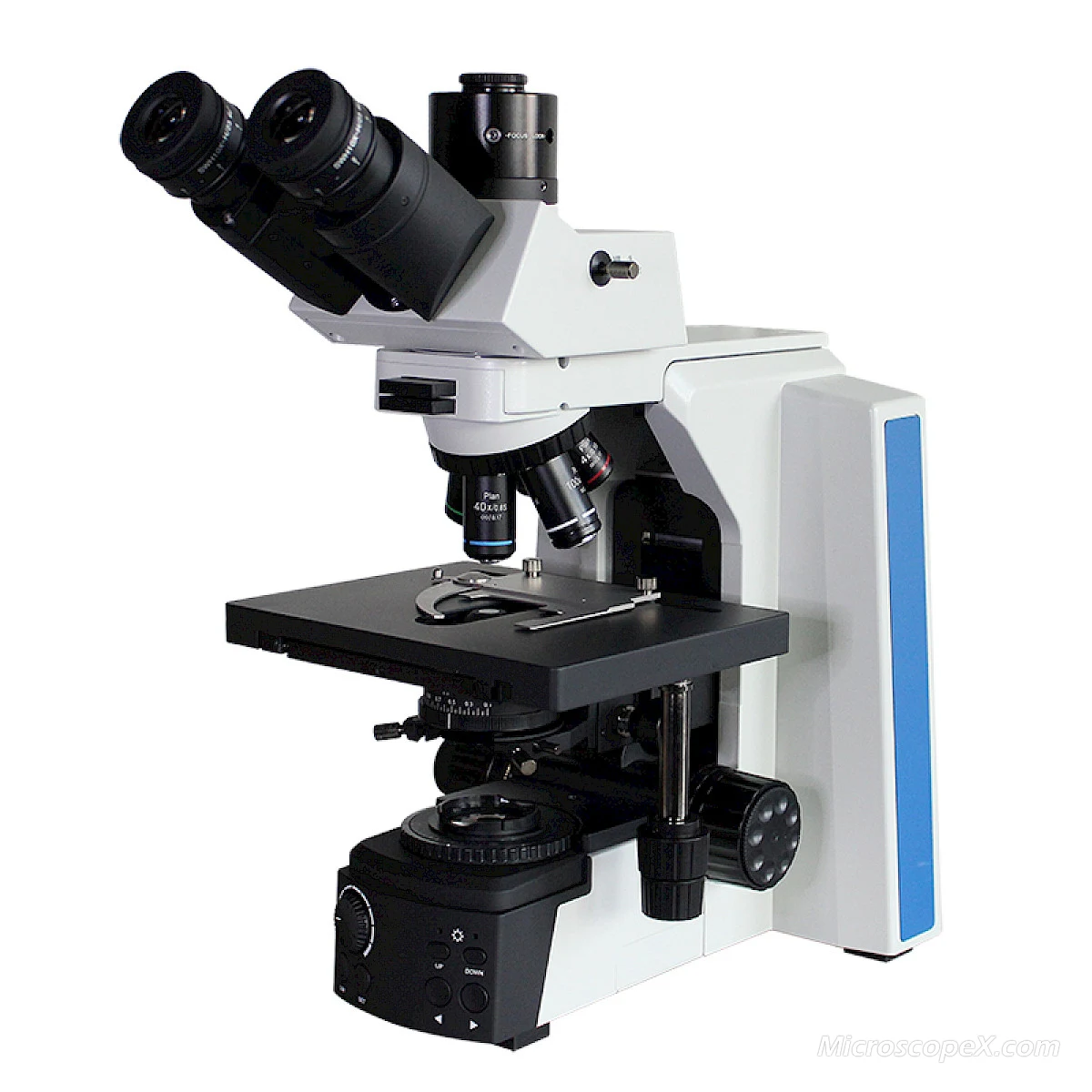

VMB630A Upright Biological Microscope

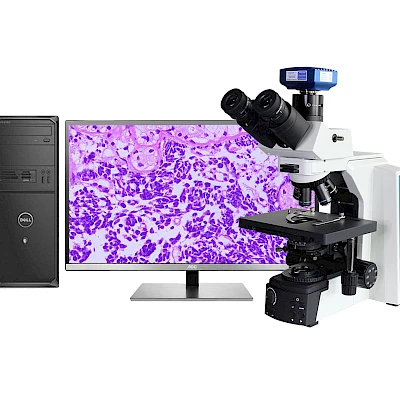

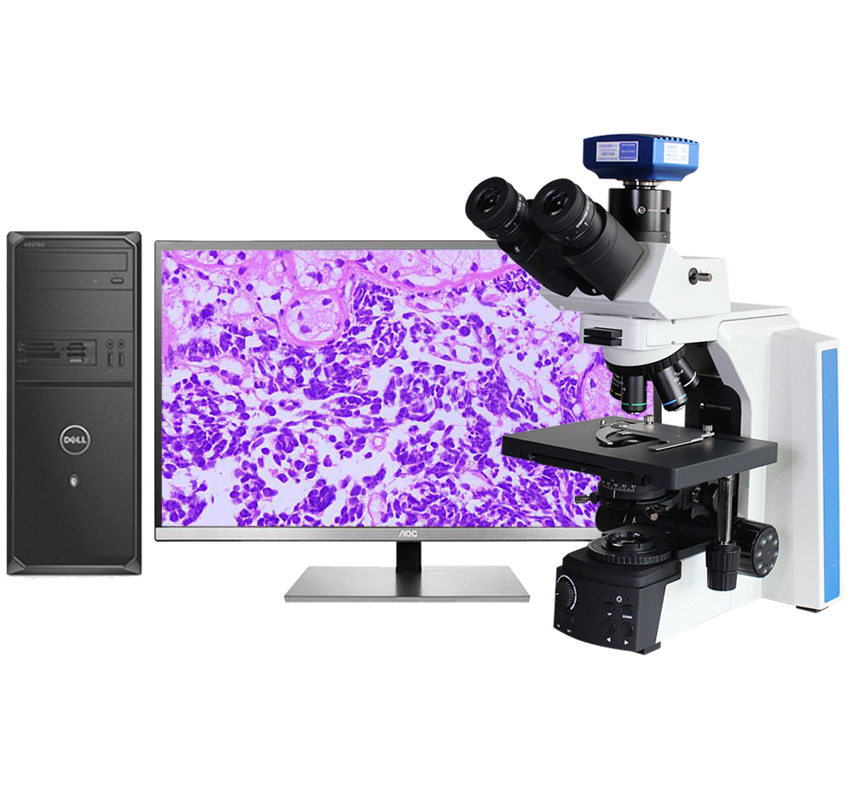

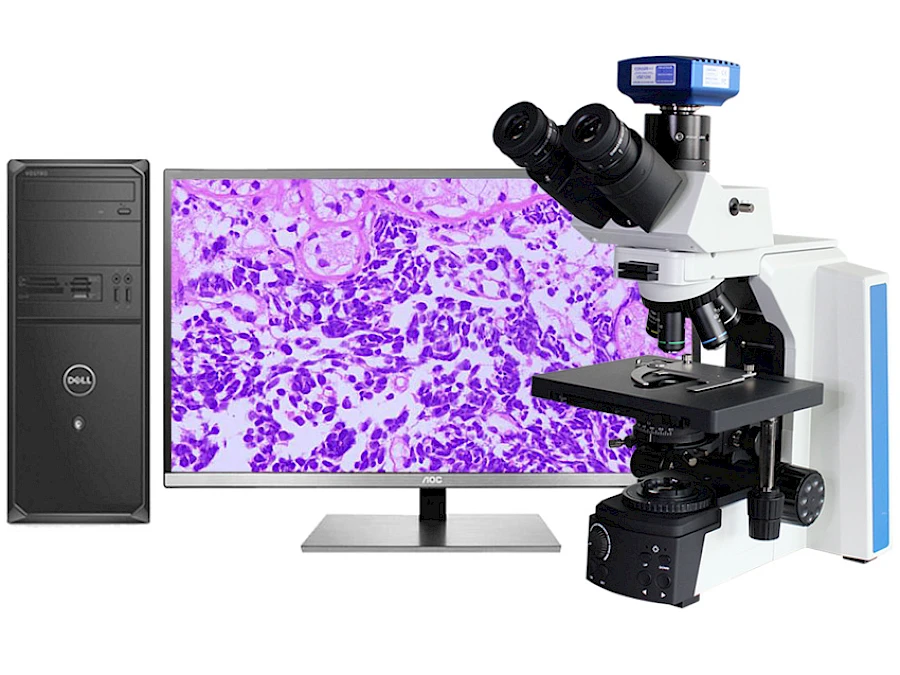

VMB630A with its Connected USB Microscope Camera

Specification for VMB630A:
Plan eyepiece	Large field of view SWH10X23mm, adjustable visual acuity, adjustable binocular refractive power (-2~+8), socket with anti rotation limit pin
Infinite Plan Achromatic Objective lens	4X N.A0.10 WD16； 10X N.A 0.25 WD4.4； 20X N.A 0.40 WD4； 40X N.A 0.65 WD0.7； 100X oil N.A 1.25 WD0.21
Total magnification	40X-1000X
Viewing head	30 ° inclined, trinocular observation tube, pupillary distance adjustment: 50mm~75mm, unilateral visual acuity adjustment: ± 5 diopters, two spectral ratios R: T=100:0 or 50:50
Nosepiece	Integrated inward tilting quintuple coding nosepiece, RMS international standard objective thread interface (C-mount), software can code and recognize magnification when switching (supported by PC side camera software when used simultaneously)
Encoder	Hardware settings are integrated with image analysis software. The magnification of the objective lens is displayed on the screen, and the calibration value recorded in the software is automatically adjusted when switching the objective lens. The computer recognizes the aperture position of the objective lens, and the software automatically switches the ruler and loads preset parameters to prevent measurement errors caused by forgetting to switch the software magnification
LIM intelligent light intensity management	The light intensity and brightness memory function remembers the appropriate lighting brightness when using each objective lens (adjustable according to personal preference brightness), automatically adjusts the light intensity when replacing the objective lens, reduces visual fatigue, and improves work efficiency,
Focusing System	Low hand position coarse fine coaxial focusing system. Travel (focusing range) 28mm, fine adjustment accuracy 0.001mm. Equipped with an adjustable elastic device to prevent sliding The upper limit device is used to prevent damage to the slices, and the random limit device can be used for quick replacement of slices, protecting the slices and objective lens
Stage	Right hand low-level double-layer mechanical working stage, wear-resistant ceramic coated tabletop, using alloy steel wire transmission structure, no exposed rack, with a movement stroke of 76 mm 55 mm, preset steel wire tension, comfortable and accurate positioning, no jamming or rebound, hands do not leave during low position handwheel operation Desktop, less prone to fatigue.
Sample Clip	Slow rebound left-hand slicing clip, supports double slides, supports driving heavy samples such as cell counting pools and counting plates
Condenser	Pre aligned Kohler spotlight NA0.1~1.1 with aperture indicator scale markings, supporting multiple lighting modes such as bright field and polarization.
Camera interface	0.5X C-mount
Lighting	Built in daylight type simulated solar LED lighting system, with 10W output brightness (equivalent to 100W halogen lamp); The color temperature is constant at 4500K, with warm white light illumination. The light outlet supports the installation of a 45mm filter.
