BLD-300 Inverted biological microscope is multidunctional microscope. It adopts excellent infinity optics system and provides eximious optical function. It is designed with good-looking shape and convenience operation. The long working distance condenser system is suitable for tissue observation in a high culture dish. The illuminate system to well consider spreading heat and safety. It also accord with man-machine engineering, The phase contrast device can be attached to the light path to perform transmitted phase contrast microscopic observation. This unit is suitable for the microscopic observation of cells, tissues and clear liquid tissues, and the dynamic microscopic observation of tissues cultured in a culture dish, and is applicable to scientific research institutions, colleges and universities, medical and health, inspection and quarantine agencies, agricultural, animal husbandry and dairy industries.

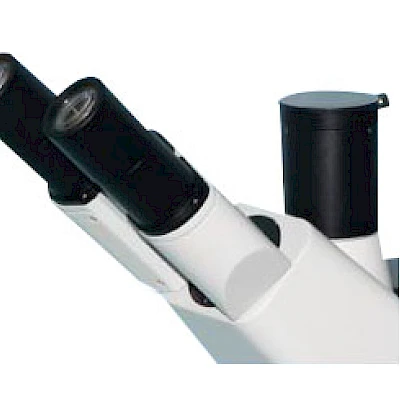

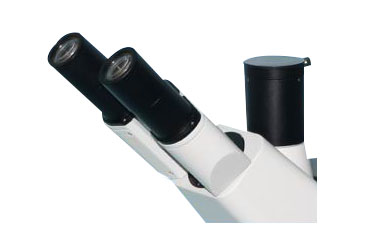

The gemel mode binocular is inclined 45°. The eyepiece field of view number is Φ22mm which let you have more wide and comfortable of observation. The trinocular can easily change in the observation and photography.

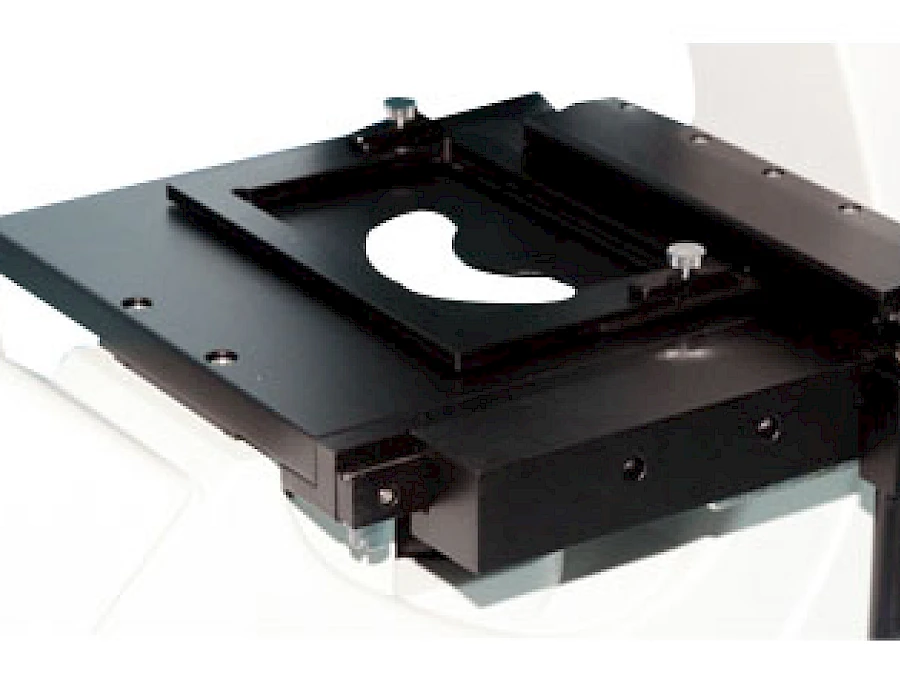

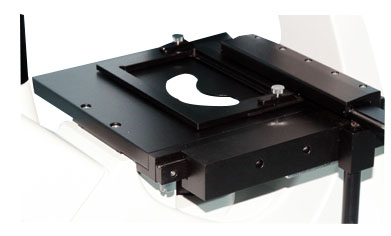

The disassembly type mechanical moving stage enable to fill the requirements that observe in the different culture dish. Equip three kind of stage board.

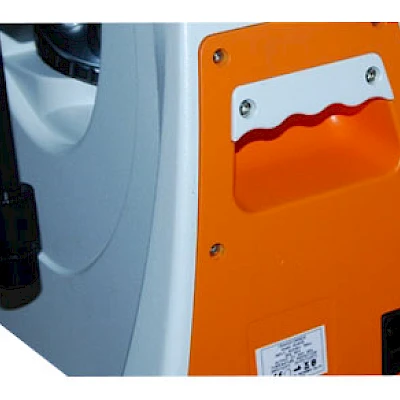

Base on the human design, the microscope scope has the handshank in the back of it, because of the design, you can easily take up the microscope and move it.

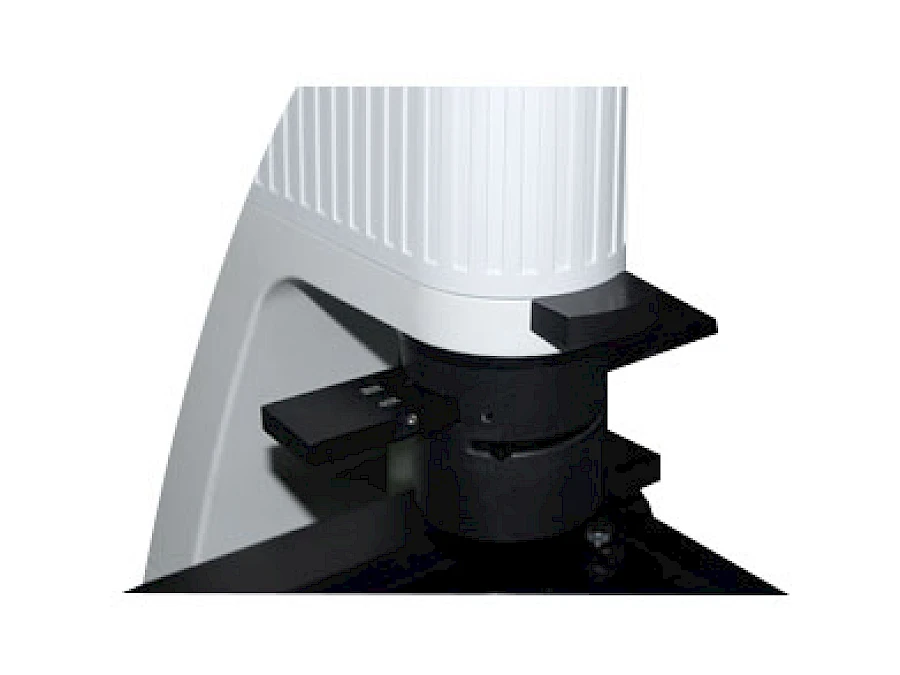

The illumination system with 9W LED (brightness adjustable) can provide clear and bright image for light field observation, but also for light field observation Ultra-long working distance in a high culture dish.
Install the condenser into the condenser holder, according to phase contrast objective choose right phase contrast ringplate into the light path, the phase contrast effect will provide. It is suit for 10X, 20X, 40X phase contrast observation.

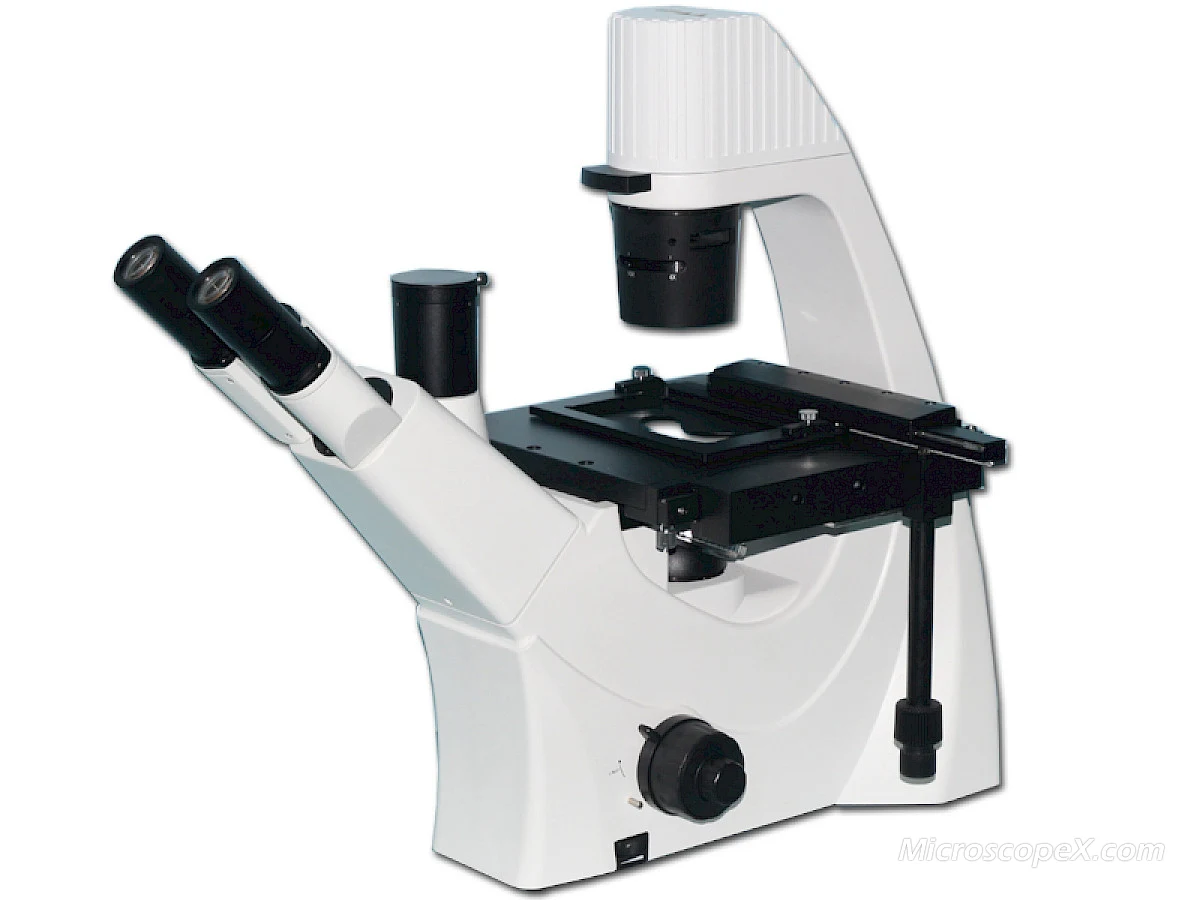

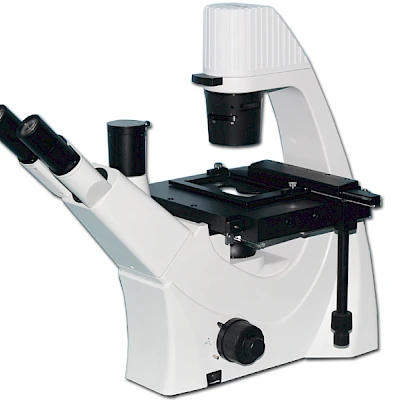

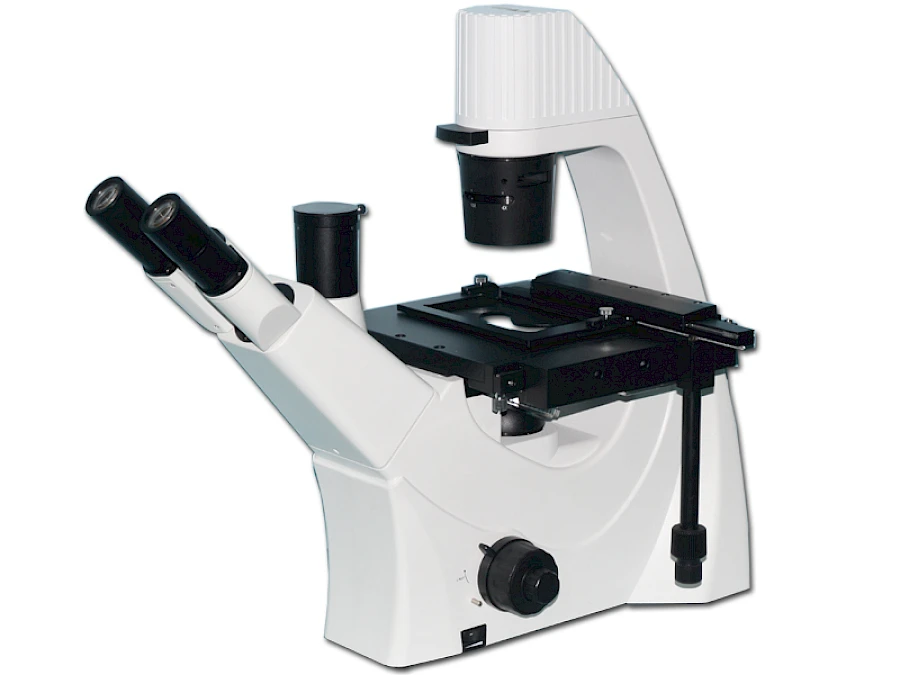

BLD-300

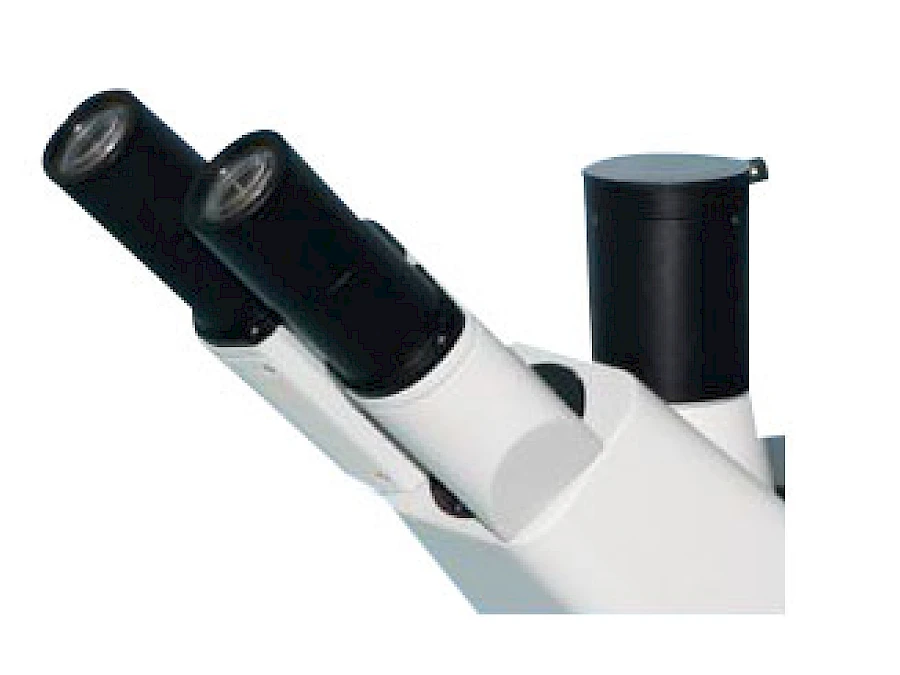

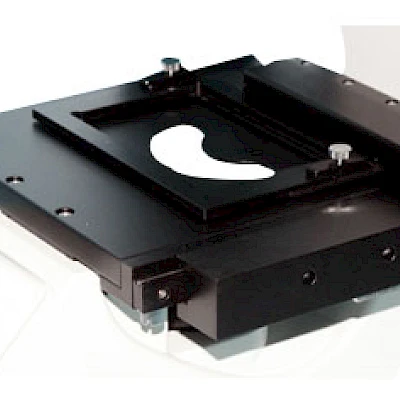

Head & Mechanical Stage of BLD-300

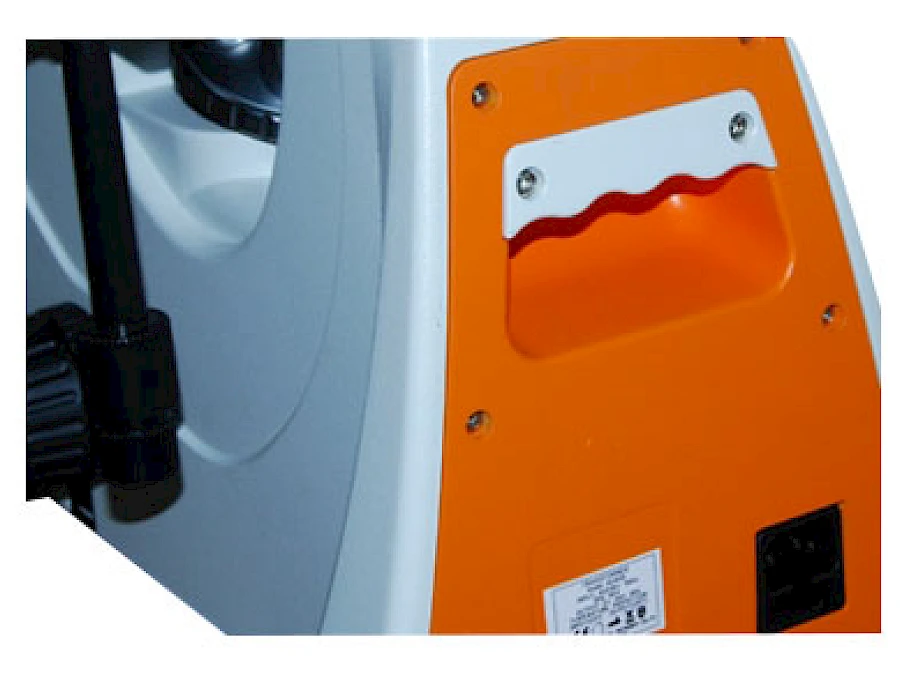

Hand Shank & Transmitted Illumination System of BLD-300

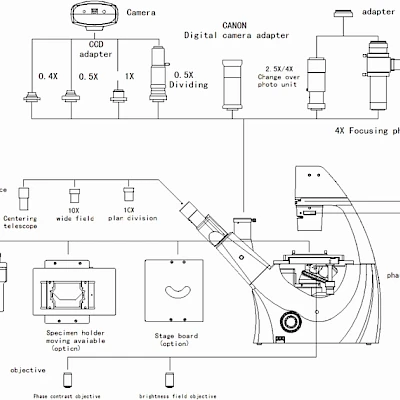

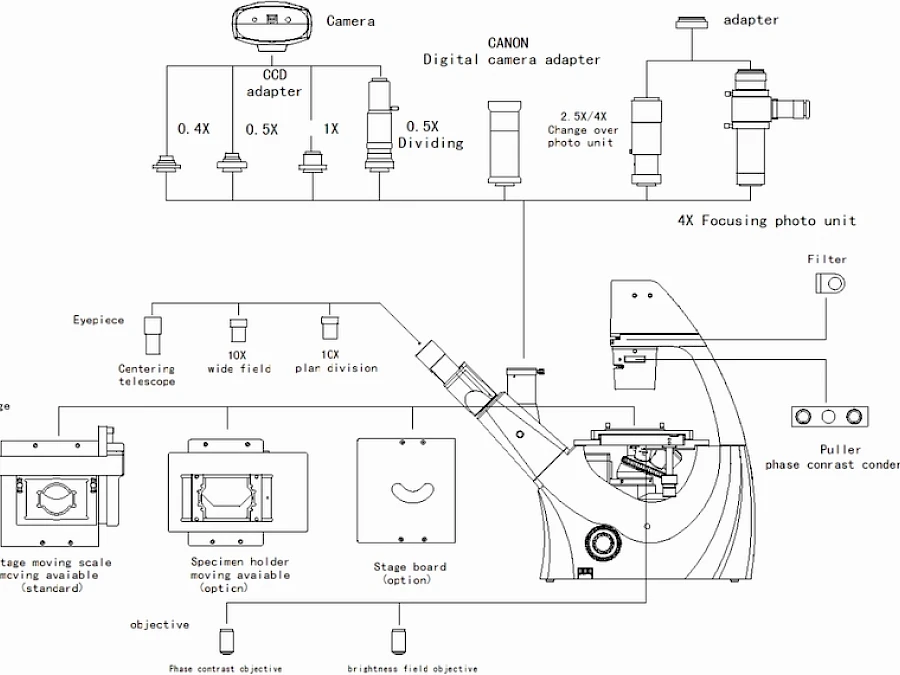

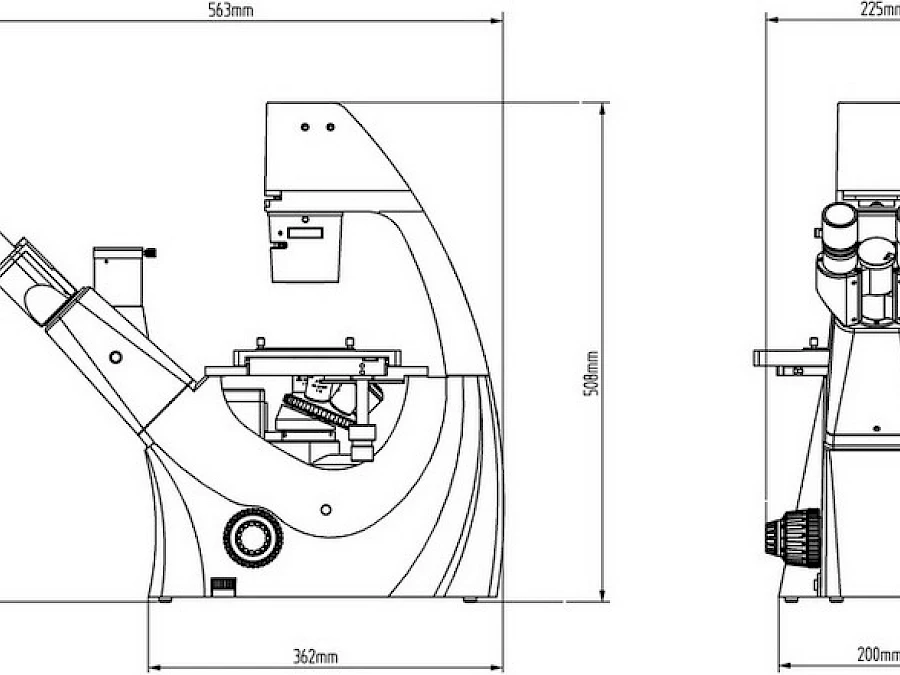

Diagram of BLD-300
