VMB300IPM Inverted Polarizing Modulation Contrast Biological Microscope is a new type of multi-functional optical instrument. It is designed with good-looking shape and convenience operation. The phase contrast device can be attached to the light path to perform transmitted phase contrast microscopic observation, such as phase contast, modulation contrast etc. This unit is suitable for the microscopic observation of cells, tissues and clear liquid tissues, and the dynamic microscopic observation of tissues cultured in a culture dish, and is applicable to scentific research institutions, colleges and universities, medica and health, inspection and quarantine agencies, agricultural, animal husbandry and daily industries.
The principle of Polarizing Modulation Contrast is that it can converts phase gradients into intensity variations, thereby making transparent specimens clear with vivid detail. The PMC system is a cost-effective upgrade for 3D-apperaing imaging, as a feature which appears to cast a shadow may not necessarily have distinct physical geometry.
Equip high quality modulation contrast plan objective (10X, 20X, 40X) and modulation contrast condenser. There are two mode modulation contrast, turntable type and puller type.
The gemel mode binocular is inclined 45°. The operator cervix and shoulder are released from tired in period of time keeping bow or head-up. The eyepiece field of view number is Φ20mm and eyepath can be added.
It is possible for process visualization in turning nosepiece. Overcome the deficiencies of the stage thermal deformation effecetively.,
The mechanical stage driver is adopted coaxial high-strength steel wire. This is a ideal design for stable mobile. The automatic protection in the limited position is effective on the accuracy of stage. There are three mode culture dish holder for selection.
Integrated illumination can make up the difference of halogens by adjusting the spacial position. Fully taken into account the cooling effect of illumination system so that the surface tenperature of lamp house is lower, the operation is safer.
The enable turning out or into condenser system is suited for tissue observation in a high culture dish.
The photographic observation output is setting up on the back of main body frame, so that the accessories of camera don’t cause interference to eyepiece observation. Microphotography in 100% light flux, suits for low illuminance microphotography.

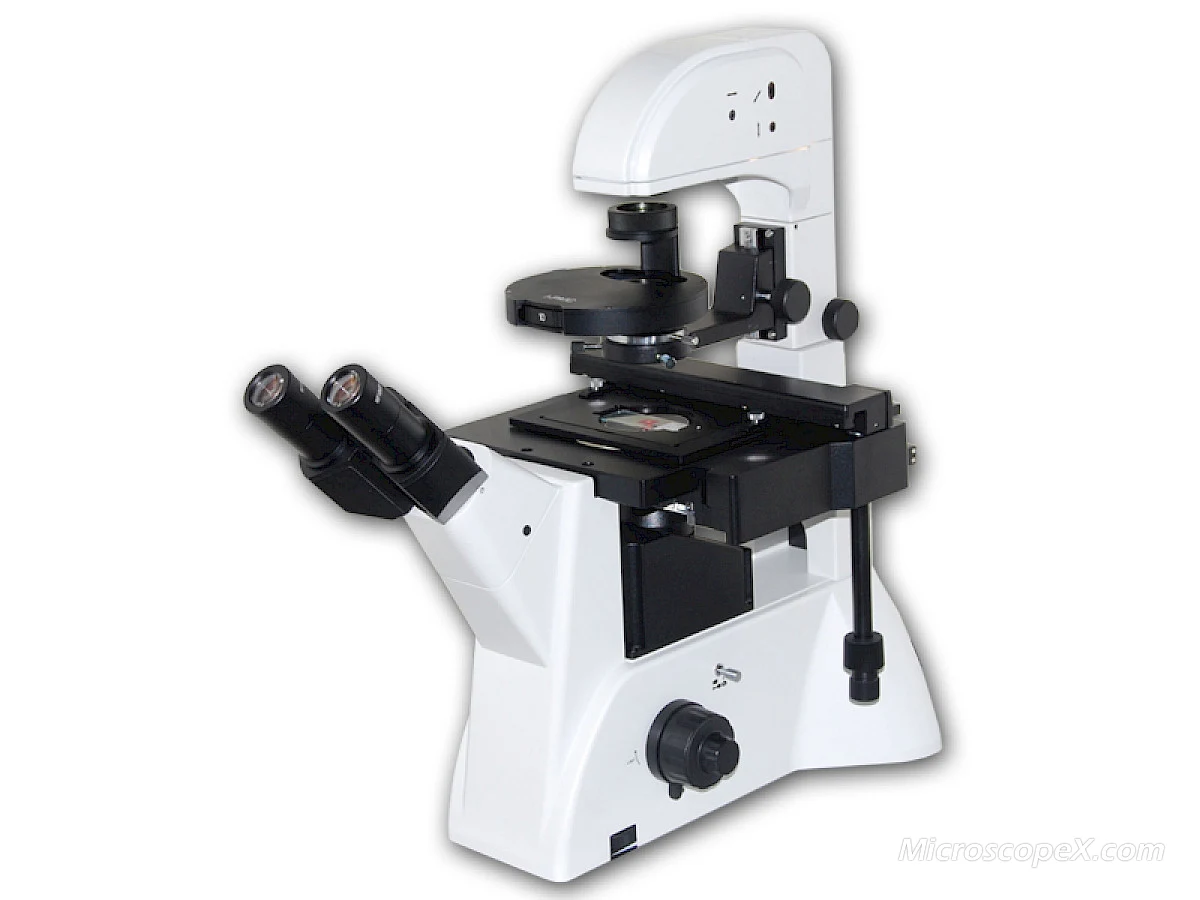

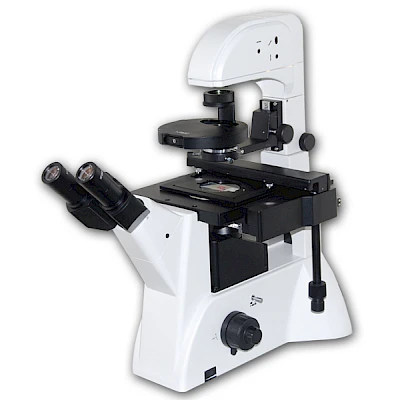

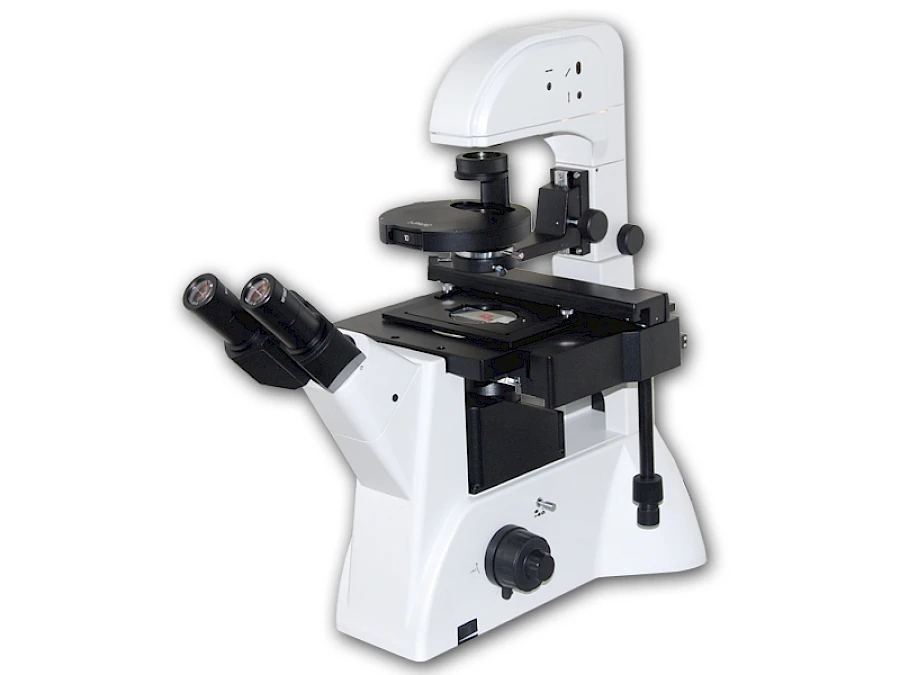

VMB300IPM

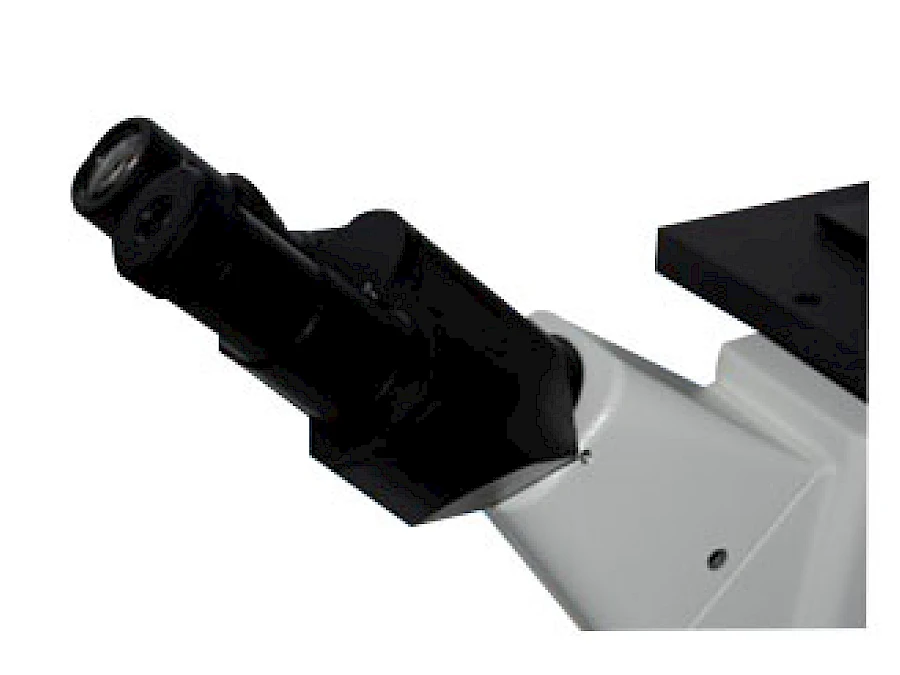

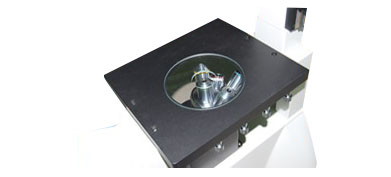

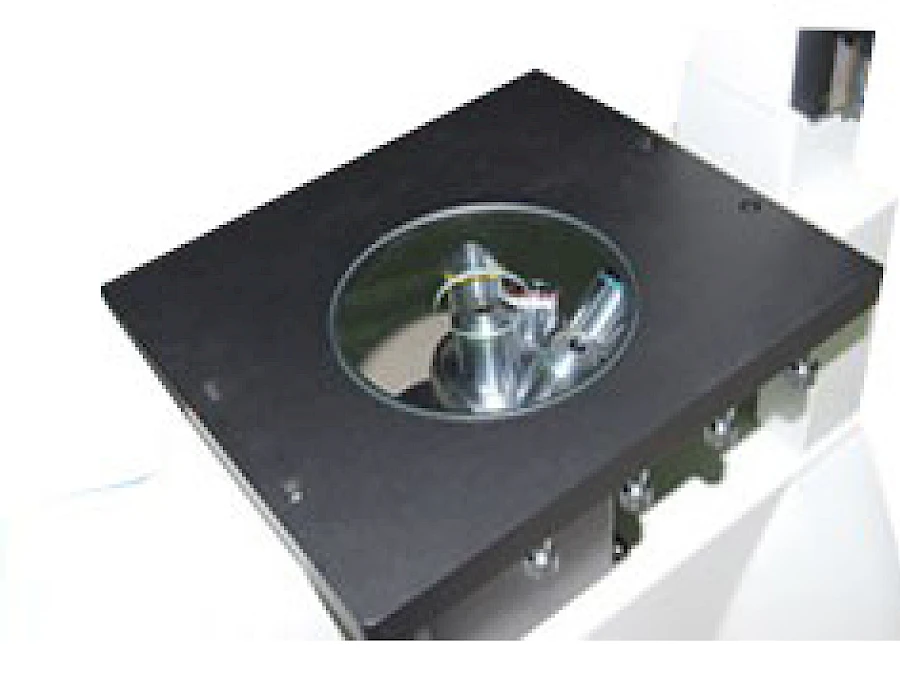

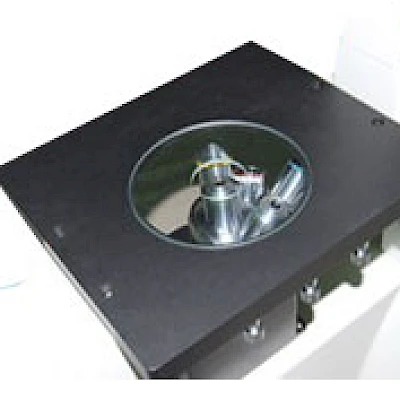

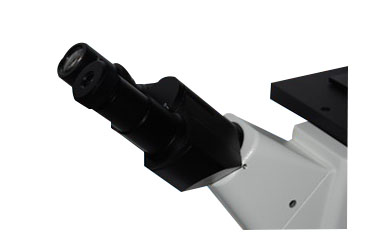

Head & Mechanical Stage of VMB300IPM

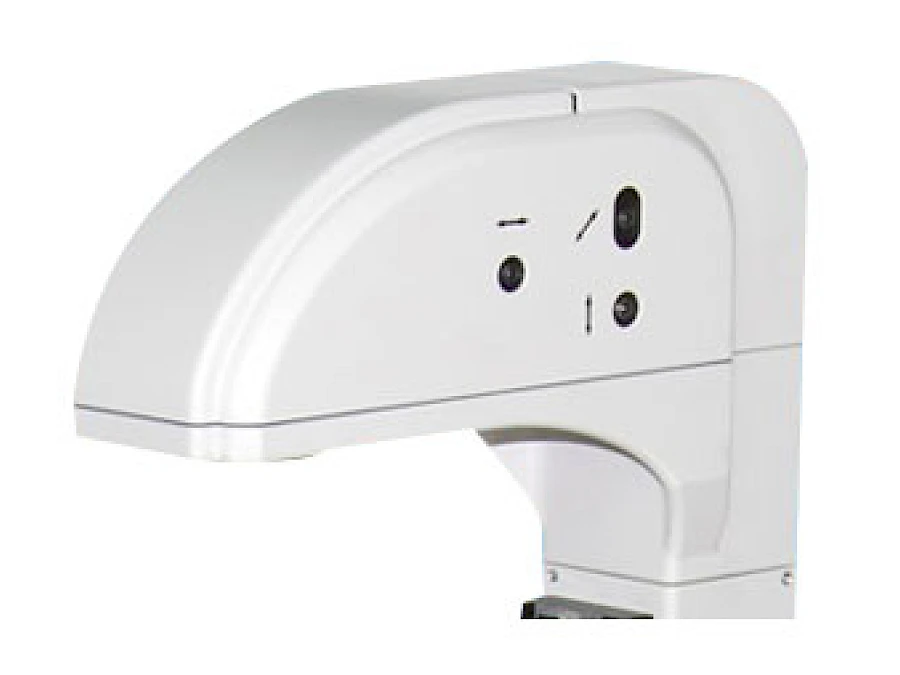

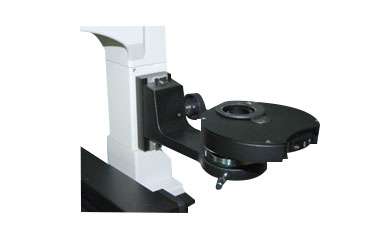

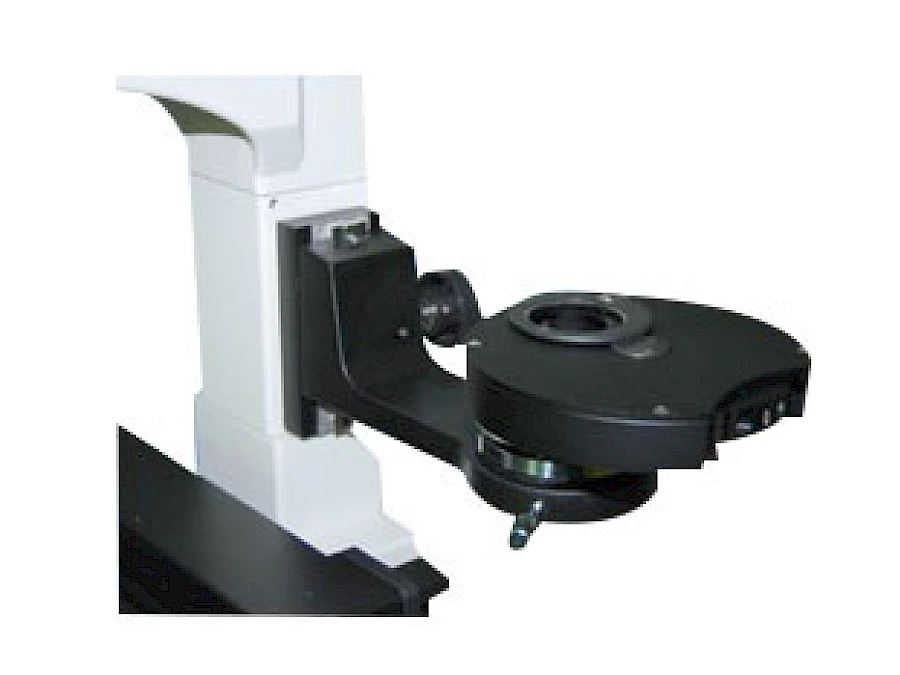

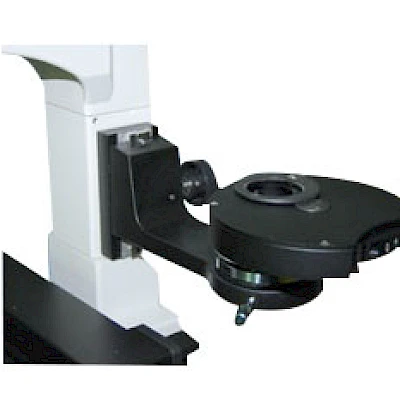

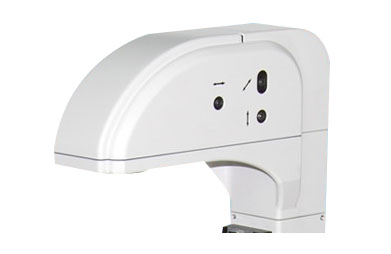

Illumination System & Condenser System of VMB300IPM

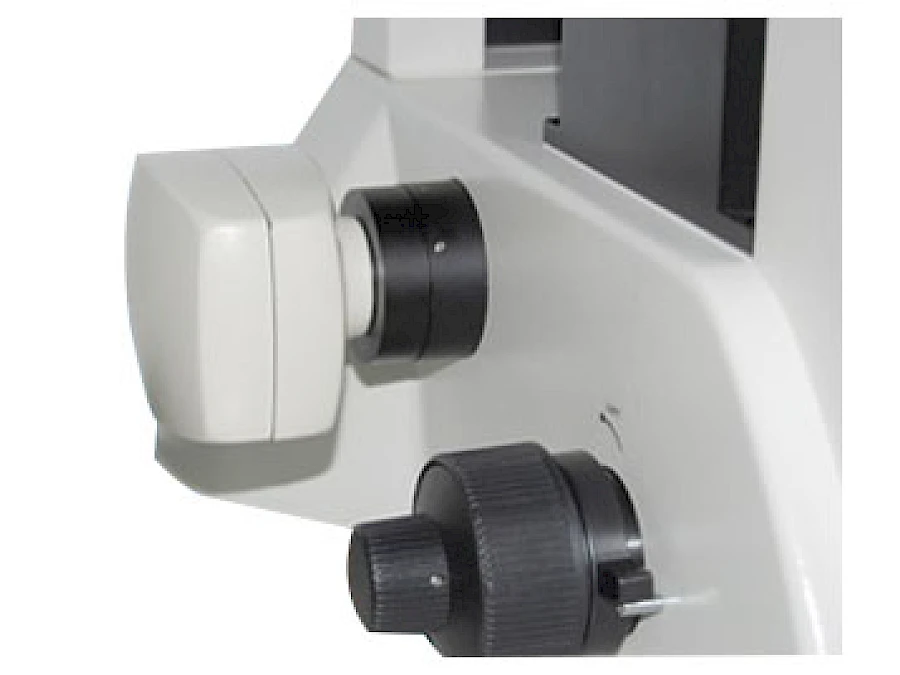

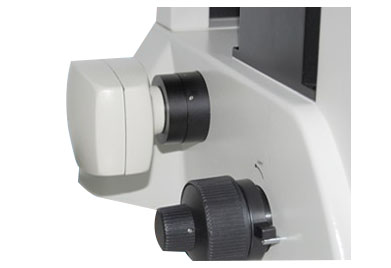

Photography Unit of VMB300IPM

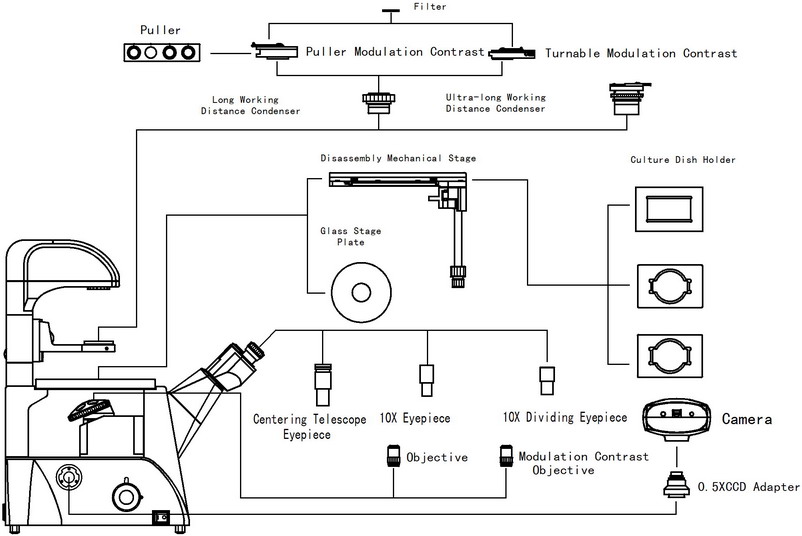

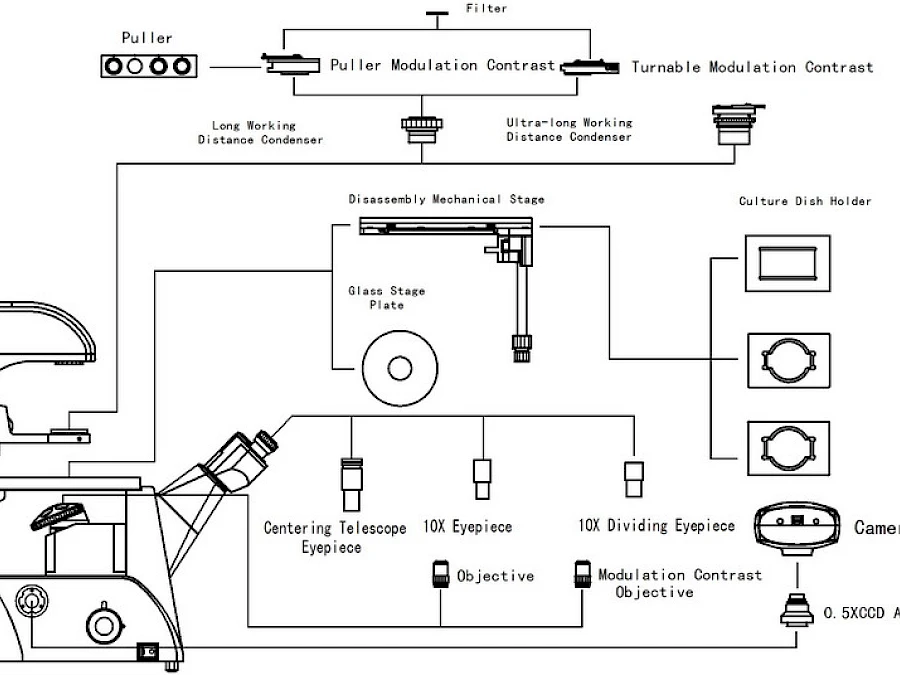

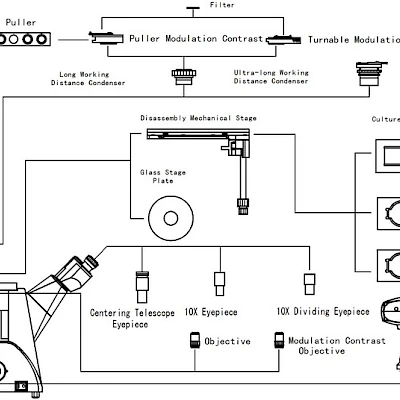

Diagram of VMB300IPM:

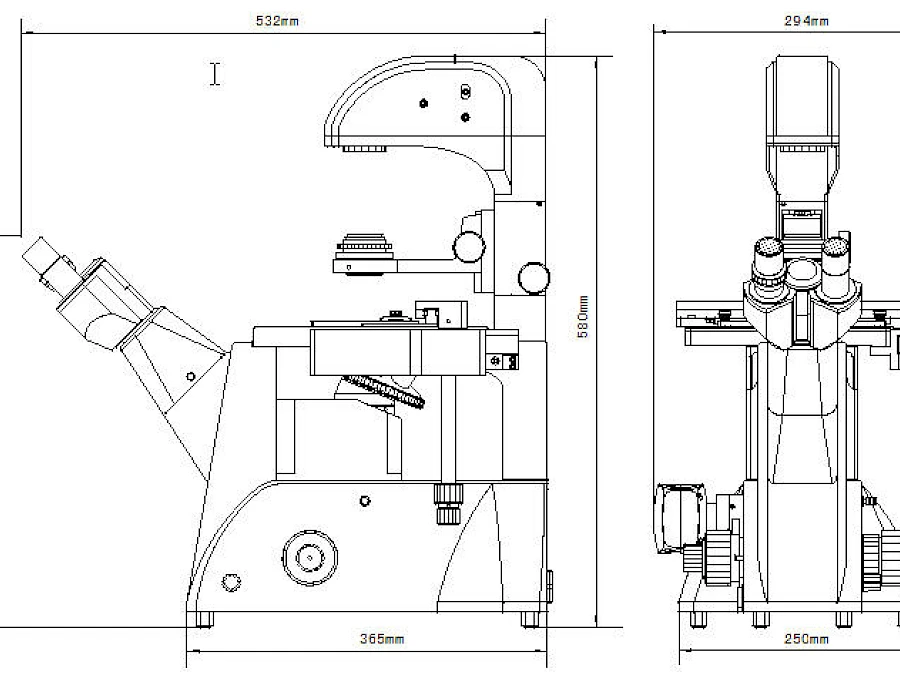

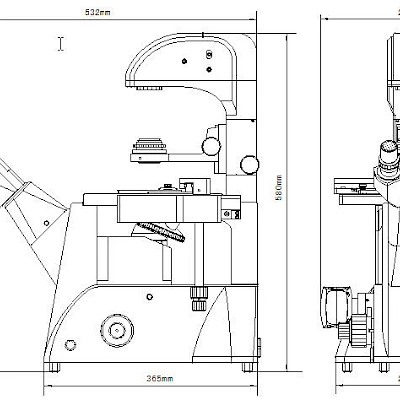

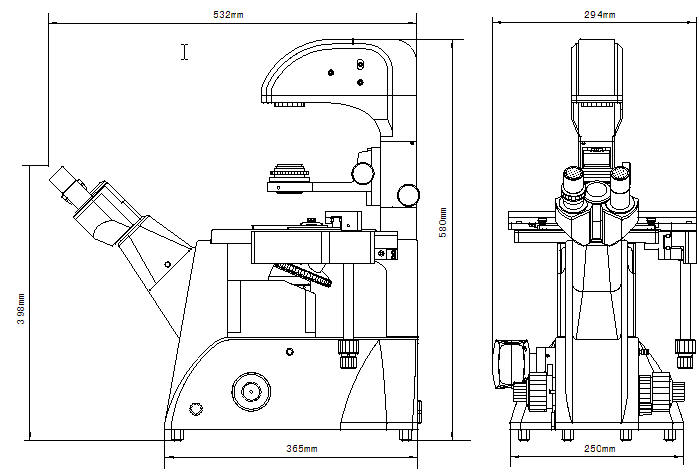

Dimension of VMB300IPM:
Digital Camera Photo:

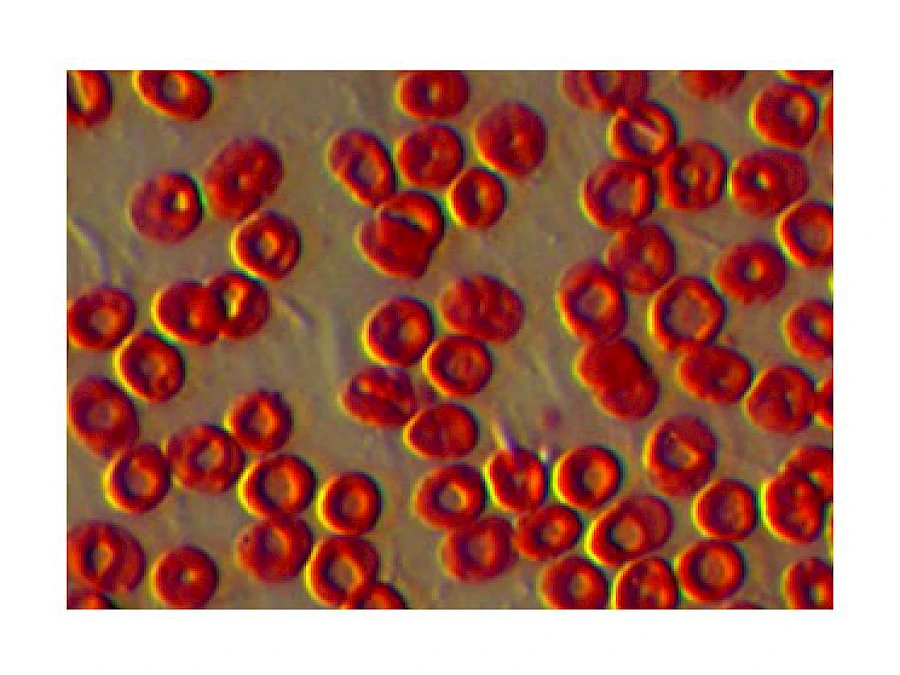

Modulation Contrast Observe
