VMB200I Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives and very long working distance condenser and phase contrast unit. The detachable stage suits for different height culture dishes. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry, etc.
Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Φ20mm, can provide an expanse and smooth space for observation.
The disassembly type mechanical moving stage enable to fill the requirements that observe in the different culture dish. Equip three kind of stage board.
The condenser system can be placed into or out of the light path. And is suitable for tissue observation in a high culture dish.
6V 30W Halogen lamp can make up the difference of halogens by adjustable the spacial position. Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer.
Equip high quality phase contrast plan objective and phase contrast condenser. There are two mode phase contrast condenser: plug-in type and puller type.

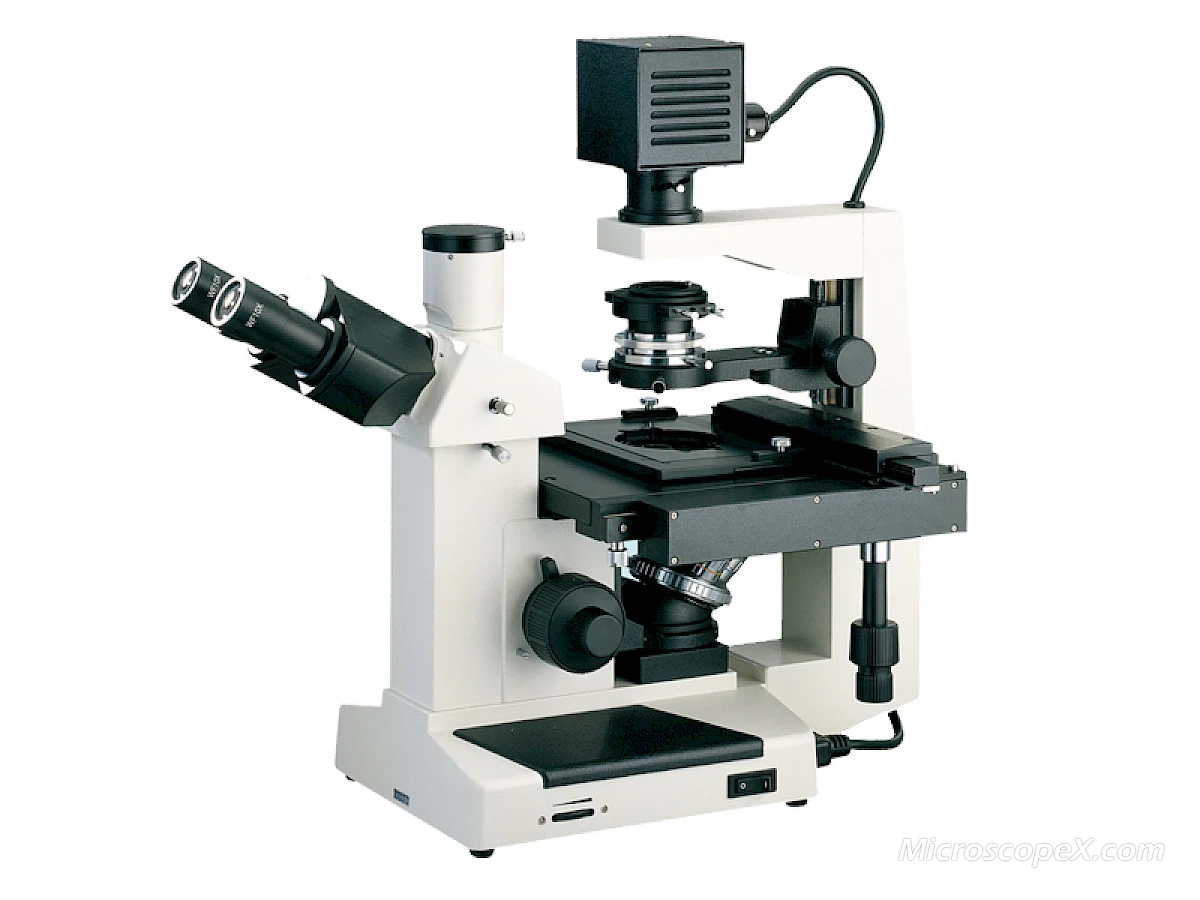

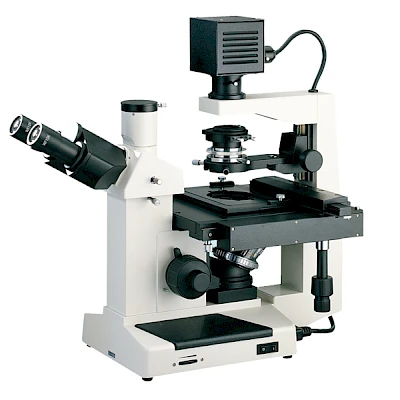

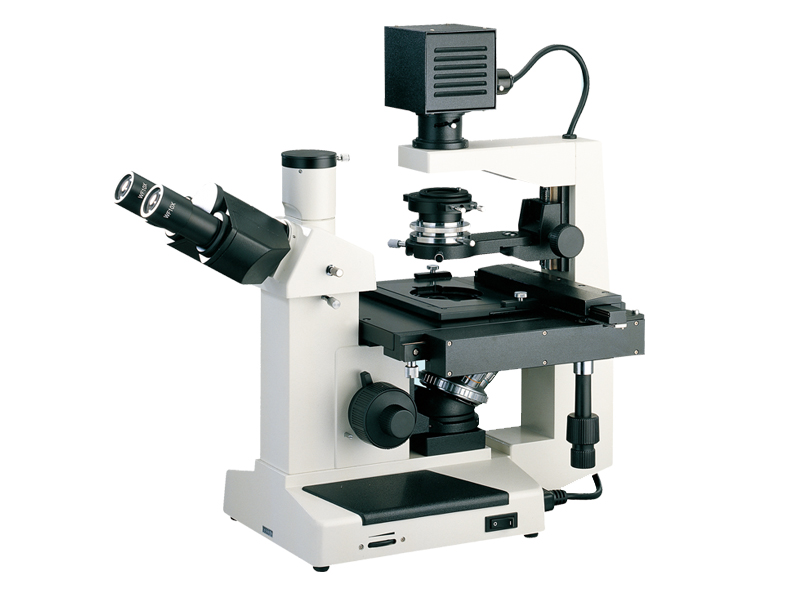

VMB200I

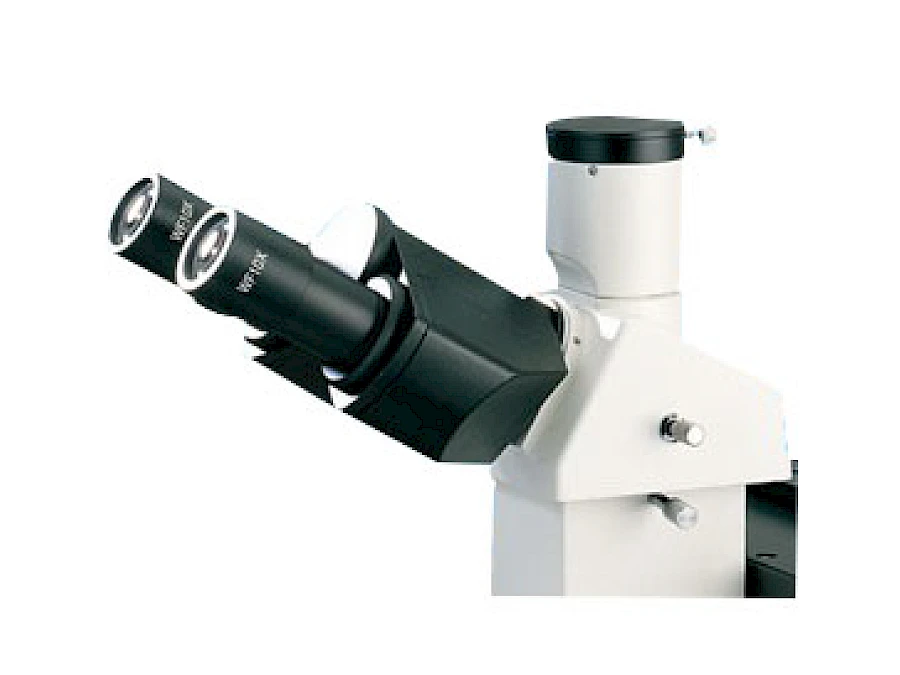

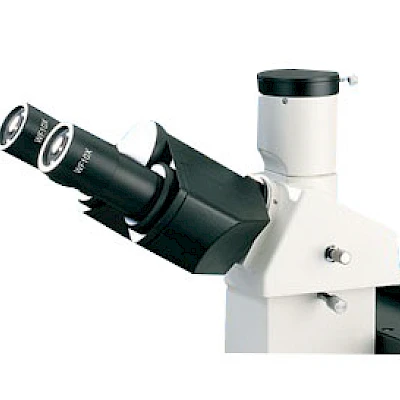

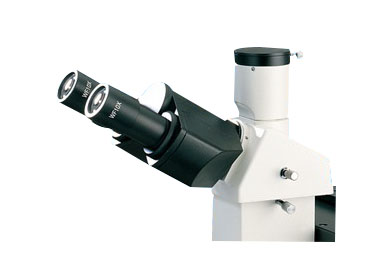

Head of VMB200I

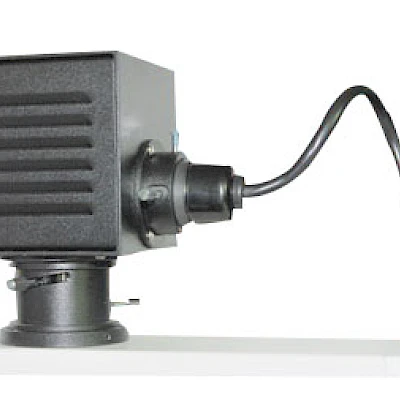

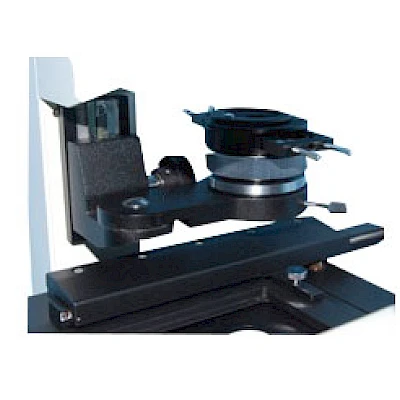

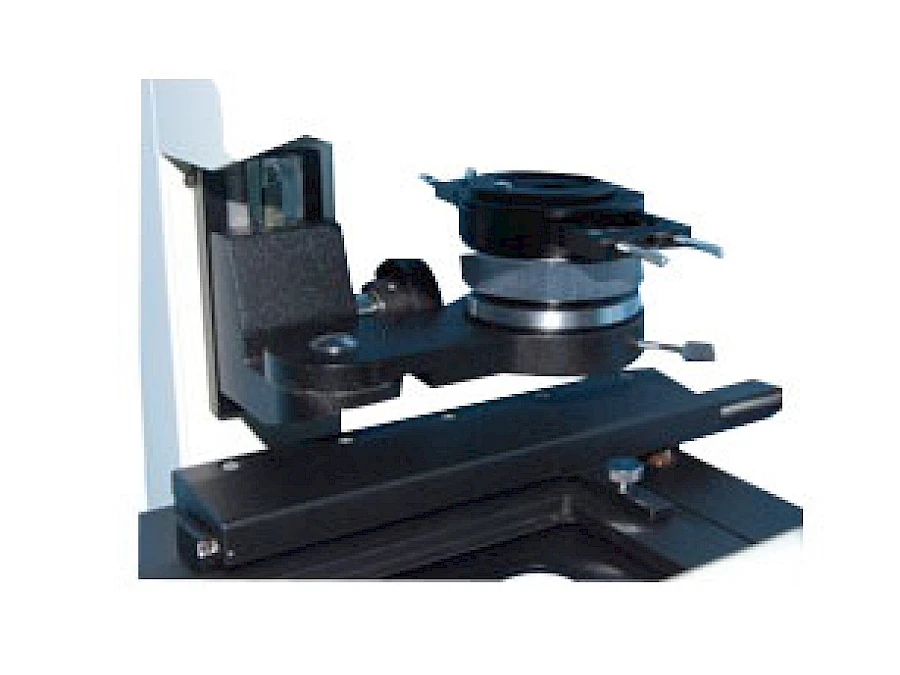

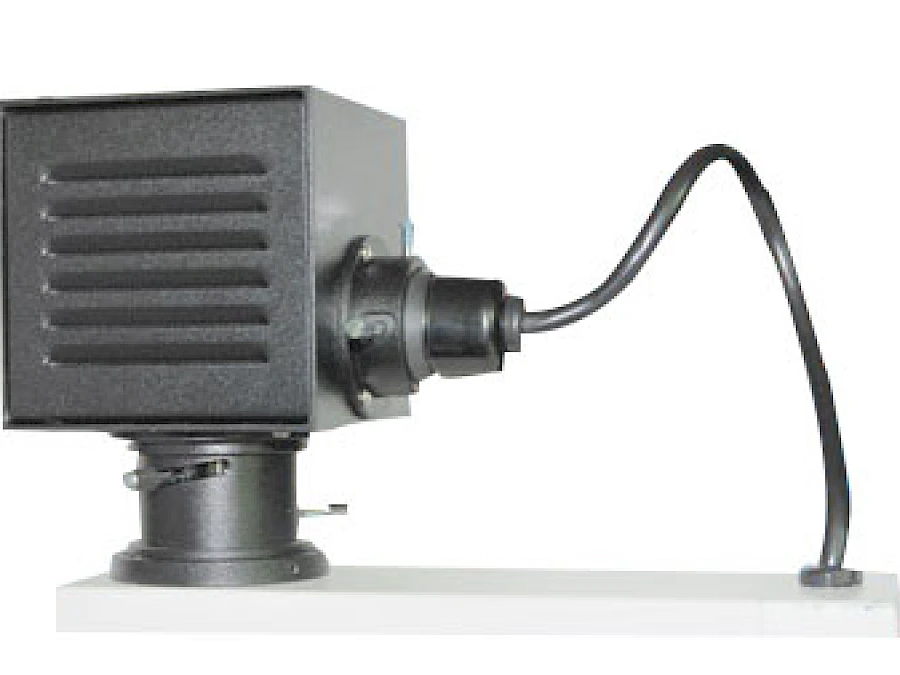

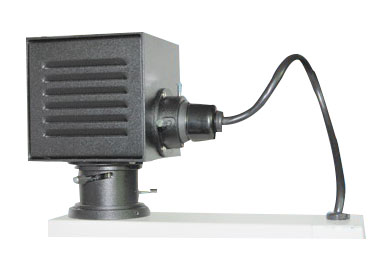

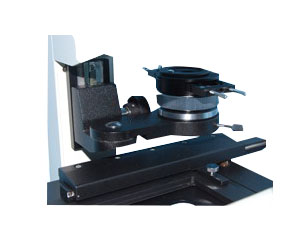

Condenser System & Illumination System of VMB200I

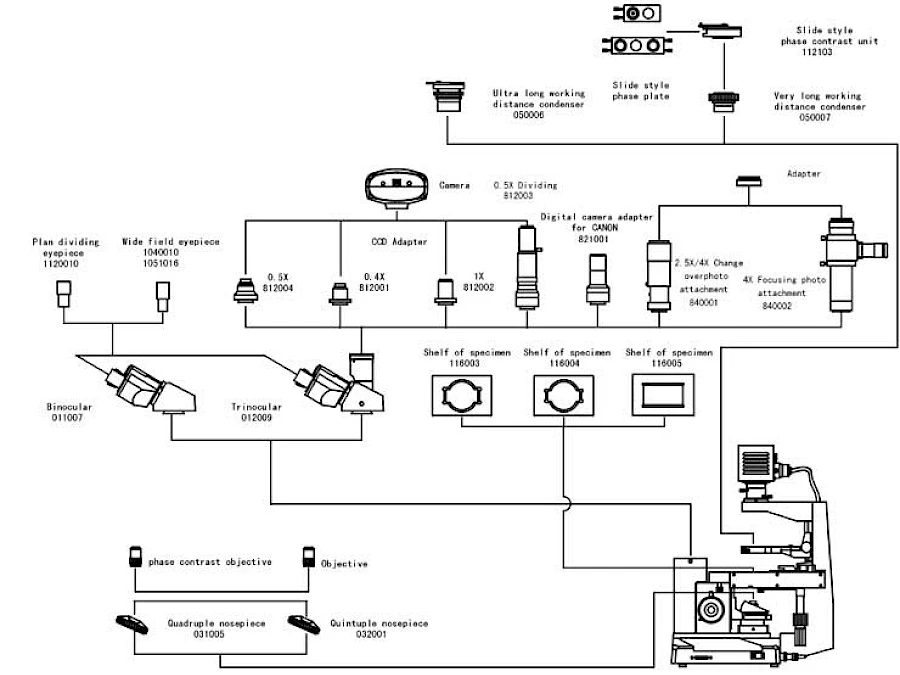

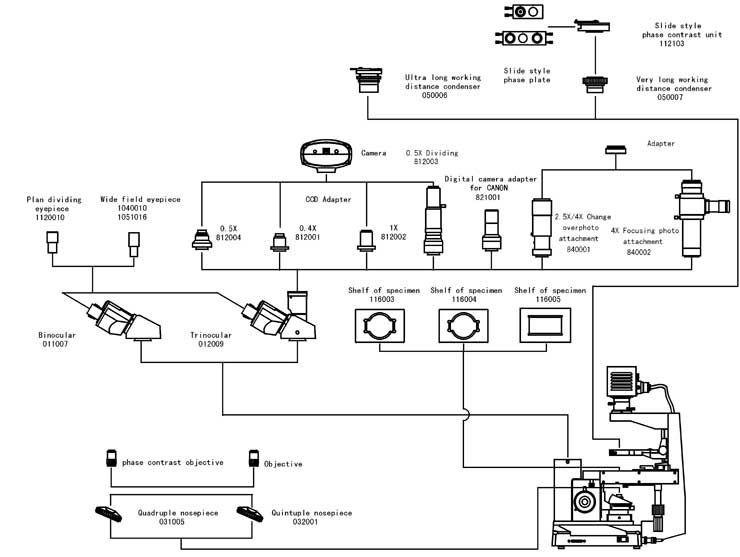

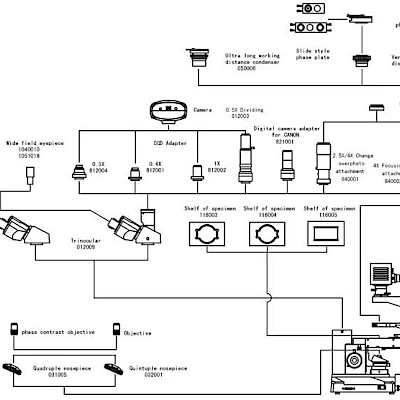

Diagram of VMB200I

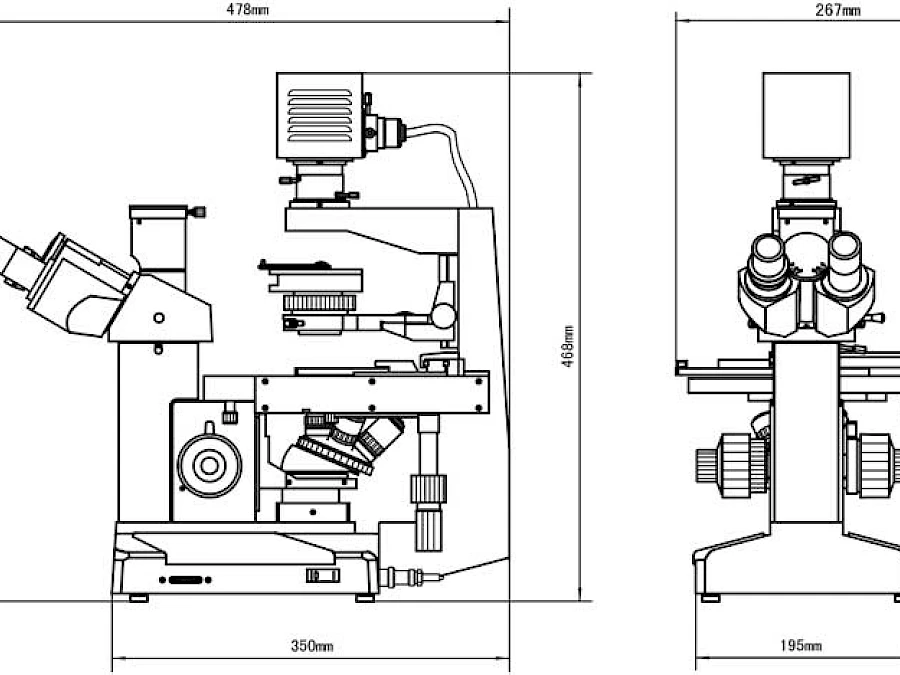

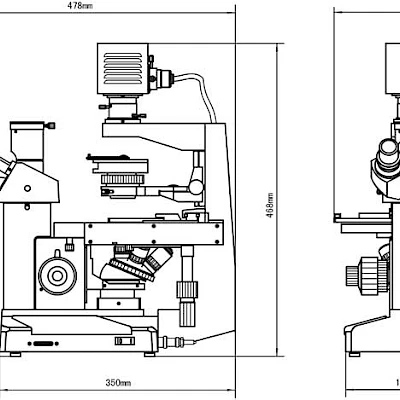

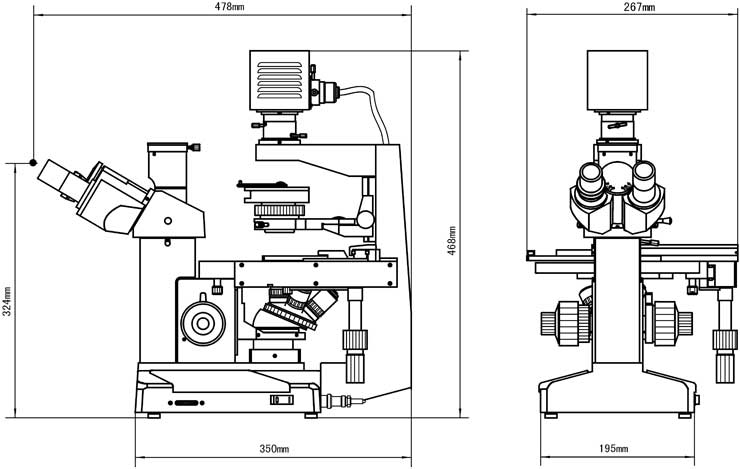

Dimension of VMB200I
Digital Camera Photo
Bright Observe
Phase Observe
