VMB100I Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry etc.
Trinocular can be connected to the camera. 10X wide field plan eyepiece, field Ī¦20mm, can provide an expanse and smooth space for observation.
Double layer mechanical stage, move range: longitudianl 30mm, transverse 75mm. Equip three kind of stage board enable to fill the requirements that observe in the different culture dish.
Plug-in phase contrast condenser working distance: 30mm, highness adjustable. Optional long working distance phase contrast condenser. Working distance is 50mm.
6V 30W Halogen lamp can make up the difference of halogen by adjustable the spacial position. Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer.
Equip high quality phase contrast plan objective and phase contrast condenser. There are two mode phase contrast condenser: plug-in type and puller type.

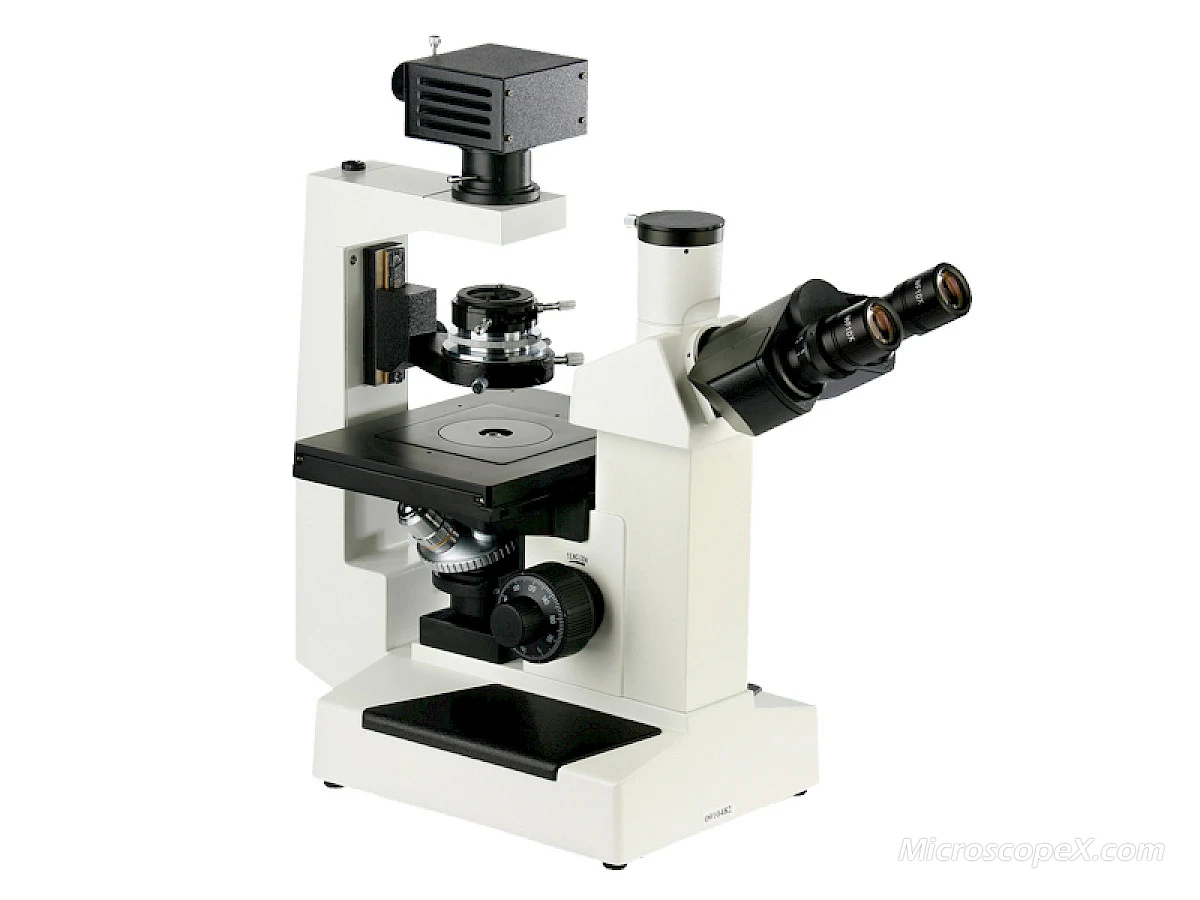

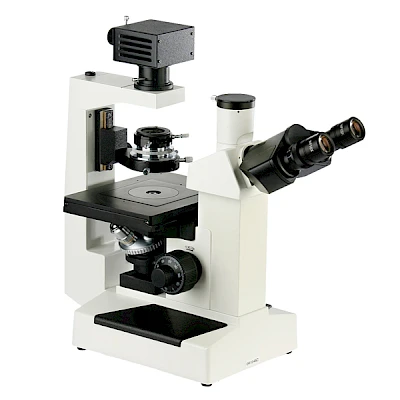

VMB100I

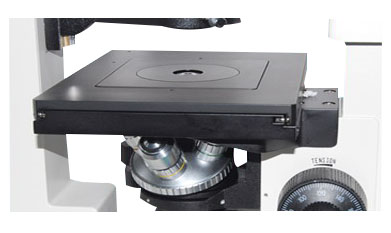

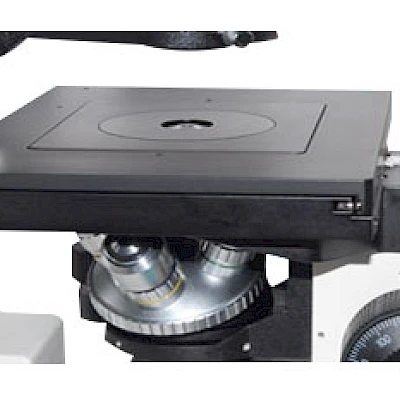

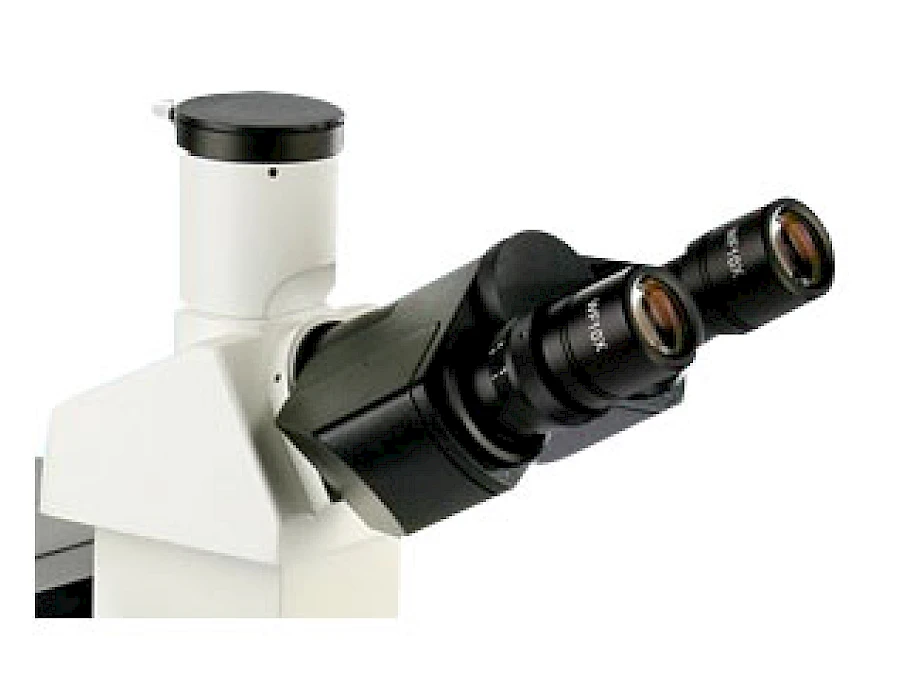

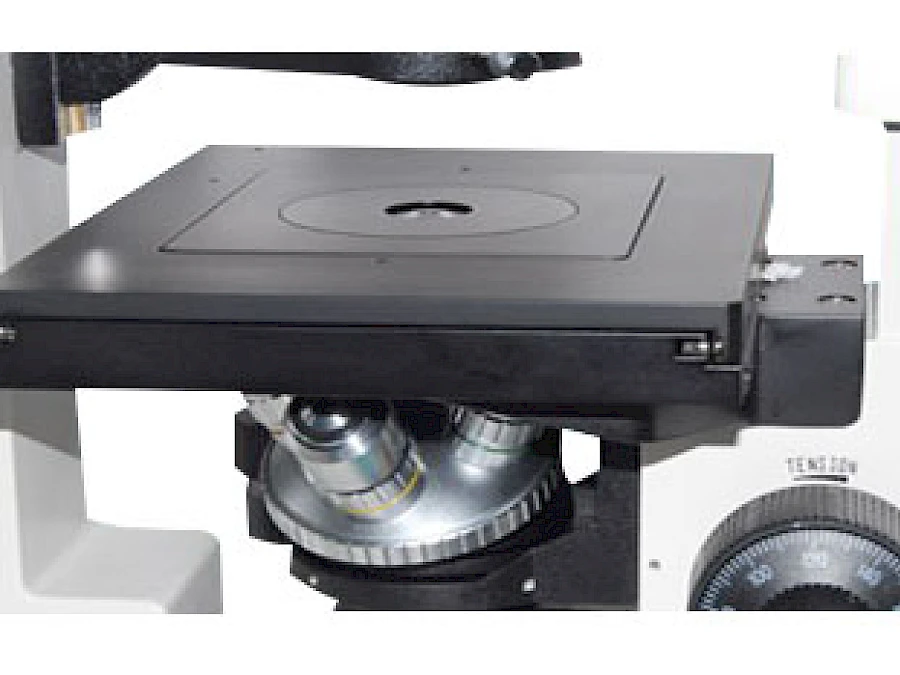

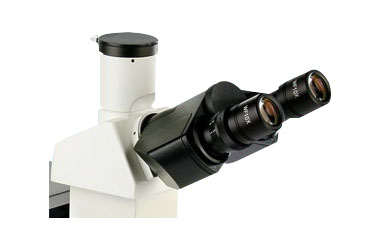

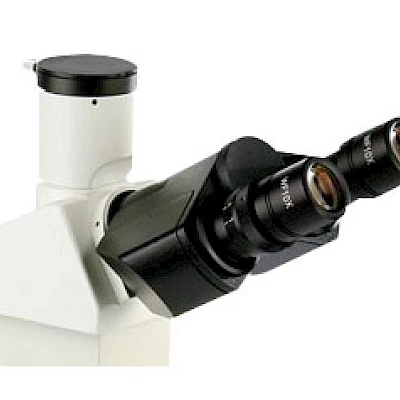

Head & Mechanical Stsge of VMB100I

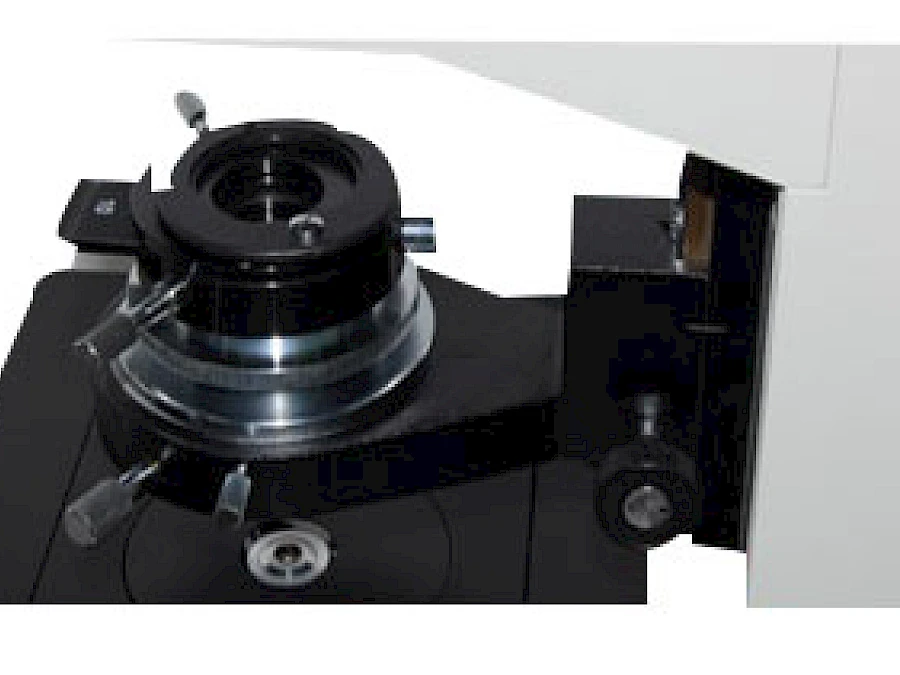

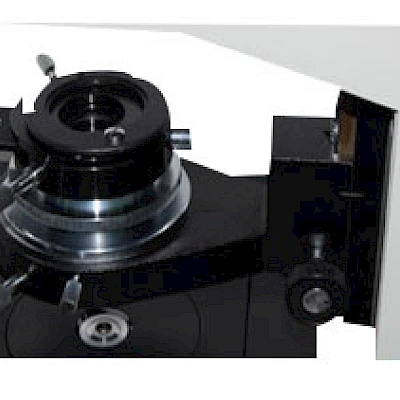

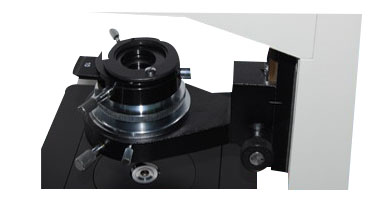

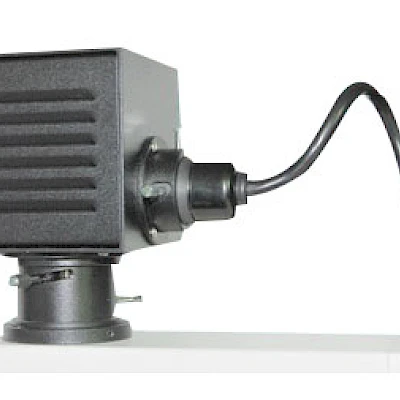

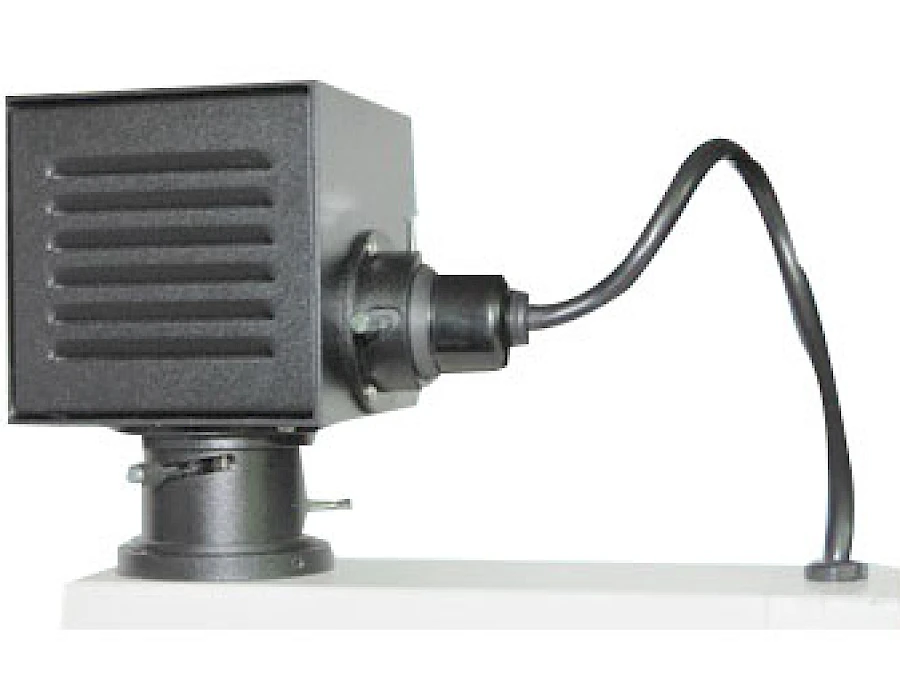

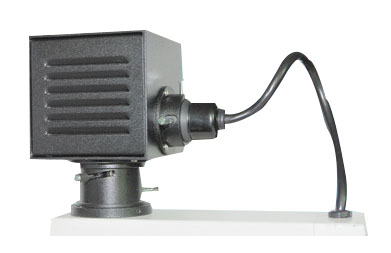

Condenser System & Illumination System of VMB100Iāāāāāāā

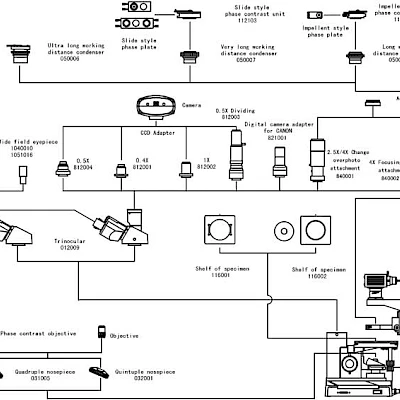

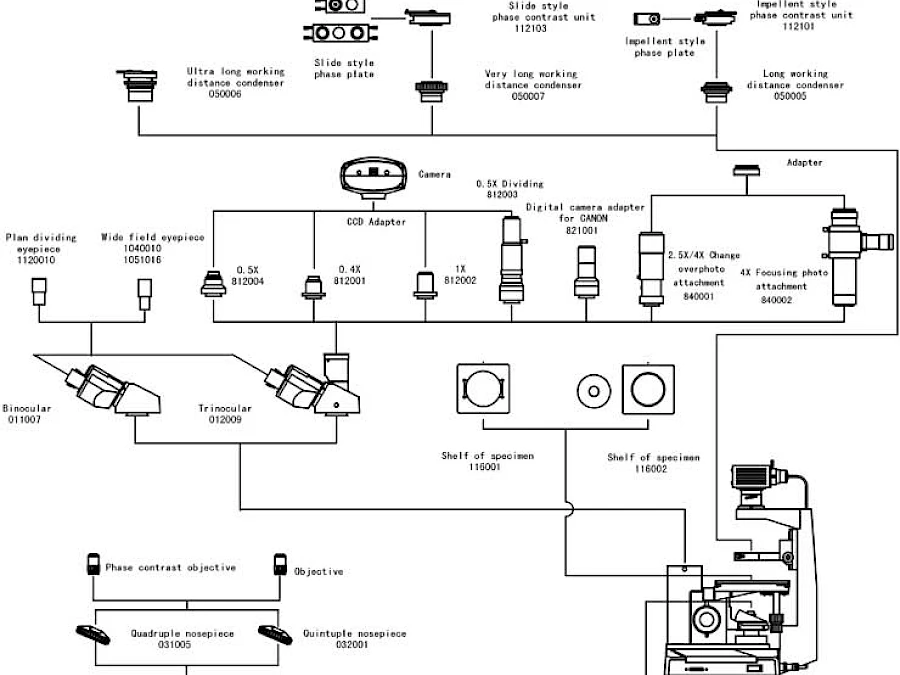

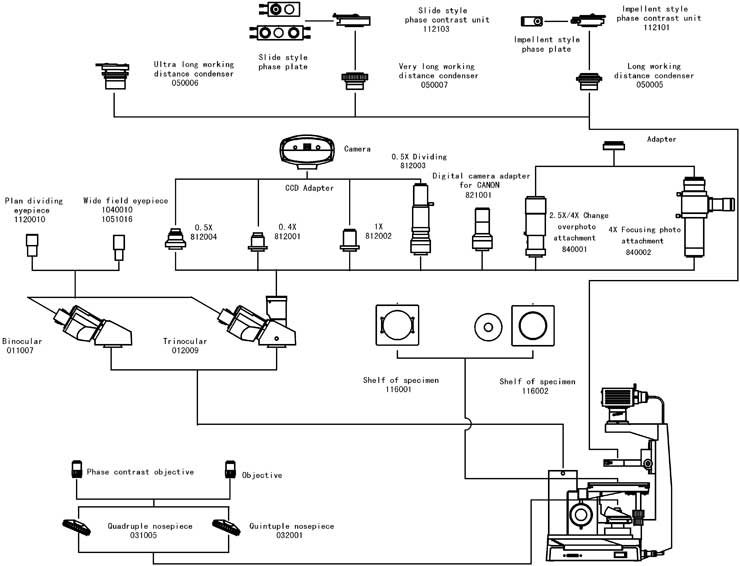

Diagram of VMB100I:

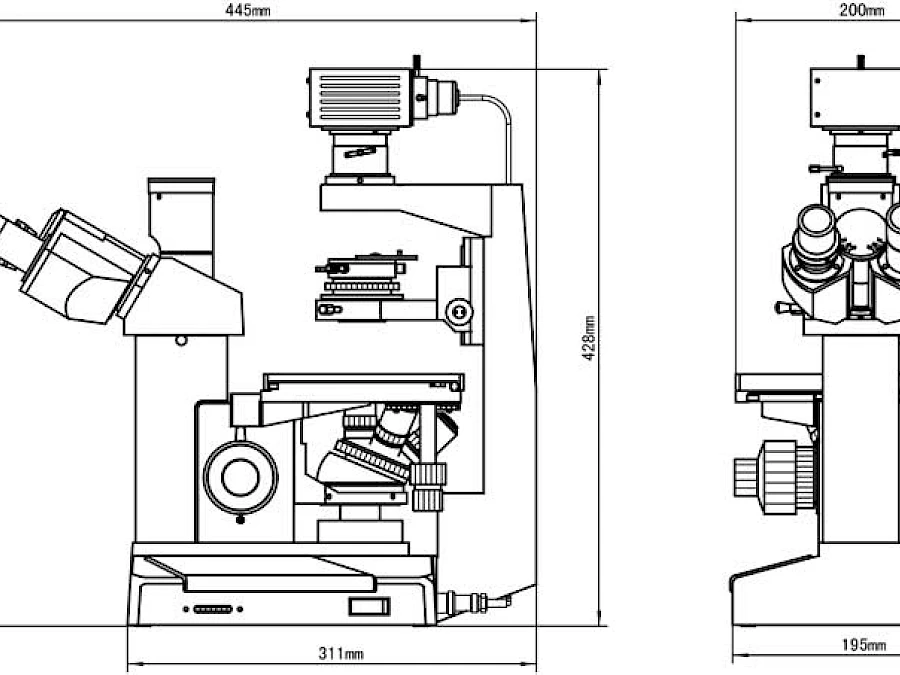

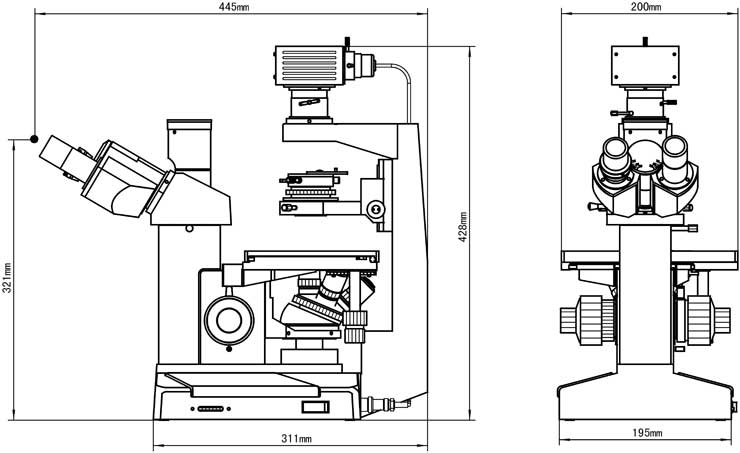

Dimension of VMB100I:
Digital Camera Photo:
Bright Observe
Phase Observe
