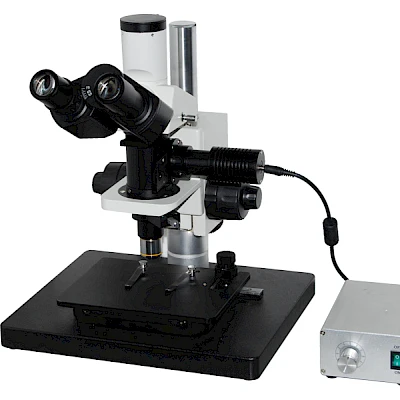

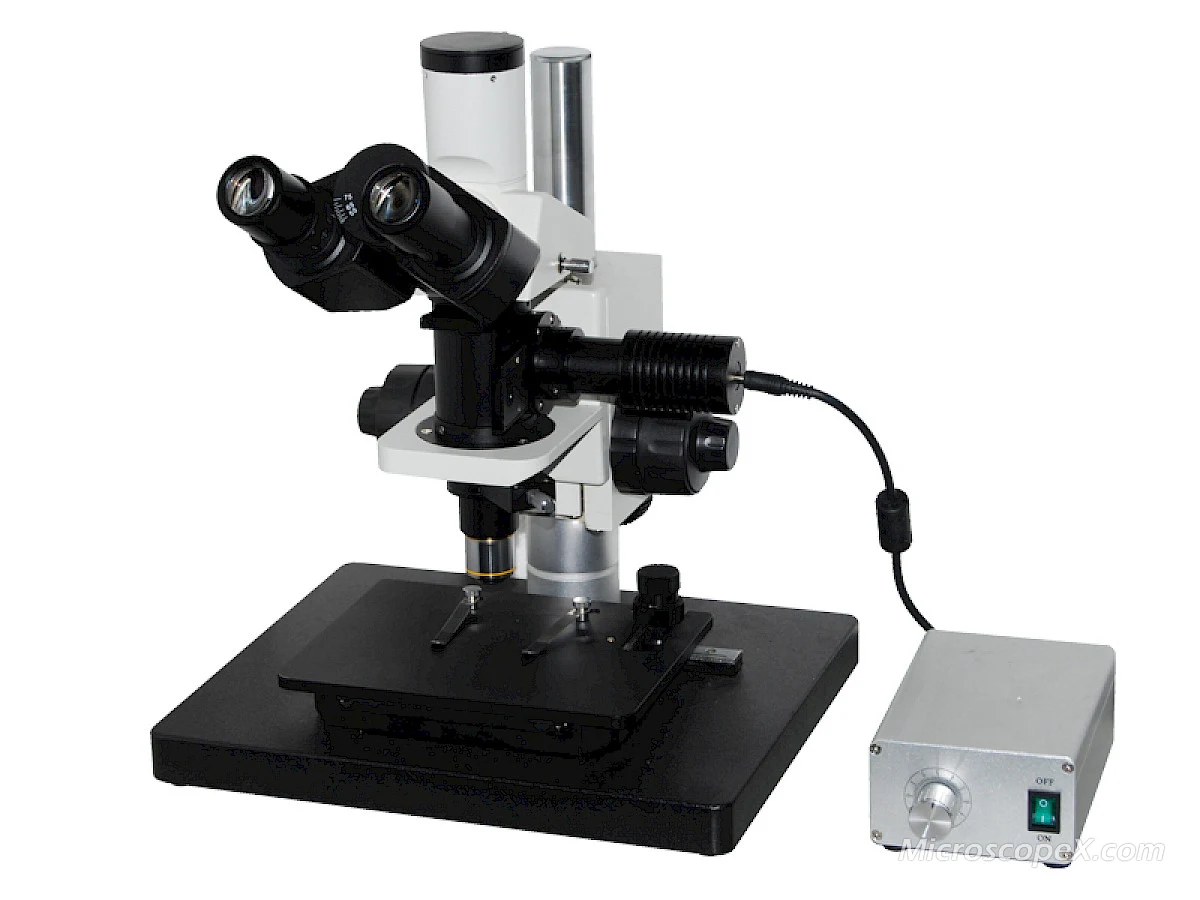

VM5500 100X High-efficient Checking Metallurgical Microscope with LED Illumination

VM5500

Power supply unit: 85V~265V, 50/60HZ

Core Features

Adopted with infinity optical system, adapter for 5X, 10X, 20X long working distance plan achromatic objective
Equipped with high bright light, long working time LED Illumination, compact and safe, especislly suit for online inspection
Pole Stand provides height adjustable for thicker specimen
Dimension of base is 300 x 250mm, mechanical stage: 160 x 140mm

Configurations

SWF 10X (Φ22m)

Inclined 30°

DIC slider

VM5500 Reflected Light Differential Interference Contrast Microscope is a high-capability price rate inspecting optical instrument. It adopts excellent infinity optics system, built-in high brightness optical instrument. It is provided with differential interference contrast observational function. Trinocular / Photography Optical Body. Reflects the ture reduction of visual observe, digital photography and microscopy technology integration, the observed interference image has a stronger sense of 3D. This unit is suitable for the microscopic morphology observation of non-transparent material surface, such as microscopic morphology of LCD conductive particles, it is the ideal instrument in quality inspection, structural analysis of precision manufacturing.

Trinocular can easily change in the observation and photography, inclined 30°, adapter for 5X, 10X, 20X plan achromatic objective, photoraphy out put suit for 0.5X, 1X CCD adapter.

Coaxial illumination using high brightness white LED. Brightness adjustable.

Equip high quality 10X DIC objectives and DIC observation system, in order to show the clear, porfile salint and 3D embossed image.

VM5500

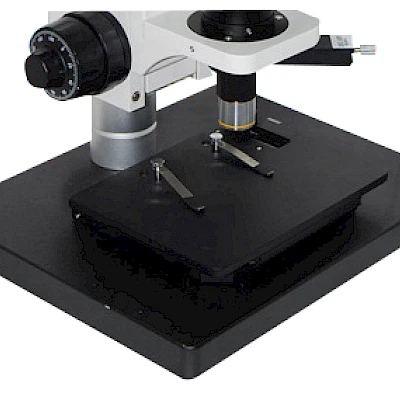

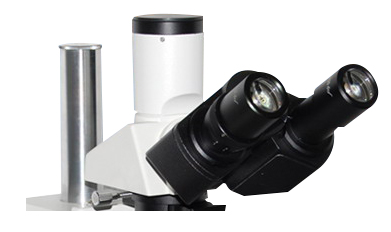

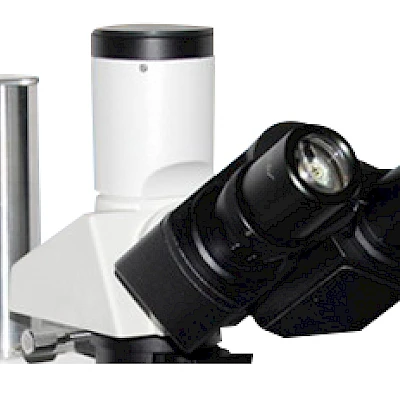

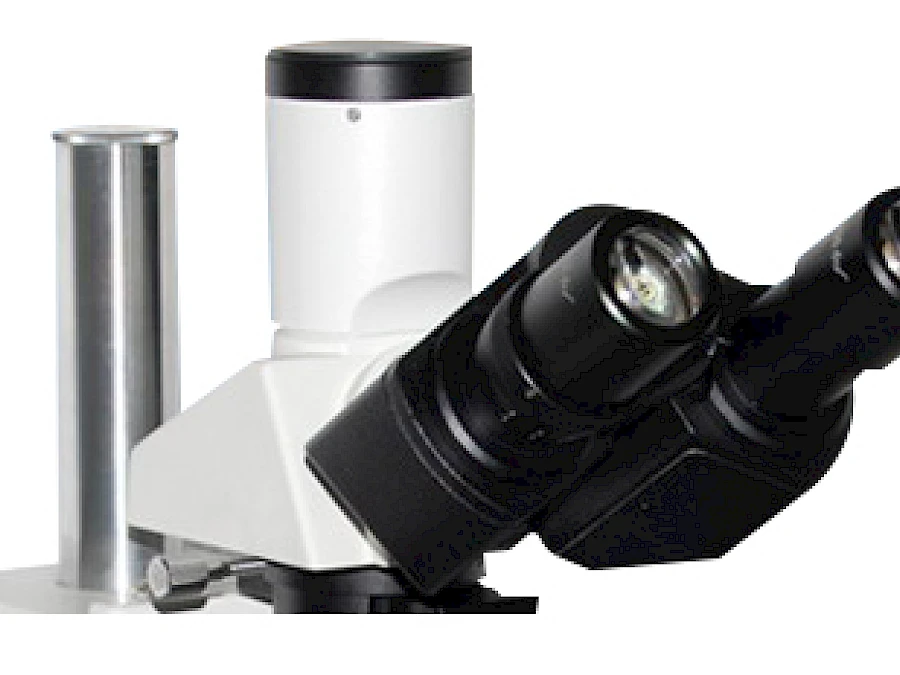

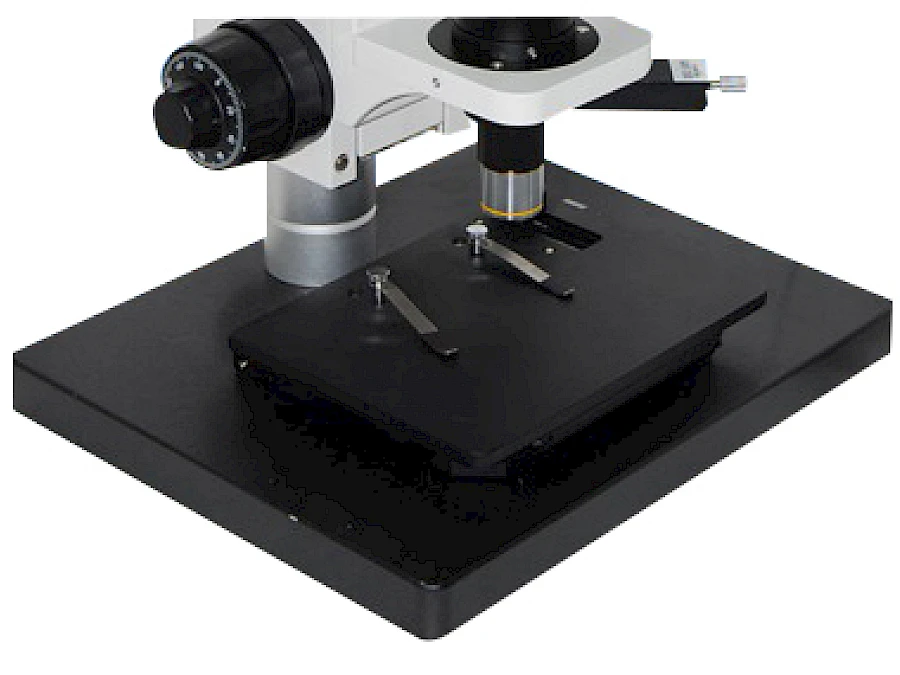

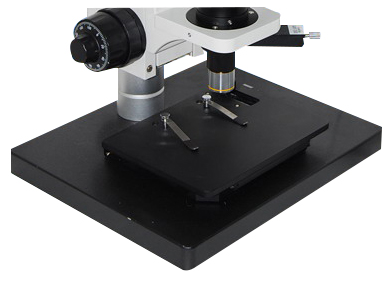

Head & Mechanical Stage of VM5500

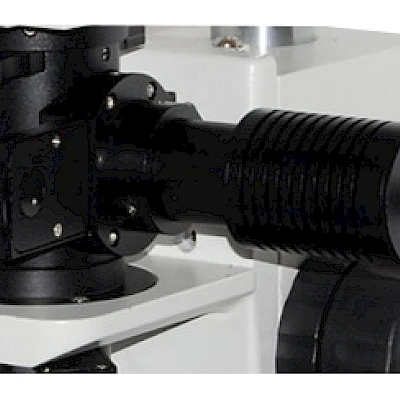

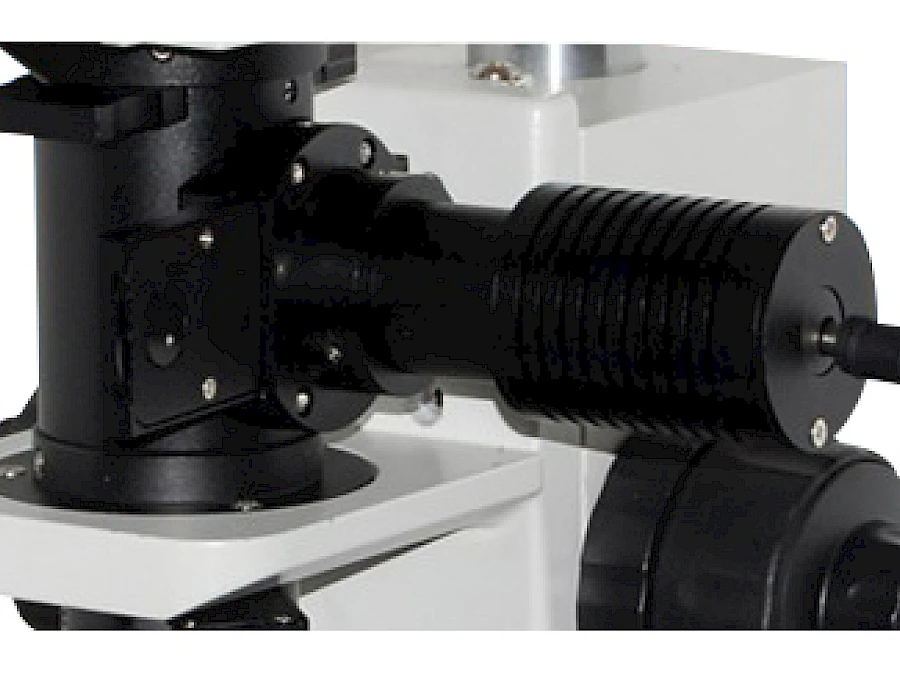

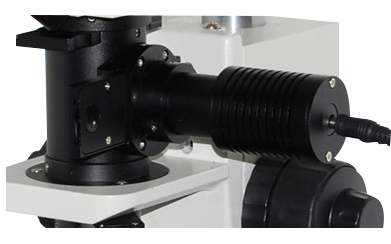

Epi-illumination of VM5500

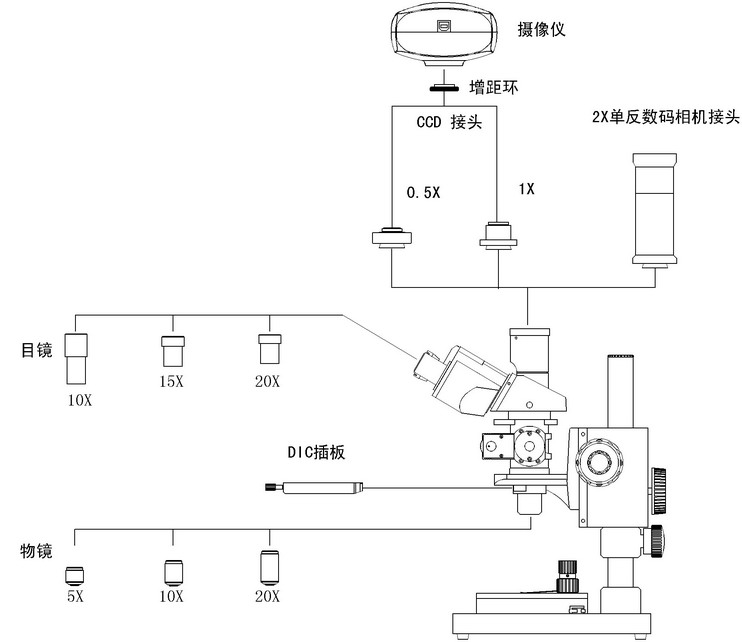

Diagram of VM5500

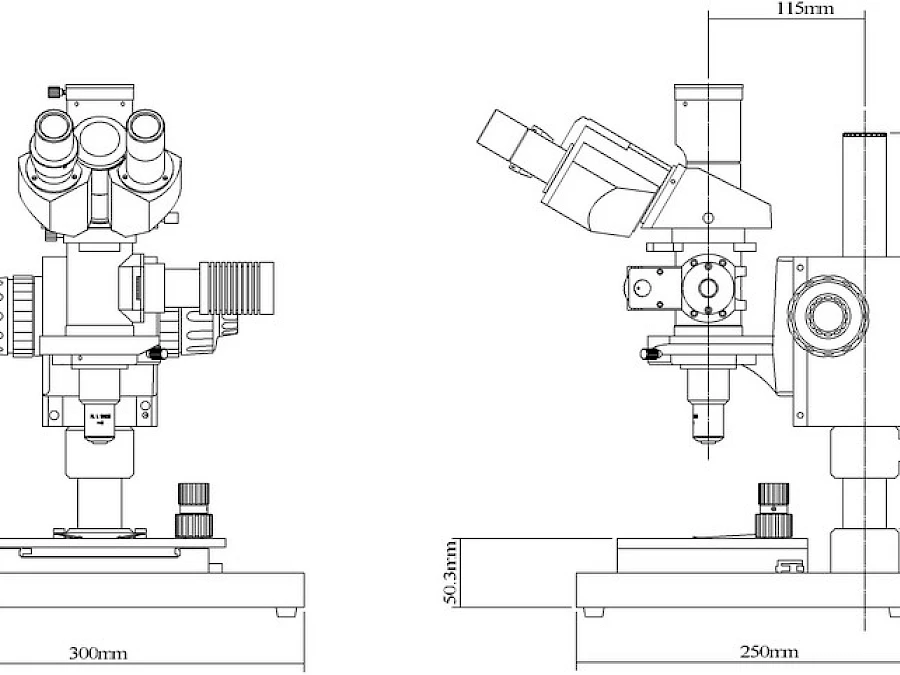

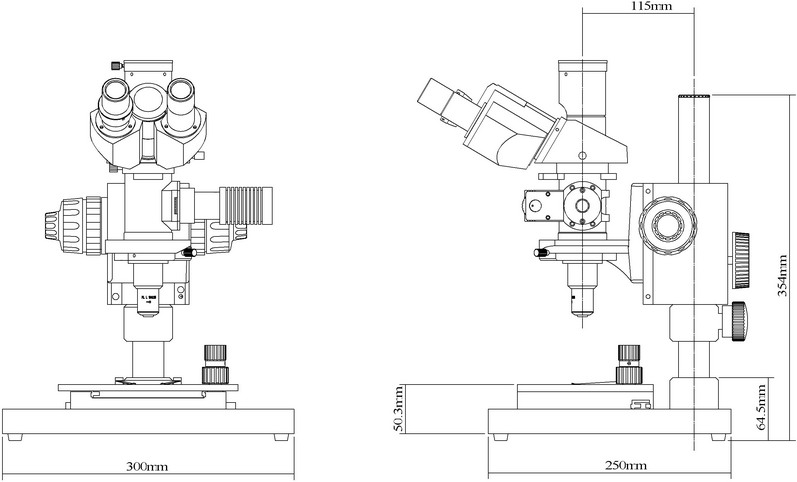

Dimension of VM5500

Specification for VM5500
Eyepiece	Achromatic Wide-field plan eyepiece
	SWF 10X (Φ22m)
	Eyepiece interface: Ф30mm
	Parfocal distance: 10mm
Total magnification	100X (Standard Configure)
Eyepiece Tube	Trinocular, inclined 30°, spectro rate: 8:2 (eyepiece: photography)
Objective	Strain-free plan achromatic objective PL 10X/0.25 W.D. 20.2
Analyzer	Insert type，can be switch freely，the direction of polarization has preset, no use for adjust
Polarizer	Insert type，can be switch freely，360°rotatable
DIC Slider	DIC slider matching 5X/10X/20X objective，horizontal adjustable
X-Y Stage	Double layer mechanism stage， size：180 X 145mm，moving range：35X 30 mm（X-Y）
Vertical availability distance	Focus system available distance 133mm, observational specimen maximal thickness up to 130mm.
Focus System	Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm
Illumination	Coaxial illumination using high brightness white LED. Brightness adjustable
Main Power Supply	AC:85V~265V 50/60Hz，fuse specification：250V 3.0A

Accessories for VM5500
Plan Eyepiece	WF 15X (Φ11mm)
Plan Eyepiece	WF 20X (Φ11mm)
Objective	Plan achromatic objectives PL 5X/0.10 WD:18.2mm
Objective	Plan achromatic objectives PL 20X/0.40 WD: 8.8mm
CCD Adapter	0.5X
	1X
	2X
Camera	DV-2 (with USB Output) 1.3M/ 3M/ 5M /9M, with image analysis software
