VM5000DIC Industry check and measure metallurgical microscope is suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, DIC observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.

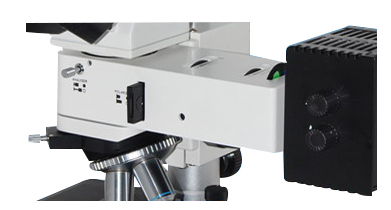

Adopted Epi-illumination system, integrated field diaphragm, aperture diaphragm and (Y,B,G, Ground glass) switching device. Push-pull analyzer and polarizer.
Equip high quality DIC objectives and DIC observation system, in order to show the clear, porfile salint and 3D embossed image.
By adding the appurtenance shch as CCD adapter, digital camera adapter and single-reverse digital camera adapter and etc. It can achieve high clear observation mode of camera and vidicon.

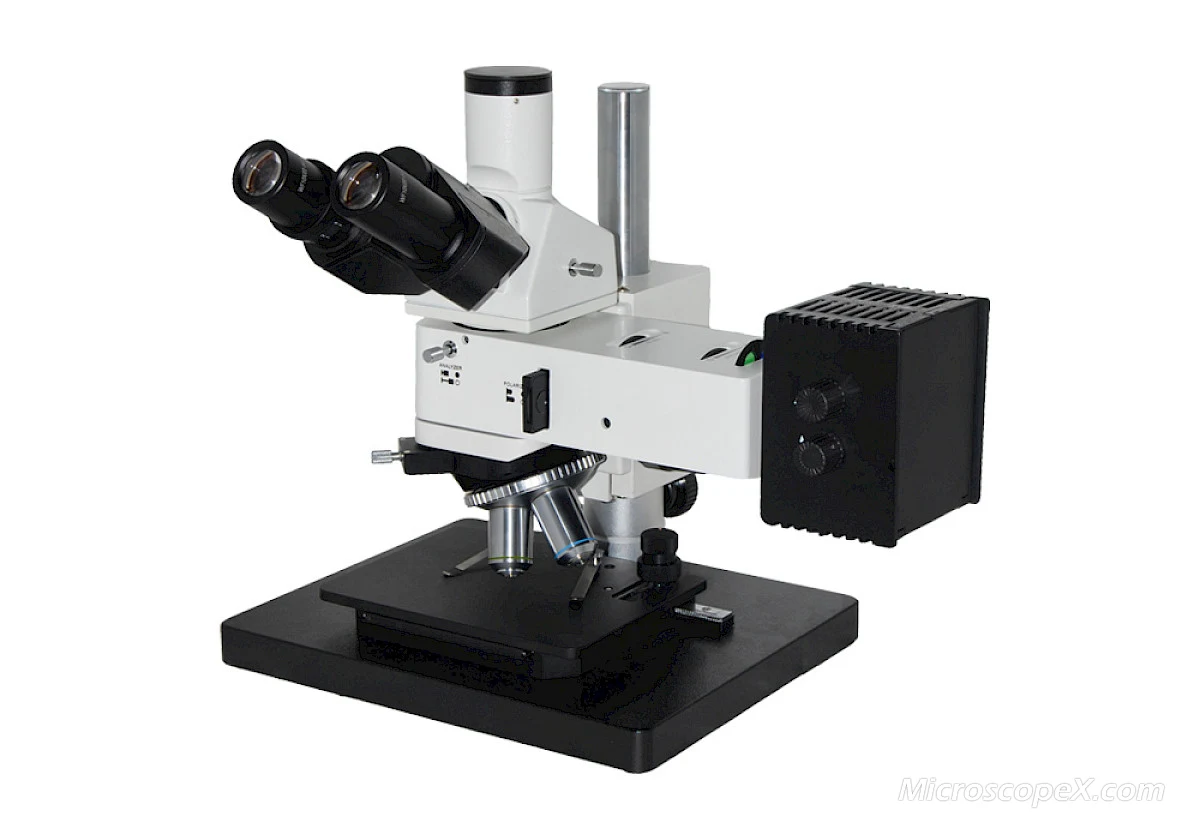

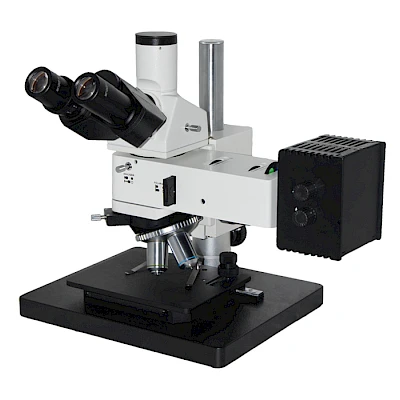

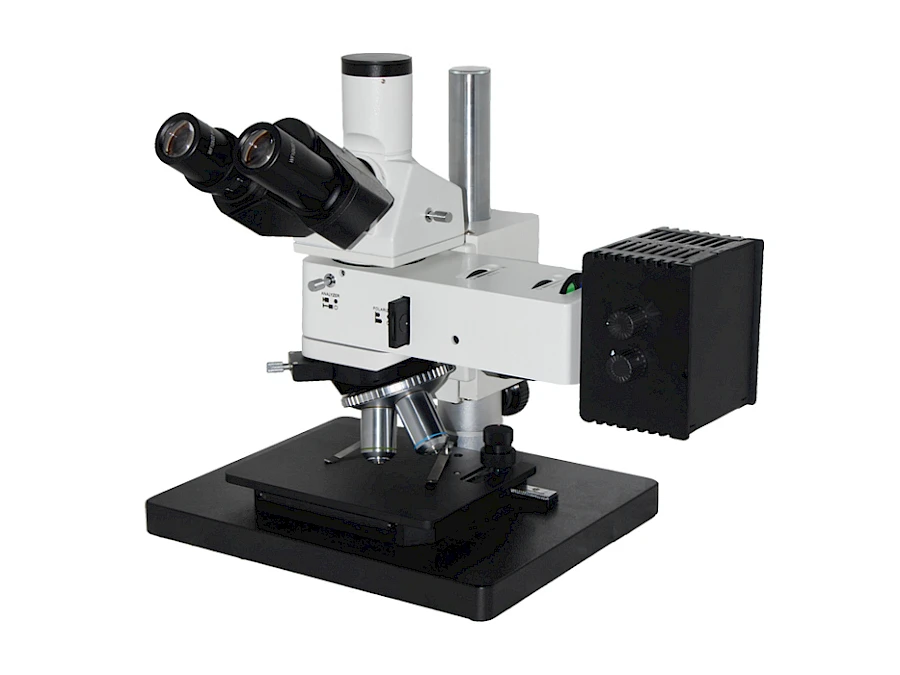

VM5000DIC

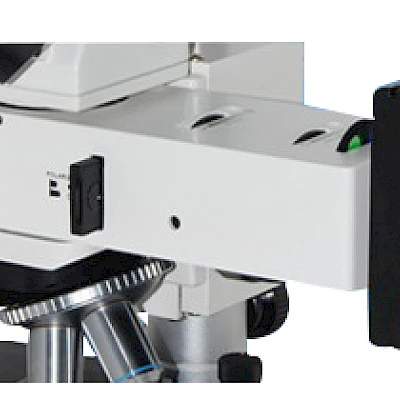

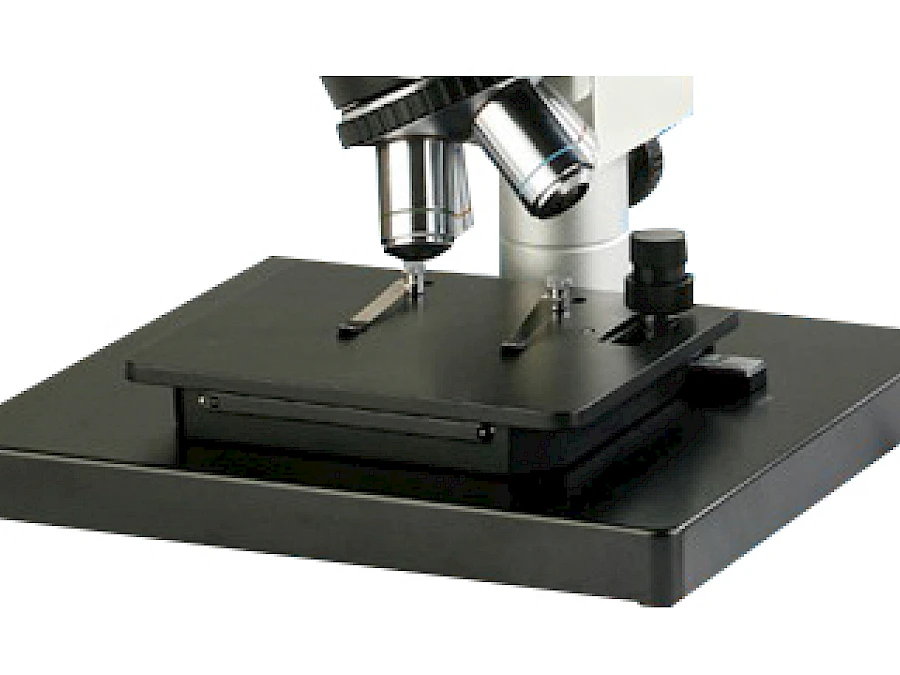

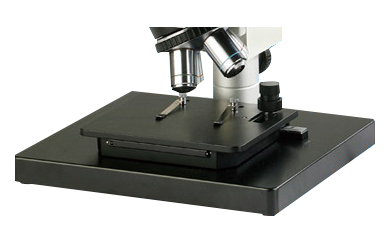

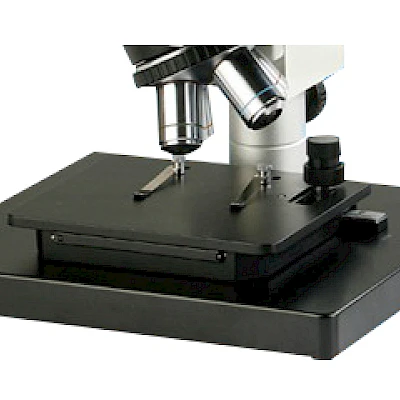

Mechanical Stage & Epi-illumination System of VM5000DIC

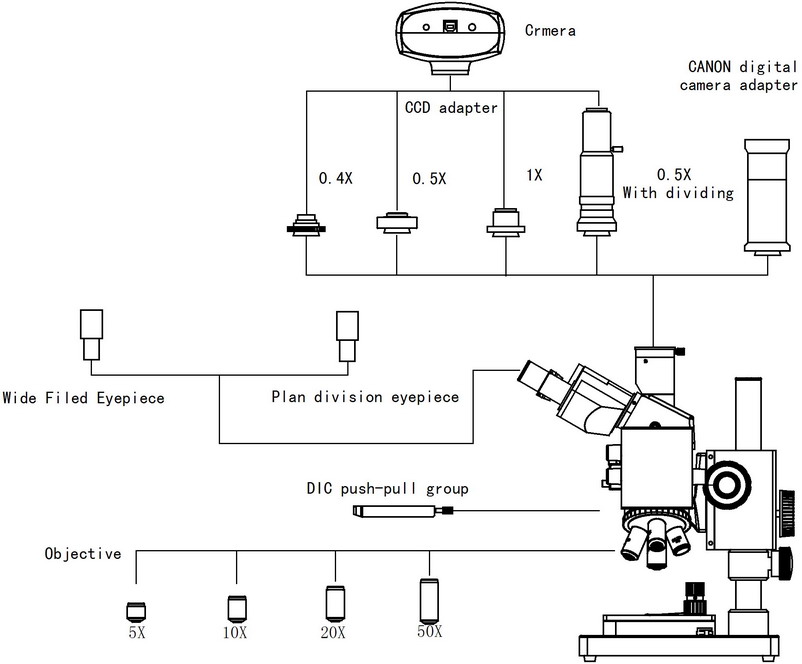

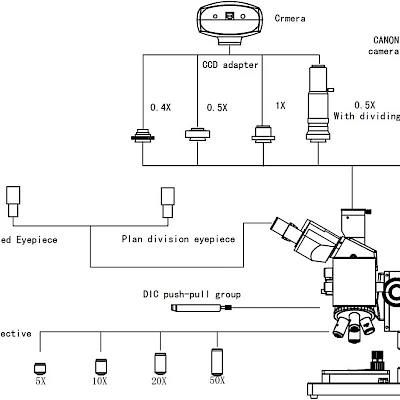

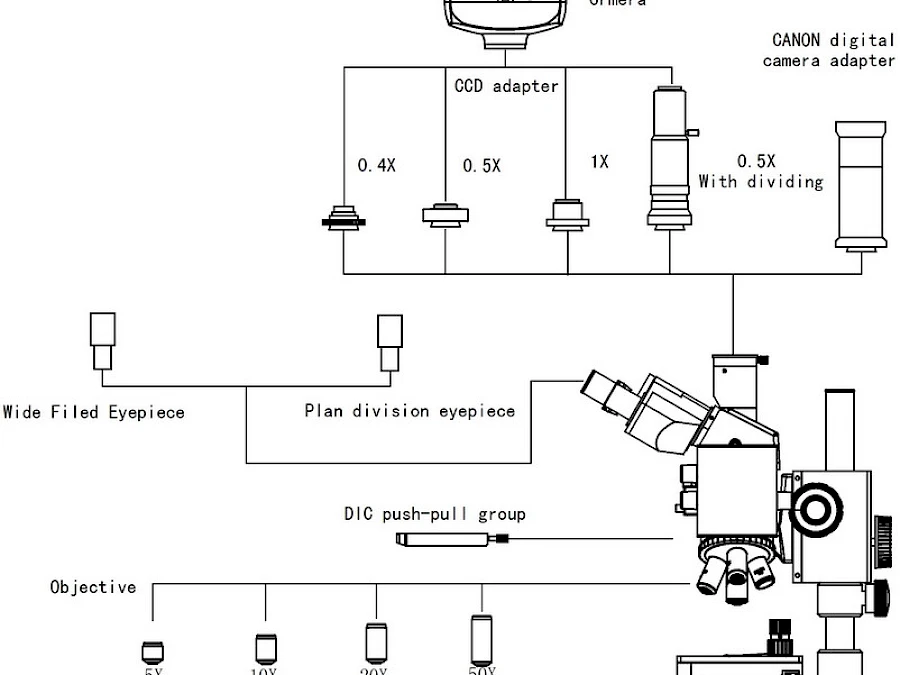

Diagram of VM5000DIC
