VM5000 Series Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slideway, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.

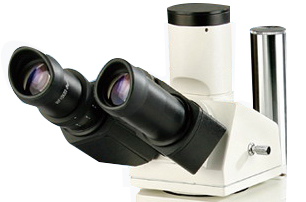

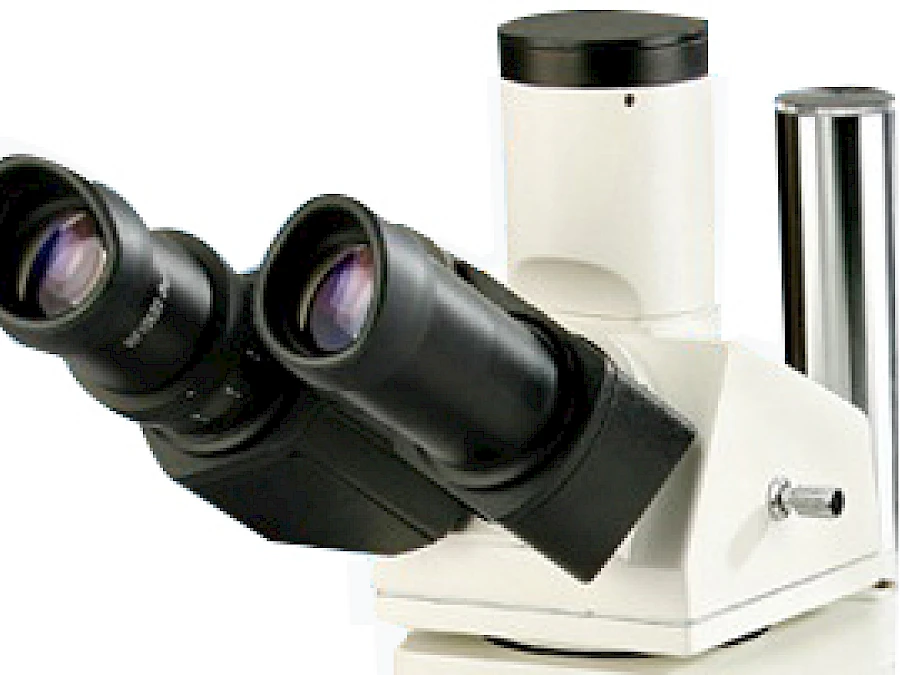

The trinocular can easily change in the observation and photography, inclined 30°. Based on the 100& pass of light of trinocular, the microscope adapt to low illumination of photography. The field of plan objective can achieve Φ22mm, which let you have more wide and comfortable of observation.

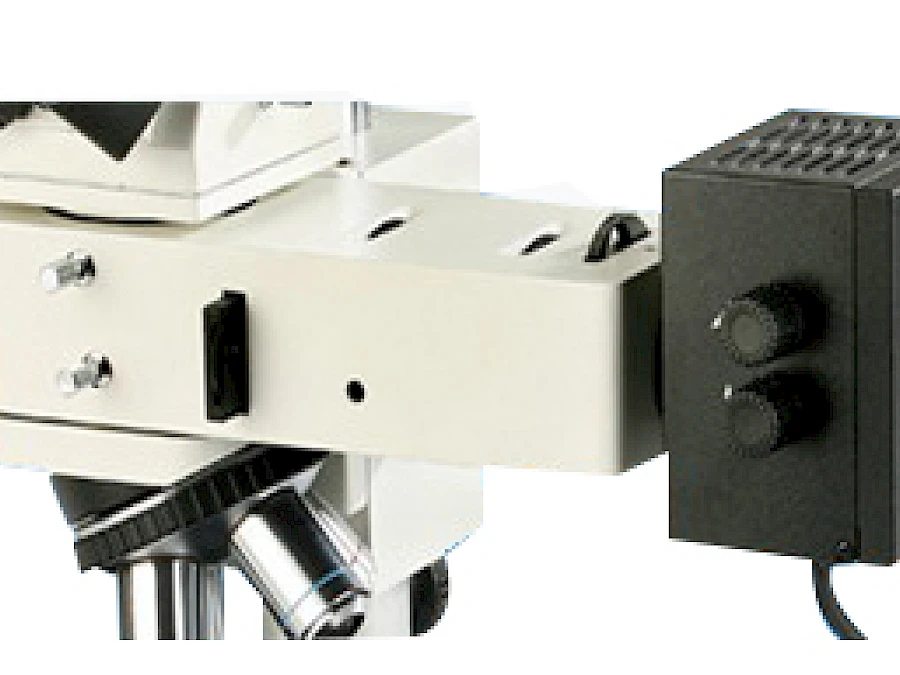

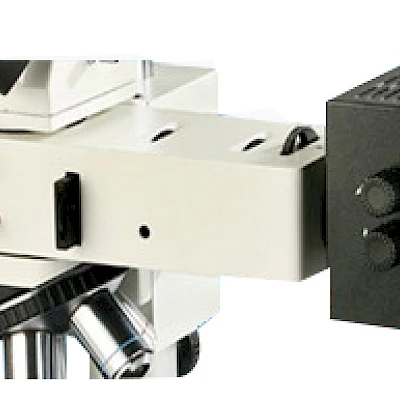

Adopted Epi-illumination system, integrated field diaphragm, aperture diaphragm and (Y,B,G, Ground glass) switching device. Push-pull analyzer and polarizer.
Equip high quality bright and dark field objectives and dark field illumination device. Avoid the stray light of illumination system and improve the image quality in the dark field.
By adding the appurtenance shch as CCD adapter digital camera adapter and single-reverse digital camera adapter and etc. It can achieve high clear observation mode of camera and vidicon.

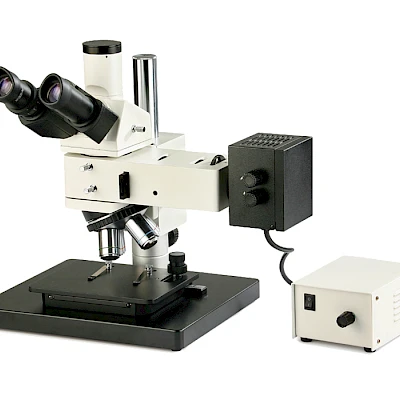

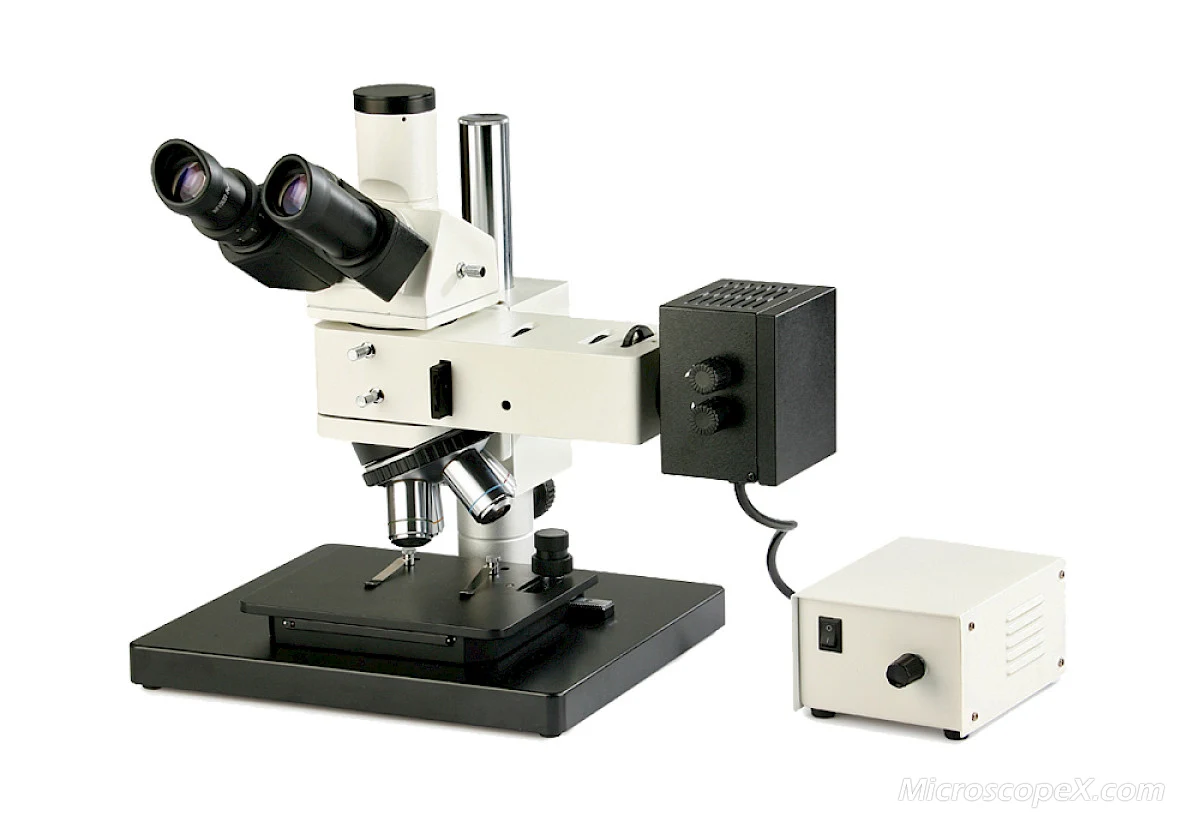

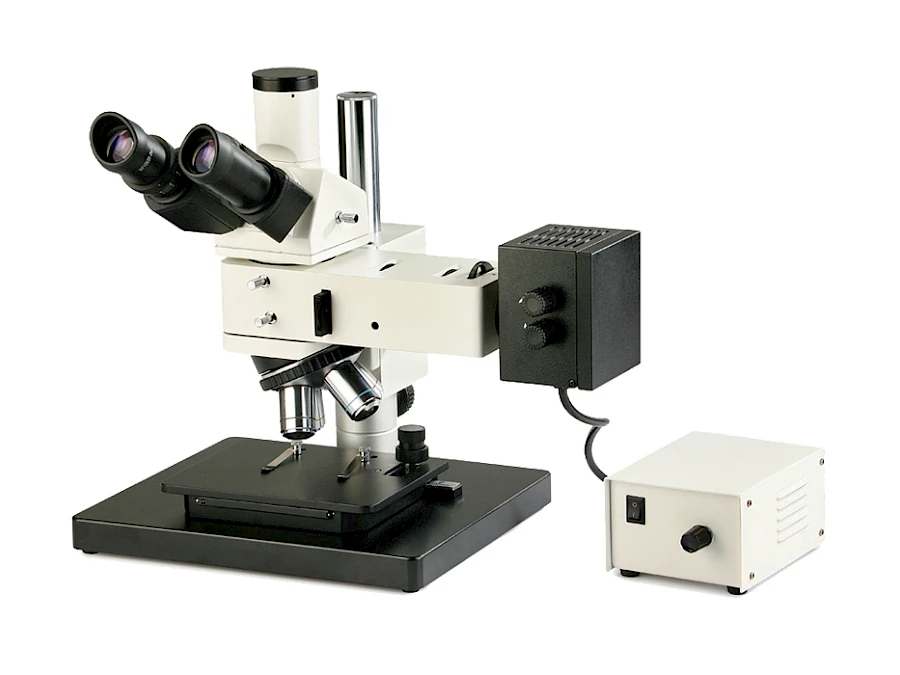

VM5000 & VM5000BD

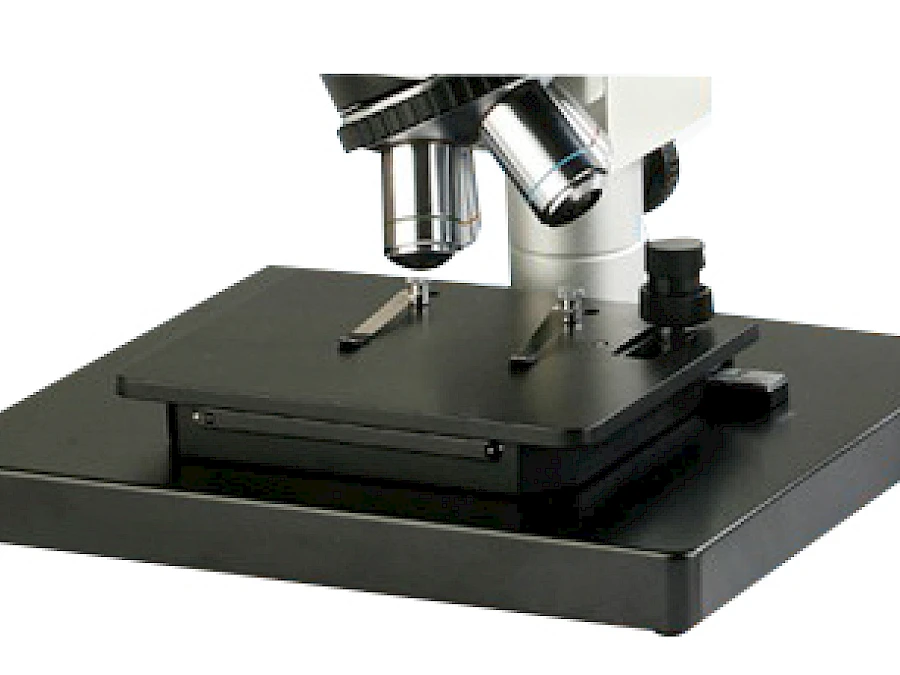

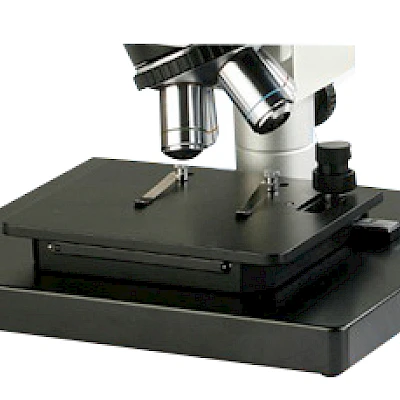

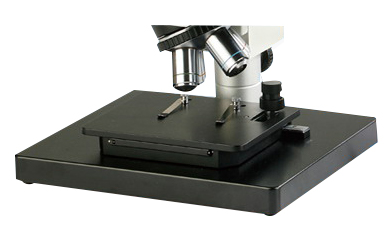

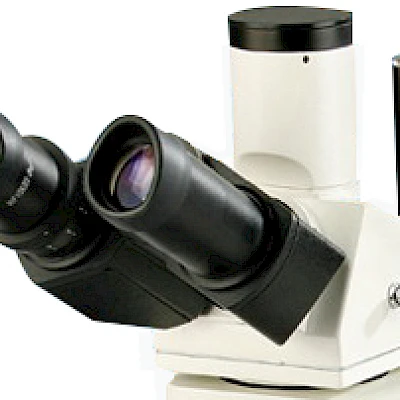

Head & Working Stage of VM5000 & VM5000BD

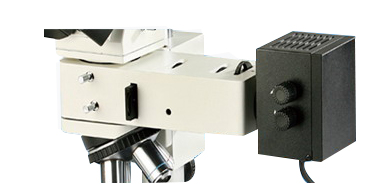

Epi-illumination of VM5000 & VM5000BD
Digital Camera Photography

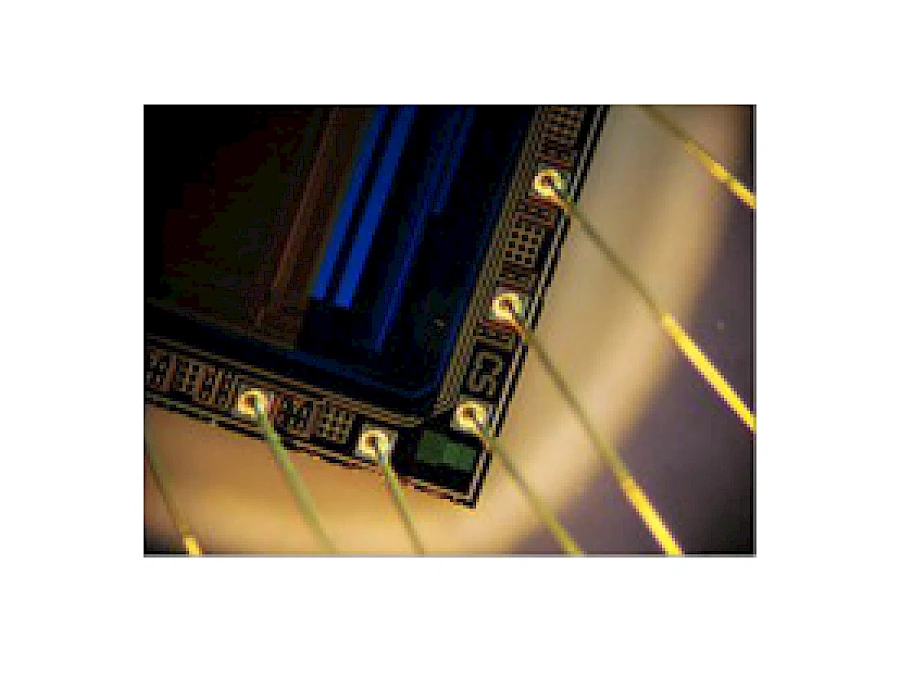

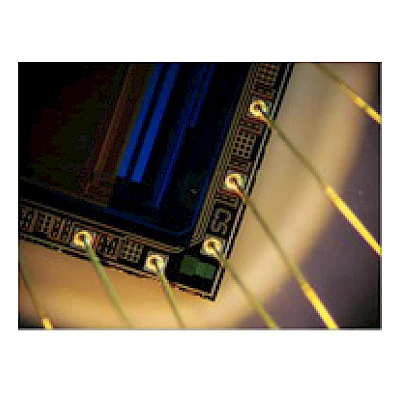

Dark Type Observe

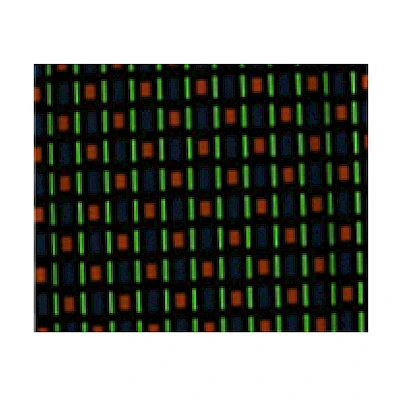

Bright Type Observe
Polarized Observe

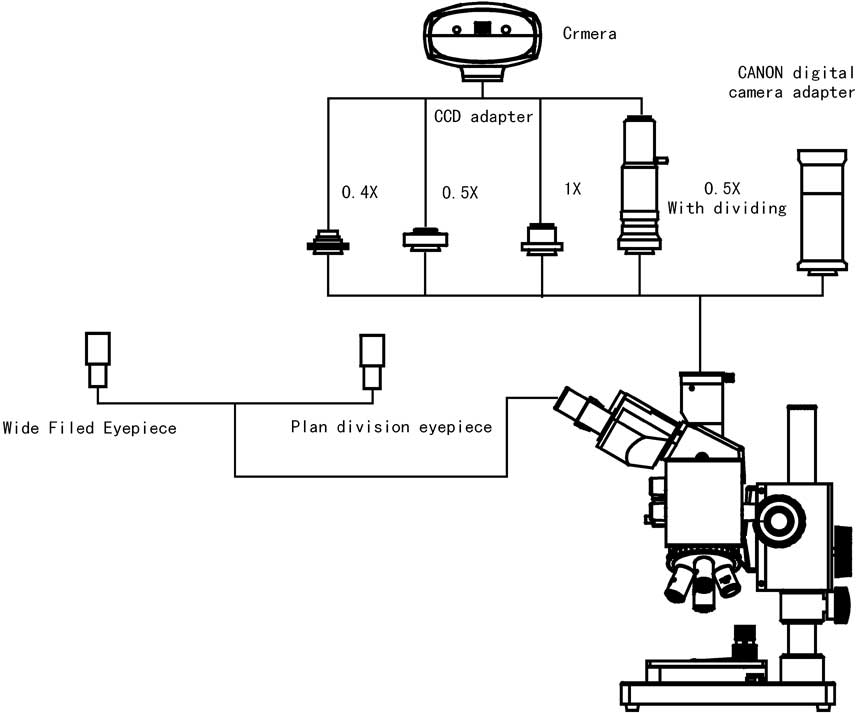

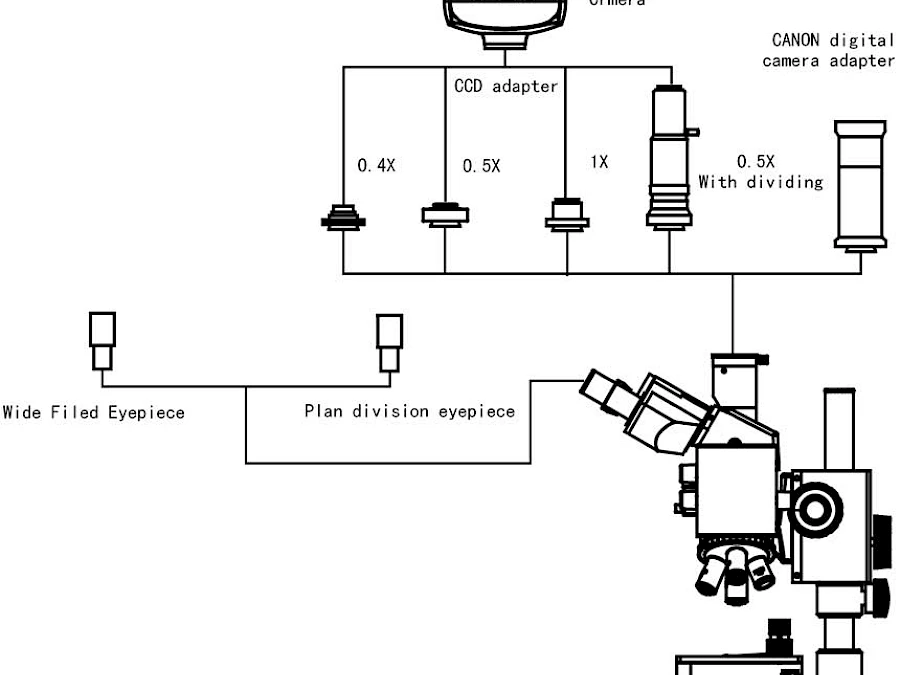

Diagram of VM5000 & VM5000BD

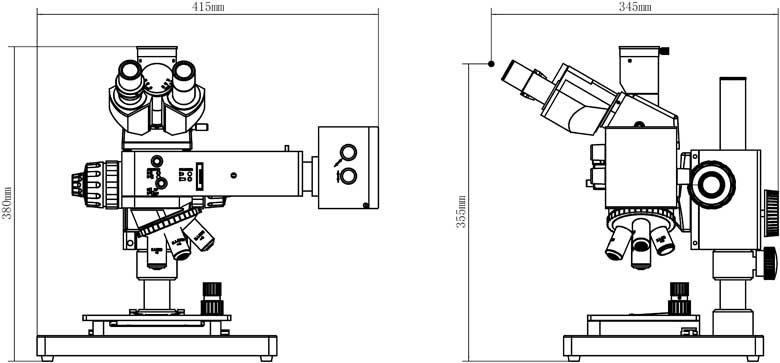

Dimension of VM5000 & VM5000BD
