VM4800DIC differential interference contrast microscope is suitable to observe many different kinds of object. It is equipped with transmitted illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.
The gemel mode trinocular is inclined 30°. The operator cerevix and shoulder are released from tired in period of time keeping bow or head-up. The eyepiece field of view number is Φ22mm and eyepatch can be added.
Integrated illumination can make up the difference of halogens by adjusting the spacial position. The illumination mode is “Kohler illumination” and the adjustment of field and aperture diaphragm is achieved by turning the control plate, the adjustment mode is smooth and comfort. Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer. Simpler and quicker way to replace the bulb without any tools.
Equip high quality DIC objectives and DIC observation system, in order to show the clear, porfile salint and 3D embossed image.

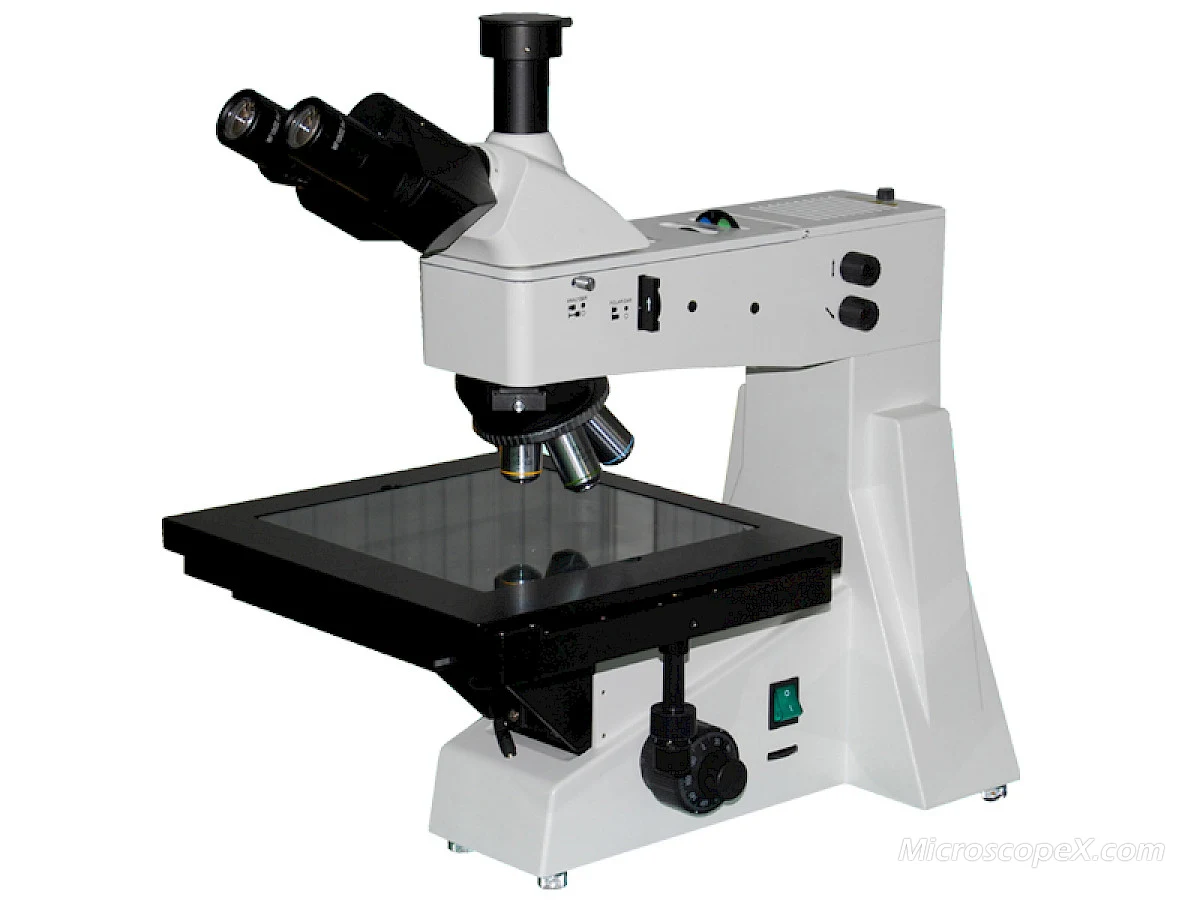

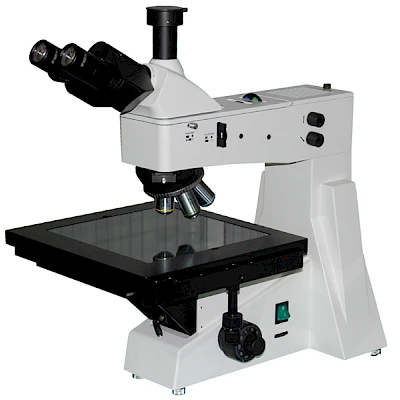

VM4800DIC

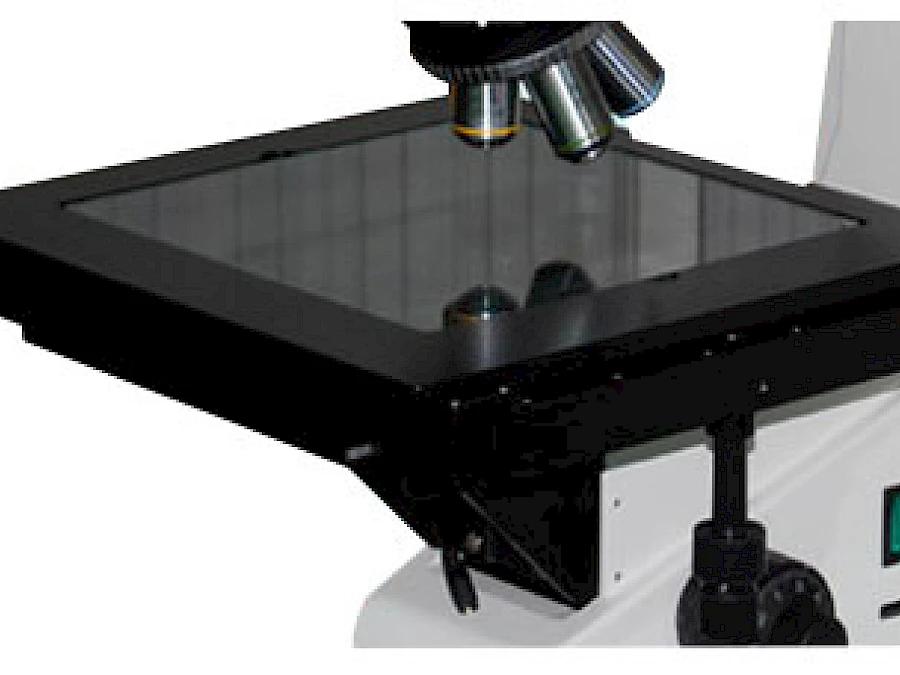

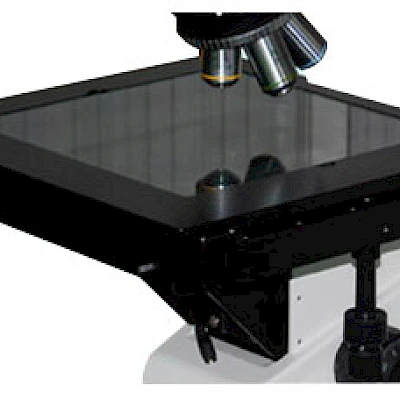

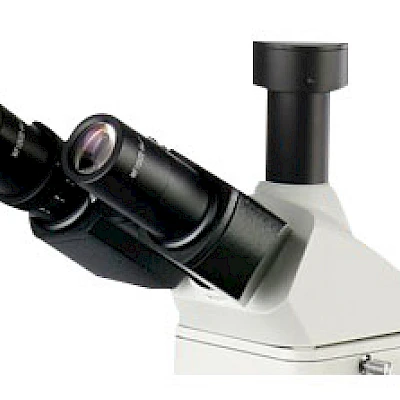

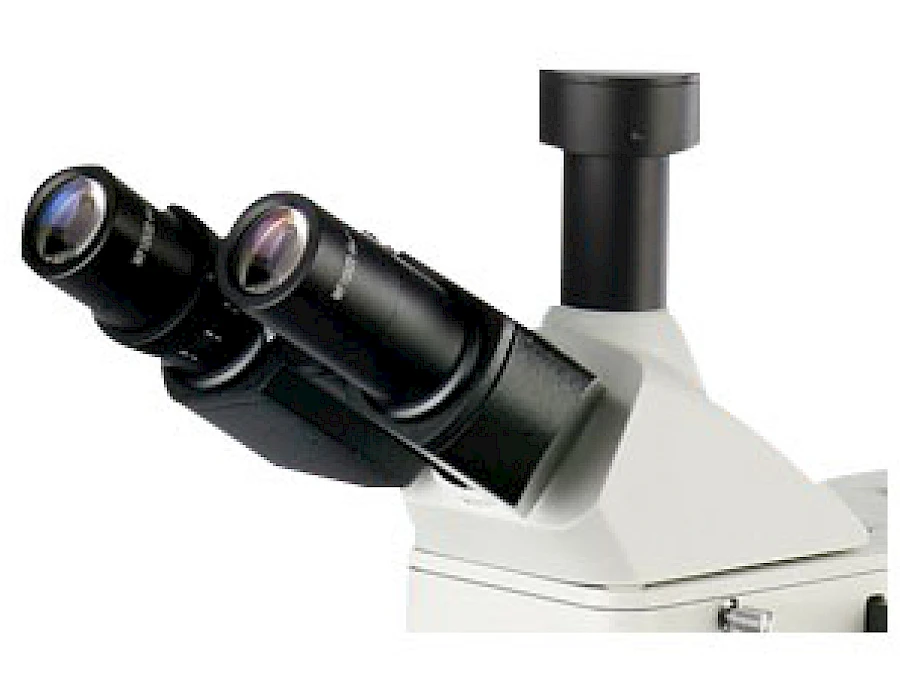

Head & Mechanical Stage of VM4800DIC

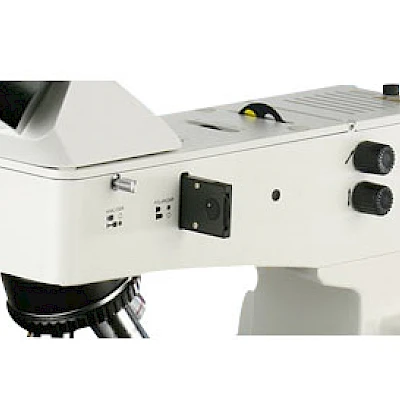

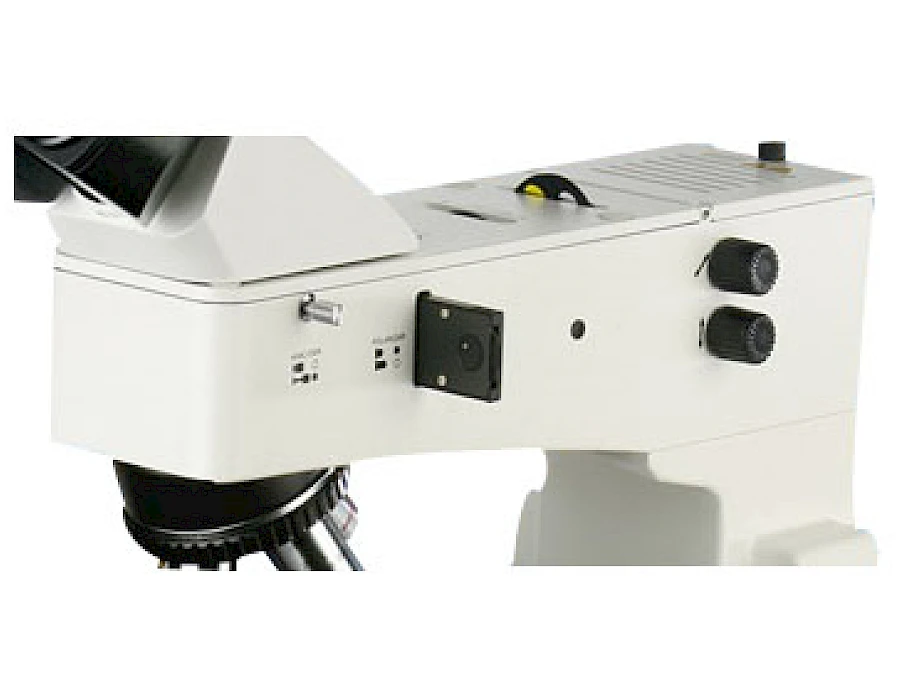

Illumination System of VM4800DIC
Digital Camera Photography

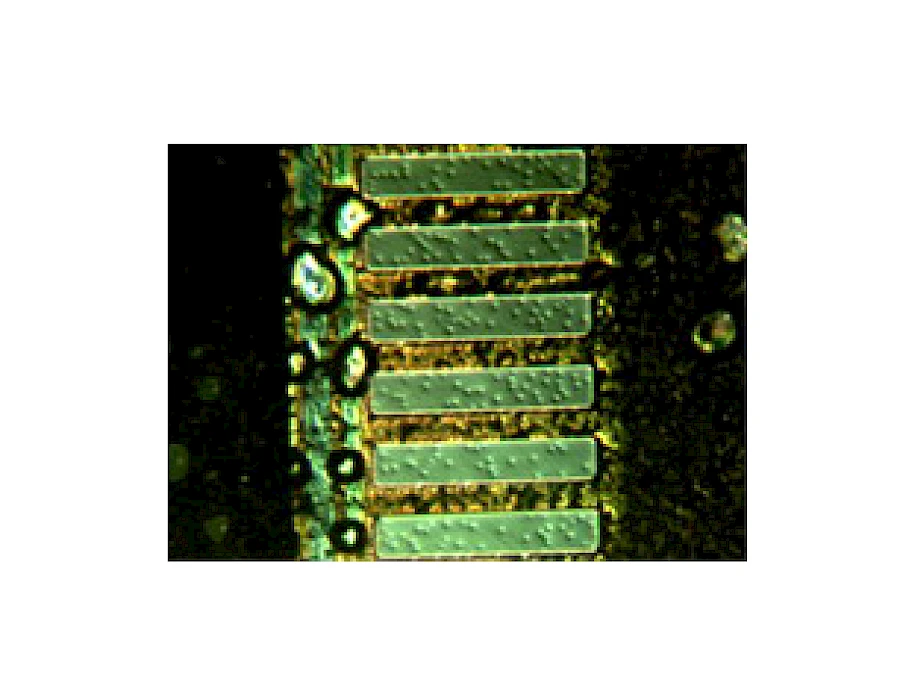

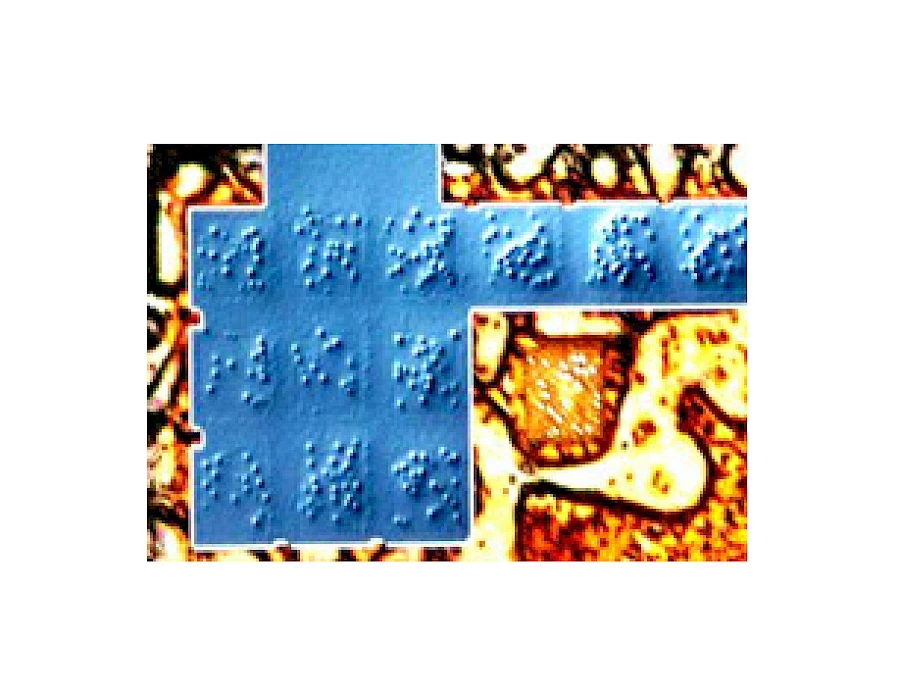

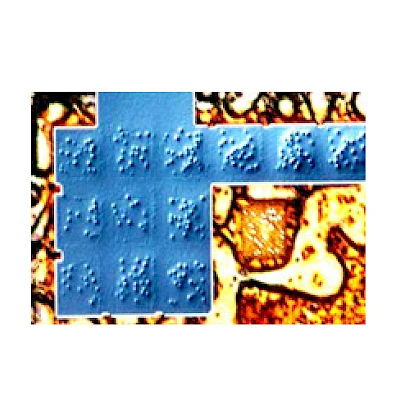

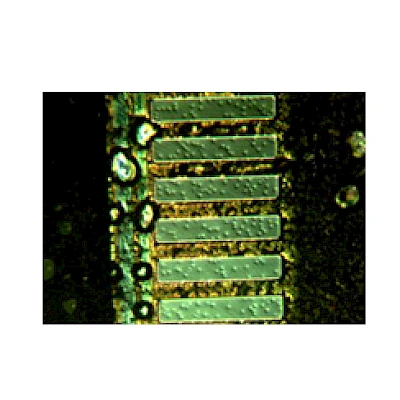

DIC Observe

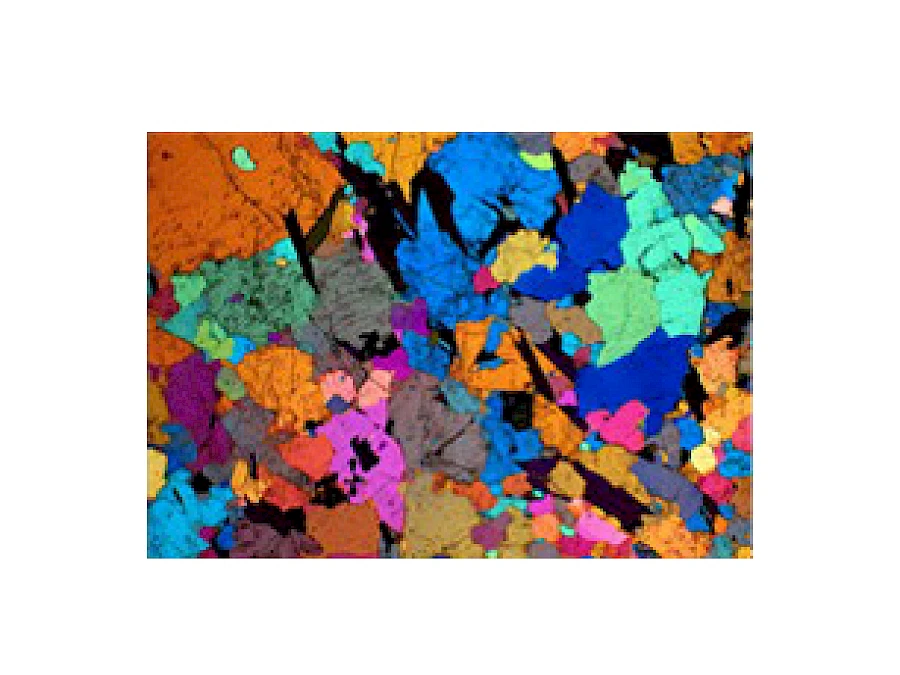

Polarized Observe

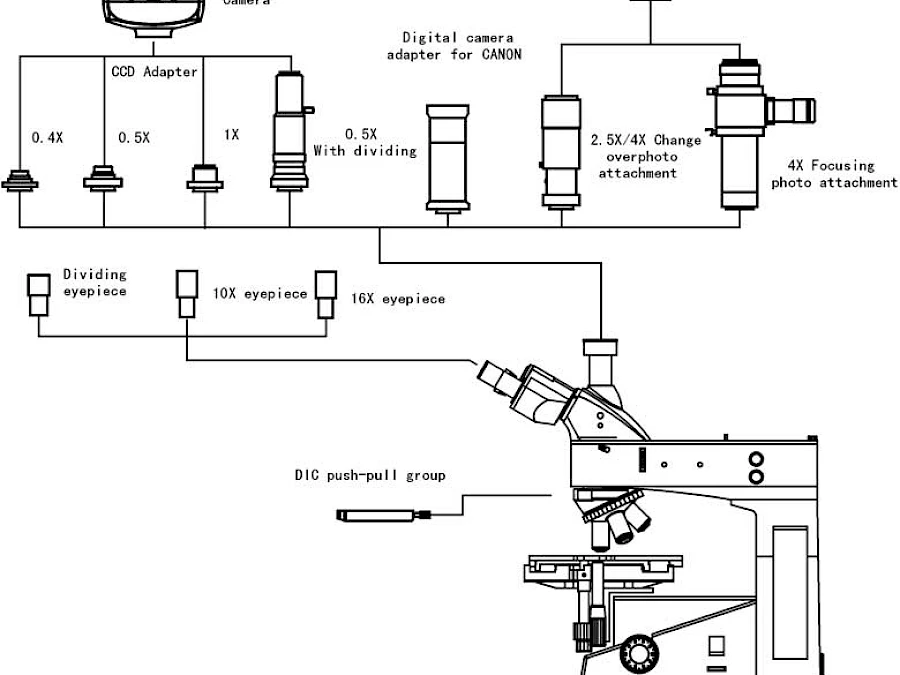

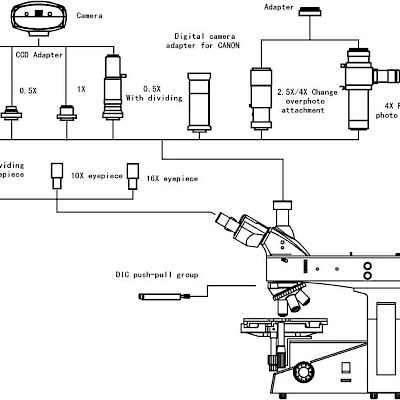

Diagram of VM4800DIC

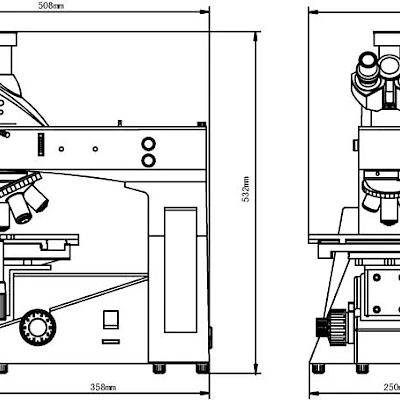

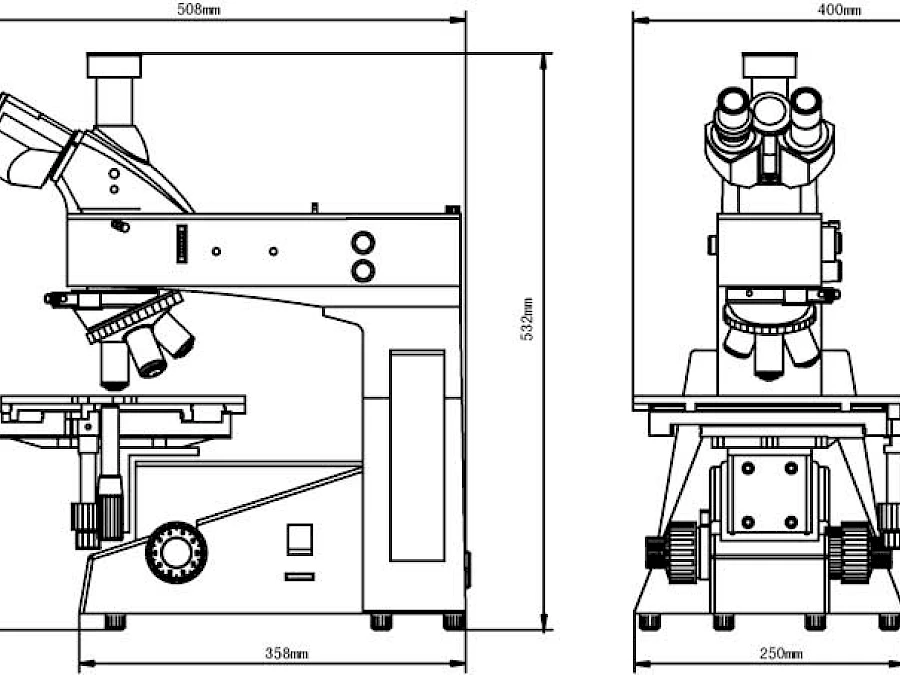

Dimension of VM4800DIC
