VM4600M Reflected Metallurgical microscope is suitable to observe the microscopical surfaces of non-transparent object. It is equipped with large move range mechanical stages, reflected vertical illumination and set polarizer device in trinocular. It has clear and high-contrast picture beautiful sculpt, convenient control and etc. It is the ideal instrument in research work in metallography, mineralogy, precision engineering, electronics and etc. It is suitable for scientific research, teaching demonstration in the colleges and factories.
The gemel mode trinocular is inclined 30°. Built-in analyzer to switch freely, can be connected to the camera.
The illumination system is utilized 6V 30W halogen lamp (brightness adjustable) can provide clear and bright image for light field observation, but also for polarized light observation. Built-in polarizer, field diaphragm (center adjustable) and iris diaphragm, can get the polarized light observation. It can control the field range effectively and adjust the phase contract of the field.
Flashboard filter unit with yellow, green and blue filter and ground glass provides illumination with different chroma for observation of different samples.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

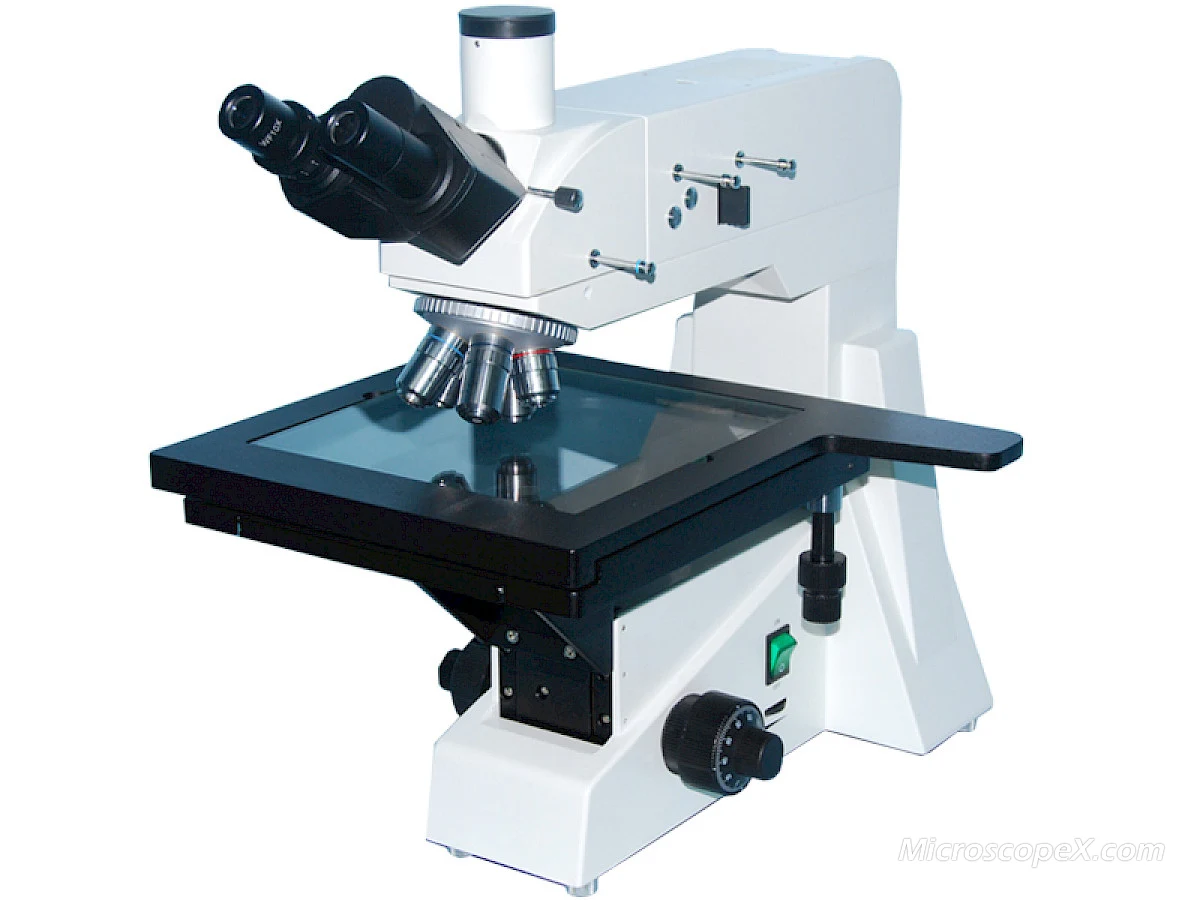

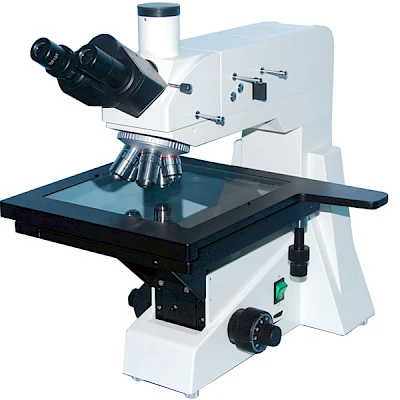

VM4600M

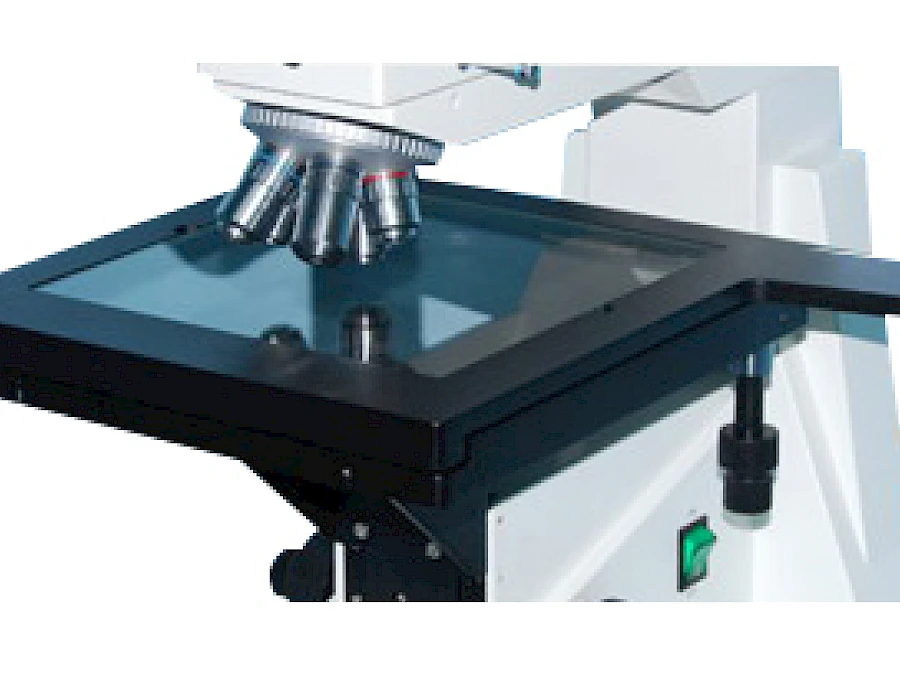

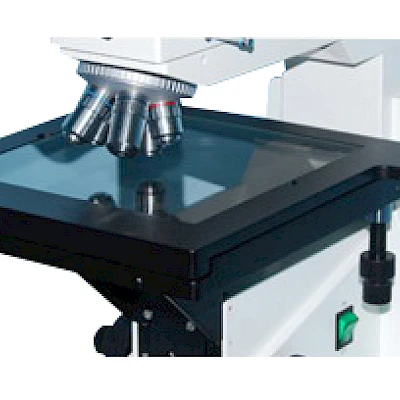

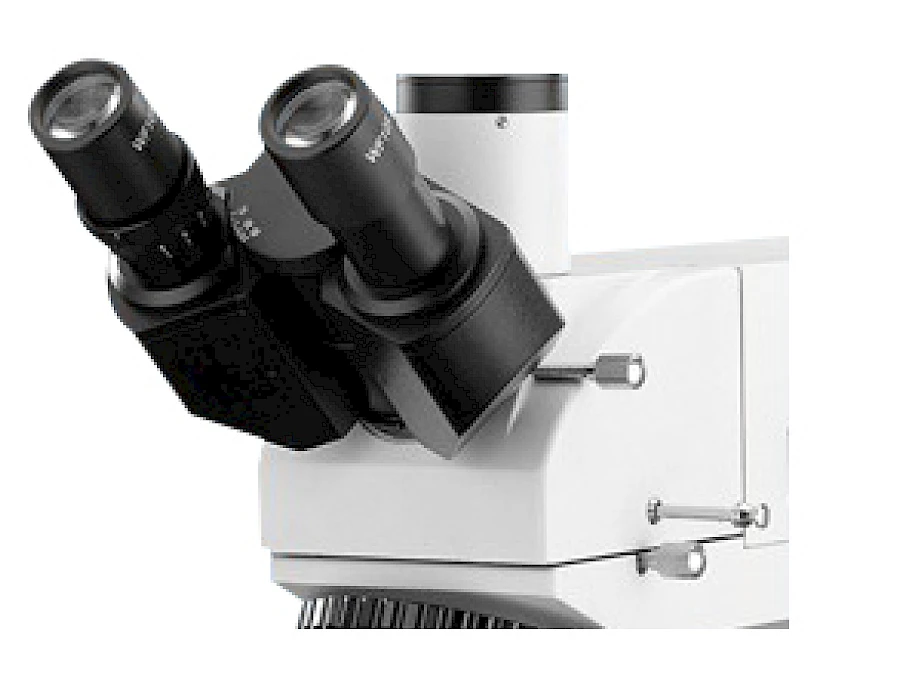

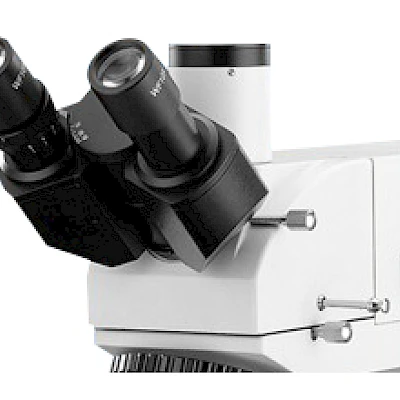

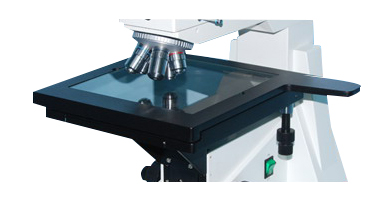

Head & Mechanical Stage of VM4600M

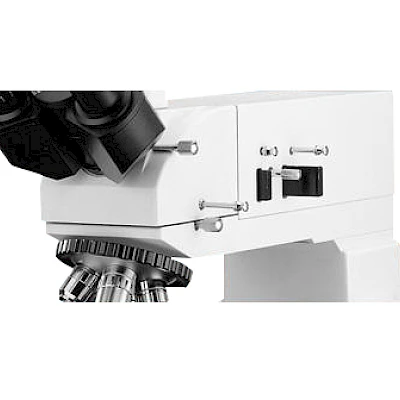

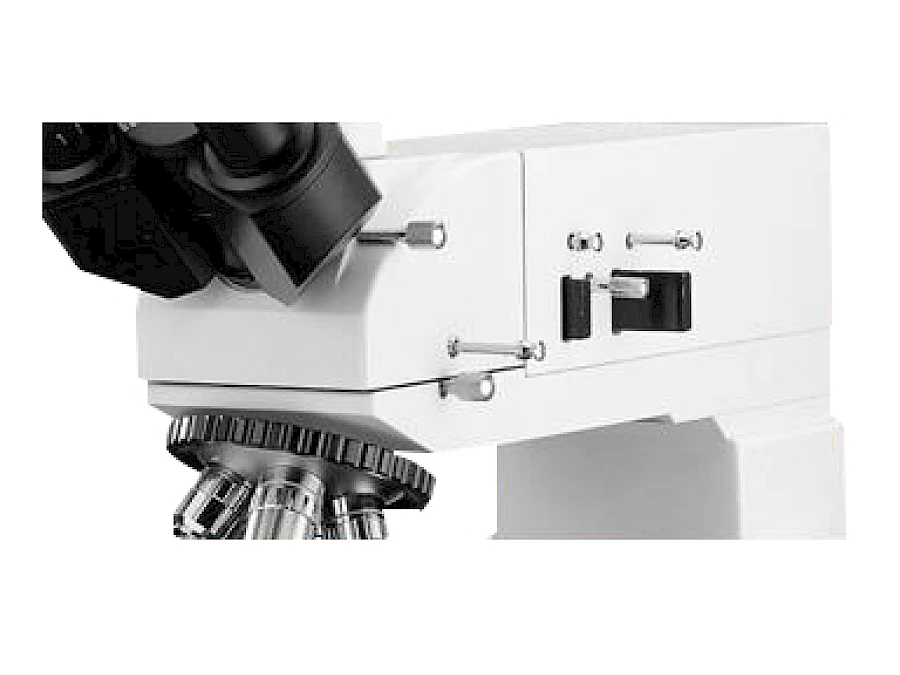

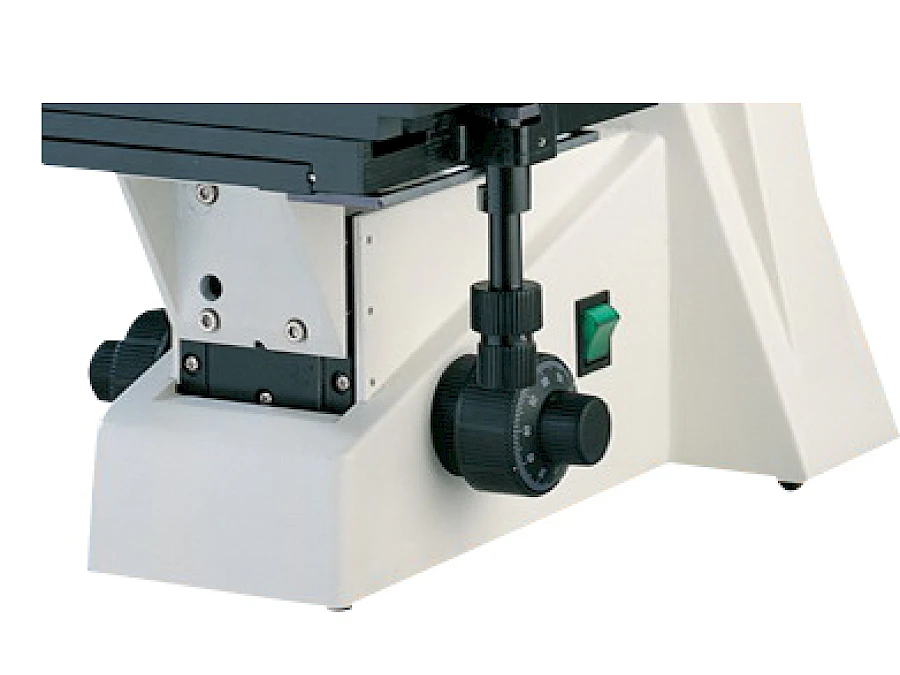

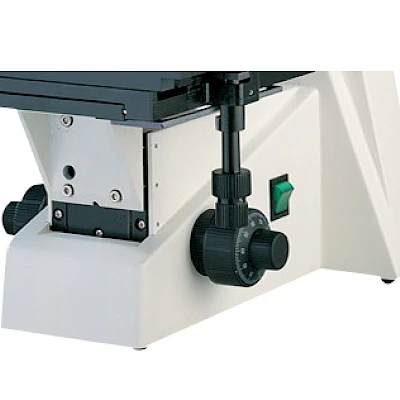

Reflected illumination System & Optics Body of VM4600M
Digital Camera Photo

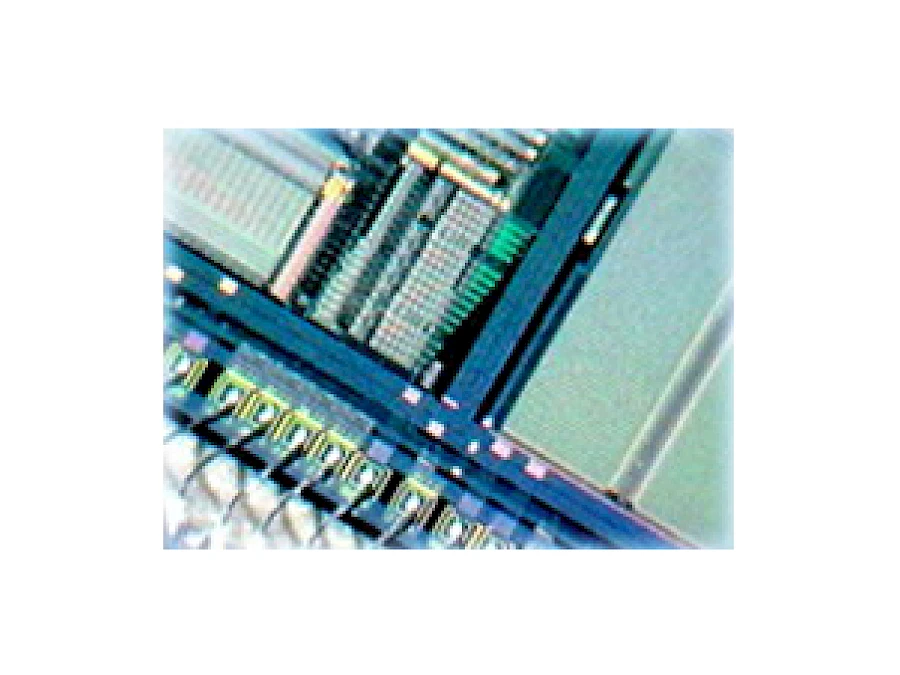

Bright Type Observe
Bright Type Observe
Polarized Observe

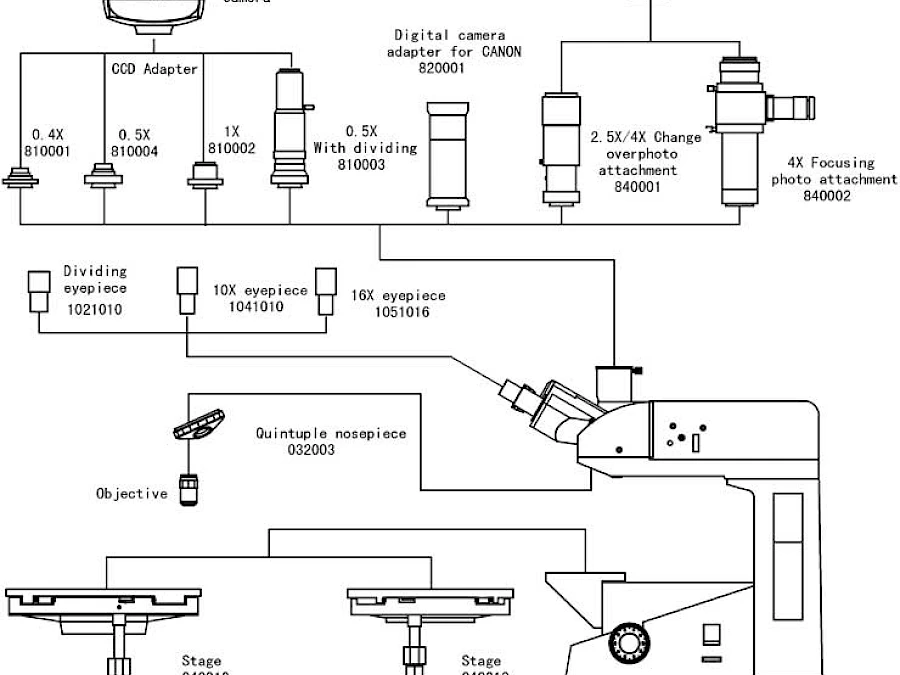

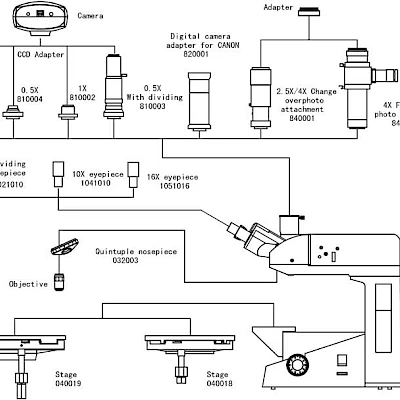

Diagram of VM4600M

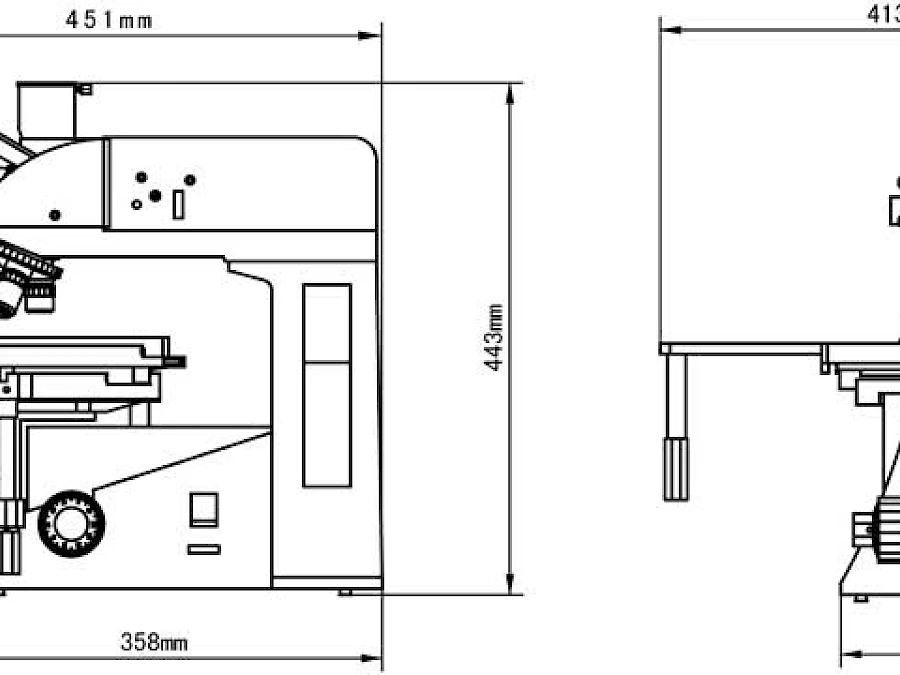

Dimension of VM4600M
