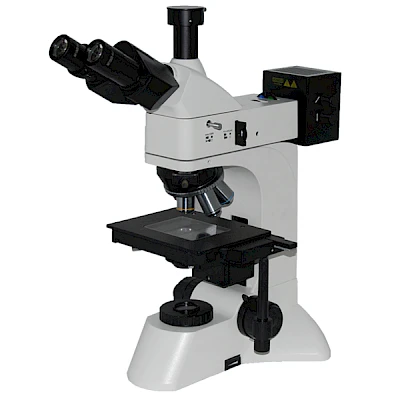

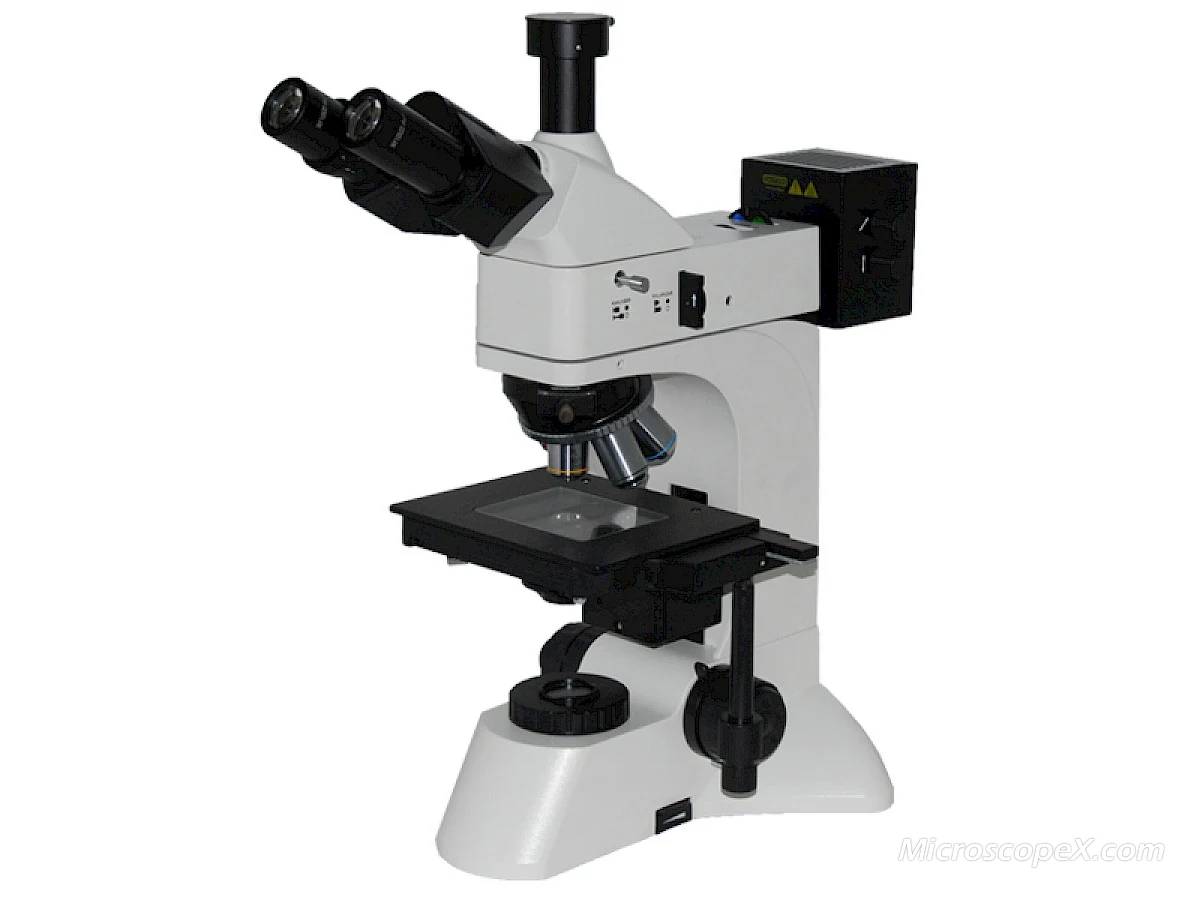

VM4000DIC 50X~400X Transmitted & Reflected Light Metallurgical Microscope with DIC system

VM4000DIC

1000X(optioncal 100X objective), 210 x 140mm mechanical stage, halogen lamp

Core Features

Adopted superior infinity optical system, equipped with excellent optical performance
Compact and stable body for anti-shock operation
Adopted ideal ergonomic design for easier operation and wider space
Integrated switchable polarized observation device, 360° rotatable polarizer
Differential Interference Contrast device provides clear image and strong sense of relief

Configurations

Stage

210 x 140mm

SWF10X (Φ22mm)

Trinocular, inclined 30°

Halogen lamp

VM4000DIC Differential Interference Contrast Metallurgical microscopes are suitable for differential-interference -contrast-observation in the surface of un-transparent object and micro-observation in transparent object. It equipped excellent UIS optical system and the notion of modularization function design, provide excellent optical performance and the update of the system. The product has beautiful configuration, easy operation, clear image, so it is the perfect research instrument for detection and analytic of the precision engineering,etc.

The trinocular can easily change in the observation and photography inclination of 30°, you do not need to down head or horizontal observation in the long time, it can make the neck and shoulder of operator feel comfortable, base on the 100% pass of light of trinocular, the microscope adapt to low illumination of photography.

Integrated field diaphragm, aperture diaphragm and (Y,B,G Ground glass) switching device. Push-pull analyzer and polarizer.

Equip high quality DIC objectives and DIC observation system, in order to show the clear, profile distinct and 3D embossed image.

By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter and etc. It can achieve high clear observation mode of camera and vidicon.

VM4000DIC

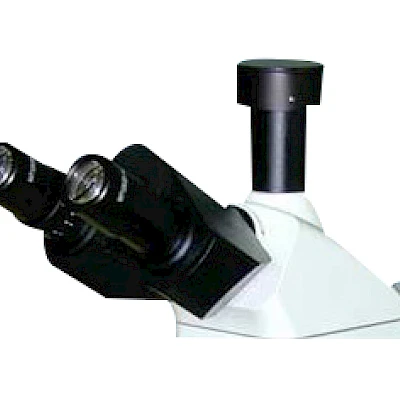

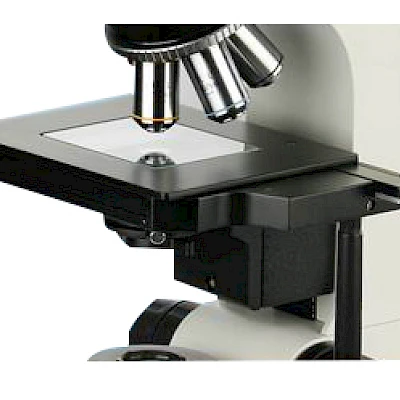

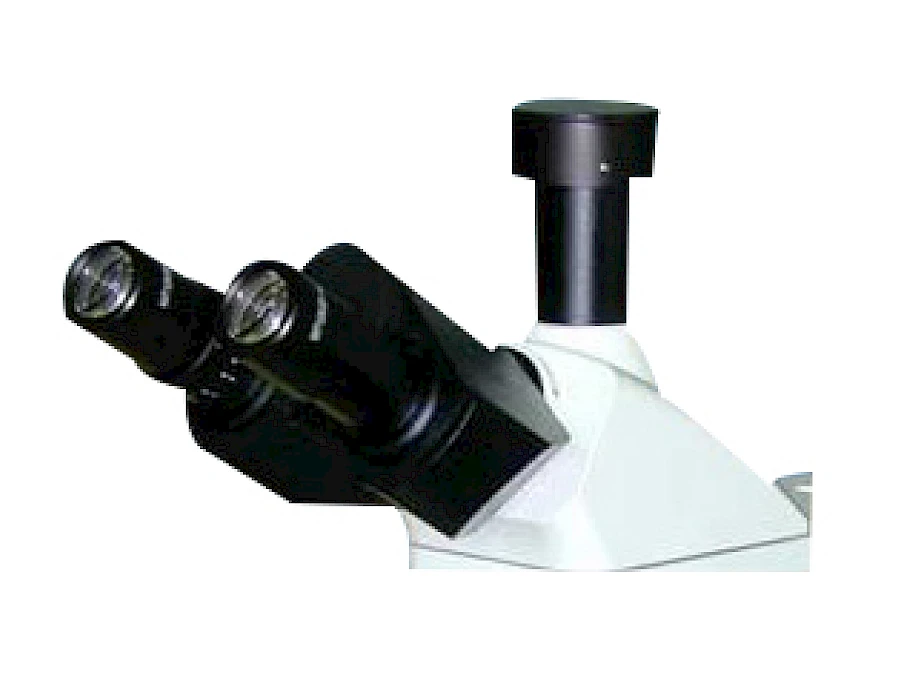

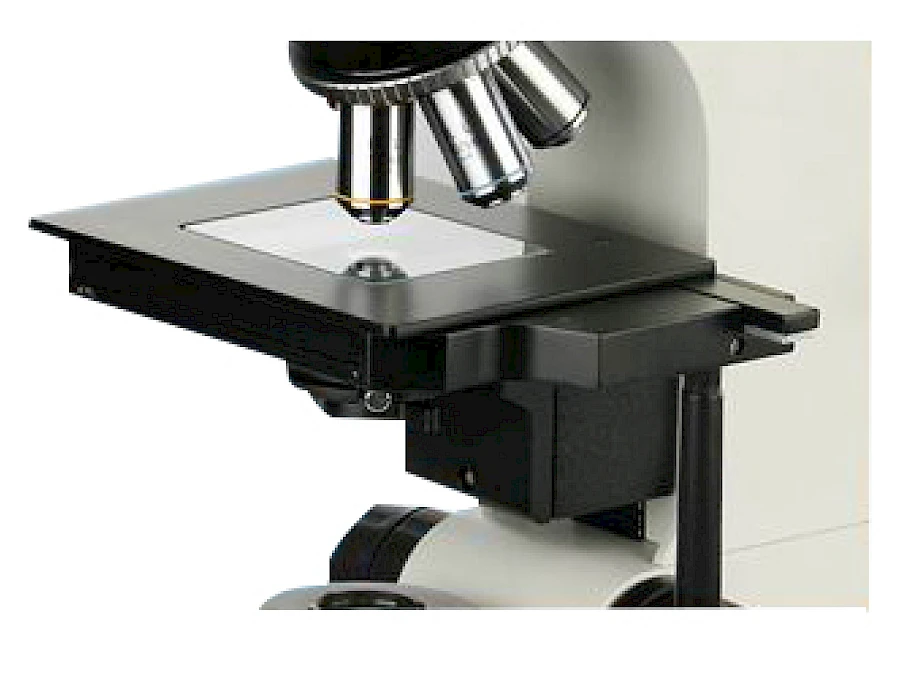

Head & Mechanical Stage of VM4000DIC

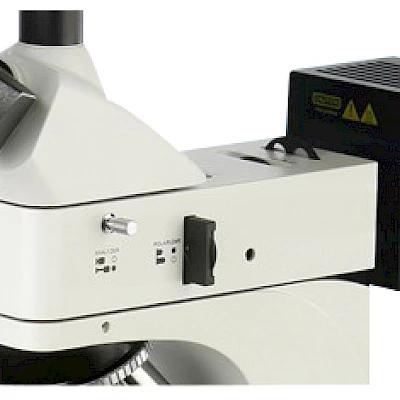

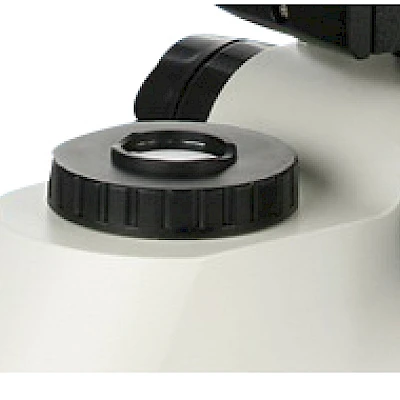

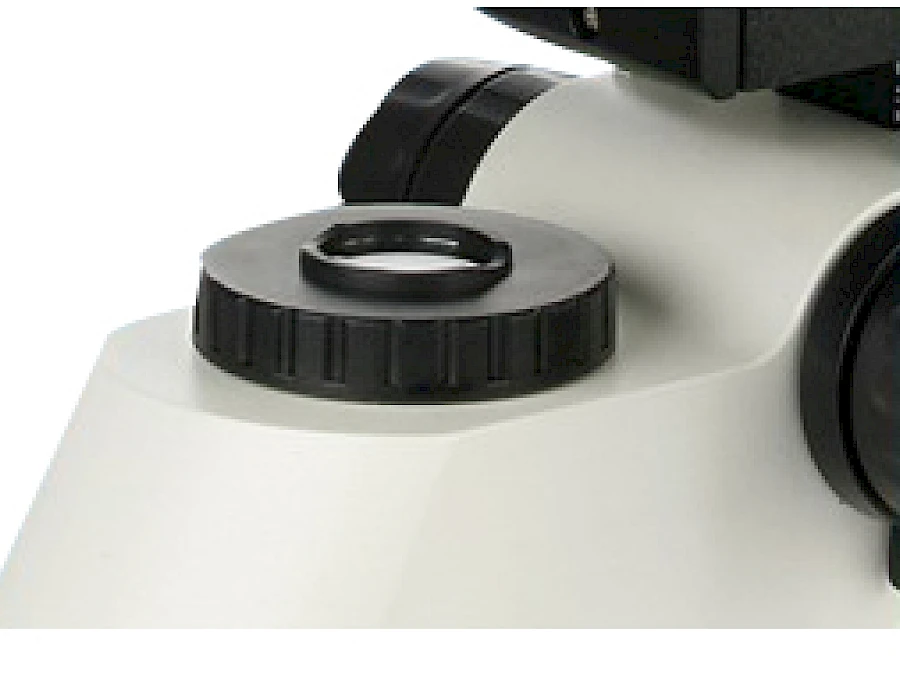

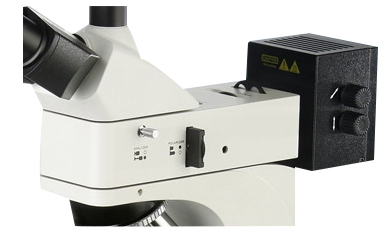

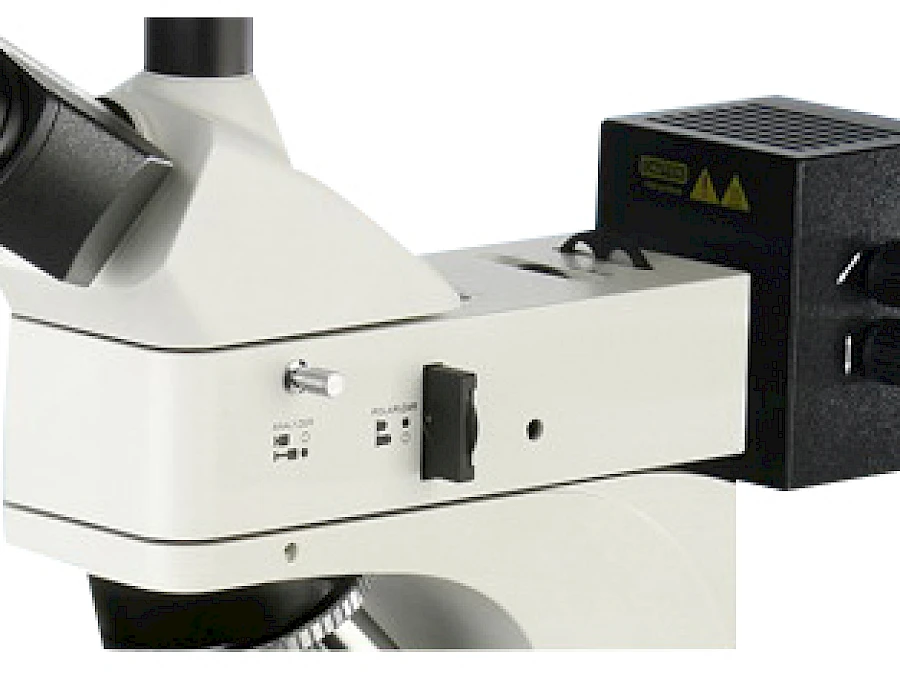

Transmitted illumination system & Epi-illumination system of VM4000DIC

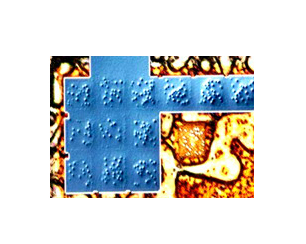

Digital Camera Photo

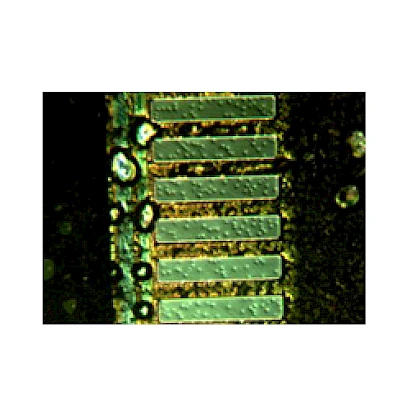

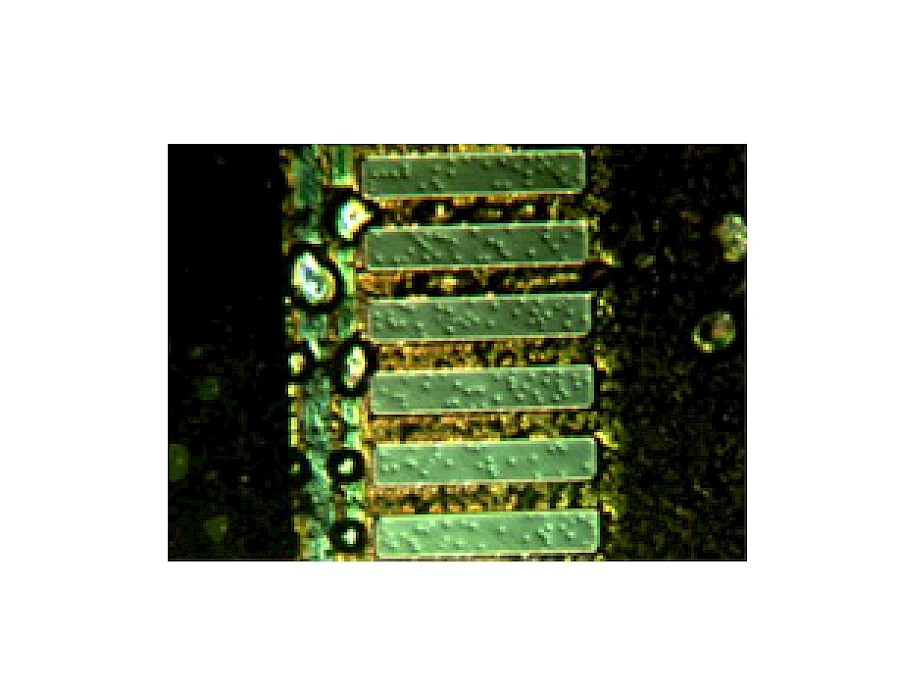

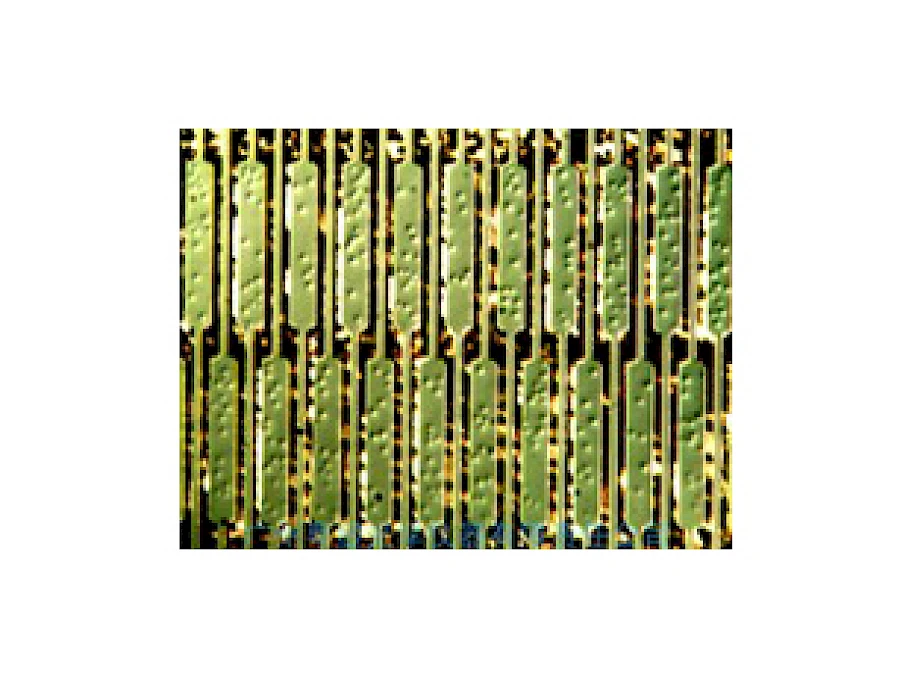

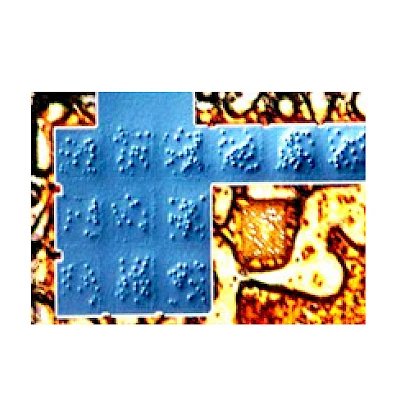

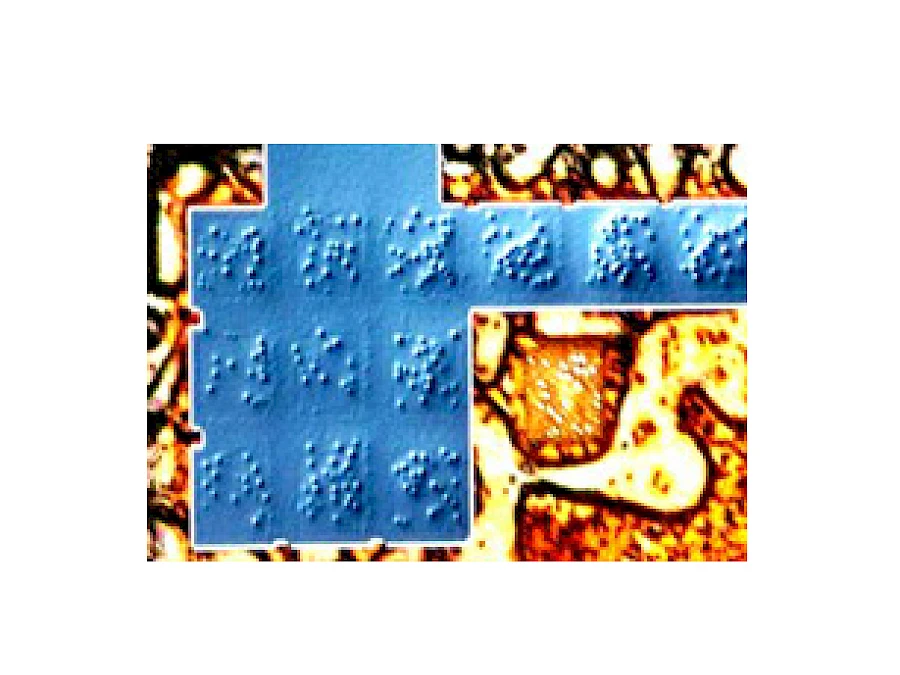

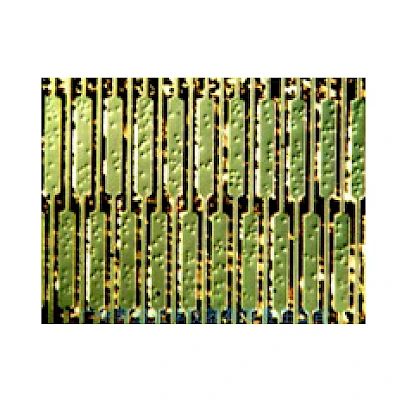

DIC Observe

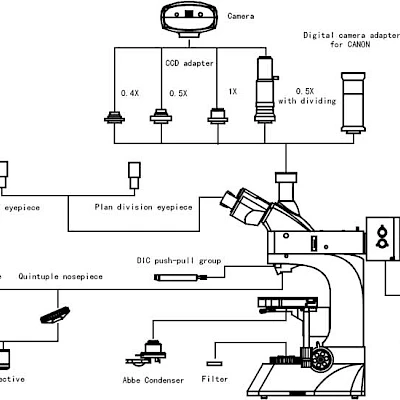

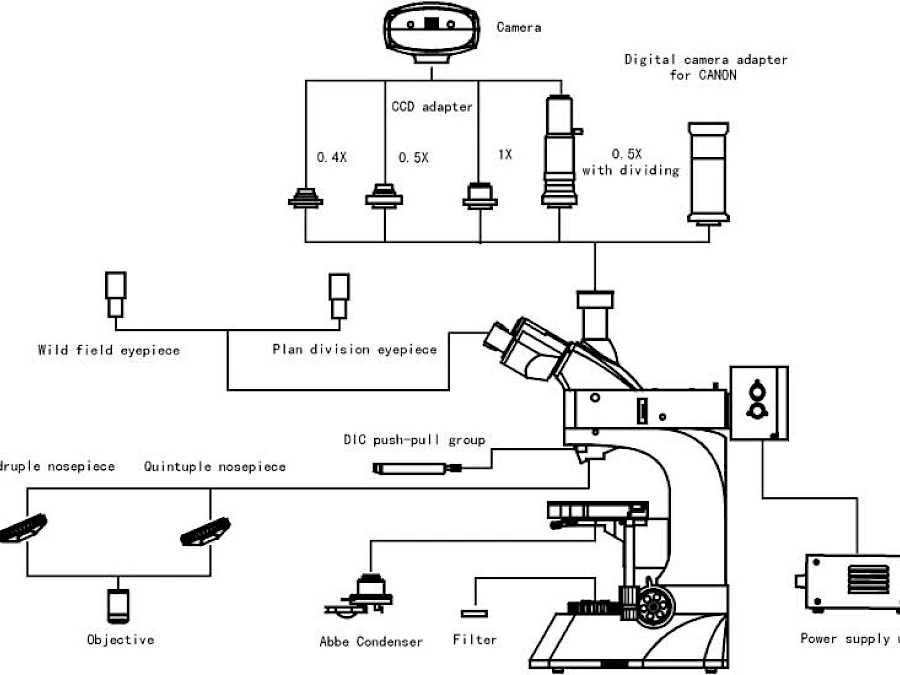

Diagram of VM4000DIC

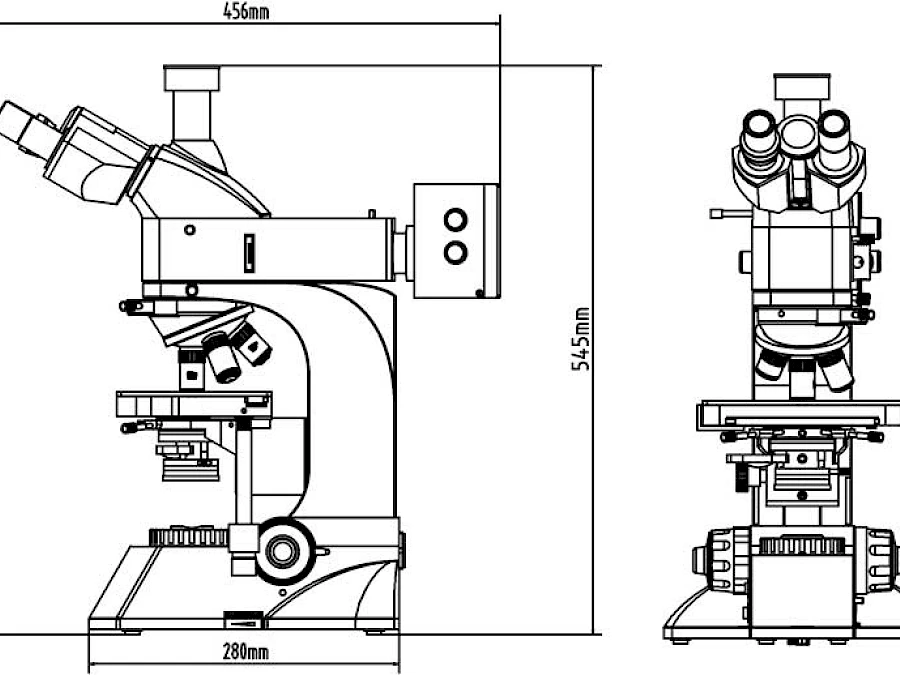

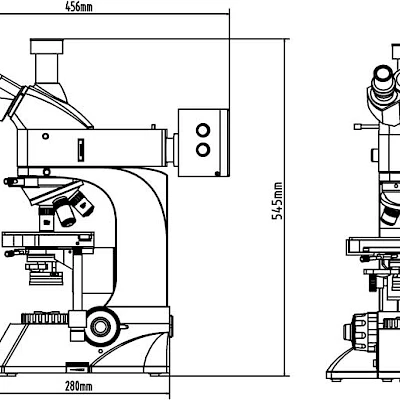

Dimension of VM4000DIC

Specification for VM4000DIC
Eyepiece	Achromatic wide field SWF10X (Φ22mm)
Eyepiece Tube	Trinocular, inclined 30°
Objective	Infinity plan achromatic objectives with long working distance (no cover glass)
	LMPlan5X/0.12 Work distance:18.2 mm
	LMPlan10X/0.25 Work distance:20.2 mm
	LMPlan20X/0.35 Work distance:6.0 mm
	PL L40X/0.60 (spring) Work distance:3.98 mm
Focus System	Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing is 2.0μm
DIC Observation System	5X/10X/20X DIC push-pull group
Epi-illumination system	12V 50W, halogen lamp, adjustable brightness
Epi-illumination system	Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer
Nosepiece	Quintuple (Backward ball bearing inner locating)
Working Stage	Double layer mechanical stage size: 210 x 140mm, moving stage: 63 x 50mm
Transmitted illumination system	Abbe condenser NA.1.25 Rack & pinion adjustable
	Blue filter and Ground glass
	Collector for halogen lamp illumination and integrated field diaphragm
	12V 30W halogen lamp, adjustable brightness

Accessories for VM4000DIC
Eyepiece	Dividing eyepiece (field numberΦ18mm) 0.10mm/Div
Objective	Infinity plan achromatic objective with long working distance (no cover glass)
	PL L50X/0.70 (spring) Work distance:3.68mm
	PL L60X/0.70 (spring) Work distance:2.08mm
	PL L80X/0.80 (spring) Work distance:1.25 mm
	PL L100X/0.85 (spring and dry) Work distance:0.40mm
Nosepiece	Quintuple Backward ball bearing inner locating
Filter	Green filter
Filter	Yellow filter
CCD Adapter	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 (with USB & Video Output)
	DV-130/300/500/900 with USB Output
	DV-3 (with Video Output 380/520 TV line)
Digital camera adapter	CANON (EF) NIKON(F)
