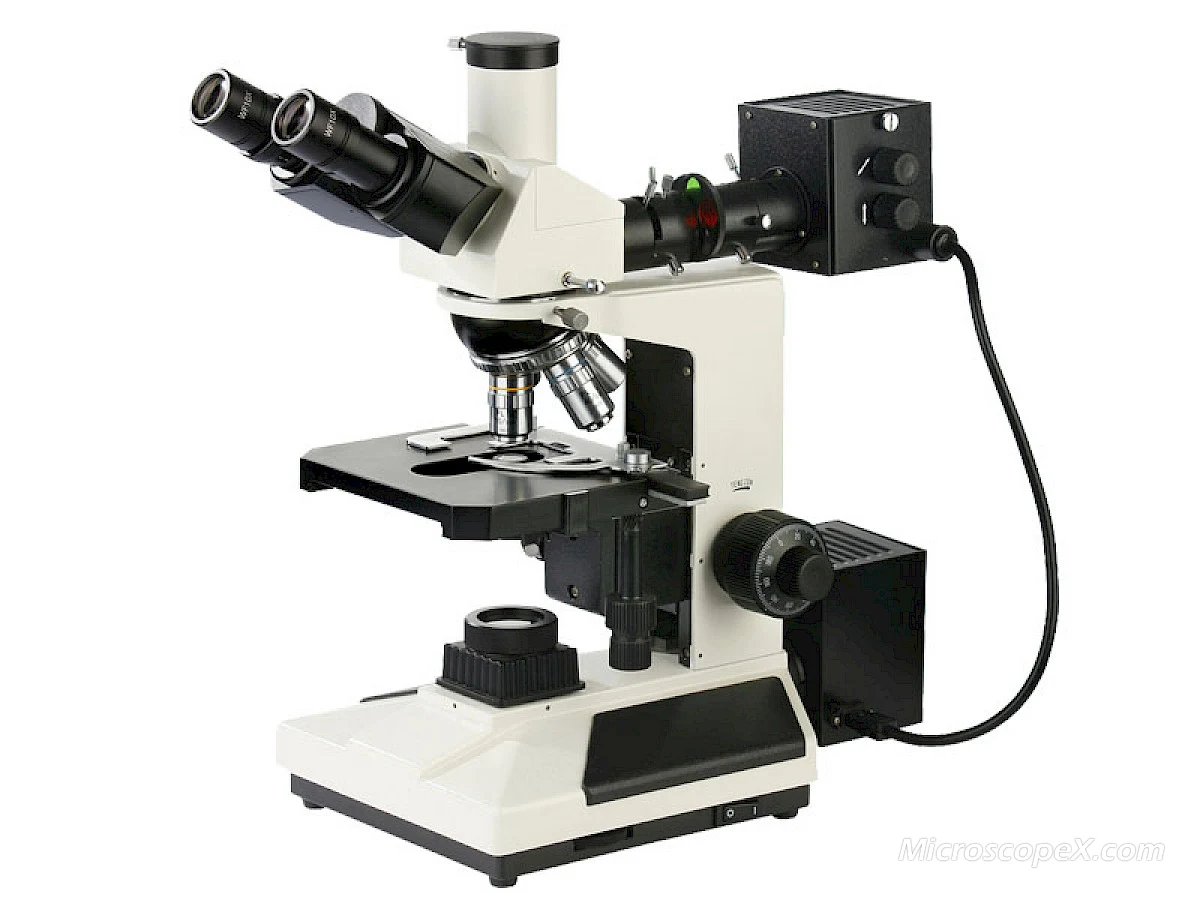

VM2300M Series 50X-600X Trinocular Vertical Illumination System Metallurgical Microscope

VM2300M Series

160mm x 140mm stage, industrial and mining research, teaching demonstration

Core Features

With plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field
Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Utilize reflected & transmitted light mix illumination; you can descry the special effect in some object
6V 20W halogen lamp, brightness control
Trinocular, can switch to observe normally or to observe the polarize, can send 100% of light to the binocular eyepieces or to the top port

Configurations

WF 10X (Φ18mm)

Inclined 30°

Quadruple / Quintuple

6V 20W Halogen

VM2300M Series Reflected and Transmitted Metallurgical Microscope are equipped with reflected and transmitted illuminator system, plan achromatic objectives with long working distance (no cover glass), wide field eyepieces and set polarizer device in trinocular. They can obtain clean image in the wide visual field, can be broadly applied in mine, colleges and scientific research department to observe internal configuration of material.

Trinocular, single diopter adjustment, inclined 30° and integrated analyzer, it can be connected to the camera.

Integrated field, aperture diaphragm and (Y, B, G, Ground glass) switching device. Puller polarizer can be circumrotated for 90°.

Outside field diaphragm, 6V 20W halogen lamp, brightness adjustable. Abbe condenser N.A.1.25 Rack & pinion adjustable. Equipped with B、G filter and frosted glass.

By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. They can achieve high clear observation mode of camera and vidicon.

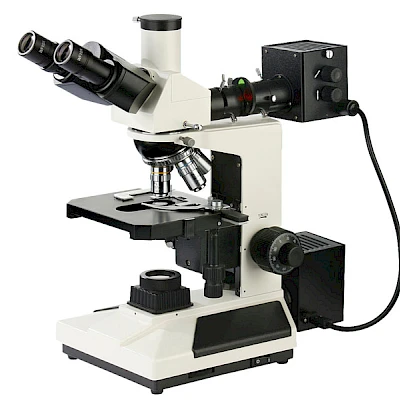

VM2300M Series

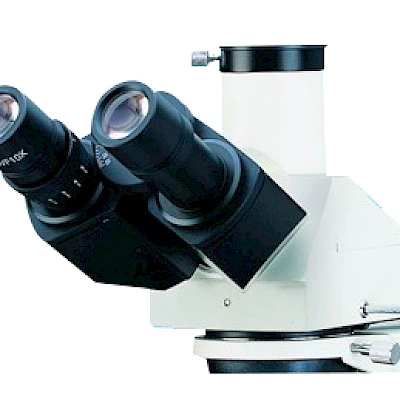

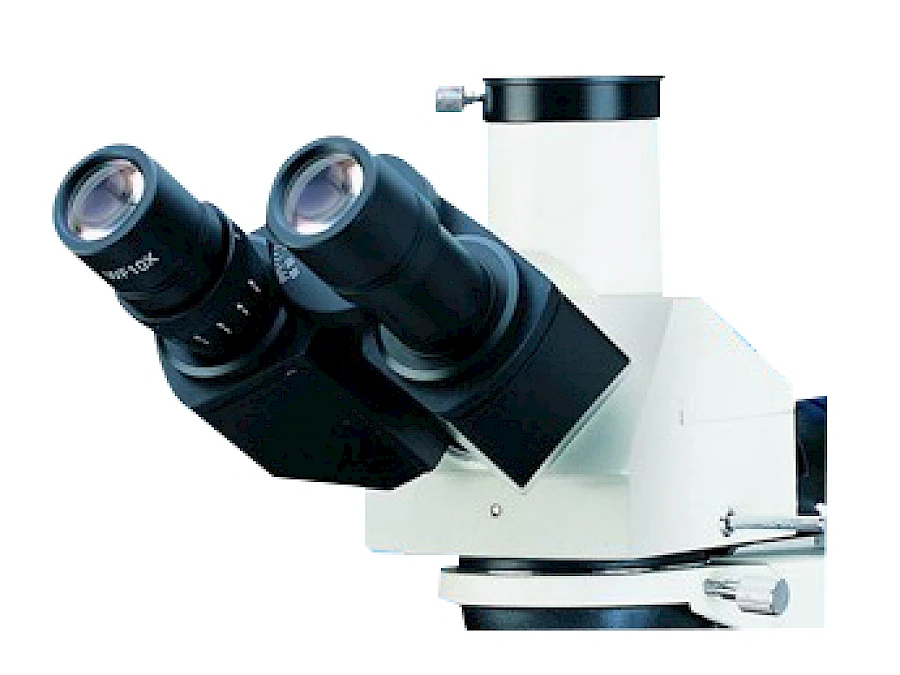

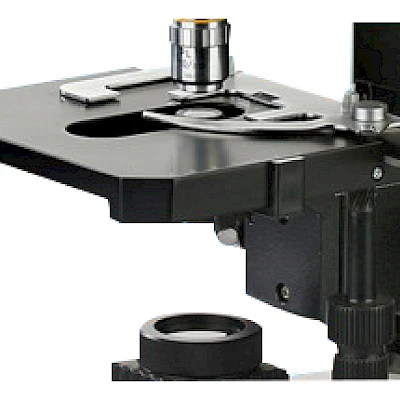

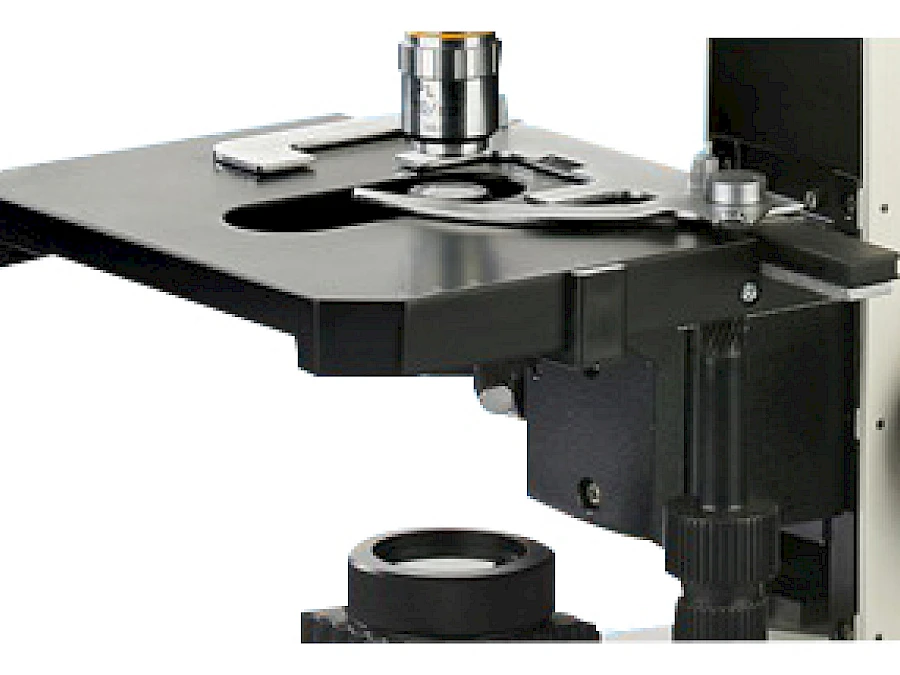

Head & Mechanical Stage of VM2300M Series

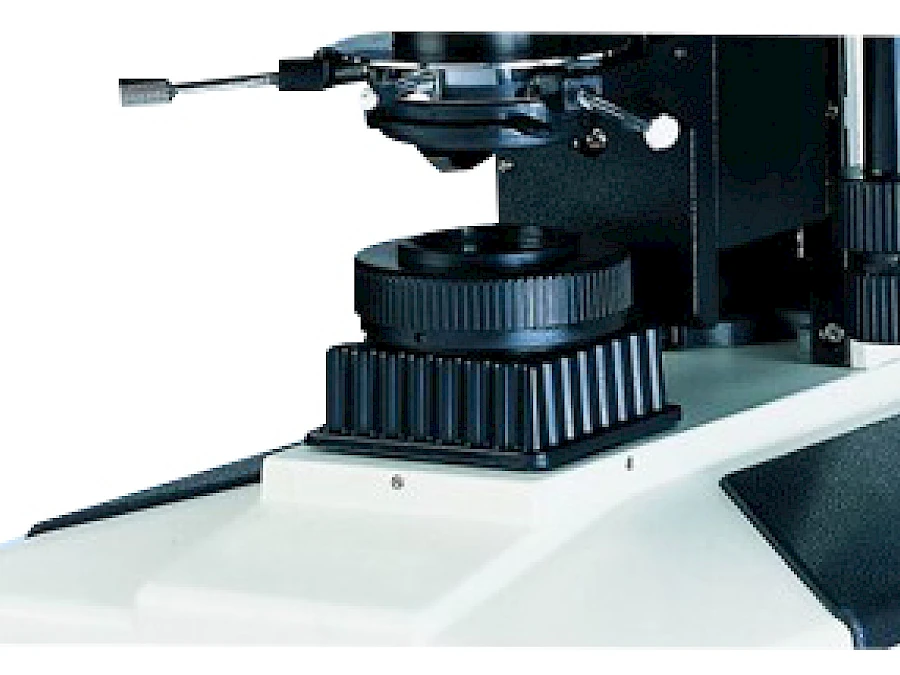

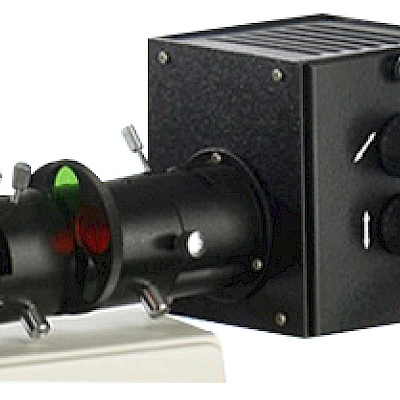

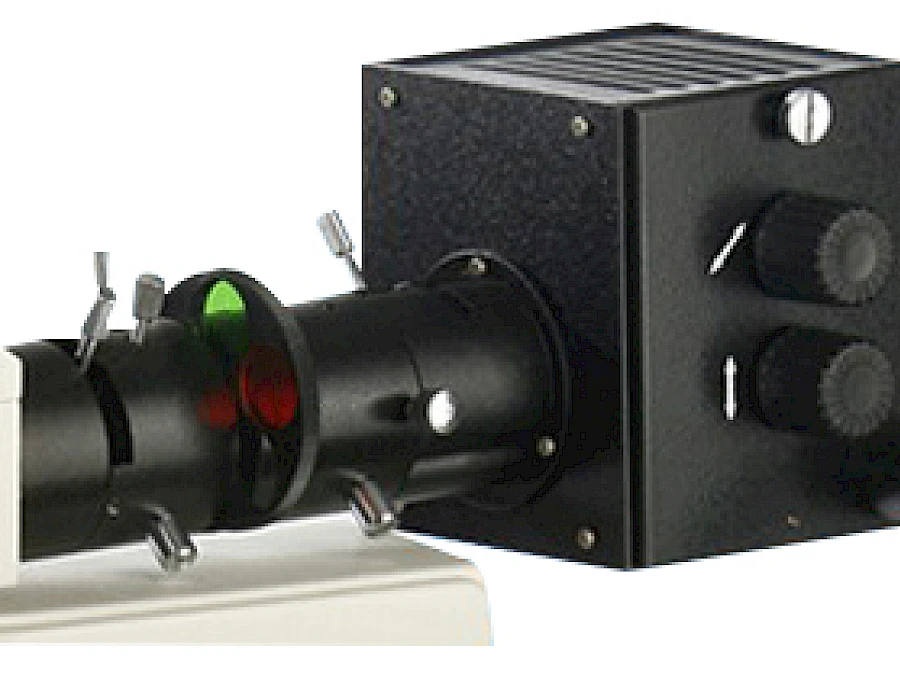

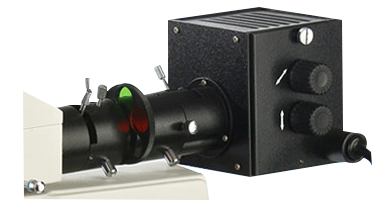

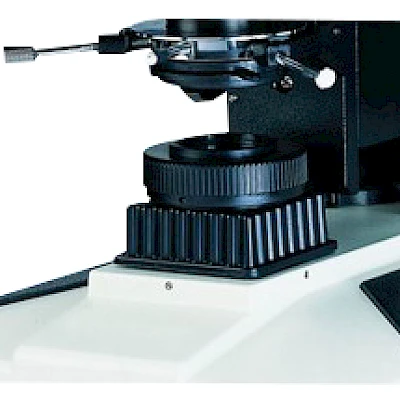

Epi-illumination & Transmitted illumination System of VM2300M Series

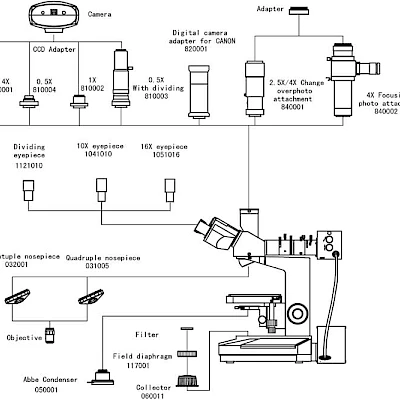

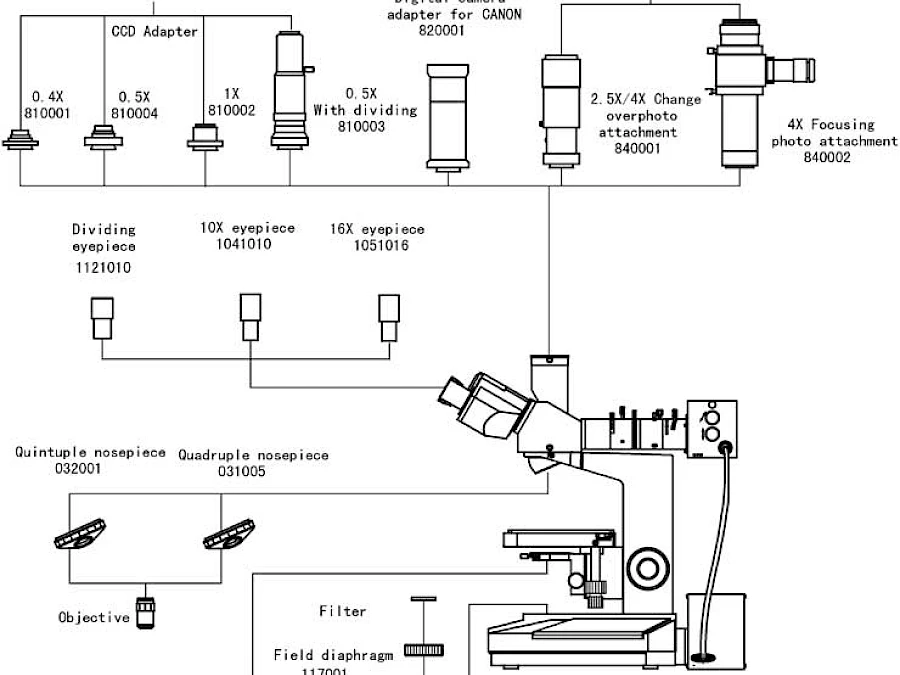

Diagram of VM2300M Series

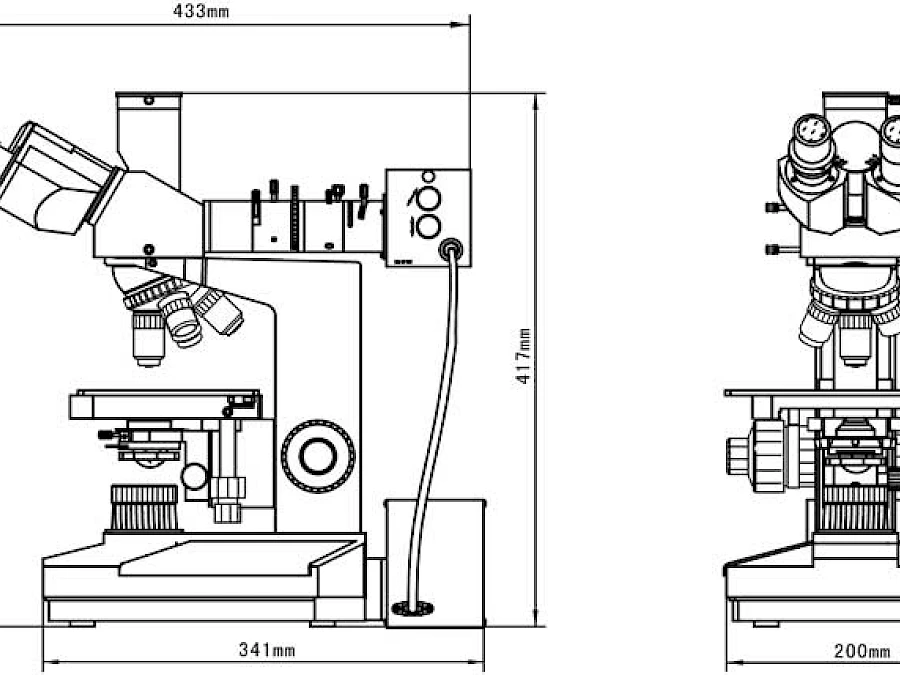

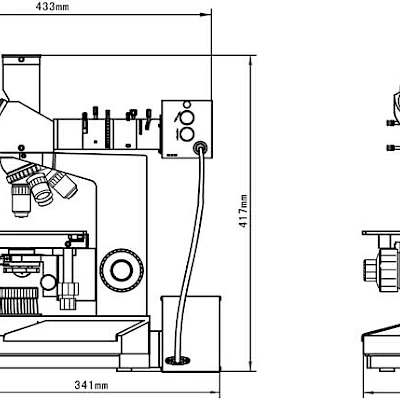

Dimension of VM2300M Series

Specification for VM2300M Sereis
Eyepiece	WF 10X (Φ18mm)
Eyepiece Tube	Trinocular, inclined 30°, Analyzer with field diaphragm to switch
Objective	VM2300MA	VM2300MB
	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12	Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12
	Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25	Plan achromatic objectives with long working distance (no cover glass) PL L10X/0.25
	Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60	Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40
	Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75 (Spring)	Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60
		Plan achromatic objectives with long working distance (no cover glass) PL L60X/0.75(Spring )
Focus System	Coaxial coarse/fine focus system, with tension adjustable and up stop, minimum division of fine focusing is 2.0μm
Nosepiece	Quadruple (Backward Ball bearing inner locating)
Nosepiece	Quintuple (Backward Ball bearing inner locating)
Vertical Illumination Unit	6V 20W Halogen Lamp, adjustable control
Vertical Illumination Unit	Vertical illumination with field diaphragm, aperture diaphragm and polarizer, (R, B, G) filter and frosted filter
Working Stage	Double layer mechanical (Size:160mmX140mm,moving range:75mmX50mm)
Vertical Illumination Unit	Abbe condenser NA.1.25 Rack & pinion adjustable
	(B,G)filter and Frosted filter
	Collector for halogen lamp
	6V 20w halogen lamp, adjustable control.

Accessories for VM2300M Series
Eyepiece	WF 16X(Φ11mm)
Eyepiece	Dividing 10X(Φ18mm) 0.1mm/Div
Objective	Plan achromatic objectives with long working distance (no cover glass) PL L50X/0.70
	Plan achromatic objectives with long working distance (no cover glass) PL L80X/0.80
	Plan achromatic objectives with long working distance (no cover glass) PL L100X/0.85 (Spring)
	Plan achromatic objectives (no cover glass) PL 100X/1.25 (Spring, Oil)
Filter	Yellow filter
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 (with USB & Video Output)
	DV-2 (with USB Output)
	DV-3 (with Video Output)
Photo Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD Adapter
	PK Adapter
Digital camera adapter	CANON (A610, A620, A630, A640)
