POL1600 Series Polarizing Microscope are appled to differentiate componen of matters that have birefraction characterist,as a sort of import tool in pharmacology, geognosy, mechanism, metallurgy to research crystal, mineral, rock and metallurgical form. The instrument, are equipped with strain-free plan achromatic objectives and wide field eyepieces, high precision rotatable polarizing stage and excellent accessories. They can be applied in single polarizing, orthogonal, conoscope. These productes have good sculpt and ateady mechanical structure, so that operate comfortably and expediently. They are the ideal instruments for factory,mine, scientific research and university to check, research and teaching ect.
Trinocular, single diopter adjustment, inclined 30°, can be connected to the camera. 10X wide field plan eyepiece, field Φ18 mm, can provide expanse and smooth observation space. Another eyepiece is 10X division eyepiece used for proofreading the centre.
The intermediate attachment includes the impellent style of analyer (360° retatable with scale and fine nonius) which can be taken off from the light path and the impellent style of bertrand lens (center adjustable). It can be added λ compensator, λ/4 compensator or quarts wedge compensator.
Frontward ball bearing inner locating, center adjustable, can ensure the centre of objective and the rotatable stage completeness superposition.
Strain-free plan achromatic objective or infinity strain-free plan.
Rotund rotatable stage, Φ150mm diameter, 360° graduated (in 1° increments), miniunm, retardation resolution 6’, center adjustable and with tightener.
Polarizer, 360° rotatable, having 0, 90 180, 270 four scale, set under the aperture disphragm, can take down from the optics body.
The illumination system with 6V 20W halogen lamp (brightness adjustable) can provide clear and bright image. The system also includes the collector with field disphragm.
By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.

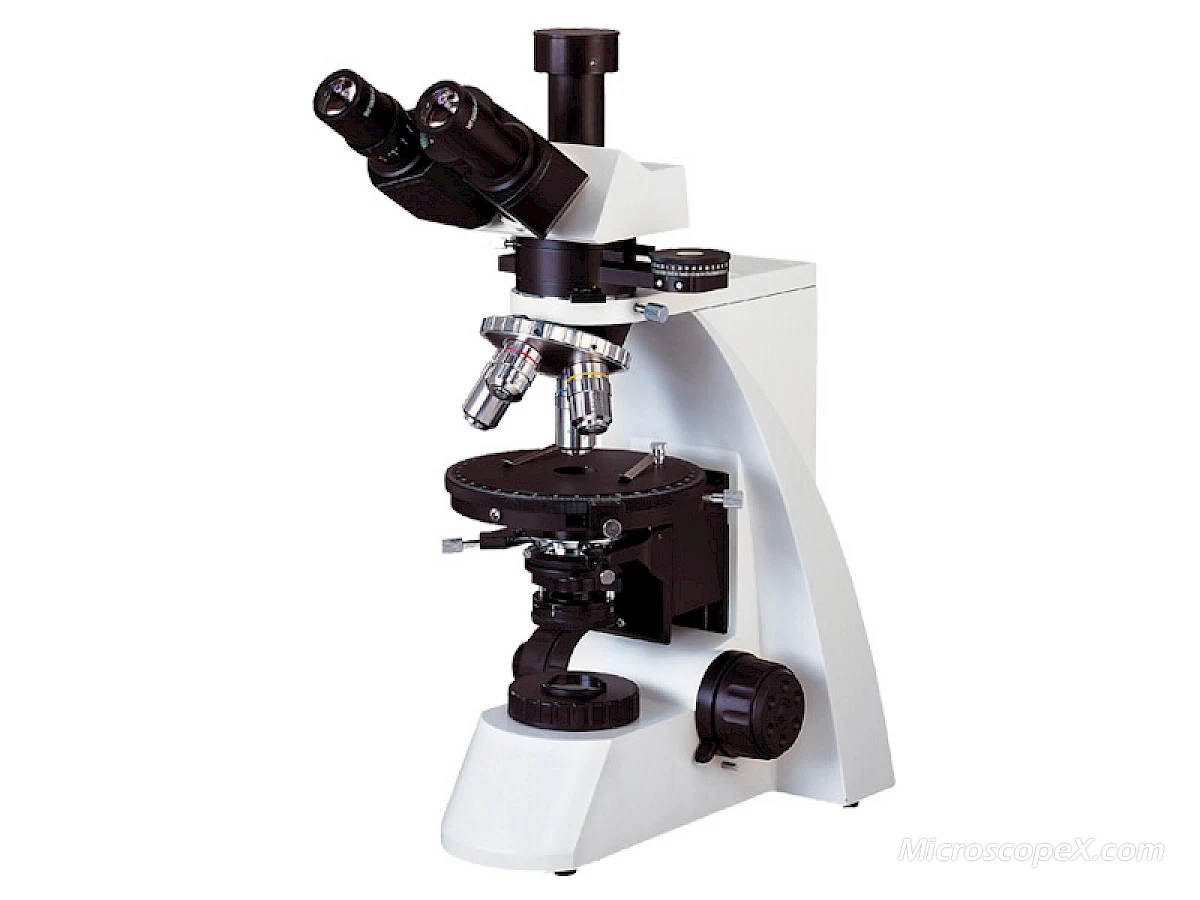

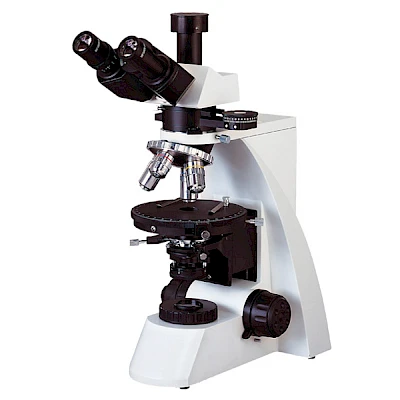

POL1600

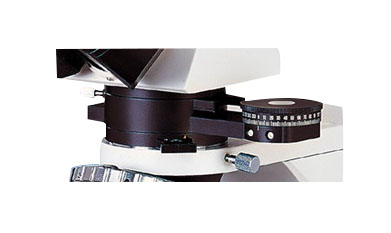

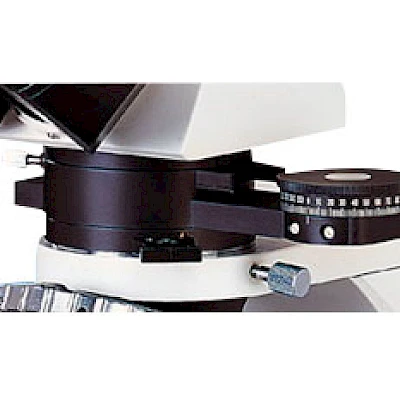

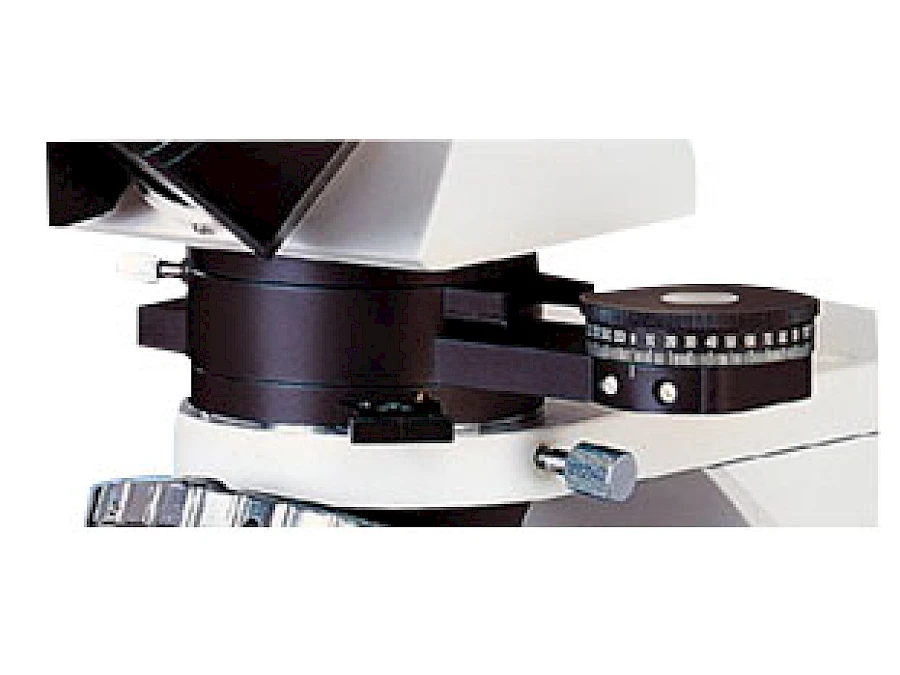

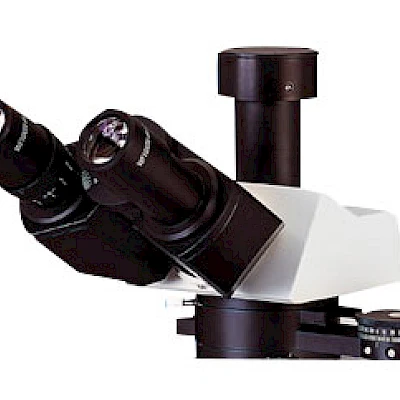

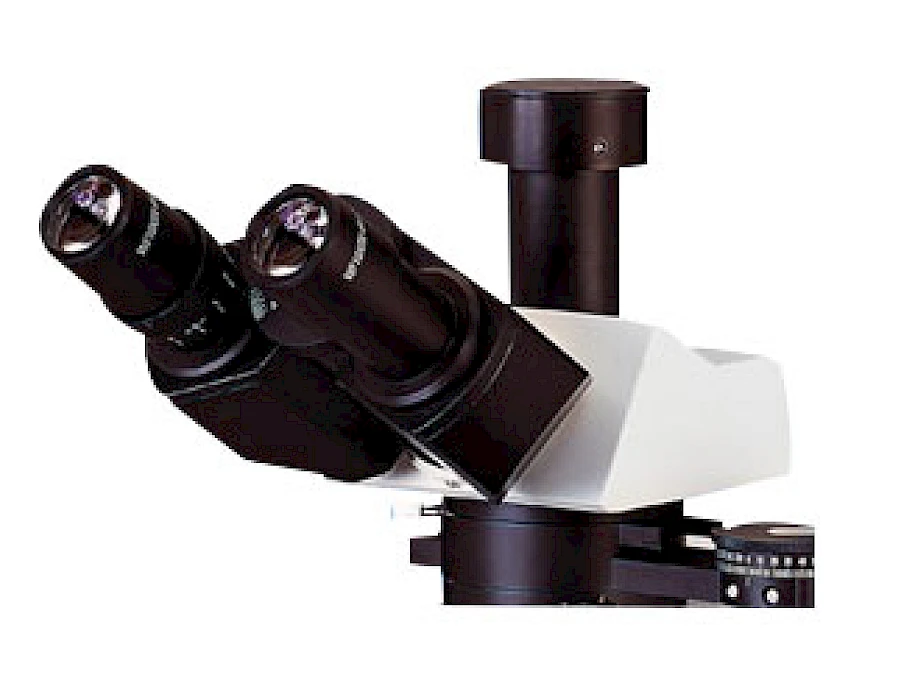

Head & Intermediate attachment of POL1600

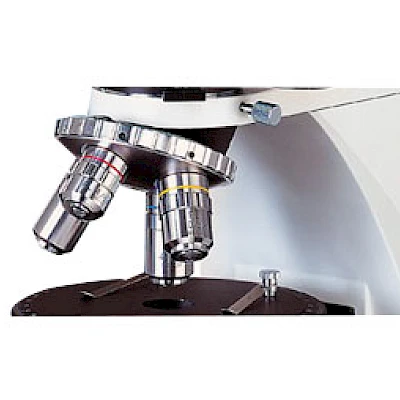

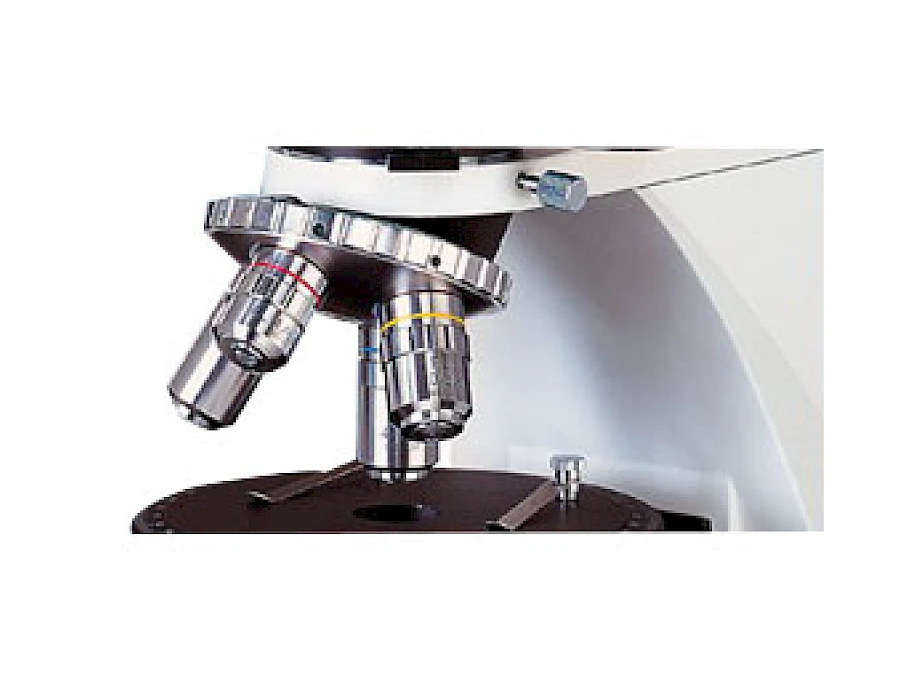

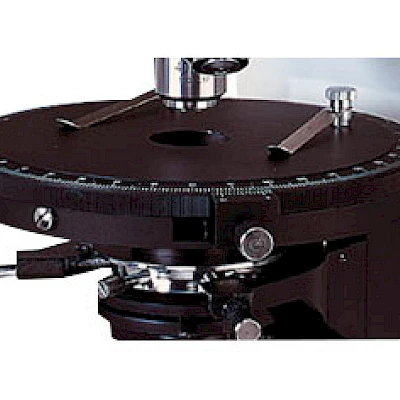

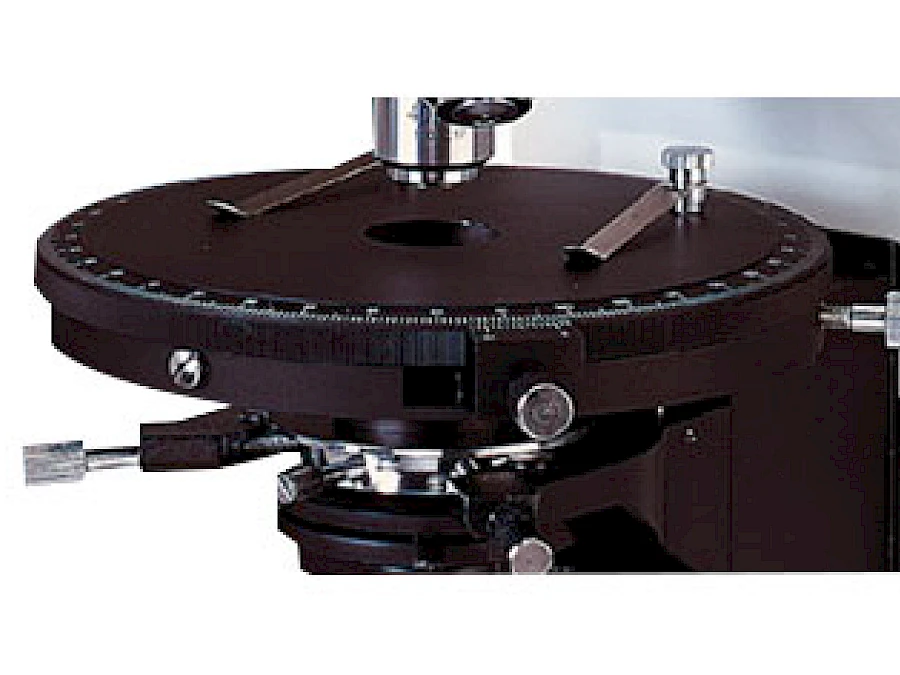

Nosepiece & Stage of POL1600

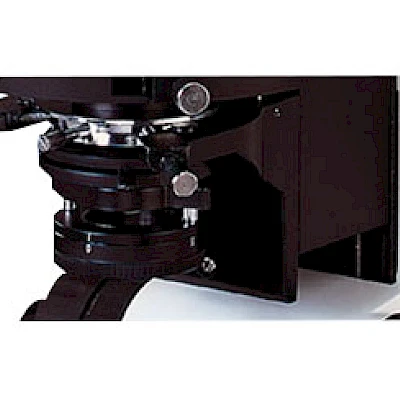

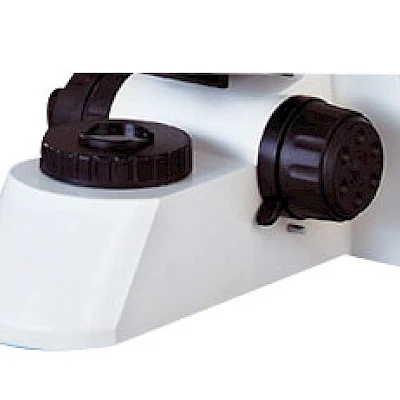

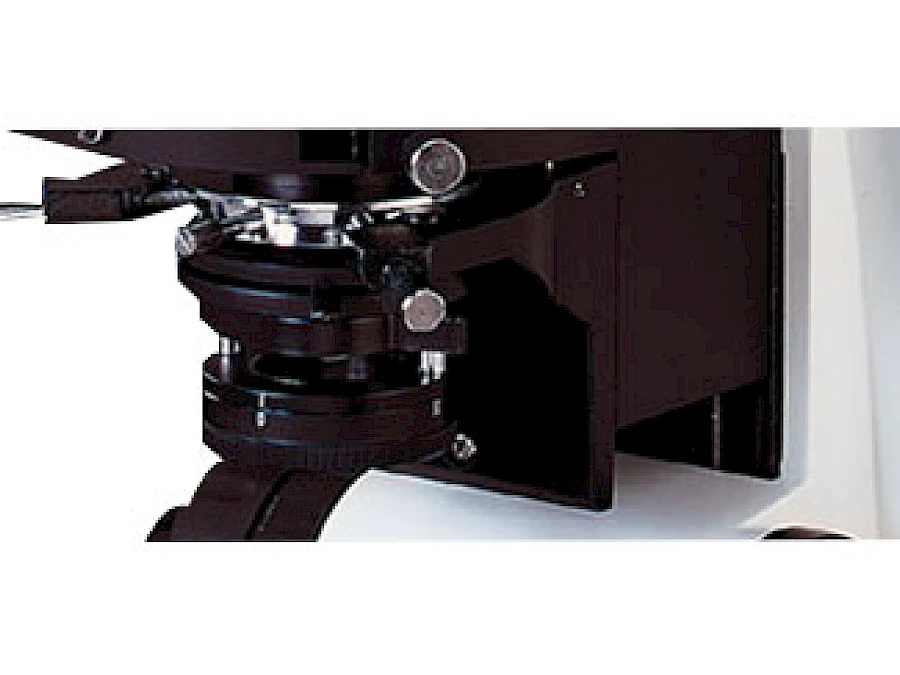

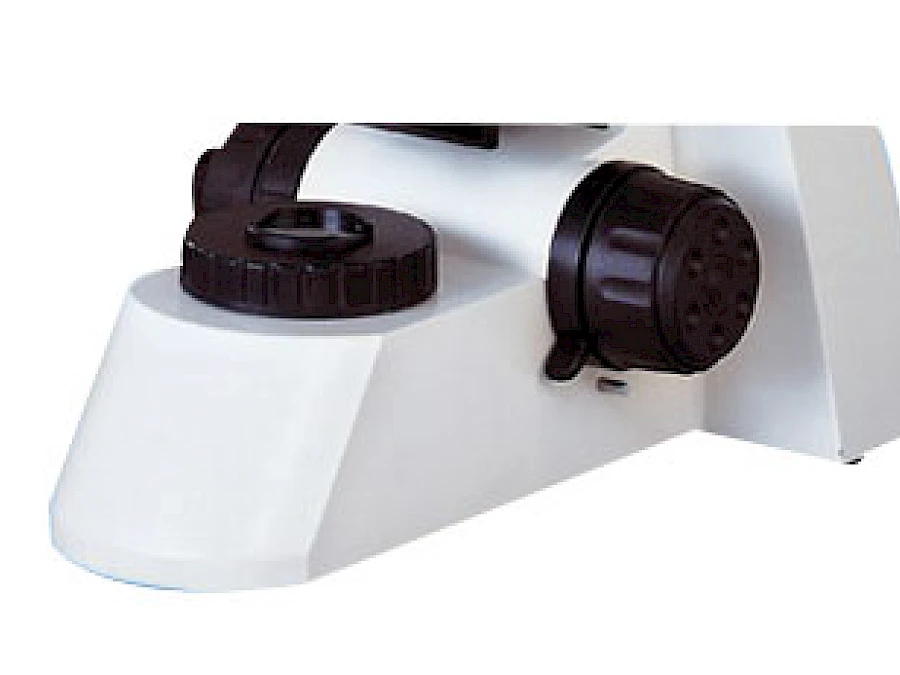

Polarizer & Transmitted Illumination System of POL1600

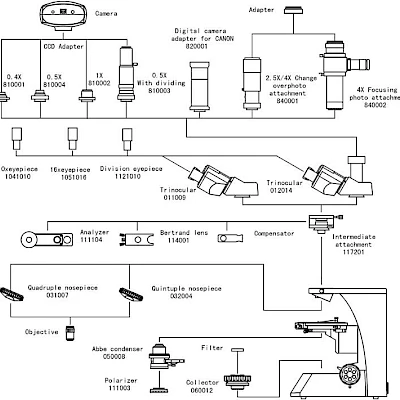

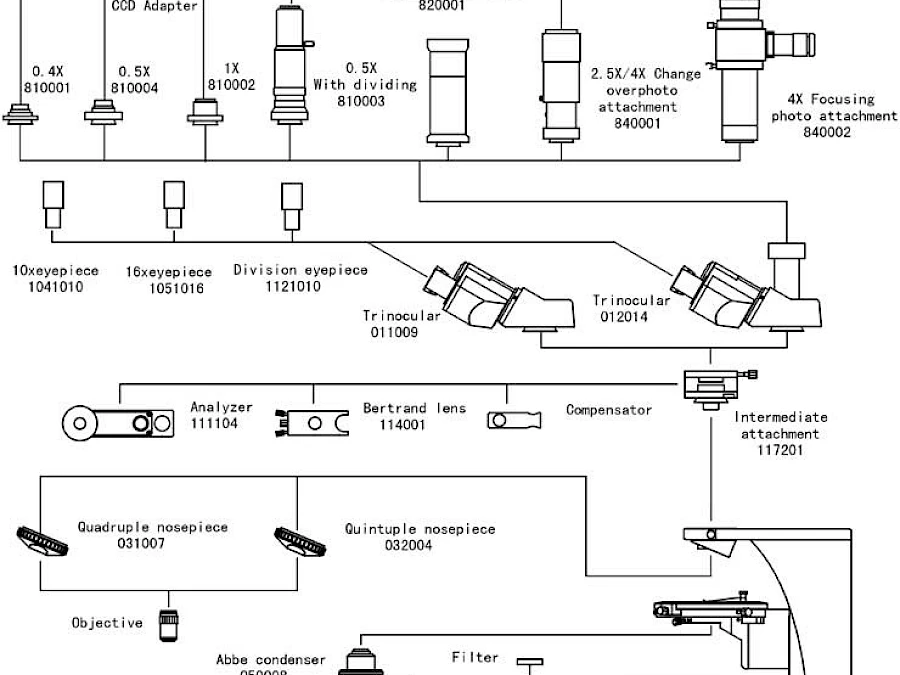

Diagram of POL1600 Series:

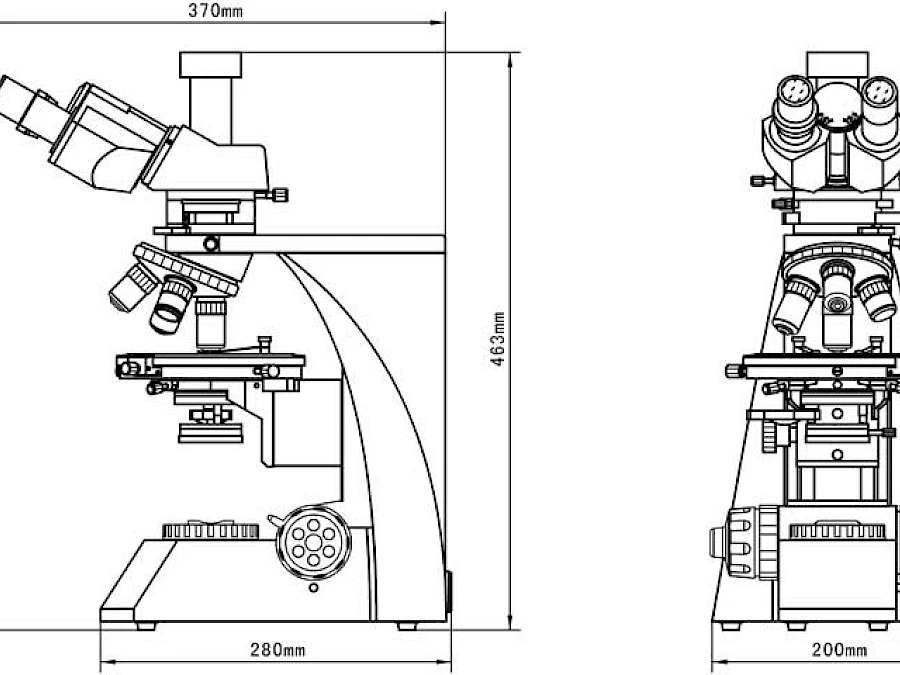

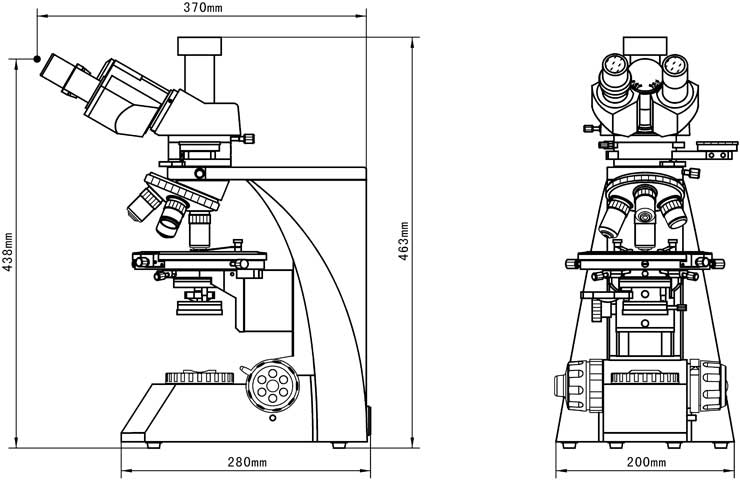

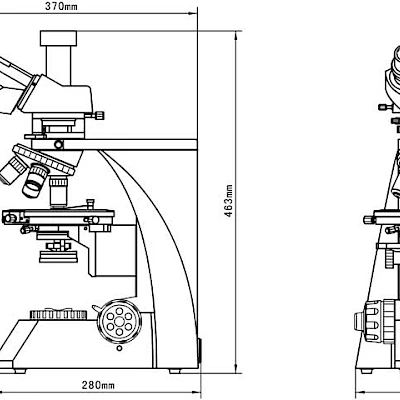

Dimension of POL1600 Series:
Digital Camera Photos:

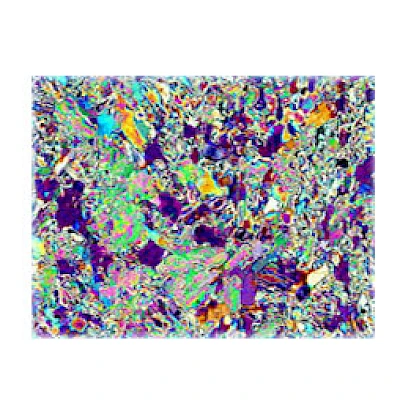

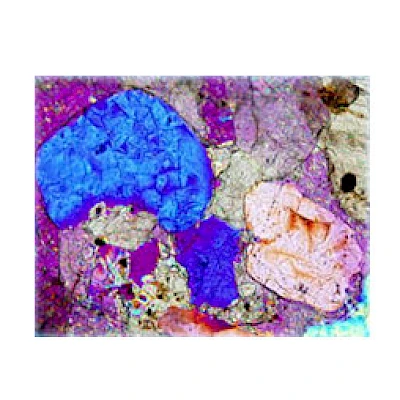

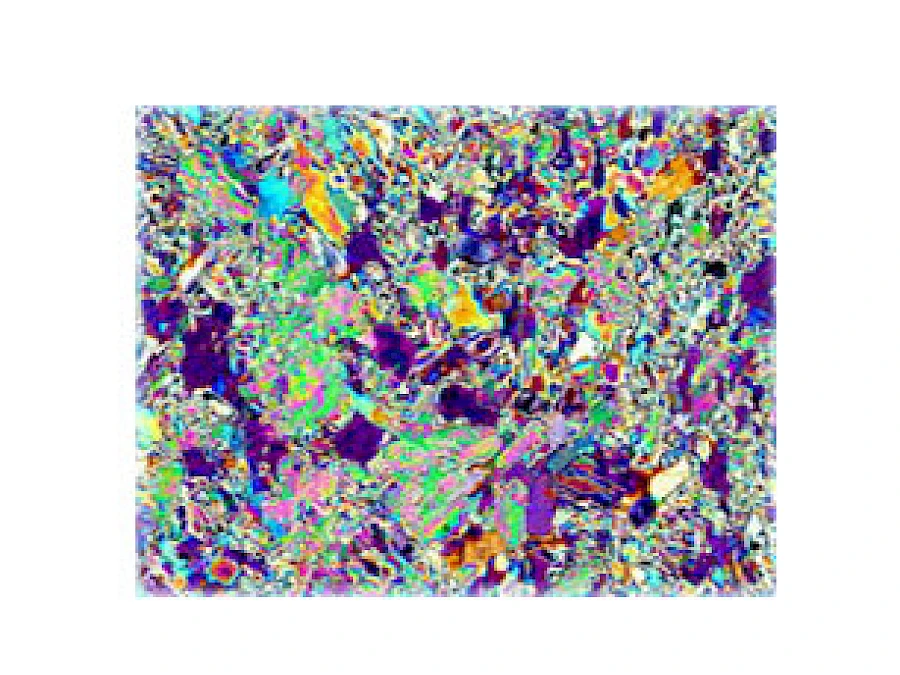

Polarized Observe
