PLJ-137A 40X~1600X Easy Operation Powder Crystal Trinocular Standard Polarizing Microscope with LED Light Source

PLJ-137A

40X~1600X, Built-in 1W LED Light Source, ABBE Condenser

Core Features

Wide-field plan eyepieces: 10X, field number Ф18mm
Polarizer, λ, λ/4 compensator
Analyer, 0°~90°, push in/ out from optical path conveniently
Coaxial coarse/fine focus system, minimum division of fine focusing: 10μm
360° graduated in 1° increments, rotatable working stage, Φ160mm, minimun vernier division: 6’

Configurations

WF 10X (Φ18mm)

WF 16X (Φ13mm)

40X~1600X

Quadruple

B, Y, G Filter

Abbe Condenser

PLJ-137A Polarizing Microscope which adopts transmitted illumination system has good performance and clarity images. It can be used in the observation of transparent crystals, drugs, etc. It is the ideal instrument for studying and researching the birefringent specimen in the fields of geology, medical treatment, chemical medicine etc. It is also widely used in crystal observation of liquid polymer materials, biopolymers and liquid crystal materials etc.

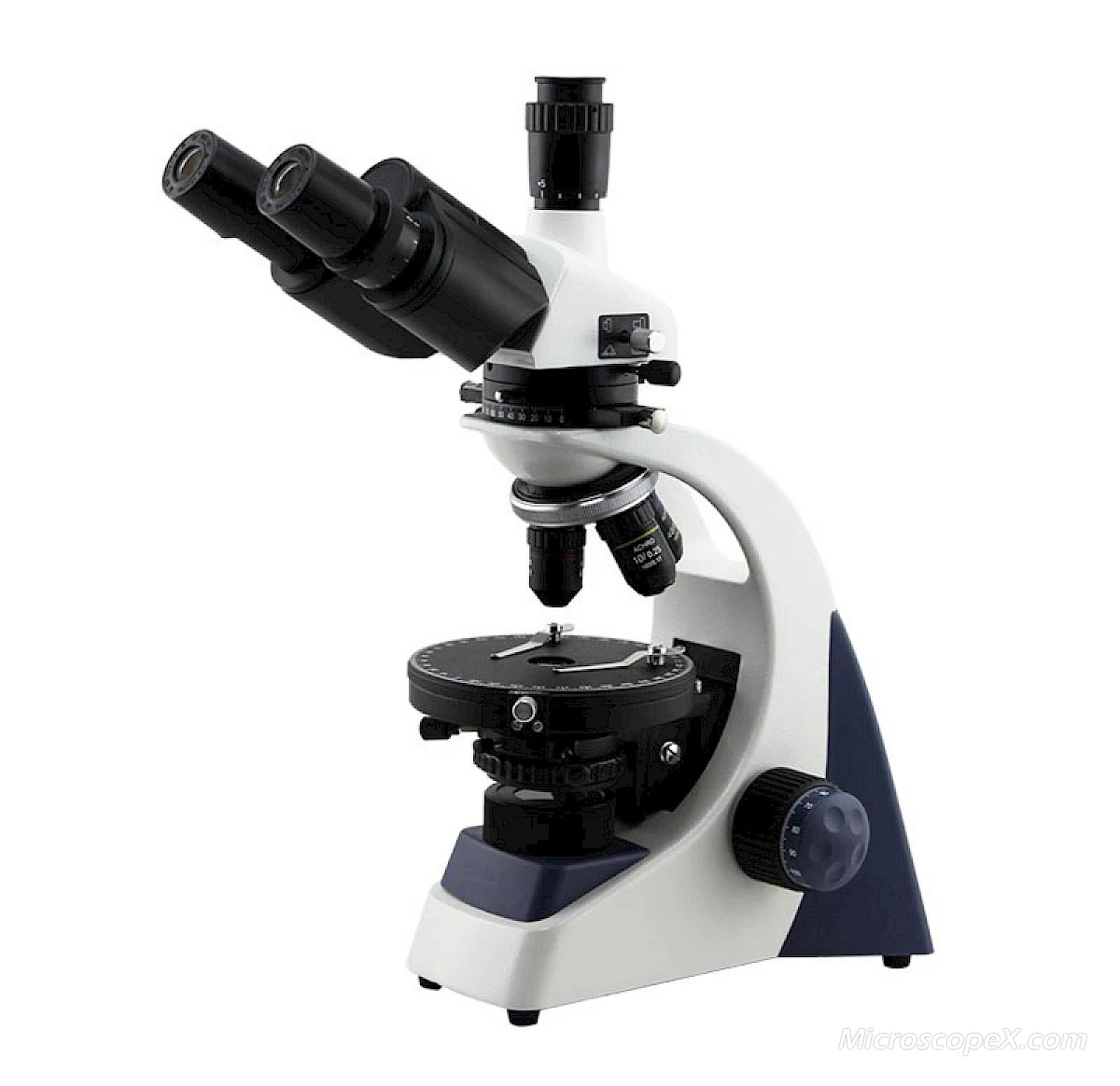

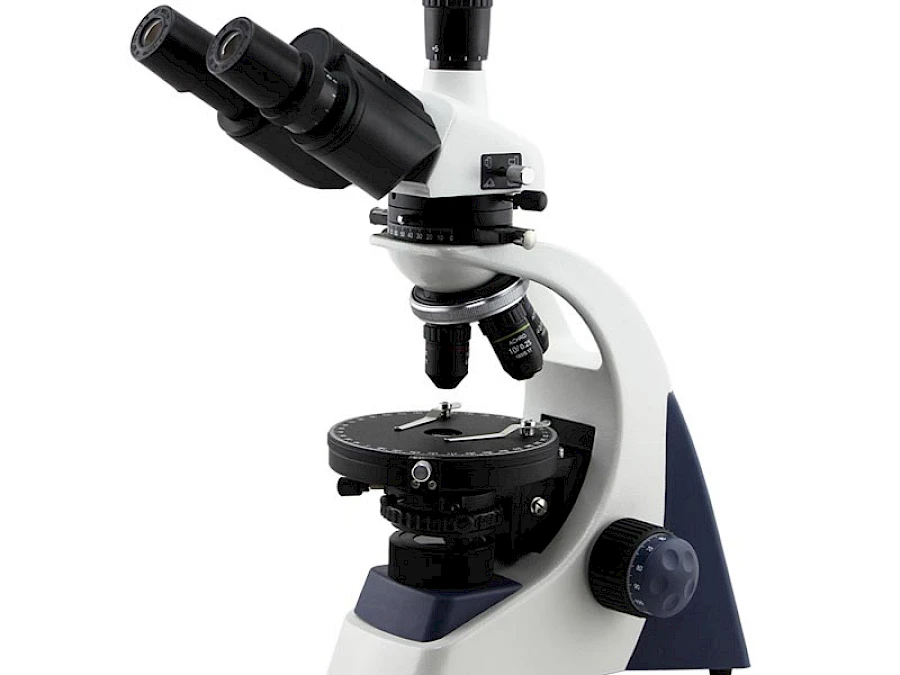

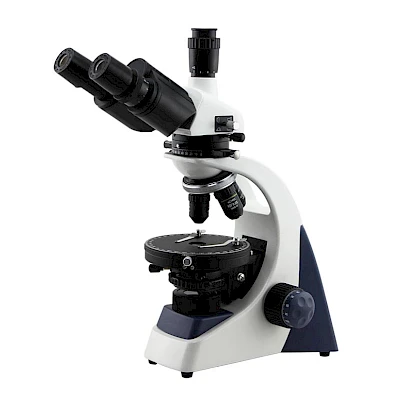

PLJ-137A

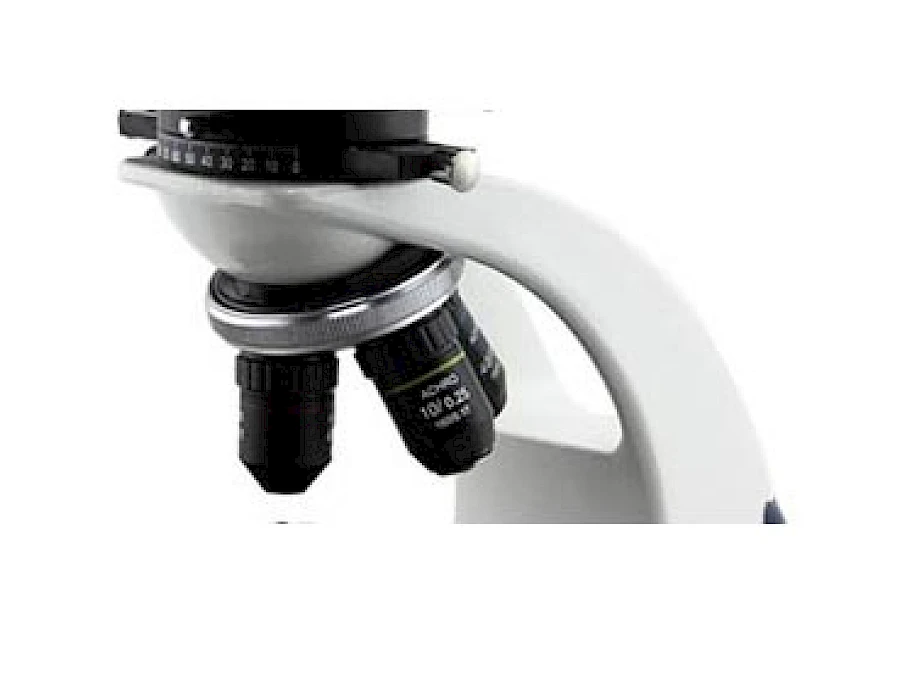

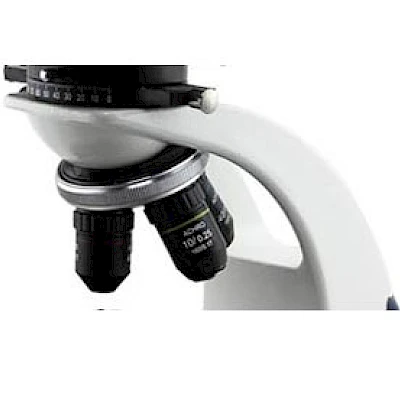

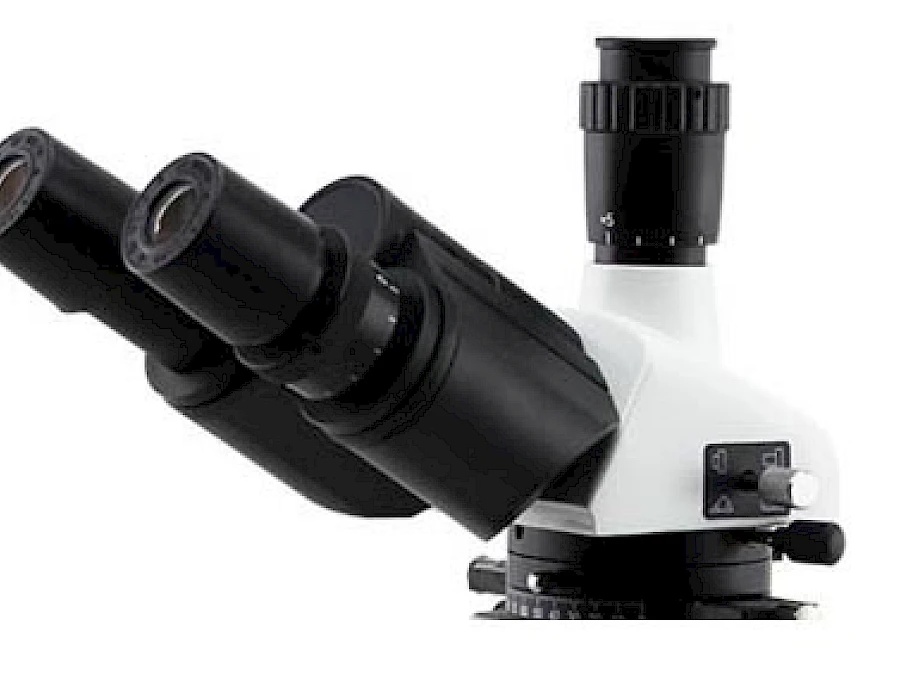

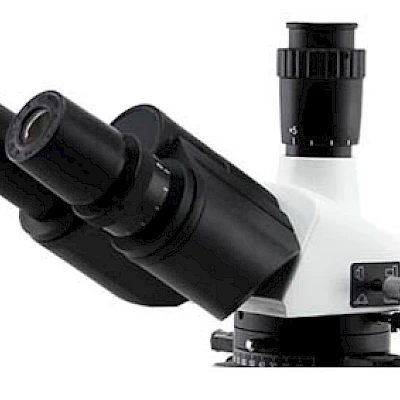

Eyepiece & Objetive of PLJ-137A

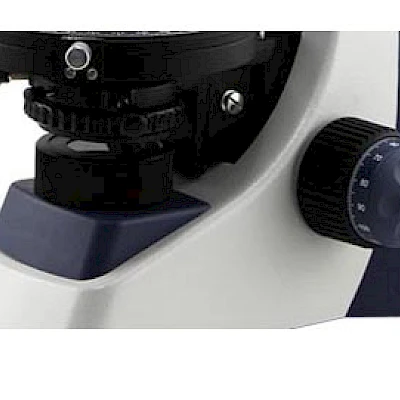

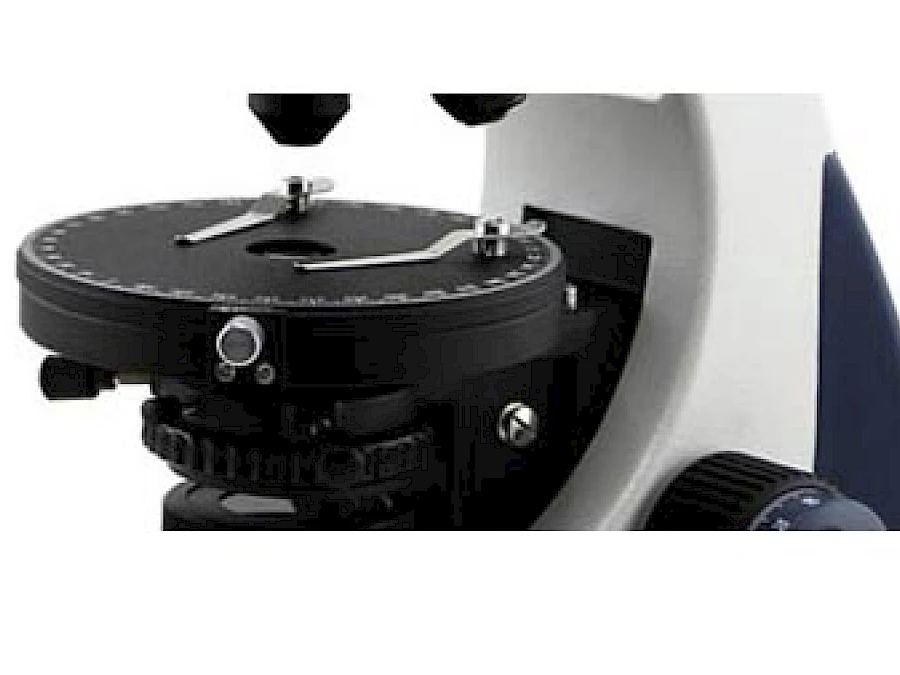

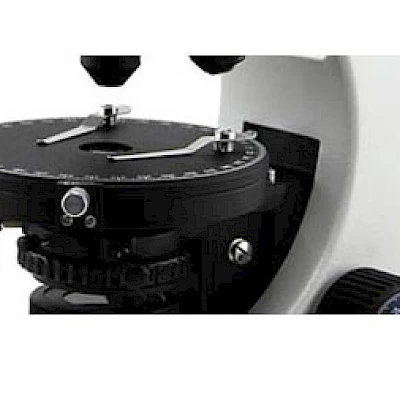

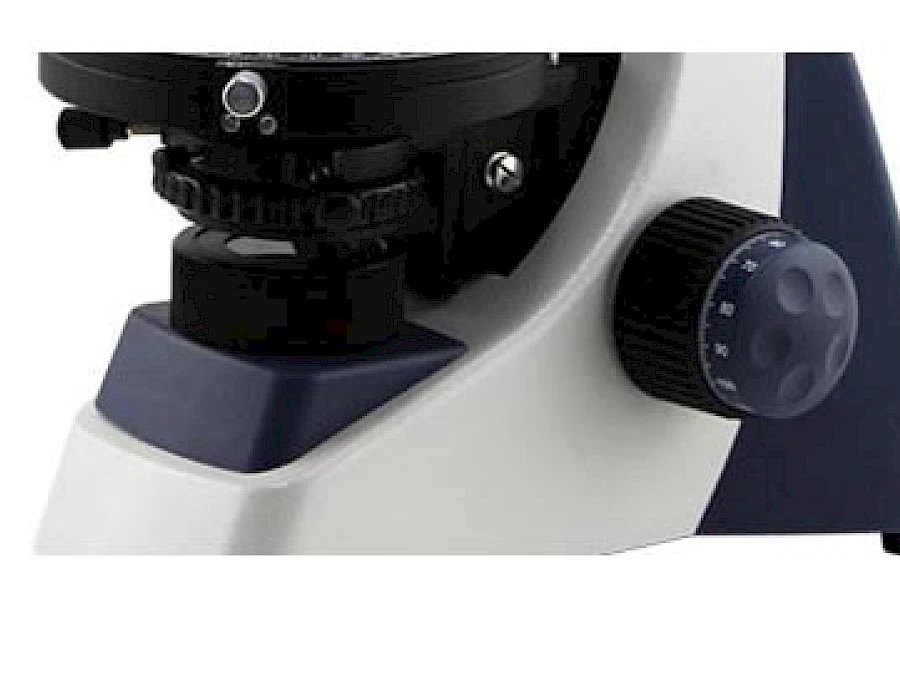

Round Stage & Abbe Condenser of PLJ-137A

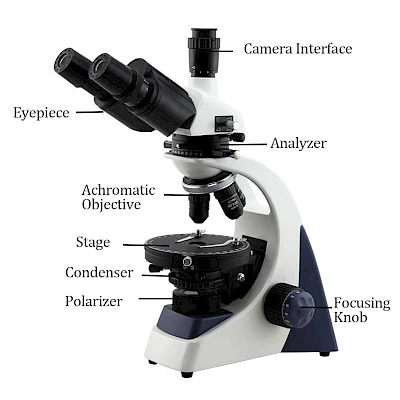

Structure of PLJ-137A

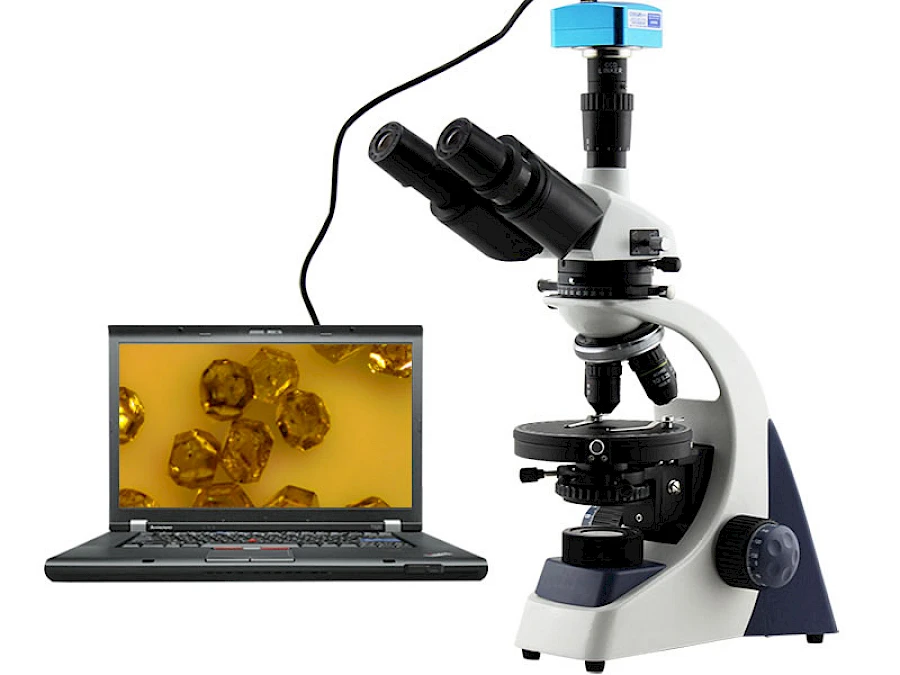

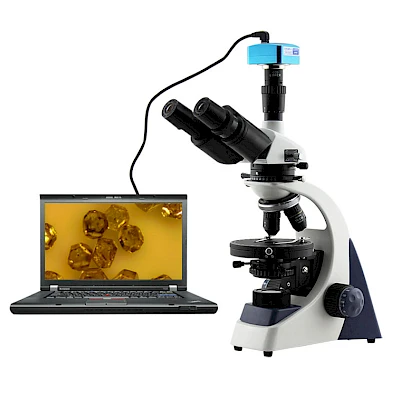

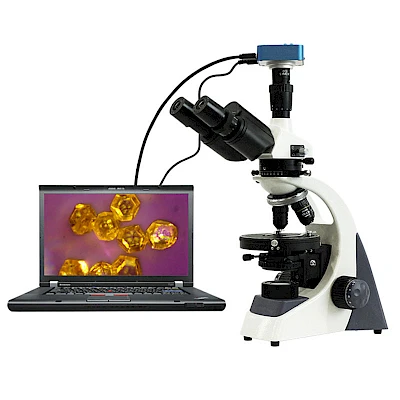

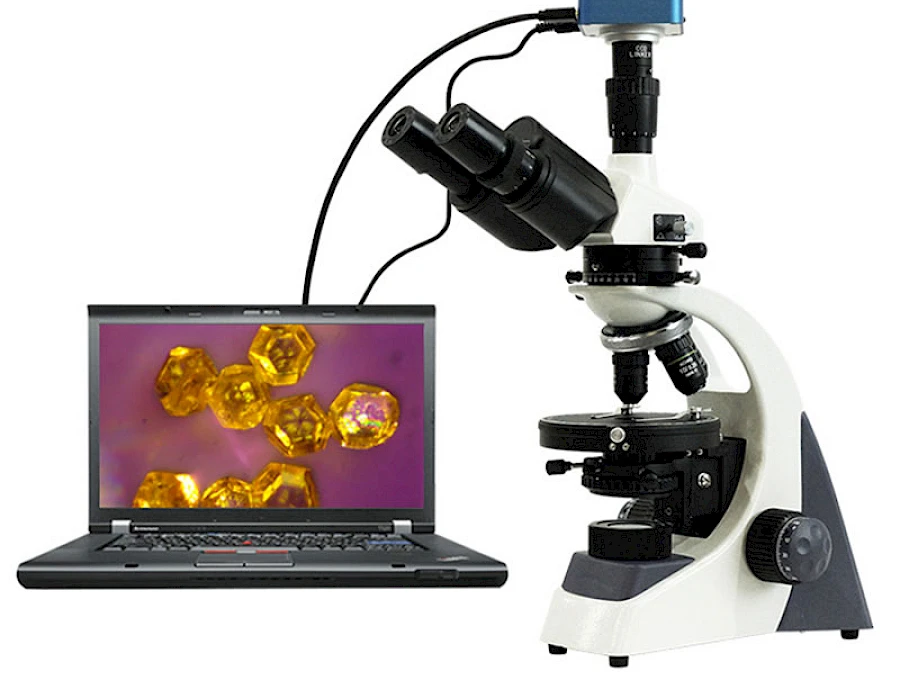

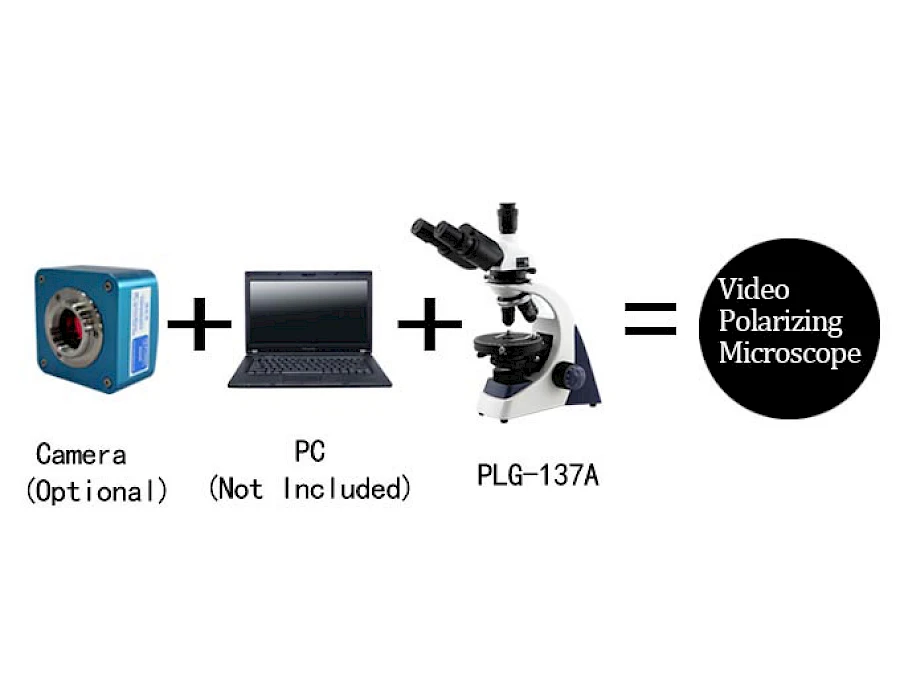

Optional Sets:

Specification for PLJ-137A
Eyepiece	WF 10X (Φ18mm), WF 16X (Φ13mm)
Eyepiece Tube	Trinocular is inclined 30˚, 360˚ rotatable
Achromatic Objective	4X/0.10、10X/0.25、40X/0.65（S）、100X/1.25（O、S）
Total Magnification	40X~1600X
Stage	Rotatable stage, diameter Ø160mm, 360° graduated (in 1°increments), minimum vernier division:6'
Nosepiece	Quadruple (Backward Ball Bearing Inner Locating)
Focusing System	Coaxial coarse/fine focus system, minimum division of fine focusing: 10μm, range: 14mm
Analyzer	0˚~90˚ rotary-type analyzer, push out from the optical path
Polarizer	λ, λ/4 compensator, 360˚ rotatable
Interpupillary Distance	55~75mm
Filter	B, Y, G
Condenser	Abbe Condenser N.A.1.25, Φ2-Φ30mm with iris diaphragm, φ32 filter
Illumination	Built-in LED Lamp, brightness adjustable
Weight	Net: 4Kg
