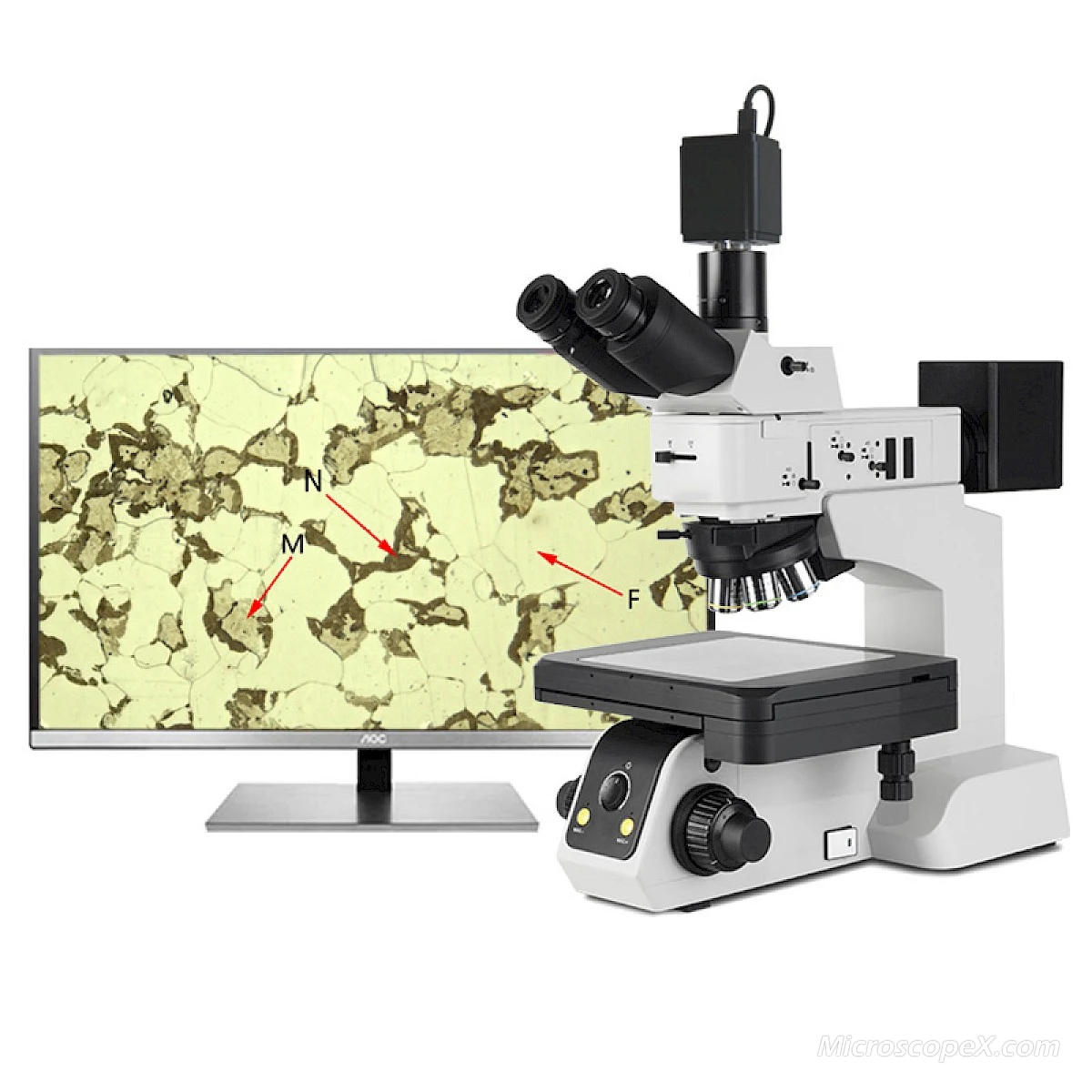

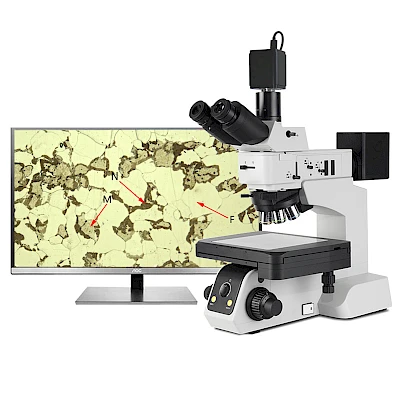

model | CM40BD-AF |
|---|
Optical System | Infinite chromatic aberration correction optical system |
Optical magnification | 50x-500X; 50x~2000X (Equip with Optional PL20X eyepiece & 100X LWD objective lens) |
Viewing Head | Reflection image, infinite hinged tee observation tube, pupil distance adjustment: 50mm ~ 76mm, two-level light splitting ratio, binocular: three eyes = 100:0 |
Eyepiece | PL10X/23mm / PL20X (Optional)，High eye point large field eyepiece |
Infinite half complex achromatic objective | Long Working Distance BD Semi-Apo objective 5X/NA0.15/WD15 |
Long Working Distance BD Semi-Apo objective 10X/NA0.30/WD8.4 |
Long Working Distance BD Semi-Apo objective 20X/NA0.40/WD11.9 |
Long Working Distance BD Semi-Apo objective 50X/NA0.75/WD3.0 |
Long Working Distance BD Semi-Apo objective 100X/NA0.90/WD1.0 (Optional) |
Long Working Distance BD Apo objective 50X NA0.55 WD8.0 (Optional) |
Long Working Distance BD Apo objective 100X NA0.80 WD2.8 (Optional) |
Digital Magnification | 150-3000X (Equip with 12MP Camera & 100X objective lens, under 22inch display) |
Nosepiece | Electric light and dark field 5-hole converter (with DIC slot), physical button and software dual control |
Frame | The frame is used for transmission and reflection, and the low hand position coarse and micro coaxial focusing mechanism. The coarse adjustment stroke is 35mm, and the fine adjustment accuracy is 0.001mm. It is equipped with adjusting and tightening device to prevent sliding and random upper limit device. |
Stage | 4inch stage, platform area: 310 * 240mm, moving stroke: 150mmx100mm mechanical platform, coaxial adjustment in X and Y directions |
Reflective illuminator | BD reflective illuminator with variable aperture, field aperture, adjustable center, color filter slot and polarizer / polarizer slot, 5W adjustable LED light |
Transmitted lamp room | 5W adjustable LED light room, for reflection and transmission, reserved Center |
Condenser | Roll-out achromatic condenser, N.A.0.9 |
Camera ADAPTER | Photography accessories: 0.65x, C-type interface, focusing (optional 0.5x / 1X) |
Polarizing assembly | Polarizer insert plate, 360 ° rotary polarizer insert plate |
