BLM-36 & BLM-48

BLM-36 & BLM-48 1000X Infinite Plan Multi Viewing Biological Microscope

1000X, N.A.1.25 Abbe Condenser, teaching discussion

Core Features

Multi-viewing
3-Binocular & 4-Binocular
Infinite optical system
High bright illuminator system(Halogen Bulb)
Particularly suitable for clinic, scientific research and teaching demonstration

Configurations

Binocular, inclined 30°

WF10X/22mm

Achromatic Objective

LED cursor indicator

Request Quotation Email Phone Back to Products

BLM-36 & BLM-48 provide multi-viewing on one specimen at the same time. This microscope is especially suitable for clinic, scientific research and teaching discussion because of its infinite optical system, high bright illuminator system and good system for viewing image.

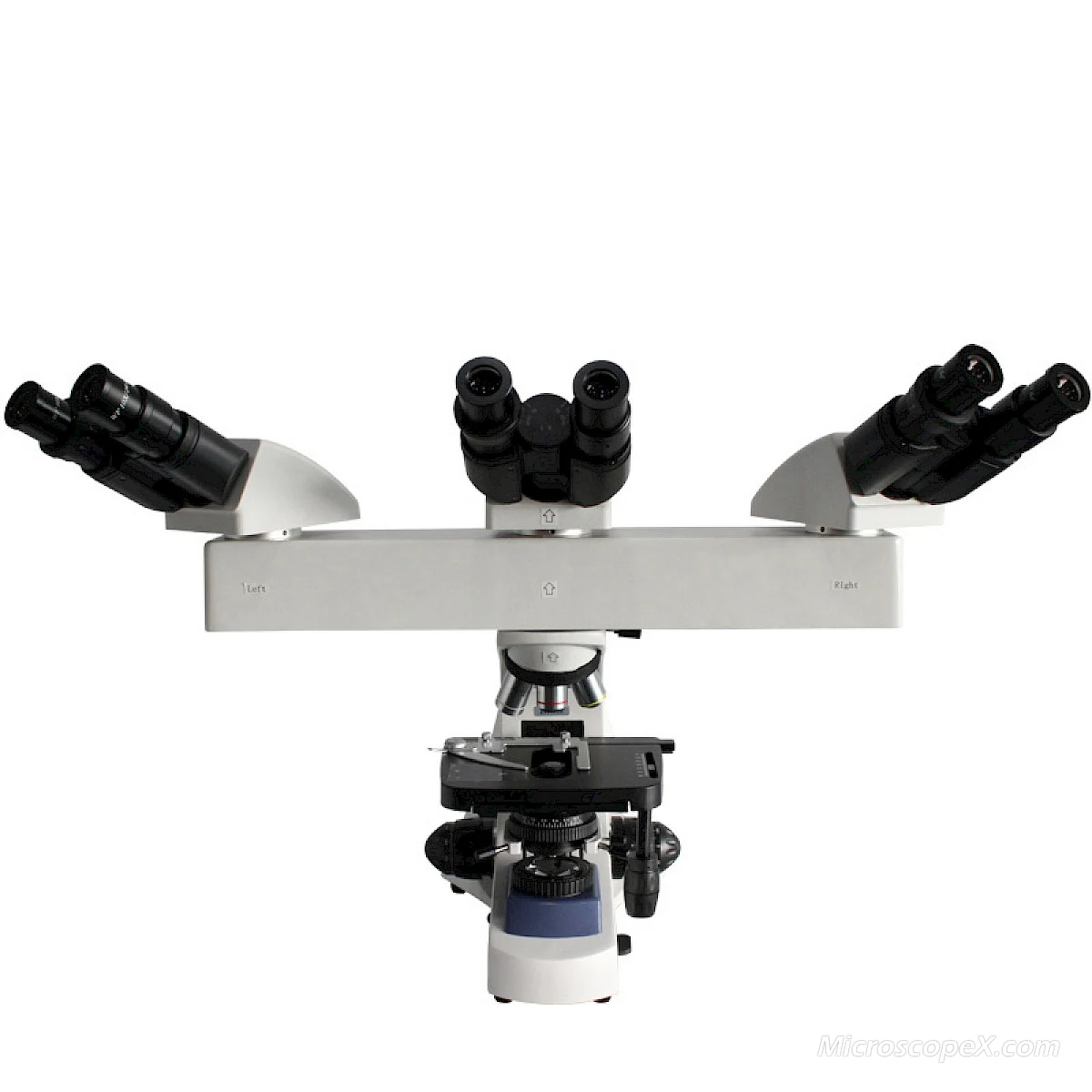

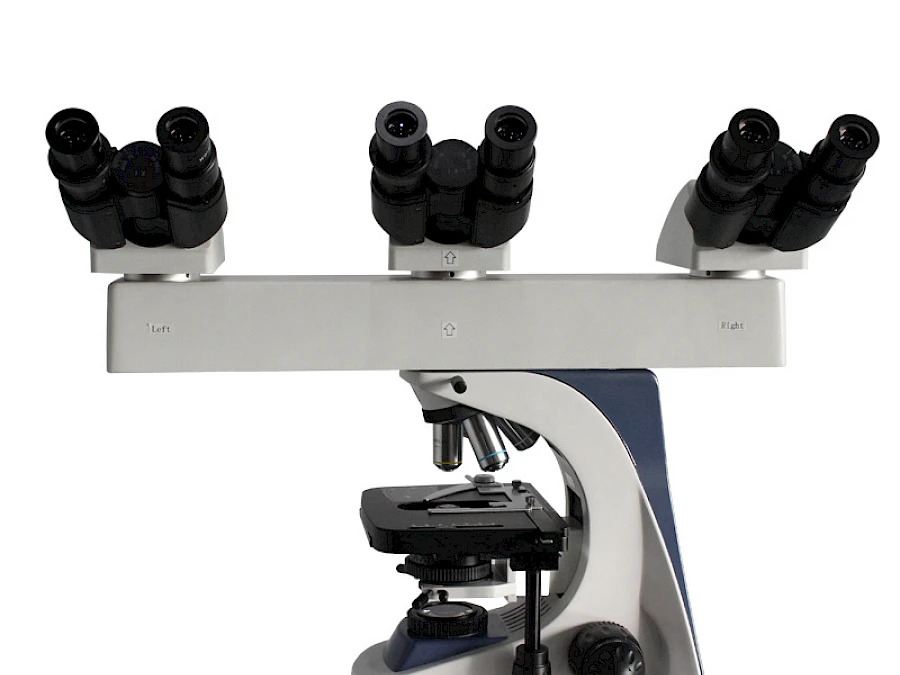

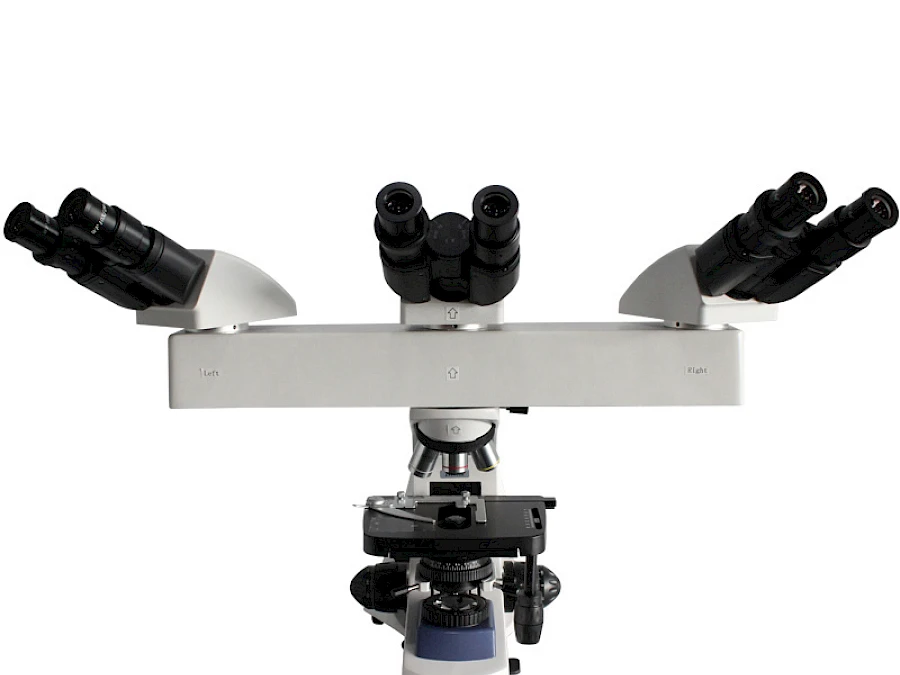

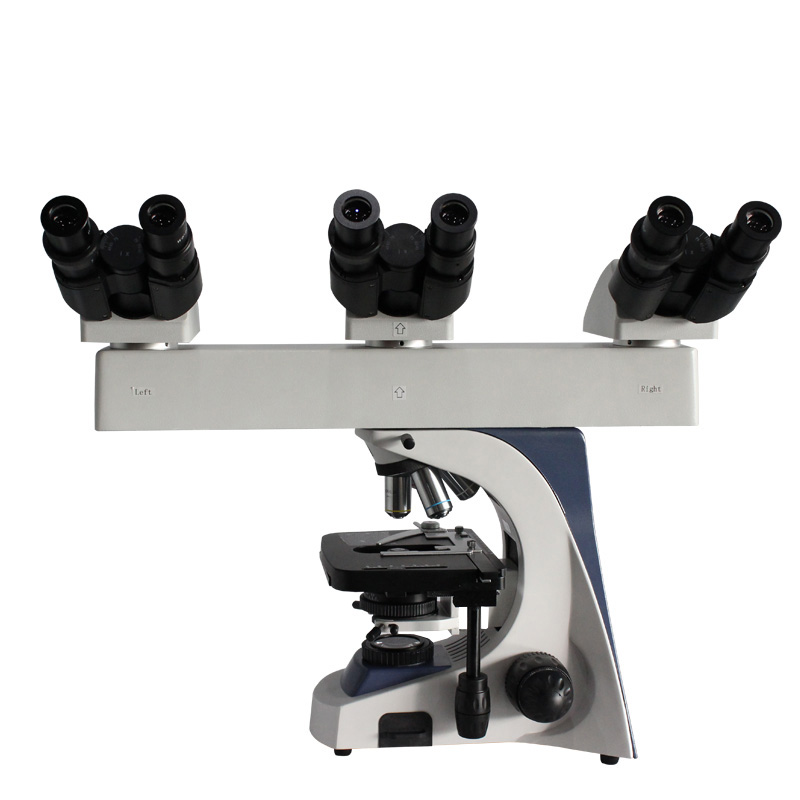

The front view of BLM-36 & BLM-48

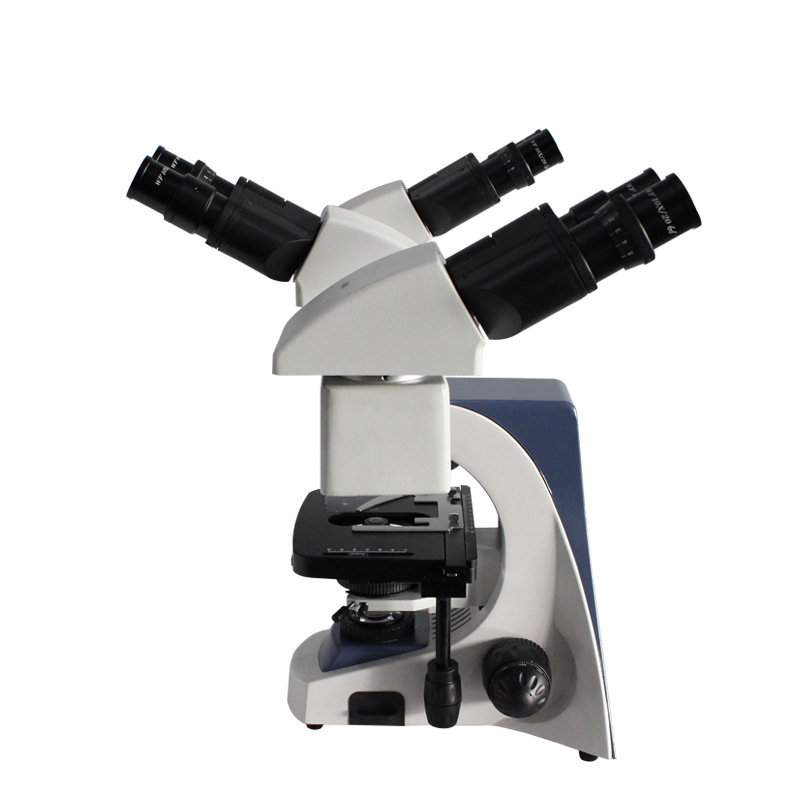

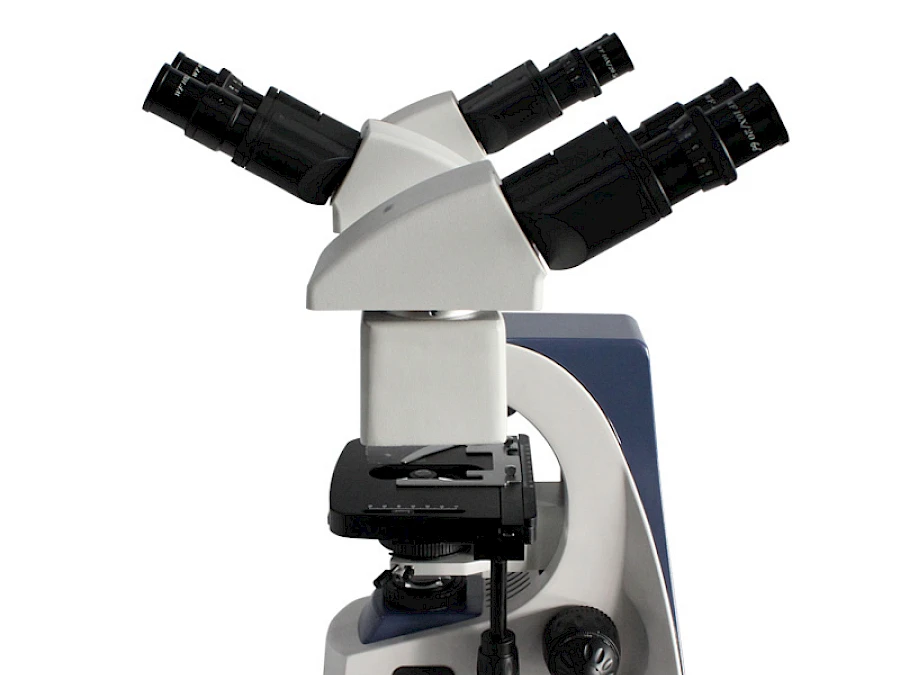

The side view of BLM-36 & BLM-48

Item	Head
BLM-36	Six eyes with three observers
BLM-48	Eight eyes with four observers

Specification for BLM-36 & BLM-48
Head	Binocular, inclined 30°
Eyepiece	WF10X/22mm
Interpupillary Distance	55mm-75mm
Objective	Infinite Achromatic Objective 4×10×40×(s)100×(s)Oil
Stage	Double Mechanical Layer Stage
	Size: 180mm×150mm
	Moving Range: 75mm×50mm
Condenser	N.A.1.25 Abbe Condenser with adjustable iris diaphragm and color filter
Focusing	Coarse and fine coaxial focusing, fine focusing scale value: 0.002mm
Illuminator	Halogen Bulb 12V/30W, AC85V-230V Brightness adjustable
Convex lens	High bright Kohler illuminator

Accessories for BLM-36 & BLM-48
Eyepiece	WF10X/22mm
Objective	Infinite achromatic objective: 20×、60(s)
Objective	Infinite PL achromatic objective: 4×10× 20× 40×(s)60×(s)100×(s)Oil
Head	Articulated Binocular/Trinocular（48mm-75mm）
Indicator	LED cursor indicator
