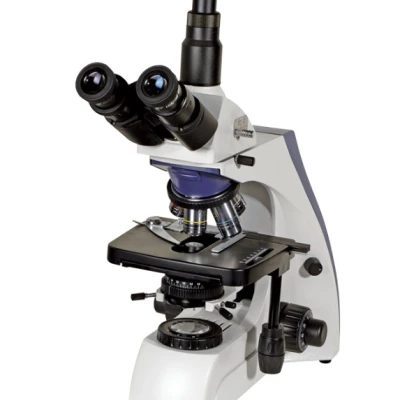

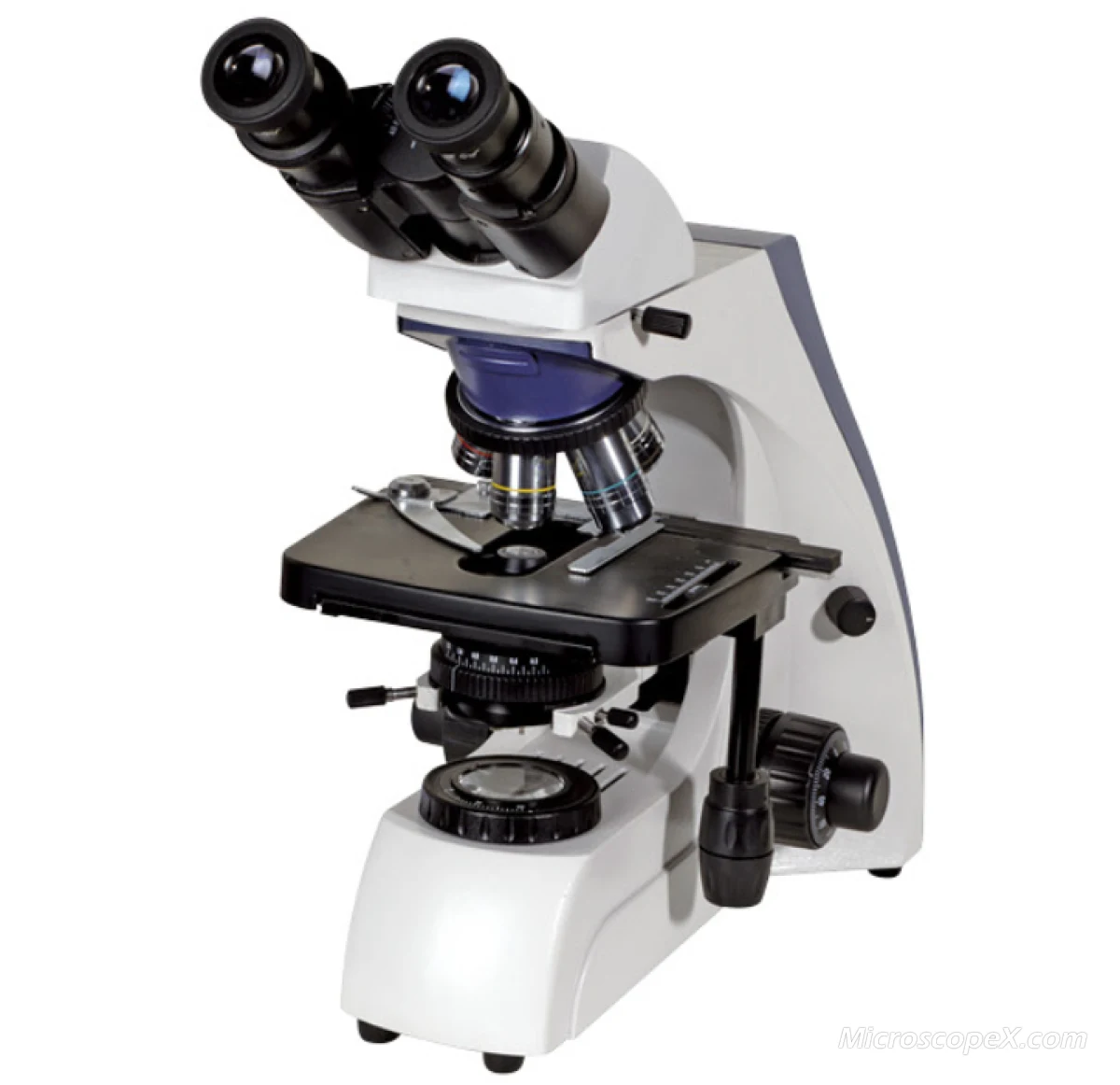

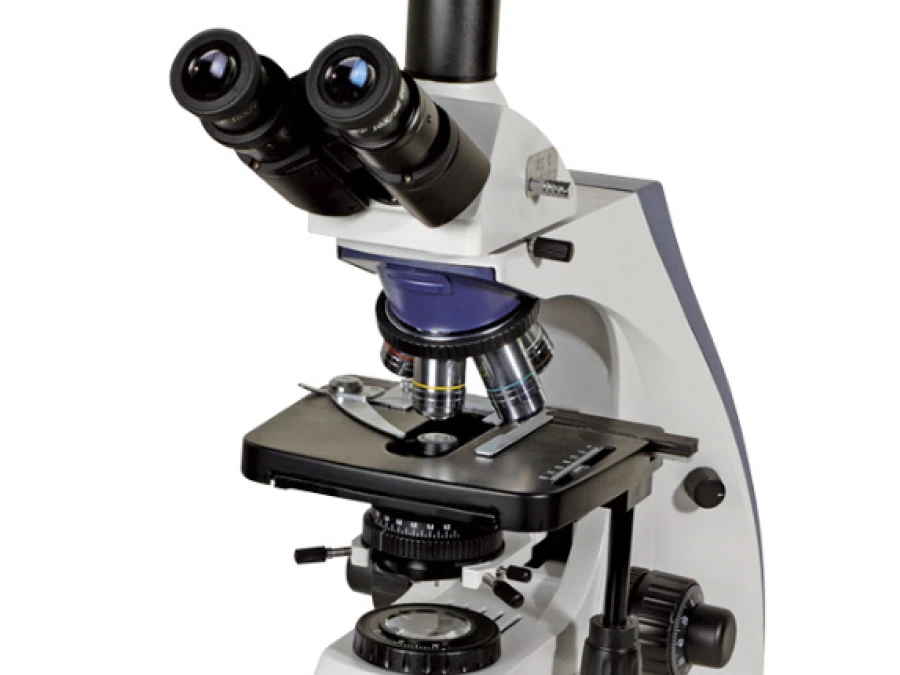

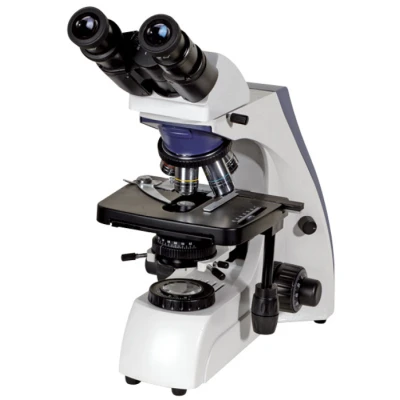

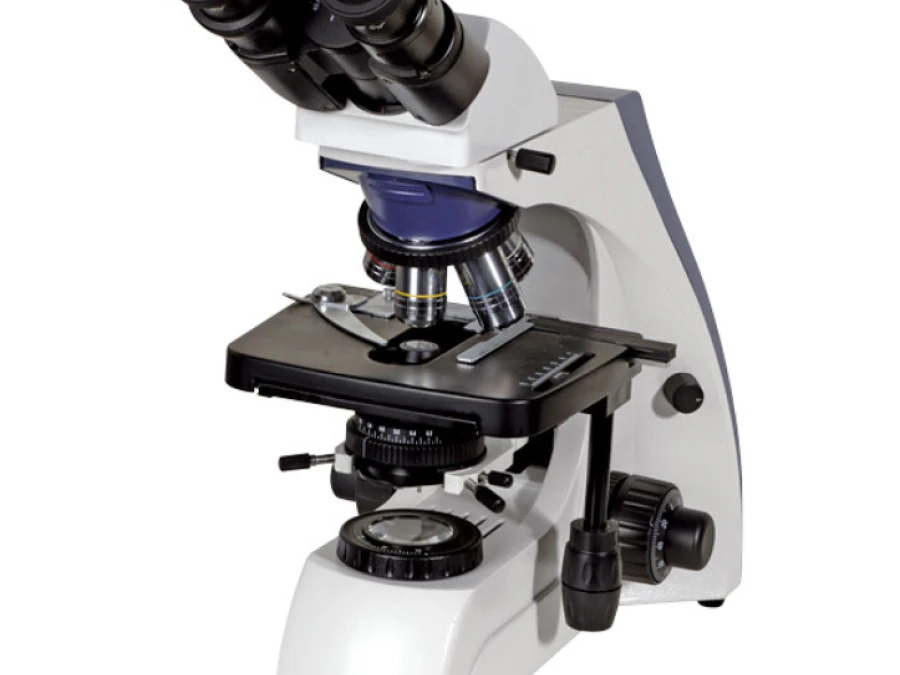

BL-4880 & BL-4880T

BL-4880 & BL-4880T Semi-Plan Lab Research Biological Microscope for Daily Work

Infinite optical System, Binocular / Trinocular, optional camera

Core Features

Wide-field eyepiece, super high bright illuminator, superior optical components make crisp and sharp image
Built-in nosepiece and high-quality objectives for easy and convenient operation
Wide and large mechanical stage and double specimen holder provides more convenient for the observers
High precision focusing adjustment system and reasonable humanized configuration design for relax operation

Configurations

WF10X/ 22mm

Infinite Semi-PL Objective

N.A.1.25 Abbe Condensor

Halogen Bulb

Request Quotation Email Phone Back to Products

BL-4880 & BL-4880T have the characters of high efficiency, flexibility and stability. They are specially developed for various application fields. It is widely used, from daily work to scientific research, in laboratory, university and hospital. These microscopes are the ideal instruments for individuals, hospital and scientific research organization because of its super high cost-efficient and reasonable humanized design.

BL-4880 & BL-4880T

Item	Head
BL-4880	Binocular, inclined 30°
BL-4880T	Trinocular, inclined 30°

Specification for BL-4880 & BL-4880T
Interpupillary Distance	48mm-75mm
Eyepiece	WF10X/ 22mm
Objective	Infinite Semi-PL Objective 4×，10×，40×(s)，100×(s)Oil
Stage	Double Mechanical Layer Stage
	Size: 180mm×160mm
	Moving Range:80mm×50mm
Focusing	Coarse and fine coaxial focusing, fine focusing scale: 0.002mm
Condensor	N.A.1.25 Abbe Condensor with adjustable iris diaphragm and color filter
Convex Lens	High bright Kohler illuminator
Illuminator	Halogen Bulb 12V/30W, AC85V-230V
Illuminator	Adjustable Brightness

Accessories for BL-4880 & BL-4880T
Eyepiece	WF16X、WF20X、P16X
Objective	Infinite Achromatic Objective 20X(s)、60X(s)
Objective	Infinite PL Achromatic Objective 4X、10X 、20X 、40X(s)、60X(s)、100X(s)Oil
Illuminator	LED Brightness Adjustable
Photography & CCD Interface	0.5X、0.57X、0.75X、1X
Electron Eyepiece	1.3MP、2MP、3MP、5MP、10MP
Camera	Color 1/3” CCD High resolution700 TV lines
