BL-4875& BL-4875T

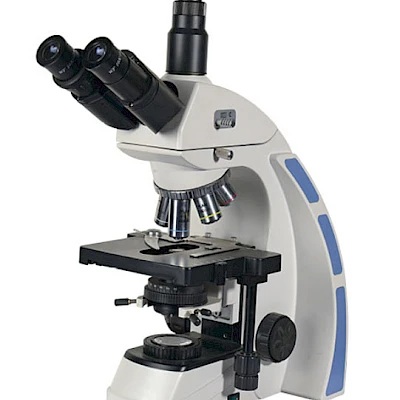

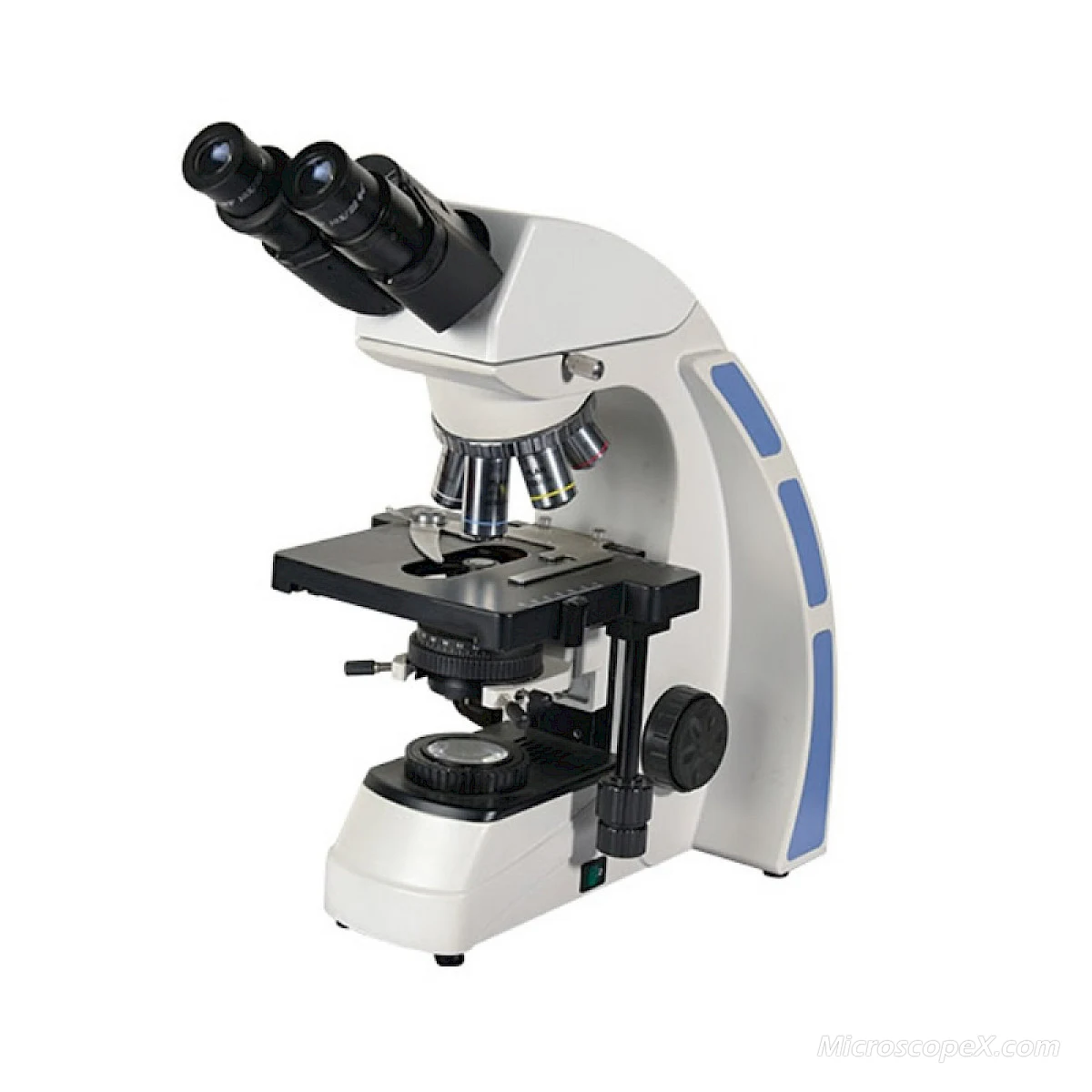

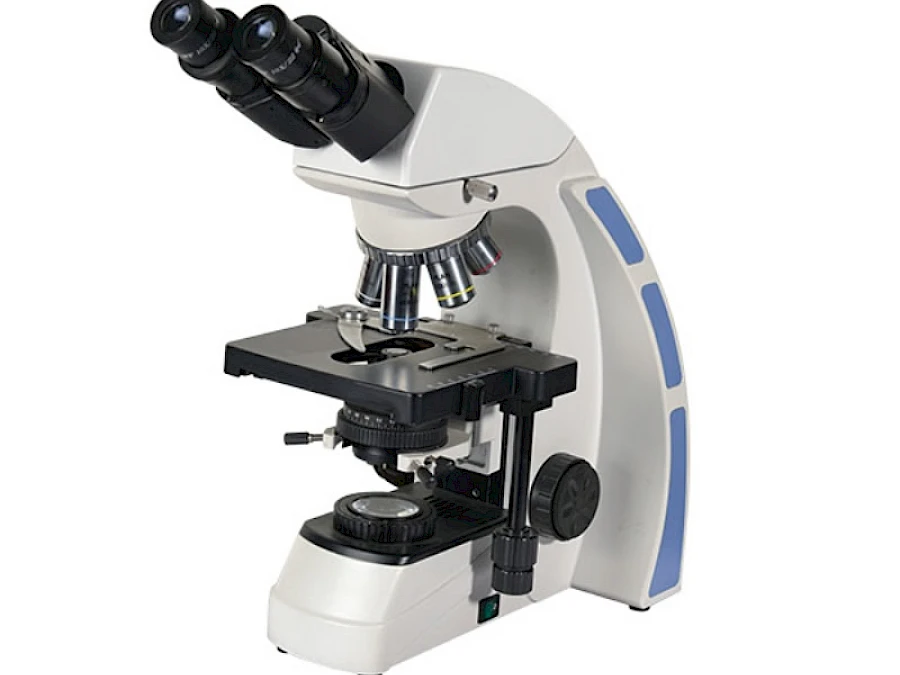

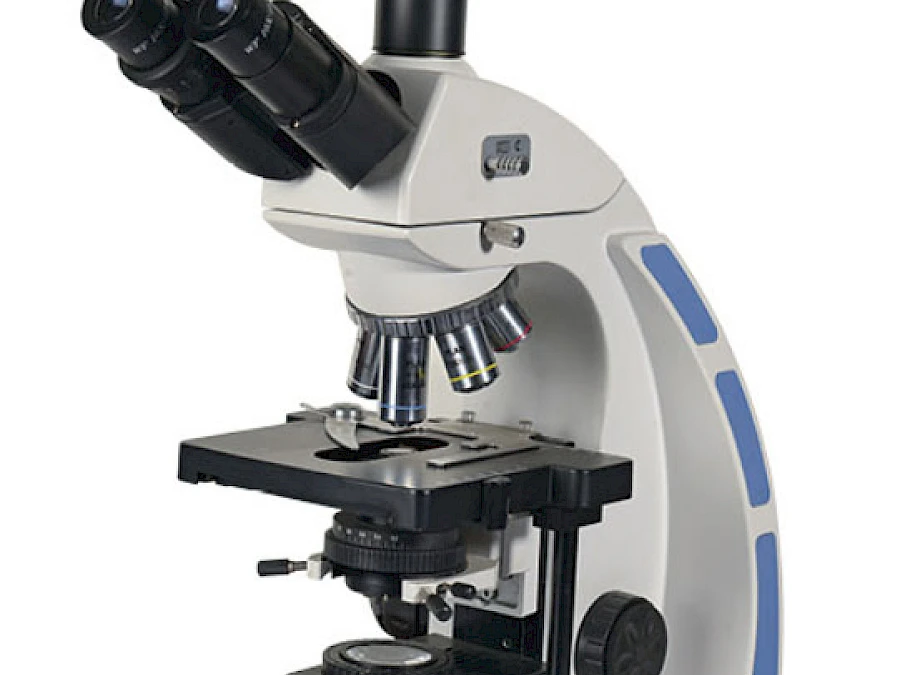

BL-4875& BL-4875T Binocular / Trinocular Professional Laboratory Biological Compound Microscope

1000X, Double Mechanical Layer Stage, relax operation

Core Features

Wide field eyepiece, super high bright illuminator, superior optical system components make crisp and sharp images
Built-in nosepiece and high-quality objectives for easy and convenient operation
Wide and large mechanical stage with 2-microslider specimen clamp provides more convenience for the observer.
High-precision focusing adjustmnt system and reasonable humanized configuration design provide operator more comfortable and relax

Configurations

Halogen Bulb

12V/30W, AC85V-230V

WF10X/ 22mm

Infinite Semi-PL Objective

Kohler illuminator

Request Quotation Email Phone Back to Products

BL-4875 & BL-4875T have the characters of high efficiency, flexibility and stability. They are specially developed for various application fields. It is widely used, from daily work to scientific research, in laboratory, university and hospital. These microscopes are the ideal instruments for individuals, hospital and scientific research organization because of its super high cost-efficient and reasonable humanized design. They also become the first choice of individual and organization.

BL-4875

BL-4875T

Item	Head
BL-4875	Binocular, inclined 30°
BL-4875T	Trinocular, inclined 30°

Specification for BL-4875 & BL-4875T
Interpupillary Distance	48mm-75mm
Eyepiece	WF10X/ 22mm
Objective	Infinite Semi-PL Objective 4×，10×，40×(s)，100×(s)Oil
Stage	Double Mechanical Layer Stage
	Size: 180mm×150mm
	Moving Range:75mm×50mm
Focusing	Coarse and fine coaxial focusing, fine focusing scale value: 0.002mm
Condenser	N.A.1.25 Abbe Condenser with adjustable iris diaphragm and color filter
Convex Lens	High bright Kohler illuminator
Illuminator	Halogen Bulb 12V/30W, AC85V-230V
Illuminator	Adjustable Brightness

Accessories for BL-4875 & BL-4875T
Eyepiece	WF16X、WF20X、P16X
Objective	Infinite Achromatic Objective 20×(s)、60×(s)
Objective	Infinite PL Achromatic Objective 4X、10X 、20X 、40X(s)、60X(s)、100X(s)Oil
Illuminator	LED Brightness Adjustable
Photography & CCD Interface	0.5X、0.57X、0.75X、1X
Electron Eyepiece	1.3MP、2MP、3MP、5MP、10MP
Camera	Color 1/3” CCD High resolution 700 TV lines
