BL-30D

BL-30D 40X~640X Monocular Binocular Biological Student Microscope for Students with Halogen Lamp

40X~640X Total Mag., Student Use, ABBE Condenser with iris diaphragm

Core Features

40X~640X Total Magnification
ABBE Condenser with iris diaphragm
12V 10W Halogen Lamp, Brightness Adjustable

Configurations

Eyepiece

WF10X; WF16X

Double Layer Mechanical Stage

120mm x 120mm

12V 10W

Halogen Lamp,

Request Quotation Email Phone Back to Products

Its used in agricultural research and teaching in primary and secondary schools to observe various biological specimens, such as spores, rhizome cross sections, pollen, insect head, wing, foot, egg, and footprints. In the medical clinical work, the human body routine tests and so on. Equipped with a special camera adapter, the camera can be connected to observe, take pictures and measure images on the PC.

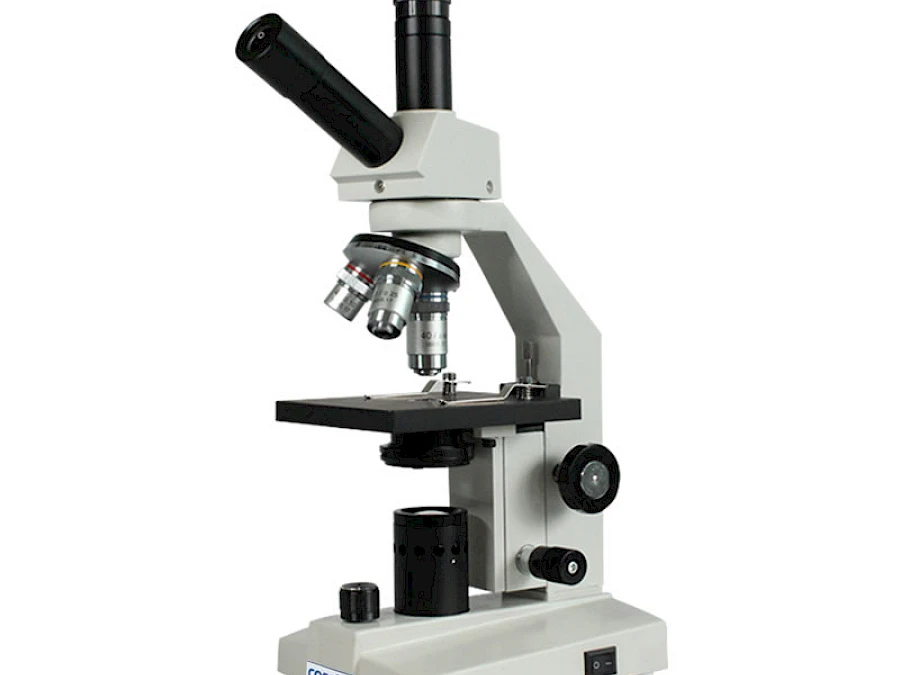

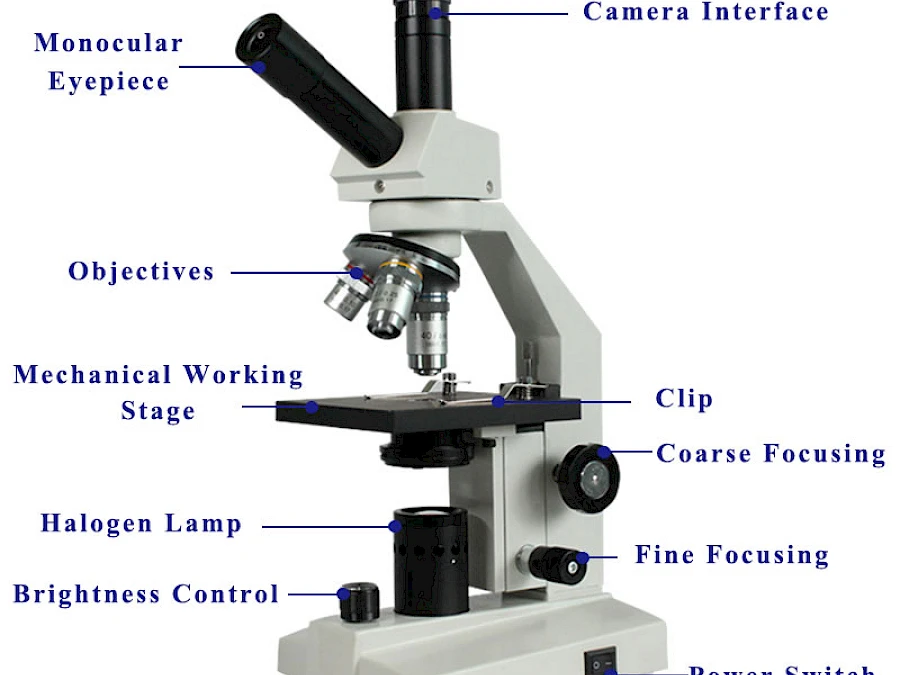

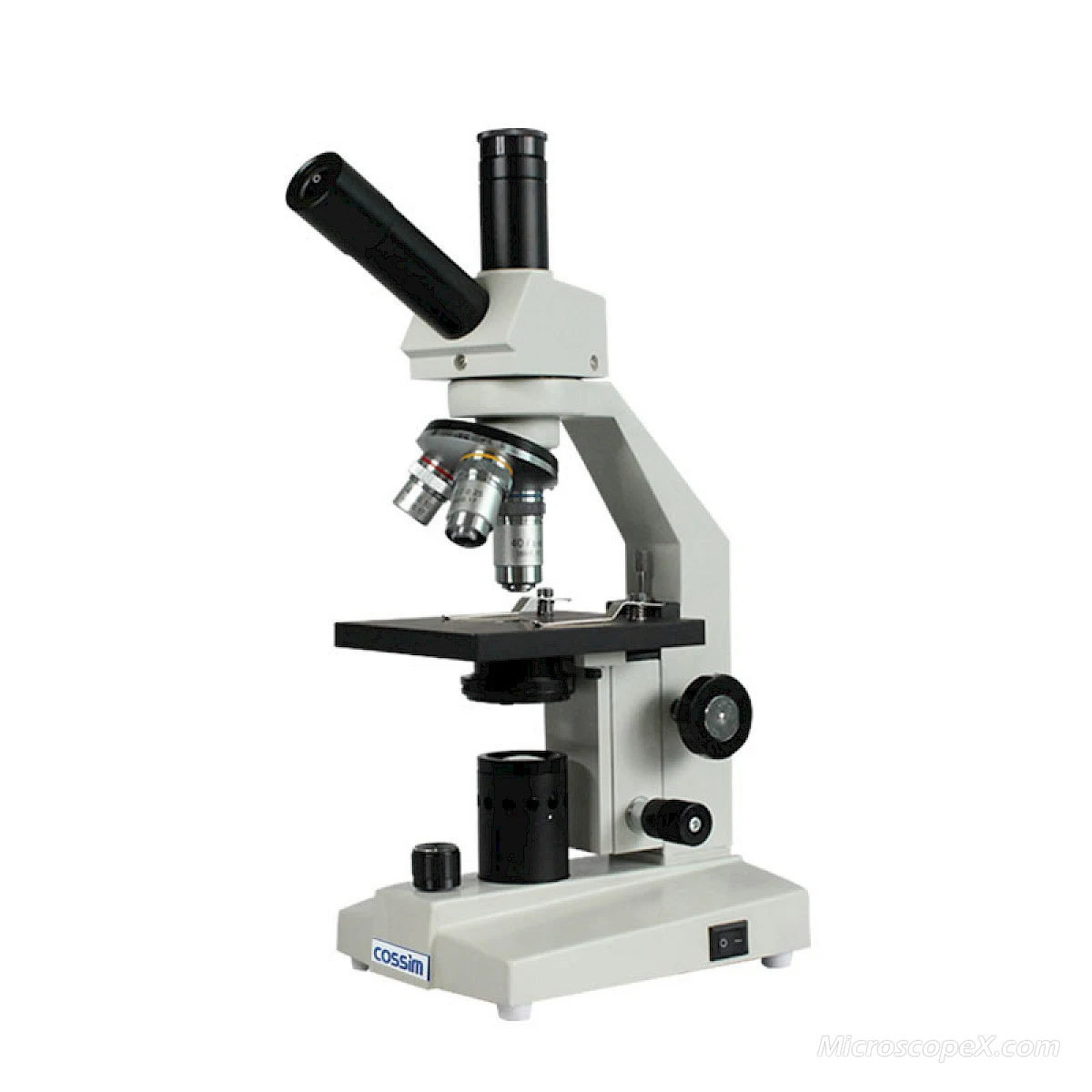

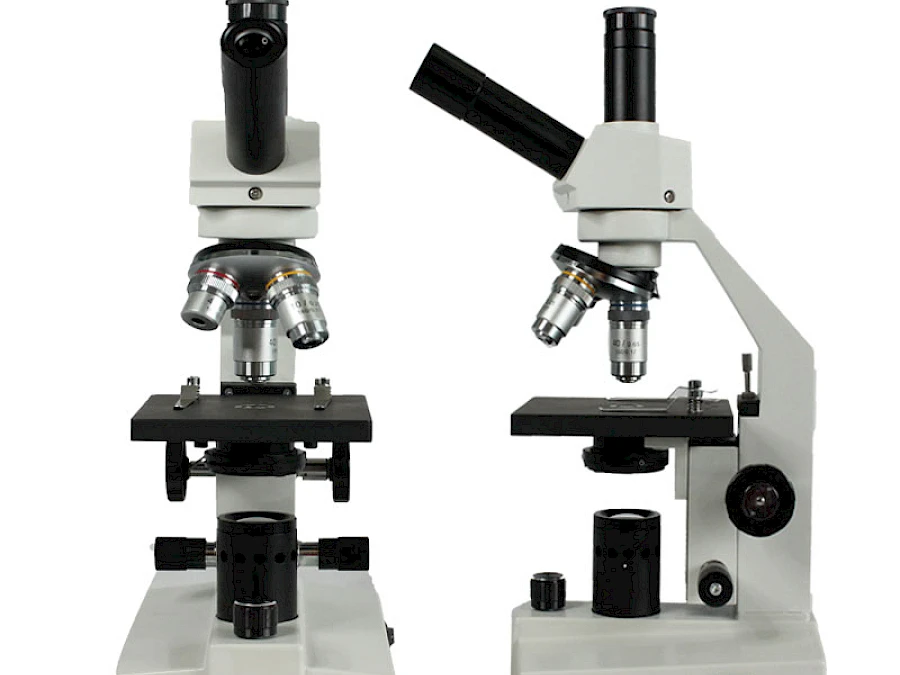

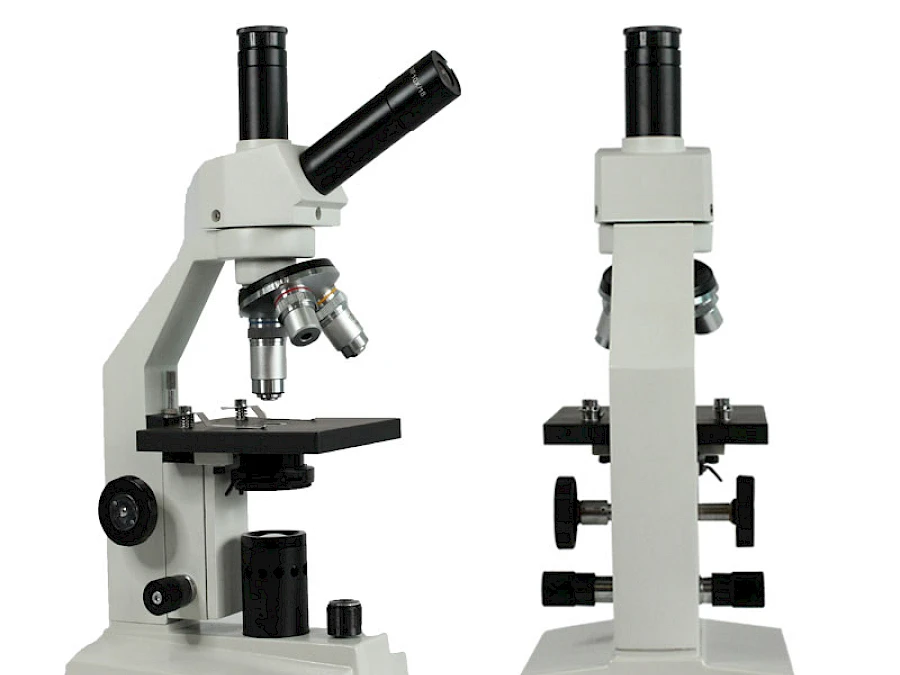

Structure of BL-30D Biological Microscope

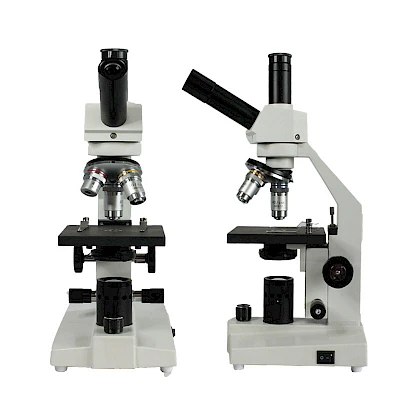

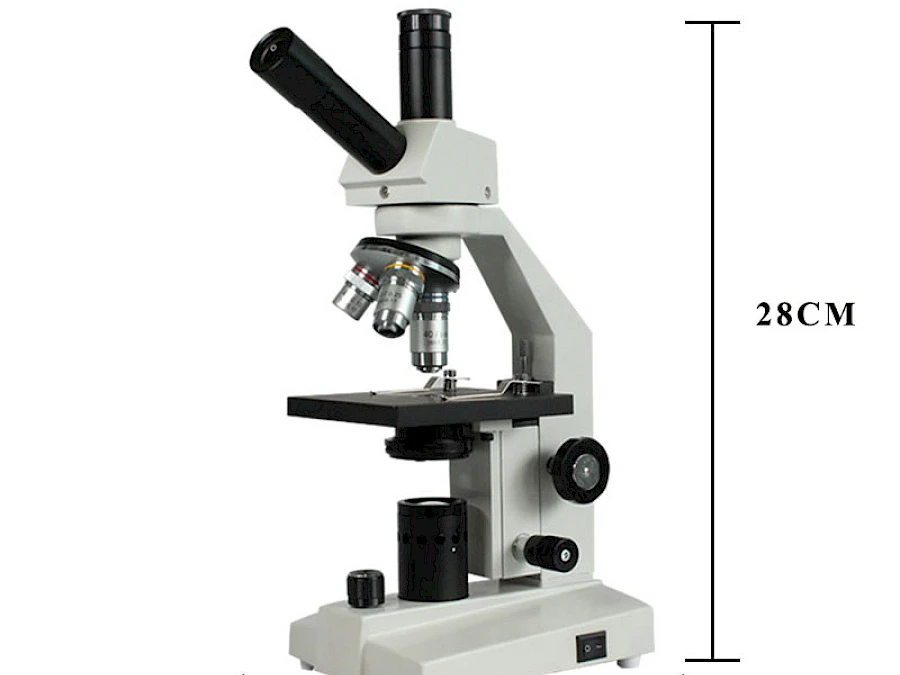

Size of BL-30D Biological Microscope

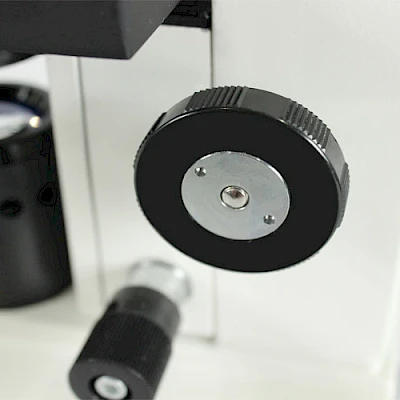

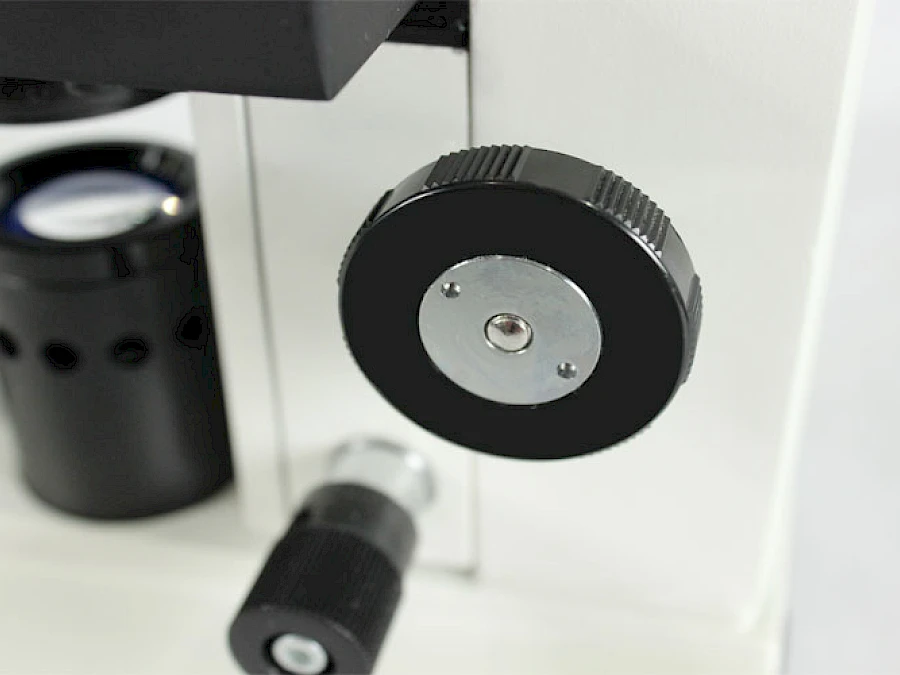

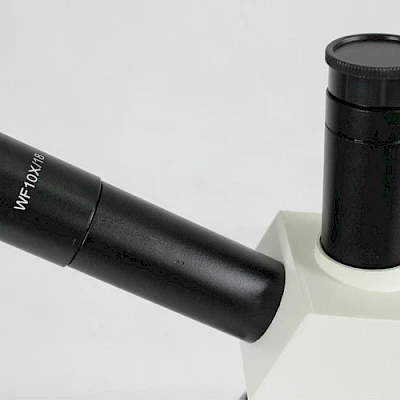

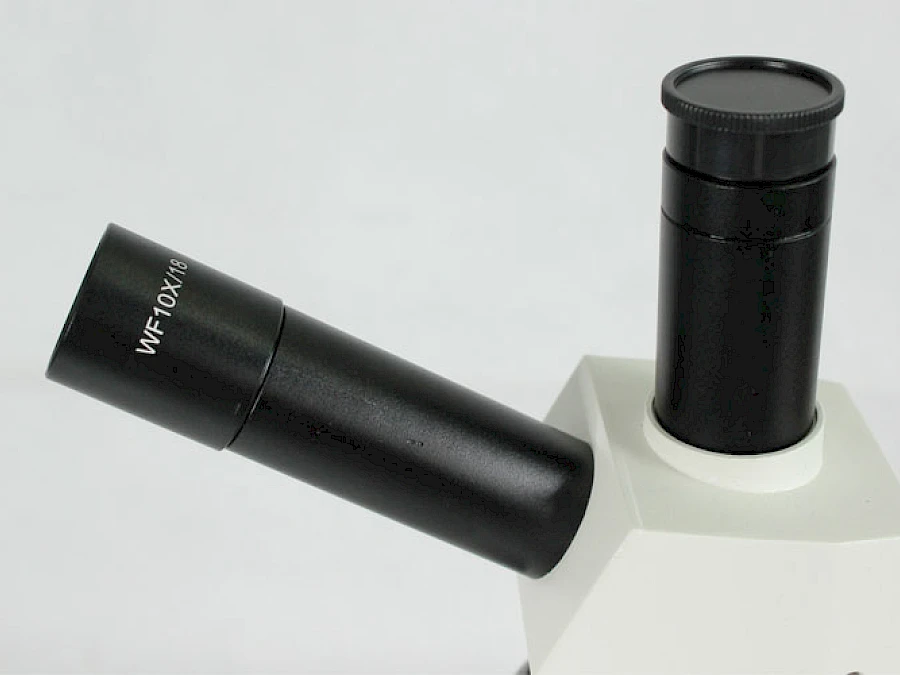

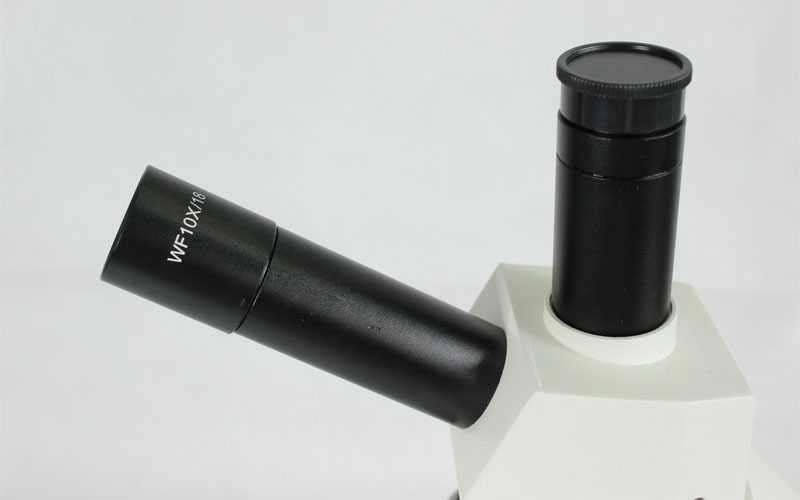

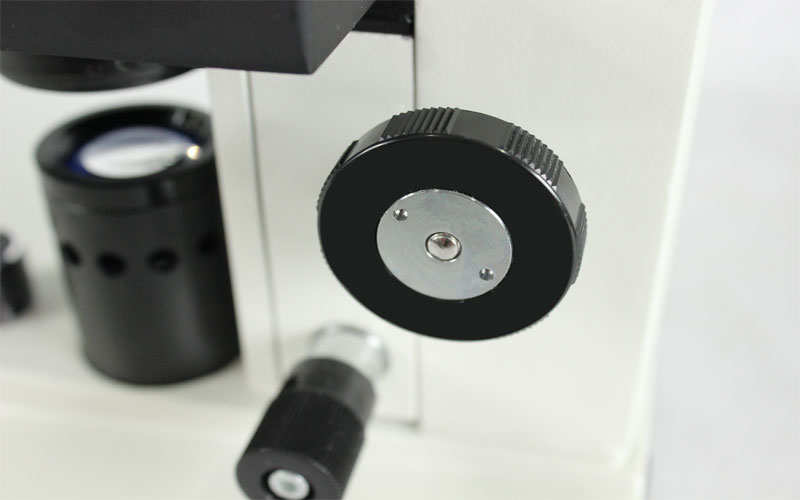

Eyepiece & Focus Knob of BL-30D

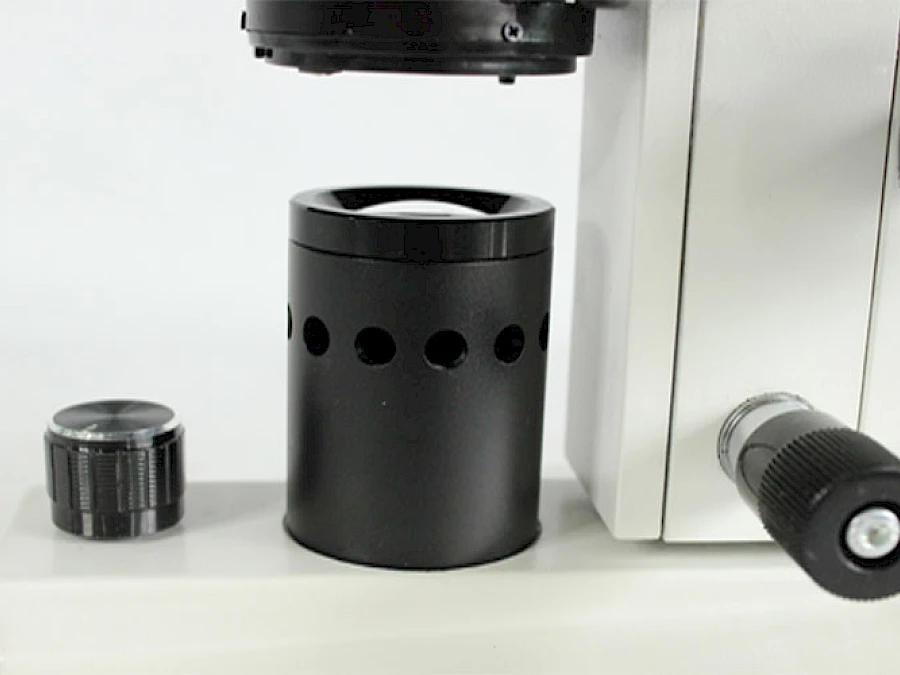

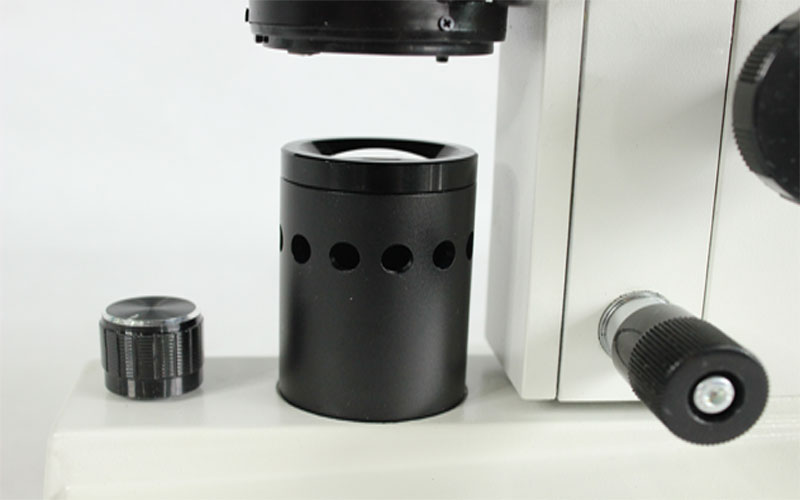

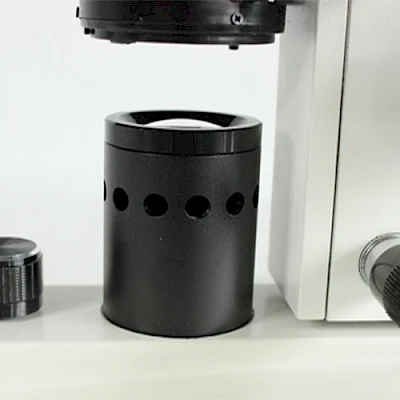

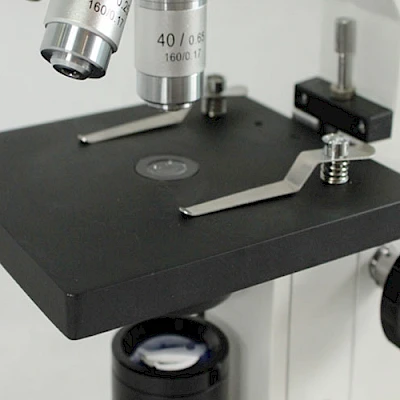

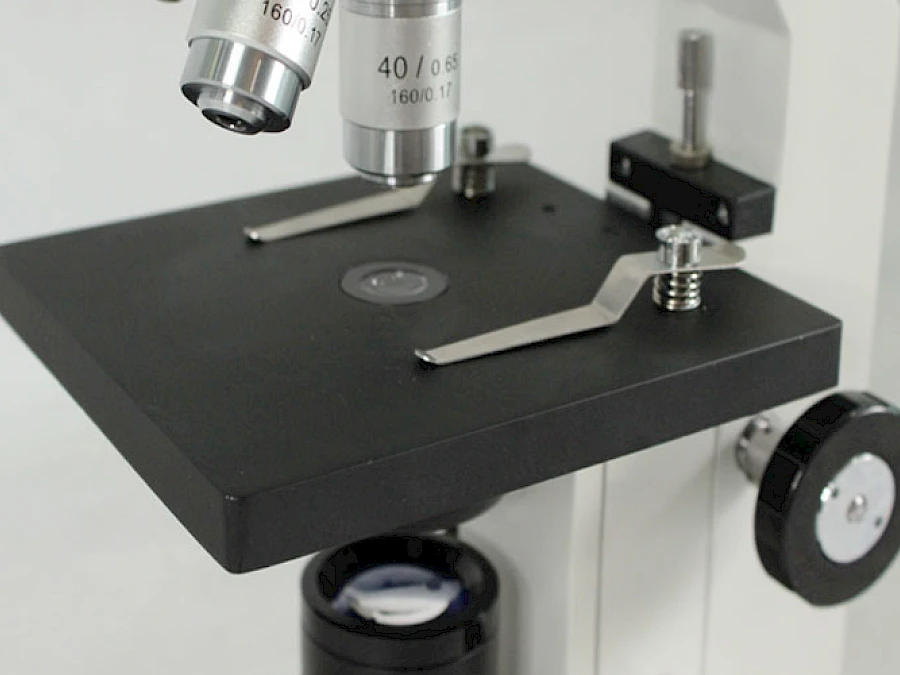

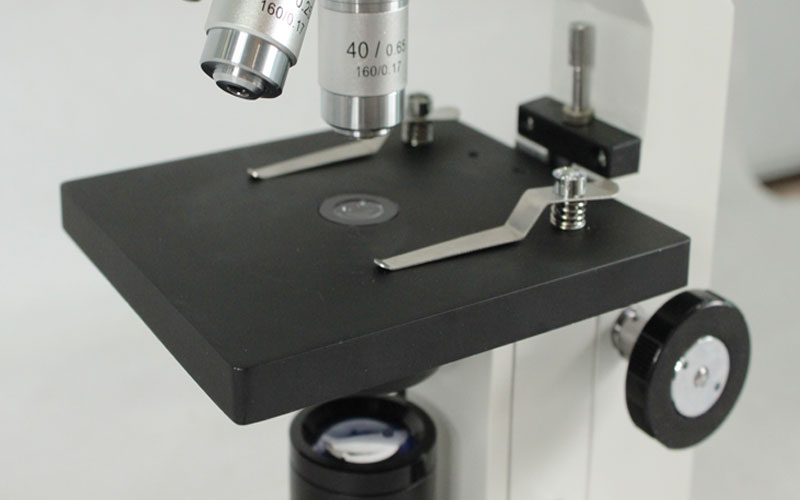

Mechanical Stage & Light Source of BL-30D

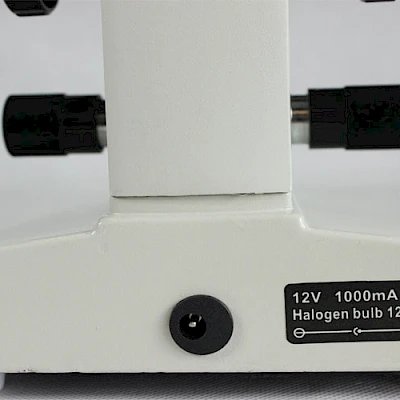

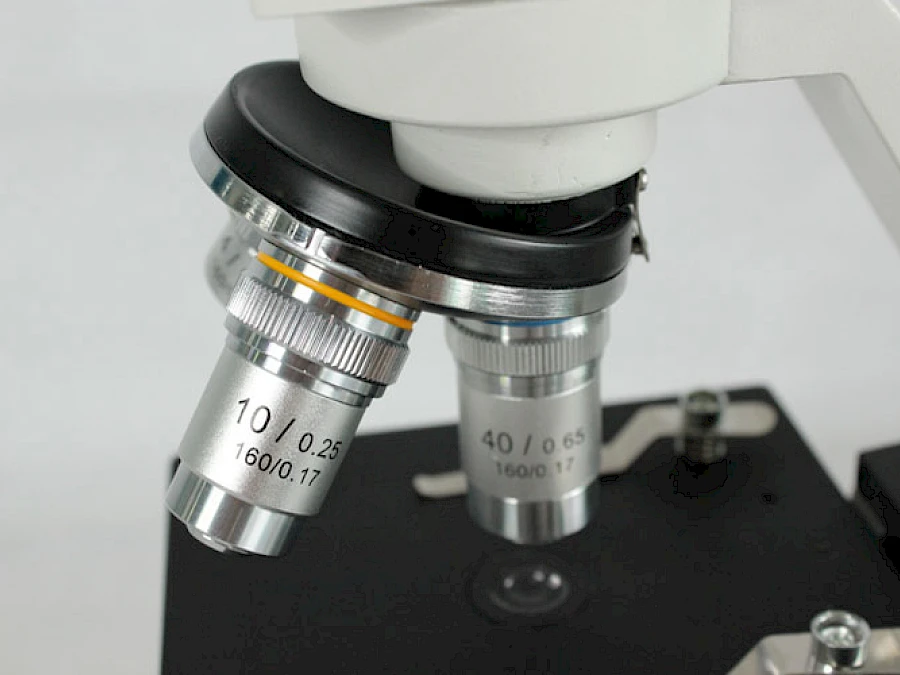

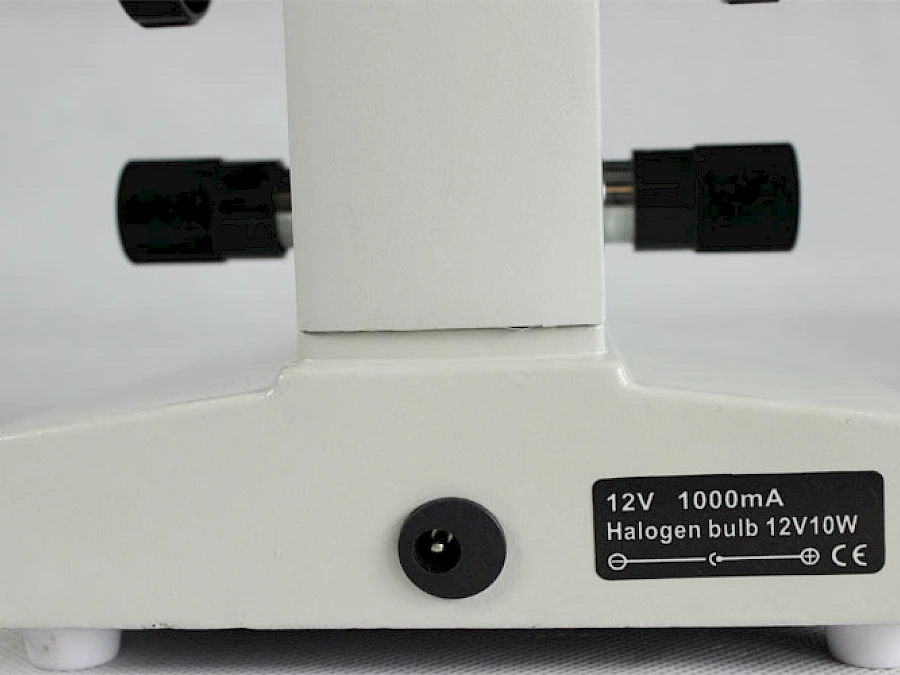

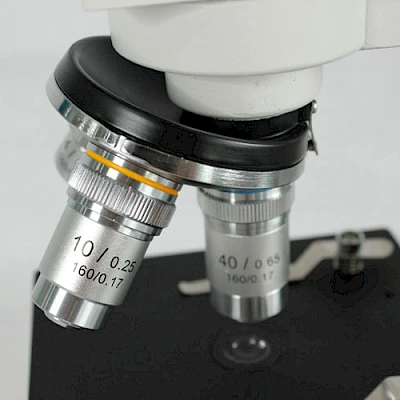

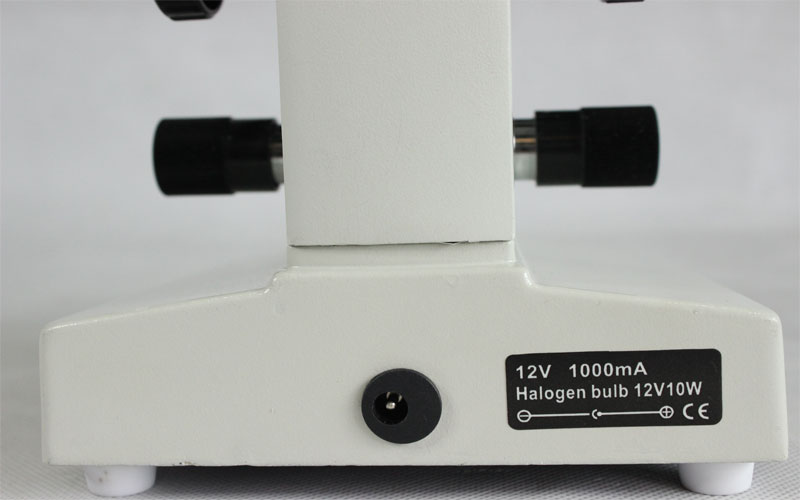

Objectives & Power Supply of BL-30D

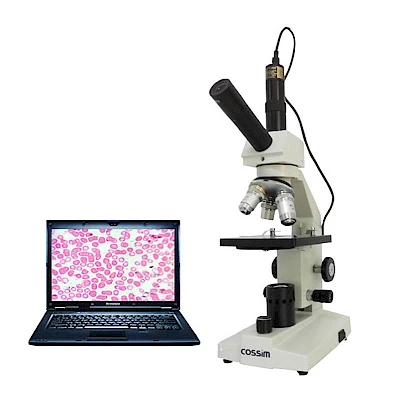

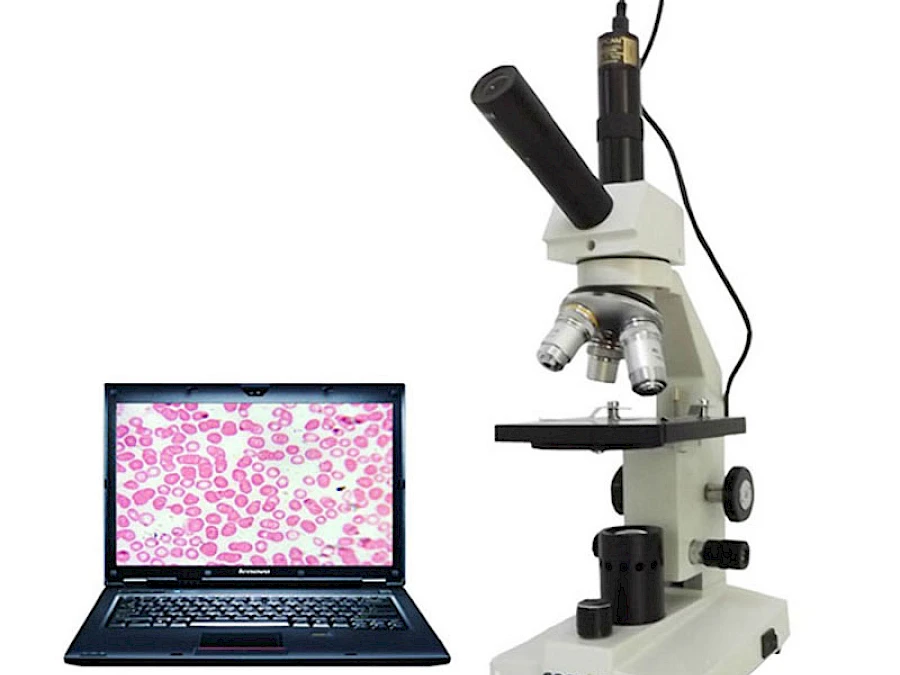

BL-30D with its Connected Laptop

Parameters for BL-30D
Eyepiece	WF10X 18mm; WF16X 11mm
Eyepiece Tube	Monocular, 160mm
Achromatic Objective	4X/0.10; 10X/0.25; 40X/0.65
Total Mag.	40X~640X
Focus System	Coaxial coarse/fine focusing with up stop
Stage	Double Layer Mechanical Stage (Size: 120mm x 120mm)
Condenser	ABBE Condenser with diaphragm
Light Source	12V 10W Halogen Lamp, Brightness Adjustable
Weight	NET: 2.5kg; Gross: 3kg
Dimension	Instrument: 12 x 17 x 28(cm); Package: 22 x 16x 35(cm)

Standard Packing List for BL-30D
No.	Name	Quantity
A	Microscope Main Body	1
B	Monocular Eyepiece (WF10X, WF16X)	1 each
C	Objectives (4X; 10X; 40X)	1 each
D	Condenser	1
E	Clip	1
