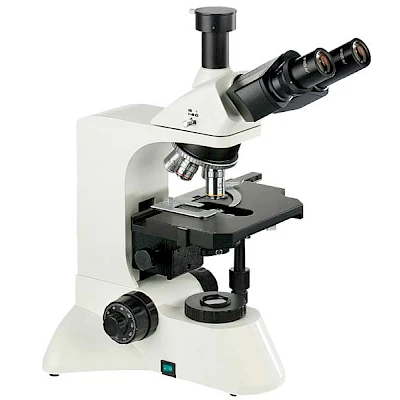

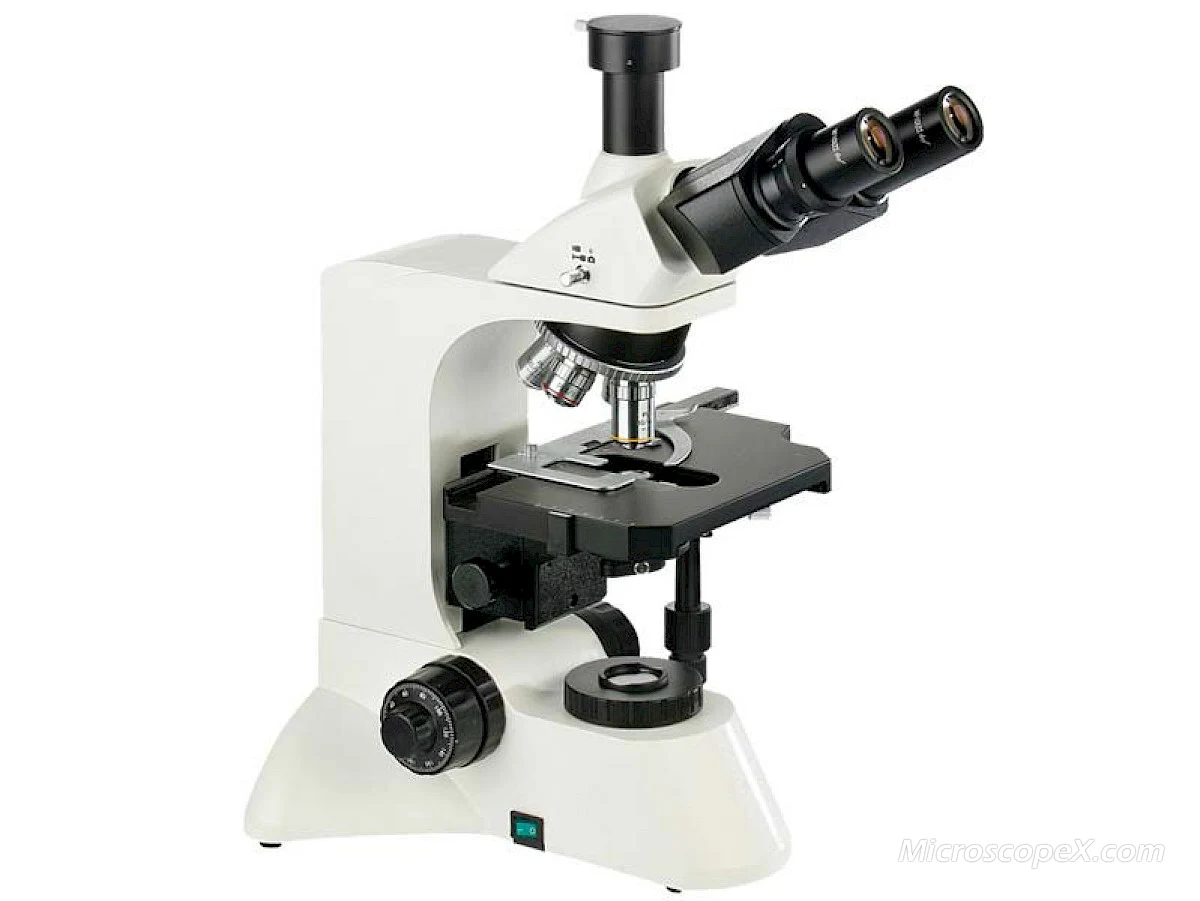

BL-214 & BL-214T

BL-214 & BL-214T Advanced Medical Treatment Biological Microscope with Kohler Illumination

40X~1000X, Binocular/ Trinocular, Double layer mechanical stage, Transmitted illumination

Core Features

Equipped with wide field eyepieces and infinity plan achromatic objectives, the field of view is wide and clear
Coaxial coarse & fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2 μm
Maximal movement of stage is 30mm
Using Kohler illumination with Integrated field diaphragm and 6V30W halogen lamp, adding radiator and brightness control
Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography

Configurations

WF10X(Φ22mm)

PL 4X、10X、40X、100X

Quadruple

ABBE Condenser

6V 30W Halogen lamp

Request Quotation Email Phone Back to Products

BL-214 & BL-214T Biological Microscope are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt and provide clear image, wide field, convenient operation. They can be widely used for biology medicine agriculture and industry area. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.

BL-214 & BL-214T

Digital Camera Photo

Phase Contrast Observe

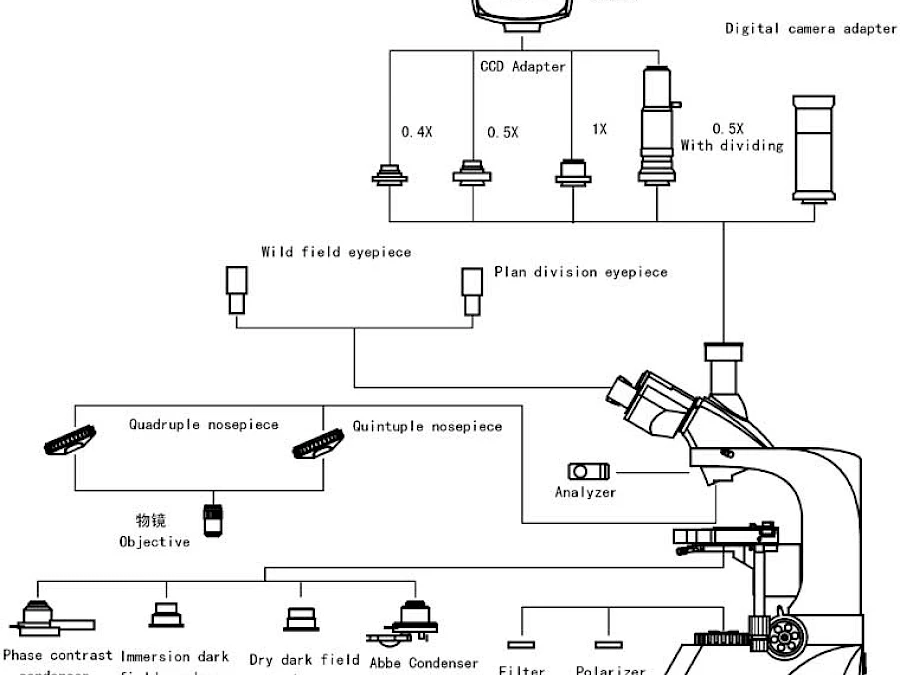

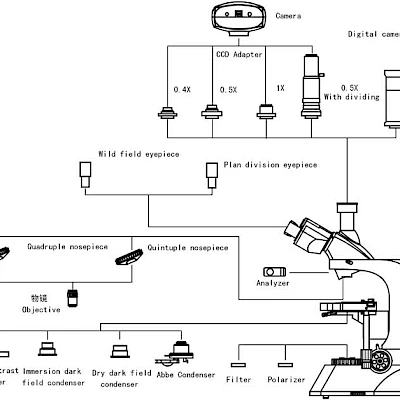

Diagram of BL214 & BL-214T

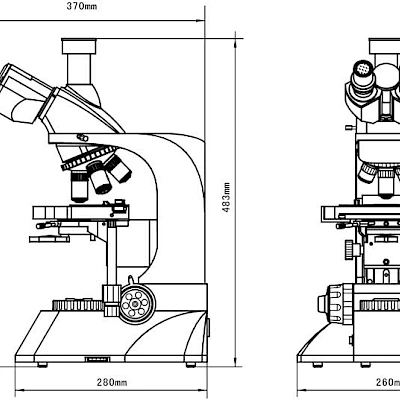

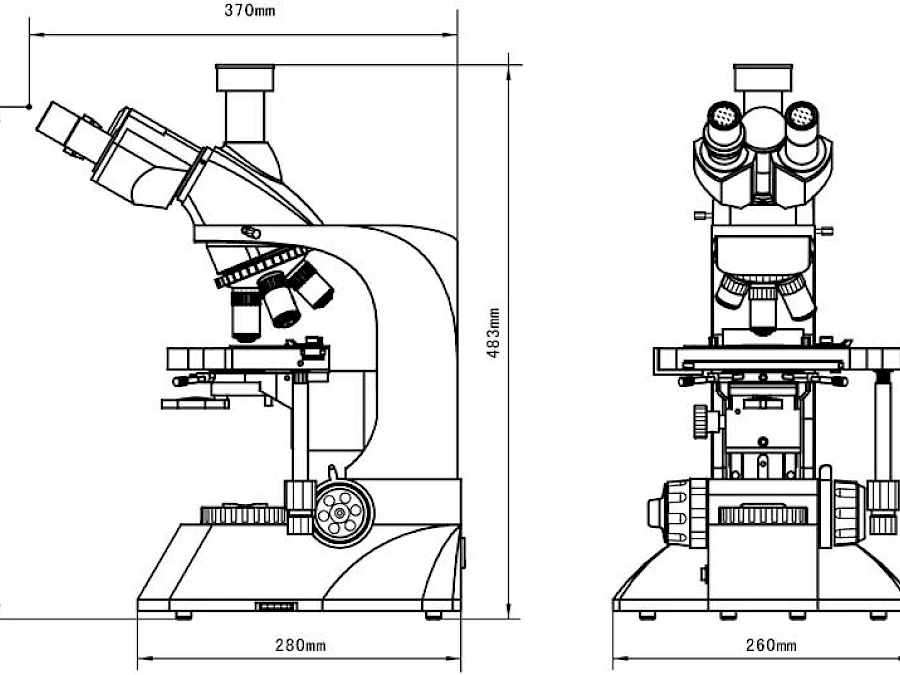

Dimension of BL-24 & BL-214T

Item	Head
BL-214	Binocular, inclined 30°
BL-214T	Trinocular, inclined 30°

Specification for BL-214 & BL-214T
Eyepiece	WF10X(Φ22mm)
Objective	Infinity plan achromatic objective
	PL 4X/0.10(Work distance): 21 mm
	PL 10X/0.25(Work distance): 5.0mm
	PL 40X/0.65(Spring)(Work distance): 0.66 mm
	PL 100X/1.25(Spring, oil)(Work distance): 0.36mm
Focus System	Coaxial coarse/fine focusing, with tension adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece	Quadruple (Backward ball bearing inner locating)
Stage	Double Layer Mechanical Stage (Size: 210mm x 140mm, Move range: 75mm x 50mm)
Condenser	ABBE Condenser N.A. 1.25 Rack & pinion adjustable
Filter	Blue, Frosted
Collector	For Halogen lamp (with field diaphragm)
Light Source	6V 30W Halogen lamp with brightness control

Accessories for BL-214 & BL-214T
Eyepiece	Dividing eyepiece (field number:Φ22mm) 0.10mm/Div
Objective	Infinity plan achromatic objective
	PL 20X/0.40(Work distance)：8.8 mm
	PL 60X/0.85(Work distance)：0.25mm
Nosepiece	Quintuple (Backward ball bearing inner locating)
Condenser	Dark Field	Dry type
Condenser	Dark Field	Immersion type
Filter	Green, Yellow
Phase Contrast Unit	Eyepiece	Centering Telescope
	Objective	Infinity phase contrast plan achromatic 10X/0.25 PHP
		Infinity phase contrast plan achromatic 20X/0.40 PHP
		Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
		Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
	(PH-Ⅰ) Turnplate phase contrast condenser
	(PH-Ⅱ) Turnplate phase contrast condenser
	Flashboard phase contrast condenser
	Pull board phase contrast condenser
CCD Adapter	0.4X
	0.5X
	1X
	0.5X (with dividing 0.1mm/Div)
Camera	DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©
	DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©
	DV-3 With video output£¨380/520 TV line£©
Photo Unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece
	4X Focusing photograph attachment
	MD adapter
	PK adapter
Digital camera adapter	CANON(A570,A610,A620,A630,A640,A650,EF) NIKON(F)
Facility polarize	Polarizer		360° rotatable stage
Facility polarize	Analyzer		Sliding type
