BL-125 Binocular/Trinocular Microscope Laboratory Clinical Biology Biological Microscope for Lab Live Blood Analysis Use

BL-125

Total Mag. 40X~1600X; Kohler Illumination Halogen / LED; ABBE Condenser N.A. 1.25

Core Features

40X~1600X Total Magnification
Wide field plan eyepiece, with high eye point
N.A. 1.25 Abbe Condenser, with iris diaphragm, filter
Kohler Illumination, diaphragm adjustable

Configurations

4X N.A=0.10

WD=37.50mm

10X N.A=0.25

WD=7.31mm

40X N.A=0.65

WD=0.63mm

100X(Oil) N.A=1.25

WD=0.18mm

Double Layer Mechanical Stage

Size: 135*140mm

Standard Illuminator

6V 20W Halogen Lamp

BL-125 series Biological Microscope is equipped with achromatic objectives (4X, 10X, 40X, 100 oil), wide field eyepieces (10X, 16X). It has clear image, wide field, beautiful sculpt, convenient operation etc.

It can be used for medicine, and assay area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.

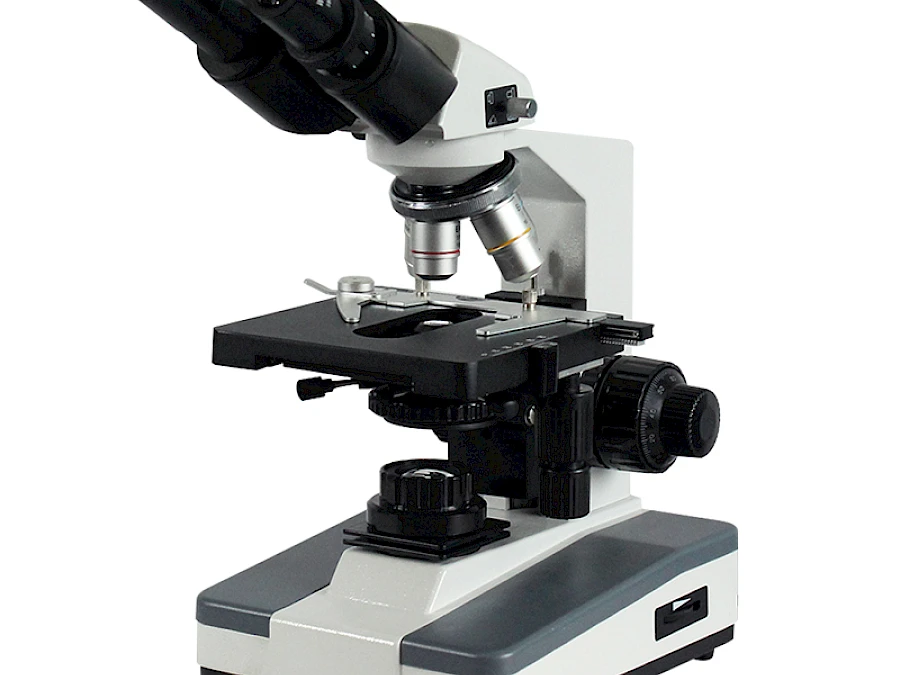

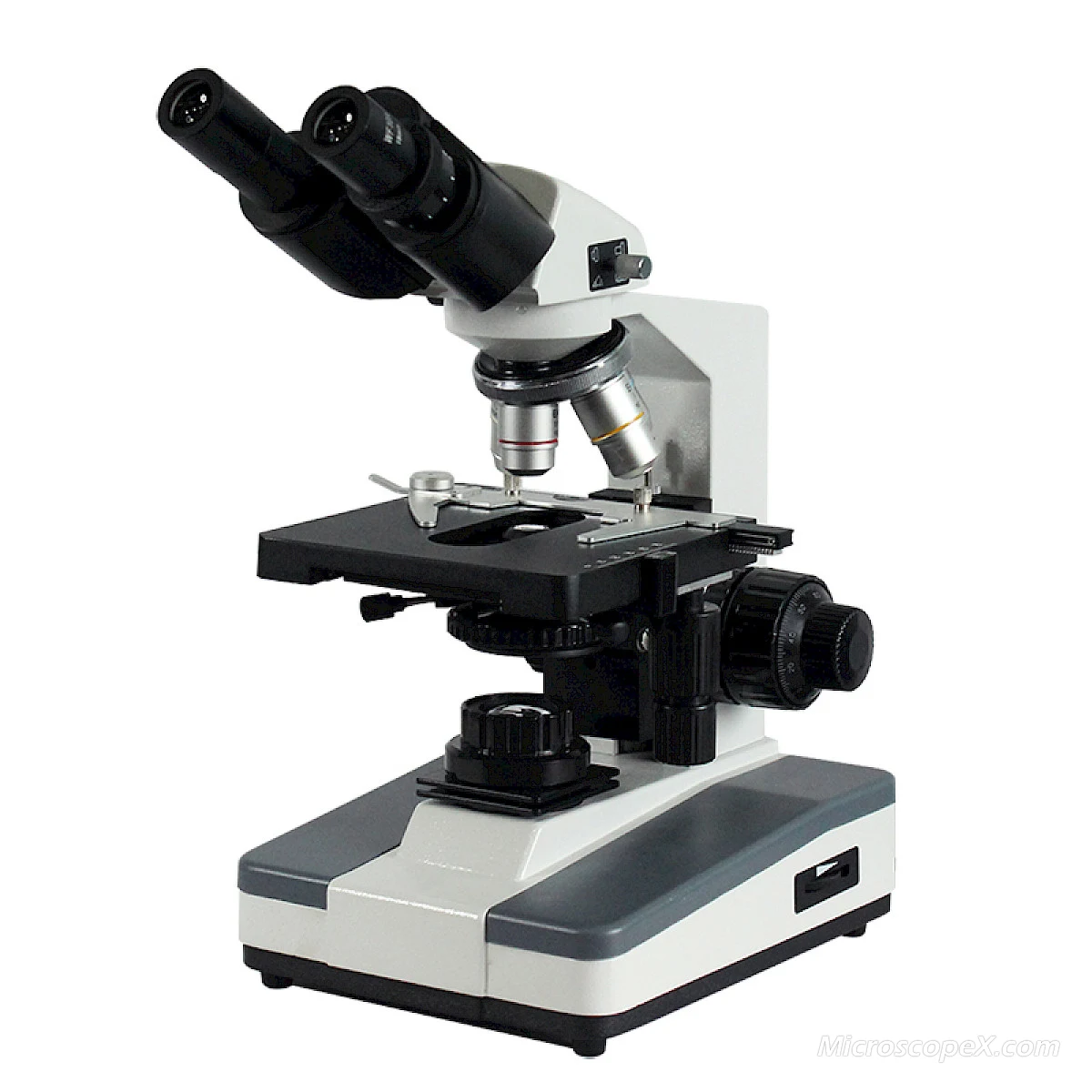

BL-125 Series Biological Microscope (Binocular / Trinocular)

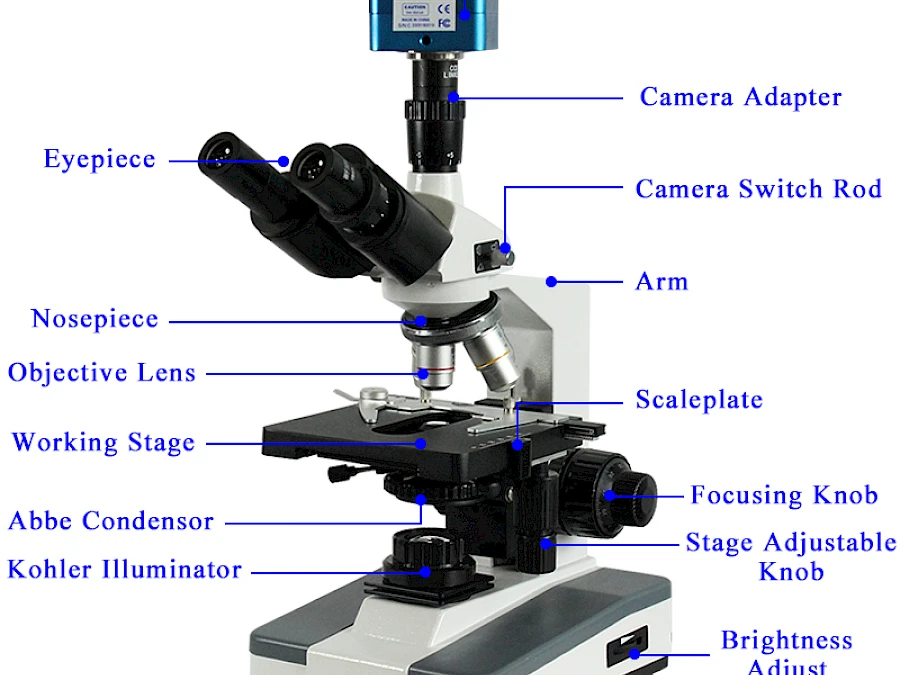

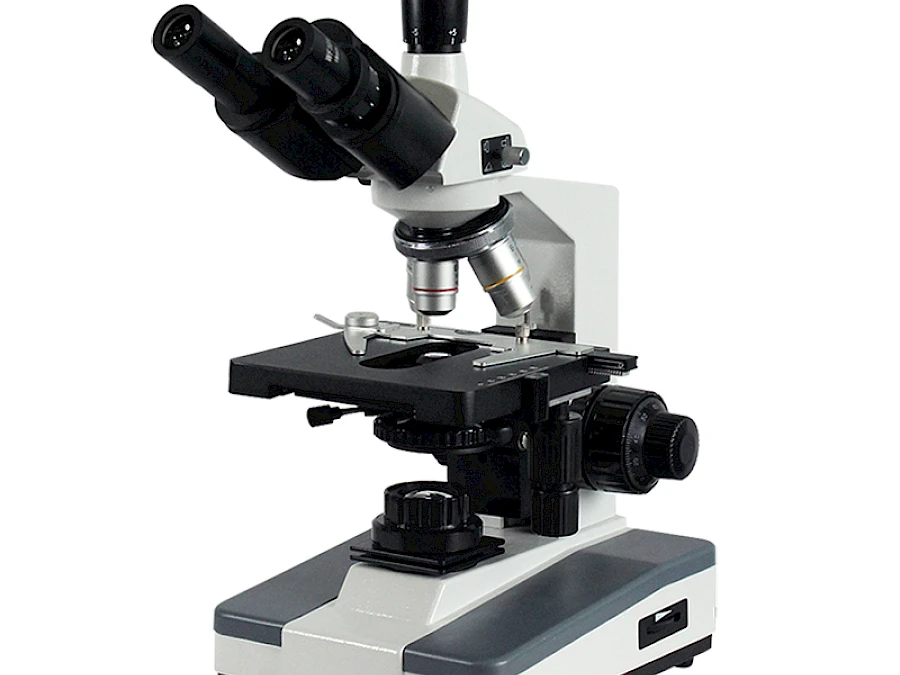

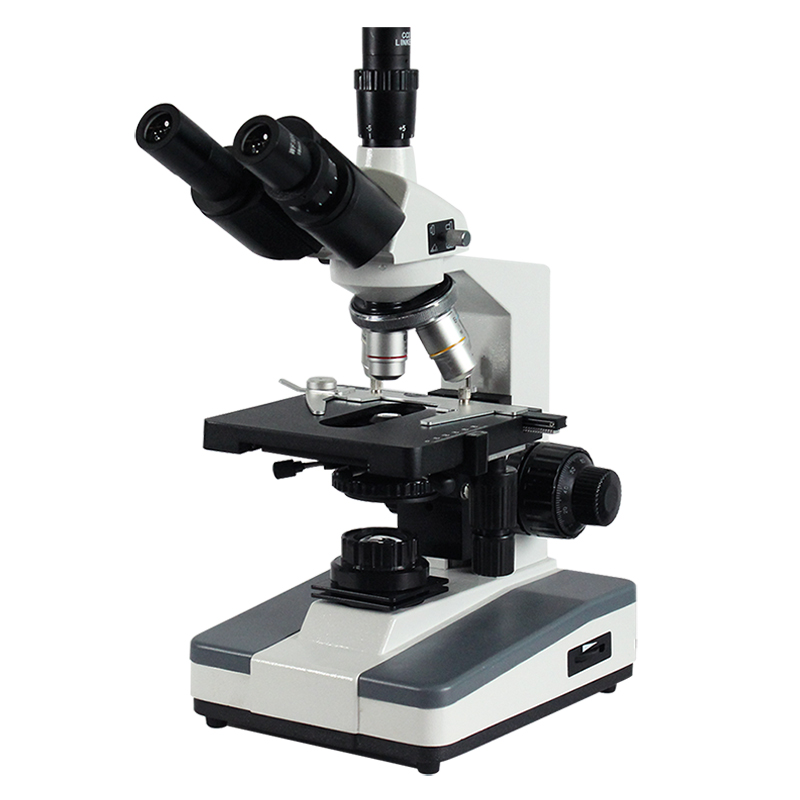

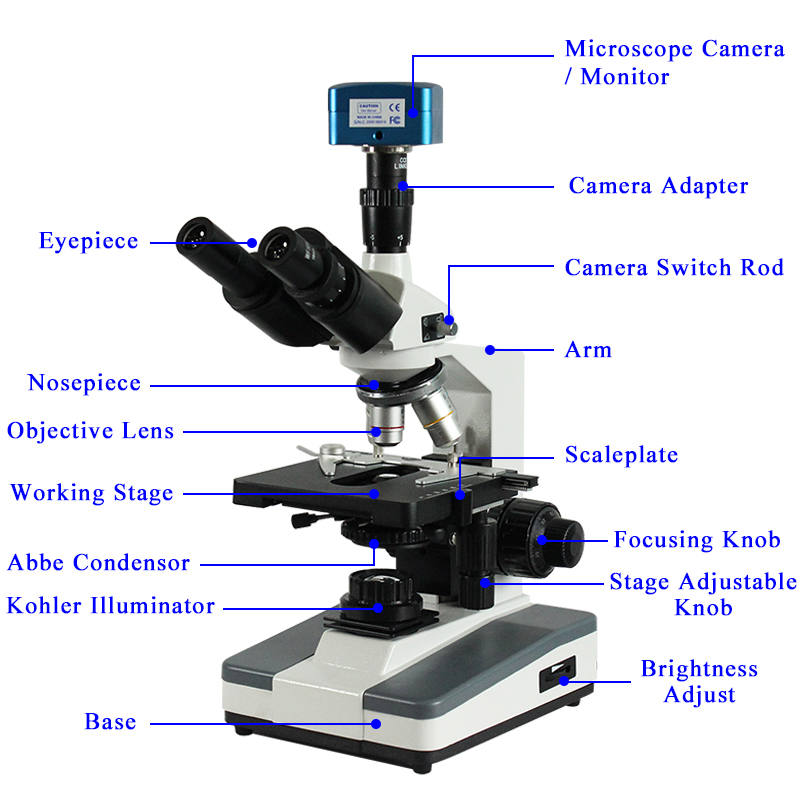

Structure of BL-125T Trinocular Microscope

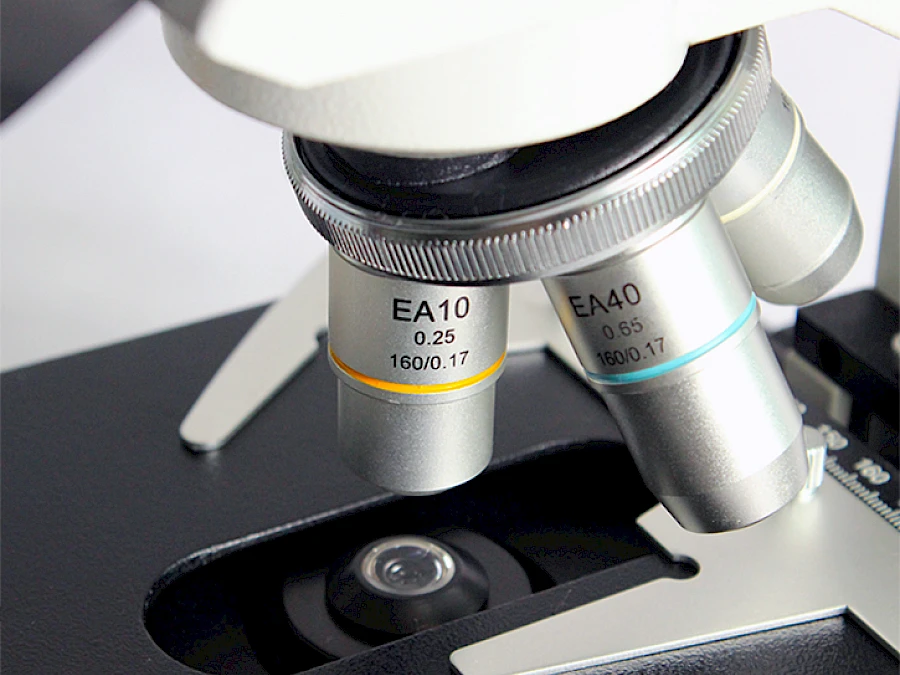

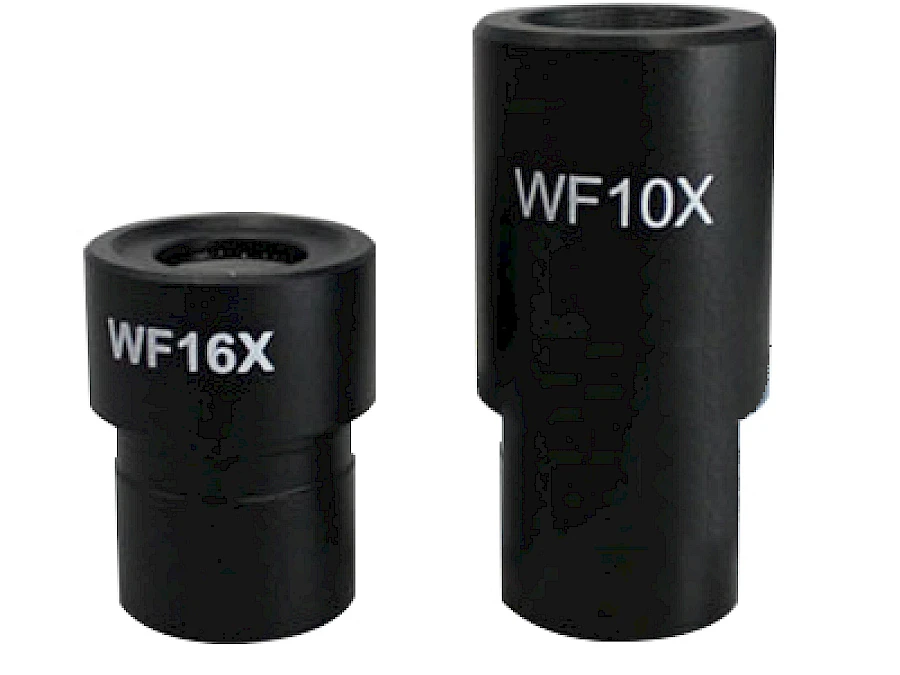

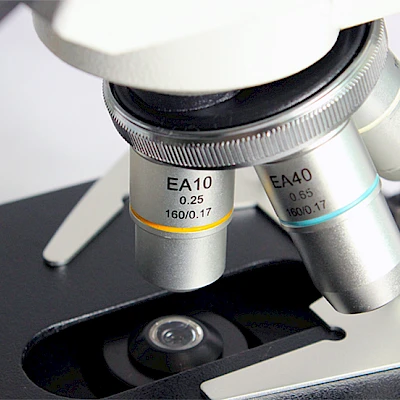

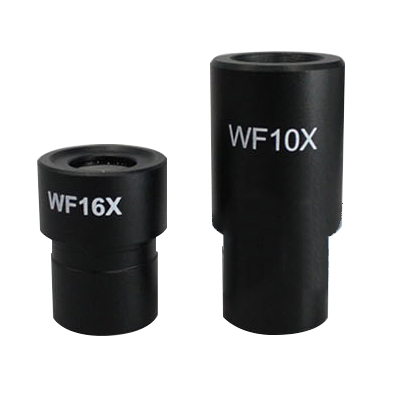

Eyepiece & Objective Lens of BL-125 Series

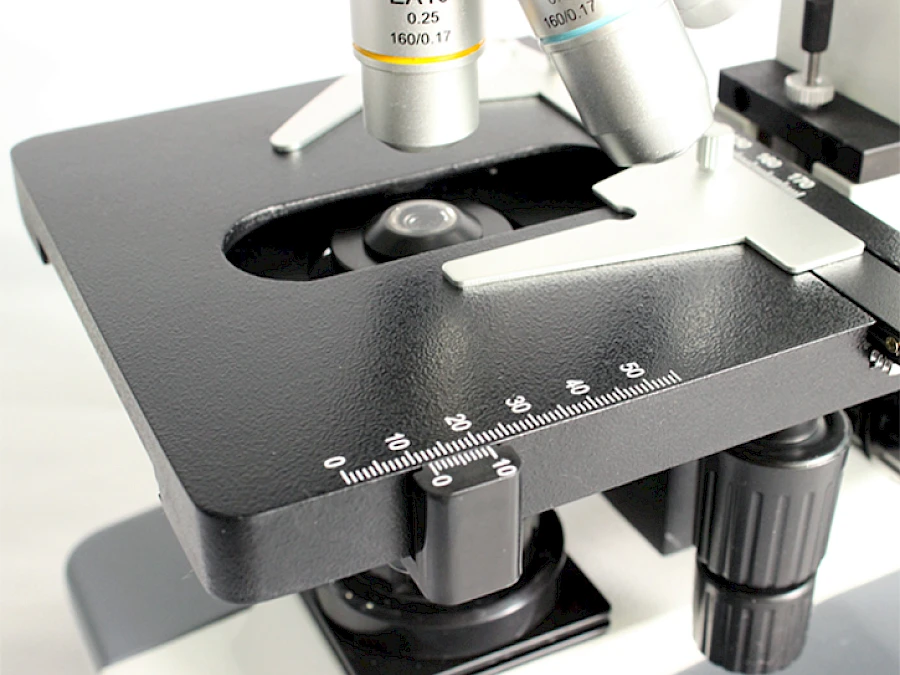

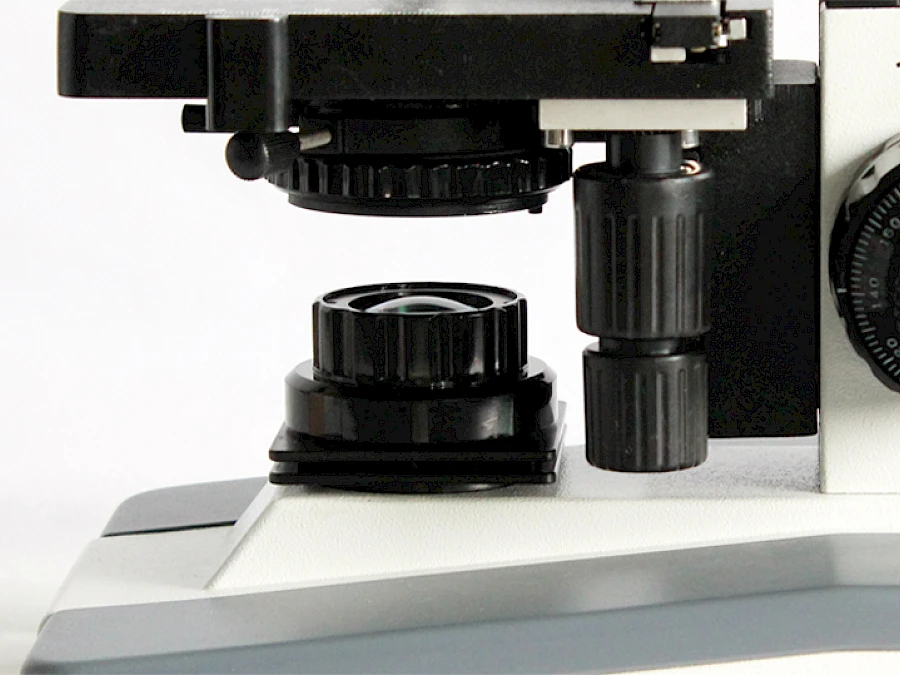

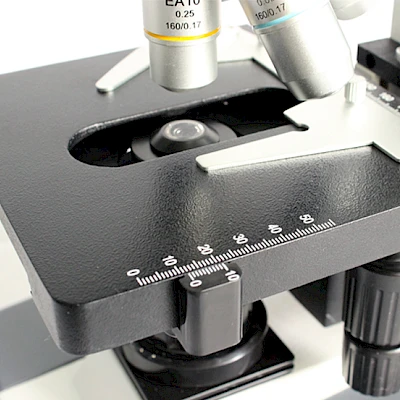

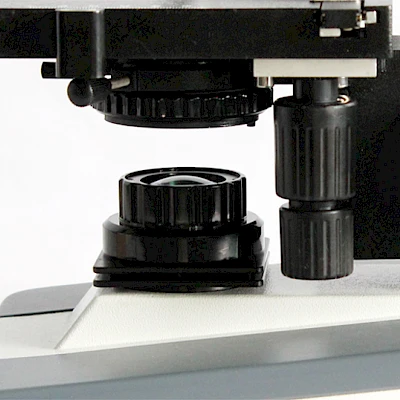

Working Stage & Condenser & Illuminator of BL-125 Series

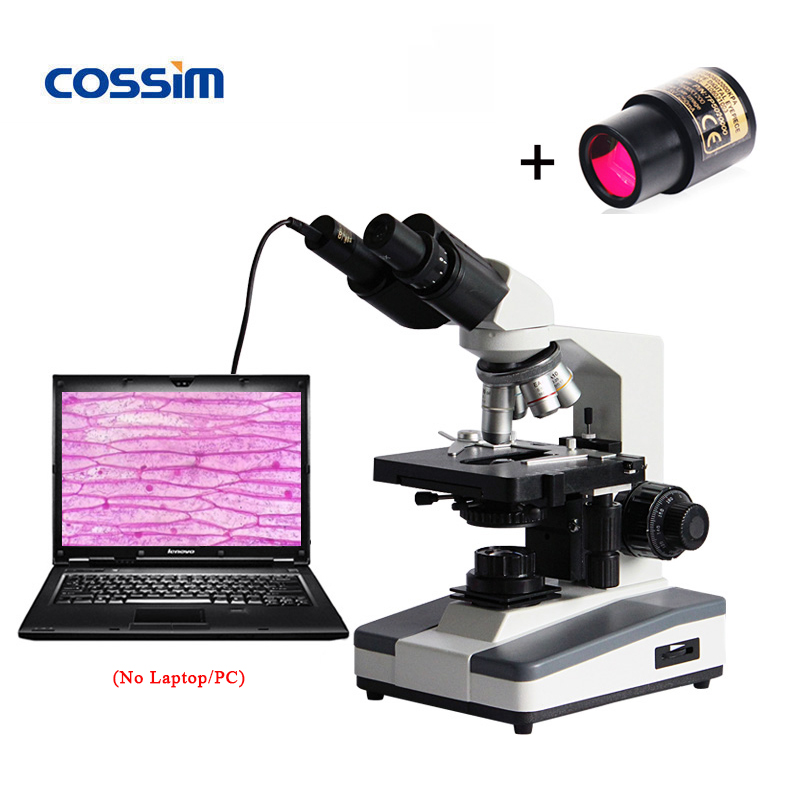

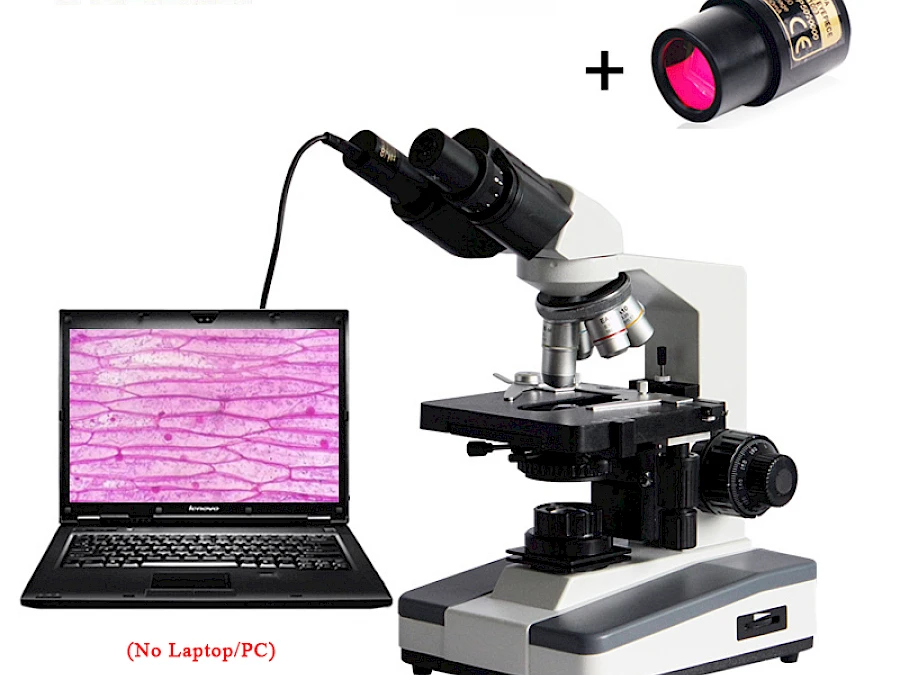

BL-125T with its Connected Eyepiece Camera

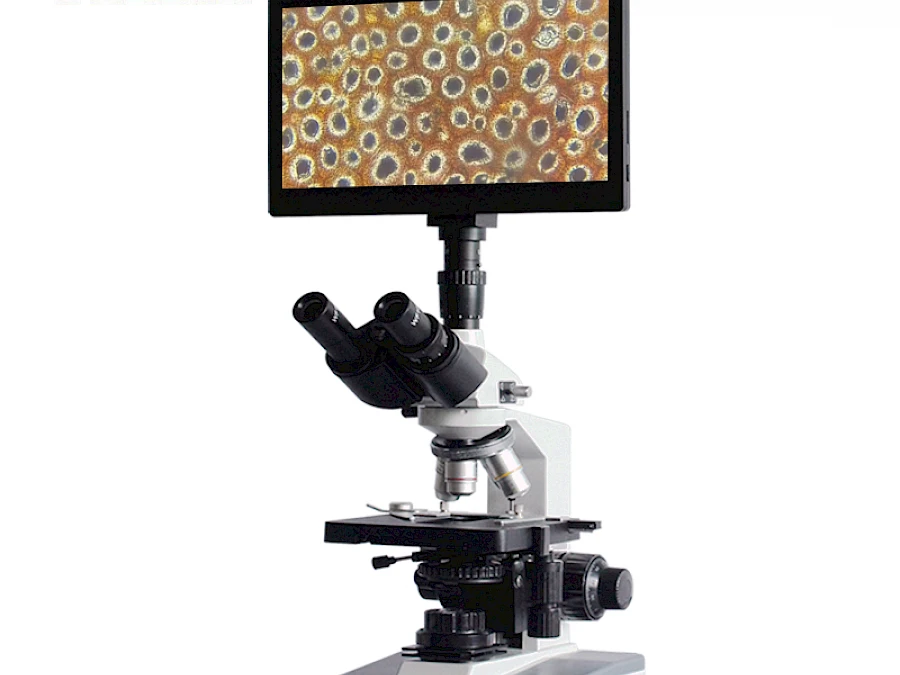

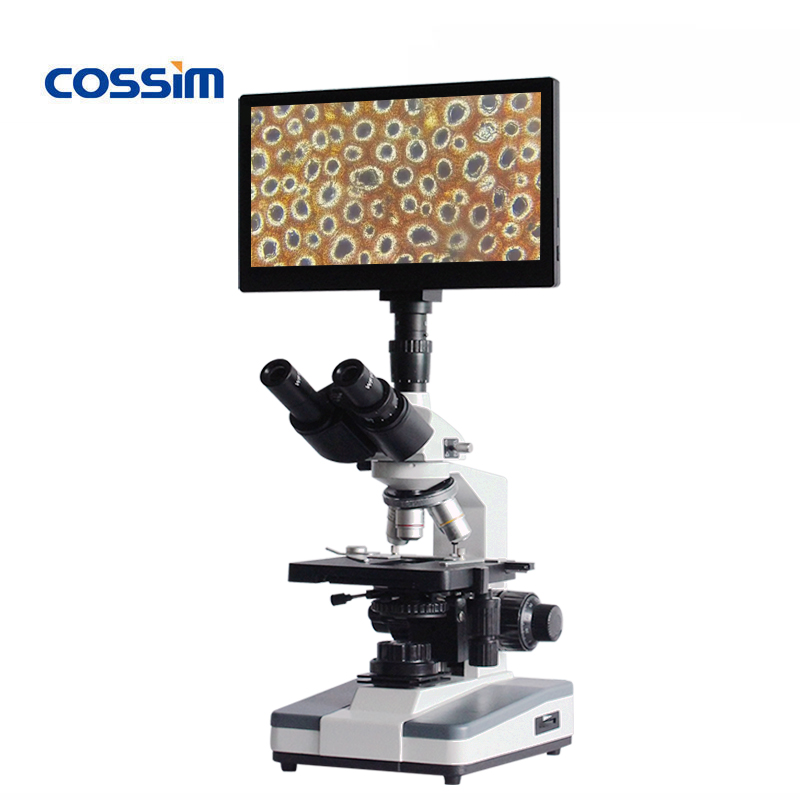

BL-125T with its Connected 9" Monitor

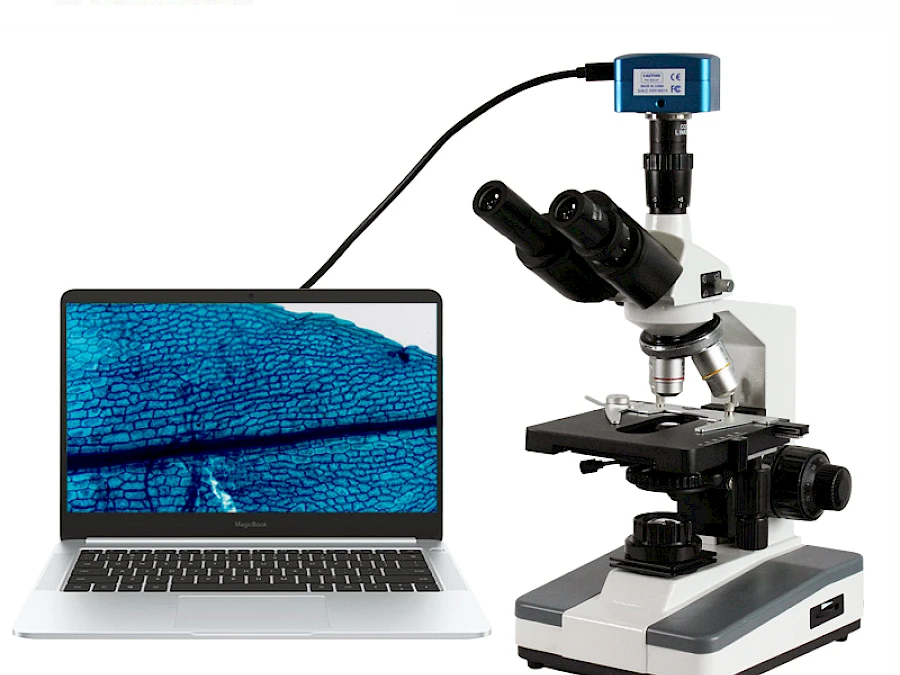

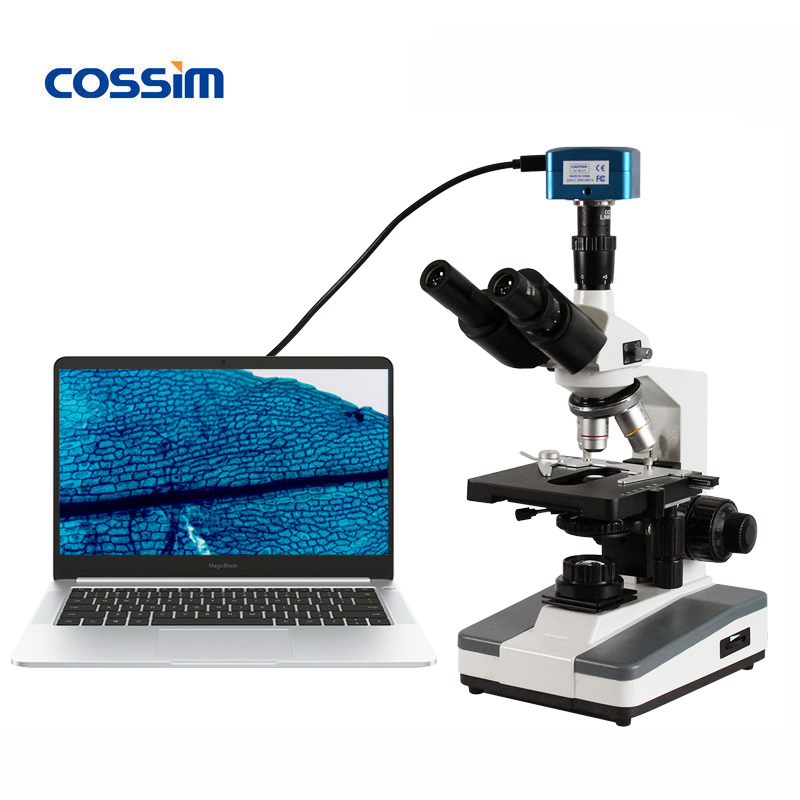

BL-125T with its Connected USB Camera

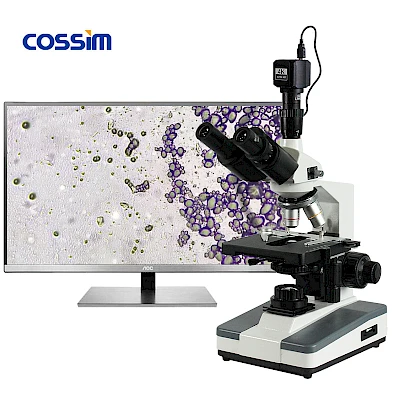

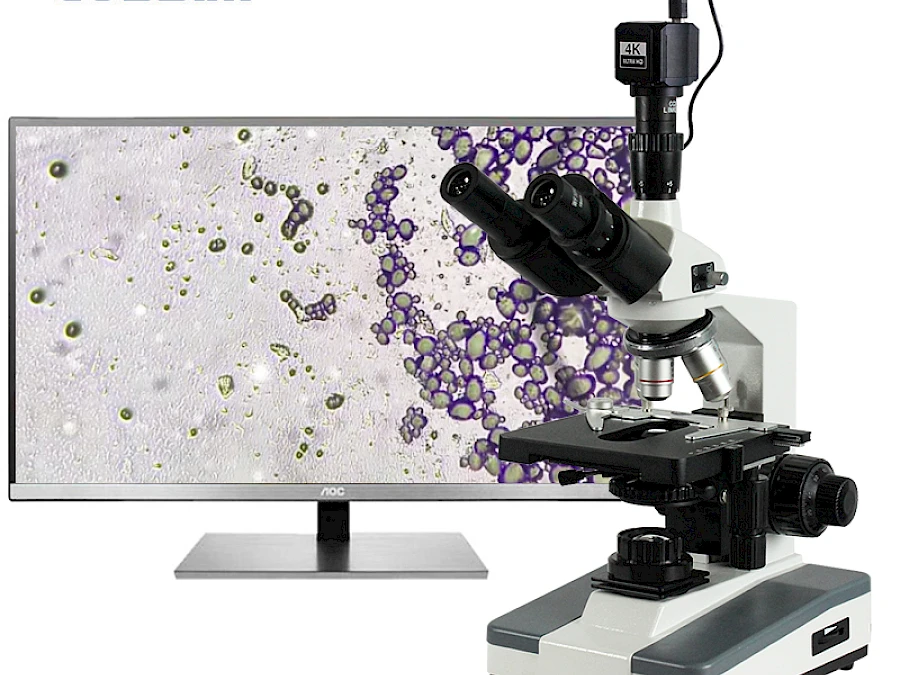

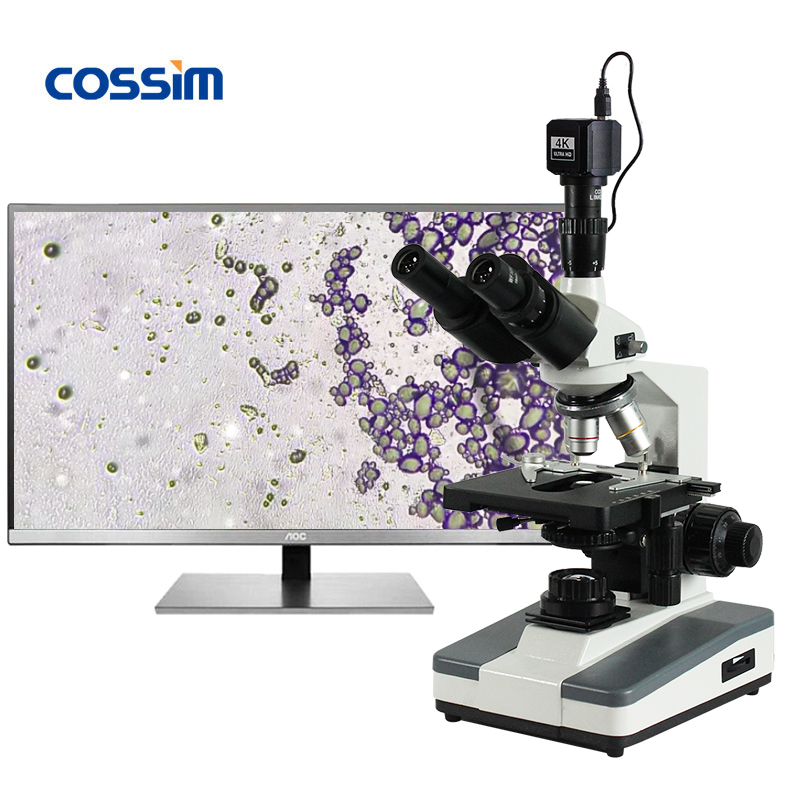

BL-125T with its Connected 4K Camera

Specification of BL-125 Series:
Eyepiece	WF10X(Φ18mm)；WF16X(Φ11mm)
Eyepiece Tube	Binocular / Trinocular, inclined 30°, 360° rotatable, interpupillary distance: 48~75mm
Total Mag.	40X~1600X
Achromatic Objective	4X N.A=0.10 WD=37.50mm
	10X N.A=0.25 WD=7.31mm
	40X N.A=0.65 WD=0.63mm
	100X(Oil) N.A=1.25 WD=0.18mm
Focus System	Coaxial coarse & fine focusing, minimum division of fine focusing: 2μm, Range 30mm
Nosepiece	Quadruple
Stage	Double Layer Mechanical Stage (Size: 135mm x 140mm, Move range: 70mm x 50mm)
Condenser	ABBE Condenser N.A. 1.25 with diaphragm, Rack & pinion adjustable
Filters	Blue, yellow, green
Light Source	6V 20W Halogen Lamp, with brightness control
Power	External Wide Voltage Power: AC 85~265V; 50~60Hz
