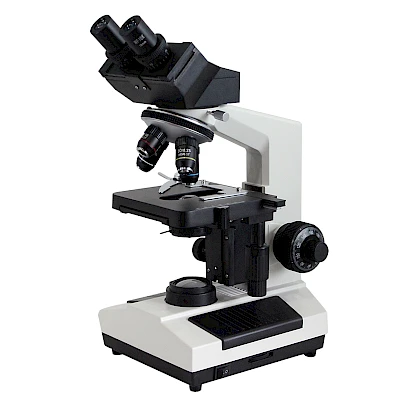

BL-107T Cheapest Popular Binocular/Trinocular Biological Microscope

BL-107T

40X~1600X Mag., WF10X(Φ18mm), WF16X(Φ11mm), Head inclined 45°, 360° rotatable

Core Features

Total Magnification: 40X~1600X
Coaxial coarse/fine focusing with up stop
Excellent optical system and reliable structure offer easy operation
Double Layer Mechanical Stage (Size: 140mm x 140mm)
The lifting Abbe condenser is used, which has a large adjusting range and good contrast

Configurations

WF10X(Φ18mm)

WF16X(Φ11mm)

Binocular

Trinocular

LED Light

brightness control

BL-107T Trinocular/Binocular upright biological microscope has high performance, flexibility and stability features. It can be widely used in various fields: laboratories, universities and hospitals. Its high cost performance and reasonable humanized design make it the first choice for hospitals and scientific research institutions.

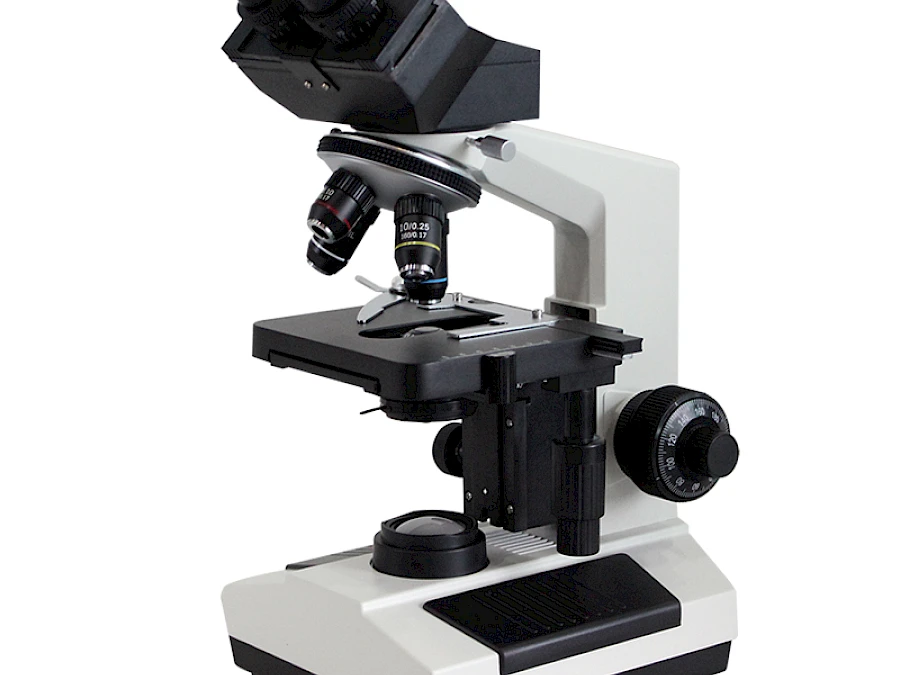

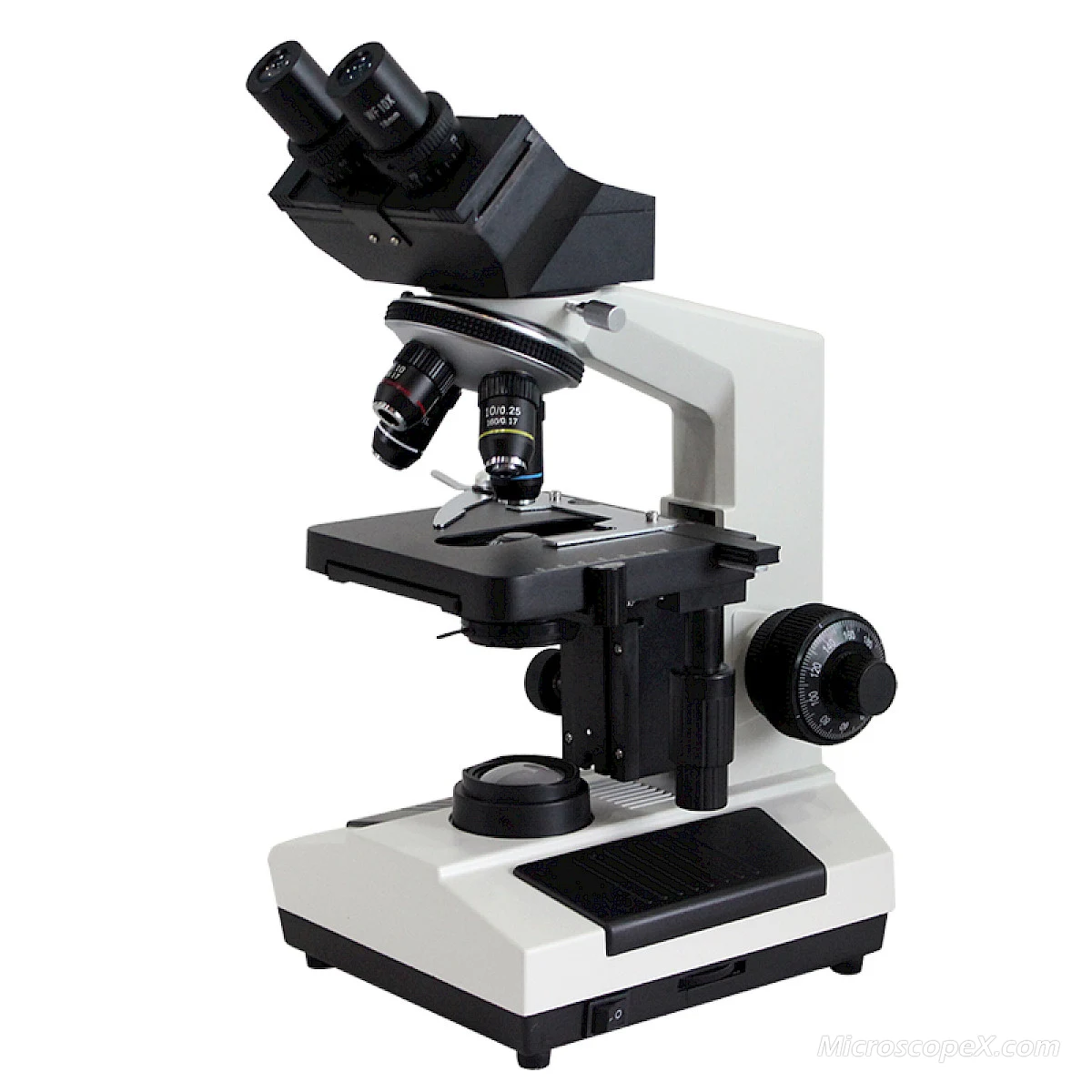

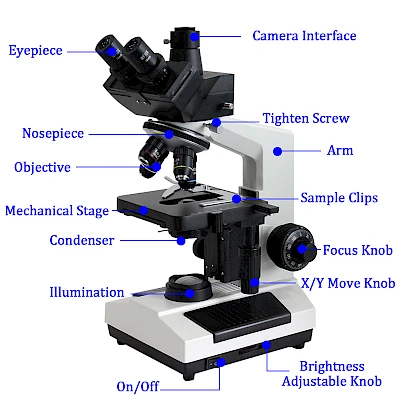

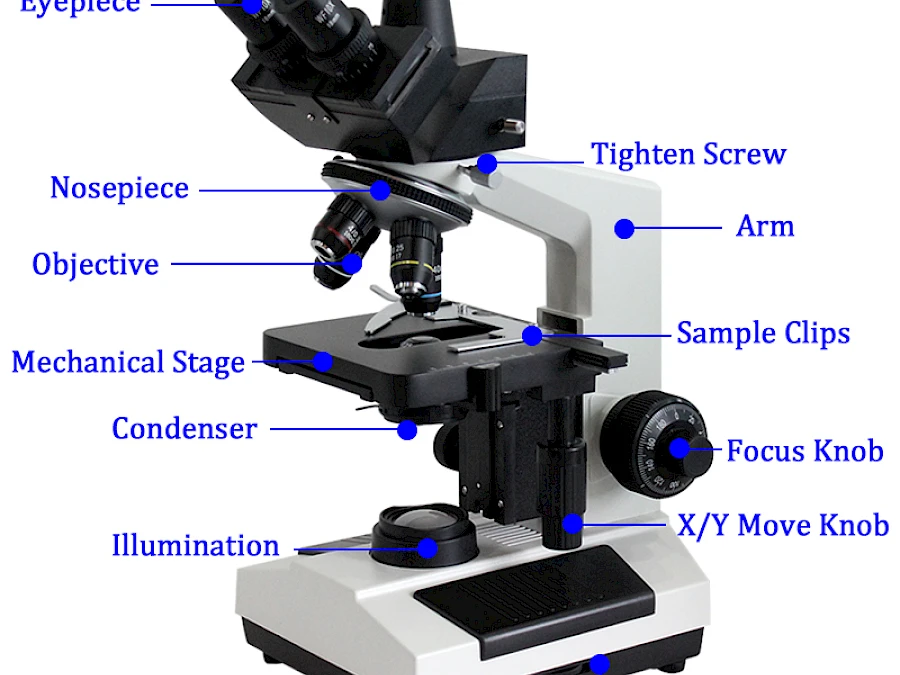

Structure of BL-107 Binocular Biological Microscope

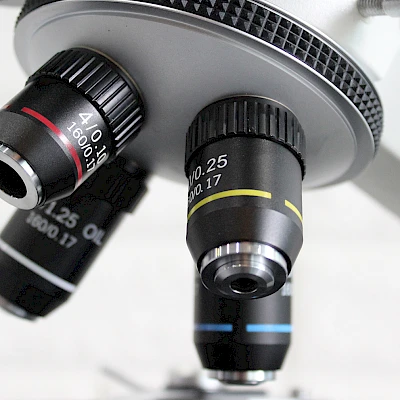

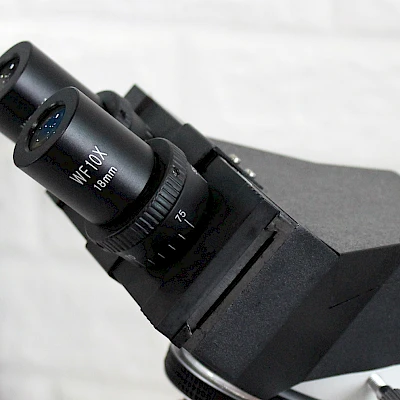

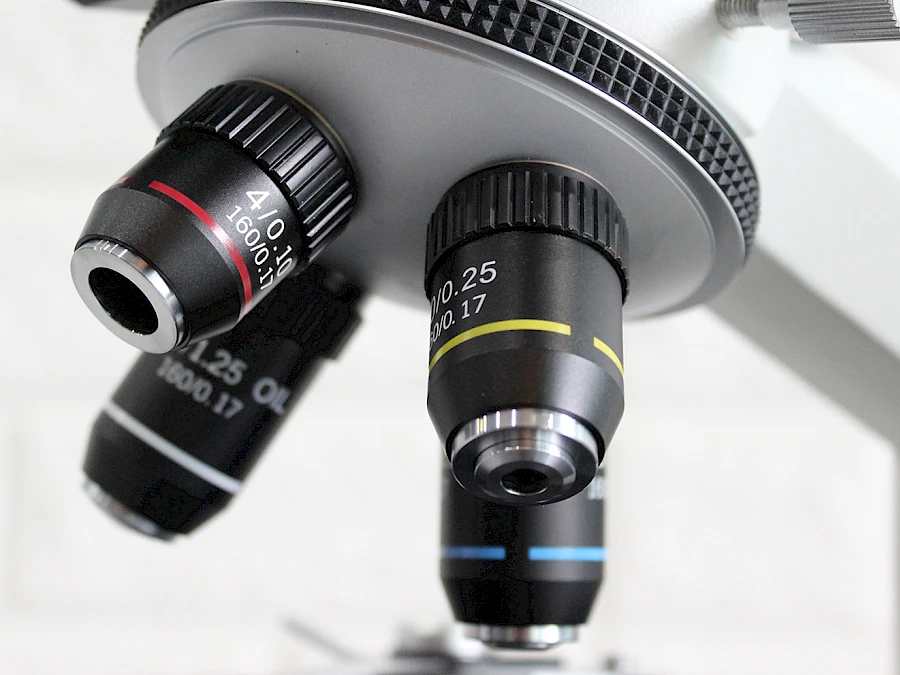

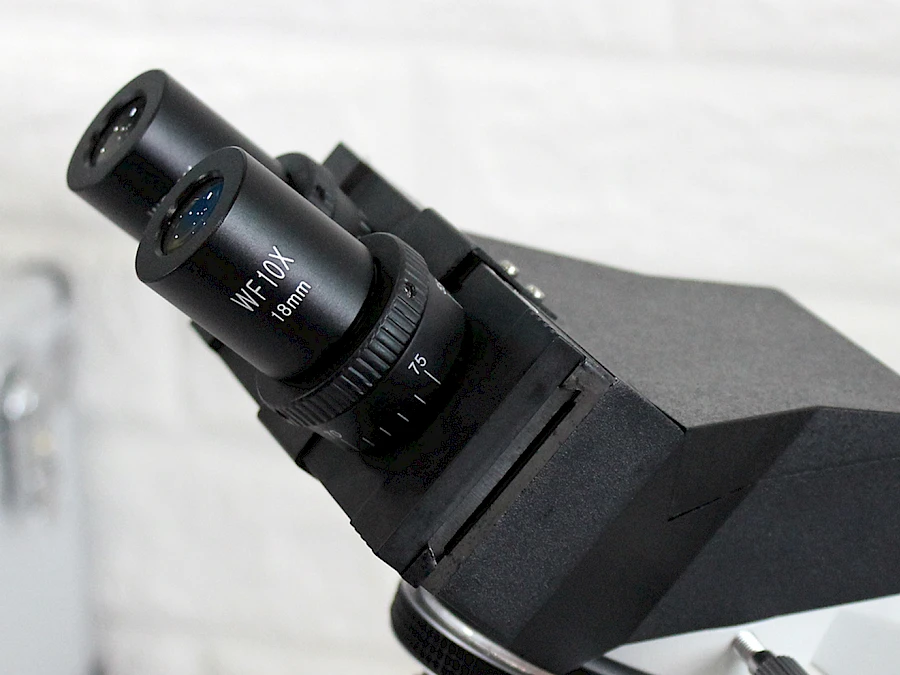

Head & Objective of BL-107

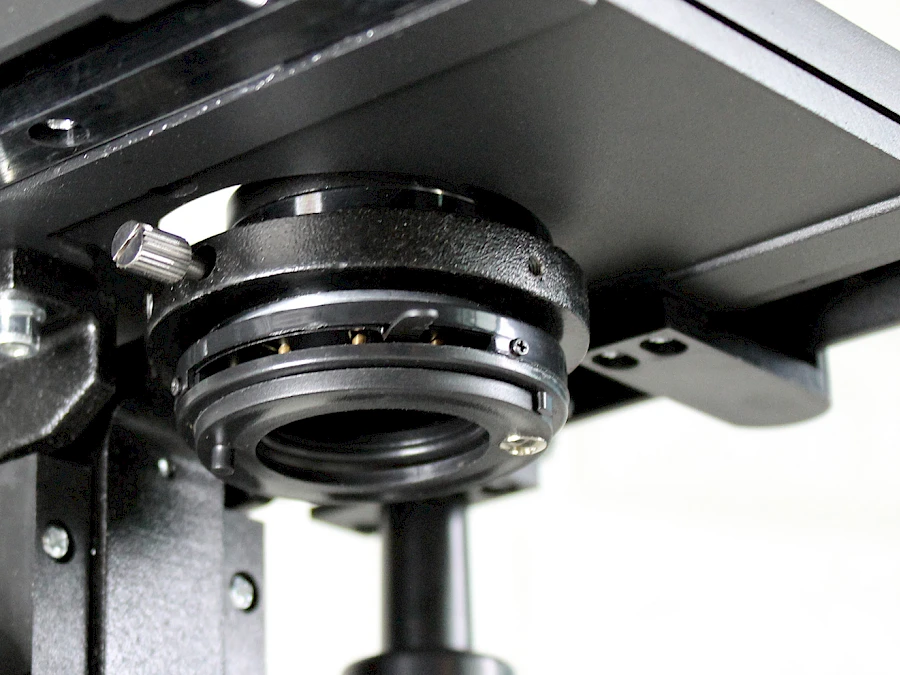

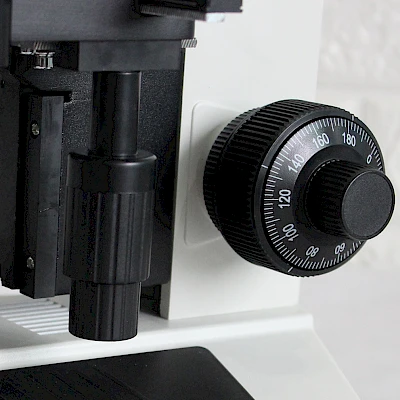

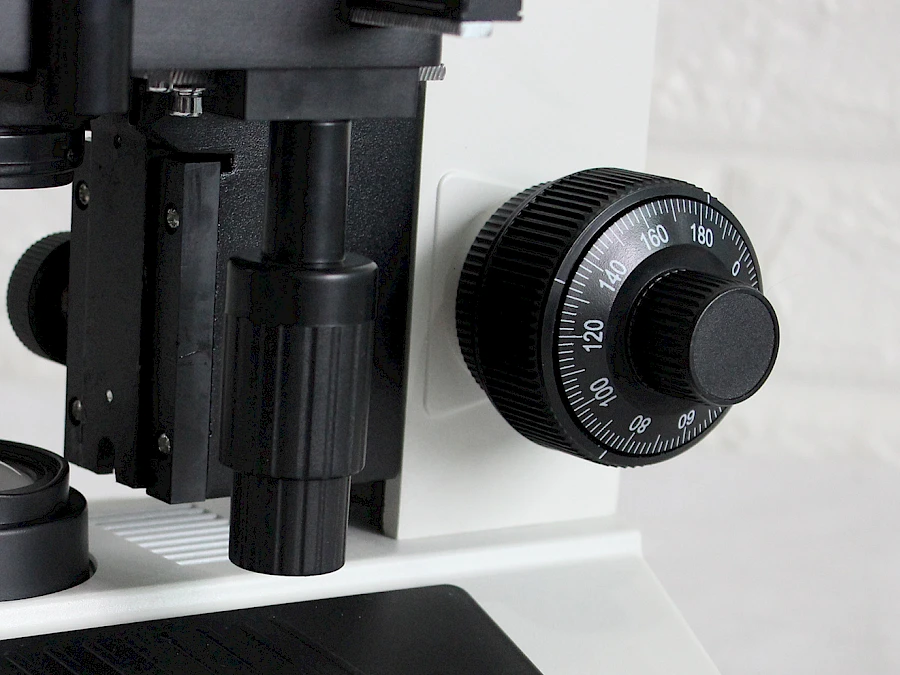

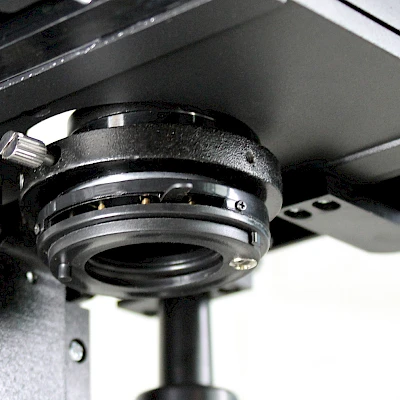

Focus Knob & Condensor of BL-107

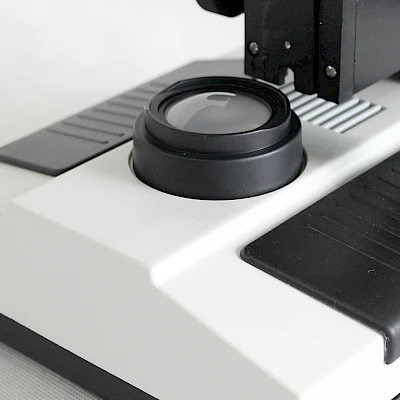

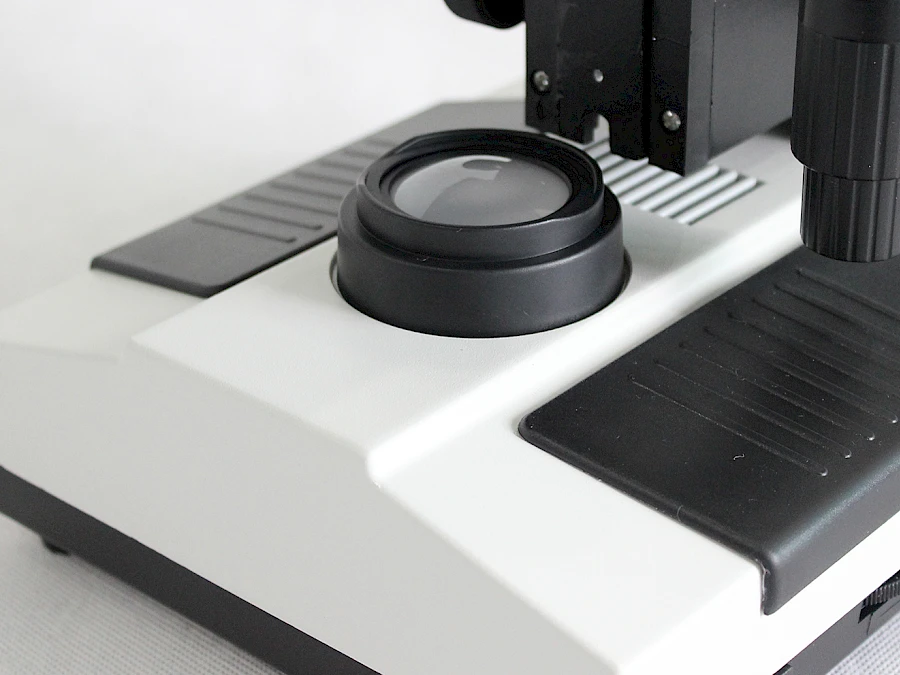

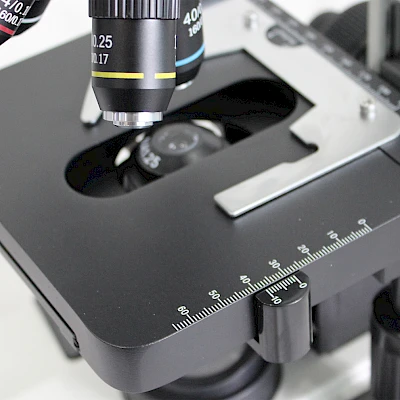

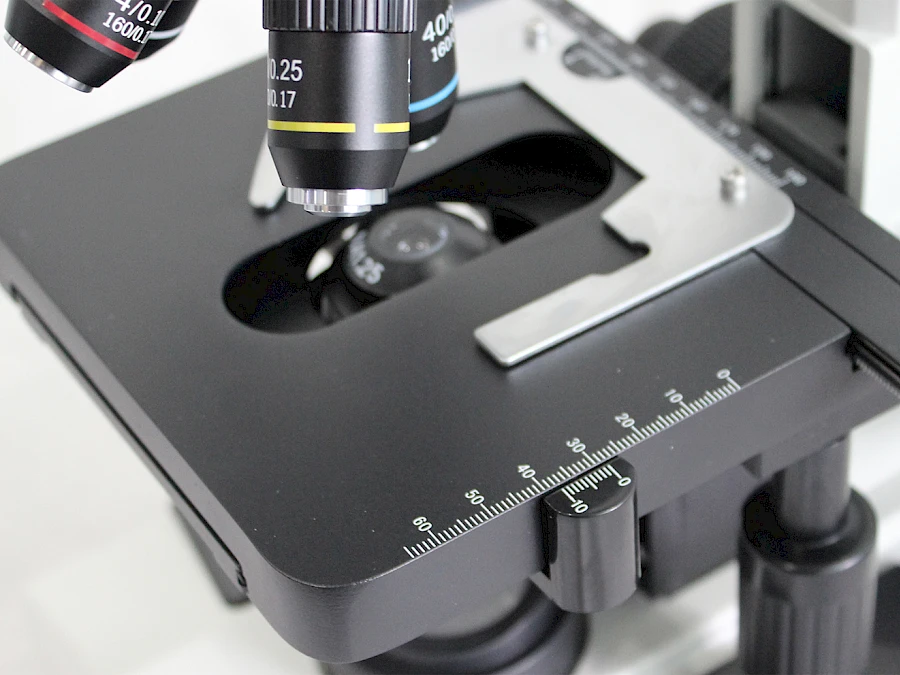

Mechanical Stage & Transmitted Light of BL-107

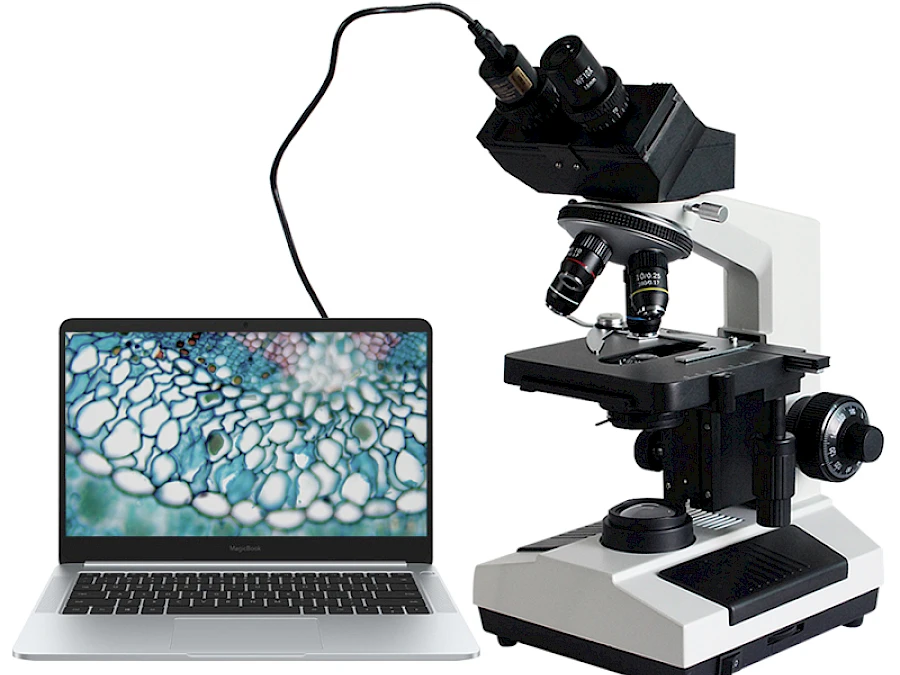

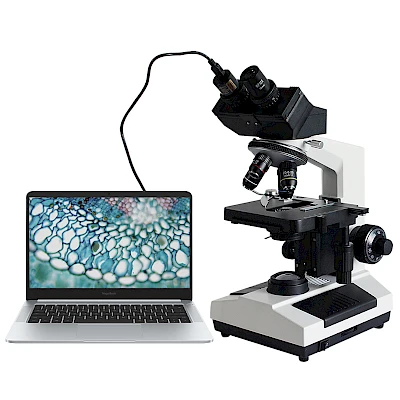

BL-107 with its connected Eyepiece Camera

Specification for BL-107T
Plan Eyepiece	WF10X(Φ18mm), WF16X(Φ11mm)
Eyepiece Tube	Binocular, Trinocular; inclined 45°, 360° rotatable
Achromatic Objective	4X/0.10; 10X/0.25; 40X/0.65(s); 100X/1.25(oil, s)
Total Mag.	40X~1600X
Focus System	Coaxial coarse/fine focusing with up stop, division:2 um; Range: 22mm
Stage	Double Layer Mechanical Stage (Size: 140mm x 140mm), moving range: 75mm x 50mm, vernier division:0.1mm
Nosepiece	Quadruple (Outer locating)
Condenser	N.A. 1.25 ABBE Condenser with iris diaphragm, filters
Light Source	LED, with brightness control
Weight	NET: 6.3kg; Gross: 6.8kg

Specification for Eyepiece:
Type	Magnification	F.O.V	Tube diameter
WF10X/18	10X	Φ18	Φ23.2
WF16X/11	16X	Φ11	Φ23.2

Specification for Objective:
Magnification	N.A	R(μm)	WD(mm)	Conjugate(mm)	Parfocus(mm)	CoverGlass(mm)
4X	0.10	2.80	21.00	195	45	0.17
10X	0.25	1.10	8.80	195	45	0.17
40X(S)	0.65	0.42	3.73	195	45	0.17
100X(S、Oil)	1.25	0.22	0.40	195	45	0.17
